Mastering the 15-Needle Beast: A Commercial Embroidery Workflow Guide

If you have ever stood in front of a 15-needle commercial head and felt a wave of anxiety, you are not alone. That intimidation—the "Frankenstein Factor"—is the biggest psychological barrier between hobbyist stitching and commercial production.

But here is the truth derived from twenty years on the shop floor: A 15-needle machine isn’t complex; it is simply repetitive. It is the same mechanical logic multiplied by fifteen.

The workflow demonstrated on the BAI Mirror 1501 is a textbook example of production logic. However, to guarantee professional results and avoid costly "bird nests," we need to add improved safety margins, sensory checks, and a deeper understanding of why we take each step.

Below is your "Level 2" field guide—enhanced with industry-standard parameters and safety protocols.

The "Repetition Mindset": Breaking Down the Fear

When you look at a multi-needle head, do not look at the whole machine. Focus on Needle #1. If you can thread one needle with correct tension and routing, you can thread fifteen.

In a commercial environment, threading is not a chore; it is your primary Quality Control (QC) checkpoint.

• The Pro View: A thread break isn't just an annoyance; it is downtime. Taking an extra 10 seconds to thread correctly saves you 5 minutes of re-threading later.


Step 1: The "3-2-1" Thread Stand Logic

The thread stand is your supply line. If the thread enters the guide tube at a sharp angle, it adds "drag," which ruins your tension settings downstream. The BAI utilizes a "3-2-1" routing system to keep paths parallel.

The Routing Rule:

• Back Row (Cones 11-15): Thread passes through 3 holes on the rack.
• Middle Row (Cones 6-10): Thread passes through 2 holes.
• Front Row (Cones 1-5): Thread passes through 1 hole.

Sensory Check:

• Visual: Stand behind the machine. The threads should look like distinct, parallel highways, not a tangled web.
• Tactile: Pull the thread from the cone. It should unspool with zero resistance. If you feel a "tug," check if the thread is caught on the cone's notch (a common beginner trap).


Step 2: The "Hidden" Prep & Tube Feeding

Before you tackle the tension knobs, you must secure the thread so it doesn't whip back into the tube.

The "Park & Pull" Technique:

1. Lift the Metal Plate: On the top tension assembly, lift the pre-tension plate and park the thread underneath. This acts as a third hand.
2. Insert the Wire Tool: Feed your long, flexible wire tool from the bottom of the guide tube up to the top.
3. The Hook: Hook the thread. Crucial: Keep tension on the thread tail with your fingers so it doesn't slip off the hook inside the tube.
4. The Pull: Smoothly pull the wire tool down.

Hidden Consumable Alert: Keep a pair of long-nose embroidery tweezers and a flashlight here. If a thread breaks inside the tube, you will need them.

Step 3: Tension Assembly & The "Click" of Confidence

This is where 90% of "bad stitching" issues originate. Beginners often gently lay the thread over the tension wheels. This is wrong. The thread must be engaged inside the discs.

The "Behind the Knob" Sequence:

1. Sub-Tension: Slide under the small pre-tension latch.
2. The Floss Move: Bring the thread behind the main tension knob. Hold the thread with both hands (like flossing teeth) and snap it behind the inner knob and sensor wheel.
3. Sensory Check (Auditory): Listen for a faint click or feel a distinct snap as the thread seats into the sensor wheel. If it sits on top, the machine will think the thread is broken (false thread break error).
4. The Slit: Ensure the thread falls into the correct vertical slit corresponding to its needle number.

Warning: Mechanical Safety. Keep fingers, lanyards, and loose hair away from the take-up levers when the machine is powered on. These levers move with enough force to break bones.

Step 4: Needle Bar & The Eyelet (Right-to-Left Rule)

Threading the take-up lever on a compact head is tight work.

Action Steps:

1. Tweezers are Mandatory: Do not use your fingers. Use tweezers to guide the thread through the take-up lever eyelet from Right to Left.
2. The Path Down: Thread perpendicular through the white ceramic guide, then behind the metal needle bar guide.
3. The Needle: Thread the physical needle Front to Back.
4. The Trap: Pass the thread through the hole in the presser foot and hook it onto the spring clip above the needle bar.

Expert Tip - The "75/11" Standard: For general apparel and sweatshirts, ensure you are using a 75/11 ballpoint needle. Beginners often leave in sharp needles, which can cut the knit fibers of a sweatshirt, leading to holes after washing.

PREP CHECKLIST: Do This Before Powering On

• Cone Check: Threads are not caught on the bottom notches of the cones.
• Routing: Confirmed "3-2-1" path on the stand.
• Seating: Thread is fully snapped into the main tension discs (felt the resistance).
• Safety: All tools (scissors, wire) are cleared from the table.


Step 5: Hooping Sweatshirts (The Profit Killer)

Hooping is where you make or lose money. If you hoop crooked, the garment is ruined. If you hoop too loosely, you get puckering.

The video demonstrates a Hoop Master Station, which is the gold standard for consistency.

The "Hoop Burn" Problem: Traditional friction hoops must be tightened aggressively to hold thick sweatshirts. This often leaves a permanent "ring" (hoop burn) on delicate fabrics or velvet.

The Solution Ladder:

1. Level 1 (Technique): Use the station to align the logo perfectly every time.

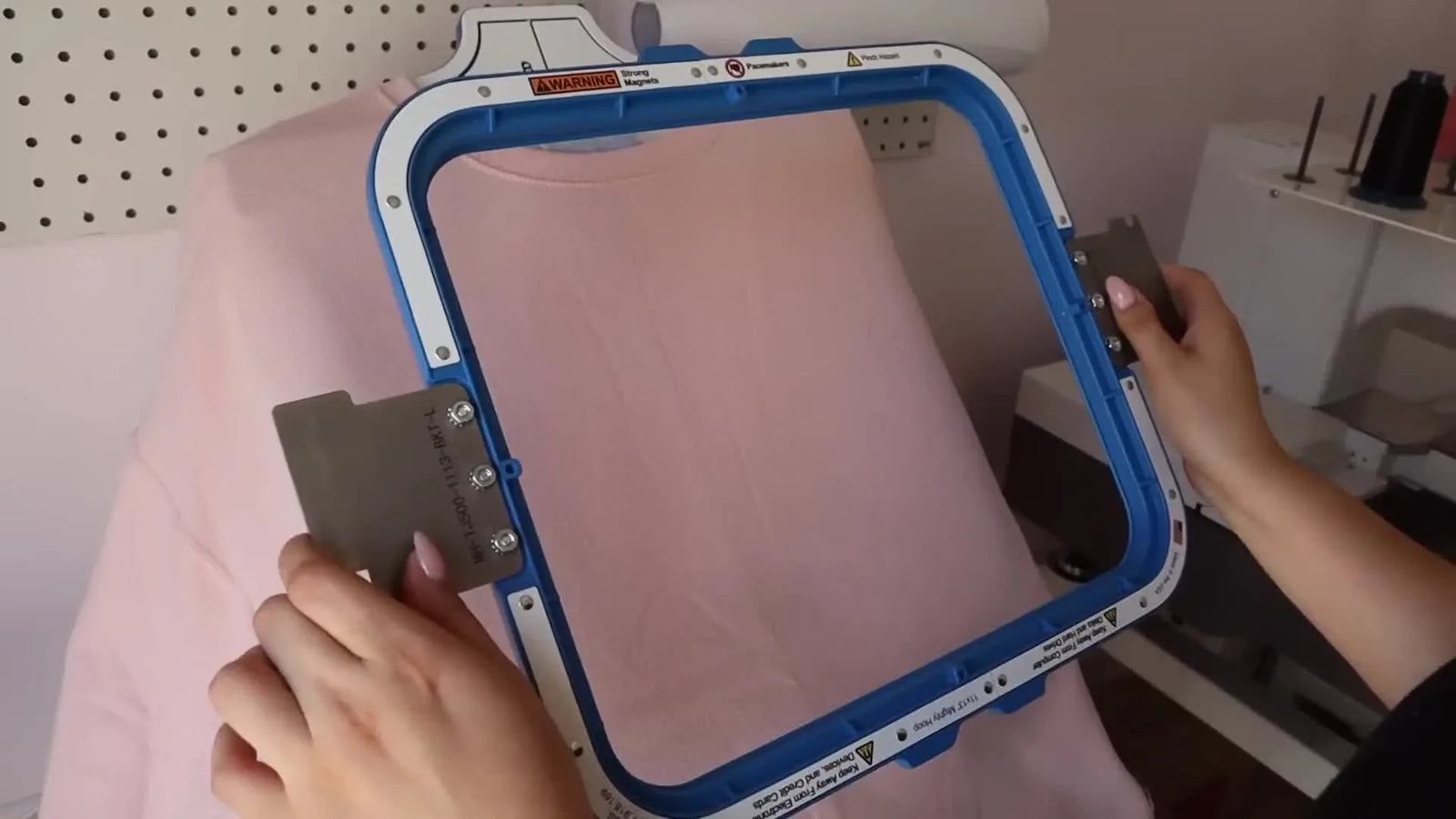

2. Level 2 (Tool Upgrade): If you are fighting thick seams, pockets, or suffering from wrist pain, switch to Magnetic Hoops.
   • Commercial Magnetic Frames: For industrial machines (like the BAI or our SEWTECH multi-needle series), these clamp instantly over zippers and seams without forcing the fabric.
   • Home Magnetic Hoops: Even for single-needle users, there are now magnetic options that prevent hoop burn.

Professionals often search for terms like hoop master station specifically to solve alignment speed issues, but the mechanics of holding the fabric are best solved with magnets.

Warning: Magnetic Safety. Commercial magnetic hoops utilize Neodymium magnets. They snap together with crushing force. Pinch Hazard: Keep fingers clear of the mating surface. Medical: Keep away from pacemakers.

Step 6: Stabilizer Strategy (The Hidden Foundation)

The video shows a "starter kit" with Tear-Away and Cut-Away. The host uses Tear-Away for the sweatshirt.

Expert Calibration: While the host uses Tear-Away, Cut-Away is the industry standard for wearables. Why? A sweatshirt stretches. Tear-Away does not. Over time, the embroidery will distort as the shirt stretches but the backing doesn't.

Decision Tree: Sweatshirt Fabric → Stabilizer Choice

The "Topping" Secret: For any textured fabric like a sweatshirt or towel, you should place a layer of Water Soluble Topping (Solvy) on top. This prevents the stitches from sinking into the fabric pile.

If you are researching a magnetic embroidery hoop, be aware that magnets hold stabilizer very firmly, so you can often get away with slightly less spray adhesive.

Step 7: Bobbin Logic (The Foundation)

A bad bobbin ruins a good top stitch.

The Setup:

1. Orientation: The bobbin must unwind roughly like a "P" (counter-clockwise) or as specified by your specific machine manual (the video emphasizes coming off the left).
2. The Pigtail: This is a tension multiplier. Loop the thread twice around the pigtail guide.
3. Tension Check (The Spider Test): Hold the bobbin thread tail and dangle the case. It should hold its position. If you shake your hand gently, it should drop a few inches and stop. If it drops to the floor → Too loose. If it doesn't move → Too tight.


Step 8: The Trace (The Crash Prevention System)

Never press "Start" without a Trace. The Trace is your contract with the machine.

The Protocol:

1. Select "Trace" (Design Preview) on the touchscreen.
2. Visual Anchor: Watch Needle #1. It acts as the pointer.
3. Success Metric: The needle must stay at least 1.5cm away from the inner edge of the hoop frame throughout the entire perimeter.

The video shows the needle coming dangerously close to the metal bracket. This is a common crash scenario. By using the on-screen arrows to shift the design, the operator avoids a broken needle bar.

Whether you are using a bai embroidery machine or a high-speed industrial unit, this step is non-negotiable.

Step 9: Boundary Management

If your design (Needle #1) traces over the metal bracket of your magnetic hoop:

1. Don't panic.
2. Shift: Move the design off-center using the X/Y arrows.
3. Re-Trace: Verify the new path.

Pro Tip: If you shift the design too far, check if the garment is still centered. If the design is now on the armpit of the sweatshirt, you need to re-hoop, not just shift. This is why a 15 needle embroidery machine requires disciplined alignment before the fabric hits the machine.

Step 10: Color Mapping

On a single-needle machine, you change thread when the machine stops. On a multi-needle, you tell the computer where the colors live.

The Sequence:

• Load: Put your threads on the cones (e.g., Red on #1, Blue on #2).
• Map: On the screen, assign the design colors (Color 1 = Needle 1, Color 2 = Needle 2).
• Save: Lock it in.

SETUP CHECKLIST: Ready to Fire

• Bobbin: Installed correctly, "Spider Test" passed.
• Hooping: Fabric is "drum tight" but not stretched; Topping is applied.
• Trace: Verified 1.5cm clearance from the frame.
• Mapping: Colors assigned to correct physical needles.


Step 11: The Green Button & Speed Management

The video host presses start. But how fast should you go?

The "Sweet Spot" for Beginners: A machine like the bai multi needle embroidery machine can run fast, but speed creates heat and friction.

• Cap Speed: 400-600 SPM (Stitches Per Minute).
• Flat/Sweatshirt Speed: Start at 650-750 SPM.
• Max Speed: Only use max speed for large fill areas on very stable fabrics.

Sensory Check (Auditory): A happy machine makes a rhythmic "thump-thump-thump" sound. A distinct "clack-clack" or "grinding" noise indicates a lack of oil or a needle hitting the throat plate. Stop immediately if the sound changes.

The Result: Analyzing the Stitch

The machine performs auto-trims between letters. This is the Commercial Advantage.

• Manual Trimming: 20+ jumps to cut by hand on a single needle machine takes 5-10 minutes.
• Auto-Trim: Takes 0 minutes.

If looking to upgrade your studio, this is the metric that matters: Throughput. A hooping station for embroidery combined with auto-trimming creates a workflow that can actually generate profit.

Step 12: Finishing

Remove the hoop. Tear away the stabilizer (support the stitches with your thumb so you don't distort them). Remove the water-soluble topping.

The Quality Audit:

1. Looping: Are there loops on top? (Top tension too loose).
2. White Specs: Do you see white bobbin thread on top? (Top tension too tight).
3. Registration: Did the outline line up with the fill? (Hooping wasn't tight enough).


Supplies Logic: Calculating Cost

The kit unboxing reveals 144 bobbins and huge rolls of stabilizer.

Business Logic: The host notes she used "one bobbin per sweatshirt." This is valuable data.

• Hidden Cost: Thread is cheap. Time is expensive.
• The Upgrade Path: If you are spending 10 minutes hooping and 20 minutes stitching, your bottleneck is the hoop. This is where investing in SEWTECH Magnetic Frames pays for itself—not by making the machine faster, but by making the operator faster.


Maintenance & Noise: Listen to Your Machine

The host mentions the machine is quieter and more stable than previous versions.

Maintenance Rule of Thumb:

• Oil: Put one drop of sewing machine oil on the rotary hook every morning before production.
• Clean: Blow out the bobbin area with compressed air every bobbin change. Dust is the enemy of sensors.

People often search for bai embroidery machine hoop sizes to see if they can stitch giant jacket backs. While the machine can do it, ensure your table is stable. Vibration kills stitch quality for large designs.

Troubleshooting: Structured Diagnostics

Before you blame the software, check the physics. Use this Low-to-High cost flow:

The Final Verdict: When to Upgrade?

The transition from a home machine to a 15-needle commercial unit is about Control. You control the colors, you control the speed, and you control the hoop.

• If you are struggling with Hoop Burn: Look at Magnetic Hoops.
• If you are struggling with Speed/Trimming: Look at Multi-Needle Machines (like SEWTECH or similar platforms).
• If you are struggling with Quality: Stop buying cheap consumables. Use the right stabilizer (Cut-Away) and the right needle.

OPERATION CHECKLIST: Post-Job

• Clearance: Remove the hoop straight out (don't drag it across the needle plate).
• Inspection: Check the back of the embroidery. 1/3 white bobbin thread in the center is perfect tension.
• Reset: Clean lint from the bobbin case before the next run.

Embroidery is not magic; it is mechanics. Trust the process, respect the safety margins, and let the machine do the work.

FAQ

• Q: How do I prevent bird nests on a 15-needle commercial embroidery machine when stitching sweatshirts?
  A: Re-thread the top path and make sure the thread is fully seated (clicked) into the main tension discs before restarting—most bird nests come from “no top tension.”
  • Stop the machine and remove the hoop; clear the thread blob under the throat plate before re-running.
  • Re-thread one needle completely: follow the stand routing, tube, then “floss” the thread behind the main tension knob so it snaps into the sensor wheel.
  • Re-check the bobbin installation and run the bobbin “Spider Test” (case should drop a few inches with a gentle shake, then stop).
  • Success check: Pull top thread by hand—there should be smooth resistance (not free-spinning), and stitching should restart without loops forming underneath.
  • If it still fails: Inspect the tension spring/sensor area for damage and consider tension assembly service/replacement.
• Q: How can I tell if thread is correctly seated in the tension discs on a multi-needle embroidery machine tension assembly?
  A: Do the “floss move” behind the main tension knob until the thread audibly/physically snaps into place—laying thread on top of the discs is not enough.
  • Hold thread with both hands and snap it behind the inner knob and sensor wheel (like flossing teeth).
  • Confirm the thread drops into the correct vertical slit for that needle number.
  • Success check: Listen/feel for a faint click or snap; the machine should stop giving false thread-break behavior caused by unseated thread.
  • If it still fails: Re-check routing drag at the thread stand (cone notch catches) and re-thread the guide tube using the wire tool.
• Q: What is the correct “3-2-1” thread stand routing for a 15-needle commercial embroidery machine to reduce tension drag?
  A: Route cones by row so the thread paths stay parallel: back row through 3 holes, middle row through 2 holes, front row through 1 hole.
  • Stand behind the machine and visually confirm threads look like parallel lanes, not crossing lines.
  • Pull thread off each cone to confirm it unspools with zero resistance; free any thread caught on the cone’s bottom notch.
  • Success check: Hand-pulling thread feels smooth with no tugging, and tension becomes more consistent across needles.
  • If it still fails: Reposition cones so the entry angle into the guide tubes is not sharp and re-check for hidden snags in the tube path.
• Q: How do I safely prevent pinch injuries when using commercial magnetic embroidery hoops with Neodymium magnets?
  A: Keep fingers fully clear of the mating surfaces and let the magnets clamp in a controlled, straight-down motion—these frames can snap with crushing force.
  • Hold the magnetic ring by the outer edges and lower it slowly; never “slide” fingers between the two halves.
  • Keep magnetic hoops away from pacemakers and sensitive medical devices.
  • Clear metal tools (scissors/tweezers) from the immediate snap zone before closing.
  • Success check: The frame closes cleanly without “slamming,” and fabric is clamped evenly with no hand contact near the join line.
  • If it still fails: Use a staged closure method (set one side, then lower the rest) and reduce clutter around the hooping area.
• Q: What is the safe threading practice around take-up levers and moving parts on a commercial multi-needle embroidery head?
  A: Power awareness and distance prevent injuries—keep fingers, hair, lanyards, and loose clothing away from take-up levers when the machine is powered on.
  • Use long-nose embroidery tweezers (not fingers) to thread tight eyelets like the take-up lever.
  • Thread the take-up lever eyelet right-to-left, then follow guides down to the needle; thread the needle front-to-back.
  • Remove wire tools/scissors from the table before powering on.
  • Success check: Hands never enter the lever travel area, and threading is controlled with tweezers only.
  • If it still fails: Power down for threading adjustments and re-check the path slowly from top to needle.
• Q: How do I choose the correct stabilizer for sweatshirt embroidery to avoid puckering and long-term design distortion?
  A: Use cut-away as the default for wearables; tear-away can work on very stable heavy hoodies, but cut-away better resists stretching over time.
  • Match fabric to backing: heavy hoodie (10oz+) → heavy tear-away (2.5oz); standard sweatshirt → cut-away (2.5oz); high-stretch fleece → no-show mesh cut-away.
  • Add water-soluble topping on textured sweatshirts so stitches don’t sink into the pile.
  • Success check: After stitching, the design edges stay flat (no tunneling), and the surface details remain visible (not buried).
  • If it still fails: Re-check hooping tightness (drum tight, not stretched) and consider a hooping tool or magnetic hoop for more even holding.
• Q: How do I prevent needle breaks caused by hoop contact using the “Trace” function on a commercial embroidery machine?
  A: Always run Trace and ensure Needle #1 stays at least 1.5 cm from the hoop/frame edge for the entire perimeter before pressing Start.
  • Select Trace/Design Preview and watch Needle #1 as the pointer.
  • Shift the design with X/Y arrows if the trace approaches brackets or the frame.
  • Re-trace after every shift; do not rely on a single preview.
  • Success check: Trace path maintains consistent clearance (≥ 1.5 cm) from the inner hoop edge and hardware throughout the loop.
  • If it still fails: Re-hoop for proper centering—shifting too far can move the design onto an incorrect garment area (like an armpit).
