Back-of-Fitted-Hat Embroidery on a Single-Needle Machine: The Sticky-Float Method That Actually Stays Straight

The Guide to "Floating" Hats on Single-Needle Machines: From Fear to Factory Finish

If you have ever stared at the back of a fitted cap and thought, "There is no way my home machine can handle this bulk," you are not alone. The curvature of a structured hat—specifically the back arch—is one of the most intimidating substrates for a single-needle user. It looks like a job that requires a $10,000 commercial machine with a cap driver.

However, with the right physics, stabilization, and speed control, you can achieve professional results on a standard 4x4 hoop. The secret is not forcing the hat into the hoop, but controlling how it floats on the hoop.

This guide rebuilds the workflow demonstrated in standard tutorials but adds the shop-floor safety protocols and sensory checks that prevent the two classic disasters of hat embroidery: needle breaks and mid-stitch shifting.

The Calm Truth: Physics vs. Fear

The video proves you can stitch a name on the back of a fitted hat (like a Flexfit or New Era) using a standard domestic machine. The "secret" isn't a special frame; it is controlling three variables:

1. Adhesion: The stabilizer must be tight like a drum skin, and the sticky surface must cover the entire contact area.
2. Friction: Pins act as mechanical anchors to stop the "creep" caused by the needle's drag.
3. Clearance: The hat's bill and crown must be managed so they don't hit the machine head.

If you are working with a standard brother 4x4 embroidery hoop, the back arch is your safest starting point. It has a natural "window" between the seams, and unlike the front panels, it is flexible enough to flatten slightly without ruining the hat's shape.

The "Hidden" Prep: Setup Before You Touch the Machine

Before you even look at the hoop, you must perform a "Design Reality Check." Hats are not flat t-shirts; they are 3D objects that resist flattening.

• Design Size: Keep it small. For a 4x4 hoop, your text should be no wider than 3.5 inches and no taller than 1.5 inches to stay safe from the curvature limits.
• Seam Logic: Most fitted hats have a vertical center seam on the back. Use this as your built-in ruler.
• Needle Choice: Use a 75/11 Sharp or Topstitch needle. Ballpoint needles (often used for knits) may struggle to penetrate the dense canvas of a hat without deflecting.

Prep Checklist: The "Go/No-Go" Criteria

• Consumables: Locate your Sticky Tear-Away stabilizer (e.g., Pellon Stick-N-Tear). Do not use standard tear-away with spray adhesive for hats; the bond isn't strong enough.
• Tool Check: Ensure you have long quilting pins (short pins will get buried in the foam) and precise tweezers.
• Obstruction Check: Flip the hat inside out. Is the tag right in the embroidery zone? (Almost always, yes).
• Thread Path: Check your top thread tension. It should feel slightly tighter than when sewing cotton—like pulling dental floss through a tight gap.


Hooping Pellon Stick-N-Tear: The "Drum Skin" Standard

The video highlights a common frustration: sticky stabilizer is thicker than standard backing. If you try to hoop it with the screw tight, you will warp the inner hoop or fail to close it.

The Action:

1. Loosen Significantly: Unscrew the hoop tension knob until it feels loose in your hand.
2. Seat the Stabilizer: Place the Pellon sheet over the outer hoop.
3. Press, Don't Force: Press the inner hoop down. It should seat with a firm thud, not a high-pitched crack.
4. Tighten to Pitch: Once seated, tighten the screw. Tap the stabilizer with your finger. Listen: It should sound like a drum. If it sounds like loose paper, the hat will shift.

This is a classic lesson in hooping for embroidery machine mechanics: uneven tension in the stabilizer creates a "trampoline effect" that causes registration errors (where outlines don't match fills).

Exposing the Adhesive: Score, Don't Slice

Once hooped, you need to expose the sticky layer. The goal is to remove the paper without slicing the stabilizer web underneath.

The Technique:

• Take the tip of your scissors or a straight pin.
• Score an "X" gently in the center. Feel for the change in texture—smooth paper vs. fibrous backing.
• Peel the paper away from the center out.

Pro-Tip: If the paper tears in tiny shreds, the adhesive is old or the room is too cold. Warm it slightly with your hand friction to help it release. This prepares the surface for the floating embroidery hoop method, where the fabric sits on top rather than being crushed between the rings.

Tag Management: The Mistake You Make Once

The instructor folds the sweatband out of the way. This is critical. Inside every fitted hat is a manufacturer tag legally required to be there, and it loves to flop directly under your needle.

The Fix:

• Fold the sweatband back.
• Pin the tag flat against the side of the hat, completely out of the "Kill Zone" (the center stitching area).
• Visual check: Can you see the white stabilizer clearly? If you see a tag, fix it now.


Alignment Physics: Center Seam and Brim Direction

Alignment on a hat is actually easier than a t-shirt because you have a physical center line (the seizure).

The Action:

1. Locate Center: Align the hat's vertical seam with the plastic registration marks on your hoop (the notches at 12 o'clock and 6 o'clock).
2. Orientation Rule: Points Out. The brim of the hat must point away from the embroidery arm connection. If the brim points toward the machine body, it will hit the vertical arm and ruin the machine's motor.
3. The Press: Once aligned, press the fabric down with your knuckles. You want to mash the fibers into the adhesive.


Pinning Strategy: Friction is Not Enough

Adhesive helps positioning, but pins prevent shifting. As the needle hammers into the hat (800 times a minute), it creates a micro-vibration that walks the fabric away from the center.

The Triangle Defense:

• Place one pin on the left side.
• Place one pin on the right side.
• Place one pin at the top, near the crown.

Sensory Check: Wiggle the hat gently. It should move with the hoop, not slide on the hoop. If it slides, your pins aren't anchoring into the stabilizer deeply enough.

Warning: Mechanical Hazard
Ensure strictly that pins are outside the embroidery field. If the needle strikes a pin at high speed, it can shatter. The flying metal shard is an eye hazard, and the impact can burr your hook assembly or timing gear, requiring professional repair.

The "Eye-Ball" Calibration

Before you mount the hoop, hold it at arm's length. Look at the hat straight on.

• Does the brim look parallel to the bottom of the hoop?
• Is the seam perfectly vertical?

If it looks crooked now, the machine will stitch it crooked. The machine doesn't know where the hat is; it only knows where the hoop is. Peel it up and fix it now. This 30-second check saves you a $30 hat.

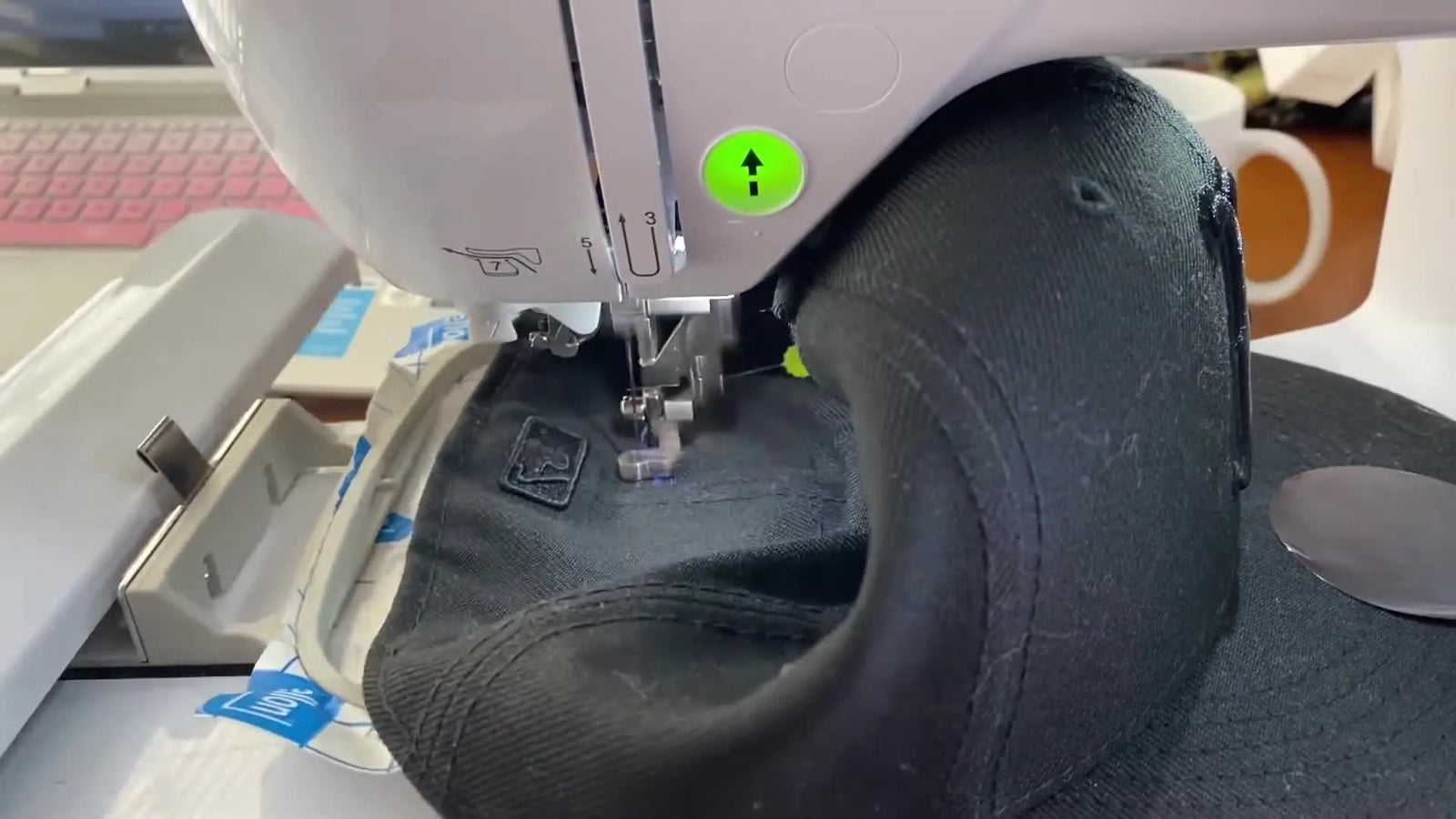

Machine Clearance: The Single-Needle Struggle

This is the "make or break" moment for single-needle owners. You must slide the hoop onto the arm while ensuring the rest of the hat (the floppy crown and stiff brim) doesn't get trapped under the machine head.

The Reality of Bulk: You will likely need to "squish" the crown of the hat down flat. This is normal. Use painter's tape if necessary to hold the floppy front panels down, ensuring they don't drift back under the needle.

Commercial Insight: If you find yourself doing this daily, you will develop "Hooping Fatigue." The constant screwing, unscrewing, and wrestling with thick hats on standard hoops is the #1 reason shop owners upgrade. Professionals often switch to effective magnetic embroidery hoops because the magnets snap instantly over thick seams without the need to excessively loosen and tighten screws, saving your wrists and your sanity.

The Trace: Your Insurance Policy

Never, ever press "Start" on a hat without tracing.

The Action:

1. Select the "Trace" or "Trial" button on your screen.
2. Watch the foot: Does it come dangerously close to your pins?
3. Watch the head: Does the machine casing rub against the side of the hat?
4. Listen: Do you hear the brim scraping against the machine body?

Setup Checklist: The "Pre-Flight" Inspection

• Hoop Lock: Is the hoop clicked firmly into the carriage? (Give it a gentle tug).
• Brim Safe: Is the brim pointing away from the machine?
• Tag Safe: Is the tag pinned back?
• Pin Clearance: Did the trace confirm at least 5mm clearance between the foot and the pins?
• Speed Limit: Reduce your speed. For hats on a single-needle, set your machine to 400-600 SPM (Stitches Per Minute). Speed kills on curved surfaces.


The Stitch: Active Monitoring

Press the green button. Do not walk away.

The Operator's Role: Stand by the machine. Use your fingers to gently guide the floating parts of the hat (the bill, the sides) to ensure they don't get caught on the presser foot lever or the side of the machine. Do not pull or push—just guard against snags.

Commercial Context: For a hobbyist, baby-sitting the machine is fine. For a business, this "hovering" cuts into profit margins. This limitation is why production shops use SEWTECH multi-needle embroidery machines. Their tubular arms provide 360-degree clearance, allowing hats to spin freely without the operator pressing down the crown or taping back panels.

Finishing: The "Un-Hooping" Hygiene

Once the machine sings its finish song, resist the urge to rip everything off.

The Sequence:

1. Remove the hoop from the arm.
2. Remove Pins First. (Getting stabbed by a hidden pin inside a hat is a rite of passage you want to avoid).
3. Tear the hat gently away from the stabilizer.
4. Trim Jump Stitches: Use curved scissors and tweezers. Lift the jump thread, snip close to the fabric, but leave the knot.

Warning: Structural Integrity
Do not cut the small knots on the back of the letters. If you cut the tie-off knot, the embroidery will unravel the first time the customer sweats in the hat.

Lateral Thinking: Side vs. Back

The method described here works for the back arch. Can you do the side?

• Technically: Yes.
• Practically: It is much harder. The side of a hat curves in two directions (compound curve). It is very difficult to flatten a side panel on a 4x4 hoop without causing "flagging" (bouncing fabric) which leads to bird nests. Proceed with caution and expect a higher failure rate on side panels without a cap driver.


Decision Tree: Fabric Protocol

Not all hats are created equal. Use this logic to choose your stabilizer sandwich.

Decision Tree: Hat Type vs. Strategy

• Structured Wool/Acrylic (Fitted Cap):
  • Stabilizer: Sticky Tear-Away (2 layers if the text is dense).
  • Needle: 75/11 Sharp.
• Unstructured "Dad Hat" (Cotton Twill):
  • Stabilizer: Sticky Tear-Away + a floating layer of Water Soluble Topper (to prevent stitches sinking).
  • Needle: 75/11 Ballpoint or Universal.
• High-Stretch "Trucker" Mesh:
  • Stabilizer: Heavy Cut-Away (floated with Spray Adhesive). Tear-away will fail on mesh.
  • Needle: 75/11 Ballpoint.


Ergonomics and Efficiency: The Tool Upgrade Path

If you stitch one hat a month, the standard plastic hoop is fine. If you stitch ten hats a week, you will likely encounter "Hoop Burn" (permanent shiny rings on dark fabric) or repetitive strain injury in your thumbs.

The Solution Hierarchy:

1. Level 1 (Technique): Use "floating" (as described) to minimize hoop burn.
2. Level 2 (Tool): Upgrade to a generic magnetic hoop for brother pe800. The magnets clamp fabrics of varying thickness automatically without adjustment screws, eliminating hoop burn almost entirely.
3. Level 3 (System): Use a dedicated hooping station for embroidery to guarantee your placement is identical on every single hat, reducing the time you spend "eyeballing" straightness.

Warning: Magnetic Field Safety
Magnetic hoops use industrial-grade neodymium magnets. They are strong enough to pinch fingers severely. Keep them away from pacemakers, insulin pumps, and magnetic storage media.

Troubleshooting: The "Why Did It Fail?" Matrix

If things go wrong, do not blame the machine immediately. Check this matrix first.

Final Inspection Checklist

Before handing the hat to a customer (or putting it on your head), perform this quality control pass:

1. Tactile Check: Rub the inside of the embroidery. Is it scratchy? If so, heat-press a layer of "Cloud Cover" or fusible backing over the stitches to protect the skin.
2. Cleanup: Use the sticky side of your waste masking tape to dab the hat and remove any lint or stabilizer fuzz.
3. Stability: Pull gently on the letters. If they separate from the hat, your bobbin tension was too loose or you didn't use enough underlay stitches.

Mastering hat embroidery on a single-needle machine is a badge of honor. It proves you understand the mechanics of your craft. But remember: tools exist to solve problems. When the struggle to clear the brim or hoop the thickness slows your business down, that is your signal to explore the SEWTECH ecosystem for the specialized tools that turn a "struggle" into a "standard procedure."

FAQ

• Q: Why does a Brother 4x4 embroidery hoop feel impossible to close when hooping Pellon Stick-N-Tear for floating fitted hats?
  A: Loosen the Brother 4x4 hoop screw far more than usual, seat the sticky stabilizer first, then tighten only after the inner ring drops in cleanly.
  • Unscrew the tension knob until it feels loose in your hand (not just “a little loose”).
  • Place the Stick-N-Tear sheet over the outer ring and press the inner ring down with steady pressure—do not force it.
  • Tighten the screw after the hoop is fully seated.
  • Success check: Tap the hooped stabilizer; it should sound like a drum skin, not like loose paper.
  • If it still fails: Stop forcing the hoop (cracks happen) and consider switching thick jobs to a magnetic hoop to avoid constant screw adjustments.
• Q: How do I expose the adhesive on Pellon Stick-N-Tear without cutting through the stabilizer web when floating a hat on a single-needle embroidery machine?
  A: Score the release paper lightly in an “X” and peel from the center outward—do not slice.
  • Use a pin tip or scissor point to scratch the paper surface gently until you feel the texture change.
  • Peel the paper back slowly from the center to the edges.
  • Warm the surface with hand friction if the paper tears into shreds (cold/old adhesive is common).
  • Success check: The sticky layer is exposed in one clean area with the fibrous stabilizer intact (no cut lines).
  • If it still fails: Replace the stabilizer with a fresher sheet or warm the room slightly before peeling.
• Q: What needle should a Brother single-needle embroidery machine use for stitching names on the back arch of a structured fitted hat?
  A: Use a 75/11 Sharp or 75/11 Topstitch needle to reduce deflection and improve penetration on dense hat fabric.
  • Install a new 75/11 Sharp/Topstitch needle before starting (dull needles break more easily on hats).
  • Keep the design modest for a 4x4 field (a safe starting point is text under about 3.5" wide and 1.5" tall).
  • Reduce stitching speed for control (400–600 SPM is a safe operating range for this scenario).
  • Success check: The needle enters cleanly without punching sounds, skipped stitches, or visible wobble in satin columns.
  • If it still fails: Re-check pin placement and clearance tracing—most hat needle breaks come from contact with pins/brim, not “bad needles.”
• Q: How do I prevent a fitted hat from shifting while floating on sticky stabilizer in a Brother 4x4 embroidery hoop?
  A: Add a three-pin “Triangle Defense” into the stabilizer so the hat moves with the hoop, not on the hoop.
  • Align the hat’s back center seam to the hoop’s top/bottom registration marks before pinning.
  • Pin left, pin right, and pin near the crown/top—anchor through the hat into the sticky stabilizer.
  • Keep every pin clearly outside the embroidery field before you mount the hoop.
  • Success check: Wiggle the hat gently; the hat should follow the hoop as one unit with no creeping.
  • If it still fails: Increase pin depth (short pins get buried) and re-check that the stabilizer is hooped “drum-tight.”
• Q: How do I avoid needle breaks on a Brother single-needle embroidery machine when floating the back of a hat near the brim and pins?
  A: Run the machine’s Trace/Trial function before stitching and confirm clearance from both pins and hat bulk.
  • Trace once while watching the presser foot path near pins and the machine head near the hat sides.
  • Re-orient the hat so the brim points away from the embroidery arm connection to prevent collisions.
  • Lower the speed to 400–600 SPM to reduce impact risk on curved, bulky areas.
  • Success check: During trace, the foot maintains visible clearance (about 5 mm) from pins and nothing rubs or scrapes.
  • If it still fails: Move pins farther out and trace again—never “start and hope” on a hat.
• Q: Why is white bobbin thread showing on the front of hat lettering on a Brother single-needle embroidery machine, and how do I fix it fast?
  A: Reduce top thread tension slightly because the top tension is too tight for the hat/stabilizer stack.
  • Lower the top tension in small steps (a common target range mentioned for this case is about 3.0–3.5).
  • Re-stitch a small test or a short segment of the design after each adjustment.
  • Confirm the hat is firmly stabilized (loose backing can exaggerate tension symptoms).
  • Success check: The top thread fully covers the stitch on the face with no white “railroad tracks” showing.
  • If it still fails: Re-check threading path and confirm the stabilizer is hooped drum-tight before chasing tension further (machine manuals vary).
• Q: When should hat embroidery on a Brother single-needle workflow upgrade from technique fixes to magnetic hoops or to a SEWTECH multi-needle embroidery machine for production?
  A: Upgrade in layers: optimize floating first, move to magnetic hoops when hooping becomes the bottleneck, and consider a multi-needle system when clearance/hovering time kills throughput.
  • Level 1 (Technique): Float the hat on sticky stabilizer, add triangle pinning, trace twice, and run slower speeds to prevent shifts and breaks.
  • Level 2 (Tool): Switch to magnetic hoops if thick seams and constant screw tightening cause hooping fatigue or hoop burn on dark fabrics.
  • Level 3 (System): Move to a multi-needle tubular-arm setup when daily hat volume requires consistent clearance and less operator “hovering.”
  • Success check: The upgrade choice should reduce either re-hoops/failed hats (quality) or minutes-per-hat (efficiency) in a measurable way.
  • If it still fails: Standardize a pre-flight checklist (tag pinned away, brim orientation correct, trace clearance confirmed) before blaming the machine or materials.
• Q: What magnetic field safety rules should operators follow when using industrial-strength magnetic embroidery hoops for hats?
  A: Treat magnetic hoops as pinch hazards and keep them away from medical devices and magnetic storage media.
  • Keep fingers clear when magnets snap closed; the pinch force can be severe.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and similar medical devices.
  • Store magnetic hoops away from magnetic-sensitive items (cards, drives) and keep them controlled on the workbench.
  • Success check: Operators can open/close the hoop without finger contact between magnet blocks, and the hoop is stored in a fixed, predictable spot.
  • If it still fails: Pause use and retrain handling—magnet safety is procedural, not something to “muscle through.”
