Back-of-Cap Embroidery Without a Cap Driver: The Table-Corner Trick + Ricoma 8-in-1 D-Frame Workflow That Actually Centers Clean

Mastering Back-of-Cap Embroidery: A Physicist’s Guide to Hooping Without a Driver

If you’ve ever promised a client “Sure, I can stitch the back of that cap,” and then immediately felt your stomach drop—good. That little panic is healthy. The back of a cap is one of those deceptively simple placements that punishes sloppy hooping, rushed centering, and the wrong stabilizer.

The good news: you do not need a cap driver to get professional results on the back of a hat. In fact, for many "dad hats" or unstructured caps, a cap driver can sometimes overstretch the mesh.

In this walkthrough, I’ll dismantle and rebuild the exact two methods shown on a Ricoma multi-needle setup—one using a standard green tubular hoop, and one using the D-shaped frame from the ricoma 8 in 1 device—and I’ll add the “old hand” sensory details that keep you from wasting expensive inventory.

You Don’t Need a Cap Driver for Back-of-Hat Embroidery—You Need Control (and a Corner)

A lot of embroiderers operate under the false assumption that “cap = cap driver.” That’s true for front panels and structured high-crows, but the back of a cap is a different geometry problem entirely. You are trying to hold a small, curved, already-finished area flat enough to stitch—without crushing the rest of the hat or fighting the plastic strap.

The video demonstrates two workable approaches based on Mechanical Clamping vs. Adhesive Stabilization:

• Method 1 (The Skill Approach): Standard green tubular hoop + tearaway backing + the table-corner trick.
• Method 2 (The Production Approach): D-shaped frame + adhesive backing + master bracket.

Both can produce similar stitch quality. The difference is "Cycle Time"—how much time and frustration you spend getting there.

The “Hidden” Prep That Prevents Strap Snags and Hoop Burn

Before you touch the hoop, do two minutes of prep. This is where 90% of cap-back jobs are won or lost.

What the video shows (and what you must feel)

A Velcro strap cap is thick at the back opening. It is essentially a sandwich of sweatband, canvas, and Velcro loops. If your hoop gap is too tight, you will struggle to close the hoop, and that struggle creates Fabric Distortion.

Expert Reality Check: The Physics of Distortion

Caps are layered. When you clamp that stack unevenly, the fabric doesn’t just sit tighter—it twists. Imagine twisting a wet towel; that is what happens to the fabric fibers. This causes:

• "The Frown": Lettering that looks curved downward.
• Registration Drift: Outlines that don't match the fill because the fabric snapped back halfway through.

Warning: Keep fingers, loose sleeves, and snips away from the needle area when tracing and starting the run on a cap back. Because the hoop is small and hands are often used to "hold" the bill during a trace (a bad habit), the risk of a needle strike is high.

Prep Checklist: The "Zero-Hoop" Protocol

• Closure Audit: confirm the cap type. Fitted is easiest; Velcro is the most likely to snag; Snapback falls in the middle.
• Mark the Zone: Use a water-soluble pen or chalk to mark the absolute center of the seam if your eye isn't trained yet.
• Consumable Check:
  • Standard Hoop: Heavyweight Tearaway backing (2.5oz or 3oz).
  • D-Frame: Filoplast or high-quality Adhesive backing.
• Clear the Corner: Clear a sharp 90-degree corner on your workstation. You need the cap to hang 100% freely.
• Pre-Loosen: Loosen your hoop screw before the cap touches it. Open it 3mm wider than you think you need.

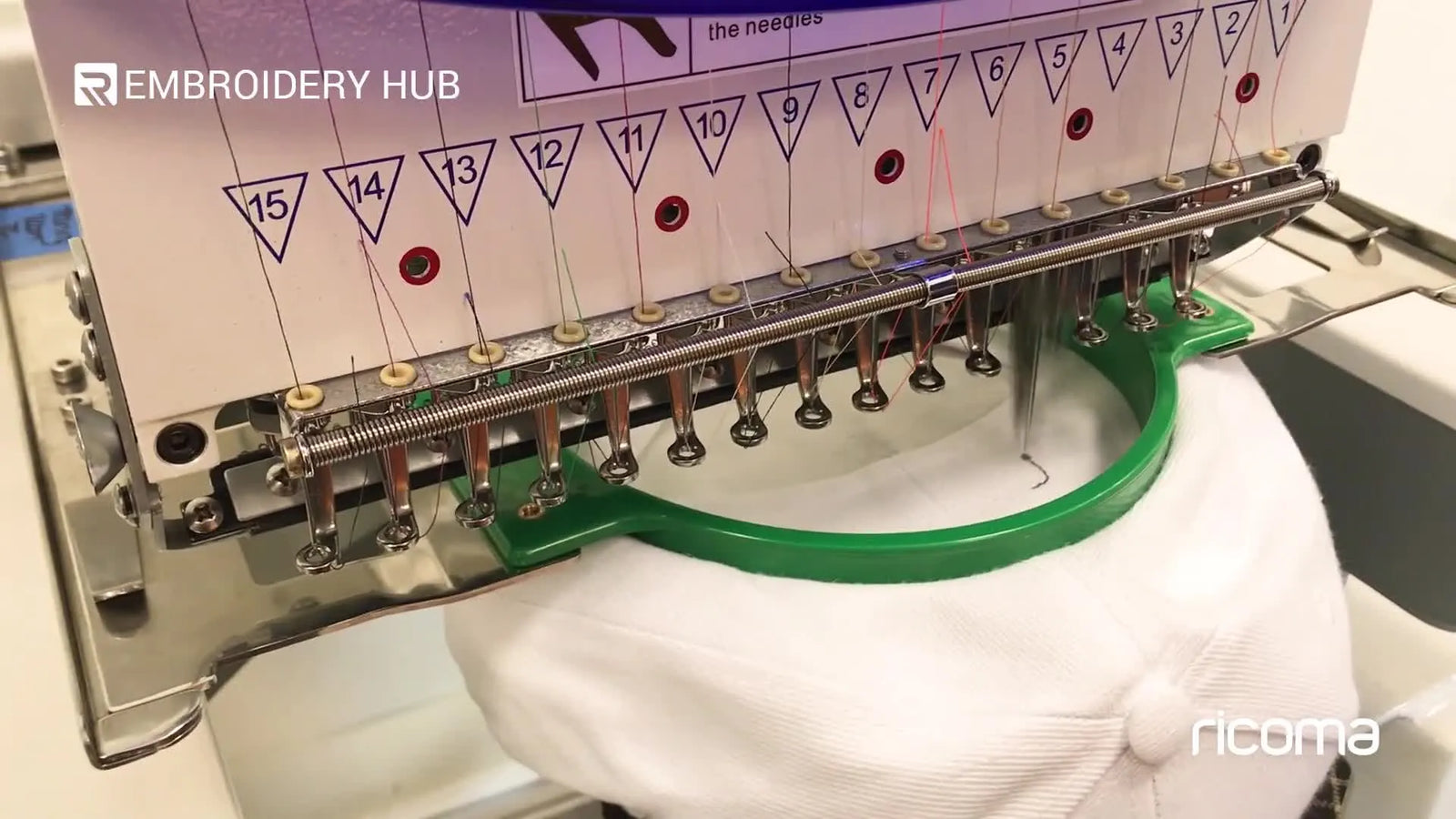

Method 1: Standard Green Tubular Hoop + Table Corner—The “Old School” Way

This is the method you use when you don’t have specialty fixtures available, or when you want to refine your manual hooping skills. It relies on friction and tension.

1) The "Gap Theory": Open wider than normal

The video’s key move is simple but vital: loosen the outer ring screw significantly.

• Sensory Check: When you slide the outer ring over the cap and inner ring, it should drop into place with a dull thud, not a high-pitched snap. If you have to muscle it, it's too tight.
• The Risk: If the Velcro strap gets caught, it acts like a brake pad, preventing the hoop from seating fully.


2) The Table Corner Trick (Gravity is your friend)

The host places the outer hoop ring right on the exact corner where the two edges meet.

1. Lay tearaway backing over the outer ring.
2. Slide the cap opening over the backing/ring assembly.
3. The Pivot: Let the bill and crown of the cap hang off the corner. Gravity pulls the bulk of the hat out of your way, leaving the back panel flat on the table surface.

3) Visual Centering with the U-Bracket

The video uses the hoop’s U-shaped metal bracket attached to the outer ring as the centering reference.

• Action: Align the vertical seam of the cap with the center notch on the hoop bracket.
• Sensory Check (The Tug Test): Once the inner ring is pressed in and the screw is tightened, lightly tug the exposed backing. It should feel taut, but not like a drum skin. If the cap slides when you tug the backing, you aren't clamped.


Ricoma Control Panel Setup: The 180° Flip That Saves Your Job

Here’s the part that bites beginners: when you use a standard hoop instead of a cap driver, the machine does not know it is stitching a hat. It thinks it is stitching a flat shirt.

The cap is loaded "upside down" relative to the machine (brim facing you). Therefore, the design must be flipped.

• Hoop Selection: Select Other or Standard (Do NOT select Cap Mode).
• Orientation: Find the "F" icon or Rotate tool. Rotate the design 180°.


Visual Validation: Look at your screen. The lettering should appear upside down. If it is readable right-side up on the screen, it will stitch upside down on the hat.

Warning: Never skip the Trace. On cap backs, the margin for error is roughly 5mm. A trace ensures you won't hit the thick seam ridge or the metal eyelets.

Setup Checklist (Standard Hoop)

• Hoop screw was loosened enough that the Velcro strap did not bind during insertion.
• Outer ring was stabilized on a sharp table corner.
• Tearaway backing is smooth, not crinkled under the fabric.
• CRITICAL: Design is rotated 180° in the control panel.
• Trace confirmed: The needle foot does not hit the brim or the sweatband.


Method 2: D-Shaped Frame + Adhesive Backing—The Production Workflow

The second method uses the D-shaped frame from the 8-in-1 set and adhesive backing. This is the workflow you reach for when you have an order of 20+ caps. It relies on adhesion rather than friction.

If you have been searching for a safer cap hoop for embroidery machine technique that doesn't involve crushing the fabric between two plastic rings, this is the industry standard for efficiency.

1) Build a clean “Sticky Window”

The host prepares the D-frame (which has no inner ring):

1. Peel the paper off the adhesive backing.
2. Place it sticky side up on the table.
3. Press the metal D-frame firmly onto the sticky surface.
4. Score and Peel: Use a pin or snips to score the backing around the outside edge and peel away excess.




Why this works: You have created a "sticker" that holds the cap. There is no hoop burn because there is no outer ring pressing down on the fabric fibers.

2) The "Stick and smoothing" Motion

Using the table corner again:

1. Slide the cap opening over the frame.
2. Press the back panel onto the exposed adhesive.
3. Sensory Check: Use your thumbs to massage the fabric from the center seam outward. You should feel the fabric activate against the glue.


3) The Master Bracket Lock

The host attaches the long master arm to the pantograph, slides the loaded D-frame into the bracket slot, and tightens the black thumbscrew to lock it.

Safety Check: Once locked, grab the frame and wiggle it. It should move the entire machine arm (X/Y pantograph). If the frame wiggles inside the bracket, your registration will be off. Tighten the thumbscrew.

Speed, Stability, and Why 600 SPM is the "Sweet Spot"

A viewer noticed the machine running at a moderate pace. Ricoma confirmed it was around 600 stitches per minute (SPM).

While modern machines can run at 1000 SPM, seasoned professionals slow down for cap backs.

• The Physics of Flagging: Cap backs are not drum-tight. At high speeds, the fabric bounces up and down (flagging) with the needle. This causes birdnests and thread breaks.
• The Recommendation: Set your machine to 500-600 SPM for this task. Control beats speed. A thread break takes 2 minutes to fix; stitching slightly slower costs you 30 seconds per hat. Do the math.

Tearaway vs. Adhesive: The Decision Tree

The video shows tearaway for the standard hoop and adhesive for the D-frame. Here is a logic path to help you decide which stabilizer to pull from your shelf.

Decision Tree: Stabilizer Selection

1. Is your hoop mechanically clamping the fabric (Inner + Outer Ring)?
   • YES → Use Tearaway Backing (2.5 - 3.0 oz). The friction holds the fabric; the stabilizer adds stiffness.
   • NO (Window clamping / Magnetic Frame) → Go to #2.
2. Is the fabric securely stuck to the stabilizer?
   • YES → Use Adhesive Tearaway (Sticky Backing). The glue prevents shifting since there is no top clamp.
   • NO → Go to #3.
3. Are you stitching on a flimsy unstructured mesh?
   • YES → Use Cutaway Backing. Mesh needs permanent support, or the stitches will distort after the first wash.

If you are trying to replicate the D-frame workflow with a different brand, you are essentially building a custom sticky hoop for embroidery machine system. Ensure your adhesive is fresh; "day-old" sticky backing will fail mid-stitch.

“How Many Letters Can I Fit?”—The 0.5" Rule

Ricoma notes their logo was 2.5" x 0.7". Beginners often ask, "How many letters fit?" expecting a number like "12."

The Real Answer: You are limited by the curvature.

• Vertical Limit: Keep your design at least 0.5 inch (12mm) away from the bottom sweatband seam to avoid needle deflection.
• Horizontal Limit: The closer you get to the side seams, the more the cap curves away from the needle plate.
• Safe Zone: For a standard Dad Hat, aim for a max width of 3.5 to 4 inches and a max height of 1.5 to 2 inches.

Arched Lettering: Why It "Smiles" or "Frowns"

Arched text is the holy grail of cap backs, but it often distorts.

• The Cause: Uneven tension during hooping. If you pull the left side tighter than the right, the fabric relaxes after you unhoop, and your perfect arch warps.
• The Fix: Center the seam perfectly. Do NOT pull the fabric side-to-side. Let the adhesive or the hoop ring do the holding.

Hidden Consumable: Keep a flexible ruler at your station. Measure the arch on the screen and compare it to the physical curve of the cap opening before you stitch.

Multi-Location Jobs & Commercial Reality

A viewer asked about doing front and back on the EM-1010. Ricoma confirmed: yes, but it’s separate hoopings.

The Workflow Upgrade Path: If you are doing one-off gifts, the Standard Hoop (Method 1) is fine. If you are doing a 50-hat order for a local baseball team, Method 1 will destroy your wrists and your profit margin.

Scene Trigger: You are spending more time hooping than the machine spends stitching (e.g., 3 mins hoop / 2 mins stitch). The Solution:

1. Tools: Upgrade to Magnetic Hoops (such as Sewtech magnetic frames). They eliminate the "unscrew-rescrew" friction and reduce hoop burn significantly.
2. Station: Create a dedicated machine embroidery hooping station with visual guides marked on the table.
3. Machine: Move to a multi-head or a machine with a larger pantograph clearance if volume demands it.

Warning: Magnet Safety. If you upgrade to magnetic hoops, be aware they carry serious pinch hazards. Keep them away from pacemakers, and never place your fingers between the magnets when snapping them shut. The clamping force is industrial-grade.

Q&A: Troubleshooting the Setup

• “What hoop size do I pick on the 8-in-1?”
  Select Other or Standard. The machine doesn't "know" the D-frame exists; you just need to ensure the design stays inside the physical limits. Always Trace.
• “Can I use Mighty Hoops?”
  Yes. Many pros use mighty hoops for ricoma em 1010 setups for back-of-hats. The magnetic force acts like the D-frame method but is faster. The principle is the same: Clamp, Trace, Stitch.
• “Which hoops are you using?”
  The video uses the Ricoma 8-in-1 D-frame and the standard tubular hoops. These are interchangeable with many ricoma embroidery hoops and third-party equivalents like Sewtech, provided the bracket width matches your machine's arm width.

Final Checklist: The "Go/No-Go" for Production

Before you press start on that first cap, run this mental flight check:

1. Bobbin Check: Is there enough bobbin thread? Running out halfway through a cap back is a nightmare to re-align.
2. Bill Clearance: Is the bill of the cap folded/clipped back so it won't hit the machine head?
3. Orientation: Is the design upside down on the screen? (Yes = Good).
4. Stabilizer: Is the correct backing firmly in place?
5. Sound: Does the machine sound rhythmic? Use a slower speed (600 SPM) to start.


FAQ

• Q: How can Ricoma EM-1010 users embroider the back of a cap without a cap driver using a standard tubular hoop?
  A: Use a standard tubular hoop with heavyweight tearaway backing and the table-corner method to keep the cap back flat without crushing the hat.
  • Loosen the outer ring screw before hooping (open it a few millimeters wider than you think you need).
  • Lay tearaway backing over the outer ring, slide the cap opening over it, and let the bill/crown hang off a sharp 90° table corner.
  • Align the cap’s back seam to the hoop bracket center reference, then press in the inner ring and tighten.
  • Success check: the outer ring should seat with a dull “thud” (not a sharp “snap”), and the cap should not slide when you lightly tug the exposed backing.
  • If it still fails: re-hoop with a wider gap—Velcro straps often bind and prevent the hoop from fully seating.
• Q: On a Ricoma control panel, what settings prevent upside-down lettering when stitching the back of a cap in a standard hoop (not cap mode)?
  A: Select a standard/other hoop setting and rotate the design 180° because the cap is loaded “upside down” relative to flat goods.
  • Select Other or Standard (do not select Cap Mode).
  • Rotate the design 180° using the rotate tool.
  • Always run a trace before stitching.
  • Success check: the text should look upside down on the screen; if it reads normally on-screen, it will stitch upside down on the cap.
  • If it still fails: stop and re-check orientation before sewing—do not “test stitch” on a finished cap.
• Q: What is the fastest way to hoop 20+ back-of-cap jobs on a Ricoma multi-needle machine using a D-shaped frame and adhesive backing?
  A: Use a D-shaped frame with adhesive backing to create a clean sticky “window,” then smooth the cap into place and lock it firmly in the master bracket.
  • Peel the adhesive backing and press the D-frame onto the sticky surface; score around the frame edge and peel excess backing away.
  • Slide the cap opening over the frame at the table corner and press the back panel onto the adhesive.
  • Massage from the center seam outward with thumbs to seat the fabric evenly, then lock into the master bracket and tighten the thumbscrew.
  • Success check: when you wiggle the frame, the whole pantograph should move—no play inside the bracket.
  • If it still fails: replace “tired” adhesive backing—older sticky backing may release mid-stitch.
• Q: How do Ricoma cap-back embroiderers choose between tearaway backing, adhesive tearaway backing, and cutaway backing for different hooping methods?
  A: Match stabilizer to how the cap is being held: mechanical clamping uses tearaway, sticky/window methods use adhesive tearaway, and flimsy mesh often needs cutaway for lasting support.
  • Use 2.5–3.0 oz tearaway when an inner+outer ring is clamping the fabric.
  • Use adhesive tearaway when the fabric is held by a sticky window (no top clamping ring).
  • Use cutaway when the cap material is very flimsy unstructured mesh and needs permanent support.
  • Success check: during a trace and first stitches, the fabric should not creep, wrinkle, or bounce excessively.
  • If it still fails: slow the machine down and improve holding method (adhesive window or a magnetic frame) before changing thread or design.
• Q: Why do Ricoma cap-back designs get birdnesting and thread breaks at high speed, and what speed is a safe starting point for back-of-cap embroidery?
  A: Slow down—back-of-cap areas are rarely drum-tight, so 500–600 SPM is a safe starting point to reduce flagging, birdnests, and breaks.
  • Set speed to about 500–600 SPM for cap backs (control beats speed).
  • Trace first and watch for the fabric bouncing (flagging) under the needle.
  • Stabilize properly (tearaway for clamped hoops; adhesive for window frames) before increasing speed.
  • Success check: the machine sound stays rhythmic and consistent, and the stitches form cleanly without looping under the hoop.
  • If it still fails: re-hoop to increase stability—speed reduction cannot compensate for fabric shifting.
• Q: What safety steps should operators follow when tracing and starting back-of-cap embroidery on a Ricoma multi-needle machine?
  A: Keep hands and tools away from the needle area—cap backs tempt people to hold the bill during trace, which increases needle-strike risk.
  • Remove snips and loose items from the needle path before trace/start.
  • Avoid holding the bill near the needle during trace; reposition the cap or hoop instead.
  • Trace every time to confirm clearance from brim, sweatband seam, and eyelets.
  • Success check: the traced path clears all thick seams and hardware with a small margin, and your hands never enter the needle zone.
  • If it still fails: stop immediately and re-position—cap backs only have a few millimeters of safe margin.
• Q: When should a shop upgrade from standard hooping to magnetic hoops or a higher-capacity embroidery machine for back-of-cap orders?
  A: Upgrade when hooping time consistently exceeds stitch time—start with technique, then move to magnetic hoops for faster clamping, and consider a higher-capacity machine when volume demands it.
  • Level 1 (Technique): use the table-corner method, correct stabilizer, and 180° rotation + trace to reduce rejects.
  • Level 2 (Tooling): switch to magnetic hoops to reduce screw-turning time and minimize hoop burn in repeat runs.
  • Level 3 (Capacity): move to higher-capacity equipment when order volume makes manual hooping the bottleneck.
  • Success check: cycle time improves (less time hooping, fewer re-hoops) while stitch quality stays consistent cap-to-cap.
  • If it still fails: document where time is lost (centering, slipping, re-tracing) and address that step before buying upgrades.
