Baby Lock Verve Embroidery Setup That Actually Works: Module, Foot Lever, Screen Icons, and the “Don’t Start Over” Recovery Trick

Mastering the Baby Lock Verve: An Industry Expert’s Guide to Setup, Hooping, and Production

If you’ve just unboxed a Baby Lock Verve and find yourself staring at the embroidery module like it’s a foreign engine component, take a deep breath. You haven’t just bought a sewing machine; you’ve acquired a precision instrument.

As someone who has trained thousands of embroiderers—from kitchen-table hobbyists to industrial factory managers—I can tell you that 90% of embroidery failures happen before you press the "Start" button. They happen during setup.

By the end of this guide, you won’t just "know how to turn it on." You will understand the physics of stitch formation, the tactile feedback of a perfect hoop, and the exact workflow required to produce retail-quality embroidery. We will move from basic mechanical setup to advanced troubleshooting, and finally, look at how to scale your toolset when your ambition outgrows a single needle.

The Mental Shift: It’s Not Magic, It’s Mechanics

The Baby Lock Verve is a hybrid machine. Converting it from sewing mode to embroidery mode is a docking sequence that requires a specific order of operations.

If you rush this, you risk damaging the sensory aligners. If you follow the protocol, the machine protects itself.

The Golden Rule of Safety

Turn the machine completely OFF before attaching the embroidery unit. This isn't superstition; it is an electrical necessity. The embroidery unit connects via a multi-pin data port. Plugging it in while "hot" (powered on) can cause voltage spikes or calibration errors.

Warning: Mechanical Calibrations
When you eventually power on, the embroidery arm will calibrate by moving rapidly to its X/Y limits (side-to-side and front-to-back).
* Danger Zone: Keep hands, scissors, coffee mugs, and loose sleeves at least 6 inches away from the arm.
* Sound Check: A smooth whirring sound is normal. A loud "grinding" or "machine gun" noise means the arm is hitting an obstruction.

Phase 1: The "Clean Deck" Preparation

Professional technicians use a concept called "Clean Deck." Before you touch a screwdriver, you prepare the environment to prevent gravity and friction from ruining your work.

The Professional Prep Protocol:

1. Remove the Accessory Tray: Slide it to the left. Store it immediately—don't leave it near the needle where it can be bumped.
2. Clear the Thread Path: If you were sewing previously, cut the thread at the spool and pull it out through the needle. Never pull thread backwards (up) through the machine; this drags lint into the tension discs.
3. Engage Safety Lockout: Use the on-screen lock feature. This kills power to the motor/start button, preventing you from sewing through your finger while changing feet.

Hidden Consumable Check:

• Needle: Is it new? Embroidery requires a sharp point to penetrate stabilizer. Use a 75/11 Embroidery Needle or 90/14 Topstitch Needle (for thicker thread).
• Bobbin Case: Open the slide plate. Blow out any lint. Even a speck of dust here creates "bird nesting" later.


Phase 2: Docking the Module (The Tactile Connection)

With the power off, you are ready to dock.

Slide the embroidery unit onto the free arm. Do not force it. It should glide parallel to the machine bed.

The Sensory Anchor:

• Listen: You are waiting for a distinct, sharp "CLICK."
• Feel: Give the unit a gentle tug to the left. It should feel solid, like it is part of the machine chassis. If it wiggles, it is not seated, and your design will sew out distorted.

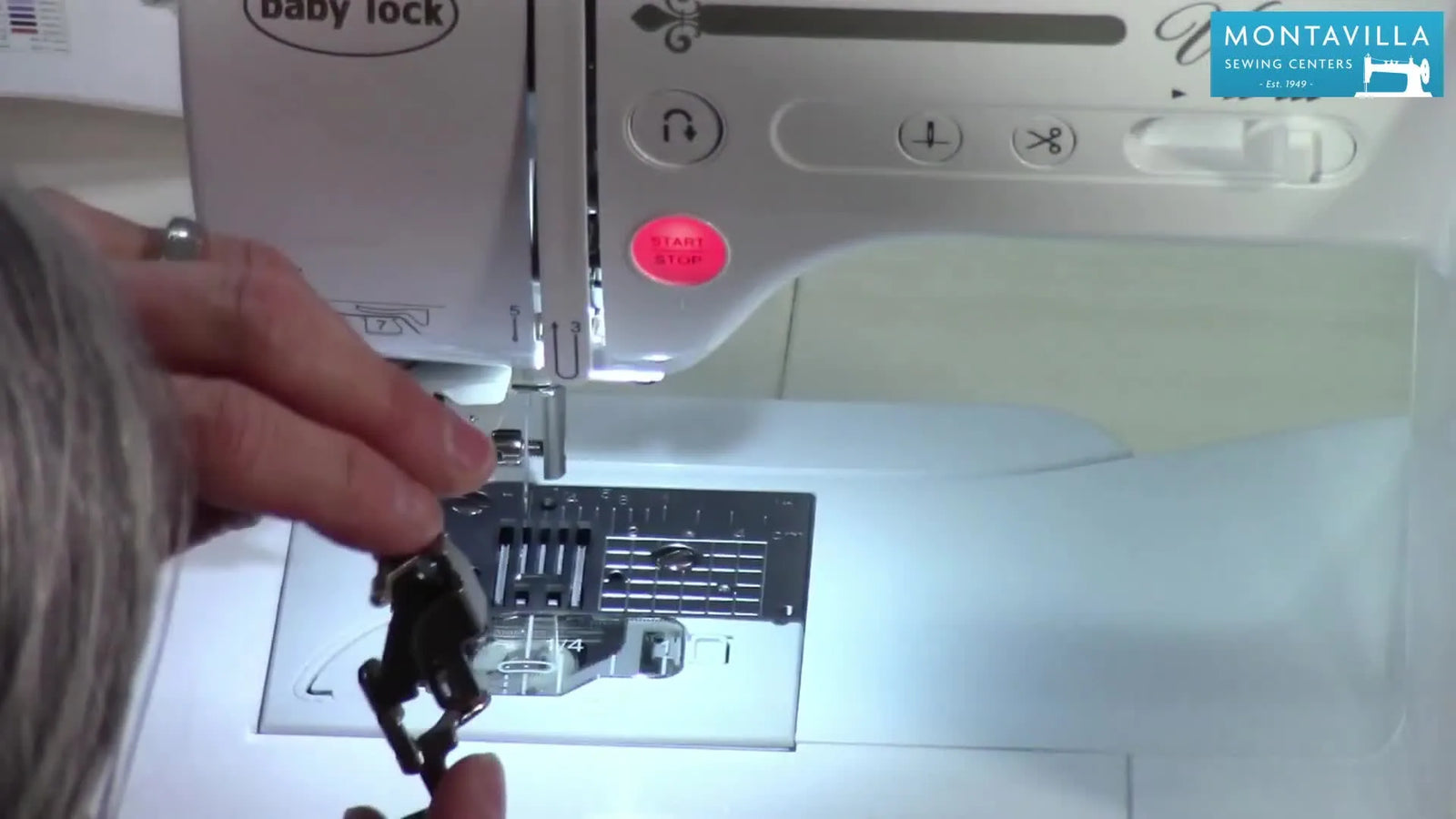

Phase 3: The Foot Swap – The #1 Cause of Needle breakage

This is the specific step where beginners fail. You must remove the entire sewing ankle (shank), not just the snap-on sole.

Use the thick screwdriver provided (or a coin tool). Loosen the screw and remove the sewing holder.

The Critical "Lever" Logic The embroidery foot (Style Q) has a white plastic arm or specific metal lever extending from it. This lever must go OVER the needle clamp screw.

• Why this matters: When the needle bar goes up, the screw hits this lever and lifts the foot, allowing the fabric to move freely to the next X/Y coordinate. If the lever is below the screw, the foot never lifts, the fabric drags, and the needle snaps.


Warning: Physical Safety
Always use the Lockout Mode when changing screws. If your foot hits the "Start" pedal while your fingers are holding the needle clamp, the injury will be severe.

Verification:

• Visual: Look from the side. Is the lever resting on top of the needle clamp screw?
• Tactile: Turn the handwheel (toward you) slowly. Watch the foot. Does it hop up when the needle goes up? If yes, you are safe.


Phase 4: Power & Calibration

Turn the machine ON. Touch the screen to acknowledge the safety warning. The machine will now perform its self-check.

• Observation: Startled by the feed dogs? Don't be. The Verve automatically lowers the feed dogs (the teeth under the needle) in embroidery mode. You do not need to drop them manually.

Phase 5: Hooping Physics – The Difference Between Amateur and Pro

This covers the content surrounding the search term hooping for embroidery machine, but we must go deeper than the basic manual.

Hooping is not just holding fabric; it is about neutralizing fabric distortion. When a needle enters fabric 800 times a minute, it pushes the fabric down (flagging). When it exits, it pulls the fabric up. Without stabilization, you get puckers and gaps.

The "Drum Skin" Standard

You want your hooped material to sound like a drum when tapped. However, do not stretch the fabric.

• Correct: Fabric is flat, neutral, and held taut by the stabilizer.
• Incorrect: Fabric is stretched like a trampoline. When you un-hoop, it will snap back, and your circle design will become an oval.

Stabilizer Decision Tree

Stop guessing. Use this logic flow for every project:

1. Is the design dense (lots of stitches)?
   • Yes → Use Cutaway Stabilizer. (Tearaway is too weak over time).
2. Is the fabric stretchy (T-shirt, Knit)?
   • Yes → Cutaway Stabilizer is mandatory.
3. Is the fabric transparent/delicate (Organza)?
   • Yes → Wash-Away (Soluble) Stabilizer.
4. Is the fabric fluffy (Towel, Velvet)?
   • Yes → Use Water Soluble Topper on top (to keep stitches visible) AND Tearaway/Cutaway on the bottom.

The Pain Point: "Hoop Burn" and Wrist Strain

If you are doing production runs—say, 50 left-chest logos—the standard "screw and ring" hoop becomes a liability.

• The Problem: Tightening the screw strains your wrist ("Carpal Tunnel Check"). The friction ring leaves crushed marks on delicate fabrics ("Hoop Burn") that are hard to iron out.
• The Solution: This is where professionals upgrade to magnetic embroidery hoop systems. These frames use high-powered magnets to clamp the fabric instantly without friction twisting.

Product Upgrade Logic: If you own a Baby Lock Verve, you should look for babylock magnetic embroidery hoops compatible with your machine's mount. This is often the first "tool upgrade" I recommend because it solves two problems: it prevents fabric damage and it cuts your re-hooping time in half.

Warning: Magnetic Field Safety
Magnetic hoops use strong Neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers clear.
* Medical: Users with pacemakers should consult their doctor and maintain a safe distance (usually 6-12 inches) from the magnets.

Phase 6: Thread Science

You are building a textile structure. Materials matter.

• Top Thread: Use 40wt Polyester or Rayon embroidery thread. (Cheap sewing thread has too much lint).
• Bobbin Thread: Use 60wt Bobbin Thread (The Finishing Touch is the recommended brand).
  • Why 60wt? It is thinner than the top thread. This creates an imbalance that pulls the "knots" to the bottom of the fabric, leaving the top looking clean and crisp.


Visual Check: Flip your test stitch over. You should see 1/3 white bobbin thread down the center of satin columns. If you see top thread on the bottom, your tension is good. If you see bobbin thread on top (the "measles" look), check your bobbin path—dirt is likely trapping the thread.

Phase 7: Operation & Screen Logic

You can edit on the screen without the arm attached, but you must dock to stitch.

The "Parking" Habit

Never just rip the embroidery unit off. Look for the icon showing the embroidery carriage moving to a "Park" position (usually looks like a carriage return symbol). This aligns the internal gears for safe removal.

Phase 8: Disaster Recovery (The Power Outage)

A student specifically asked: "I had to turn the machine off with 1,000 stitches left on a 20,000 stitch design. Do I have to start over?"

Answer: No. But you must be precise.

1. Re-Hoop (if necessary): If you un-hooped, you are in trouble. It is almost impossible to re-hoop perfectly centered. (This is another scenario where a hooping station for embroidery saves the day by ensuring repeatable placement).
2. Navigate: Open the design again. Goes to the Color Step menu. Skip ahead to the color you were on.
3. Step-Forward: Use the +/- stitch keys to move forward in increments of 10 or 100 stitches.
4. The Crosshair Trick: Watch the needle's position over the fabric. Move forward until the needle is physically hovering exactly over the last stitch made.
5. Go Slow: Start at a low speed (350 SPM) to ensure the thread catches securely.

Phase 9: Advanced Concepts (Applique & Free-Standing Lace)

Applique: This is a "Stop and Go" workflow.

1. Placement Stitch: Machine sews an outline. Stop.
2. Place Fabric: Lay your fabric over the outline.
3. Tack Down: Machine sews fabric down. Stop.
4. Trim: You cut the excess fabric close to the stitches.
5. Satin Finish: Machine covers the raw edge.


Free-Standing Lace (FSL): Here, the thread is the product.

• Stabilizer: You must use Heavy Duty Water Soluble (like a fibrous paper, not the thin film).
• Bobbin: Match the bobbin thread color to the top thread, because both sides will be visible.


The Ultimate Pre-Flight Checklists

Do not press "Start" until you pass these checks.

Setup Checklist

Operation Checklist

Troubleshooting: The "Symptom-Fix" Matrix

The Growth Path: When to Upgrade?

The Baby Lock Verve is a fantastic entry-level machine. But it has limits: a single needle and a 4x4 embroidery field.

The "Production Threshold": If you find yourself turning down orders for jacket backs because your hoop is too small, or spending your entire Saturday changing thread colors for 20 shirts, you have hit the "Single-Needle Limit."

1. Level 1 Upgrade (Efficiency): If your issue is just hooping speed or garment marks, invest in Magnetic Hoops. This solves the physical strain.
2. Level 2 Upgrade (Capacity): If your issue is thread changes and speed, look at SEWTECH Multi-Needle Machines. These allow you to set 10-15 colors at once and sew at 1000+ SPM without interruption.

Embroidery is a journey of tools and technique. Master the Verve today, but keep your eyes on the horizon. Happy stitching!

FAQ

• Q: How do I safely attach the Baby Lock Verve embroidery unit without causing calibration problems or damage?
  A: Power the Baby Lock Verve completely OFF before docking the embroidery unit, then attach it gently until it locks.
  • Turn OFF: Switch the machine fully off before connecting the multi-pin port.
  • Slide: Glide the embroidery unit straight onto the free arm—do not force or angle it.
  • Clear: Keep hands, tools, sleeves, and cups at least 6 inches away when powering on.
  • Success check: A distinct “CLICK” is heard and the unit does not wiggle when lightly tugged.
  • If it still fails: Remove the unit, check for obstructions on the docking track, and try again with the power OFF.
• Q: Why does the Baby Lock Verve embroidery needle break immediately after pressing Start with the Style Q embroidery foot installed?
  A: The most common cause is the Style Q foot lever being positioned under the needle clamp screw instead of over it.
  • Lockout: Enable the on-screen lock feature before touching the foot screw.
  • Reinstall: Remove the entire ankle/shank assembly and mount the Style Q foot correctly.
  • Position: Place the foot lever/arm OVER the needle clamp screw (not below).
  • Success check: Turning the handwheel toward you makes the foot “hop” up when the needle rises.
  • If it still fails: Slow down and re-check the lever position from the side view before stitching again.
• Q: What is the correct “drum skin” standard for hooping fabric on a Baby Lock Verve to prevent puckering and design distortion?
  A: Hoop fabric flat and taut like a drum, but do not stretch the fabric—stabilizer should provide the firmness.
  • Support: Choose stabilizer first, then hoop fabric and stabilizer together to neutralize distortion.
  • Tighten: Aim for smooth, wrinkle-free tension without pulling knit or woven fabric out of shape.
  • Avoid: Do not stretch fabric like a trampoline, or shapes can sew out distorted and rebound after un-hooping.
  • Success check: The hooped area “sounds” tight when tapped and the fabric surface stays flat with no ripples.
  • If it still fails: Switch to a stronger stabilizer choice for the fabric (cutaway is the safer starting point for stretchy or dense designs).
• Q: Which stabilizer should I use on the Baby Lock Verve for dense designs, stretchy T-shirts, organza, or towels to stop puckers and gaps?
  A: Match stabilizer to design density and fabric type: cutaway for dense or stretchy, wash-away for delicate/transparent, and topper for fluffy fabrics.
  • Use cutaway: Choose cutaway for dense stitch counts and for knits/T-shirts (mandatory for stretch fabrics).
  • Use wash-away: Choose wash-away (soluble) for transparent/delicate fabrics like organza.
  • Add topper: Add water-soluble topper on towels/velvet, plus tearaway or cutaway underneath.
  • Success check: After stitching, the design lies flat with no edge tunneling and satin columns stay smooth.
  • If it still fails: Re-hoop to the drum-skin standard and reduce fabric movement by upgrading stabilizer strength (tearaway may be too weak for dense work).
• Q: How do I stop Baby Lock Verve bird nesting (loops under the fabric) at the start of embroidery?
  A: Re-thread the TOP thread correctly with the presser foot raised so the thread seats in the tension discs.
  • Raise: Lift the presser foot (this opens the tension discs) before threading.
  • Re-thread: Follow the full top thread path again; do not assume it is still seated.
  • Clean: Remove lint around the bobbin area because even small debris can contribute to looping.
  • Success check: The underside shows controlled bobbin lines instead of a loose “nest” of top thread.
  • If it still fails: Check that thread was not pulled backward through the machine earlier (this can drag lint into the tension area) and re-thread again slowly.
• Q: What should the underside thread balance look like on a Baby Lock Verve test stitch when using 40wt top thread and 60wt bobbin thread?
  A: A good baseline is seeing about 1/3 white bobbin thread down the center of satin columns when the fabric is flipped over.
  • Thread: Use 40wt embroidery thread on top and 60wt bobbin thread in the bobbin for a clean top-side finish.
  • Inspect: Flip the sample and examine satin columns rather than judging from the top only.
  • Clean: If “measles” (bobbin dots on top) appears, clean the bobbin case and check the bobbin path for trapped lint.
  • Success check: The top looks crisp, and the bottom shows a narrow, consistent bobbin line centered in satin areas.
  • If it still fails: Re-thread the bobbin path carefully and remove any dust in the bobbin area before adjusting anything else.
• Q: How do magnetic embroidery hoops reduce hoop burn and wrist strain for Baby Lock Verve production runs, and what magnetic safety rules should beginners follow?
  A: Magnetic hoops clamp fabric quickly without screw friction, which often reduces hoop burn and repetitive tightening strain, but they require strict pinch and medical safety.
  • Upgrade: Switch from screw-and-ring hoops when frequent re-hooping causes crushed marks or wrist fatigue.
  • Clamp: Let the magnets snap together under control—keep fingers clear of the closing edges.
  • Respect: Keep strong magnets away from pacemakers and follow medical guidance on safe distance (often 6–12 inches).
  • Success check: Fabric is held evenly without crushed ring marks, and re-hooping time is noticeably faster.
  • If it still fails: Verify the hoop is seated securely and return to the drum-skin hooping standard with the correct stabilizer for the fabric.
