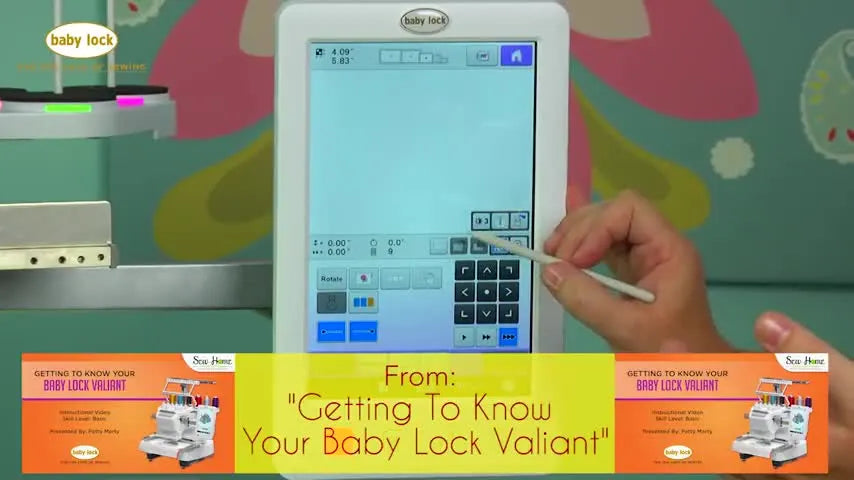

Baby Lock Valiant Built-In Camera Positioning: Nail Pocket-Perfect Placement Without Wasting a Single Stitch

If you bought a Baby Lock Valiant, the built-in camera likely felt like a safety net—a promise that you would never again ruin a garment with crooked placement. But the reality of the first use often feels different. You try to place a design near a thick pocket seam, the screen feels cluttered, the keypad obstructs your view, and suddenly, the technology that was supposed to save you is causing decision paralysis.

This guide transforms that anxiety into a repeatable, industrial-grade workflow. We are moving beyond the "how-to" video and establishing a standard operating procedure (SOP) for utilizing the real-time camera view, mastering the nudge tools, and managing background scans.

More importantly, we will address the physics that the camera cannot see: hoop tension, fabric stability, and the limitations of your tools. By the end of this white paper, you will understand exactly why your screen might hide the 8x14 field, how to navigate the interface without cognitive overload, and when it is time to stop fighting your equipment and upgrade your tooling.

The “Don’t Panic” Primer: What the Baby Lock Valiant Built-In Camera Actually Does (and What It Doesn’t)

The Valiant’s camera tools are designed to provide visual confidence before the needle drops. In the reference material, the demonstration shows a design displayed over a live fabric feed. This allows you to audit the relationship between your digital file and the physical reality of the hooped fabric—crucial for avoiding physical obstacles like buttons, seams, or previous embroidery.

However, as an operator, you must internalize two critical mindset shifts to avoid expensive mistakes:

1. The Camera is a Surveyor, Not a Carpenter: The camera view helps you position the design coordinates. It does not correct for poor hooping, unstable fabric, or "flagging" (bouncing fabric). If your hooping technique is flawed, the camera will simply help you place a design perfectly on a piece of fabric that will distort the moment stitching begins.
2. The Screen Can Lie: The digital preview is only as accurate as your setup. If you have selected the wrong hoop size in the settings, or if the fabric is "drum-tight" in some areas but loose in others, the on-screen representation will drift from the final stitch-out.

For professionals handling repeat orders—like team jerseys or uniform digitization—this is where accuracy converts directly to profit. Every "close enough" placement that results in a reject is lost revenue.

The “Hidden” Prep Pros Do First: Hoop, Fabric, and Lighting Checks Before You Touch the Screen

Before you interact with the digital interface, you must secure the physical environment. In professional shops, 80% of embroidery failures occur at the prep station, not the control panel.

The Physics of Hooping: To trust the camera, your fabric must be a static variable. Even with a perfect optical scan, fabric that is skewed or stretched will relax back to its natural state after unhooping, warping your perfectly placed design.

• Sensory Check (Tactile): Run your fingers over the hooped fabric. It should feel taut like a drum skin, but not stretched to the point of distorting the weave.
• Sensory Check (Tension): Pull your top thread through the needle. It should offer resistance similar to flossing your teeth. If it pulls freely, you have missed a tension disc; if it snaps, it is too tight (standard polyester thread runs well between 100g and 130g of tension).

The Tooling Gap: If you are still using standard screw hoops and find yourself fighting "hoop burn" (the shiny ring left on crushed fabric), or if you struggle to tighten thick items like hoodies, you are experiencing a hardware limitation. This is the classic "trigger point" where professionals switch to magnetic embroidery hoops. These tools use standardized magnetic force rather than manual screw torque, ensuring consistent holding pressure without crushing delicate fibers, significantly faster loading times, and zero "hoop burn."

Prep Checklist: The Physical Audit

• Verify Hooping Tension: Tap the fabric lightly; it should sound like a dull thud, not a loose rattle.
• Check Frame Seating: Push the hoop onto the carriage arm until you feel and hear a distinct mechanical "click." A half-seated hoop will ruin placement.
• Clean the Lens Path: Ensure no thread tails or lint are obstructing the camera lens area.
• Lighting Audit: Turn on bright task lighting. If you find yourself squinting at the screen, you are increasing cognitive load and error rates.
• Stock Hidden Consumables: Ensure you have temporary adhesive spray (like 505) for floating items, and keep a fresh needle (75/11 Ballpoint for knits, Sharp for wovens) ready. A burred needle will deflect and ruin placement accuracy.


Real-Time 3D Camera View on the Baby Lock Valiant: The Fastest Way to See Placement Before Stitching

The camera feature allows you to switch your background from the standard grey interface to a live view of the hooped fabric. In the demonstration, a red "B" design is superimposed over the green fabric feed.

What to Look For:

• Collision Detection: Use this view to ensure the design perimeter (the trace line) does not overlap with physical hazards.
• Visual Contrast: Look for the design clearly sitting on top of the fabric texture. If the lighting is poor, the fabric may look dark or muddy, making precision difficult.

Expected Outcome: The background transitions immediately from a digital grid to a live video feed. You should see your specific fabric weave, allowing you to judge spacing relative to pockets or collars.

Nudge Like a Pro: Using the Baby Lock Valiant Positioning Keys Without Losing Your Center

The interface provides floating keypad arrows for coordinate manipulation. While simple, the method of use separates novices from experts.

The "Nudge" Workflow:

• Micro-Adjustments: Tap the arrow keys for 0.1mm increments. Do not hold the key down for fine-tuning, as the accelerated scroll speed can overshoot your target.
• The Baseline Anchor: Use the "Center" key (usually in the middle of the arrow cluster) to snap the design back to the mechanical center of the hoop. This is your "Undo" button when manual positioning gets messy.

Commercial Context: This workflow is essential for "design around obstacle" jobs. If you are constantly navigating around pocket bags, you might hear industry peers discuss a pocket hoop for embroidery machine. These narrow, specialized hoops (often magnetic) allow the machine to slide inside the pocket area, but even with standard hoops, the camera + nudge workflow is your primary defense against stitching a pocket shut.

Setup Checklist: The Digital Configuration

• Activate Camera View: Switch the screen background to live feed.
• Summon the Keypad: Ensure the positioning arrows are active on the touch screen.
• Coarse vs. Fine Movement: Drag the design with your finger for large moves; use the arrows for final <1mm nudges.
• Centering Check: Tap the center key to establish your baseline before customizing placement.
• Visual Clearance Verification: Pause and visually confirm there is at least a 10mm "safety buffer" between the needle path and any hard seams / plastic buttons.


When the Keypad Blocks the Exact Spot You Need: Move the Floating Keypad Using the 9-Quadrant Grid

A common friction point on the Valiant (and similar high-end interfaces) is that the control tools often obscure the very area you are trying to inspect. If the keypad is covering the pocket corner you need to avoid, you cannot guess—you must clear the view.

The 9-Quadrant Solution: Touch the top bar of the floating keypad. A 3x3 grid (9 quadrants) will appear overlaid on the screen. Tapping any quadrant instantly "teleports" the keypad to that sector.

Why This Matters: In a production environment, guessing leads to unpicking. If a logo needs to be exactly 2 inches above a pocket, and the "Down" arrow is covering the pocket measurement, move the keypad to the top-left quadrant. This simple UI management technique reduces cognitive friction and prevents "blind spots."

Expected Outcome: The keypad snaps instantly to the selected quadrant, revealing the previously obscured area of your fabric.

Clean Screen, Calm Brain: Hide the Keypad Completely When You’re Done Positioning

Once the coordinates are set, finalize the process by tapping the "Hide" button (icon depicting a keypad with a retreating arrow).

Cognitive Hygiene: Removing the interface controls allows for a "clean read." Your brain can stop processing the buttons and focus entirely on the design-to-fabric relationship. This is the moment for your final "Go/No-Go" decision.

Expected Outcome: The floating controls vanish, leaving an unobstructed view of the design superimposed on the real-world fabric.

The Background Scan on the Baby Lock Valiant: Capture a Real Image of What’s in Your Hoop

Scanning differs from the live view; it captures a high-resolution static image of the hoop contents. Select the icon resembling fabric with a camera, confirm the prompt, and stand back.

Warning: Mechanical Safety Hazard
When scanning initiates, the embroidery arm will move rapidly to map the hoop boundaries. Keep hands, scissors, and loose clothing sleeves at least 12 inches away from the carriage. Pinched fingers and knocked-over coffee mugs are common accidents during this phase.

Why Pros Scan: A static scan effectively "freezes" the fabric reality. It eliminates camera jitter and provides a stable background for complex alignment tasks, such as matching a design with a print on the fabric (e.g., stitching a name onto a patterned evident line).

The Hoop Size Trap: Why Your Baby Lock Valiant Scan Only Shows 5x7 (Even If You Own an 8x14)

This limitation is a frequent source of panic for intermediate users. You have attached your large 8x14 hoop, but the screen only displays a 5x7 scanning area.

The logic: The machine's optical system and screen display are constrained by the software selection, not just the physical hoop detection. If the machine settings usually default to a 5x7 field, or if you haven't explicitly told the machine you are using the larger frame holder configuration, it will crop the view.

Troubleshooting Protocol:

1. Symptom: Screen shows a grayed-out area or a cropped scan field.
2. Diagnosis: Mismatch between physical hoop and software hoop setting.
3. Fix: Navigate to the hoop selection menu. Manually select the 8x14 (or relevant large hoop). Ensure the correct frame holder (Table A vs. Table B on some multi-needles) is attached if required.

This constant swapping of hoop configurations is a workflow bottleneck. If you find yourself losing 15 minutes a day just managing hoop variables, this is a valid reason to standardize your tooling. Many shops consolidate to a standardized set of babylock valiant hoops that cover 90% of their jobs to reduce setup time.

Toggle It Off and Stitch: Hiding the Scanned Background Once Placement Is Locked

Once placement is verified, tap the icon resembling fabric with a blue square to toggle off the background image.

The "Clean Handoff": Never stitch with the background image arguably visible unless necessary. It uses processing power and, more importantly, makes it harder to monitor the actual stitch quality as it forms. Return the screen to the standard white/grey background to clearly see the active needle point and upcoming color changes.

The “Why It Works” Layer: Hooping Physics, Fabric Stability, and Why Camera Placement Still Fails Sometimes

Even with advanced camera optics, embroidery is a physical process involving needle penetration and thread tension. Here is the science of why precise camera placement can still result in crooked embroidery:

1. Pull Compensation (The Shrink Factor): Every stitch pulls fabric inward. A column of satin stitches can shrink fabric by 1-3mm depending on the density. If you place a design perfectly 1mm from a stripe using the camera, the pull might drag the fabric, causing the design to overlap the stripe eventually.
   • Expert Fix: Always leave a "safety margin" appropriate for your fabric (e.g., 3-5mm away from hard lines).
2. Fabric "Flagging": If the fabric isn't bonded to the stabilizer, it bounces up and down with the needle (flagging). This creates registration errors that the camera cannot predict.
3. Stabilizer Mismatch: The stabilizer is the structural foundation; the fabric is just the cosmetic skin. If the foundation is weak, the house sinks.

The Hooping Upgrade: If you frequently embroider bulky items (Carhartt jackets, heavy towels) or slippery performance wear, mechanical clamping is often insufficient. babylock magnetic hoops provide uniform perimeter pressure that prevents the "slippage" that occurs with screw hoops. By clamping the fabric and stabilizer firmly without distortion, you ensure the fabric stays exactly where the camera saw it.

Warning: Magnetic Field Safety
High-quality magnetic hoops use powerful N52 neodymium magnets. They pose a pinch hazard (they can crush fingertips) and can interfere with pacemakers or insulin pumps. Maintain a safe distance (6 inches+) between the magnets and sensitive medical devices.

Decision Tree: Fabric Type → Stabilizer Strategy

Using the right specific gravity of backing effectively "locks" the camera's visual data into reality.

• Fabric: Stable Woven (Cotton / Twill / Denim)
  • Action: Use Tearaway (1.5oz - 2.0oz).
  • Logic: Fabric has its own structure; stabilizer just needs to support needle penetration.
• Fabric: Unstable Knit (T-Shirts / Polos / Performance)
  • Action: Use Cutaway (2.5oz - 3.0oz). Mandatory.
  • Logic: Visual placement is useless if the knit stretches. Cutaway creates a "frame within a frame" to hold stitches permanently.
• Fabric: Deep Pile (Towels / Fleece)
  • Action: Tearaway backing + Water Soluble Topping (Solvy).
  • Logic: Topping prevents stitches from sinking into the pile, keeping the design edges crisp and aligned with your placement.

Comment-Driven “Watch Outs”: What Viewers Struggle With

Based on analysis of user feedback and service calls, these are the most common pitfalls:

"I couldn’t see what you were selecting."

• The Cause: High information density on small screens.
• The Fix: Develop muscle memory for the icons, not just their location. Look for the "Camera" glyph for live view, and the "scanner" glyph for static capture.

"The camera alignment is slightly off after stitching."

• The Cause: Often due to the angle of the fabric surface. If your hooping is "dished" (loose in the center, tight on sides), the camera creates a parallax error.
• The Fix: Ensure the fabric surface is perfectly flat. If using thick items, "float" the item on a sticky stabilizer to ensure the surface is planar to the camera lens.

The Upgrade Path (Without the Hard Sell): When Tools Actually Pay You Back

If you are relying heavily on camera features, you are likely focusing on precision and looking to reduce waste. Stick with the Valiant and these techniques until you hit a volume ceiling.

However, recognize the signs that you have outgrown your current toolkit:

1. Physical Pain/Fatigue: If your wrists hurt from tightening hoop screws, consider switching to embroidery hoops magnetic. This is an ergonomic investment that also improves fabric holding.
2. Alignment Inconsistency: If you struggle to place logos in the exact same spot on 10 different shirts, a hooping station for embroidery machine is the industry standard for repeatability.
3. Throughput Bottlenecks: If you are turning away orders because you cannot stitch fast enough, or if single-needle thread changes are eating your profit, this is the trigger to investigate multi-needle production machines (like the SEWTECH series). These machines offer higher speeds (typically running safely at 800-1000 SPM compared to a home machine's 400-600 SPM limit on complex designs) and larger, strictly defined hoop fields.

Operation Checklist: The Final "Go" Flight Check

• Design Coordinates: Position verified via Camera Nudge or Scan.
• Obstruction Check: Keypad hidden; full visual confirmation of design-to-fabric path.
• Hoop Match: Software hoop size matches physical hoop attached (e.g., 8x14).
• Clearance: Carriage arm path is clear of obstructions.
• Safety: Background image toggled OFF to reduce distraction.
• Green Light: Press Start. Monitor the first 100 stitches for registration accuracy.

FAQ

• Q: What should be checked on a Baby Lock Valiant before using the built-in camera for placement?
  A: Do a quick physical audit first, because the Baby Lock Valiant camera can’t compensate for poor hooping or unstable fabric—this is common, don’t worry.
  • Verify hooping tension by tapping the fabric lightly and feeling for drum-like tautness (taut, not stretched).
  • Seat the hoop fully on the carriage arm until a clear mechanical “click” is felt/heard.
  • Clean the camera lens path area (remove lint/thread tails) and turn on bright task lighting.
  • Success check: The fabric sits flat and even, the hoop is fully seated, and the live view is clear (not muddy/dark).
  • If it still fails… Re-hoop to remove “dished” fabric (loose center/tight edges) and consider floating on sticky stabilizer for a flatter surface.
• Q: How can Baby Lock Valiant operators tell if hooping tension and top thread tension are “in range” before trusting camera placement?
  A: Use simple tactile checks to confirm the setup is stable before relying on Baby Lock Valiant camera placement.
  • Feel the hooped fabric with fingertips; aim for drum-skin taut, not weave-distorting tight.
  • Pull the top thread through the needle and compare resistance to flossing teeth; too free may indicate a missed tension disc, too tight can cause snapping.
  • Keep a fresh needle ready (75/11 Ballpoint for knits, Sharp for wovens) because a burred needle can deflect and shift placement.
  • Success check: Fabric tension feels even across the hoop and the top thread pull feels controlled (not free-sliding or snapping).
  • If it still fails… Re-thread carefully to ensure the thread is seated in the tension path, then re-check hooping for uneven tension.
• Q: How do you use the Baby Lock Valiant real-time camera view and nudge keys to place a design near a pocket seam without overshooting?
  A: Move big with drag and finish with micro nudges—Baby Lock Valiant nudge keys are safest when tapped, not held.
  • Switch the screen background to the live camera view to see real fabric and obstacles.
  • Drag the design for coarse positioning, then tap arrow keys for micro-adjustments (0.1 mm increments).
  • Tap the “Center” key as a baseline reset when positioning gets messy.
  • Success check: The trace/perimeter shows clear clearance from hazards, with at least a 10 mm safety buffer from hard seams/buttons.
  • If it still fails… Improve lighting/contrast and re-check fabric flatness; placement can drift if the hooped surface is not planar.
• Q: How can Baby Lock Valiant users move the floating keypad when it blocks the exact area that needs inspection on the screen?
  A: Relocate the Baby Lock Valiant floating keypad using the 9-quadrant grid so the area of interest is not obscured.
  • Touch the top bar of the floating keypad to bring up the 3×3 (9-quadrant) grid overlay.
  • Tap the quadrant where the keypad should move (for example, move it to top-left to uncover a pocket corner).
  • Hide the keypad entirely after positioning to get a clean final “Go/No-Go” view.
  • Success check: The keypad snaps to the selected quadrant (or disappears when hidden), revealing the previously blocked fabric area.
  • If it still fails… Re-open the grid and choose a different quadrant, then hide the keypad to reduce visual clutter.
• Q: Why does a Baby Lock Valiant background scan show only a 5×7 area when an 8×14 hoop is attached?
  A: This is usually a software hoop-selection mismatch on the Baby Lock Valiant—select the correct hoop size in settings to remove the scan crop.
  • Open the hoop selection menu and manually select the 8×14 (or the actual hoop being used).
  • Confirm the correct frame holder configuration is attached if the setup requires it.
  • Re-run the scan after the hoop selection is corrected.
  • Success check: The scanned background matches the full usable field of the attached hoop (no unexpected greyed-out/cropped area).
  • If it still fails… Power-cycle the workflow (reselect hoop size, re-seat hoop to the carriage “click,” then scan again).
• Q: What safety precautions are required when running a Baby Lock Valiant background scan?
  A: Keep hands and loose items well away, because the Baby Lock Valiant embroidery arm moves rapidly during scanning and can pinch or knock objects.
  • Move hands, scissors, and sleeves at least 12 inches away before confirming the scan prompt.
  • Clear the carriage path so nothing can be struck as the arm maps hoop boundaries.
  • Step back and watch the motion instead of stabilizing the hoop with your fingers.
  • Success check: The scan completes without the carriage contacting any objects and without any near-pinch moments.
  • If it still fails… Stop the operation, clear the area again, and restart the scan only when the carriage path is fully open.
• Q: What are the safety risks of magnetic embroidery hoops when upgrading from screw hoops on a Baby Lock Valiant workflow?
  A: Magnetic embroidery hoops can greatly reduce hoop burn and speed loading, but the magnets are a pinch hazard and can affect pacemakers or insulin pumps.
  • Keep fingers out of the closing path; let the magnets meet under control to avoid crushing fingertips.
  • Maintain at least 6 inches of distance between magnets and sensitive medical devices (pacemakers/insulin pumps).
  • Store hoops so magnets cannot snap together unexpectedly during handling.
  • Success check: The hoop closes without finger pinches and holds fabric uniformly without over-crushing delicate fibers.
  • If it still fails… Pause upgrading and revert to safe handling procedures; consult medical-device guidance and the machine manual before continued use.
• Q: When should Baby Lock Valiant owners upgrade from technique tweaks to magnetic hoops or a multi-needle machine for repeatable placement and throughput?
  A: Upgrade in layers: first fix prep and settings, then consider magnetic hoops for consistency/ergonomics, and only then consider a multi-needle machine when throughput is the limiting factor.
  • Level 1 (Technique): Standardize hooping (flat, even tension), stabilizer choice (cutaway for knits), and camera/nudge workflow with a consistent safety buffer.
  • Level 2 (Tooling): Switch to magnetic hoops if screw hoops cause hoop burn, inconsistent clamping on thick items, or wrist fatigue.
  • Level 3 (Capacity): Consider a multi-needle production machine if thread changes and speed limits cause missed deadlines or turned-away orders.
  • Success check: Placement becomes repeatable across batches (for example, the same logo location on multiple shirts) with fewer rejects and less setup time.
  • If it still fails… Track where time and rejects occur (prep vs. positioning vs. stitching) and address the biggest bottleneck first rather than changing everything at once.
