Baby Lock Solaris New Features, Without the Hype: What the Projector, 10-5/8" x 16" Hoop, and IQ Designer Updates Really Change

If you are shopping the top tier of combo machines like the Baby Lock Solaris, it’s easy to get dazzled by high-definition screens, laser projection, and the promise of "new icons." I get it—and as an educator who has spent two decades on the shop floor, I also understand the frustration I see in the comments: “Show me stitch quality, thread handling, and what the back looks like.”

The video you watched is a feature demonstration, not a stitch-quality lab test. It shows capability, not the gritty reality of tension physics. But here is the good news: we can rebuild this demo into a practical, shop-floor workflow.

My goal here is to translate these "shiny features" into engineering precision. We will cover what to check before you touch the screen, how to use the projector so it actually saves time (instead of creating new alignment mistakes), and how to master large-hoop embroidery so your fabric doesn’t ripple, drift, or waste expensive stabilizer.

Calm the Panic: What the Baby Lock Solaris Demo *Does* (and *Doesn’t*) Prove

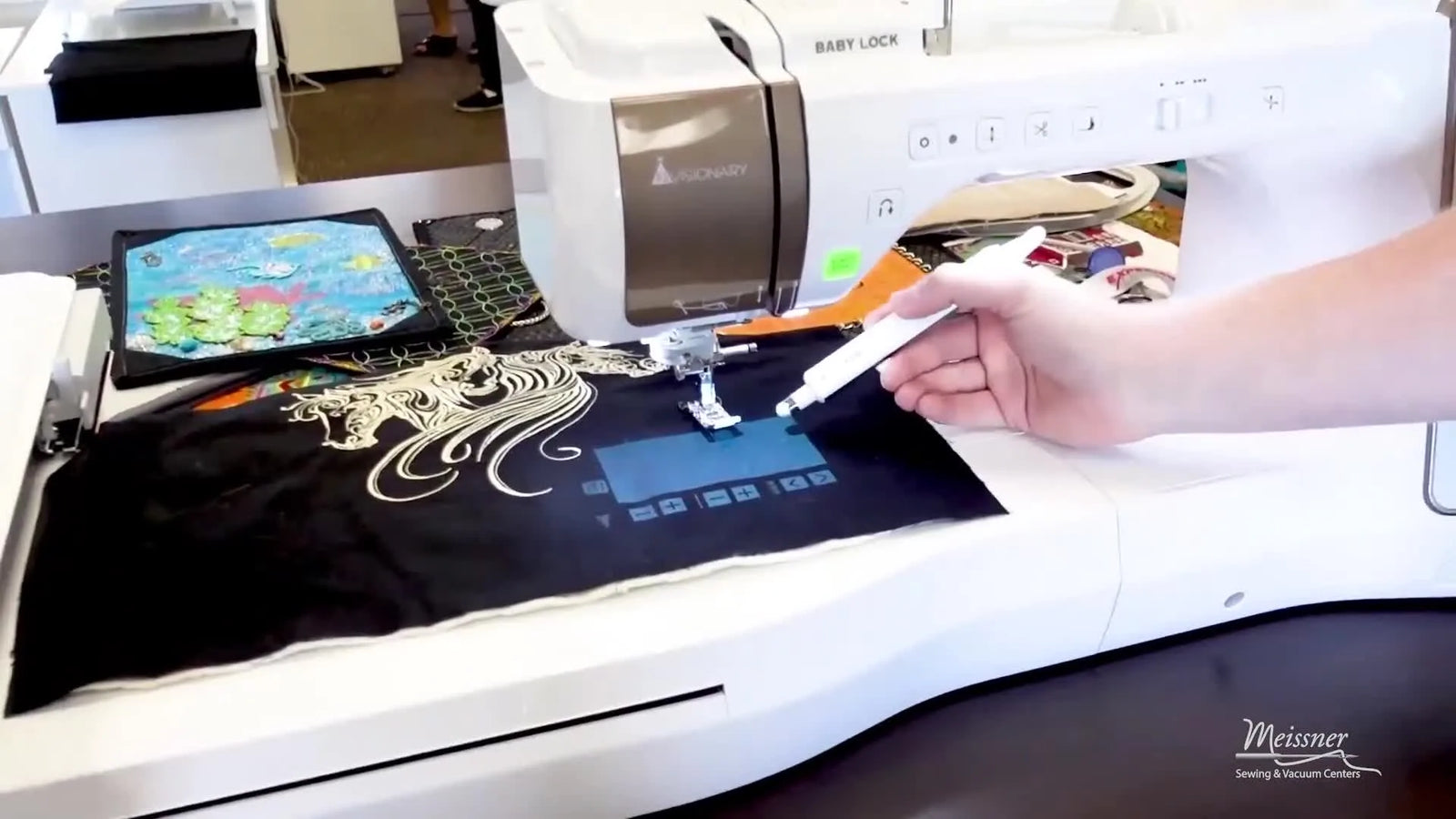

The video demonstrates the Solaris workspace, hardware changes, projector functions in sewing and embroidery, buttonhole sizing, and IQ Designer updates. It shows you the potential of the machine.

What it does not show—and what keeps beginners up at night—is the "invisible" physics. It doesn't show the underside of the satin stitch, the thread path behavior at 1,000 stitches per minute (SPM), or how the machine handles the notorious "pull compensation" on a stretchy knit.

The Expert’s Mindset: Treat this demo as a capability tour, not a guarantee. Stitch quality is a system outcome. You can have a $15,000 machine, but if your hooping tension is uneven or your needle is dull, you will get "bird nests" (thread jamming) and puckering. The machine provides the horsepower; you must provide the steering.

The “Hidden” Prep Before You Touch the Screen: Stitch Plate Access & Lint Control

One of the most quietly valuable upgrades shown is the stitch plate removal. In the demo, the presenter presses a small rectangular release button, and the plate pops up—no screwdriver required.

Why this matters: In my workshops, 80% of "machine failures" are actually "maintenance failures." Lint is the enemy of tension. It gathers under the feed dogs and pushes the bobbin case slightly out of alignment.

The Sensory Check:

• Visual: When you pop that plate, use a flashlight. If you see grey fuzz packing the feed dog teeth, your fabric isn't feeding—it's sliding.
• Tactile: When re-seating the plate, don't just set it down. Press firmly until you feel and hear a distinct click. If it floats, your needle will strike the plate, costing you a needle and potentially timing the machine.

Warning: Always power the machine OFF before removing the stitch plate. Embroidery machines have high-torque motors; if you accidentally touch the start button or foot pedal while your finger is in the hook area, the needle can driven through your finger bone in a fraction of a second.

**Prep Checklist: The “Pre-Flight” Routine**

• Needle Freshness: Is a new needle installed? (Rule of thumb: Change every 8 hours of stitching or after any metallic thread use).
• Lint Inspection: Pop the plate. Use a small brush (never canned air, which blows lint into the motor) to clear the hook assembly.
• Bobbin Winding Logic: The demo notes adjustable winding speeds.
  • Beginner Safe Zone: Set winding speed to Medium. High-speed winding on some threads can stretch the thread, causing it to "relax" inside the bobbin later, leading to loose tension in the finished product.
• Stylus Check: Ensure the dual-purpose stylus is clean. A gritty tip scratches the specific coating on these high-end screens.


Stop Losing Pins in the Embroidery Module: Protecting the Mechanism

The demo calls out a design change from the Destiny II: grooves on top of the embroidery module arm are now moved to the front and back to prevent pins from falling into the tracks.

This isn't just aesthetic; it's mechanical preservation. A steel pin dropping into the drive belt of an embroidery unit creates a grinding noise that hurts the soul—and your wallet.

The "Safe Zone" Habit: Never place pins, scissors, or snips on the embroidery arm. Establish a "tools off deck" rule. If you are pinning an applique, do it on a table, not on the machine bed.

Make the Projector Earn Its Keep: Auditioning Without Anxiety

In sewing mode, the demo shows selecting decorative stitches and projecting them onto the fabric in blue light. You can adjust width and length with the stylus, watching the light change on the material.

The Reality of Projection: The projector shows you placement, but it lies about density. A light projection sits on top of the fabric fluff; real thread sinks in.

Expert Calibration:

• Fabric Reality: If you project a wide satin stitch on a thin cotton without stabilizer, the light looks perfect, but the sew-out will tunnel (pucker).
• The "Squint" Test: Use the projector to check if the stitch width fits your border. But always trust your test swatch for coverage.
• Color Conflict: The demo uses black fabric and blue projection. If you are sewing on light blue fabric, change the projection background color in settings (usually to red or white) to maintain contrast visibility.


The Dual-Purpose Stylus Trick: Ergonomics for Production

The demo highlights the dual-purpose stylus: one end for the screen, the other for the projector interface on the fabric.

Why this reduces fatigue: Embroidery is a physical endurance sport for your wrists and shoulders. Constant reaching maxes out your range of motion. Using the projected controls keeps your hands in the "work zone" (near the needle plate).

Hidden Consumable: Keep a microfiber cloth nearby. Interacting with the screen using oily fingers makes the precise "drag and drop" features jerky and inaccurate over time.

Touchscreen Buttonhole Sizing: When a Real Button Beats Guesswork

The demo shows placing a physical button against the touchscreen to set the buttonhole size automatically. This is brilliant for "found" buttons where you don't know the exact millimeter diameter.

The "Do No Harm" Rule: Touchscreens are sensitive to pressure. Do not press the button into the screen. Lay it gently. Use the stylus to drag the indicators to the button's edge.

**Setup Checklist: Buttonholes & Projection**

• Stabilizer Selection: Buttonholes are dense. Place a layer of Tearaway or Water Soluble stabilizer under the fabric, even for sewing mode. This prevents the "bird nest" tunnel.
• Visual Audit: Look at the projected starting point. Does it align with your chalk mark?
• Speed Governor: For complex buttonholes or decorative stitches, reduce the machine speed to 600 SPM (Stitches Per Minute). Speed creates vibration; slowing down increases precision.


Massive 10-5/8" x 16" Hoop: The Physics of Large Fields

The demo shows the massive 10-5/8" x 16" hoop. This is a game-changer for jacket backs and quilt blocks. However, physics dictates that the larger the hoop, the looser the center.

The "Drum Skin" Standard: When you hoop a piece of heavy fabric in a 16-inch frame, the clear plastic center of the template might touch the fabric, but the center of the fabric often sags.

• The Test: Tap the fabric in the center of the hoop. It should sound like a drum—thump, thump. If it sounds like flappy paper, your registration will drift, and your outlines won't match your fills.

The Commercial Upgrade: If you find yourself constantly re-hooping because you can't get that "drum" tension without distorting the fabric, or if tightening the screw is hurting your wrist, this is the trigger to upgrade your tooling. Many professionals eventually move to a dedicated hooping station for embroidery machine. These stations hold the outer ring static while you press the inner ring down, using body weight instead of wrist strength to ensure the grainline remains perfectly square.

Projecting Embroidery Placement: The "Measure Twice, Cut Once" Revolution

In embroidery mode, projecting the design (like the gecko in the demo) directly onto the fabric is the ultimate insurance policy against crooked pockets.

The Workflow Shift:

1. Rough Hoop: Hoop your fabric generally straight.
2. Fine Tune: Use the projector to rotate the design to match the fabric's grain, rather than trying to un-hoop and re-hoop the fabric to match the machine.
3. Visual Confirmation: Look at the projection grid. Is it parallel to the weave of the fabric?


Auto Echo + Auto Stipple: Texture Without the Free-Motion Fear

The Solaris adds "Auto Echo" to the "Auto Stipple" feature. This digitizes echo lines (ripples) around your central design automatically.

The "Pucker" Warning: Echo quilting adds a tremendous amount of thread to a specific area. If your quilt sandwich (top, batting, backing) isn't basted or hooped securely, the echo lines will push the fabric outward, creating a "bowl" shape.

• Expert Tip: Increase your presser foot height slightly (in settings) when doing heavy stippling to prevent the foot from dragging the fabric.


IQ Designer Pebble Fill: The "Random Shift = 3" Secret

In IQ Designer, the presenter changes the "Random Shift" value to 3. This transforms uniform, robotic circles into organic, pebble-like stones.

The Cognitive Science of "3": Why 3? In design theory, perfect symmetry looks artificial to the human eye. Adding a 3mm random variance mimics the hand-motion of a long-arm quilter. It tricks the brain into seeing "art" rather than "math."

Density Alert: Pebble fills are extremely dense.

• Fabric Choice: Do not attempt this on a lightweight t-shirt without heavy cutaway stabilizer. The distinct "pebbles" will just chew a hole in the jersey.
• Needle Choice: Use a Topstitch 90/14 needle. The larger eye protects the thread from shredding during the thousands of rapid penetrations required for this fill.


Line Properties: "Cool Appliqué Stitch" & Layering Logic

The demo changes the line property to Cool Appliqué Stitch and flips the direction from "Inside" to "Outside."

Why Inside/Outside Matters:

• Inside: The stitching eats into your appliqué fabric. Good for security, bad for small shapes (it makes them look smaller).
• Outside: The stitching sits on the background fabric. This preserves the visual size of your appliqué shape but requires a cleaner raw edge cut.


The Accessory Box: Organization as a Speed Multiplier

The magnetic feet trays are a small but vital detail. In a production environment, looking for the "W" foot for 5 minutes is 5 minutes of lost revenue.

Hidden Consumable: Keep Needle Nose Pliers and Curved Tweezers in this box. Changing presser feet often requires fine motor skills that are hard to manage with just fingers, especially under the needle bar.

Fabric-to-Stabilizer Decision Tree (The Backbone of Quality)

The video doesn't specify stabilizers, but in large-field embroidery, stabilization is 90% of the battle. Use this logic tree before every project.

Decision Tree: What goes under the hoop?

1. Is your fabric stretchy (T-shirt, Hoodie, Knit)?
   • YES: CUTAWAY Stabilizer. (No exceptions. Tearaway will eventually blow out, and stitches will distort).
   • NO: Go to step 2.
2. Is your fabric visible through the stitches (Sheer, Organza)?
   • YES: WASH-AWAY (Soluble) or Heat-Away Stabilizer.
   • NO: Go to step 3.
3. Is the design heavy (High stitch count, >10,000 stitches)?
   • YES: CUTAWAY or Heavy Tearaway. You need structure to support the weight of the thread.
   • NO: Standard Tearaway is acceptable (e.g., for woven cotton towels).
4. Does the fabric have pile/fluff (Terry cloth, Minky, Velvet)?
   • YES: You need a TOPPER (Water Soluble Film) on top to keep stitches from sinking, AND a stabilizer underneath.

The Commercial Upgrade Path: When to Ditch the Screw Hoop

The Solaris 10-5/8" x 16" hoop is magnificent, but it introduces a physical challenge: "Hoop Burn." This occurs when the friction of the inner ring entering the outer ring crushes the fibers of delicate fabrics (like velvet or performance wear), leaving a permanent shiny ring.

The "Pro" Assessment:

• The Symptom: You are seeing permanent rings on finished garments, or your wrists hurt from tightening screws to get that "drum skin" tension.
• The Solution: This is when serious hobbyists and business owners upgrade to magnetic hoops for babylock embroidery machines.
• The Benefit: Instead of crushing the fabric with friction, these hoops clamp the fabric vertically using powerful magnets. This eliminates hoop burn and allows for much faster re-hooping on production runs.

If you are struggling with thick items like quilted bags or Carhartt jackets, standard hoops often pop open mid-stitch. Using embroidery magnetic hoops solves this by adjusting automatically to the thickness of the material without forcing a screw mechanism.

Warning: Magnetic Safety
If you decide to upgrade to magnetic frames, be aware that high-quality commercial magnets are incredibly strong.
* Pinch Hazard: Keep fingers clear when snapping the top frame down.
* Medical Device Safety: Keep magnetic embroidery hoop magnets at least 6 inches away from pacemakers or insulin pumps.

Operation Checklist: Run the Solaris Like a Pro

Before you press the green "Go" button, run this final mental check. It saves tears.

• 1. The Path: Is the thread caught on the spool pin? Is it firmly between the tension discs? (Floss it in to be sure).
• 2. The Hoop: Tap the fabric. Do you hear the drum sound? If not, re-hoop. Do not stitch on loose fabric.
• 3. The Obstruction: Check the large 10x16 hoop clearance. Will the arm hit the wall behind the machine? Will the hoop hit your coffee cup?
• 4. The Speed: For the first layer or technically difficult threads (metallics), lower the speed to 600-700 SPM. You can speed up once the foundation is laid.
• 5. The Consumables: Do you have a spare bobbin wound? Do you have your appliqué scissors ready?

If you follow these steps, you stop relying on "luck" and start relying on physics. The Baby Lock Solaris is a powerhouse, but it needs a pilot. By mastering the prep, the stabilization, and utilizing tools like baby lock magnetic hoops when your volume increases, you protect your investment and ensure your finished work looks as expensive as the machine you made it on.

FAQ

• Q: How do I safely remove the Baby Lock Solaris stitch plate for lint cleaning without damaging the machine?
  A: Power the Baby Lock Solaris OFF first, then remove the stitch plate using the release button and reseat it until it clicks.
  • Turn OFF: Switch the machine power off before fingers go near the hook/needle area.
  • Inspect: Lift the plate, use a flashlight, and look for packed grey lint under feed dogs and around the hook.
  • Clean: Brush lint out (avoid canned air, which can push lint deeper into the machine).
  • Reseat: Press the stitch plate down firmly until a clear “click” is felt/heard.
  • Success check: The stitch plate sits perfectly flush and does not “float” at any corner.
  • If it still fails: Stop and re-seat the plate again—do not stitch if the plate is not locked, because needle strikes can occur.
• Q: What Baby Lock Solaris pre-flight checklist prevents bird nests and tension problems before pressing the Start button?
  A: Treat stitch quality on the Baby Lock Solaris as a system check—needle, lint, bobbin, and thread path first, screen features second.
  • Replace: Install a fresh needle (a safe rule is every ~8 hours of stitching or after metallic thread use).
  • Clean: Pop the stitch plate and brush lint from the hook/feed area.
  • Set: Keep bobbin winding speed at Medium as a beginner-safe setting to reduce stretched thread on the bobbin.
  • Verify: Floss the thread firmly into the tension discs and confirm it is not snagged on the spool pin.
  • Success check: The machine feeds smoothly and the stitch formation stays stable when starting at a moderate speed.
  • If it still fails: Slow the stitching speed to 600–700 SPM for the first layer and re-check the thread path seating.
• Q: How do I judge correct hooping tension for the Baby Lock Solaris 10-5/8" x 16" hoop to prevent drift and misregistration?
  A: For the Baby Lock Solaris 10-5/8" x 16" hoop, aim for “drum skin” tension—large hoops loosen in the center, so the tap test matters.
  • Hoop: Align fabric grain straight and tighten evenly; avoid over-distorting the fabric edges while chasing tightness.
  • Tap: Tap the fabric in the center of the hoop to check tension before stitching.
  • Re-hoop: If the center sags, re-hoop instead of “hoping the projector will fix it.”
  • Success check: The center sounds like a drum (“thump, thump”), not floppy paper, and the fabric does not visibly sag.
  • If it still fails: Consider using a hooping station to press the inner ring down squarely without wrist strain.
• Q: Why does Baby Lock Solaris projector placement look perfect, but the final decorative stitch or satin stitch tunnels or lacks coverage?
  A: The Baby Lock Solaris projector is reliable for placement but not for density—always validate stitch coverage with a test swatch and stabilizer.
  • Stabilize: Add appropriate stabilizer under thin cotton or light fabric before sewing dense decorative stitches.
  • Audition: Use projection to confirm the stitch fits the border and starts where intended, but don’t judge coverage by the light image.
  • Adjust: Change projector color (red/white options) if fabric color reduces contrast and causes alignment mistakes.
  • Success check: A test swatch shows full coverage without tunneling/puckering, matching the intended width.
  • If it still fails: Reduce speed to around 600 SPM for precision and review stabilizer choice (dense stitches often need more support).
• Q: What stabilizer should be used on stretchy knits for Baby Lock Solaris embroidery to stop puckering and distortion?
  A: For Baby Lock Solaris embroidery on knits (T-shirts, hoodies, stretch fabric), use cutaway stabilizer—teara-way commonly blows out and distorts over time.
  • Choose: Use CUTAWAY for any stretchy knit as the baseline.
  • Add: For fluffy/pile fabrics (minky, velvet, terry), add a water-soluble topper on top plus stabilizer underneath.
  • Match: For very heavy stitch counts, step up to stronger support (cutaway or heavy tearaway on stable fabrics).
  • Success check: After stitching, outlines stay aligned to fills and the fabric lies flat without ripples around the design.
  • If it still fails: Re-check hoop tension with the drum tap test and reduce stitch speed for the first layer.
• Q: How do I prevent hoop burn on delicate fabrics when using the Baby Lock Solaris large screw hoop, and when is a magnetic hoop upgrade justified?
  A: If the Baby Lock Solaris screw hoop leaves shiny permanent rings (hoop burn) or wrist strain from tightening, switch from “tightening harder” to “clamping smarter” with magnetic hoops.
  • Improve (Level 1): Re-hoop using even, drum-skin tension without over-crushing fabric, and avoid excessive screw force.
  • Upgrade tooling (Level 2): Use magnetic hoops to clamp vertically and reduce friction-based crushing that causes hoop burn.
  • Upgrade capacity (Level 3): If frequent re-hooping and physical effort limit output, consider a production-oriented setup and machine strategy.
  • Success check: Finished garments show no shiny ring and registration stays stable without over-tightening.
  • If it still fails: Test on a scrap of the same fabric first and reassess stabilizer + hooping method before running the full garment.
• Q: What magnetic hoop safety rules should be followed when using embroidery magnetic hoops to avoid finger injury or medical device risks?
  A: Embroidery magnetic hoops use very strong magnets—keep fingers clear during closure and keep magnets away from pacemakers or insulin pumps.
  • Clear: Keep fingertips out of the closing zone before snapping the top frame down (pinch hazard is real).
  • Control: Lower the magnetic top frame straight down; do not “drop” it onto the bottom frame.
  • Separate: Maintain at least 6 inches distance from pacemakers or insulin pumps.
  • Success check: The frame closes smoothly without pinching, and the fabric remains evenly clamped without needing force.
  • If it still fails: Stop and reset the frame—never fight magnets while fingers are near the edges.
