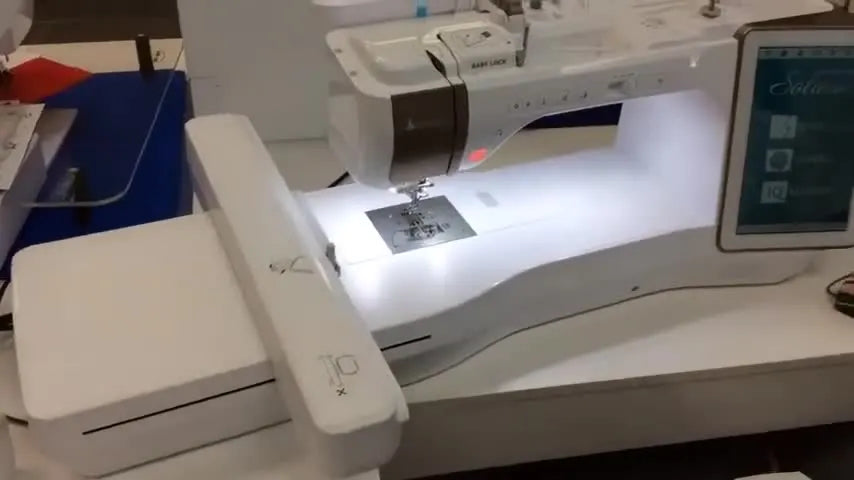

Baby Lock Solaris IQ Designer: Build a Heart Monogram on the Screen (and Make It Stitch Like a Pro)

If you’ve ever stared at the Baby Lock Solaris screen, paralysis setting in as you think, "I can see the design in my head, but I am terrified to jump into full PC digitizing software," you are exactly who IQ Designer was built for.

Embroidery is a tactile science. It’s not just about what looks good on a pixelated screen; it’s about how thread interacts with fiber physics. The good news is that the IQ Designer workflow is straightforward once you understand what the machine is really doing when you resize, trace, digitize, and then start "decorating" with motif stitches.

This guide acts as your masterclass in building a clean, giftable heart-framed monogram with mixed fonts—created entirely on the Solaris screen—but refined with the "hidden" parameters that ensure it embroiders predictably without bulletproof density or puckering.

Calm the Panic First: Baby Lock Solaris IQ Designer Isn’t “Real Digitizing,” but It Can Still Stitch Badly

IQ Designer is powerful, but it is brutally honest: if you stack outlines, push motif stitches too small, or let text sit slightly off-angle, the stitch-out will punish you. The goal isn’t perfection on the screen—it’s a design that runs smoothly in the hoop without breaking thread.

One mindset shift that saves a lot of frustration: On-screen design tools are fast, but they tempt you into "eye candy" choices that create dense overlaps. When you later see thread breaks, hear the machine laboring with a heavy thump-thump sound, or feel a stiff, "crunchy" edge on your fabric, it’s usually not your thread—it’s the design structure.

If you’re planning to stitch this in the 9.5" x 9.5" (240 x 240 mm) hoop, you’re already thinking in a larger format where hooping stability is the single biggest failure point. Physics dictates that the larger the surface area, the more the fabric wants to shift ("flag") in the center. If you’re frequently running large hoops and want faster, more consistent hooping—especially for repeat orders where you can't afford to re-hoop three times to get it straight—understanding babylock magnetic hoop sizes becomes a practical planning question necessary for professional results, not just a shopping question.

The “Hidden” Prep Pros Do: Units, Workspace, and a Quick Reality Check Before You Draw Anything

Before you touch IQ Designer tools, you need to lock in the "physics" of your workspace. Do these two things immediately:

1. Change units to millimeters (mm): Embroidery is a precise art. A 0.5mm gap is visible to the eye; a 0.05 inch gap is harder to visualize.
2. Select the 240 x 240 mm hoop: This forces your screen preview to match the physical reality of the stitch field.

This is not busywork. It prevents the classic rookie mistake: designing something that looks centered and roomy on-screen, only to discover the presser foot is dangerously close to the plastic rim of the hoop when you go to stitch.

Prep Checklist (Do this *before* you start designing)

• Unit Check: Confirm the machine settings are toggled to millimeters (mm).
• Field Check: Select the 240 x 240 mm hoop display/workspace to set your boundaries.
• Hardware Check: Have a USB mouse connected if you have shaky hands; it allows for pixel-perfect clicking compared to a finger.
• Composition Strategy: Decide your "hero element" first (here it’s a large letter), so all subsequent frames are built around it.
• Space Reserve: Mentally frame off the bottom 20% of the hoop for text—typography always demands more vertical real estate than you expect.
• Hidden Consumable: Ensure you have a fresh Needle (Size 75/11 or 90/14) ready. You don't want to design a masterpiece and ruin it with a dull needle burr.

Warning: Safety First. Keep fingers clear of the needle bar and moving parts when you transition from design mode to embroidery mode. A quick test stitch or color change can start the pantograph motion sooner than expected. Keep small scissors and tweezers away from the needle area during calibration to avoid injury or mechanical jams.

Make the Base Letter Clean: Resizing with Stitch Recalculation (the 60% Move That Saves You Later)

The workflow starts by placing a large built-in letter (shown as a “B” in the on-screen demo) and then resizing it to 60% using the machine’s resize feature.

The Physics of "Recalculate Stitches": If you shrink a design on a computer without recalculation, you are essentially compressing the same amount of thread into a smaller space. This creates a "bulletproof vest" effect—density so high it breaks needles. When the Baby Lock Solaris recalculates, it intelligently removes stitches to maintain the correct density (stitches per millimeter) for the new size.

Practical expectation: After resizing to 60%, the letter should still look smooth on-screen. If it looks jagged or overly blocky, the recalculation may have simplified it too much—but usually, 60% is well within the "sweet spot."

Trace to Outline in IQ Designer: Distance 0, Save It, and Don’t Overthink the First Pass

Next, use the trace/outline function to convert the letter into an outline shape, setting Trace Distance = 0.

Why Distance 0? It creates a clean "Master Path." If you later want a "puffier" outline or more breathing room between the letter and a decorative border, you can adjust that vis design choices (like stitch type and spacing). If you start with a gap (e.g., Distance = 2mm), you lose the reference to the original edge.

The workflow shown:

1. Trace the letter to outline.
2. Save it to the machine memory (The pocket icon).
3. Return to IQ Designer and retrieve it from the pattern list.

This save-and-retrieve step looks tedious, but it is how you keep your building blocks organized. Think of it as "saving your game" before fighting a boss.

Give the Letter a Signature Look: Candlewicking Outline + Color Fill (Pink in the Demo)

Once the outline is loaded in IQ Designer, apply a Candlewicking decorative stitch to the letter outline and color it (pink in the demonstration) using the bucket tool.

Sensory Detail - The "Why": Candlewicking reads as a textured, hand-finished series of French Knots. It gives a high-end, boutique feel.

• The Look: Raised, distinct dots.
• The Feel: Bumpy texture, distinct from flat satin stitches.
• The Risk: These "knots" are heavy. If your stabilizer is too weak, the fabric will pucker around each dot pattern.

Expert Note: On unstable fabrics (like knits or thin linen), candlewicking can distort the fabric shape. This is a prime scenario where a standard hoop might allow too much "draw in."

Build the Heart Frame: Resize to ~165 mm, Stretch Slightly, Then Center Like You Mean It

Add a heart shape from the shapes menu and resize it to approximately 165 mm in height. Stretch it slightly to frame the letter, then nudge it to center.

Experienced operators know that "Center" is a feeling, not just a coordinate. Visual weight matters.

1. Look at the gaps: Is the distance between the top of the 'B' and the heart arch equal?
2. Check the bottom: Is there enough room for the text without crashing into the point of the heart?

Expected outcome: The heart should frame the letter with a "comfortable" margin—air needs to exist between the candlewicking and the frame.

Make the Heart Look “Alive”: Motif Stitch Outline + Fill Pattern #16 (and Why This Combo Works)

Now, assign a decorative Heart motif stitch to the heart outline (red in the demo), then fill the inside using Fill Pattern #16 (purple in the demo).

This combination works because of Contrast in Density:

• Candlewicking: High relief (bumps).
• Heart Motif: Linear decoration (icons).
• Pattern #16: Low-density background texture.

If you used a dense Tatami fill for the background, the whole patch would turn into a stiff board. Pattern #16 keeps the drapability of the fabric intact.

Setup Checklist (Before you hit "Next" to digitize)

• Layer Logic: Confirm the letter outline is Candlewicking and colored.
• Frame Logic: Confirm the heart outline is set to the Heart motif stitch.
• Fill Logic: Confirm the interior region is set to Fill Pattern #16.
• Collision Check: Zoom in—ensure the heart frame isn't physically touching the letter outline.
• Vertical Clearance: Verify you strictly have 30-40mm of space remaining at the bottom for the text.

The “Digitize” Moment: Turn Off the Satin Outline, Then Upsize the Heart Motif to 20 mm

When you press Next, the Solaris runs the rendering engine to convert shapes to stitches.

Two critical manual overrides are required here for quality:

1. Disable the Satin Outline: The machine often defaults to adding a satin stitch around fill areas. turn this OFF. You already have a decorative heart motif; adding a satin stitch on top creates a "thread jam" waiting to happen.
2. Upsize Motif to 20 mm: Select the heart motif outline and increase the pattern size from 10 mm to 20 mm.


Data Point - Why 20 mm? At 10 mm, small heart motifs often look like undefined blobs, especially on toweling or fleece. At 20 mm, the shape is distinct, and the thread has room to lay flat.

Spacing Adjustment: The video tightens the candlewicking spacing to 3.0 mm.

• Caution: 3.0 mm is very tight. It looks premium, but it adds significant stress to the fabric. If you hear the machine struggling (thudding noise), bump this up to 4.0 mm or 5.0 mm.

Text That Doesn't Fight You: Type “For The LOVE…”, Ungroup It, Mix Fonts, and Rotate by 0.1°

The video adds text, typing "For The LOVE…", but immediately realizes the default layout is blocky and uninspired.

The Professional Fix:

1. Ungroup: Use the Ungroup key so the single block of text breaks into individual lines. This breaks the invisible "box" linking lines together.


2. Font Mix: Change "LOVE" to a script style. Contrast (Serif vs. Script) creates design interest.


3. Micro-Rotation: Rotate the text in 0.1° increments.


The Ergonomics of Editing: Dragging text on a touchscreen with your finger is inaccurate. It often results in accidentally selecting the background fill. Use the on-screen arrow keys for movement.

Commercial Pivot: The Cost of Pain If you find yourself doing hours of this fine-tuning, your challenge isn't just software—it's repeated physical strain. If you are producing batches of these for a club or Etsy shop, the constant clamping and unclamping of traditional hoops combined with screen editing leads to wrist fatigue. This is where a stable hooping station for embroidery becomes a lever for productivity. It holds the hoop rigid while you align, saving your wrists and ensuring that the 0.1° rotation you set on screen actually matches the fabric grain.

Color Matching and the Final Lock: Multi-Select, Recolor, Then Group Everything Before Saving

To finish, use multi-select to grab "For The" and recolor it to match the "LOVE" text, then select all elements and Group them.

Why Grouping is Non-Negotiable: Grouping is your insurance policy. If you accidentally touch the screen while moving to the embroidery page, a grouped design moves as a unit. An ungrouped design might lose the letter 'B' while the heart frame shifts left, ruining your alignment.

Success Metric: The final design appears as a cohesive composition—letter, heart frame, fill, and text rigidly locked together.

The Two Problems Everyone Hits on Solaris Text Editing (and the Fixes That Actually Stick)

Even without user comments, 20 years of floor experience tells me these are the two hurdles you will trip over:

Problem 1: "My text is stuck together blocks and I can't edit just the word 'LOVE'."

• Symptom: You try to change the font of one word, but everything changes.
• Likely Cause: The machine treats multi-line entry as one object.
• Quick Fix: Press the Ungroup icon (looks like squares separating).
• Prevention: Enter text lines separately if you know you want different fonts.

Problem 2: "Every time I drag text, I grab the background fill instead."

• Symptom: The purple background moves, ruining the tedious centering you just did.
• Likely Cause: "Fat finger" syndrome on a crowded touchscreen.
• Quick Fix: Use the Select menu to cycle through objects instead of touching them.
• Prevention: Use a stylus or mouse.

Decision Tree: Stabilizer Strategy for a 240 x 240 mm Hoop Design

This design has a large surface area with heavy outline stitches (Candlewicking) and low-density fills. Incorrect usage of stabilizer will result in "Hoop Burn" (puckering rings) or shifting registration.

Step 1: Identify Your Fabric Structure

• Is it Woven (Denim, Canvas, Twill)?
  • Action: Use Medium Weight Tear-Away or Cut-Away.
  • Support: Temporary Spray Adhesive (like 505) is recommended to prevent the center from bubbling.
• Is it Knitted/Stretchy (T-shirt, Hoodie, Performance)?
  • Action: Must use Cut-Away (2.5oz or 3.0oz).
  • Why: Tear-away will disintegrate under the candlewicking, causing the "knots" to pull through the fabric.
• Is it Napped (Terry Towel, Velvet)?
  • Action: Use Tear-Away (bottom) + Water Soluble Topper (Solvy) on top.
  • Why: Without the topper, the candlewicking dots will sink into the loops and disappear.

Step 2: Check for Friction If you are hooping a delicate garment and fear the "burn marks" from tightening the screw:

• Solution: Float the fabric (hoop only stabilizer) OR consider magnetic framing options.

The Upgrade Path That Actually Makes Sense: When Hooping Becomes the Bottleneck, Not IQ Designer

Once you master IQ Designer, the bottleneck shifts from "Design Time" to "Hoop Time." If you are stitching 20 of these hearts for a bridal party, you will quickly loathe the screw-tightening process.

Here is a logical, tiered approach to upgrading your workflow based on your pain points:

1. Level 1: The "Quality of Life" Fix (Hoop Burn & Speed)
   If you are fighting to get thick items (towels) or delicate items (silk) into the standard frame, or you hate the "ring" left behind, magnetic hoops are the industry standard solution. For Solaris owners, the search for purely compatible baby lock magnetic embroidery hoops is the first step toward easier, flatter hooping without the "tug of war."
2. Level 2: The "Consistency" Fix (Alignment)
   If your designs are crooked despite perfect on-screen rotation, your hooping is likely the culprit. Pairing a magnetic hoop with a station-style setup—often researched by professionals looking for a magnetic hooping station—mechanizes the alignment process, ensuring the chest logo lands in the exact same spot on Shirt #1 and Shirt #50.
3. Level 3: The "Profitability" Fix (Volume)
   If you are moving from hobby to side-hustle, the Solaris is a brilliant design station, but a single-needle machine is slow for production. A multi-needle machine allows you to prep the next hoop while one is stitching. SEWTECH multi-needle embroidery machines serve as a bridge for those needing industrial throughput without the industrial price tag, allowing you to keep the Solaris for custom IQ Designer work while the multi-needle handles the bulk orders.

Warning: Magnet Safety. Magnetic hoops use high-power neodymium magnets. They represent a severe pinch hazard—fingers can be crushed instantly between the rings.
* Do not place them near pacemakers or ICDs.
* Do not slide them near credit cards or hard drives.
* Do not let children handle them.

Looking for the right tool? While you might start by searching generally for magnetic embroidery hoops, always verify the specific distinct sewing field limits of your machine model before purchasing to ensure the magnet frame doesn't hit the needle arm.

Operation Checklist: The "Pre-Flight" Check

Stop. Do not press the green button until you verify these points to avoid a bird's nest.

• Group Status: Ensure the design is Grouped (one selection box around everything).
• Redundancy Check: Confirm one last time that the Satin Outline (Line Sew) is turned OFF.
• Motif Size: Visually confirm the hearts are chubby (20mm), not tiny specks.
• Bobbin Check: Do you have enough bobbin thread for a large fill? (Pattern #16 eats thread).
• Clearance: Rotate the handwheel physically if you are unsure about the hoop edge clearance.
• Stabilizer Bond: Touch the fabric in the center of the hoop—it should feel tight like a drum skin (for wovens) or taut but not stretched (for knits).


If you run this exact workflow and your stitch-out still looks "off," don’t assume you failed. 90% of the time, the issue is physical (hooping/stabilizer), not digital. Refine your physical setup, perhaps consider the magnetic advantage for difficult fabrics, and trust the process. IQ Designer is capable of professional results—if you respect the physics of the thread.

For Solaris owners looking to eliminate hoop burn and speed up production, comparing babylock magnetic hoops specifically designed for your sewing field is the highest-ROI upgrade you can make after mastering the software. For those scaling up further, looking into a dedicated alignment system like the hoop master embroidery hooping station can revolutionize your repeatability.

FAQ

• Q: On the Baby Lock Solaris IQ Designer, why does resizing a built-in letter make the stitch-out feel “bulletproof” or cause needle/thread breaks?
  A: Use the Solaris resize function with stitch recalculation, and avoid shrinking external designs without recalculating density.
  • Re-size the built-in letter to the intended scale (the workflow example uses 60%) using the on-screen resize tool.
  • Re-check that the resized letter still looks smooth on-screen before adding outlines or fills.
  • Success check: The machine should sew without a heavy “thump-thump” laboring sound, and the finished letter edge should not feel stiff/crunchy.
  • If it still fails: Reduce decorative density choices (for example, loosen candlewicking spacing from 3.0 mm to 4.0–5.0 mm) and re-evaluate stabilizer/hooping for fabric shift.
• Q: On the Baby Lock Solaris IQ Designer trace/outline tool, what does “Trace Distance = 0” prevent when outlining a letter?
  A: Set Trace Distance to 0 to create a clean master path that matches the original edge and avoids building in an unwanted gap.
  • Trace the letter with Distance set to 0 to lock the outline exactly to the letter’s true boundary.
  • Save the outline to machine memory, then retrieve it as a clean building block before decorating.
  • Success check: The outline sits precisely on the letter edge with no visible “halo” gap that later forces overlaps.
  • If it still fails: Zoom in and verify the outline is not colliding with nearby elements (like the heart frame) before digitizing.
• Q: On the Baby Lock Solaris digitize screen, why should the Satin Outline (Line Sew) be turned OFF when using a heart motif outline?
  A: Turn OFF the Satin Outline because stacking satin on top of a decorative motif outline often creates dense overlaps and thread-jam behavior.
  • Press Next to digitize, then manually disable the Satin Outline (Line Sew) the machine may add by default.
  • Keep only the decorative heart motif outline for the border when that is the intended edge finish.
  • Success check: The border sews cleanly without repeated thread breaks at the same points and without a raised, corded “rope” edge from stacked outlines.
  • If it still fails: Re-check that the heart frame is not physically touching the candlewicking letter outline (collision/overlap is a common cause of breaks).
• Q: On the Baby Lock Solaris, why do 10 mm heart motif stitches look like blobs, and what motif size setting is safer for clarity?
  A: Increase the heart motif pattern size to 20 mm so the motif has enough room to form a readable shape, especially on textured fabrics.
  • Select the heart motif outline and change the motif size from 10 mm to 20 mm after digitizing.
  • Keep the interior fill on a low-density pattern (like Fill Pattern #16 in the workflow) to avoid turning the whole design into a stiff patch.
  • Success check: Individual heart shapes are clearly identifiable, not rounded “dots,” and the fabric still drapes instead of feeling board-stiff.
  • If it still fails: Strengthen the stabilizer choice for the fabric type (knits typically need cut-away; napped fabrics often need a topper) and confirm the center of the hoop is not “flagging.”
• Q: On the Baby Lock Solaris IQ Designer text tool, how do you change only the word “LOVE” to a different font when the text is stuck as one block?
  A: Use the Solaris Ungroup function so each line/object can be edited independently.
  • Enter the text, then tap the Ungroup icon (the separating-squares icon) to break the block into editable parts.
  • Change the font for “LOVE” only, then use arrow keys for precise nudging instead of dragging on the touchscreen.
  • Success check: Selecting “LOVE” changes only that word’s font/style, and other lines remain unchanged.
  • If it still fails: Enter text lines separately from the start when mixed fonts are planned, and use a stylus or USB mouse to avoid mis-selections.
• Q: On the Baby Lock Solaris IQ Designer screen, how do you stop accidentally moving the background fill when trying to reposition text?
  A: Avoid finger-dragging in crowded designs and use the Select menu/object cycling plus arrow keys for controlled movement.
  • Use the Select menu to cycle to the text object instead of tapping directly on top of the fill.
  • Move the text with on-screen arrow keys for small, repeatable increments; rotate in micro-steps (0.1°) only after the correct object is selected.
  • Success check: Only the text bounding box moves, and the fill/heart frame stays perfectly locked in place.
  • If it still fails: Group key elements after placement so accidental touches move the design as a unit, not individual layers.
• Q: For a Baby Lock Solaris 240 × 240 mm hoop design with candlewicking outlines, how do you choose stabilizer to avoid hoop burn, puckering rings, or shifting registration?
  A: Match stabilizer to fabric structure first, then add anti-shift support for the large 240 × 240 mm field.
  • Choose by fabric: use medium tear-away or cut-away for wovens; use cut-away (commonly 2.5 oz or 3.0 oz) for knits; use tear-away plus water-soluble topper for napped fabrics.
  • Add temporary spray adhesive to help prevent center “bubbling” on large designs (a common cause of registration drift).
  • Success check: The hooped area feels drum-tight for wovens (taut but not stretched for knits), and the stitched edge shows no ring-like puckering or shifting between layers.
  • If it still fails: Float fabric by hooping only stabilizer (to reduce hoop marks), or consider a magnetic hoop approach for more even hold on delicate or bulky materials—always verify clearance and handling safety.
• Q: What are the key safety risks when switching the Baby Lock Solaris from IQ Designer mode to stitching, and what extra safety rule applies to magnetic embroidery hoops?
  A: Treat the transition to embroidery mode as “machine can move immediately,” and treat magnetic hoops as a serious pinch hazard.
  • Keep fingers, small scissors, and tweezers away from the needle bar/needle area before pressing start or testing a stitch/color change.
  • Manually verify hoop-edge clearance if unsure (a cautious handwheel check is a common safe practice).
  • Success check: No hands are near moving parts when motion starts, and nothing contacts the hoop rim during the first movements.
  • If it still fails: Stop immediately, re-check hoop selection/workspace boundaries, and for magnetic hoops specifically: keep magnets away from pacemakers/ICDs, keep children away, and never let fingers sit between the rings during closing.
