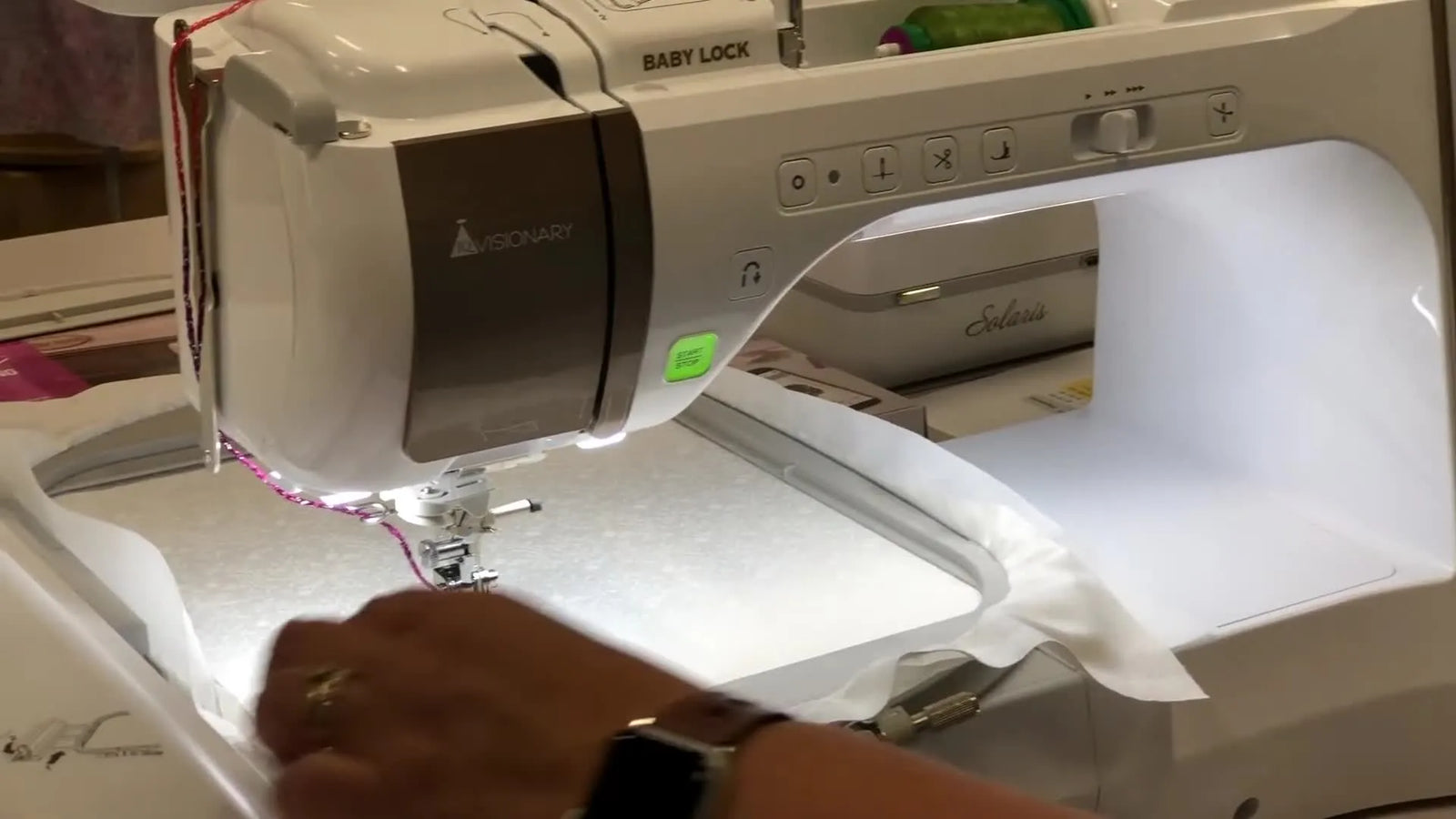

Baby Lock Solaris Couching That Actually Works: EC Guide Setup, Needle-Centering, and Yarn Feeding Without Broken Needles

Embroidery couching on the Baby Lock Solaris is one of those techniques that looks deceptively complex—like painting with yarn—but mechanically, it is simply a matter of friction management and precise alignment.

If you are staring at your Couching Foot and the wire threader with a sense of dread, take a breath. As a veteran of the trade, I can tell you that 90% of couching failures (broken needles, wandering yarn) happen before you even press "Start."

This guide rebuilds the standard workflow into a "Zero-Error" protocol. We will cover the installation of the Upgrade 1 kit, the critical needle-centering calibration that saves your machine, and the pro-level hooping strategies required for thick items like denim jackets.

The "It's Not You" Primer: Upgrade 1 & The Reality of Couching

Couching is the process of stitching over a piece of yarn to create a bold, textured line. On the Solaris, this requires the Upgrade 1 kit. If you do not see the "Category C" icon on your screen, you likely need to purchase and activate this upgrade.

The Physics of the Problem: Couching involves feeding a thick, round yarn under a foot that has very little clearance. If the yarn snag, or if the needle isn't perfectly centered, you will strike metal. Our goal is to create a "path of least resistance" for the yarn.

Phase 1: Hardware Installation (The Foundation)

You are installing two specific components: the EC (Embroidery Couching) Yarn Guide and the Couching Foot.

Step 1: Install the EC Yarn Guide

1. Locate the telescoping thread stand on your machine.
2. Find the metal guide marked "EC".
3. Snap it onto the left side of the machine chassis.
   • Sensory Check: You should hear a distinct click or feel it seat firmly. If it wiggles, it is not installed correctly.

Step 2: Mount the Couching Foot

1. Remove your standard embroidery foot (use the screwdriver to loosen the side screw).
2. Slide the Couching Foot onto the ankle.
3. Tighten the screw with a screwdriver, not just your fingers.
   • Why? Couching creates drag. A finger-tight screw can vibrate loose, causing the foot to drop and the needle to strike it.

Pro-Tip: The Bulky Fabric Challenge

You will likely be using this technique on denim jackets, canvas bags, or sweatshirts. These fabrics are thick and notorious for "hoop burn" (permanent rings left by standard hoops).

If you struggle to close your standard hoop over a denim seam, stop forcing it. You risk stripping the hoop screw or warping the inner ring. This is the specific scenario where professionals switch to an upgraded setup. Terms like hooping for embroidery machine often lead experienced users to better clamping solutions that handle bulk without damage.

Phase 2: The Needle-Centering Calibration (CRITICAL SAFETY STEP)

Do not skip this. The couching foot has a tiny opening. If your needle bar is even 1mm off-center, you will drive the needle into the foot, potentially damaging the timing of your $15,000+ machine.

The Calibration Protocol:

1. Power safety: Keep the machine on, but keep your hands clear of the "Start" button.
2. Visual Alignment: Look at the needle relative to the hole in the couching foot.
3. Manual Drop: Turn the handwheel toward you to slowly lower the needle. Do not use the automatic button yet.
4. The Adjustment: If the needle is not perfectly centered:
   • Locate the adjustment screw on the right side of the black presser foot holder.
   • Turn it gently creates lateral movement.
   • Watch the foot shift left or right until the needle is dead center.
5. The "Air Gap" Test: With the needle fully down (via handwheel), check that there is a visible "air gap" between the needle and the metal foot on all sides.

Warning: Never rely on the factory default. Every machine's tolerance is slightly different. If you hear a "tick" sound when lowering the needle manually, you are hitting metal. Re-adjust immediately.

Phase 3: The "Hidden" Prep – Supplies & Physics

Couching success relies on the yarn flowing smoothly. If the yarn is too thin, it looks messy; too thick, and it jams.

Material Selection Decision Tree

Use this logic flow to choose your consumables:

• Yarn Selection:
  • Target: Worsteds weight or Medium (4) yarn.
  • Test: Pull the yarn through the couching foot hole by hand. It should pass through with light resistance (like dental floss) but not get stuck.
• Fabric & Stabilizer:
  • Cotton/Quilting Fabric: Use Tear-Away set (2 layers if needed).
  • Denim/Canvas: Use Cut-Away or a fused stabilizer. Why? Thick fabrics have "memory" and try to return to their original shape. Tear-away often isn't strong enough to hold the registration of the heavy couching stitches.
  • Knits/Sweatshirts: MUST use Cut-Away + Spray Adhesive (or sticky back).

A note on hooping: If you start production runs of jackets, standard hoops become a bottleneck. The "pop" capability of magnetic embroidery hoops allows you to secure a thick denim jacket in seconds without wrestling with screws, which also prevents wrist fatigue.

Prep Checklist (Pre-Flight)

• Upgrade 1 installed (Category "C" visible).
• EC Guide installed on the left.
• Needle Centered & "Air Gap" verified via handwheel.
• Bobbin filled (use standard embroidery bobbin weight).
• Fresh Needle: Install a Size 90/14 Topstitch or Embroidery needle. The larger eye helps reduce friction.


Phase 4: The Yarn Path – Defeating Gravity

Baby Lock recommends a specific setup to prevent the yarn from whipping around and getting tangled.

1. Drop the Stand: Collapse your telescoping thread stand to its lowest position.
   • Why? Less distance = less "whip" and bounce in the yarn.
2. Route the Yarn:
   • Place yarn on the spindle.
   • Follow the standard top guides.
   • Crucial: Pass through the top hole of the EC guide, then slip it back-to-front through the side slot.


Phase 5: Threading the Foot (The Wire Tool)

The kit comes with a white wire tool. It looks flimsy, but it is essential.

1. The Approach: Bring the yarn down to the foot.
2. The Loop: Hook the yarn into the side channel of the foot (often entering from the right).
3. The Pull:
   • Insert the wire tool's loop down through the center hole of the foot.
   • Catch the yarn.
   • Pull the wire (and yarn) out through the bottom.
4. Sensory Check: Pull 4 inches of yarn through. It should slide smoothly. If it jerks, check if it's caught on the thread stand or the EC guide.










Phase 6: Top Threading & The "Cutter Block" Workaround

Thread your machine with standard embroidery thread (40wt) that matches or contrasts with your yarn.

The Friction Point: The EC guide you installed on the left physically blocks the path to the side thread cutter.

• The Fix: You must manually route the thread under the EC guide to reach the cutter. It feels clumsy, but it is normal for this attachment.

Production Note: It is these small inefficiencies—like maneuvering around guides or fighting with hoops—that slow down a business. When you scale up to doing 50 jackets for a school or club, looking into a hooping station for embroidery machine can recover hours of lost time by standardizing your garment placement.

Phase 7: Software Setup & "Auto Foot Down"

1. Select Category "C" (Couching). Choose your design (e.g., the Leaf).
2. Navigate to Settings (Page 8).
3. Set "Embroidery Foot Auto Down" to ON (or adjust per manual).
   • Why? The machine needs to know exactly where the fabric surface is to prevent the foot from dragging on the yarn while moving.

Operation Checklist (The Start Sequence)

• Yarn tail is pulled to the front of the hoop.
• Speed is reduced (Recommended: 400-600 SPM for the first run).
• Hand on the Tail: Gently hold the yarn tail for the first 3-5 stitches.
• Stop & Trim: After the tack-down stitches, stop the machine. Trim the tail close to the tack-down so it doesn't get stitched over later.




The "Why" behind the "Wow": Physics & Stabilizers

Couching adds weight and drag to the fabric. If your fabric shifts in the hoop, your yarn will not cover the line, and you will see gaps.

The Hoop Factor: Standard inner/outer hoops hold fabric by friction at the edges. On a thick seam (like a jean jacket), the hoop grips the seam tightly but leaves the single-layer areas loose. This allows the fabric to "flag" (bounce up and down), causing skipped stitches or broken needles.

This is the primary technical reason professional shops utilize magnetic embroidery frame systems. The magnets apply vertical clamping pressure rather than friction, holding varying thicknesses (like seams + pockets) equally flat against the needle plate for safer stitching.

Warning: If you upgrade to magnetic hoops, be aware they use high-power Neodymium magnets. Pinch Hazard: Keep fingers clear of the snapping zone. Medical Safety: Keep magnets away from pacemakers and insulin pumps.

Structured Troubleshooting Guide

If things go wrong, do not panic. Use this Low-Cost to High-Cost diagnosis path:

Final Thoughts: Moving from Hobby to Production

Couching is a high-value technique. It looks expensive and feels premium. Once you master the setup—specifically the Needle Centering and the Yarn Path—it becomes a repeatable process.

If you find yourself enjoying the texture of couching and want to apply it to thicker, more profitable items like carhartt jackets, bags, or horse blankets, consider your toolset. Fighting with standard plastic hoops on heavy canvas is a recipe for frustration and carpal tunnel.

• Level 1 Upgrade: Better stabilizers (Cut-away) & Fresh Needles.
• Level 2 Upgrade: magnetic hoops for babylock embroidery machines to revolutionize your loading speed and safety.
• Level 3 Upgrade: If you outgrow the single-needle changes, exploring multi-needle platforms like SEWTECH can handle these specialty techniques with even greater efficiency.

Master the calibration, respect the physics of the yarn, and you will produce flawless couching every time. Happy stitching!

FAQ

• Q: Why does a Baby Lock Solaris needle make a snap/crunch sound when using the Upgrade 1 Couching Foot?
  A: Stop immediately—the Baby Lock Solaris needle is striking the Couching Foot because the needle is not perfectly centered.
  • Re-do the Needle-Centering Calibration using the handwheel (do not press Start).
  • Locate the adjustment screw on the right side of the black presser foot holder and nudge the foot left/right until centered.
  • Repeat the “Air Gap” test with the needle fully down.
  • Success check: The needle drops through the foot opening silently with visible clearance on all sides.
  • If it still fails: Recheck that the Couching Foot is mounted firmly and tightened with a screwdriver (not finger-tight).
• Q: How do I know the Baby Lock Solaris EC (Embroidery Couching) Yarn Guide is installed correctly for Upgrade 1 couching?
  A: The Baby Lock Solaris EC Yarn Guide must snap onto the left side firmly; any wiggle usually causes yarn drag and tangles.
  • Snap the EC guide onto the left side of the machine chassis until it seats.
  • Tug the guide lightly to confirm it does not move.
  • Route yarn through the top hole, then back-to-front through the side slot as directed.
  • Success check: A distinct “click” is heard/felt on installation, and the guide feels solid with no wobble.
  • If it still fails: Re-route the yarn path to remove snags and reduce slack by lowering the thread stand.
• Q: What yarn and needle should be used for Baby Lock Solaris Upgrade 1 couching to prevent jams and needle breaks?
  A: Use Medium (4) / worsted-weight yarn that slides with light resistance, and start with a fresh Size 90/14 Topstitch or Embroidery needle to reduce friction.
  • Pull the yarn through the Couching Foot hole by hand before stitching.
  • Install a new Size 90/14 needle (larger eye helps the thread/yarn system run smoother).
  • Reduce speed for the first run (a safe starting point is 400–600 SPM as recommended in the workflow).
  • Success check: Yarn pulls through the foot smoothly (no jerking) and the first stitches form without immediate needle deflection.
  • If it still fails: Switch to a thinner yarn (if the yarn is too thick for the foot hole, the needle can break instantly).
• Q: What stabilizer should be used for Baby Lock Solaris couching on denim jackets, canvas, or sweatshirts to prevent shifting and gaps?
  A: Use Cut-Away (or a fused stabilizer) for denim/canvas, and Cut-Away plus spray adhesive or sticky-back for knits/sweatshirts to prevent fabric movement during couching.
  • Choose Cut-Away for denim/canvas to hold registration under heavy couching drag.
  • Use Cut-Away + spray adhesive (or sticky-back) for knits/sweatshirts to prevent bounce and distortion.
  • Keep hooping firm and flat to reduce “flagging.”
  • Success check: The yarn covers the line evenly with minimal gaps and the fabric does not visibly bounce up/down while stitching.
  • If it still fails: Treat it as a hoop-holding problem—improve clamping (often a magnetic hoop helps on bulky seams).
• Q: How do I stop Baby Lock Solaris couching yarn loops or loose-looking couching stitches during stitching?
  A: Reduce slack and stabilize the yarn feed—the Baby Lock Solaris couching yarn often loops when the thread stand is too high or the yarn is not controlled in the EC guide.
  • Collapse the telescoping thread stand to the lowest position to reduce yarn “whip.”
  • Confirm the yarn passes through the EC guide correctly (top hole, then into the side slot back-to-front).
  • Pull out a short yarn tail and gently hold the tail for the first 3–5 stitches.
  • Success check: The yarn lays consistently under the foot without springing upward into loose loops.
  • If it still fails: Re-thread the foot using the wire tool and confirm the yarn slides smoothly for at least 4 inches.
• Q: Why does Baby Lock Solaris couching show birdnesting underneath even though the top looks fine?
  A: Birdnesting underneath usually means the Baby Lock Solaris top embroidery thread is not seated correctly in the tension discs (the yarn is not the tensioned thread).
  • Re-thread the top embroidery thread (40wt) and make sure it is flossed into the tension discs.
  • Confirm the bobbin is filled and installed correctly with standard embroidery bobbin weight.
  • Slow down for the first run to observe stitch formation before committing to full speed.
  • Success check: The underside shows balanced stitches instead of a wad of loops (no “nest” building up).
  • If it still fails: Stop and re-check the yarn path for snags; excess drag can destabilize stitch formation.
• Q: What are the safety precautions for Baby Lock Solaris needle-centering and magnetic embroidery hoops when doing couching on thick garments?
  A: Protect the machine and fingers: always needle-center using the handwheel before stitching, and treat magnetic hoops as a pinch and medical-device hazard.
  • Lower the needle manually with the handwheel to verify perfect centering before pressing Start.
  • Keep hands clear of the Start button during calibration and listen for any “tick” indicating metal contact.
  • Keep fingers out of the snapping zone when closing magnetic hoops; neodymium magnets can pinch hard.
  • Success check: Manual needle drop is silent with an air gap, and magnetic hoop closure is controlled without finger contact.
  • If it still fails: Stop using the setup and re-check alignment; if using magnets, pause and reassess handling—do not “force” closures near seams.
