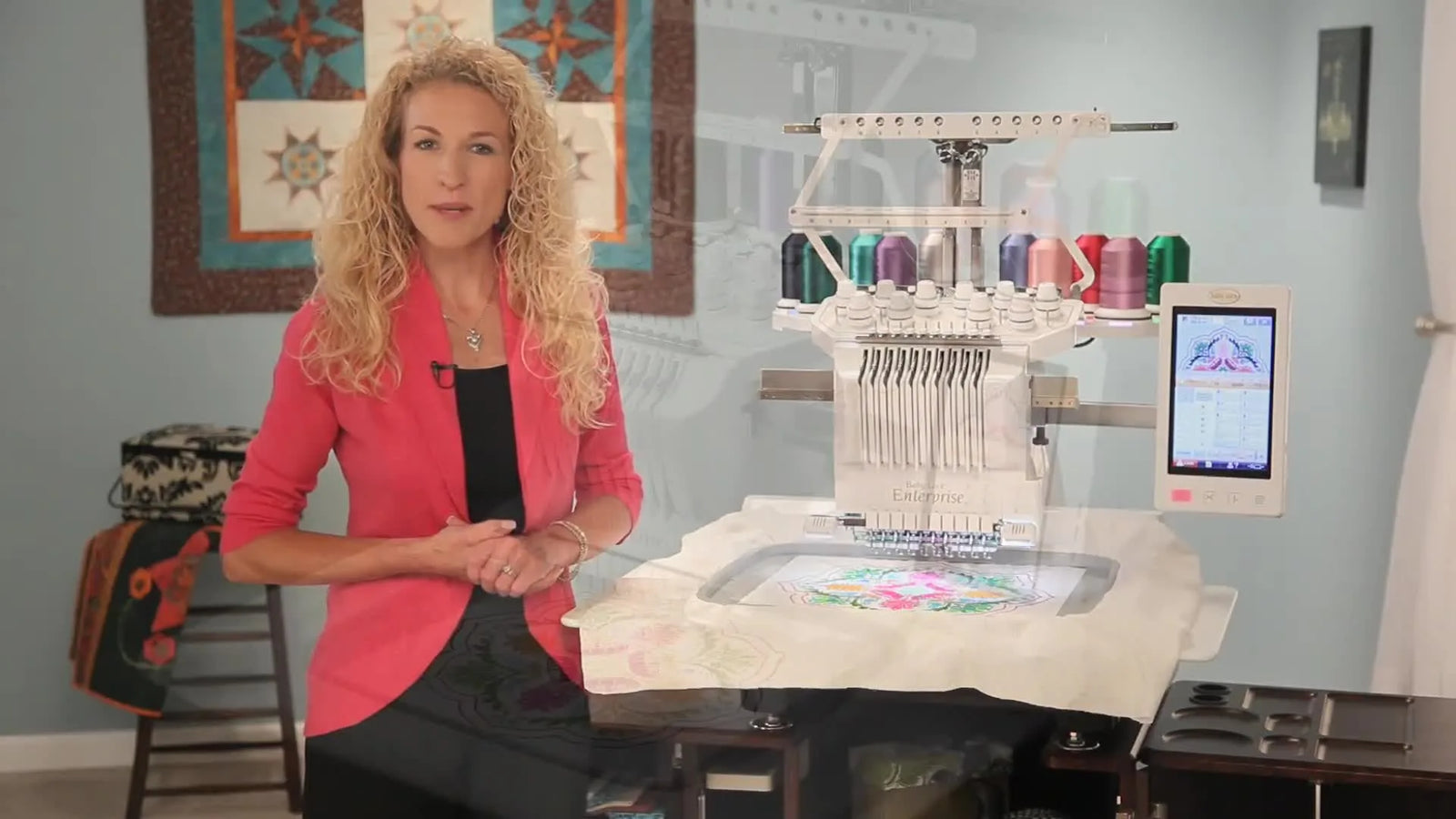

Baby Lock Enterprise 10-Needle: The Real-World Feature Walkthrough (and the Hooping Choices That Make or Break Profit)

When you step up to a multi-needle machine like the Baby Lock Enterprise (or any 10-needle beast), the emotion is a mix of exhilaration and terror. It feels like the difference between driving a sedan and piloting a 747. You see the potential: no more babysitting thread changes, no more late nights fighting one needle at a time. But then you see ten paths, a complex screen, and high-speed moving parts, and you think: “What if I crash this?”

As an instructor who has guided hundreds of students through this exact transition, I’m here to tell you: The machine is not the variable; you are.

This guide rebuilds the standard feature overview into a "production-grade" workflow. We will move beyond the marketing fluff and look at the physics, the "feel" of correct tension, and the safety protocols that keep your fingers intact and your business profitable.

First, breathe: what the Baby Lock Enterprise 10-needle machine is really built to do

The video frames this machine as a creative powerhouse, which is true. But for you, the operator, it is a throughput engine. The Baby Lock Enterprise (and its modern successors like the Valiant or Intrepid) is designed to solve exactly three problems:

1. Downtime: By holding 10 colors, it eliminates the 2-minute thread change that stops your momentum.
2. Registration: By keeping the garment stationary while needles move, it reduces fabric shifting.
3. Speed: It sustains higher speeds (up to 1,000 SPM) for longer periods than home machines.

However, the "magic" isn't the needles. The magic is repeatability. If you are coming from a single-needle background, your new goal is not "making one perfect shirt." It is "setting up a system to make 50 acceptable shirts without losing your mind."

The hidden prep pros do before they ever touch the Start button (10 needles = 10 chances to forget something)

The video highlights "effortless tensions" and automatic threaders. Let me offer a reality check: Automation is only as good as your preparation. A small error on a single-needle machine is an annoyance; a small error on a 10-needle machine, multiplied by 1,000 stitches per minute, is a "bird's nest" disaster that can damage your rotary hook.

What the video shows: Easy loading and threading. What experience teaches: You need a "Pre-Flight" ritual. You must engage your senses—sight, touch, and sound—to verify the machine is ready.

Prep Checklist: The "Zero-Failure" Protocol

• The "Floss" Tension Check: Before threading the eye of the needle, pull the thread through the tension disks. You should feel a smooth, consistent resistance, similar to pulling dental floss between your fingers. If it jerks or feels loose, re-thread.
• Bobbin Case Hygiene: Remove the bobbin case. Blow out lint (canned air or low-pressure compressor). A generic piece of lint under the tension spring is the #1 cause of "looping" on top.
• Needle Freshness: Are you starting a new 50-piece order? hidden consumable: Change all active needles. A $0.50 needle is cheaper than a ruined $20 polo shirt. Use 75/11 sharp points for wovens or ball points for knits as your baseline.
• The "Click" Test: When inserting the bobbin case, listen for an audible, sharp CLICK. No click? It’s not seated. The needle will hit it.
• Stabilizer Audit: Do you have the right backing? (See the Decision Tree below).
• Hoop Clearance: Manually rotate the handwheel (if applicable) or visually verify that your selected hoop size matches what you told the screen. A Frame Strike (needle hitting the hoop) is a violent, expensive mistake.


Use the LED spool lights like a production dashboard, not a decoration

What the video shows: Cool LED lights that match thread colors and blink when empty. The Expert Upgrade: These lights are your Status Beacons.

In a noisy shop, you can't always hear a thread break. These lights are your peripheral vision. More importantly, they discipline your color management.

The "Anchor" Strategy: If you run a lot of black text or white underlay, assign Needle 1 to Black and Needle 10 to White permanently. Use the machine’s "Anchor" or "Assign" function (found in the settings menu of Intrepid/Valiant models) to lock these in.

• Why? It builds muscle memory. You never have to guess where the black thread is.
• The Benefit: Less re-threading = fewer chances to mess up the tension path.

Speed Management: Just because the machine can go 1,000 SPM (Stitches Per Minute) doesn't mean it should.

• Examine your spool: Is it rayon? Polyester? Metallic?
• Beginner Sweet Spot: Set your max speed cap to 700-800 SPM. You will get cleaner text and fewer thermal breaks. As you gain confidence, dial it up.

Digital NeedleCam placement: the fastest way to stop wasting blanks

The video demonstrates the Digital NeedleCam: place a snowman sticker, scan it, and the machine aligns the design perfectly.

The Reality: This feature is a lifesaver for "hard-to-hoop" items. However, relying on it 100% can make you lazy with your physical hooping technique.

• The Physics Trap: The camera aligns the design to the sticker. It cannot fix fabric distortion. If you hooped a t-shirt loosely and the fabric is rippled, the camera will place the design perfectly on... a ripple. When you un-hoop it, the design will be crooked.


How to use NeedleCam without "Cheating" Physics

1. Hoop for Neutrality: Hoop your item so the fabric is taut (like a drum skin for wovens, or stable but unstretched for knits).
2. Apply Sticker: Place the sticker visually where you want the center.
3. Scan & Align: Let the machine align the design.
4. The "Trace" Confirmation: Do not trust the computer blindly. Run a "Trace" (the laser or needle moves around the design perimeter).
   • Visual Check: Does the needle path stay within the safe area of the garment?
   • Obstruction Check: Will the clamp hit a button or zipper?

Safety Check: Keep hands OUT of the hoop area during the scan. The frame moves fast and unpredictably.

On-screen editing on the 8.5" LCD: fix problems before they become re-hooping nightmares

The video shows the gorgeous 8.5-inch ASV screen. You can rotate, resize, and curve text.

The Commercial Application: This screen is your "Quality Control Gate." Once you hit start, you are committed.

• Zoom to 200%: Look at the connection points between letters. Are they creating "trim" commands you don't want (too many jump stitches)?
• Background Check: Change the screen background color to Gray. This highlights white threads or gaps in your design that you might kiss on a white background.

Setup Checklist (The "Last Chance" Protocol)

• Design Orientation: Is the shirt 180° upside down in the hoop? (Common with cap frames). Rotate the design to match.
• Hoop Selection in Software: CRITICAL. Does the screen say "200x300" while you actually have the "100x100" hoop attached? If yes, change it immediately, or the machine will drive the needle bar into the plastic frame.
• Color sequence: Verify the machine has mapped the colors to the correct needle numbers. (e.g., Screen says Blue is Needle 4. Is Blue thread actually on Needle 4?)

Speed, specialty threads, and the “anchor thread type” trick that prevents breakage

The Enterprise allows you to set specific needles to run at different speeds. The video mentions this for metallic threads.

This is not just a suggestion; it is a requirement.

The Physics of Metallic Thread: Metallic thread is essentially a wire wrapped in foil. It hates friction. At 1,000 SPM, the friction through the needle eye heats up and snaps the foil, leading to "bird nesting."

• The Fix: Assign your metallic thread to a specific needle (e.g., Needle 10). Go into settings and "Anchor" that needle to 400-600 SPM.
• The Needle: Swap that needle for a 90/14 Metallic or Topstitch needle. The eye is larger, reducing friction.

Warning: Mechanical Hazard. When embroidering at high speeds, if a needle breaks, the tip can become a projectile. Always wear glasses (or use the safety shield if equipped) and keep your face away from the needle bar plane while running.

Stitch navigation (+/-) is your “save the job” button when something goes wrong

Thread breaks happen. Bobbins run out. The video shows stitch navigation (+/- 1, 10, 100 stitches).

The "Overlap" Technique: When a thread breaks, the machine stops after the break occurred. You have missed 5-10 stitches.

1. Re-thread.
2. Use the Stitch - button to go back 15 to 20 stitches before the break point.
3. Start.
4. Why? This ensures the new thread locks over the old thread tails, preventing a hole or a loose end that will unravel in the wash.

Pro Tip: If you have a massive "bird's nest" under the throat plate, do not just yank. Cut the fabric free carefully, remove the throat plate, and use the handwheel to gently untangle. Forcing it will throw off your timing.

Hoop selection on the Baby Lock Enterprise: stability is the real feature

The video lists the hoops: Standard, Cap, Jumbo, Border. The message is "Right hoop for the right project."

The Industry Secret: The "standard" plastic hoops that come with the machine are functional, but they can be slow to load and hard on your wrists. They require screwing and unscrewing, and if you overtighten, you get "hoop burn" (permanent crush marks on delicate fabric).

If you plan to turn this into a business, you will reach a breaking point where hooping takes longer than stitching. Before you buy a second machine, buy better hoops.

Decision Tree: Choosing the Right Stabilization System

Use this logic flow to determine your setup:

1. Is the item tubular and rigid? (e.g., Baseball Cap)
   • System: Cap Driver + Wide Cap Frame set.
   • Stabilizer: Heavy Tearaway (2.5 - 3.0 oz).
   • Note: Use the 350-degree range, but watch the bill clearance!
2. Is the item flat and thick/delicate? (e.g., Carhartt Jacket, Velvet, Performance Polo)
   • Problem: Standard hoops leave "burn" marks or pop open due to thickness.
   • Solution: Consider magnetic hoops for babylock embroidery machines. The magnetic force holds thick seams without crushing the fibers, and snap-on loading is 3x faster.
   • Stabilizer: Cutaway (2.5 oz) for performance wear; Tearaway/Cutaway combo for jackets.
3. Is it a huge layout? (e.g., Jacket Back)
   • System: Jumbo Hoop (14" x 14") with Extension Table.
   • Requirement: The extension table is mandatory here to support the weight of the garment. If it drags, the design registers poorly.
4. Are you doing "Endless" borders?
   • System: Border Frame (4" x 11-3/4").
   • Technique: Use placement markers to re-hoop accurately.

Cap frames, hats, and the learning curve nobody warns you about

The video promotes "Ear-to-Ear" embroidery.

Real Talk: Hats are the hardest thing you will learn. The "flagging" (bouncing) of the hat fabric causes needle breaks and registration errors.

• Space: You do not have the flat clearance of a table. The cap driver is working in 3D space.
• The Upgrade: If you are struggling with the standard cap hoops (sweatbands slipping, inconsistent heights), specialized cap hoop for embroidery machine systems or advanced clamping jigs can provide the rigid tension needed for crisp lettering.

Beginner Advice: Buy 12 cheap "throwaway" hats. Do not practice on a customer's $30 Richardson cap. Practice hooping until the sweatband is flat and tight against the gauge.

Multi-machine linking with Palette 9: where hobby mode turns into production mode

Connecting 4 machines to one PC is a cool feature. But even if you only have one machine, this mindset matters.

The "Batching" Concept: Don't digitize one name, send it, stick it, run it. Batch your work on the PC (Palette 9 or similar software). Create a queue. While the machine is running Job A, you should be hooping Job B.

• The Bottle-neck: It is almost always hooping.
• The Workflow Fix: Creating a dedicated hooping station for embroidery machine (a marked table area with precut stabilizer and your hoops) saves seconds on every unit. Seconds add up to hours.

The questions everyone asks (price, availability, where to buy) — and what to do instead of chasing rumors

The Enterprise is a legacy machine. You will likely find used models, or you will be looking at the Baby Lock Valiant, Intrepid, or Array.

Buying Strategy: If you are searching for a babylock 10 needle embroidery machine, realize that you are buying an ecosystem.

• Support: Who will fix it when the timing belt slips?
• Parts: Are hoops easy to find?
• Resale: Multi-needle machines hold value well if maintained.

The upgrade path I recommend when hooping becomes the bottleneck

Here is the scenario: You have the machine. It works great. But you leave the shop with aching wrists, and you scraped three shirts today because you couldn't get them straight in the standard hoop.

This is the commercial "Pain Point." Do not buy a new machine yet. Upgrade your tooling.

1. Scenario Trigger: You are embroidering 20+ left-chest logos on polo shirts.
2. The Problem: Screwing the standard hoop tight enough to hold results in "hoop burn" rings that don't steam out. Adjusting the screw for every shirt is slow.
3. The Solution Options:
   • Level 1: Use "Hoop Magic" or water-soluble stabilizer on top to prevent burn (Consumable cost).
   • Level 2 (Recommended): Switch to babylock magnetic hoops. The magnets self-adjust to fabric thickness (seams vs. single layer) instantly.
   • Level 3: Production Volume. If you are doing hundreds, look for magnetic embroidery hoops for babylock that fit the specific 360mm arm width of your machine to maximize the sew field.

Warning: Magnetic Field Hazard. Commercial magnetic hoops use high-power Neodymium magnets. They can pinch fingers severely (blood blister risk) and can interfere with pacemakers. Keep them at least 6 inches away from medical devices and electronic media.

Operation: run the job like a pro (checkpoints that prevent 80% of rework)

You are prepped. You are hooped. You are ready to run.

Operation Checklist: The "First 30 Seconds" Rule

• Watch the Start: Do not walk away. The first 30 seconds are when 90% of failures happen (thread not catching, tail caught, needle hit).
• Listen to the Rhythm: A happy machine makes a consistent thump-thump-thump. A "dry" or unhappy machine sounds like clack-clack or grind. If the sound changes, STOP immediately.
• Monitor the Tail: Watch the first trim. Did the tail pull to the back? If not, trim it manually before it gets stitched over.
• Check the Bobbin (Visual): Look at the back of the first few letters. Do you see 1/3 white bobbin thread in the center?
  • Correction: If you see ALL white (top tension too tight/bobbin too loose).
  • Correction: If you see NO white (top tension too loose/bobbin too tight).

The bottom line: features are nice, but repeatable setups are what make embroidery profitable

The Baby Lock Enterprise set the standard for user-friendly multi-needle machines. Its camera, lights, and screen are fantastic. But remember: The machine only executes instructions.

Your success comes from the discipline of your prep, the stability of your hooping decision, and the quality of your consumables.

• Use fresh needles.
• Use the right stabilizer (Cutaway for knits, Tearaway for wovens).
• Eliminate the variables that cause error.

When you find that your hands are the slowest part of the process, that is the signal to look into efficiency tools like baby lock magnetic hoops to match your toolset to your ambition. Now, go load that machine—properly—and make something amazing.

FAQ

• Q: How do I run a “Pre-Flight” checklist on a Baby Lock Enterprise 10-needle embroidery machine to prevent bird nesting and looping?
  A: Use a consistent pre-start ritual every time—10 needles means 10 chances to miss one threading or lint issue, and small mistakes multiply fast at high speed.
  • Pull thread through the tension disks before threading the needle and feel for smooth “dental floss” resistance; re-thread if it feels jerky or loose.
  • Remove the bobbin case and blow out lint; check for lint under the tension spring (a common cause of looping on top).
  • Insert the bobbin case and listen for a sharp click so it seats fully.
  • Rotate the handwheel (if applicable) or visually confirm hoop clearance and correct hoop size selection before pressing Start.
  • Success check: Thread pull feels consistently resistant, bobbin case clicks in, and the machine runs the first seconds without sudden looping or a nest.
  • If it still fails: Stop immediately, re-thread that needle path from the start, and re-check bobbin-case seating and lint.
• Q: What needle type and needle-change timing is a safe starting point on a Baby Lock Enterprise for a new 50-piece order?
  A: Start the order with fresh needles on all active needles—needles are a cheap consumable compared with scrapped garments.
  • Change needles before starting the batch, especially for production runs.
  • Use 75/11 sharp point needles for wovens as a baseline, or ball point needles for knits.
  • Match the needle choice to the fabric type first, then fine-tune only if needed (always verify with the machine manual).
  • Success check: Reduced thread breaks and cleaner stitch formation in the first few items of the run.
  • If it still fails: Re-check hooping stability and stabilizer choice, then review tension and threading path for that needle.
• Q: How can Baby Lock Enterprise operators verify correct embroidery tension using the bobbin-thread appearance on the back of the design?
  A: Use the first few letters as a tension test and look for a balanced bobbin “third” in the middle of the stitch formation.
  • Stitch the first part of the design and inspect the back immediately.
  • Adjust based on what is seen: all white bobbin thread suggests top tension too tight or bobbin too loose; no white suggests top tension too loose or bobbin too tight.
  • Make one change at a time, then re-check after a short stitch-out section.
  • Success check: About 1/3 bobbin thread visible in the center on the back of the first few letters.
  • If it still fails: Clean lint from the bobbin area and confirm the bobbin case is correctly seated with a click.
• Q: How do I use the Baby Lock Enterprise Stitch +/- navigation to recover cleanly after a thread break without leaving a gap?
  A: Back up 15–20 stitches before restarting so the new thread overlaps and locks the missed area.
  • Re-thread the broken needle path completely.
  • Use Stitch “-” to go back 15–20 stitches before the break point.
  • Restart and watch the overlap section closely.
  • Success check: No visible hole or open gap where the break occurred, and the overlap blends without loose ends.
  • If it still fails: Stop and inspect under the throat plate for a developing nest; do not yank—cut free carefully and untangle gently.
• Q: How can Baby Lock Enterprise owners prevent hoop strikes caused by incorrect hoop selection on the 8.5" LCD screen?
  A: Always match the hoop size shown on the screen to the hoop physically attached before pressing Start—wrong hoop selection can drive the needle bar into the frame.
  • Confirm the on-screen hoop size matches the installed hoop (do this as a “last chance” check).
  • Run a trace around the design perimeter to confirm the needle path stays inside the safe sew field.
  • Check for physical obstructions like buttons, zippers, or clamps that could be hit during tracing or stitching.
  • Success check: Trace completes without approaching the frame edge or contacting hardware.
  • If it still fails: Stop and re-select the correct hoop on-screen, then re-trace before restarting.
• Q: How should Baby Lock Enterprise users run metallic thread to reduce breakage using needle-specific speed control?
  A: Assign metallic thread to one needle and anchor that needle to a slower speed (400–600 SPM) to reduce friction heat at the needle eye.
  • Put metallic thread on a dedicated needle position so settings stay consistent.
  • Set that needle’s speed lower (400–600 SPM) while keeping other needles at normal speed as needed.
  • Swap to a 90/14 Metallic or Topstitch needle to reduce friction through a larger eye.
  • Success check: Metallic thread runs longer with fewer snaps and fewer sudden nests as speed stabilizes.
  • If it still fails: Lower speed further within the machine’s safe range and re-check threading path smoothness through the tension disks.
• Q: What are the key safety precautions for high-speed stitching and magnetic embroidery hoops on a Baby Lock Enterprise setup?
  A: Treat the needle area and magnets as hazards—needle tips can become projectiles, and high-power magnets can pinch fingers and affect pacemakers.
  • Keep hands out of the hoop area during scanning, tracing, and stitching; frames can move fast and unpredictably.
  • Wear glasses or use the safety shield if equipped, and keep face away from the needle bar plane while running.
  • Handle magnetic hoops slowly and deliberately to avoid pinches; keep magnetic hoops at least 6 inches away from pacemakers and sensitive devices.
  • Success check: No hands near moving frame during motion, no near-miss pinches during hoop loading, and the operator can stop the machine quickly if sound changes.
  • If it still fails: Pause and redesign the workflow (slower loading, clearer hand placement) before increasing speed or repeating the setup.
• Q: When hooping becomes the bottleneck on a Baby Lock Enterprise for 20+ left-chest polos, what is a practical upgrade path before buying another machine?
  A: Fix the bottleneck in layers—optimize technique first, then upgrade hoops, and only then consider production expansion.
  • Level 1: Reduce hoop burn using a topper approach (for example, Hoop Magic or water-soluble stabilizer on top) and standardize a repeatable hooping routine.
  • Level 2: Switch to magnetic hoops to speed loading and reduce crushing marks on delicate or thick items.
  • Level 3: If volume demands it, move toward production-focused tooling and capacity planning rather than immediately replacing a working machine.
  • Success check: Hooping time drops and fewer garments are scrapped due to crooked placement or hoop burn rings.
  • If it still fails: Re-check fabric neutrality in the hoop (taut for wovens, stable-but-unstretched for knits) and confirm stabilizer choice matches the garment type.
