When your bobbin cover suddenly drops into your hand—or refuses to stay shut—your brain goes straight to: “Great… I just broke my expensive machine.”

Take a breath. As someone who has spent two decades on the shop floor, I can tell you that on the Baby Lock Array (and similar multi-needle platforms), this is almost never a catastrophic failure. It is a safety disengagement. The hinge is designed to pop apart rather than snap the plastic when stressed.

I’ve seen this happen most often right after a deep clean, when an operator is being a little too enthusiastic using a lint brush around the bobbin area. You hear a clatter, you see the white plastic cap on the table, and panic sets in.

Below is the definitive "Shop-Floor Protocol" for fixing this. We aren't just going to snap it back together; we are going to inspect the mechanics, understand the alignment, and reboot your production confidence so this doesn't happen again mid-order.

The Panic-to-Productive Reset: What a Baby Lock Array Bobbin Cover Failure Really Means

Before we pick up a screwdriver, let's diagnose the severity. Two common symptoms show up in the field:

1. The Detachment: The white plastic bobbin cover cap comes completely off.
2. The Partial Fail: The cover opens partway and then won’t snap closed, or hangs loosely at an odd angle.

In both cases, the hinge points between the long underside bracket and the small cap piece have slipped out of their axis. The fix is not to force it back on (that breaks tabs). The fix is to remove the bottom bracket, re-seat the hinge (pivot + hook/tab) securely in your hands, test the swing, and only then reinstall.

A comment I hear a lot from new owners of the baby lock 6 needle embroidery machine is: “I was cleaning thoroughly, got a little forceful, and it popped out on one side—right in the middle of a rush order.” That timing is painfully real. The good news: this repair is designed to be accessible to the user. You do not need a technician for this.

Phase 1: The "Hidden" Prep (Pro Shop Protocol)

Before you touch a screw, you must control your environment. This is a small plastic mechanism—rushing is how tabs get stressed and how screws get lost in the carpet.

The Toolkit

• The Driver: A short or standard Phillips head screwdriver (Julie uses the one included with the machine).
• The Container: A magnetic parts bowl or a simple coffee mug. Do not skip this. Losing one of these screws shuts you down for days.


Pre-Flight Checklist: Do This OR Risk Breaking Plastic

• Clear the Deck: Remove any hoops, fabric, or thread cones from the immediate area under the embroidery arm. You need a clear line of sight to the underside bracket.
• Lighting Check: Angle your lighting so you can see into the recessed screw holes. Shadows are the enemy here.
• Symptom Confirmation: Verify if the cover is fully detached or just misaligned.
• Hidden Consumable Check: grab your "Downtime Kit." This should include straight-tip tweezers (for grabbing dropped screws) and a clean microfiber cloth.
• Mindset Shift: Commit to using gentle control rather than brute force. We are dealing with snap-fits, not lug nuts.

Warning: Small plastic tabs have a "yield point." They can crack instantly if you pry with a screwdriver tip or twist the hinge sideways. Use your fingers only for the snap-fit steps, and apply pressure straight in—controlled and even.

Phase 2: Disassembly – Finding the "Ghost Screws"

Julie’s method starts with removing the bottom piece under the bobbin area (the bracket/arm cover). It’s held by two screws that many users don't even know exist.

Locating the Anchors

Look at the underside of the cylinder arm. You are looking for two deep-set, recessed screw locations.

This is the exact moment many owners realize the bracket is meant to come off. One commenter on our forums noted they had no idea those screws were there—and that’s why this problem feels scarier than it is. You aren't breaking a sealed unit; you are disassembling a service panel.

Removing the Bottom Bracket Assembly

Use your Phillips head screwdriver to loosen the two screws.

Tactile Cue: You will feel initial resistance, then it should turn freely. If it feels gritty, back out and try again to avoid stripping the plastic threads.

Once the screws are out (put them in your bowl immediately), gently pull the white plastic bracket away from the metal arm.

Expected Outcome: The piece comes off “very gently and easily,” as Julie says. Troubleshooting: If you feel like you have to yank, stop. Re-check that both screws are fully removed. Sometimes a screw will loosen but stay caught in the hole—wiggle it out with your tweezers.

Phase 3: The Anatomy of the Hinge (The 'Why' It Works)

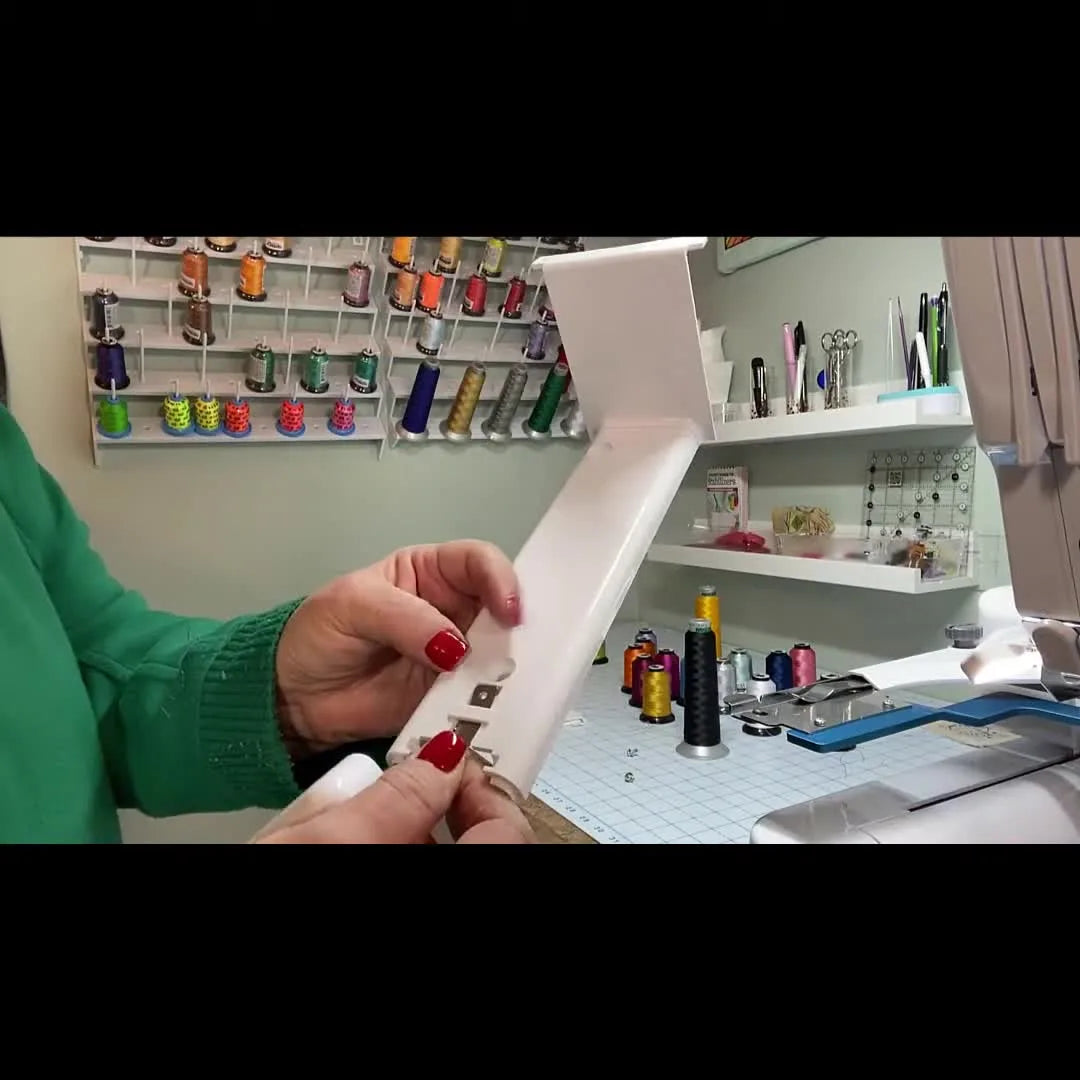

Now you’ll have two main plastic parts in your hands:

1. The Bracket: The long underside arm cover.
2. The Cap: The small bobbin cover door.

Julie points out a detail that prevents 90% of reassembly frustration: Orientation. Even though one side looks “finished,” when it goes back on the machine, it must be oriented so the cover closes up onto the bobbin in the correct direction.

The Connection Points

On the Long Bracket:

• Small pins/tabs at the end.
• A pivot hole (the female side of the hinge).


On the Small Cap:

• Matching holes/receivers.
• A hook feature (the male side of the hinge) that snaps onto the bracket.


Expert Insight: Snap-fit hinges rely on axial alignment. If the pivot side is slightly off-axis (crooked), the hook side won’t seat. If you force it, the plastic whitens (stress marks) and eventually snaps.

Terms like baby lock capella embroidery machine maintenance often bring up this specific mechanism. It is shared across several models. Learning to feel how these parts mate together is a "finger skill" that distinguishes a novice from a pro.

Phase 4: The Reassembly – The "One-Two" Snap

This is the heart of the fix. Do not try to jam both sides in at once.

The Sequence:

1. Align: Slide the cap’s slot into position so it hovers over the bracket’s pivot hole.
2. Stabilize: Hold that alignment steady with your non-dominant hand.
3. Engage Side A: Snap one side in first.
4. Engage Side B: Snap the other side in.


She describes the feel perfectly: “somewhat gentle, somewhat firm.”

Sensory Check (The Audio Anchor):

• Listen: You are waiting for a sharp, clean CLICK. Not a crunch, not a slide. A click.
• Feel: It should feel like a Lego brick seating. Solid.

Expected Outcome: The two pieces become one cohesive, hinged unit.

Pro Tip from the Field

This problem often starts right after a cleaning session. Why? Because when we scrub with a brush, we often apply lateral (sideways) pressure to the open door. This hinge hates lateral pressure. Support the hinge area with your fingers when cleaning in the future.

Phase 5: The "Flip Test" (Quality Assurance)

Do not put the screws back yet. We need to verify the physics of the repair in your hand.

Flip the cover open and closed while holding the bracket.

The Success Criteria:

• Fluidity: It pivots smoothly without binding.
• Security: It stays attached when you give it a little shake.
• Range: It opens wide enough to access the bobbin area.

If it feels stiff, gritty, or wants to pop off again, stop. Do not reinstall. Go back to Phase 4. Check for lint trapped in the hinge or a bent tab.

Phase 6: Reinstallation

Slide the reassembled bracket back onto the underside of the embroidery arm. It should groove into place naturally.

Reinstall the two screws. Julie’s reminder is simple and correct: “Righty tighty.”

Torque Warning: These screws go into plastic or soft metal. Tighten until you feel resistance, then give it a tiny 1/8th turn snug. Do not crank them down, or you will crack the bracket housing.

Expected Outcome: The bracket sits flush, touching the machine body with no gaps.

Setup Checklist: The "Ready-to-Run" Confirmation

• Hardware Secure: Confirm both screws are installed and snug.
• Latch Test: Open/close the bobbin cover 3 times. It must stay closed on its own.
• Direction Check: Ensure the cover closes up onto the bobbin area (not hanging down).
• Clearance: visually scan that nothing is pinched or sitting crooked under the arm.

Troubleshooting Logic: Symptom → Fix

If the cover is still acting up, use this logic flow (Low Cost → High Cost):

Phase 7: The Production Upgrade (Stop the Bleeding)

You have fixed the machine. Now, let's fix the workflow that causes wear and tear.

This repair is a symptom of a busy shop. The fastest embroiderers aren't just good at repairs; they are good at prevention and efficiency.

The "Hooping Bottleneck"

You might fix this bobbin cover in 10 minutes, but how many hours do you lose to hooping, adjusting fabric, and dealing with "hoop burn" (those ring marks left on delicate shirts)?

If you are running production on a baby lock alliance embroidery machine or similar, your bottleneck is rarely the stitch speed—it's the setup time.

The Scenario: You are doing 50 left-chest logos on performance polos. The Pain: Traditional hoops require constant loosening/tightening. They leave marks. They require significant wrist force. The Solution: This is the trigger point to upgrade to Magnetic Hoops.

Why Upgrade? (The ROI Logic)

Many professionals search for how to use magnetic embroidery hoop systems specifically to solve the "fatigue and burn" problem.

1. Speed: You just lay the fabric and snap the magnet. No screwing.
2. Safety: No friction burn on polyester or velvet.
3. Durability: Less stress on your wrists and less stress on the machine's pantograph.

If you are struggling with traditional babylock hoops, consider this: A magnetic frame system (like the magnetic embroidery hoop for babylock 6 needle compatible options) transforms a 2-minute struggle into a 10-second snap.

Warning: Magnetic Safety
Magnetic hoops are incredibly powerful industrial tools.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Device Safety: Keep them away from pacemakers and implanted medical devices.
* Electronics: Do not place them directly on computer hard drives or screens.

Decision Tree: Choosing the Right Stabilizer

Since we are discussing machine health and stitch quality, the other major variable is your stabilizer. Using the wrong one forces the machine to work harder.

Decision Tree (Fabric → Stabilizer Strategy):

• Fabric is Stretchy (T-shirts, Polos, Performance Knits)?
  • Direct Path: Cutaway Stabilizer.
  • Why: Knits stretch. Tearaway will allow the design to distort. Cutaway locks the fibers.
  • Pro Tip: Use a "No-Show Mesh" for light shirts to avoid a heavy badge effect.
• Fabric is Stable (Denim, Canvas, Twill caps)?
  • Direct Path: Tearaway Stabilizer.
  • Why: The fabric has its own structure. You just need to float it.
• Fabric has Pile (Towels, Fleece, Velvet)?
  • Direct Path: Iron-on Backing + Water Soluble Topping.
  • Why: The topping prevents stitches from sinking into the fluff.
• Fabric is Slippery (Satin, Silk)?
  • Direct Path: Fusible No-Show Mesh.
  • Why: Ironing the stabilizer to the fabric prevents shifting (puckering) during high-speed stitching.

Operation Checklist: The 60-Second Restart

Once the cover is repaired and you've selected your best hoop/stabilizer combo, don't jump straight back into max speed.

• Action: Open/close the bobbin cover one last time.
• Check: Verify access to the bobbin case is smooth.
• Test: Run a short test segment or the first few colors of a design at a lower speed (e.g., 600 SPM).
• Discipline: Resist the urge to "slam" the cover shut. Treat it like a precision instrument.

Final Thoughts: Ownership is Maintenance

You just saved yourself a service center trip. That is a win.

Owners of the baby lock 6 needle embroidery machine know that uptime is profit. By mastering this simple mechanical reset, you stop being afraid of your machine and start mastering it.

For those looking to optimize further, looking into magnetic hoops for babylock embroidery machines is your next logical step to reduce physical strain and increase hourly output. Keep your tools sharp, your screws tight, and your bobbins turning.

FAQ

• Q: How do I fix a Baby Lock Array bobbin cover that fully detached and came off in my hand after cleaning?
  A: Re-seat the hinge by removing the underside bottom bracket first—do not force the cap back on while it’s still mounted.
  • Remove: Use a Phillips screwdriver to take out the two recessed screws under the cylinder arm and lift off the long white bottom bracket.
  • Re-seat: In your hands, align the hinge pivot and snap one side in first, then the other, using straight, even finger pressure.
  • Test: Flip the cover open/closed before reinstalling any screws.
  • Success check: A sharp, clean “CLICK” happens during seating, and the cover swings smoothly without popping off.
  • If it still fails: Stop and re-check hinge alignment; forcing the tabs can crack the plastic.
• Q: Where are the two “hidden” screws for the Baby Lock Array bobbin cover bottom bracket, and how do I avoid losing them?
  A: The screws are deep-set on the underside of the cylinder arm, and a parts cup/bowl prevents a multi-day downtime mistake.
  • Locate: Look for two recessed screw holes under the bobbin area on the underside of the arm.
  • Prepare: Place a magnetic parts bowl (or a mug) next to the machine before turning the first screw.
  • Remove: Loosen each screw carefully; if a screw loosens but stays caught, use straight-tip tweezers to lift it out.
  • Success check: Both screws are accounted for immediately, and the bracket comes off “gently and easily” without yanking.
  • If it still fails: Improve lighting to see into the recesses and confirm both screws are fully out before pulling the bracket.
• Q: How do I tell if a Baby Lock Array bobbin cover hinge is correctly reassembled before reinstalling the bracket and screws?
  A: Perform the in-hand “flip test” first; only reinstall when the hinge feels smooth, secure, and correctly oriented.
  • Flip: Open and close the cover repeatedly while holding the bracket assembly in your hands.
  • Verify: Confirm the cover closes upward onto the bobbin area (correct orientation) rather than hanging in the wrong direction.
  • Inspect: Check for lint trapped in the hinge area if movement feels gritty.
  • Success check: The hinge pivots fluidly, stays attached with a light shake, and opens wide enough for bobbin access.
  • If it still fails: Re-do the one-side-then-the-other snap sequence and look for a tab that isn’t fully seated.
• Q: What should I do if a Baby Lock Array bobbin cover pops off immediately after I reinstall it?
  A: The hinge tabs are usually not fully seated—disassemble again and seat the hinge until the click is unmistakable.
  • Remove: Take the bracket back off by removing the two underside screws.
  • Seat: Squeeze the hinge points straight in with fingers (not a screwdriver tip) and snap one side, then the other.
  • Retest: Do the flip test before putting the bracket back on the machine.
  • Success check: You hear a crisp “CLICK” and the cover stays attached during open/close cycles.
  • If it still fails: Check for misalignment or debris in the hinge; do not continue forcing, as tabs can crack instantly.
• Q: What should I do if a Baby Lock Array bobbin cover will not stay closed, or the bracket leaves a gap under the arm after reinstallation?
  A: Treat this as alignment and screw seating—reinstall the bracket straight and avoid cross-threading or over-tightening.
  • Back out: Remove both screws fully, then re-seat the bracket so it grooves into place naturally.
  • Reinstall: Start screws slowly to avoid cross-threading; tighten to resistance plus a small snug (do not crank down).
  • Clean: Check the hinge area for lint if the door feels like it binds or won’t latch.
  • Success check: The bracket sits flush with no visible gaps, and the cover stays closed when opened/closed 3 times.
  • If it still fails: Stop and re-check hinge alignment in-hand; stiffness or popping off means the hinge is not seated correctly.
• Q: What safety steps prevent cracking plastic tabs when repairing a Baby Lock Array bobbin cover hinge?
  A: Use controlled finger pressure only for snap-fit steps and avoid lateral twisting—the tabs have a fast “yield point.”
  • Control: Clear hoops/fabric/thread cones and improve lighting so hands don’t slip into prying motions.
  • Handle: Snap-fit the hinge with fingers only; push straight in, evenly—never pry with a screwdriver tip.
  • Prevent: When cleaning later, support the hinge area so brushing doesn’t push the open door sideways.
  • Success check: No whitening/stress marks appear on plastic, and the hinge seats with a clean click rather than a crunch.
  • If it still fails: Pause and realign; repeated forcing often turns a simple disengagement into a broken tab.
• Q: When should a Baby Lock Array production workflow upgrade from technique changes to magnetic embroidery hoops or even a multi-needle capacity upgrade?
  A: If hooping time, hoop burn, and operator fatigue are the real bottlenecks, step up in layers: technique first, then magnetic hoops, then capacity.
  • Level 1 (Technique): Reduce lateral stress during cleaning and avoid “slamming” the cover; restart at lower speed and test a short segment first.
  • Level 2 (Tooling): Use magnetic hoops when traditional hoops cause constant loosening/tightening, hoop marks on delicate fabrics, or wrist strain.
  • Level 3 (Capacity): Consider a multi-needle production upgrade when setup time and volume demands keep causing rush-order downtime pressure.
  • Success check: Setup time drops (hooping becomes a quick snap), hoop burn reduces, and the first few colors run cleanly at a controlled speed.
  • If it still fails: Re-check stabilizer choice by fabric type (knits often need cutaway; stable fabrics often use tearaway; pile may need topping) to reduce distortion and rework.
• Q: What magnetic embroidery hoop safety rules should be followed in a shop using magnetic hoops for embroidery?
  A: Treat magnetic hoops as powerful industrial tools: prevent pinches and keep them away from medical devices and sensitive electronics.
  • Keep clear: Hold fabric edges and keep fingers out of the snapping zone when closing the magnetic frame.
  • Separate: Keep magnetic hoops away from pacemakers and implanted medical devices.
  • Protect: Do not place magnetic hoops directly on computer hard drives or screens.
  • Success check: The hoop closes without finger pinches, and the fabric is secured quickly without excessive force or hoop burn.
  • If it still fails: Slow down the snapping motion and reposition hands—most incidents happen when rushing the closure.
