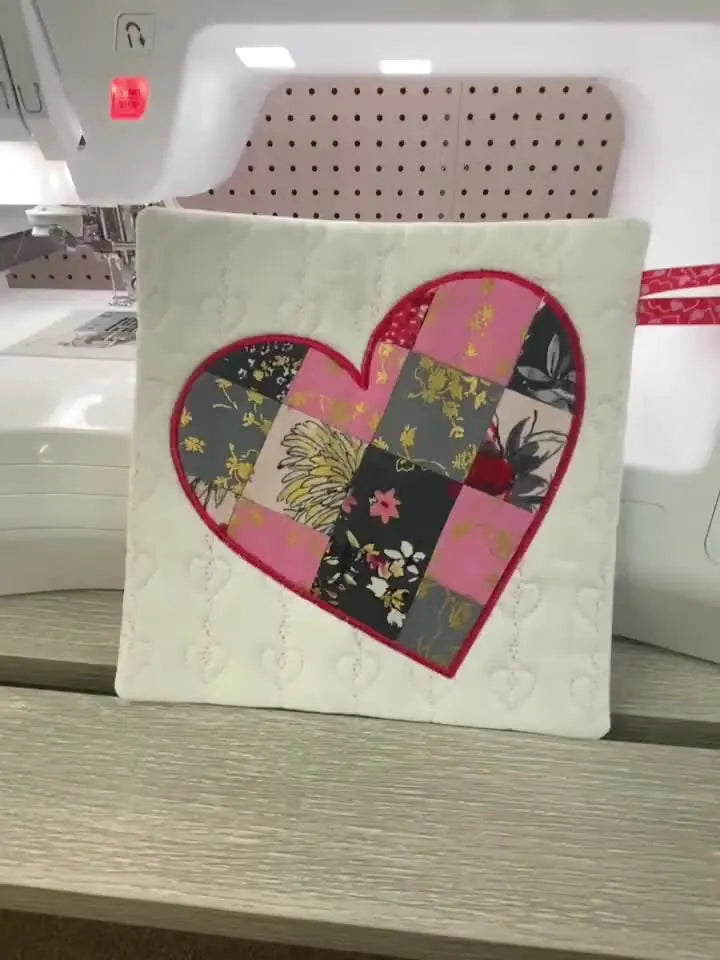

Baby Lock Altair ITH Heart Pot Holder: The On-Screen IQ Designer Workflow That Actually Stitches Out Clean

If you have ever stood over your machine, holding your breath as stitch counts climb, watching a thick In-The-Hoop (ITH) project distort, shift, or completely pop out of the frame, you know the specific flavor of anxiety that comes with "puffy" projects. ITH pot holders are deceptively simple: they look like easy squares, but structurally, they are a torture test for your hooping technique.

You are forcing your machine to drag a needle through a dense sandwich: stabilizer + batting + heat-resistant insulation + multiple layers of cotton. Small setup errors here don't just result in "slightly off" borders; they result in needle deflection, broken threads, and warped squares that refuse to lay flat.

In this breakdown of Cindy?s workflow from Bonnie?s Sewing Center, we are going to look at how to build this pot holder on the Baby Lock Altair using IQ Designer. But more importantly, I am going to layer in the sensory diagnostics and structural engineering principles that turn a fragile sewing project into a durable kitchen tool.

Don’t Panic: The Baby Lock Altair IQ Designer ITH Pot Holder Is Forgiving—If You Respect the Layer Stack

The physics of an ITH pot holder are straightforward but unforgiving. The good news is that the design relies on primitive shapes (squares and a heart), which the machine handles easily.

The bad news is the "Drag Coefficient." When you hoop a single layer of mesh and then float heavy insulation on top, the weight of that material drags against the embroidery foot. If your hooping isn't drum-tight, or if your stabilizer is too stretchy, the friction will pull the stabilizer inward.

The symptoms of "Drag" failure:

• Wavy Quilting: Straight lines bow in the center.
• The "Gap of Doom": The satin border on the heart fails to cover the raw edge of the appliqué fabric.
• Trapezoid Pot Holders: The final square isn't square because the stabilizer shifted during the 20-minute stitch-out.

If hooping thick assemblies is the part of embroidery that makes your wrists ache or makes you dread the process, this is the exact scenario where researching professional techniques for hooping for embroidery machine transitions from "optional reading" to "critical skill."

The “Hidden” Prep Cindy Assumes: Materials, Cuts, and the Pressing That Saves Your Stitch-Out

Cindy’s supply list is standard, but in professional embroidery, preparation is 80% of the battle. We aren't just cutting fabric; we are engineering a stable substrate.

Materials Shown (The Critical Stack)

• Machine: Baby Lock Altair (using IQ Designer & Border Function).
• Hoop: 9.5" x 9.5" standard hoop.
• Stabilizer: Floriani Power Mesh (Cutaway). Expert Note: Do not use tearaway here. The needle perforations on the quilting lines will shred tearaway under the weight of the pot holder.
• Core: Cotton batting (10" x 10") + Insul-Bright (10" x 10").
• Fabrics: Background (10" x 10"), Appliqué Heart (Flat cotton), Backing (Two 11" x 11" squares folded).
• Tools: Curved appliqué scissors (Duckbill preferred).

Why these sizes matter (The Math)

• Digitized Batting Line: 8.5" x 8.5".
• Final Construct Seam: 8" x 8".
• Margin for Error: You have a 0.75" clearance buffer around the batting and a 1" buffer on fabric. This matters because thick layers shrink slightly as quilting pulls them in.

Prep Checklist (Do this BEFORE touching the screen)

• Hoop Inspection: Run your finger along the inner ring of your 9.5" hoop. Feel for nicks or burrs that could snag the mesh. Clean off any residual spray adhesive—it reduces friction grip.
• Pressing Protocol: Press your background fabric and folded backing squares with steam. A crisp fold on the backing is vital for a clean envelope closure.
• Fabric "Relaxation": If using Insul-Bright from a roll, flatten it under a book for an hour. Curling insulation fights the tackdown stitch.
• Tool Safety: Locate your curved scissors.

Warning: Curved appliqué scissors are surgical instruments. When trimming deep inside a hoop, the angle often puts your fingers in the blade's path. Always trim with the hoop resting flat on a table, never suspended in the air.

Lock In the Foundation: Digitizing the 8.5" Square Placement Lines in IQ Designer (Run Pitch 1.04)

Cindy begins by creating the architectural blueprint: the lines that tell you where to put the batting.

The Screen Workflow

1. IQ Designer -> Shapes -> Select Square.
2. Resize to 8.5".
3. Assign Stitch: Select Line Property -> Straight Stitch.
4. Calibrate Pitch: Change Run Pitch to 1.04.
   • Expert Context: 1.04 inches? No, this is mm/step conversion logic. On many machines, this correlates to a standard 2.5mm length. It is long enough to be secure, but short enough to turn corners sharply.
5. Set to Embroidery.

The "Clone" Strategy

In Embroidery Mode, duplicate this square so you have three identical steps:

1. Placement Line: Stitched on stabilizer only. (Visual Guide).
2. Batting Tackdown: Stiches over the batting/insulation.
3. Fabric Tackdown: Stitches over the top fabric.

Success Metric: When viewing the sequence, you should see three distinct color stops. If they are merged, the machine won't stop for you to place the fabric.

Make Quilting Look Effortless: Using Baby Lock Altair Border Function with Stitch #69 for Even Background Rows

The goal here is "Quilt-As-You-Go" without doing the math. The Baby Lock Border Function automates the spacing.

Cindy’s Workflow

1. Select Motif: Category 6 -> Sub-category 1 -> Stitch #069 (a serpentine or stipple look).
2. Position: Move the single motif to the top-left corner (inside the 8.5" boundary).
3. Engage Border Function: Select the Border icon.
4. Populate: Add vertical and horizontal repeats until the 8.5" square is filled effortlessly.
5. Grouping: Tap OK to freeze the array into a single embroidery object.

Why this works: Small, open decorative stitches cause less distortion than dense fills. They let the fabric "breathe."

The Production Reality: If you plan to make sets of these for holiday gifts, hooping consistency becomes vital. If the hoop isn't tightened exactly the same way every time, the border alignment will drift. This is why a hooping station for embroidery is often seen in production shops—it guarantees the fabric and stabilizer are square before they ever hit the machine.

The Heart Appliqué That Covers Seams: Rotate 20° Left, Then Satin Width 0.140 and Density 110%

Here we move from structure to decoration. The heart is an appliqué, meaning it needs a raw-edge anchor followed by a satin cover.

Phase A: Structural Heart (Placement/Tackdown)

1. IQ Designer -> Shapes -> Heart.
2. Rotate: 20 degrees Left (Aesthetic choice—looks hand-tossed).
3. Stitch: Straight Stitch, Run Pitch 1.04.
4. Save to Memory (Crucial step).
5. Set to Embroidery.
6. Duplicate: Create one for placement, one for tackdown.


Phase B: The Satin "Cover-Up"

1. Recall the heart from Memory in IQ Designer.
2. Switch Tool: Change Line Property to Zigzag/Satin.
3. Calibrate Width: 0.140" (approx 3.5mm).
   • Why hard numbers matter: A standard default is often too narrow (0.100"). 0.140" gives you the width needed to "swallow" the raw fabric edge.
4. Calibrate Density: 110%.
   • Expert Context: 100% is standard. 110% packs the stitches tighter. Why? Because you are stitching over "hills and valleys" of batting. The extra thread prevents gaps where the background fabric might peek through.
5. Set to Embroidery and overlay perfectly on the previous hearts.

Sensory Check: When this satin stitch runs, the sound of the machine should change from a rapid tik-tik-tik to a hum. If it sounds like thud-thud-thud or the needle is struggling to penetrate, your density might be too high for the needle size.

The Seam That Holds Up to Real Kitchen Use: Digitize the 8" Backing Square with Triple Stitch

The final seam takes the abuse of turning the pot holder inside out and daily wear. A standard single run isn't enough.

The Blueprint

1. IQ Designer -> Square.
2. Resize: 8.0 inches (Smaller than the batting line to hide the batting raw edges inside the seam allowance).
3. Stitch Type: Triple Stitch (Bean Stitch).
   • Mechanism: Forward-Back-Forward. This creates a reinforced, distinct line that is nearly impossible to pop.
4. Set and Center.


Hooping Floriani Power Mesh in the 9.5" x 9.5" Hoop: The Tension Rules That Prevent Rippled Quilting

This is the most critical physical skill in the project. Cindy recommends Floriani Power Mesh (a polymesh cutaway).

The Tactile Standard for Power Mesh: When hooped, run your fingernail gently across the mesh. It should sound like a high-pitched zip, not a dull thud. It should feel taut like a drum skin, but not so tight that the weave is distorted into ovals.

The "Hoop Burn" & Hand Strain Issue: Standard hoops require significant hand strength to tighten the screw while simultaneously keeping the mesh taut. If you fail to tighten it enough, the heavy batting stack will drag the mesh inward, ruching your design. Conversely, tightening it too much creates "hoop burn" (crushed fibers) on delicate fabrics.

This mechanical struggle is the primary reason why professional embroiderers eventually switch systems. If you find your hands cramping or your square outlines turning into trapezoids due to slippage, exploring magnetic hoops for babylock embroidery machines is the logical next step. These systems use vertical magnetic force to clamp the entire perimeter instantly, eliminating the "screw-tightening" variable and securing thick stacks without the wrestle.

Stitch-Out Order That Won’t Bite You: Placement → Batting/Insul-Bright → Background → Quilting → Heart Appliqué → Satin Finish

The sequence is rigid. We are building a sandwich from the bottom up.

The Operational Flow

1. Hoop the stabilizer alone.
2. Run Step 1: Batting Placement Line.
3. Action: Spray the back of your Batting/Insul-Bright stack lightly (with temporary adhesive) and place it in the box.
4. Run Step 2: Batting Tackdown.
5. Action (Critical): Trim the batting close to the stitch line.
   • Tip: Keep the scissors flat. If you angle up, you will cut the stabilizer. If you don't trim close enough, the satin border will be lumpy later.
6. Action: Place Background Fabric.
7. Run Step 3: Fabric Tackdown.
8. Run Step 4: The Border Quilting.
9. Run Step 5: Heart Placement.
10. Action: Place Heart Fabric.
11. Run Step 6: Heart Tackdown.
12. Action: Trim Heart Fabric (Very close!).
13. Run Step 7: Satin Finish.
14. Action: Place Backing Fabrics (Folded edges meeting in center, overlapping slightly).
15. Run Step 8: Final Triple Stitch Seam.








Setup Checklist (The "Pre-Flight" Safety Check)

• Centering: Is the design absolute center? (Check X/Y coordinates 0.00).
• Bobbin: Do you have at least 50% bobbin left? Running out during the final triple stitch is a headache.
• Needle: Are you using a Topstitch 90/14?
  • Why? You are piercing stabilizer, batting, insulation, flannelette (insul-bright), and two layers of cotton. A standard 75/11 needle will deflect, potentially hitting the needle plate.
• Clearance: Is the area behind the machine clear? The arm will travel the full 9.5" extent.

Warning for Magnetic Hoop Users: If utilizing a magnetic embroidery frame, keep the strong magnets away from the machine's LCD screen and any pacemakers. Be mindful of pinch points—the magnets snap together with significant force immediately.

Stabilizer + Thickness Decision Tree: Choosing Backing for ITH Pot Holders (So the Edges Don’t Wave)

Choosing the right foundation prevents the "pucker."

Decision Tree: Stabilizer Selection

1. Is the project dense/heavy (like this pot holder)?
   • YES: Use Poly Mesh Cutaway or Medium Cutaway. Why? The structural integrity holds the square shape against the pull of the quilting.
   • NO: Use Tearaway (only for light cosmetic items).
2. Is the fabric stretchy (Knits/Jersey)?
   • YES: Fusible Poly Mesh Cutaway. Why? It stops the knit from expanding when the hoop clamps down.
   • NO: Standard Poly Mesh or Cutaway.
3. Are you experiencing hoop drift/pop-out?
   • YES: The hoop mechanism is failing to grip the thickness. Upgrade to a babylock magnetic embroidery hoop to secure the thick sandwich without relying on friction screws.
   • NO: Continue with standard hoops, checking screw tightness every 5 minutes.

The Comment Everyone Notices: “Where Did the Hanging Loop Come From?” (Clean Ways to Add One)

A keen-eyed viewer noted the final product had a loop, but the video didn't show it. This is a common ITH omission.

Two ways to add it safely:

1. The Tape Method: Before placing the backing fabric (Step 14), tape a folded ribbon loop pointing inwards toward the center of the heart, with raw edges crossing the top finish line. The final seam will catch it.
2. The Corner Method: Place the loop at a 45-degree angle in one corner, raw edges outward, taped securely so the foot doesn't snag it.

Troubleshooting the “Scary” ITH Problems: Symptoms → Likely Cause → Fix

When things go wrong, they usually go wrong in specific ways.

The Upgrade Path (When This Becomes a Product, Not a One-Off Gift)

Making one pot holder is a craft project. Making 50 for a craft fair is a manufacturing process. The bottlenecks change when you scale.

If you find yourself moving from "fun" to "production," consider these upgrades:

1. The Grip: If you spend more time fixing hoop slippage than sewing, magnetic embroidery hoops answer the need for speed and consistency. They allow you to hoop thick batting without adjusting screws, saving your wrists and your sanity.
2. The Machine: If single-needle thread changes are slowing you down (stopping to swap pink for white 20 times), a multi-needle machine (like the SEWTECH series) allows you to set the colors once and walk away while the machine handles the swaps.
3. The Thread: High-speed polyester threads withstand the friction of batting better than rayon.

Ultimately, tools like embroidery magnetic hoops pay for themselves not in "cool factor," but in minutes saved per unit.

Operation Checklist (The Last 60 Seconds)

• Pitch Check: Verify placement lines are 1.04 Run Pitch (or ~2.5mm).
• Satin Check: Verify Satin Width is 0.140" and Density 110%.
• Triple Check: Verify final seam is Triple Stitch.
• Trim Check: Are your scissors sharp? Dull scissors drag fabric.
• Layering: Do you have your Top Fabric, Batting, and Backing organized?

Take a deep breath. Press Start. Watch the first few stitches to ensure the knot catches, and enjoy the process of building structure with thread.

FAQ

• Q: How do I hoop Floriani Power Mesh cutaway in a 9.5" x 9.5" Baby Lock hoop for an ITH pot holder without rippled quilting?
  A: Hoop the Floriani Power Mesh “drum-tight” so the thick batting stack cannot drag it inward.
  • Inspect the inner hoop ring for nicks/burrs and wipe off any residual spray adhesive before hooping.
  • Tighten the screw until the mesh is taut like a drum skin, but not stretched so far the weave distorts.
  • Keep the stabilizer square in the frame before locking down the hoop.
  • Success check: Lightly drag a fingernail across the hooped mesh—listen for a high-pitched “zip,” not a dull thud.
  • If it still fails… reduce drag by re-hooping tighter and confirm the project uses cutaway (not tearaway) for this heavy ITH stack.
• Q: Why does an ITH pot holder quilting line stitch out wavy or bow inward after using batting + Insul-Bright on a Baby Lock Altair?
  A: Wavy quilting usually comes from “drag” pulling the stabilizer inward because the stack is heavy and the hoop grip is not firm enough.
  • Re-hoop stabilizer only first, then add batting/Insul-Bright and fabric exactly in the stitch-out order (placement → tackdown → fabric tackdown → quilting).
  • Trim batting close to the tackdown line so extra bulk does not push and deform the quilting later.
  • Use a cutaway base (poly mesh cutaway/Floriani Power Mesh), not tearaway, for this dense quilting pattern.
  • Success check: The stitched 8.5" square stays square (not trapezoid) and the quilting rows remain straight with even spacing across the center.
  • If it still fails… consider upgrading the hooping method for thick stacks (magnetic clamping can reduce slip compared with screw tension).
• Q: What run pitch should be used for the IQ Designer placement square lines on a Baby Lock Altair ITH pot holder, and how do I confirm the machine will stop for fabric placement?
  A: Set the placement-line square to Run Pitch 1.04 and duplicate it into separate steps so the Baby Lock Altair pauses between layers.
  • Create a Square in IQ Designer, resize to 8.5", assign Straight Stitch, and change Run Pitch to 1.04.
  • Duplicate the square into three separate steps: placement line, batting tackdown, fabric tackdown.
  • Verify the sequence shows distinct color stops so the machine does not merge steps and stitch straight through without pausing.
  • Success check: The machine stops after the placement line, allowing batting/Insul-Bright placement before the tackdown begins.
  • If it still fails… re-check the sequence for merged color blocks and re-duplicate until each stage is its own stop.
• Q: How do I prevent “Gap of Doom” satin border gaps on the Baby Lock Altair IQ Designer heart appliqué for an ITH pot holder?
  A: Use the specified satin settings and trim extremely close so the satin can fully cover the raw edge on thick batting.
  • Set the heart satin width to 0.140" and density to 110% before stitching the satin finish.
  • Trim the heart appliqué fabric very close to the tackdown line (close trimming matters more than people expect).
  • Keep batting trimmed close earlier so the satin is not climbing over unnecessary bulk.
  • Success check: The satin border fully “swallows” the raw edge with no background fabric peeking through around the curves.
  • If it still fails… re-run the satin step if possible and/or adjust technique (often the root cause is trimming not being close enough).
• Q: What needle should be used on a Baby Lock Altair for a thick ITH pot holder stack to reduce needle deflection and breakage?
  A: Use a Topstitch 90/14 needle for this stabilizer + batting + Insul-Bright + multiple-cotton-layer stack.
  • Replace the needle before the stitch-out if the current needle has stitched other dense projects (a slightly bent tip can amplify deflection).
  • Stop immediately if a needle breaks, remove broken pieces, and install a fresh 90/14 before restarting.
  • Confirm the machine has full clearance for the hoop travel, especially behind the machine.
  • Success check: The machine penetrates the stack smoothly without “thud-thud-thud” impact sounds or repeated thread breaks.
  • If it still fails… reassess thickness management (trim closer, reduce bulk at seams) and consult the machine manual for safe needle/thread combinations.
• Q: What safety steps should be followed when trimming appliqué inside a hoop with curved appliqué scissors during an ITH pot holder?
  A: Always trim with the hoop resting flat on a table to avoid cutting the stabilizer or your fingers.
  • Place the hoop on a stable flat surface before trimming (do not hold the hoop in the air).
  • Keep the scissors flat to the fabric while trimming batting and appliqué edges; avoid angling upward.
  • Locate and use curved (duckbill-style) appliqué scissors to control the cut near stitch lines.
  • Success check: The fabric is trimmed close to the stitch line with no accidental stabilizer cuts and no snagged holes in the mesh.
  • If it still fails… slow down and trim in short passes; rushed trimming is the most common cause of stabilizer damage.
• Q: What magnetic hoop safety precautions should be followed when using a magnetic embroidery frame for an ITH pot holder?
  A: Treat magnetic embroidery frames as strong clamping tools—keep magnets away from sensitive items and protect fingers from pinch points.
  • Keep magnets away from the machine’s LCD screen and away from pacemakers.
  • Separate and place magnets deliberately; do not let magnets snap together uncontrolled.
  • Check finger placement before bringing magnets together around thick batting stacks.
  • Success check: The frame closes evenly without sudden snapping, and hands stay clear of the clamping edges.
  • If it still fails… switch to a safer handling routine (place hoop flat, position fabric first, then add magnets one-by-one) before attempting another hooping cycle.
• Q: When should an embroiderer upgrade from standard screw hoops to magnetic hoops or a multi-needle machine when producing ITH pot holders at scale?
  A: Upgrade when hooping consistency and thread-change downtime become the bottlenecks, not when the design itself is difficult.
  • Diagnose the main time-waster: repeated hoop slippage/re-hooping points to a hooping-system limitation; frequent color swaps point to a machine workflow limitation.
  • Try Level 1 first: tighten process controls (consistent hoop tension, correct cutaway stabilizer, correct needle, strict stitch-out order).
  • Move to Level 2: use magnetic clamping if hand strain, hoop burn, or hoop drift keeps happening on thick stacks.
  • Move to Level 3: use a multi-needle machine when stopping to change colors repeatedly slows production runs.
  • Success check: Units stitch out square with consistent borders across multiple hoops, and re-hooping events drop sharply.
  • If it still fails… document exactly where time is lost (hooping vs. trimming vs. thread changes) before investing, so the upgrade targets the real constraint.
