Baby Lock Altair 2 & Meridian 2 Upgrade Kit Demo: The 7x12 Magnetic Hoop, 2-Point Laser Alignment, and the Features That Actually Save You Time

If you already own a Baby Lock Altair or Meridian, you know the feeling: your machine is a Ferrari, but your workflow sometimes feels like you’re changing tires in the mud. You battle hoop burn on velvet, struggle to align names on pockets, or stand nervously over the machine to snip jump threads.

This isn’t a lack of skill—it’s often a limitation of the standard toolkit.

This operational guide for the Baby Lock Altair 2 and Meridian 2 Upgrade Kit goes beyond the marketing brochure. As an embroidery educator, I break down these features—couching, Matrix Copy, laser positioning, and the 7x12 magnetic hoop—into a "physics-first" workflow. We will strip away the fluff and focus on reducing friction, eliminating rework, and knowing exactly when to upgrade your tools for professional results.

The Baby Lock Altair 2 / Meridian 2 Upgrade Kit: What You’re Really Buying (and Why It Matters)

The upgrade kit essentially installs the "Brain" of the Altair 2/Meridian 2 into the body of the original models. You get 50 new designs, 40 couching patterns, the couching foot, advanced Matrix Copy, 2-point laser positioning, and the headline hardware: the 7x12-inch magnetic hoop.

Here’s the veteran take: professionals don't buy "features"; they buy Risk Reduction. Rework in embroidery usually comes from three specific physics failures:

1. Compression Failure: Traditional hoops crush delicate fibers (Hoop Burn).
2. Geometric Failure: Names look straight in the hoop but crooked on the garment.
3. Volume Failure: Changing threads 50 times for 10 patches destroys your hourly rate.

This kit targets these three specific pain points. However, the hardware is only as good as the hands setting it up.

The “Hidden” Prep Before You Touch the Screen: Fabric, Stabilizer, and a Quick Machine Reality Check

The video jumps straight into stitching, but a successful output is 90% preparation. Before you even power on, you need to stabilize the variable that causes the most chaos: the fabric.

What the demo is stitching on

You’ll see white fabric samples and a "quilt sandwich" (fabric + batting + backing). Note that batting compresses differently than denim or jersey.

The "Silent" Consumables List

Beginners often miss these non-negotiables:

• Fresh Needles: Titanium 75/11 is a safe "sweet spot" for most standard work.
• Temporary Spray Adhesive (e.g., 505): Crucial for minimizing shifting in magnetic hoops.
• Fabric Pens: Water-soluble or air-erase markers for the laser alignment step.

Prep checklist (Do this OR risk failure)

• The "Fingernail" Test: Run your fingernail down your current needle. If you feel any catch, throw it away. A burred needle will shred the yarn in couching mode instantly.
• The Path Check: flossing the tension discs with a folded piece of un-waxed dental floss or a scrap of cotton can dislodge hidden lint that causes "loops" on the back.
• The Stabilizer Match:
  • Stretchy? Use Cutaway.
  • Stable? Use Tearaway.
  • Pile/Fuzzy? Use Water Soluble Topping.

Prep Checklist (end-of-prep):

• Fabric Condition: Pre-shrunk and pressed flat (finish cannot exceed prep).
• Stabilizer Size: Cut at least 1.5 inches larger than the hoop on all sides.
• Needle Status: Brand new needle verified (Type 75/11 or 90/14 for Couching).
• Bobbin: Cleaned the bobbin case area; bobbin wound at medium speed (not max).
• Marking: Crosshairs or reference line drawn on fabric.

Couching Embroidery on Baby Lock: How the Couching Foot Controls Yarn So It Doesn’t Wander

Couching (stitching yarn onto fabric) is mechanically stressful. The machine is dragging a heavy cord while trying to zig-zag over it. The demo shows a letter "B" with a dimensional look.

The Physics of Couching

The goal is Zero Drag. If the yarn drags, the needle pulls the yarn off-center, and you stitch through the yarn (bad) instead of over it (good).

Sensory Checkpoints: Listen and Feel

• Visual: The yarn must flow like water. If it jerks, your feed is too tight.
• Auditory: Listen for a rhythmic "thump-thump." A sharp "snap" or "grinding" noise means the needle is deflecting off the yarn carrier. Stop immediately.
• Tactile: Ensure the yarn has plenty of slack. Do not let the yarn ball roll around the floor; put it in a cup or holder near the machine head.

Speed Protocol

Do not run couching at 1000 SPM.

• Beginner Sweet Spot: 400 - 600 SPM.
• Expert Range: 700+ SPM (only if using smooth, non-fuzzy yarn).

Warning: Pinch Point Hazard. When guiding yarn, keep your hands well away from the needle bar. Never attempt to untangle yarn while the machine is running.

Matrix Copy on Baby Lock: Turn One Design into a Patch Grid (and Let the Machine Color-Sort It)

The host uses Matrix Copy to turn a rabbit design into a 3x3 grid, then uses Color Sort to group all the black outlines together, then all the pink fills, etc.

The Commercial Pivot

This is where you move from "Hobbyist" to "Small Business." Stitching 9 patches individually involves roughly 45 manual thread changes. Matrix Copy reduces this to 5 changes total.

However, density accumulates. A 3x3 grid on a single layer of stabilizer can cause the stabilizer to shrink, ruining the registration on the outer patches.

The Solution: "Floating" and Magnetic Frames

For patch runs, professionals often search for multi hooping machine embroidery techniques to maximize fabric usage. But to truly secure a large sheet of material without "hoop burn" or puckering, consider upgrading later to Production-Grade Magnetic Hoops (like those from SEWTECH), which clamp the edges firmly without the "barrel distortion" of standard hoops.

Setup Checklist (end-of-setup):

• Grid Spacing: At least 5mm gap between designs for easy cutting.
• Color Sort: ENABLED (Verify on screen preview).
• Stabilizer: Heavy Duty Cutaway (Patches need rigidity).
• Hooping: Drum-tight (tap it, it should sound like a drum).
• Needle: Fresh needle to prevent perforation of the stabilizer during dense borders.

2-Point Laser Positioning on Baby Lock: The Calm Way to Align Names on an Angle

Hooping straight is the hardest skill in embroidery. The video demonstrates drawing a purple angled line and using the 2-Point Laser to tell the machine: "Align the design to this line, not the hoop."

Why "Eyeballing" Fails

Human eyes are bad at judging parallel lines on curved surfaces (like shirt pockets). The 2-point system locks the vector mathematically.

Terms to Know

If you are researching techniques, terms like Laser Positioning Embroidery often lead to tutorials on "Floating." This is where you hoop the stabilizer only, spray adhesive on it, and stick the garment down. The laser then corrects any slight angle error in how you stuck the garment.

The Protocol

1. Mark: Draw your baseline on the garment using a ruler.
2. Define: On screen, set Point A (Start of name) and Point B (End of name).
3. Align: Move the laser until it traces your drawn line perfectly.

Multi-Hooping Without the Panic: Use Laser + Corner Basting to Join Large Designs Cleanly

The video explains using the laser to join large designs that require multiple hoopings (e.g., a long table runner). The secret weapon here is Corner Basting.

The Logic of Basting

Think of basting stitches as "Anchor Points." By placing basting crosses in the corners, you have physical registration marks to align Section B to Section A using the laser.

When looking for a Baby Lock Altair 2 Upgrade, many users specifically want this large-scale capability. It allows a domestic machine to tackle "Jumbo" projects previously reserved for commercial equipment.

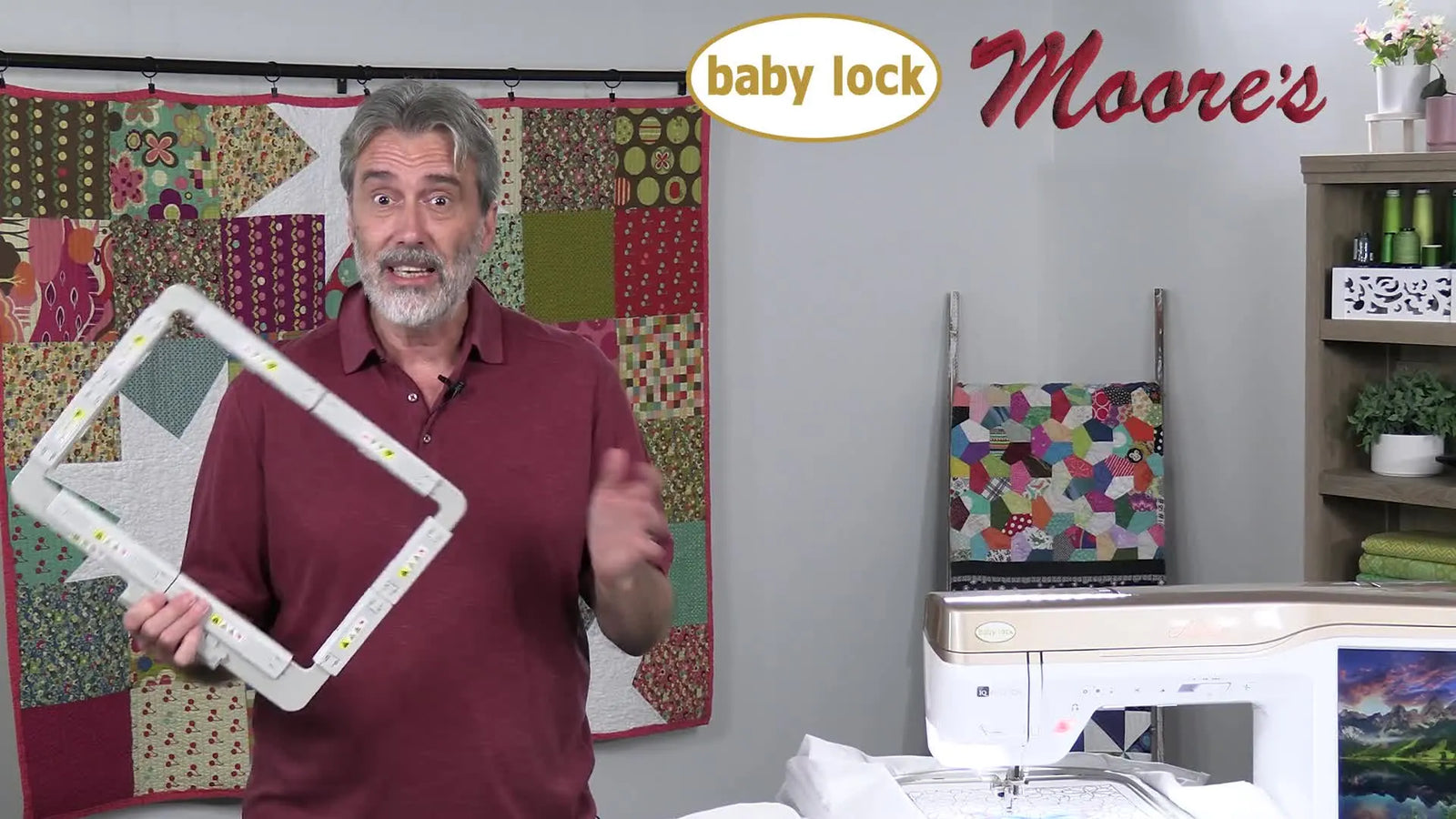

The 7x12 Magnetic Hoop System: Faster Hooping for Quilt Sandwiches (and Less Hoop Burn)

This is the blockbuster feature. The 7x12 inch magnetic hoop included in the kit includes a bottom frame and separate magnetic top bars.

The Physics of "Hoop Burn"

Standard hoops consist of an inner and outer ring. To hold fabric tight, you must force the inner ring inside the outer one, crushing the fabric fibers. On velvet, suede, or thick quilts, this damage is often permanent.

Magnetic Hoops rely on vertical clamping force. There is no friction dragging across the fabric face. This eliminates hoop burn.

Why Separate Bars?

The video shows removing top bars and snapping them back individually. This allows you to smooth the fabric as you go, acting like a "third hand."

Warning: Magnetic Pinch Risk. These are rare-earth magnets. They snap together with immense force.
* Do not place fingers between the magnets.
* Do not rest hoops on laptops or near pacemakers.
* Slide the magnets apart; do not try to pry them directly up.

The Upgrade Path: Level Up Your Tooling

While this kit comes with a 7x12 hoop, you will eventually encounter items that don't fit (like chest logos or tote bags).

• Level 1 (The Kit): Use the included 7x12 for quilts/towels.
• Level 2 (The Scale-Up): Look for third-party babylock magnetic hoops from brands like SEWTECH. They offer diverse sizes (e.g., 5x7, 8x13) compatible with your machine, often providing robust gripping power for tricky items like Carhartt jackets.
• Level 3 (The Production Line): If you are hooping 50+ items a day, a standard magnetic hoop is great, but a magnetic frame for embroidery machine designed for industrial speed might be your next research topic.

Stabilizer Decision Tree for Quilting Cotton, Batting, and Patch Runs

The video implies stabilizer usage, but let’s make it explicit. Wrong stabilizer = distorted designs.

Decision Tree: What goes underneath?

1. Is the fabric unstable/stretchy (T-Shirt, Jersey)?
   • YES: Use Fusible Mesh Cutaway. ( Prevents distortion).
   • NO: Go to step 2.
2. Are you stitching dense Couching or Matrix Patches?
   • YES: Use Heavy Weight Cutaway. (Needed to support 10,000+ stitches).
   • NO: Go to step 3.
3. Is it a Quilt Sandwich (Batting + Fabric)?
   • YES: Use a completely different approach. Often Floating on Tearaway or using Magnetic Hoops without stabilizer (if the batting provides enough stability) is preferred to avoid stiffness.

Many users searching for magnetic embroidery hoops fail because they think the magnet replaces the stabilizer. It does not. A magnet holds the fabric; stabilizer holds the stitches.

IQ Designer Decorative Fills and Motifs: Make Texture Without a Computer (But Don’t Overload the Fabric)

The host shows flowery shapes filled with decorative patterns directly on the screen.

The Density Trap

IQ Designer fills are fun, but they add mass.

• Expert Tip: If you layer a heavy fill background behind a dense main design, you create a "bulletproof vest" effect. The fabric becomes stiff and may pucker.
• Search Intent: Users look for IQ Designer Tips to solve puckering. The answer is usually: Lower key density or use lighter fills.

Sewing Tapering on Baby Lock Altair: The 45° Miter Trick That Makes Satin Stitches Look Finished

This features applies to the sewing side of the machine. It automatically tapers the satin stitch angle at the beginning and end.

This mimics the look of hand-embroidered corners on napkins or tablecloths. It eliminates the blunt, raw edge of a standard satin stitch.

Operation: Run the Stitch-Out Like a Pro (So You Don’t Waste the Good Fabric)

You are the pilot. The machine is on autopilot, but you must scan the instruments.

In-Flight Sensory Checklist

• Sound Check: A smooth "purr" is good. A "clack-clack" means the bobbin is low or thread is caught on the spool pin.
• Visual Check: Watch the Bobbin Thread on the back. You should see 1/3 white bobbin thread in the center. If you see only top thread, your top tension is too loose.
• Tactile Check: Occasionally touch the hoop (away from the needle). Is it vibrating excessively? If so, slow down.

Operation Checklist (end-of-operation):

• Hoop Security: Magnetic bars have not shifted.
• Thread Path: No tangles on the spool stand.
• Registration: Outlines line up with fills (if not, stabilize more next time).
• Finish: Jump threads trimmed close.

The “Worth It?” Question: Bundle Value, Time Savings, and a Smart Upgrade Path

The kit is valued at $999 (often sold for $799). Is it worth it?

Yes, if:

• You do Quilting (Magnetic hoop + Laser alignment is a godsend).
• You do Patches (Matrix Copy pays for itself in time).
• You hate Hoop Burn.

No, if:

• You only stitch on sturdy denim and never rotate designs.

The Growth Path

Every embroiderer hits a "Ceiling of Frustration."

1. Ceiling 1: Hooping takes too long.
   • Solution: magnetic hoops for babylock embroidery machines. Brands like SEWTECH offer high-quality alternatives that fit Baby Lock arms, speeding up the process by 40%.
2. Ceiling 2: Production is too slow (Changing threads).
   • Solution: If this Upgrade Kit isn't enough, your business might be ready for a Multi-Needle Machine.
3. Ceiling 3: Delicate items are getting ruined.
   • Solution: magnetic embroidery hoops for babylock specifically designed to hold without crushing.

Quick Troubleshooting: What to Fix When Results Don’t Match the Demo

When things go wrong, follow the Low Cost -> High Cost rule. Don't take the machine apart before checking the needle.

Symptom: "Bird's Nest" (Tangle of thread under the plate)

• Likely Cause: Upper threading is wrong (missed the take-up lever).
• Quick Fix: Re-thread the TOP completely. Raise the presser foot while threading to open tension discs.

Symptom: Couching Yarn isn't catching

• Likely Cause: Needle too small or Speed too high.
• Quick Fix: Switch to size 90/14 needle; Slow straight down to 400 SPM.

Symptom: Design outline is "off" (Registration error)

• Likely Cause: Fabric moved in hoop OR Stabilizer is too light.
• Quick Fix: Use spray adhesive (505) to bond fabric to stabilizer; Switch to magnetic embroidery frames for better grip on slippery fabrics.

The Upgrade Result You Should Aim For: Less Hooping Drama, Cleaner Alignment, Faster Output

This upgrade kit isn't just about fun new courier fonts. It’s about professionalizing your output.

1. Laser Positioning ends the "crooked name" anxiety.
2. Matrix Copy turns you into a mini-factory.
3. Magnetic Hoops treat your fabric with respect.

If you are fighting your machine, stop. Upgrade your prep, upgrade your stabilizer, and consider if magnetic embroidery hoops for babylock are the missing link in your physical workflow. Your machine is ready; it’s just waiting for your process to catch up.

FAQ

• Q: What prep steps prevent hoop burn and registration shifts when using the Baby Lock Altair 2 / Meridian 2 7x12 magnetic hoop?
  A: Treat fabric prep as mandatory—most “bad stitch-outs” start before the machine is turned on.
  • Press and pre-shrink the fabric, then cut stabilizer at least 1.5 inches larger than the hoop on all sides.
  • Install a brand-new needle (75/11 is a safe starting point for standard work; use 90/14 for couching per the workflow).
  • Clean the bobbin area and use a bobbin wound at medium speed (not max).
  • Mark clear crosshairs or a reference line for alignment before hooping.
  • Success check: Fabric lies flat with no ripples, stabilizer fully supports the hoop area, and the hooping feels secure without crushing the fabric face.
  • If it still fails… Add temporary spray adhesive to bond fabric to stabilizer and reassess stabilizer weight for the project type.
• Q: How do you set Baby Lock couching embroidery speed and yarn feed so the Baby Lock couching foot doesn’t stitch through the yarn?
  A: Slow down and remove yarn drag—couching fails when yarn feed is tight or speed is too high.
  • Reduce speed to 400–600 SPM as a beginner and keep yarn slack (place the yarn in a cup/holder near the machine head).
  • Watch the yarn flow continuously; do not let the yarn ball roll on the floor and jerk.
  • Listen for smooth rhythm; stop immediately if you hear a sharp snap or grinding sound.
  • Success check: Yarn “flows like water,” and the zig-zag lands over the yarn instead of piercing it.
  • If it still fails… Switch to a 90/14 needle and re-check that the yarn path is not snagging anywhere.
• Q: What is the success standard for Baby Lock top tension and bobbin thread appearance during stitch-out on Baby Lock Altair / Meridian embroidery?
  A: Use the back of the design as the gauge—aim for balanced tension, not “tight as possible.”
  • Run the machine and periodically flip or inspect the underside of the stitch-out.
  • Adjust only after confirming correct threading and a clean bobbin area.
  • Use sound and vibration as cues; abnormal clacking can indicate low bobbin or thread catching.
  • Success check: About 1/3 white bobbin thread shows in the center on the back; you should not see only top thread.
  • If it still fails… Re-thread the top completely with the presser foot raised to ensure the tension discs are engaged correctly.
• Q: How do you stop “bird’s nest” thread tangles under the needle plate on a Baby Lock Altair / Meridian during embroidery?
  A: Re-thread the upper path correctly first—most bird’s nests come from missing the take-up lever or threading with the presser foot down.
  • Stop the machine, cut threads, and remove the hoop to avoid pulling fabric into the plate.
  • Raise the presser foot, then re-thread the top thread from spool to needle (do not “patch” the thread path).
  • Check the thread path for snags on the spool stand before restarting.
  • Success check: Stitching resumes with a smooth sound and no thread wad forming under the fabric after the first few stitches.
  • If it still fails… Clean lint around the bobbin area and confirm the machine is not catching thread on the spool pin.
• Q: How do you align angled names on shirt pockets using Baby Lock 2-point laser positioning on Baby Lock Altair 2 / Meridian 2 upgrades?
  A: Mark a real baseline and let the laser align mathematically—don’t rely on eyeballing curved garments.
  • Draw an angled reference line on the garment with a ruler using a water-soluble or air-erase fabric pen.
  • On-screen, define Point A (start) and Point B (end) of the name.
  • Move the laser until it traces the drawn line precisely before stitching.
  • Success check: The laser line tracks your drawn baseline end-to-end, and the preview orientation matches the garment angle.
  • If it still fails… Float the garment on hooped stabilizer using temporary spray adhesive to reduce shifting before final alignment.
• Q: How do you prevent patch grid distortion when using Baby Lock Matrix Copy and Color Sort for a 3x3 patch layout?
  A: Stabilize for accumulated density—multi-design grids can shrink stabilizer and throw off outer patch registration.
  • Leave at least a 5 mm gap between designs for cutting and distortion buffer.
  • Enable Color Sort and confirm the stitched sequence in the preview.
  • Use heavy duty cutaway stabilizer for patches to resist density pull.
  • Success check: Outer patches keep outline-to-fill registration, not just the center patch.
  • If it still fails… Reduce the number of patches per hooping or improve fabric-to-stabilizer bonding with temporary spray adhesive to prevent creep.
• Q: What safety rules prevent injuries when using Baby Lock magnetic hoop bars and Baby Lock couching attachments?
  A: Keep hands away from pinch points and moving needles—both couching and magnetic bars can injure fingers fast.
  • Slide magnetic bars apart; never pry upward, and never place fingers between magnets while snapping bars on.
  • Keep magnetic hoops away from laptops and pacemakers, and store them so they cannot slam together.
  • During couching, never attempt to untangle yarn while the machine is running; stop first.
  • Success check: Hands stay outside the needle bar area and away from magnet contact zones during placement/removal.
  • If it still fails… Pause the job, power down if needed, and reset the workspace (yarn holder position, hoop handling angle) before restarting.
• Q: When should a Baby Lock Altair / Meridian owner upgrade workflow from prep tweaks to magnetic hoops to a multi-needle embroidery machine for production?
  A: Use a three-level escalation: fix process first, then improve holding power, then increase needle capacity if volume is the real bottleneck.
  • Level 1 (Technique): Improve prep—fresh needle, correct stabilizer, clean bobbin area, correct top threading, and controlled speed (especially for couching).
  • Level 2 (Tooling): Move to magnetic hoops when hoop burn, fabric shifting, or slow hooping is limiting consistency on quilts/towels/slippery fabrics.
  • Level 3 (Capacity): Consider a multi-needle machine when thread-change time is killing hourly rate (for example, repeating patch runs where Color Sort still isn’t enough).
  • Success check: Rework drops (less crooked placement, fewer registration errors, fewer ruined delicate fabrics) and hooping time noticeably decreases.
  • If it still fails… Track what consumes the most minutes per job (hooping vs. thread changes vs. re-stitching) and upgrade only the bottleneck.
