Baby Lock Alliance + Magnetic Hoops: The Quiet, Profitable Setup (Plus Oiling & Threading That Won’t Fail Mid-Order)

If you’ve ever bought a machine second-hand, stared at the hoop arm, and felt that knot of anxiety in your stomach thinking, “Please tell me this fits,” you are not alone. That fear is valid. The Baby Lock Alliance (and similar single-needle free-arm machines) occupies a terrifying middle ground: it’s too expensive to be a toy, yet it lacks the 6-to-10 needles of a full commercial beast.

It attracts a specific operator: the "Pro-sumer" who wants professional results but needs to be smart with money, space, and workflow. You aren't just buying a machine; you are buying into a system.

In the video, the creator demonstrates three critical pillars of a healthy embroidery workflow:

1. Tooling Logic: Proving magnetic hoop compatibility (saving you from the "hoop burn" nightmare).
2. Maintenance Discipline: A 30-second oiling routine that prevents expensive repair bills.
3. Process Certainty: A numbered threading path that eliminates variables.

As an embroidery educator, I’m going to rebuild this content into a "Zero-Friction" field guide. We will strip away the guesswork, add the sensory details that video often misses, and show you exactly where tools like magnetic frames fit into a profitable business model.

Don’t Panic: What the Baby Lock Alliance Setup Is Really Solving (Hoops, Speed, and Sanity)

The Alliance is presented here as a practical upgrade path. With an 8x8 sewing field, it offers more room than a standard flatbed domestic machine, but significantly less complexity than a 10-needle Enterprise. Critically, it allows for sharing hooping hardware across machines—if you understand the bracket system.

One viewer asked how to install a round hoop frame, and another asked what “A arms” means. In the comments, the creator clarifies she uses the "A arm." Let’s translate that into shop terms:

The "Arm" determines the geometry; the "Bracket" determines the lock. When you see terms like "A Arm" or "B Arm," you are matching the hoop’s attachment width to the machine’s physical arm width. If you force the wrong bracket, you will strip the metal or bend the arm.

For a small business owner, the emotional win here is huge: Standardization. When you can use the same magnetic hoops on your single-needle Alliance and your multi-needle production machine, you stop buying duplicate gear. You stop guessing.

The “Hidden” Prep Before You Stitch: Oil, Cloth, and a 30-Second Habit That Saves Hooks

The creator’s routine starts correctly: leave the machine OFF, open the bobbin area, and oil the hook race before powering up.

Why does this matter? The rotary hook spins at thousands of revolutions per minute. A dry hook creates friction, which generates heat. Heat expands metal, leading to thread breaks and, eventually, a seized machine.

The Sensory Check:

• bad Sound: A dry hook sounds like a metallic "hiss" or a "sh-sh-sh" grinding noise.
• Good Sound: A well-oiled hook has a low, smooth hum.

The Procedure:

1. Power OFF. Never put your hands near the hook with power on.
2. Open the bobbin case door.
3. The Safety Cloth: Place a small scrap of fabric or paper towel under the hook assembly to catch drips.
4. The Drop: Apply exactly one drop of sewing machine oil to the hook race (the rim where the basket spins).
5. The Rotate: Turn the handwheel clockwise by hand specific to this machine (check your manual, as some machines prefer counter-clockwise) to distribute the oil film.

If you are using a baby lock alliance embroidery machine in a home studio, this habit is non-negotiable.

Warning (Physical Safety): Keep fingers, long hair, and loose sleeves/jewelry away from the needle area and moving parts when you first power on or test-run after oiling. A "quick check" is how most needle puncture injuries occur.

Prep Checklist (The "Do Not Start Without This" List):

• Machine power is OFF.
• Bobbin door opened and visual check for lint/bird nests completed.
• Catch-cloth placed under the hook area.
• One drop of clear oil applied to the race (Check: Is it clear? Yellow oil is old/bad).
• Handwheel rotated to distribute oil.
• Catch-cloth removed and door closed.


The One-Drop Oiling Move: Where to Oil the Hook Race (and What “Too Much” Looks Like)

In the close-up, she oils the race of the rotary hook. Novices often flood this area, thinking "more is better."

Science Fact: You only need a microscopic film of oil to reduce friction. Anything more is a liability.

Signs of Over-Oiling:

• The "Shotgun" Effect: Oil mist sprays onto your stabilizer or precious garment.
• Lint Cement: Excess oil mixes with dust to form a sludge that jams the thread cutter.
• False Tension Issues: Oil gets into the bobbin case tension spring, causing the bobbin thread to slide too fast (looping).

The creator’s discipline—one drop plus a cloth—is the gold standard.

Magnetic Hoop Compatibility on the Alliance: The Bracket Test That Saves You From Buying Extra Hoops

This is the heart of the review and the biggest unlock for productivity. She confirms that magnetic hoop brackets fit the Alliance arm and lock securely.

Why upgrade to magnets? Traditional tubular hoops require you to press an inner ring into an outer ring. This causes:

1. Hoop Burn: Permanent creases on delicate fabrics (velvet, performance wear).
2. Hand Strain: "Embroidery wrist" is a real injury from repetitive tightening.

The Compatibility Reality:

• The 5.5x5.5 Mighty Hoop (or equivalent magnetic frames like MaggieFrame) often shares brackets with similar machine classes.
• The Alliance bridges the gap between home and industrial. It doesn't ship with a 5x7 hoop, leaving a "missing middle" in your sizing.
• Magnetic hoops fill that gap without requiring you to buy specific, brand-locked plastic frames.

If you are shopping for magnetic hoops for babylock embroidery machines, focus on the bracket type. Efficiency isn't about the magnet strength alone; it's about the bracket sliding onto your specific machine arm without wobbling.

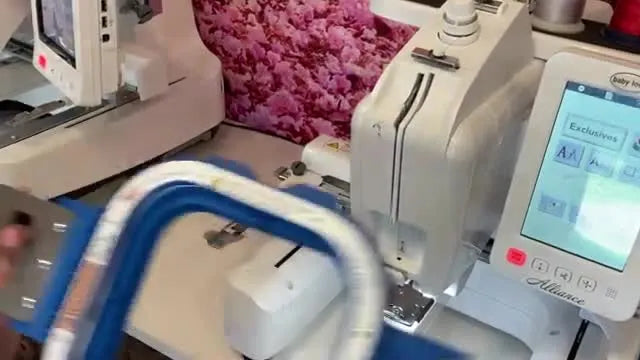

Installing the Magnetic Hoop Bracket on the Machine Arm: The Slide-On Lock Test (No Guessing)

A commenter asked how to install the round hoop frame. The video shows the core action: slide the hoop bracket onto the machine arm until it locks.

Visuals are okay, but tactile feedback is better for learning. Here is how it should feel:

1. Level Approach: Hold the bracket parallel to the floor. Do not come in at an angle.
2. The Slide: Push it onto the arm. It should glide with zero grinding.
3. The Click: You must hear or feel a mechanical "click" or engagement of the locking pins.
4. The Wiggle Test: Once locked, grab the frame and give it a gentle shake. The machine arm might move slightly (that's normal), but the connection between bracket and arm should be rock solid.

If it wobbles, STOP. You either have the wrong bracket or it isn't seated. Stitching with a loose hoop guarantees registration loss (gaps in outlines).

Hoop Size Strategy for Towels and Small Goods: Why 5x5 and 8x9 Are the Workhorses

The creator highlights her favorites: 5x5, 8x9, and fast frames. This aligns perfectly with commercial production logic. We follow the "Smallest Possible Field" rule.

• 5x5 Class: Perfect for left-chest logos, towel corners, and onesies. Why? Less fabric "flagging" (bouncing) leads to cleaner text.
• 8x9 Class: The sweet spot for jacket backs or full-front designs without needing a giant 12-inch jacket back hoop (which is often unstable on smaller machines).

The Pivot Point: If you are doing production runs of 50+ towels, the traditional hoop screw is your enemy. It slows you down. If you are comparing a mighty hoop 5.5 (or compatible magnetic solutions) to standard frames, calculate the ROI based on time. Saving 30 seconds per hoop-up on 50 towels saves you 25 minutes of labor—enough to run another job.

The Stabilizer Decision Tree for Terry Cloth Towels: Stop the “Sinking Stitches” Before They Start

The video features terry cloth towels. Terry is a "living" fabric—it breathes, stretches, and has loops that want to poke through your embroidery.

Novices often ask, "What stabilizer do I use?" The answer is never just one thing. Use this logic path:

Decision Tree: Terry Cloth Towels

1. Is the towel thick/plush?
   • Yes: You MUST use a Water Soluble Topping (Solvy) on top. Without it, your stitches will sink into the loops and disappear.
   • No (Waffle weave/flat): Topping is optional but recommended for crisp text.
2. Is the design dense (Satin stitches)?
   • Yes: Use Cut-Away stabilizer on the back. Tear-away will disintegrate under the needle impacts, causing the design to distort.
   • No (Light sketch/Redwork): Tear-Away is acceptable.
3. Is the "Hoop Burn" risk high?
   • Yes: This is the trigger to switch to Magnetic Hoops. They clamp the fabric without crushing the loops, preserving the fluffiness of the towel.

Threading the Baby Lock Alliance: The Numbered Guide Path (1–5) You Can Repeat Under Pressure

A viewer asked for threading help. This is often where used machines are abandoned—the seller didn't provide a manual, and the buyer keeps breaking thread.

The Alliance, like many commercial units, uses a numbered path. You cannot skip a guide. Tension is created by the drag of the thread through all these points.

The Sensory Threading Path:

1. Guide 1 (The Tree): Straight up from the spool. No tangles.
2. Guide 2 (Pre-Tension): You should feel slight resistance here.
3. Guide 3 (Main Tension Disc): Crucial Step. Floss the thread into the discs firmly. You should feel it "seat."
4. Guide 4 (Take-Up Lever): The arm that moves up and down. Visual check: Look to ensure the thread is actually in the eyelet, not just resting on it.
5. Guide 5 (Needle Bar): The final guide before the needle.

If you are learning hooping for embroidery machine workflows, freeze your threading variable. Do it exactly the same way every time until muscle memory takes over.

Thread Stand and Color Staging: How to Set Up Thread So You’re Not Re-Threading All Day

The creator shows staging thread colors on the stand. This is "cognitive offloading."

The Tip: Even on a single-needle machine, set up your next 3 colors in order on the stand.

• Why? When the machine stops for a color change, you don't break your flow looking for "Royal Blue #432." You just grab, tie, and pull.

Inventory Note: Keep a "Survival Kit" near the machine:

• Curved tweezers (for grabbing tails).
• Snippers.
• A "junk jar" for bent needles (don't leave them on the table!).


The Knot Method for Fast Thread Changes: When It Works—and When It Bites You

She demonstrates tying the new thread to the old one and pulling it through. This is standard industry practice, but it has a trap.

The "Eye of the Needle" Rule:

1. Tie a small, tight square knot.
2. Pull the thread through the tension discs and guides.
3. STOP when the knot reaches the needle eye.
4. Cut the knot and thread the needle eye manually.

Why? Pulling a knot through a size 75/11 needle eye can bend the needle bar or burr the eye. A burred eye will shred thread continuously, leaving you frustrated and wondering why the machine is "broken."

Setup That Prevents Skipped Stitches: The Table Stability Problem Everyone Underestimates

Two commenters asked about tables. The creator correctly notes that stands are expensive and she uses a dresser. However, she mentions "shaking is normal."

Let's calibrate that:

• Vibration is normal.
• Wobble is fatal.

If you put your hand on the machine while it runs, it should feel like a humming engine. If the table is rocking back and forth, your needle registration will be off. The needle enters the fabric, the table rocks, the fabric shifts, and the needle creates a gap.

Setup Checklist (The Stability Audit):

• Table legs are level (use shims if needed).
• Surface is non-slip (rubber mat under the machine helps).
• Hoop arm has 360-degree clearance (not hitting the wall or a pile of blanks).
• You have clear visual access to the bobbin door.


Speed, Stitch Time, and Realistic Expectations: What 20,000 Stitches Looks Like in the Real World

A commenter asked about timing. The creator uses speed 800 SPM (Stitches Per Minute).

The Sweet Spot Strategy: While the machine can do 1000 SPM, seasoned pros rarely run full throttle on consumer/pro-sumer crossovers.

• 800 SPM is the "Sweet Spot." It provides cleaner satin stitches, fewer thread breaks, and less machine wear.
• Running at 1000 SPM might save 2 minutes on a 30-minute run, but one thread break costs you 3 minutes to fix. Do the math: Slower is often Faster.

Noise Levels: When “Loud” Is Just Age—and When It’s a Maintenance Signal

The creator compares the Alliance to her older Enterprise (which is louder).

Auditory Diagnostics:

• Rhythmic Thumping: Normal.
• High-Pitched Squeak: Dry hook race (Needs oil NOW).
• Clacking/Rattling: Loose hoop screw or needle hitting the throat plate.

Treat noise as data. If the sound changes mid-design, hit STOP immediately.

The “Missing 5x7 Hoop” Problem: How Magnetic Hoops Fill the Gap Without Extra Spending

She explains the Alliance ships with 8x8 and 4x4. The 5x7 standard is missing. Her workaround? Using babylock magnetic hoops (or compatible frames) that cover that field.

This is a strategic purchase. Instead of buying a plastic 5x7 hoop that only fits one machine, buying a 5.5" or 8x9" magnetic hoop often gives you a tool that works across multiple machine brands simply by changing the metal brackets. It’s an asset that moves with your business as you grow.

Magnetic Hoops in Production: The Upgrade Path That Actually Pays Off (Without the Hard Sell)

Magnetic hoops are not just "fancy accessories"; they are solutions to specific physical problems.

The Upgrade Ladder:

1. Level 1 (Pain Relief): If your wrists hurt from tightening screws or you are getting "hoop burn" marks on polos, a magnetic hoop is the direct cure.
2. Level 2 (Speed): For consistent runs (towels, bags), the snap-shut action is 3x faster than manual hooping.
3. Level 3 (Scaling): When you are doing 100+ items, the consistency of commercial-grade tooling allows you to trust the machine and walk away.

Warning (Magnet Safety): Commercial magnetic hoops (MaggieFrame, Mighty Hoop, etc.) use powerful Neodymium magnets.
* Pinch Hazard: They snap shut instantly. Keep fingers clear of the edge.
* Medical Risk: Keep them away from pacemakers and ICDs.
* Electronics: Keep them away from credit cards and hard drives.

The Towels Reveal: What “Good Enough to Gift” Looks Like (and How to Finish Like a Pro)

The video concludes with the "Be Our Guest" towels.

The Finishing Step: If you used a water-soluble topping (as recommended for terry cloth), do not just rip it off—that distorts the loops.

• The Trick: Wet a paper towel slightly and dab the embroidery. The topping will dissolve into a gel. Wipe it away. This leaves the stitches sitting high and proud on top of the pile.


How to Use Magnetic Hoops Without Wasting Blanks: The Two-Test Rule I Use in Every Studio

Novices often ask how to use mighty hoop or similar frames effectively. They trust the magnet too much and skip the check.

The Two-Test Rule:

1. The Tug Test: After snapping the magnet shut, gently tug the fabric corners. It should be "drum tight" (but not stretched). If it slips, your stabilizer is too thin.
2. The Trace Test: Always run the "Trace" function on your screen before stitching. Magnetic hoops have thick edges; if your design hits the metal frame, you will break a needle and possibly the machine's timing.


Operation Checklist: The “Run It Like a Shop” Routine (Even If You’re Just Starting)

Stitch quality comes from routine, not luck. Use this list before touching the green button.

Operation Checklist (Every Hoop, Every Time):

• Bracket Seated: Push and wiggle to confirm.
• Fabric Clearance: Ensure the rest of the towel isn't bunched under the needle area (sewing the towel to itself is a rite of passage, but let's avoid it).
• Thread Path: A quick glance at the take-up lever (Guide 4). Is the thread in?
• Speed: Set to 800 SPM or appropriate limit for the fabric.
• Bobbin Check: Do you have enough bobbin thread for the design?

If your workflow centers around magnetic embroidery hoops, this routine ensures that your speed advantage isn't lost to silly mistakes.

The 8x9 Magnetic Hoop Reality Check: When It’s the Perfect Choice (and When It’s Overkill)

The creator uses the 8x9 size because it covers most "large" logos without being unwieldy.

If you are considering a mighty hoop 8x9 (or equivalent), verify your actual design sizes.

• If 90% of your work is 4 inches wide, stick to the 5.5 size. It holds fabric tighter.
• Use the 8x9 for jacket backs, tote bags, and adult sweatshirt fronts.

The Hooping Station Question: Do You Need One, or Do You Need a Better Process?

Viewers often rush to buy a magnetic hooping station.

• The Diagnosis: If your logos are crooked, a station helps alignment.
• The Alternative: If you just need to hold the hoop, heavy-duty magnetic hoops often align themselves to the placket of a shirt if used correctly. Start with the hoop; add the station only if volume demands it.

The Upgrade Moment: When a Single-Needle Hits Its Ceiling (and What to Do Next)

The creator admits it took years to upgrade to the Alliance. This is healthy.

When do you outgrow the Alliance?

• The Bottleneck: Thread changes. If a design has 12 colors, a single-needle machine requires 11 manual stops. That’s downtime.
• The Solution: A multi-needle machine (like the high-value SEWTECH multi-needle series) holds all colors at once. You press start and walk away.

The Commercial Loop: Smart business owners optimize in this order:

1. Skill: Master the single needle (Prep/Stabilizer).
2. Tooling: Add Magnetic Hoops to increase speed and reduce strain.
3. Capacity: Upgrade to Multi-Needle machines for volume.

Final Word: Make the Alliance Feel Easy—By Treating It Like a Production Machine

The video’s optimism is well-founded. The Baby Lock Alliance (and its ecosystem) is a powerhouse if you respect the physics of embroidery.

Focus on the boring stuff: The one drop of oil. The correct bracket. The specific stabilizer choice. When you build a system around reliable tools like magnetic hoops for babylock embroidery machines, the fear of the machine disappears, replaced by the satisfaction of a perfect satin stitch.

FAQ

• Q: How do I confirm a Baby Lock Alliance magnetic hoop bracket is the correct “A arm” type before stitching?
  A: Match the hoop arm width (“A arm”) and then verify the bracket locks with a solid slide-on fit—do not force it.
  • Slide the bracket onto the Baby Lock Alliance arm level (parallel to the floor), not at an angle.
  • Push until the locking pins engage and you feel/hear a clear “click.”
  • Do the wiggle test: hold the hoop and gently shake.
  • Success check: the bracket-to-arm connection feels rock solid (the machine arm may move slightly, but the bracket must not wobble).
  • If it still fails: stop and re-check bracket type/fitment; stitching with wobble will cause registration gaps and can damage the arm/bracket.
• Q: Where exactly should I oil the Baby Lock Alliance rotary hook race, and how much oil is “too much”?
  A: Oil the hook race with exactly one drop—more oil creates mess and tension problems.
  • Power OFF, open the bobbin area, and place a small scrap cloth/paper towel under the hook to catch drips.
  • Apply one drop of clear sewing machine oil to the race (the rim where the hook basket spins).
  • Turn the handwheel by hand to spread the oil film (follow the machine manual for direction).
  • Success check: the hook sound changes from a metallic “hiss/sh-sh-sh” to a smooth, low hum.
  • If it still fails: inspect for over-oiling signs (oil mist on fabric, lint sludge, looping from oil in the bobbin tension area) and clean before re-testing.
• Q: What is the safest way to oil and test-run a Baby Lock Alliance embroidery machine to avoid needle-area injuries?
  A: Keep the machine powered OFF while hands are near the hook, then test-run with clear hands, hair, and sleeves.
  • Turn power OFF before opening the bobbin door or placing any cloth near the hook.
  • Remove loose jewelry, secure long hair, and keep sleeves away before powering back on.
  • Start the first run after oiling with hands fully away from needle and moving parts.
  • Success check: the machine runs without you reaching into the needle area for a “quick check,” and motion stays unobstructed.
  • If it still fails: stop immediately and reset the workspace—most puncture incidents happen during rushed checks near the needle.
• Q: How do I prevent hoop burn on towels and polos when using a Baby Lock Alliance embroidery hooping workflow?
  A: Reduce crushing pressure first, then switch to a magnetic hoop if hoop burn persists on delicate or plush fabrics.
  • Choose the least aggressive hooping pressure that still holds the fabric securely.
  • For high hoop-burn-risk items (plush towels, performance wear, velvet), clamp with a magnetic hoop to avoid ring compression.
  • Run a quick tug test after hooping to ensure the fabric is held firmly without over-stretching.
  • Success check: fabric surface shows minimal to no permanent ring/crease marks after unhooping, and the pile stays fluffy on towels.
  • If it still fails: confirm stabilizer support is adequate—fabric that shifts will tempt overtight hooping, which increases burn.
• Q: What stabilizer combination should I use for terry cloth towels on a Baby Lock Alliance to stop “sinking stitches”?
  A: Use water-soluble topping on top for plush terry, then choose cut-away vs tear-away based on design density.
  • Add a water-soluble topping on top when the towel is thick/plush to keep stitches from disappearing into loops.
  • Use cut-away on the back for dense satin designs; use tear-away only for lighter designs (like sketch/redwork) when appropriate.
  • If hoop burn risk is high, use a magnetic hoop to clamp without crushing towel loops.
  • Success check: lettering and satin edges sit visibly on top of the towel pile instead of sinking and looking fuzzy.
  • If it still fails: increase top support (topping use/placement) and re-check hoop hold—loop movement is usually the cause.
• Q: How do I thread a Baby Lock Alliance embroidery machine using the numbered 1–5 path to reduce thread breaks?
  A: Follow the full 1–5 threading path every time and “seat” the thread firmly in the main tension discs.
  • Route thread through Guide 1 to Guide 5 in order and do not skip any guide.
  • Floss the thread into the main tension discs (the critical step) so it fully seats.
  • Visually confirm the take-up lever guide is actually threaded (not just resting against it).
  • Success check: you feel consistent slight resistance at the pre-tension area and the machine stitches without random breaking from mis-threading.
  • If it still fails: re-thread from spool to needle slowly—threading errors are common on used machines missing manuals.
• Q: How do I use a magnetic hoop on a Baby Lock Alliance without breaking needles from frame strikes?
  A: Always do the tug test after clamping and run the machine’s Trace function before stitching.
  • Snap the magnetic hoop closed and perform the tug test: gently tug fabric corners to confirm firm hold without slipping.
  • Run Trace on the screen every hoop-up to confirm the design path clears the magnetic frame edges.
  • Keep excess towel/garment fabric out from under the needle area to avoid stitching the item to itself.
  • Success check: Trace completes with full clearance and the design stitches without needle contact with the frame.
  • If it still fails: stop immediately and re-hoop or resize/reposition the design—continuing risks needle breakage and timing damage.
• Q: When should a Baby Lock Alliance owner upgrade from technique changes to magnetic hoops, and when should they move to a multi-needle machine like a SEWTECH?
  A: Upgrade in layers: fix process first, add magnetic hoops for hoop burn/speed, then move to multi-needle when thread-change downtime becomes the bottleneck.
  • Level 1 (Technique): standardize oiling, threading, stabilizer choice, and run a stable table setup to reduce breaks and registration issues.
  • Level 2 (Tooling): add magnetic hoops when hoop burn or wrist strain is recurring, or when hooping time dominates towel/bag runs.
  • Level 3 (Capacity): move to a multi-needle machine when single-needle color changes (e.g., many-color designs) create repeated stops and kill throughput.
  • Success check: each upgrade removes a measurable pain point (fewer marks/injuries, faster hoop-ups, fewer manual stops per job).
  • If it still fails: track where time is lost (hooping vs thread changes vs rework) and upgrade the specific bottleneck rather than guessing.
