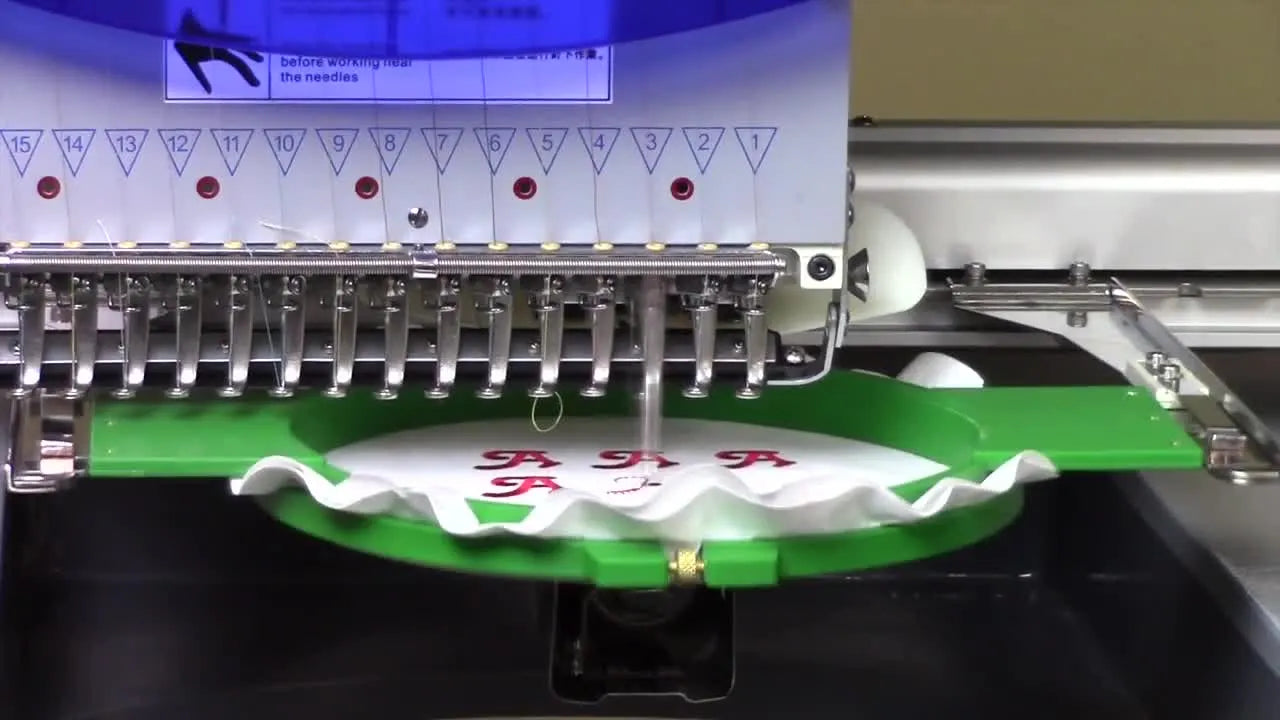

Avancé Design Repeat Done Right: Fill the Hoop, Center the Grid, and Avoid the “Why Is My Array Off?” Panic

Master the Design Repeat: Transform Your One-Off Patches into High-Profit Production Runs

In the embroidery business, the fastest money you will ever make isn't from the jobs that go right—it’s the money you save by eliminating the jobs that go wrong. Profit margins in patch production are eaten alive by three invisible enemies: wasted hoop real estate, wasted stabilizer, and the "operator tax" of constantly re-centering the machine.

This guide focuses on one of the most powerful, yet underutilized production tools on your control panel: Design Repeat (often called Array or Matrix mode).

Whether you are running a single-head commercial unit or a multi-head beast, the goal is identical: take a single logo file and mathematically clone it across your hoop to stitch multiple units in one continuous run. Done correctly, this turns a 5-minute job into a 45-minute "set it and forget it" production cycle, freeing you to hoop the next garment.

Below is a white-paper level breakdown of the workflow, calibrated with specific parameters and safety checks to move you from "hoping it fits" to "knowing it prints."

The Economics of "Design Repeat": Why Manual Layouts Are Killing Your Efficiency

The Design Repeat function is the industry standard for patch production. Instead of going back to your digitizing software to copy-paste a design nine times (which creates a massive file that loads slowly), you let the machine’s onboard computer handle the math.

If you are operating a modern avance commercial embroidery machine or similar professional equipment, this feature acts as an "efficiency multiplier." However, it requires a shift in mindset: you stop thinking about where the needle is and start thinking about where the grid will grow.

The Profit Formula:

• Manual Method: Hoop -> Stitch 1 Patch -> Unhoop -> Re-hoop. (10 minutes active labor per patch).
• Repeat Method: Hoop Large Frame -> Stitch 12 Patches -> Unhoop. (45 seconds active labor per patch).


Phase 1: The "Hidden" Prep (Do This Before Touching the Screen)

Before you press a single key, you must perform a physical audit of your setup. 80% of embroidery failures happen because the operator tried to fix a physical problem with software settings.

1. Stabilize for "The Drum Effect"

Patch production usually involves twill or canvas, but even stable fabrics can distort under the tension of thousands of stitches.

• Sensory Check (Tactile): When hooped, your backing and fabric should feel tight, like a drum skin. If you tap it, you should hear a dull thud. If the fabric ripples when you run your finger across it, re-hoop.
• The Material Decision: For almost all patch arrays, use a standard 2.5oz or 3.0oz Cutaway Stabilizer. Do not use tearaway for large arrays; as the needle perforates the paper, the stability degrades, causing the 9th patch to lose registration.

2. Measure Twice, Input Once

You need two numbers. Do not guess. Use a digital caliper or a ruler.

• Design Size: The actual width of the embroidery. In our demo, this is 25mm (approx 1 inch).
• The "Scissor Gap": The empty space you need between patches to cut them out later.
  • Beginner Advice: Aim for 10mm to 12mm. This gives you room to maneuver scissors without accidentally snipping threads.
  • Expert Advice: Once confident, you can shrink this to 5mm to save fabric.

3. Machine State

Ensure the machine is Unlocked/Idle. You cannot alter array settings while the machine believes it is in active embroidery mode.

Pre-Flight Checklist: The Physical Audit

• Machine State: Confirm "Embroidery Mode" is disengaged.
• Hoop Tension: Tap test performed; fabric sounds taut.
• Clearance: Look under the needle plate. Ensure no loose threads or oil residue will stain the backing.
• Bobbin Check: Visual check of the bobbin. For a large array run, start with a full bobbin. Running out in the middle of patch #7 is a workflow killer.
• Consumables: Have your appliqué scissors and a fresh needle (Size 75/11 is the production standard) ready.

Warning: Mechanical Hazard. During range checks and manual jogging, keep hands, tools, and loose clothing at least 6 inches away from the needle bar and moving frame. A commercial servo motor moves the pantograph faster than you can react.

Phase 2: Configuring the Matrix (The Menu Path)

On most commercial interfaces, including the Avancé series, this logic is hidden under the "Settings" or "Edit" menus.

The Workflow:

1. Press Machine Function (Icon usually looks like gears or a tool).
2. Select Set Zoom, Repeat, Rotate.
3. Press Enter.

You will now see a parameter list holding the DNA of your production run: Priority, Repeat Counts, and Intervals.

Phase 3: Controlling Distortion via "Priority" and "Direction"

This is where the rookie differs from the professional. The Priority setting determines the order in which the patches are stitched.

• Setting: Set Priority to X DIR (X Direction).
• The Logic: This tells the machine to stitch the row left-to-right (1, 2, 3) before moving down to the next row.
• Why It Matters: Most fabrics have a "grain." By stitching in a consistent horizontal line, you "push" the fabric distortion evenly towards the edge of the hoop. If you stitch vertically (Y DIR) on a horizontal grain, you risk "bowing," where the middle patches look squashed.


Phase 4: The Mathematics of the Grid (The "Negative Y" Secret)

To build the 3x3 grid shown in the demonstration, we need to input the exact distance the pantograph must travel between designs.

Setting Repeat Times

• X Repeat Times: 3 (Columns)
• Y Repeat Times: 3 (Rows)
• Result: 9 total units.

The Interval Calculation (Crucial Step)

Many operators get this wrong because they input the gap size (10mm) instead of the interval.

• Formula: Design Width (25mm) + Desired Gap (10mm) = Interval (35mm).

The "Negative Y" Rule

If you maintain the standard commercial habit of starting your design in the Upper Left corner of the hoop, you must tell the machine to move down for the next row.

• X Interval: 350 (Machine reads as +35.0mm). Moves Right.
• Y Interval: -350 (Machine reads as -35.0mm). Moves Down.

Sensory Anchor (Visual): Look for the negative symbol (-) next to the Y value. If it is missing, the machine will try to stitch the next row above the hoop, crashing the frame into the machine head.

If you operate an avance embroidery machine, stick to this mental model: The Start Point is your Anchor. Positive numbers move away from the anchor to the right and up. Negative numbers move away from the anchor to the left and down.

Phase 5: Setting the Anchor Point (Home > Set Start)

You have defined the size of the grid, now you must define its origin.

1. Use the arrow keys to jog the embroidery foot to the Top Left quadrant of your hoop.
2. Visual Check: Ensure the presser foot is not touching the plastic rim of the hoop. Leave a "safety margin" of at least 5mm from the edge.
3. Command Sequence: Press Home > Select Set Start > Press Enter.

Why this is mandatory: The machine has a "memory" of the previous job's center. If you do not manually override it with "Set Start," it will attempt to apply your new grid to the old starting position, likely resulting in a limit error or a frame collision.

Setup Checklist (Digital Verification)

• Repeat Mode: Normal.
• Priority: X DIR (Horizontal Flow).
• X/Y Counts: 3 x 3.
• X Interval: +35.0mm (Positive).
• Y Interval: -35.0mm (NEGATIVE).
• Anchor: Hoop jogged to top-left; Set Start confirmed.

Phase 6: Verify or Fail (Contour vs. Design Range Check)

In aviation, pilots trust their instruments. In embroidery, we trust the Range Check. This feature physically traces the outline of the design before a single stitch is sewn.

The Two-Step Verification Method

Step 1: Contour Range Check (The Micro Check)

• Action: Traces only the first individual design.
• Purpose: Confirms your start point isn't hitting the wall of the hoop immediately.

Step 2: Design Range Check (The Macro Check)

• Action: Traces the perimeter of the entire 9-patch grid.
• Purpose: Ensures patch #9 (bottom right) doesn't slam into the hoop limits.




The "Nudge and Reset" Protocol

In the demo, the operator notices the grid is too far to the right.

1. Symptom: The laser guide shows plenty of empty fabric on the left, but the right side is dangerously close to the hoop edge.
2. Action: Jog the hoop to the left.
3. Critical Step: Immediately press Home > Set Start > Enter.

Warning: The Phantom Origin. If you manually move the frame to fix the position but forget to press Set Start, the machine reverts to the old logical origin. You will stitch exactly where you didn't want to. Always finalize a move with "Set Start".

Phase 7: Production & Troubleshooting

Once the Design Range Check traces a safe box within your hoop limits, you are cleared for takeoff. Press start.

Empirical Data for New Operators:

• Speed (SPM): While your machine can likely hit 1000 or 1200 stitches per minute, for array work, I recommend the "Sweet Spot" of 750-850 SPM.
  • Why? High speeds increase vibration. In a large grid, vibration accumulates, potentially causing slight registration errors by the time you reach the final patch.
• Observation: Watch the first layer (underlay). If the underlay looks distorted or "skinny," stop immediately. It's cheaper to ruin one patch than nine.


Operational Decision Tree: Fabric vs. Stabilizer

Use this logic to prevent puckering in your arrays.

The "Morning After" Problem: Resetting the Machine

After your run is complete and you have successfully stitched 9 flawless patches, you must "sanitize" the machine state.

The Trap: If you load a completely new design (e.g., a large jacket back) tomorrow morning but forget to turn off Design Repeat, the machine will attempt to stitch that giant jacket back nine times, resulting in an immediate frame limit error or a catastrophic mess.

The Fix:

1. Go to Machine Function > Set Zoom, Repeat, Rotate.
2. Reset Repeat Times to 1.
3. Reset Intervals to 0.0.


Identifying Bottlenecks: When to Upgrade Your Tools

Design Repeat solves the software efficiency problem. But if you are doing patches daily, your bottleneck will shift to the physical realm: Hooping Time.

If you find yourself using robust features like Design Repeat but dreading the physical setup, you are experiencing a hardware mismatch.

Scenario A: Hoop Burn & Wrist Fatigue

The Pain: You are tightening screws manually. The outer ring leaves a crushed "shiny" mark on the fabric (Hoop Burn), requiring you to steam every piece. The Solution: Professional shops switch to magnetic embroidery hoop systems.

• Why: Magnetic hoops clamp instantly without screws. They adjust automatically to fabric thickness, eliminating hoop burn and saving roughly 30-60 seconds per load.

Scenario B: The "Idle Machine" Syndrome

The Pain: The machine sits silent for 5 minutes while you struggle to align the next garment. The Solution: Implement a hooping station for machine embroidery.

• Why: A station ensures every placement is identical. More importantly, it allows you to prep Hoop B while Hoop A is stitching. This keeps the spindle turning and the money earning.

Warning: Magnetic Safety. Commercial magnetic hoops utilize powerful neodymium magnets. They can pinch skin severely. Never place them near pacemakers or credit cards. If you have staff, ensure they are trained on "Pinch Points."

Conclusion: The Professional Mindset

Mastering manual arrays distinguishes the hobbyist from the professional. It is about control—controlling the math, controlling the tension, and controlling the workflow.

For operators looking to maximize the output of an avance 1501c compact embroidery machine or similar 15-needle workhorses, the grid is your friend. Trust the math, verify the range check, and never forget the negative Y.

Final Operation Checklist (Print This Out)

1. Measure: Check Design Width + Gap = Interval.
2. Input: Set Repeats (X/Y) and Intervals (Positive X / Negative Y).
3. Anchor: Jog to Top-Left -> Set Start.
4. Verify Micro: Run Contour Range Check (Check first design).
5. Verify Macro: Run Design Range Check (Check full grid).
6. Adjust: If moving hoop, Set Start again.
7. Run: Stitch at 800 SPM.
8. Sanitize: Reset Repeats to 1 / Intervals to 0.0 immediately after job.


FAQ

• Q: On an Avancé commercial embroidery machine, why does the Design Repeat grid try to stitch upward or crash near the top of the hoop when building multiple rows?
  A: Set the Y Interval as a NEGATIVE value when the start point (anchor) is in the upper-left, so the next row moves down instead of up.
  • Set X Interval to a positive value (moves right) and set Y Interval to a negative value (moves down).
  • Confirm the negative symbol “-” is visible next to the Y value before running.
  • Run a Design Range Check to trace the full grid perimeter before stitching.
  • Success check: The frame traces a safe rectangle that stays inside the hoop on all sides, especially the top edge.
  • If it still fails… Re-jog the frame to a safer top-left position and press Home > Set Start > Enter again before re-checking.
• Q: On an Avancé embroidery machine using Design Repeat (Matrix/Array), what is the correct way to calculate X/Y Interval for a 25mm patch with a 10mm cutting gap?
  A: Input the full interval (design size + cutting gap), not the gap by itself.
  • Measure the actual stitched design width (example: 25mm) and choose a scissor gap (example: 10mm–12mm for beginners).
  • Add them: 25mm + 10mm = 35mm interval (machine may display this as 35.0mm or 350 depending on units).
  • Enter the same magnitude for X and Y intervals, then apply the negative sign to Y if starting from upper-left.
  • Success check: During Design Range Check, the spacing between traced designs matches the planned scissor gap and does not overlap.
  • If it still fails… Re-measure the true design width (don’t rely on guesswork) and re-enter the interval once.
• Q: On an Avancé commercial embroidery machine, why does the design repeat position shift after jogging the hoop, even though the physical hoop was moved to the correct spot?
  A: After any manual jogging adjustment, you must re-define the logical origin using Home > Set Start > Enter.
  • Jog the frame to the intended top-left anchor position with a small safety margin from the hoop rim.
  • Press Home > Set Start > Enter immediately after the move to “lock” the new start point.
  • Run Contour Range Check first (single design), then Design Range Check (full grid).
  • Success check: The Contour Range Check starts exactly where the presser foot was anchored, and the full grid traces centered within the hoop limits.
  • If it still fails… Confirm the machine is Unlocked/Idle before editing repeat settings, then repeat the Set Start process.
• Q: For multi-patch arrays on a commercial embroidery machine, why does using tearaway stabilizer cause the last patches to lose registration, and what stabilizer is recommended?
  A: For large patch arrays, use 2.5oz or 3.0oz cutaway stabilizer because tearaway stability degrades as needle perforations accumulate.
  • Choose 2.5oz–3.0oz cutaway for most patch arrays on twill/canvas-style materials.
  • Hoop firmly to create a “drum effect” before touching software settings.
  • Avoid tearaway when stitching many repeats in one hoop because repeated perforation can reduce support over the run.
  • Success check: The hooped fabric feels tight like a drum and does not ripple when a finger is run across it.
  • If it still fails… Stop early and re-hoop tighter; if the fabric is a knit, consider heavier cutaway plus adhesive spray (follow product directions).
• Q: On a commercial embroidery machine running a 3x3 Design Repeat, how can an operator prevent running out of bobbin mid-run and ruining patch #7 or #8?
  A: Start the array with a full bobbin and treat bobbin checking as a mandatory pre-flight step.
  • Perform a visual bobbin check before pressing start on any multi-patch grid.
  • Load a full bobbin specifically for long repeat runs to avoid mid-array interruptions.
  • Keep appliqué scissors and a fresh 75/11 needle ready so stops don’t become long delays.
  • Success check: The full 3x3 run completes without an unplanned stop for bobbin replacement.
  • If it still fails… Shorten the run (fewer repeats) until bobbin usage is predictable, then scale back up.
• Q: What is the safest way to use Contour Range Check and Design Range Check on a commercial embroidery machine to avoid hoop or head collisions during Design Repeat?
  A: Always do a two-step range check—Contour first, then Design—while keeping hands and tools well clear of moving parts.
  • Run Contour Range Check to verify the first design clears the hoop rim immediately.
  • Run Design Range Check to verify the entire grid perimeter stays within frame limits (especially bottom-right).
  • Keep hands, tools, and loose clothing at least 6 inches away during jogging and checks.
  • Success check: The frame completes both checks smoothly without approaching the hoop rim or machine head dangerously.
  • If it still fails… Stop, re-anchor with Home > Set Start, and re-check before stitching a single stitch.
• Q: After finishing a Design Repeat job on an Avancé embroidery machine, how do you prevent the next day’s large design from accidentally stitching multiple times and causing a frame limit error?
  A: Immediately “sanitize” the settings by turning repeat back to a single design and zeroing the intervals.
  • Navigate to Machine Function > Set Zoom, Repeat, Rotate.
  • Reset Repeat Times to 1 and reset Intervals to 0.0.
  • Do this right after the job completes, not the next morning.
  • Success check: When a new design is loaded, the machine shows a single placement (no grid) and range check traces only one design area.
  • If it still fails… Re-enter the repeat menu to confirm no leftover X/Y counts or intervals are active before running the next job.
• Q: If patch production uses Design Repeat but hooping time causes “idle machine syndrome” or hoop burn from tightening screws, what is a practical upgrade path for embroidery production workflow?
  A: Optimize technique first, then upgrade hooping hardware (magnetic hoops), then consider a production machine upgrade if throughput still bottlenecks.
  • Level 1 (Technique): Reduce re-hooping by running more patches per hoop using Design Repeat and verify with range checks.
  • Level 2 (Tooling): Switch to magnetic hoops to reduce screw-tightening time and help prevent hoop burn (this is common in daily production).
  • Level 3 (Capacity): If the machine is still sitting idle while hooping, add a hooping station so one hoop can be prepped while another is stitching.
  • Success check: Active operator time per patch drops noticeably and hoop burn marks are reduced or eliminated.
  • If it still fails… Train staff on magnetic “pinch points” and keep strong magnets away from pacemakers and sensitive items before rolling out shop-wide.
