Mastery Guide: Singer Quantum Futura Auto Punch & Professional Workflow

If you’ve ever stared at the Singer Quantum Futura screen thinking, “Please don’t turn my cute clipart into spaghetti,” you’re not alone. Auto-digitizing is often sold as magic, but in reality, it is a logic puzzle. Auto Punch doesn't "see" art; it calculates math based on contrast. Treat it like a human, and it fails. Treat it like a strict calculator, and you can achieve production-quality results.

This comprehensive guide rebuilds the workflow from the ground up. We will move beyond the basic buttons to the "physics of stitch generation"—how to clean up the mess the software creates, how to hoop to prevent the dreaded "pucker effect," and when to recognize that your tools (not your skills) are the bottleneck.

The Singer Quantum Futura “Auto Punch” Reality: A Rule of Physics

Auto Punch is not a human digitizer. It lacks the cognitive ability to understand shading, texture, or artistic intent. It simply looks for color boundaries. When you feed it a complex image, it tries to outline everything, resulting in a bulletproof vest of thread that ruins your fabric.

The Golden Rule for Success: Auto Punch thrives on High-Contrast, Flat Vector-Style Art.

Think of "coloring book" logic: bold lines, solid fill colors, and distinct separation. The video demonstrates this perfectly: a simple graphic becomes a clean patch, while a vintage medical illustration turns into a chaotic mess.

Phase 1: The “Hidden” Prep (Materials & Image Optimization)

Before you click a single button, you must secure your physical foundation. In embroidery, 80% of the quality is determined before the machine starts.

1. Image Selection Criteria

Based on the software's algorithm, your source image must pass this filter:

• Solid Color Regions: No gradients or watercolor effects.
• High Contrast: Clear definition between the subject and background.
• Combined Elements: If you have multiple cliparts, combine them into one JPEG in an external editor first. Importing them separately into Futura creates layering nightmares.

2. The Consumable "Safety Net"

You cannot create professional embroidery with just fabric and thread. You need the "Hidden Consumables" that beginners often miss:

• Stabilizer: Use Cut-Away stabilizer (2.5 oz) for the highest safety margin, even on wovens. It prevents the design from distorting over time.
• New Needles: Install a fresh 75/11 Embroidery Needle. A dull needle pushes fabric into the bobbin case, causing bird nests.
• Temporary Spray Adhesive: A light mist helps floats stays flat against the stabilizer.

3. The Hooping Strategy (and When to Upgrade)

The Singer Futura comes with standard plastic hoops. These work via friction. To get a drum-tight hold without "hoop burn" (the white ring marks left on dark fabric), you must adjust the screw to the exact millimeter.

• The friction problem: If you tighten too much, you crush the fabric fibers. If too loose, the fabric slips, and outlines won't match the fill.
• The professional solution: If you struggle with hand strength or delicate fabrics, this is where magnetic embroidery hoops change the game. They use vertical magnetic force rather than friction, clamping the fabric evenly without crushing it. This creates a superior surface for Auto Punch designs, which often have dense fills.


Pre-Flight Checklist: Prep Phase

• Image is simplified: Solid blocks, white background.
• Hidden Consumable Check: Fresh 75/11 needle installed?
• Hidden Consumable Check: Bobbin area cleaned of lint?
• Fabric is ironed flat (wrinkles = puckers later).
• Stabilizer is selected (When in doubt, use Cut-Away).
• Bobbin is wound with the correct weight thread (usually 60wt or 90wt).

Warning: Mechanical Safety
Keep long hair tied back and jewelry (necklaces/bracelets) removed. The take-up lever moves rapidly and can snag loose items, pulling you toward the needle bar. Never reach through the hoop area while the machine is running.

Phase 2: Mastering the Auto Punch Wizard (The "Clean Up" Habit)

The specific click-path matters. One wrong setting here creates hours of thread trimming later.

Step 1: Import & Sizing

In Futura software, navigate to Create > Auto Punch. Select your image.

Reviewing Physical Scale: The video sets the design to 4.00 x 4.00 inches.

• Why this matters: Do not resize significantly after digitizing. Changing size by more than 20% after stitches are generated ruins the density (stitches become too close or too far apart). Set the size now.




Step 2: Color Reduction (The Filter)

The software will attempt to see 20+ colors in a simple image. You must reduce this number.

• Action: Lower the color count until the preview looks clean but shapes haven't disappeared.
• Trade-off: Fewer colors = fewer thread changes (speed) vs. Shape definition (detail).


Step 3: Column Width & Block Cleanup

Keep the Default Column Width at 9 mm.

• Technical Insight: If you go wider, the loops of thread become easy to snag on zippers or jewelry.


The "Old Hand" Secret: Delete the Junk

After processing, the software generates a list of "Created Blocks." Auto Punch often adds:

1. Thin, ugly outlines around shapes.
2. Tiny specs of "dirt" interpreted as stitches.

The Fix: Scroll through the block list. Click on the unwanted outlines or tiny specs and hit Delete.

• Rule of Thumb: If a block has fewer than 40 stitches or creates a hairline outline you didn't ask for, remove it. This creates a cleaner, more modern look.


Phase 3: Fabric Wizard & The Physics of Jump Stitches

After the artwork is processed, you must tell the machine how to travel.

The creator selects Quilt as the fabric type. This sets the underlay (the foundation stitches hidden underneath).

The Critical Decision: Jump vs. Running Stitch

The software asks how to connect separate blocks of the same color.

• Option A: Running Stitch: The machine sews a path of small stitches between shapes.
  • Risk: Leaves a visible line of thread across your fabric.
• Option B: Jump Stitch: The machine stops sewing, moves the hoop, and starts again.
  • Benefit: You get a long, loose thread you can snip away, leaving clean fabric between shapes.

Recommendation: Select Use a jump stitch (as shown in [FIG-11]). It requires manual trimming, but the result is far more professional.

Phase 4: Transmission & Physical Setup

Once the design is saved (File > Save Design As), send it to the machine.

Crucial Tech Tip: The Singer Futura relies on a live connection to your PC.

• Disable Sleep Mode: Ensure your computer will not hibernate.
• Cable Safety: Ensure the USB cable is not under tension or a tripping hazard. If the connection drops, the embroidery stops and cannot be resumed easily.

The Hooping Ritual

Physical hooping is where 90% of beginners fail.

1. Lay the outer hoop/frame on a flat surface.
2. Lay stabilizer, then fabric.
3. Press the inner hoop down.
4. Sensory Check (Tactile & Auditory):
   • Feel: The fabric should feel taut, like a drum skin, but not stretched out of shape.
   • Sound: Tap the fabric. It should make a dull thump, not a hollow ring (too tight) or a rustle (too loose).

Pain Point: If you are doing production runs (e.g., 20 shirts), the standard screw hoops will fatigue your wrists. This is often the trigger point where users search for machine embroidery hoops that offer quick-release mechanisms or magnetic clamping to speed up the workflow.

Setup Checklist: Ready to Stitch?

• Design transferred?
• Computer Power Settings set to "Always On"?

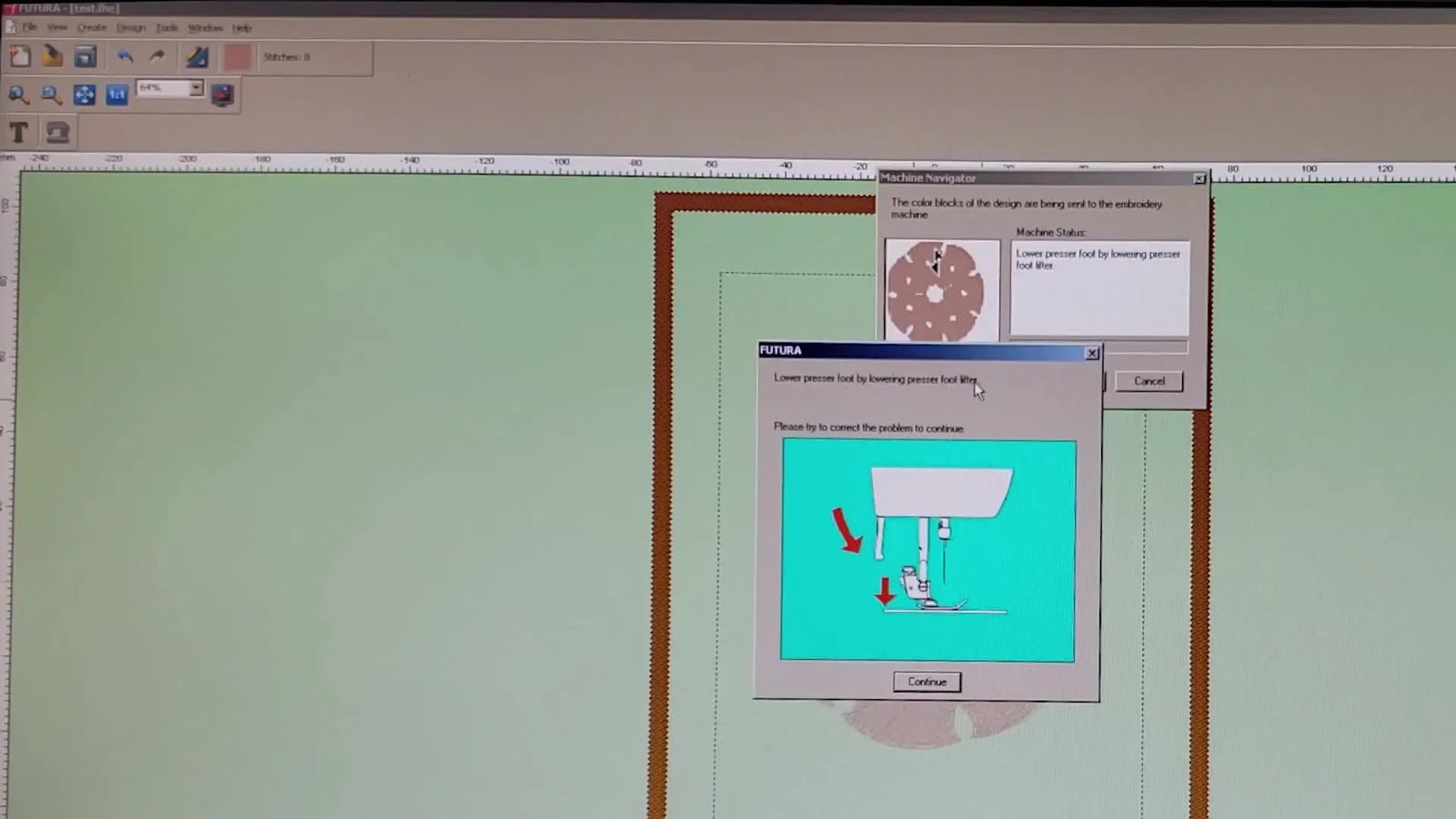

• Presser foot lever is historically the #1 error—checked and DOWN?
• Thread path checked: Is the thread caught on the spool pin?
• Clearance Check: Nothing behind the machine (wall, coffee cup) that the hoop will hit?

Phase 5: The "Why Did It Fail?" Troubleshooting Guide

The video shows a disaster scenario with the vintage medical illustration. Let's analyze the failure modes effectively.

Symptom-Cause-Fix Table

Decision Tree: Fabric Type → Stabilizer Strategy

Stop guessing. Use this logic tree to determine your setup.

START: What is your fabric?

• 1. Stretchy Knit (T-Shirt, Polo, Hoodie)
  • Stabilizer: Cut-Away (Absolute requirement).
  • Hooping: Do not stretch the shirt. Lay it flat.
  • Needle: Ballpoint (75/11 BP).
  • Risk: High. If puckering occurs, increase stabilizer weight.
• 2. Stable Woven (Quilting Cotton, Denim, Canvas)
  • Stabilizer: Tear-Away (Medium weight) is acceptable, Cut-Away is better.
  • Hooping: Pull tight (drum skin).
  • Needle: Sharp/Universal (75/11).
  • Risk: Low. Best for beginners.
• 3. Delicate/Nap (Velvet, Towel)
  • Stabilizer: Tear-Away (Bottom) + Water Soluble Topping (Top).
  • Hooping: Difficult. Hoop burn is likely.
  • Pro Tip: hooping for embroidery machine on these fabrics is best done "floating" (hoop only the stabilizer, stick the fabric on top) OR using magnetic frames to avoid crushing the pile.

Warning: Magnetic Field Safety
If you upgrade to magnetic hoops, be aware they use powerful Neodymium magnets.
* Pinch Hazard: They snap together with force. Keep fingers clear.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not place phones or credit cards directly on the magnets.

Software Pitfalls & Community Solutions

The comments section of the video highlights real-world friction points you might encounter.

1. The Windows Compatibility Issue

The Futura software is legacy-based.

• Problem: Installing on Windows 10/11 can result in "Abort" errors or driver failures.
• Community Solution: Many users successfully run the software using a Virtual Machine (like VirtualBox running Windows XP) or by running the installer in "Compatibility Mode" (Right-click Setup.exe > Properties > Compatibility > Run as Windows 7/XP).
• Power Tip: If an install fails, you must fully scrub the partial files before trying again.

2. The "Inkscape / Android" Question

Can you design on an iPad or Android?

• The Reality: No. The machine requires a Windows PC connection.
• The Workaround: You can draw on Android, save as a high-contrast JPEG, transfer to PC, and then run Auto Punch. But the digitization happens on Windows.

The Scaling Path: From Hobby to Production

Auto Punch is a gateway. It is excellent for simple, personal projects. However, as your skills improve, you will hit the "frustration ceiling."

When to Upgrade Your Tools?

You'll know you are ready for the next level when:

1. Volume: You need to make 10 patches, not 1.
2. Thread Changes: You are tired of sitting by the machine to swap colors manually every 2 minutes.
3. Hooping Fatigue: Your wrists hurt from tightening screws.

The Upgrade Logic:

• Level 1 (Ergonomics): Invest in a hooping station for embroidery machine or generic magnetic hoops compatible with your bracket. This creates consistent placement for repeats.
• Level 2 (Software): Move from Auto Punch to manual digitizing software (like Hatch or Floriani) to control stitch angles and densities.
• Level 3 (Hardware): If you are selling your work, a single-needle machine like the Futura is a bottleneck. Moving to a multi-needle machine (like the SEWTECH series) allows you to load 10+ colors at once and use commercial hoops, turning "hours of work" into "press start and walk away."

Post-Op Checklist: Final Quality Control

• The Tactile Test: Run your hand over the back. Is it rough? (Adjust tension next time).
• The Trim: Use curved embroidery scissors to snip jump stitches close to the fabric.
• Stabilizer Removal: Cut away the excess stabilizer, leaving about 1cm around the design.
• Pressing: Iron from the back side or use a pressing cloth. Never iron directly on the thread.

Mastering the Singer Quantum Futura isn't about magic; it's about respecting the physics of thread and fabric. Start simple, hoop tight, and don't be afraid to delete the software's mistakes.

FAQ

• Q: What image types work best with Singer Quantum Futura Auto Punch to avoid “spaghetti” stitches and overly dense fills?
  A: Use high-contrast, flat, vector-style art with solid color regions; Auto Punch calculates boundaries, not artistic shading.
  • Choose: Pick “coloring book” style images (bold edges, solid fills, no gradients/watercolor).
  • Simplify: Combine multiple cliparts into one JPEG before importing to avoid layering issues.
  • Reduce: Lower the color count until the preview is clean but key shapes remain.
  • Success check: The preview shows distinct, clean shapes without tiny specks or heavy background fills.
  • If it still fails… Enlarge the design or remove background/extra details, because complex images often auto-generate “bulletproof” density.
• Q: What stabilizer and needle setup is a safe starting point for Singer Quantum Futura Auto Punch embroidery on common fabrics?
  A: A safe starting point is 2.5 oz cut-away stabilizer with a fresh 75/11 embroidery needle for maximum forgiveness.
  • Install: Put in a new 75/11 embroidery needle before starting to reduce nesting and skipped issues.
  • Select: Use cut-away stabilizer when in doubt (especially if the fabric may move or distort).
  • Clean: Remove lint from the bobbin area before stitching.
  • Success check: The fabric stays flat during stitching and the design finishes without distortion or thread clumps under the throat plate.
  • If it still fails… Re-check threading with the presser foot UP and confirm bobbin thread weight is appropriate (often 60wt or 90wt); follow the machine manual if unsure.
• Q: How do I hoop fabric correctly on a Singer Quantum Futura standard screw hoop without causing hoop burn or fabric slipping?
  A: Aim for drum-tight tautness without crushing fibers; screw hoops hold by friction, so “too tight” and “too loose” both cause problems.
  • Lay: Place the outer hoop flat, then stabilizer, then fabric, then press the inner hoop in.
  • Adjust: Tighten only until the fabric is taut—do not over-tighten to the point of shiny ring marks.
  • Test: Tap and feel the fabric before stitching.
  • Success check: The fabric feels like a drum skin and makes a dull “thump” when tapped (not a hollow ring or a rustle).
  • If it still fails… If the fabric keeps shifting or hoop burn keeps happening, consider using magnetic clamping hoops/frames for more even holding pressure (verify compatibility for the specific hoop bracket).
• Q: How do I stop bird nesting on a Singer Quantum Futura (loud crunching sound and thread clump under the throat plate) during Auto Punch designs?
  A: Stop immediately, remove the jam safely, and re-thread the top thread with the presser foot UP to restore correct tension.
  • Stop: Press stop right away to prevent damage and deeper thread jams.
  • Cut: Trim threads carefully and clear the clump from under the throat plate area.
  • Re-thread: Thread the top path again with presser foot UP so the thread seats in the tension discs.
  • Success check: After restarting, stitching sounds smooth (no crunching) and the underside shows controlled stitches instead of a wad of thread.
  • If it still fails… Replace the needle (dull needles can push fabric down) and clean lint from the bobbin area; confirm the thread is not caught on the spool pin.
• Q: Why is Singer Quantum Futura Auto Punch showing white bobbin thread on top (“pokies”), and what is the fastest fix?
  A: “Pokies” usually mean top tension is too tight or the bobbin is not seated correctly; adjust top tension slightly and re-check bobbin seating.
  • Adjust: Loosen the top tension a small amount and test again.
  • Check: Re-seat the bobbin and confirm it is in the correct bobbin case path.
  • Verify: Use the correct bobbin thread weight (often 60wt or 90wt).
  • Success check: The top surface shows mostly top thread with no consistent white bobbin pull-up.
  • If it still fails… Re-thread the top with presser foot UP and confirm the design is not excessively dense for the fabric/stabilizer combination.
• Q: What is the best setting for connecting same-color blocks in Singer Quantum Futura Auto Punch: jump stitch or running stitch?
  A: Use jump stitches for a cleaner professional look, then trim the jump threads manually.
  • Select: Choose “Use a jump stitch” when the software asks how to connect separate blocks.
  • Trim: Snip jump stitches close to the fabric with curved embroidery scissors after stitching.
  • Plan: Expect extra trimming time in exchange for cleaner blank areas between shapes.
  • Success check: No visible travel lines across open fabric areas after trimming.
  • If it still fails… If trimming becomes excessive, reduce block fragmentation by simplifying the artwork and deleting tiny unwanted blocks in the created block list.
• Q: What safety checks should I follow when running Singer Quantum Futura embroidery (and what extra safety applies if using magnetic embroidery hoops/frames)?
  A: Keep hands, hair, and jewelry away from moving parts, and treat magnetic hoops as pinch hazards with strong neodymium magnets.
  • Secure: Tie back long hair and remove necklaces/bracelets before stitching to prevent snagging by the take-up lever.
  • Avoid: Never reach through the hoop area while the machine is running.
  • Handle: Keep fingers clear when closing magnetic hoops because magnets can snap together forcefully.
  • Success check: The hoop moves freely with clear space around the machine, and nothing can be snagged or pinched during operation.
  • If it still fails… Stop the machine, power down before clearing thread/fabric, and keep magnetic hoops away from pacemakers (at least 6 inches) and away from phones/credit cards.
