Auto-Digitizing vs Manual Digitizing: The 3 “Proof” Tests That Save Your Thread, Your Time, and Your Reputation

If you have ever run an auto-digitized file and heard the sickening snap of a thread break, followed by the realization that your embroidery looks as stiff as cardboard, you are not alone. I have watched this exact frustration play out for twenty years. It usually hits home-business owners the hardest—you are trying to move fast, keep costs down, and deliver professional work, but the machine seems to be fighting you.

This video from Erich Campbell serves as a masterclass in a hard truth: auto-digitizing software does not "see" embroidery the way a human digitizer does. The software sees color boundaries (pixels); a digitizer sees structure, light, fabric pull, and physics.

Below, I will rebuild this lesson into a whitepaper-level workflow you can use before you ever hit "Start." We will use the same three case studies from the video—the carousel horse, the scuba diver, and the griffin—but we will add the specific parameters, safety checks, and tool upgrades you need to turn this theory into reliable production.

The “One-Click” Myth in Auto-Digitizing Software—Why It Fails When Thread Meets Fabric

Auto-digitizing can produce a file that looks plausible on a computer screen. However, your screen is a lie. Previews do not show you the two physical forces that ruin real stitch-outs:

1. Needle Penetration Density: How many times you are punching a hole in the fabric per square millimeter.
2. Fabric Displacement (The "Push/Pull" Effect): How the fabric warps under the tension of thousands of stitches.

Erich puts it plainly: computers detect the edges of color blocks. They do not make artistic decisions about texture, light reflection, or how to break a complex shape into stitchable parts.

When you auto-digitize, the software often defaults to a "Fill Stitch" (tatami) for everything. This creates a "bulletproof vest" effect—a stiff, dense block of thread that feels heavy and often puckers the surrounding fabric.

The Expert Reality Check: A digitizer treats embroidery like building a house. We need a foundation (underlay), structural walls (satin paths), and a roof (fill). Auto-digitizing often tries to build the roof without the walls.

Note: The video specifically mentions that Embrilliance does not offer auto-digitizing because the quality tradeoff is rarely worth the frustration.

Carousel Horse Photo-to-Stitch: How Stitch Direction Creates “Light” (And Why Computers Miss It)

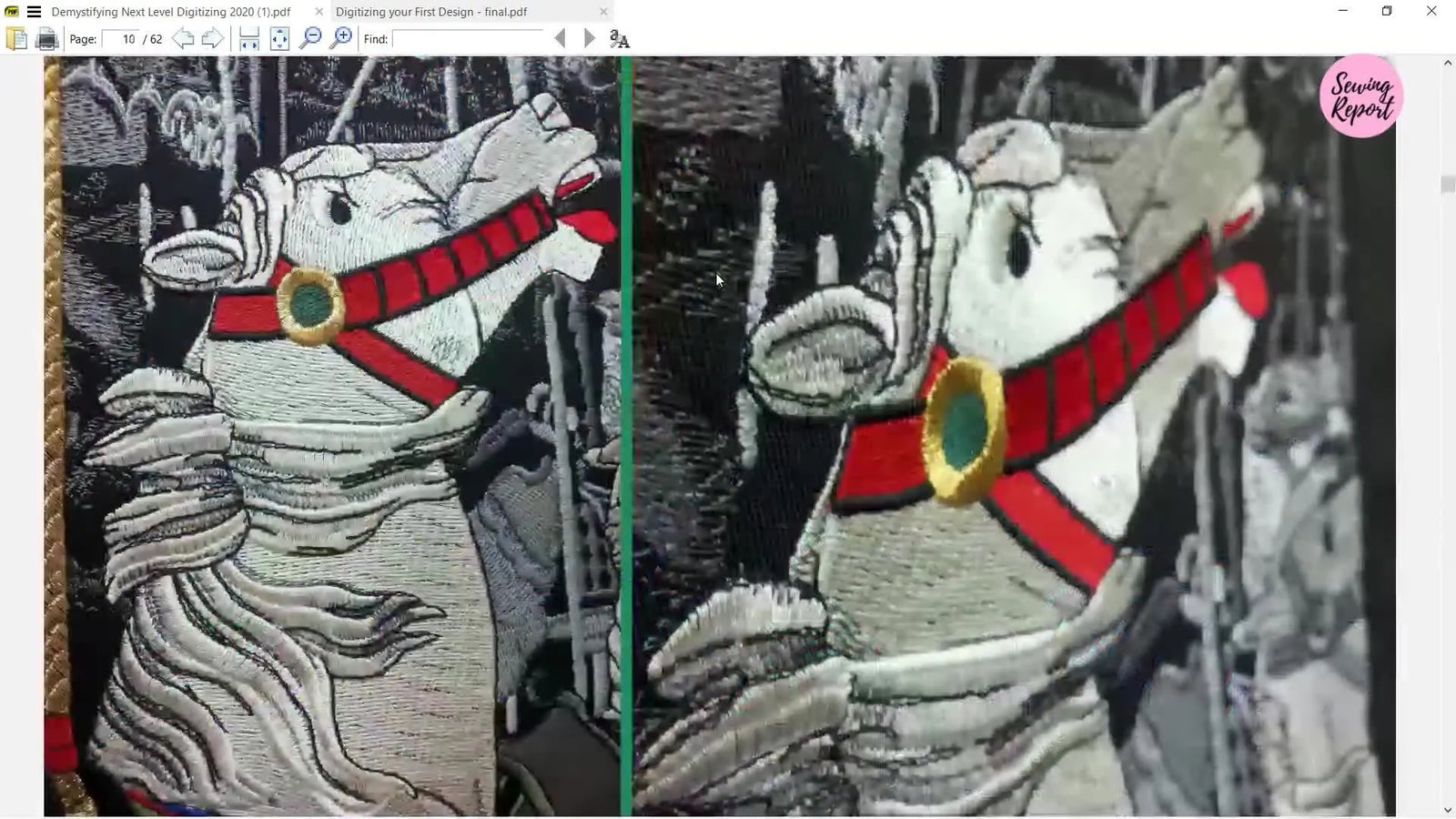

In the first example, we see a photograph of a carousel horse (left) and the finished manual embroidery (right). The key lesson here isn't just "software is bad"; it is that light is your primary medium.

Erich points out that the finished embroidery is not one big flat fill. It is a mosaic of different stitch types and angles:

• Satin stitches flow down the mane (reflecting light like hair).
• Curved fills wrap around the neck (creating volume).
• Angled fills on the body separate the muscles.

Why This Matters: Thread is a cylinder. When light hits it, it reflects based on the angle of the thread. By changing stitch angles, you create "planes" of light. A computer sees a flat brown color; a human sees a curving muscle and adjusts the stitch angle to mimic that curve.

Standard Operating Procedure (SOP) for Large Back Designs: When stitching large, dense designs like this carousel horse, the physical stress on your fabric is immense.

• Stabilizer: For a jacket back (approx. 20,000+ stitches), use a Cutaway stabilizer (2.5oz or 3.0oz). Tearaway is insufficient here; the perforation will cause the detailed alignment to drift.
• Hooping: If you are learning hooping for embroidery machine technique for jacket backs, hoop tightness is critical. It should sound like a dull drum when tapped. But be careful: Traditional hoops can leave "hoop burn" (crushed velvet or shiny marks) on thick jackets. This is often the trigger point where professionals switch to magnetic frames to hold thick materials without crushing the fibers.


The “Hidden” Prep Pros Use Before Testing Any New Digitized File (So You Don’t Waste a Patch)

Before you judge a design, you must ensure your test environment is neutral. Auto-digitized files often get blamed for problems that are actually caused by mechanical variables.

Here is the "Pre-Flight" Prep I insist on in production environments. Do not skip these.

Prep Checklist (The "Save Your Sanity" Protocol):

• Needle Freshness: Install a fresh needle. For standard wovens/twill, use a 75/11 Sharp. For knits, use a 75/11 Ballpoint. A burred needle will shred even the best digitized file.
• Bobbin Case Hygiene: Remove the bobbin case and blow out lint. A tiny piece of lint can change your tension from 20g to 50g instantly.
• Thread Match: Use standard 40wt polyester thread. If the file was digitized for 40wt and you use 60wt, you will see gaps.
• Speed Governor: Set your machine speed to the "Beginner Sweet Spot" (500 - 600 SPM) for the first test. Do not run at 1000 SPM until you verify the file is safe.
• The "Floss" Test: Pull a few inches of top thread through the needle eye. It should feel like pulling dental floss through tight teeth—consistent resistance, no snags.

Warning (Physical Safety): Dense designs create heat. After a long run, the needle can be hot enough to blister skin. Wait 30 seconds before changing needles. Also, never put your fingers near the presser foot to "smooth" fabric while running—if the needle hits a hard spot and deflects, it can shatter and fly into your eye.

Tool Upgrade Logic (Hooping): If you perform this checklist and still see the fabric shifting (outlines not matching the fill), the issue is likely Hoop Stability.

• Level 1 Fix: Use temporary spray adhesive (like 505 spray) to bond backing to fabric.
• Level 2 Solution: Upgrade to magnetic embroidery hoops. These use magnets to clamp the fabric firmly without the "tug-of-war" required by inner/outer ring hoops. This eliminates the slippage that ruins dense tests.


Scuba Diver Auto-Digitizing Fail: The Thread-Break Recipe Hiding in “Tiny Fill Stitches”

The second case study is the most common home-business nightmare: The "Shredder" file.

Erich shows an auto-digitized scuba diver. The software saw the snorkel, the mask straps, and the belt, and decided to fill them with a Complex Fill (Tatami) stitch.

The Physics of Failure: A standard fill stitch places needle penetrations every 3mm to 4mm in a randomized pattern.

• When you force this pattern into a tiny area (like a 2mm wide snorkel tube), the machine places 10 or 20 needle penetrations in a space the size of a grain of rice.
• Result: The needle literally cuts the fabric and the previous threads.

Auditory Diagnosis: If you hear a rhythmic thump-thump-thump that sounds heavy and labored, your density is too high. Stop the machine immediately. You are creating a bullet hole, not embroidery.

If you have been researching a hooping station for machine embroidery because you think your alignment is causing these breaks—pause. No amount of precise hooping can fix a file that is programmed to destroy itself. The file geometry must be fixed first.

Scuba Diver Manual Correction: Why Satin Stitch Wins on Narrow, Cylindrical Shapes

In the corrected version, Erich redesigns the diver using human logic.

The Fix: He converts the legs, snorkel, and arms into Satin Columns.

• Why? A satin stitch jumps from one side of the object to the other without penetrating the middle. It looks like a smooth ribbon.
• The Benefit: This dramatically reduces the "hole count." The thread sits on top of the fabric rather than being pounded into it.

The Business Impact: Erich notes that the corrected design actually has a lower stitch count than the messy auto-digitized one.

• Old Way: High stitch count, 3 thread breaks, 20 minutes to run.
• New Way: Lower stitch count, zero breaks, 8 minutes to run.
• Profit: You just doubled your hourly production capacity by fixing the file.

If you are running a business, "more stitches" does not equal "more value." Clean, low-stress stitches equal profit.

The Habitica Griffin Logo: Why “Simple Silhouettes” Still Need Pull Compensation

The third example is a Griffin silhouette. It looks simple: a white shape on a purple background. Novices assume silhouettes are easy. They are actually the hardest test of "Pull Compensation."

Concept: The "Push/Pull" Reality Stitches have length. When your machine forms a stitch, it tightens the thread.

• Pull: Stitches pull the fabric in towards the center of the fill (shortening the object).
• Push: The bulk of the thread pushes the fabric out perpendicular to the stitch.

The Symptom: If you stitch a circle without compensation, you get an oval. If you stitch a silhouette outline, you often get a gap (white fabric showing) between the border and the fill. This is "registry error."

Diagnostic Check: If you see gaps between your fill and your outline:

1. Check your stabilization (is the fabric moving?).
2. If stabilization is solid, the file lacks Pull Compensation. A digitizer creates the object slightly larger and overlapping so that when it shrinks, it shrinks to the correct size.

Practical Note: If you are using embroidery magnetic hoops, you have essentially ruled out "hoop slippage" because the magnetic force provides consistent, unrelenting pressure across the frame. If you use a magnetic hoop and still see gaps, you can be 99% sure the error is in the file's digitizing, not your hands.

The Manual Griffin Finish: Carving Pixels, Separating Parts, and Controlling Stitch Direction

Erich’s manual solution separates the Griffin into parts: tail, wing, beak, talons.

The Technique: "Carving" Instead of one big flat blob of white thread, he changes the stitch angles.

• The wing stitches run diagonally (45°).
• The body stitches run horizontally (0°).
• Where they meet, the light reflects differently, creating a visible edge without needing a black outline.

Home Machine Validation: Erich stitched this sample on a Brother PE800 at home. This is crucial validation. You do not need a $15,000 industrial machine to get these results. You need:

1. A well-digitized file.
2. Proper stabilization.
3. Consistent hooping tension.

The Upgrade Path: If you are using a machine like the PE800 for batching patches, the standard plastic hoop can become a pain point. The constant snapping and unsnapping causes wrist fatigue and can leave "burn" marks. A magnetic hoop for brother pe800 is a strategic upgrade here. It allows you to hoop faster and holds the stabilizer firmly without the "clamp struggle," letting you focus on watching those beautiful carved satin stitches form.

A Decision Tree You Can Use Today: Fabric + Detail Level → Stabilizer + Stitch Strategy

Novices guess at stabilizers. Pros use logic. Use this decision tree to determine your setup.

Decision Tree: The "Fabric-First" Logic

1. Is the fabric stable (Denim, Canvas, Twill) or Unstable (T-Shirt Knit, Polo Piqué)?

• Stable: You can use Tearaway (2 papers) for simple designs.
• Unstable: You MUST use Cutaway (2.5oz or mesh). No exceptions. If you use tearaway on a polo, the design will distort into a football shape.

2. Does the design have running-stitch outlines (like cartoons)?

• Yes: You need maximum stability. Use spray adhesive (Dayton 505) to fuse the fabric to the stabilizer. The fabric must become "one" with the backing.
• No: You can float the fabric or hoop normally.

3. Production Volume: Are you making 1 item or 50?

• 1 Item: Standard hoop is fine. Take your time.
• 50 Items: Time is money. Hoop burn is a risk.
  • Solution: Search for how to use magnetic embroidery hoop tutorials. Magnetic hoops allow you to slide the garment in, click the magnets down, stitch, and release in seconds. For volume orders, this tool usually pays for itself in labor savings within the first two jobs.


The Setup That Prevents 80% of Auto-Digitizing Disasters (Before You Blame Your Machine)

Most stitch-outs fail because of simple friction points we ignore during setup. By the time you press start, the disaster is already inevitable.

Setup Checklist (The "Green Light" Protocol):

• Visualize the Path: Look at the screen. Do you see thin lines (less than 1mm) categorized as fill? Cancel the job. It will break your thread.
• Stabilizer Bond: If using a hoop, run your finger over the fabric. If it ripples like water, it is too loose. It must be taut (drum skin) but not stretched (distorted).
• Clearance: Check that the garment arms/back are not bunched under the hoop.

Warning (Magnet Safety): If you upgrade to magnetic hoops, treat them with respect. The magnets are industrial strength (Level 3 Tool Upgrade).
* Pinch Hazard: They can snap together with enough force to bruise skin or break fingernails. Handle by the edges.
* Pacemakers: Keep strong magnets at least 6 inches away from medical implants.
* Electronics: Do not rest magnets on your laptop, phone, or computerized machine screen.

Tool Upgrade Path:

• Scenario: You start getting orders for Left-Chest logos on polos.
• Pain Point: Impossible to hoop straight; placket gets in the way; plastic hoop leaves rings.
• Solution: This is the specific use case for a hooping for embroidery machine aid (like a station) combined with a brother pe800 magnetic hoop (or the size matching your machine). The station creates the placement consistency; the magnet provides the gentile grip.


Troubleshooting the 3 Most Common “Auto-Digitized” Symptoms (Symptom → Cause → Fix)

When things go wrong, do not panic. Use this diagnostic table. Always troubleshoot in order of Cost (Free fixes first, expensive fixes last).

Expert Insight: 90% of "Machine Issues" reported by beginners are actually "File Issues" or "Stabilizer Issues." If you trust your file and your backing, the machine will usually behave.

The Upgrade That Actually Matters: Better Digitizing First—Then Faster Hooping for Production

Erich closes with a point that defines professional embroidery: You cannot buy a machine that fixes bad digitizing.

However, you can buy tools that fix inconsistent execution.

The Hierarchy of Needs for Embroiderers:

1. The Brain (Software/Digitizing): Fix the file logic first. Ensure you have underlay, compensation, and correct stitch types (Schedules 1-7 above).
2. The Foundation (Stabilizer): Match the backing to the fabric elasticity.
3. The Hands (Hooping Tools): Once your files and backing are correct, your bottleneck becomes speed and labor.

If you are just doing a hobby project once a month, standard hoops are fine. But if you are doing a run of 20 shirts, the "Hoop burn -> Steam it out -> Re-hoop" cycle is killing your margin.

This is where terms like magnetic embroidery hoops transition from "nice to have" to "essential business assets." They allow you to:

• Hoop thick items (backpacks, towels) that plastic hoops can't close over.
• Eliminate hoop burn (saving you the time of steaming garments).
• Reduce wrist strain.

Operation Checklist (End-of-Run Quality Control):

• Texture Check: Tilt the finished embroidery under a lamp. Do the different sections catch light differently? (Success).
• Feel Test: Rub your thumb over the design. Is it pliable, or is it a hard rock? (Pliable = Good).
• Registry Check: Are there gaps between the outline and the color? (No gaps = Success).
• Documentation: Write down the settings that worked (e.g., "Tension 3.2, Cutaway x2, 600SPM").

Auto-digitizing is a tool, but it is a dull one. You are the craftsman. By understanding the physics of the stitch, validating your inputs, and upgrading your holding tools when production demands it, you take control away from the computer and put it back in your hands.

FAQ

• Q: What pre-flight checklist should a Brother PE800 owner run before testing an auto-digitized embroidery file to prevent thread breaks?
  A: Run a controlled “neutral test” setup first—most early failures come from needle, lint, or speed, not the machine.
  • Install a fresh needle (75/11 Sharp for wovens/twill; 75/11 Ballpoint for knits).
  • Clean the bobbin area: remove the bobbin case and blow out lint before the first test.
  • Set speed to 500–600 SPM for the first run and use standard 40wt polyester thread.
  • Success check: top thread pulls through the needle eye with steady “dental floss” resistance and the first few hundred stitches run without shredding.
  • If it still fails: re-thread completely first, then stop and inspect the design for tiny areas digitized as fill stitches.
• Q: How can an embroidery operator confirm correct hooping tension on a jacket back design to avoid fabric shifting and registry problems?
  A: Hoop the garment taut like a dull drum—tight enough to hold, not stretched enough to distort.
  • Tap the hooped area: aim for a dull “drum” sound, not a loose ripple.
  • Check surface tension: run a finger over the fabric; it should not ripple like water.
  • Verify clearance: make sure jacket bulk/arms are not bunched under the hoop before pressing Start.
  • Success check: outlines stay aligned with fills (no drifting or mismatch as the design builds).
  • If it still fails: bond stabilizer to fabric with temporary spray adhesive, then consider a magnetic frame to improve hoop stability on thick items.
• Q: Why do auto-digitized scuba-diver-style designs cause rhythmic “thump-thump-thump” sounds and repeated thread breaks on narrow details?
  A: The file is usually too dense in tiny areas because the software used fill stitches where satin columns are required.
  • Stop immediately when the machine sounds heavy/labored; high-density punching can cut fabric and previous stitches.
  • Inspect the design on-screen: if thin elements (under ~1 mm) are set as fill, cancel the job and revise the stitch type.
  • Convert narrow tubes/straps/limbs from complex fill (tatami) to satin columns so stitches bridge side-to-side instead of hammering the center.
  • Success check: the corrected narrow details stitch smoothly without the heavy thumping and without thread shredding.
  • If it still fails: verify a fresh needle and re-thread; then assume the file geometry still needs editing (density/type), not better hooping.
• Q: How do embroidery operators fix gaps between fill and outline on silhouette logos (pull compensation/registry error) when stabilization is already solid?
  A: If stabilization and hoop grip are stable, the file likely needs pull compensation—shapes must be digitized to overlap so shrinkage lands correctly.
  • Confirm stabilization first: use cutaway on unstable fabrics and ensure the fabric/backing behaves as one unit (spray adhesive helps on outline-heavy designs).
  • Evaluate hoop security: if the hoop can slip, improve grip (spray adhesive) or switch to a magnetic hoop for consistent holding pressure.
  • Adjust the file: increase overlap/compensation so the fill and border meet after stitch pull-in.
  • Success check: no white fabric shows between the border and the fill after stitching.
  • If it still fails: treat it as a digitizing problem (compensation/sequence), not a machine-tension problem.
• Q: What stabilizer should be used for a 20,000+ stitch jacket back embroidery design to prevent distortion and shifting during stitching?
  A: Use cutaway stabilizer (2.5 oz or 3.0 oz) for large, dense jacket backs—tearing backings often cannot hold alignment under stress.
  • Choose cutaway for heavy stitch counts where fabric displacement is high.
  • Hoop with correct tension (taut, not stretched) and keep garment bulk clear under the frame.
  • Run the first test slower (about 500–600 SPM) to confirm the file is safe before full speed production.
  • Success check: the design stays flat and aligned without drifting as stitch count builds.
  • If it still fails: improve hoop stability (spray adhesive, then magnetic frame) and re-check the design for excessive density.
• Q: What needle-heat and finger-safety precautions should embroidery machine operators follow on dense designs to prevent burns and injuries?
  A: Treat dense stitch-outs like hot, moving machinery—needles can heat up enough to blister skin, and fingers should never be near the running presser foot.
  • Wait at least 30 seconds before changing a needle after a long, dense run.
  • Keep hands away from the presser foot area while the machine is running; never “smooth” fabric with fingers mid-stitch.
  • Stop the machine before adjusting fabric, thread path, or hoop position.
  • Success check: adjustments are made only when the machine is fully stopped and the needle area has cooled.
  • If it still fails: slow the first run and reduce density in the file to lower heat and stress.
• Q: What magnetic hoop safety rules should embroidery operators follow to avoid pinch injuries and protect electronics or medical implants?
  A: Handle magnetic hoops as industrial-strength magnets—pinch hazards are real, and magnets must be kept away from implants and electronics.
  • Grip magnets by the edges and lower them with control; do not let magnets snap together.
  • Keep magnetic hoops at least 6 inches away from pacemakers or other medical implants.
  • Do not rest magnets on phones, laptops, or computerized machine screens.
  • Success check: magnets seat smoothly without snapping, and there are no pinched fingers or cracked devices.
  • If it still fails: slow down the hooping motion and reposition hands; safety comes before speed.
• Q: How should a home embroidery business choose between technique tweaks, upgrading to magnetic hoops, or moving to a multi-needle embroidery machine when auto-digitized files keep failing?
  A: Diagnose in layers: fix the file logic first, stabilize correctly second, then upgrade hooping tools for consistency and speed—only then consider a production machine upgrade.
  • Level 1 (Technique): run the pre-flight checks (fresh needle, clean bobbin area, correct thread weight, slower test speed) and cancel designs with thin fill areas.
  • Level 2 (Tool): upgrade to magnetic hoops when hoop slippage, hoop burn, or repetitive hooping labor becomes the bottleneck.
  • Level 3 (Capacity): move to a multi-needle machine when order volume demands faster color changes and higher throughput—but only after digitizing and stabilization are reliable.
  • Success check: test runs finish with no thread breaks, no gaps, and a pliable (not cardboard-stiff) feel.
  • If it still fails: assume the digitizing (density, stitch type, pull compensation, angle strategy) must be corrected before spending on hardware.
