Auto-Digitizing vs Hand Digitizing in Wilcom E4: How to Spot a “Bad File” Before It Breaks Needles (or Your Patience)

If you have ever bought or auto-digitized an embroidery file that looked fine on your computer screen—then stitched out like a crunchy, thread-breaking mess—you are not alone.

I have watched this exact pattern in my studio for 20 years: software marketing makes auto-digitizing feel like a “magic button,” and beginners (and busy shop owners) understandably want speed. But Sue from OML Embroidery demonstrates a hard commercial truth using Wilcom E4: even with a clean vector EPS file, auto-digitizing can still generate angles, density, and pathing that are simply not production-safe.

This guide rebuilds her comparison into a “Pre-Flight Audit” process you can use before you stitch, before you buy, and definitely before you quote a customer. We will move beyond the screen and talk about the physics of needle, thread, and fabric.

The “Magic Button” Myth in Wilcom E4 Auto-Digitize: Why a Perfect Vector Still Fails

Sue starts with a clean SBS vector (EPS/SVG-style artwork) and proves a point that every digitizer eventually learns through the expensive sound of a breaking needle: a great image is not the same thing as a great embroidery file.

A vector is mathematical perfection—crisp, infinite, and weightless. Embroidery is physical engineering. Thread has thickness (approx. 0.4mm for standard 40wt), fabric stretches, needles deflect, and satin columns have physical width limits. Auto-digitizing tools often do not understand these material limits; they apply algorithms that ignore stitch mechanics.

The Golden Rule: A design that looks good as artwork can be a disaster as a stitch plan. If the pathing forces the machine to jump 15 times in a 2-inch area, your machine will struggle, no matter how "clean" the vector looked.

And that is why Sue uses Wilcom E4 for the demo: if a top-tier industry-standard package struggles to auto-digitize this clean vector into a stitchable result, you must be extremely cautious expecting one-click perfection from hobbyist software.

The “Outline Looks Fine” Trap: Auto-Digitized Run Stitch Corners That Don’t Stitch Cleanly

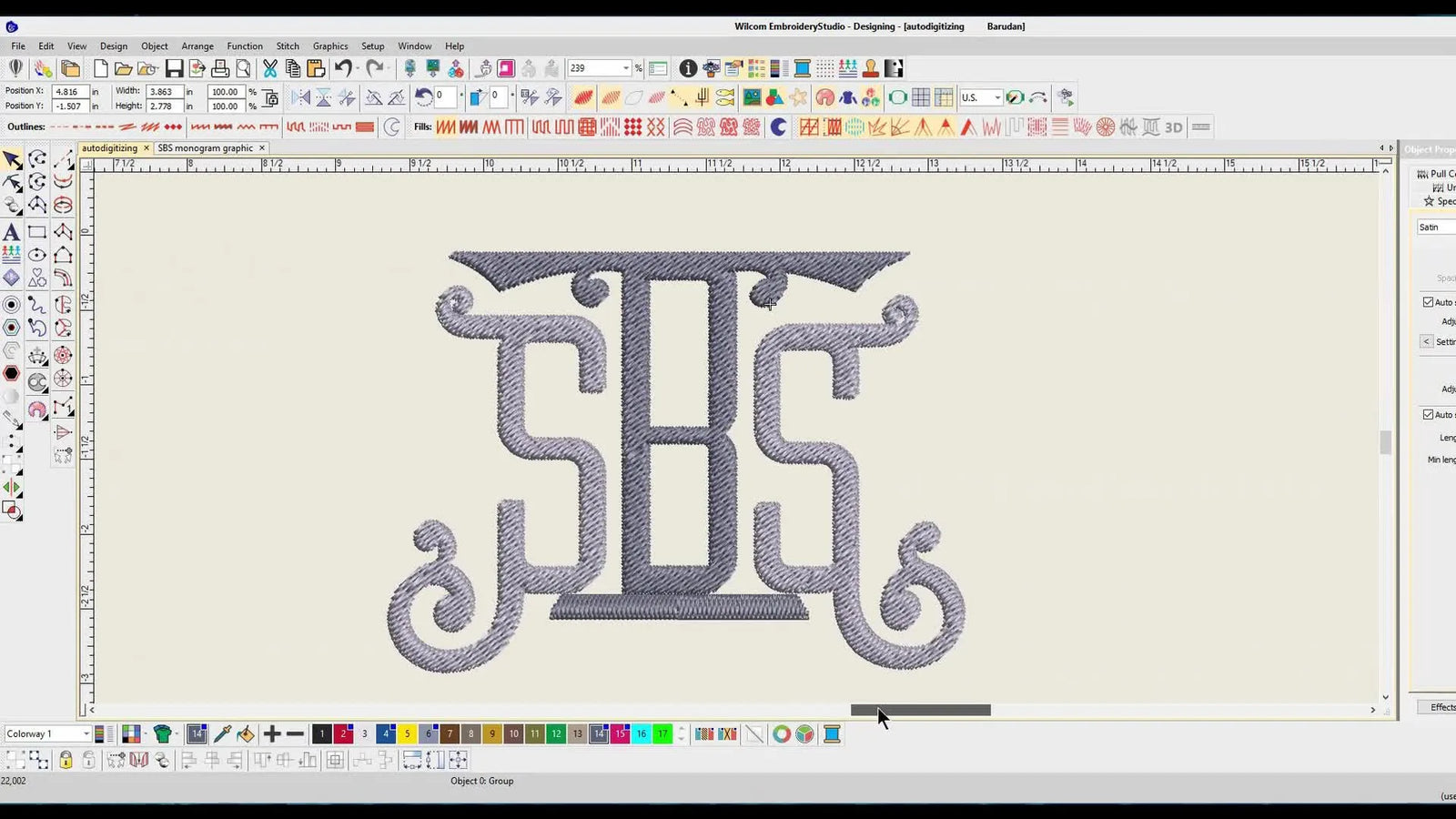

Sue’s first auto-digitizing attempt results in an outline. On a 15-inch monitor, it looks "okay." But in the physical world, it is dangerous.

She points out two red flags that you must learn to spot with your naked eye:

1. Inconsistent Stitch Sizing: The software haphazardly changes stitch lengths to fit the geometry.
2. Micro-Stitches in Corners: The machine tries to shove tiny 0.5mm stitches into a sharp turn.

On-screen, you don't see the knot. On the machine, when a needle creates three penetrations in the same millimeter of fabric, it creates a "birdnest." If your machine is running at 800 SPM (Stitches Per Minute), that knot can lock the needle bar.

Warning: Mechanical Safety Risk
Never test questionable auto-digitized outline files at full speed (1000+ SPM). A bad corner plan with micro-stitches can cause Needle Deflection—where the needle hits the throat plate and shatters.
Safety Protocol: Always test new, unproven files at a "Safe Zone" speed of 600 SPM or lower until you confirm the pathing is clean. Wear protective eyewear when testing unknown files.

Satin Stitch Angles That Don’t Turn: The Fastest Way to Get Long, Unstable Columns

Next, Sue converts the design to satin stitches and moves into the details. This is where auto-digitizing usually fails the "Laundry Test."

Her critique is that the stitch angles are "static." They remain horizontal even as the letter curves vertical. Imagine trying to walk around a corner while keeping your feet perfectly parallel—you would trip. The machine does the same.

The Physical Consequence: Instead of a tight, wrapped satin stitch, static angles create excessively long stitches across the curve.

• The "Floss Test": If you can slide a fingernail or a pencil tip under the satin thread, the stitch is too loose. It will snag on a zipper or jewelry in the wash.
• The Look: It creates "loose, wavy satin" that looks unprofessional and reflects light poorly.

This is one of the easiest quality checks to learn, and it is a critical success factor for anyone operating a monogram machine. Monograms are essentially pure satin column tests; if the angles don't flow with the font, the product looks cheap instantly.

The Underlay Time Bomb: When Auto-Digitizing Builds “Bulletproof” Density at Joins

Sue calls out a silent production killer: excessive underlay. Auto-digitizing often treats every segment as a separate island, giving each one a heavy double-zigzag foundation. When these shapes overlap, you get 4, 6, or 8 layers of thread before the top satin causes trouble.

This creates "Bulletproof Embroidery."

• Tactile Check: The embroidery feels like stiff cardboard or a patch of dried glue.
• Auditory Check: Listen to your machine. A rhythmic thump-thump is normal. A hard, metallic BANG when the needle hits a specific spot means you are hitting excessive density.

Density Physics: Standard density is usually around 0.40mm spacing. Auto-overlap can push this to effective densities that are solid walls of thread. This creates distinct raised bumps and dramatically increases friction, leading to thread shredding and heat buildup.

The “Messy Islands” Problem: Why Auto-Digitize Creates Trims, Jumps, and Ugly Sequencing

Sue’s next attempts show another classic failure: Island Thinking. The software sees the letter "S," the serif, and the border as separate islands, not a continent.

1. The Trim Nightmare: The machine stitches one island, stops, trims the thread, moves 2mm, ties in, and stitches the next.
2. The Sound of Inefficiency: Stitch... Stop. Ca-chunk (trim). Whirrr (move). Ca-chunk (needle down).
3. The Risk: Every trim is a chance for the bobbin to fail to catch or for the thread to pull out of the needle eye.

In a production environment, trims are the enemy. They add seconds to the run time and risk to the garment. If you are running 50 shirts, and each shirt has 10 unnecessary trims, you are adding hours of wear and tear to your machine (and your patience).

The “Editing Takes Tons of Time” Reality: When Fixing Auto-Digitized Files Costs More Than Digitizing Properly

Sue drops a blunt truth: cleaning up a bad file often takes longer than building a good one from scratch.

This is a business math problem. If you spend 45 minutes moving nodes and adjusting angles to "save" a free or auto-generated file, you have not saved money. You have just worked for free.

The Commercial Pivot: When to Upgrade Your Tools If you find yourself constantly fighting your tools—whether it is software density or physical hooping struggles—it is time to audit your workflow.

Sometimes the bottleneck isn't the file; it's the physical setup. If you are doing repeat placements and fighting to keep fabric straight, or if you are seeing "hoop burn" (those crushed rings on delicate polos), manual effort isn't the fix.

• Scenario A: Misalignment on repeat orders. A machine embroidery hooping station standardizes the placement so every chest logo lands in the same spot, reducing rework.
• Scenario B: Fatigue and Hoop Burn. Traditional screws and plastic rings are hard on wrists and fabric. Many shops switch to magnetic embroidery hoops to clamp thick jackets or delicate moisture-wicking fabrics without distortion.


The “Fill Stitch Lettering” Compromise: Why Tatami Can Look Fast but Still Look Cheap

Sue shows a fill (Tatami) result. It is fast. It is easy. But she notes a distinct preference: flat fill stitches for lettering are often a "last resort."

The Aesthetic Eye:

• Satin: Reflects light. Looks raised, premium, and 3D. It screams "Embroidery."
• Tatami Fill: Absorbs light. Looks flat. It often resembles a printed texture rather than stitched art.

Unless the lettering is massive (over 2 inches tall) or intentionally distressed, satin is the industry standard for text. If you own a start-up or a boutique, do not settle for Tatami just because the auto-digitizer chose it. Your customers know the difference, even if they can't explain technical terms.

The Hand-Digitized “Dawn Standard”: Split Satin, Clean Layering, and Smart Overlaps That Actually Stitch

Then Sue reveals the hand-digitized version by Dawn. The difference is not subtle—it is structural.

What to look for in a Pro File:

1. Split Satins: Instead of one massive, loose stitch across a wide turn, the digitizer splits it into two controlled visually pleasing columns.
2. Intelligent Layering: The background swirls sit under the letter naturally. The machine doesn't fight for space.
3. Shape Integrity: The curves look like curves, not like a collection of straight lines trying to be a circle.

This is the core lesson: Digitizing is not tracing. Digitizing is path planning for a moving needle.

The Hidden Travel Stitch Trick: How Pros Eliminate Trims Without Leaving Visible Lines

Sue highlights a detail that separates amateurs from masters: The Travel Run.

Dawn uses a subtle running stitch under the upcoming gold bar to move the needle from Point A to Point B.

• Auto-Digitizer: Do A. Trim. Jump to B.
• Pro Human: Do A. Walk quietly under the area where B will sit. Do B.

This technique eliminates the trim commands. It keeps the machine running in a continuous, smooth rhythm. Less noise, less wear on the cutter blade, and zero "thread tails" to trim by hand later.

The Stitch Player Habit That Saves Fabric: Simulate Before You Stitch (Every Time)

Sue runs the stitch player (simulator) at high speed. This is your "Flight Simulator." You must crash the plane on the screen so you don't crash it on the garment.

What to watch for:

• Sequence: Does it sew the background before the foreground?
• Registration: Does it finish the outline immediately after the fill? (If it waits too long, the fabric might shift, leaving a gap).
• The "Wipe": Are there jump stitches crossing straight over the design face that you will have to cut out with tweezers?

Using hooping stations ensures your physical placement is perfect, but only the Stitch Player ensures the file logic is perfect.

Prep Checklist: The "5-Minute Audit"

Before you even turn on the machine, check these software indicators.

1. Vector Check: Is the source art a vector (EPS/SVG) or a raster (JPG)? Zoom to 400%. If pixels are blurry, manual input is required.
2. Angle Audit: Click on a curved Satin Column. Do the angle lines fan out like sunbeams (Good/Human) or stay parallel like train tracks (Bad/Auto)?
3. Density Check: Measure the underlay. If you see Grid + Edge Run + ZigZag all stacked, reduce it.
4. Travel Check: Run the simulator. Count the trims. If a simple logo has 20 trims, flag it for editing.
5. Stitch Count: If a 3-inch logo has 40,000 stitches, stop. It poses a safety risk to your garment (hole cutting).

The “Why It Fails” Explained: Stitch Mechanics Auto-Digitizing Can’t Feel

Why does the computer fail? Because it lacks the sense of touch.

1. The Pull Compensation Factor

Embroidery thread pulls fabric inward. A 1-inch circle will stitch out as a 0.9-inch oval if you don't add "Pull Comp." Auto-digitizers often guess this wrong. A human knows: It's a stretchy pique polo? I need 0.4mm pull comp.

2. The Bridge Physics (Satin Length)

Satin stitches are bridges. If the bridge is too long (>7mm), it collapses or sags. If it's too short (<1mm), it creates a hard knot. Auto-digitizers draw lines without measuring the bridge stability.

3. Friction and Heat

"Bulletproof" density generates physical heat. I have seen needles get hot enough to melt polyester thread or leave burn marks on stabilizer. Spacing is not just visual; it is thermal management.

Buying Embroidery Designs Online: A Quick Audit So You Don’t Pay for Problems

When purchasing files, do not look at the pretty JPG preview. Ask for or look at the Stitch Simulation.

• Buying a logo? Look at the lettering. Is the text connected by running stitches (Good) or does it jump between every letter (Bad/Lazy)?
• Buying a patch? Check the edge. Is it a dense satin border?
• The Litmus Test: If the seller cannot explain what stabilizer to use with their design, be wary.

Pixelated JPGs vs Clean Vectors in Brother PE Design 10: What Helps When Artwork Isn’t Smooth

A commenter notes the struggle of PE Design 10 with bad JPGs.

• Reality: Pixelated edges confuse the auto-sensor. It interprets "fuzz" as "jagged shape."
• The Fix: You cannot digitize bad art. You must either redraw the vector in a graphics program first for cleanliness or manually place nodes in your digitizing software. There is no shortcut here.

Chromebook Reality Check: Why You May Need a Different Workflow for Digitizing Software

Embroidery is a Windows-dominated industry. Most pro industrial engines (Wilcom, Pulse) and robust prosumer tools (Hatch, PE Design) run on Windows structure. Chromebooks are web-based.

• The Pivot: If you are serious about production, get a dedicated Windows laptop. It doesn't need to be a gaming PC, but it needs an OS that can talk to your machine drivers.

Decision Tree: The "Build or Buy" Logic Flow

Use this to decide how to handle a new job in 30 seconds.

1. Is the design text-heavy or geometric?
   • Yes: Proceed to Step 2.
   • No (Organic, shaded animals/flowers): Complex fills work okay with Auto-Digitize IF you accept a flatter look.
2. Does it require premium Satin Lettering (e.g., Left Chest Corporate Logo)?
   • Yes: STOP. Do not Auto-Digitize. Hand digitize or Outsource ($15-$30). The quality difference is non-negotiable for corporate clients.
   • No: Proceed.
3. Do you have 30+ minutes to clean up angles and pathing?
   • Yes: Auto-digitize as a "rough draft" and edit manually.
   • No: Outsource. Your hourly manufacturing rate is worth more than the digitizing fee.

Setup Checklist: The Machine Prep

Physical setup is just as important as the file.

1. Needle Check: Is the needle fresh? (Replace every 8 hours of run time). Standard: 75/11 Sharp for Wovens, Ballpoint for Knits.
2. Bobbin Check: Is the bobbin tension correct? Sensory Check: Do the "Yo-Yo drop test" or use a tension gauge (20-25g for polyester).
3. Stabilizer Match:
   • Stretchy (Tee/Polo) = Cutaway (Absolute requirement).
   • Stable (Twill/Denim) = Tearaway.
4. Hooping: Drums tight. If you tap the fabric, it should sound like a drum. Note: If you struggle here, investigate a hoop master embroidery hooping station or similar aid to ensure tension consistency.

Troubleshooting the Three Most Common “Bad File” Symptoms Sue Shows

The Upgrade Path: When You Are Done Fighting Mechanics

Digitizing quality is Step 1. But once your file is clean, if you are still struggling with consistency, the problem is likely your hardware workflow.

Level 1: The Stability Fix (Hoops) If you are seeing "hoop burn" or spending 5 minutes hooping a single shirt, you are losing profit. Many professionals search for how to use magnetic embroidery hoop videos because they solve the "pinch" problem.

• The Upgrade: magnetic hooping station systems use magnets to float the fabric, eliminating burn marks and wrist strain. It turns a physical wrestle into a flat click.

Warning: Magnetic Field Safety
magnetic embroidery hoops use incredibly strong rare-earth magnets.
1. Pinch Hazard: They can snap together with enough force to bruise or break fingers. Handle with respect.
2. Medical Device: Keep away from pacemakers.
3. Electronics: Do not place near laptops, phones, or credit cards.

Level 2: The Capacity Fix (Machines) If you are running a single-needle machine and dreading the "Stop... Change Thread... Start" cycle on a 6-color design, you have hit the ceiling of hobbyist equipment.

• The Upgrade: A multi-needle machine (like the SEWTECH high-efficiency series) allows you to load 15 colors at once. You press start, walk away, and do billing while the machine works. This is the shift from "Making Things" to "Manufacturing."

Operation Checklist: The Final "Go"

Do this immediately after loading the file.

• Trace the Design: Run the standard trace to ensure the needle won't hit the plastic hoop.
• The 30-Second Watch: Watch the first layer stitch out. If the underlay looks loose or pulls the fabric immediately, STOP.
• Consumables: Do you have your Appliqué Scissors, Tweezers, and a Seam Ripper within arm's reach? (You will need them).
• Hidden Consumable: Keep a can of spray adhesive or a glue stick handy for floating stabilizers on tricky items.

Digitizing is a science of angles and physics. Respect the material, audit your files, and when the volume gets high, give yourself the permission to upgrade your tools to match your talent.

FAQ

• Q: What is a safe stitch-out speed in Wilcom E4 when testing an auto-digitized embroidery outline file with sharp corners?
  A: Test unknown auto-digitized outline files at 600 SPM or lower until the corner pathing proves clean.
  • Slow down to the “Safe Zone” speed (≤600 SPM) before the first stitch-out.
  • Simulate the file in the stitch player and look for micro-stitches packed into corners.
  • Wear protective eyewear during the first run, especially if the file is unproven.
  • Success check: the machine runs through corners without grinding/jamming, and the thread does not clot at turns.
  • If it still fails: edit the file to remove corner micro-stitches (avoid sub-2 mm stitches) or simplify corner geometry before testing again.
• Q: How can Wilcom E4 users identify and fix birdnesting caused by auto-digitized micro-stitches in run stitch corners?
  A: Remove or prevent micro-stitches in corners, because repeated penetrations in the same millimeter often create thread clots (birdnesting).
  • Inspect corners at high zoom and flag very tiny corner stitches (around 0.5 mm is a known danger sign).
  • Edit the outline to simplify the corner plan and eliminate extremely short stitches (use 2 mm as a practical minimum for cleanup).
  • Clean the bobbin case before re-testing, because clots and lint can compound the jam.
  • Success check: no thread clots form at corners and the needle does not “lock up” when turning.
  • If it still fails: re-check the outline tool result and consider rebuilding the outline manually instead of auto-digitizing.
• Q: Why does Wilcom E4 auto-digitize create wavy or loopy satin stitches on curved monogram lettering, and how do I correct it?
  A: Wavy/loopy satin usually comes from static stitch angles on curves (and sometimes low top tension), so correct angles first and then verify the tension path.
  • Click the satin column and review angle lines: adjust so angles flow with the curve instead of staying parallel.
  • Re-run the stitch simulation and watch for long, unstable bridges across turns.
  • Check the upper thread path and tension setup if the angles are already correct.
  • Success check: satin looks tight and “wrapped,” and the floss test fails (no easy slide-under with a fingernail/pencil tip).
  • If it still fails: split wide or turning satin areas into controlled segments rather than one long column.
• Q: How do I troubleshoot loud banging and thread shredding caused by excessive underlay and “bulletproof” density stacking in an auto-digitized Wilcom E4 design?
  A: Reduce stacked underlay/density at overlaps, because multiple heavy underlays can create a hard “bulletproof” zone that bangs and shreds thread.
  • Listen for a metallic “BANG” at the same spot; stop and inspect that area for overlap stacking.
  • Edit the file to remove double underlay where segments overlap and increase spacing (0.45 mm is a stated corrective target).
  • If needed for a test run, use a larger needle temporarily (90/14) to reduce friction while validating edits.
  • Success check: embroidery feels less like stiff cardboard and the machine sound returns to a normal rhythm instead of hard impacts.
  • If it still fails: lower overall density further and re-check overlapping sequencing that may be stacking thread layers.
• Q: What is the correct stabilizer choice for stretchy polos vs stable twill/denim when stitch-testing dense lettering from a Wilcom E4 file?
  A: Match stabilizer to fabric stability: cutaway for stretchy knits/polos, tearaway for stable twill/denim.
  • Choose cutaway for tees/polos (especially when testing satin lettering that can pull and distort knits).
  • Choose tearaway for stable fabrics like twill/denim when you want clean removal after sewing.
  • Hoop “drum tight” so fabric is held consistently during the test.
  • Success check: the fabric stays flat with minimal distortion and the design edges do not ripple or gap during sewing.
  • If it still fails: re-check the file’s density/underlay and confirm hooping tension consistency before changing materials again.
• Q: What needle and bobbin checks should I do before stitching an unproven auto-digitized embroidery file to prevent thread breaks and jams?
  A: Start with fresh needle + verified bobbin tension, because bad consumables make file problems look worse (and vice versa).
  • Replace the needle on schedule (a stated rule is every 8 hours of run time) and pick the correct point: 75/11 sharp for wovens, ballpoint for knits.
  • Perform the bobbin “Yo-Yo drop test” or use a tension gauge (20–25 g is cited for polyester) before blaming the file.
  • Trace the design after loading to ensure the needle path will not hit the hoop.
  • Success check: the first layer sews smoothly without immediate pulling, looping, or sudden thread break.
  • If it still fails: slow the machine down for testing and inspect the file simulation for excessive trims, micro-stitches, or density stacking.
• Q: What magnetic hoop safety rules should SEWTECH magnetic embroidery hoop users follow to prevent finger injuries and device damage?
  A: Treat magnetic embroidery hoops as high-force tools: prevent pinch injuries and keep magnets away from medical devices and electronics.
  • Handle magnets with controlled placement—do not let halves snap together uncontrolled (pinch hazard).
  • Keep magnetic hoops away from pacemakers and other medical devices.
  • Keep magnetic hoops away from laptops, phones, and credit cards to avoid damage.
  • Success check: the hoop closes with a controlled “click” without sudden snapping, and fabric is clamped without distortion or hoop burn.
  • If it still fails: pause and reposition using a safer grip and slower approach instead of forcing alignment under tension.
