Auto-Digitize in Hatch Without the Ugly Gaps: The Canva Background Trick + Node Cleanup That Actually Stitches Well

Auto-digitizing can feel like magic—right up until you stitch it out and the fabric peeks through the design like a bad haircut.

If you’ve ever watched your machine work and thought, “Hatch did what I asked… so why does it sew like that?” you’re not alone. The video you watched is a perfect example of the real-world truth: auto-digitizing is only the starting point. The quality comes from what you do next—specifically, how you manage node cleanup and deliberate overlap to fight the physics of thread tension.

This guide rebuilds the exact workflow shown in the tutorial (Canva prep → Hatch Click-to-Fill → smooth/reshape → overlap fills → delete tiny holes → outline last → resize for hoop). However, I am going to layer in the "shop-floor" logic that software manuals don't tell you: why gaps actually happen, how to identify which details to delete, and how to set yourself up so the file stitches reliably on actual fabric—not just on a computer screen.

Use Canva Background Remover + an Orange Backdrop to Stop Hatch From “Seeing” the Wrong Edges

The creator starts with a cartoon duck graphic and immediately hits a common auto-digitize wall: a white subject on a white background. When the background and the design share similar tones, the software cannot confidently separate “duck” from “not duck.” This results in jagged edges and "ghost" objects.

In Canva, the workflow is:

1. Isolate: Use Canva’s Background Remover to delete the original white background.
2. Contrast: Add a solid orange background behind the duck.
3. Export: Download/export as a high-quality PNG.

That orange backdrop isn’t about aesthetics—it creates a hard optical boundary. It helps Hatch detect the design edges accurately instead of inventing extra shapes.

Expert Tip: If you don't use Canva, any photo editor works. The goal is high contrast. If your subject is dark, use a neon green background. Auto-digitizing tools are extremely sensitive to pixel noise; a clean edge here saves you 20 minutes of node editing later.

Warning: Background remover tools can sometimes leave a faint, semi-transparent "halo" around your subject. To the software, this halo looks like a separate color, creating messy, razor-thin stitches that can cause thread breaks. Always zoom into your PNG at 200% ensure the edge is crisp before importing.

Import the PNG Into Hatch and Lock the Color Count to 4 (This Prevents Pixel-Artifact Thread Colors)

Next, the video shows dragging the PNG straight into Hatch. When the “Prepare Bitmap” window appears, the critical move is reducing the number of colors.

In the tutorial, the design is simplified to exactly 4 colors: orange, white, pink, and black. The creator explicitly warns that leaving the color count too high causes Hatch to pick up pixel artifacts (shading or anti-aliasing) as separate “colors.” This turns into unnecessary objects, excessive trims, and registration nightmares.

This is where you quietly win or lose the whole job.

• Too many colors = Too many objects = More stops/starts = Higher risk of gapping.
• Fewer colors = Cleaner shapes = Simpler current path.

If you are working with a customer logo or a cartoon, you must decide here if you are building a file for "looks good on screen" or "stitches clean at speed." For production, fewer, cleaner objects almost always win.

One practical note: if you’re digitizing for a specific constraint, such as a brother 5x7 hoop, decide on your target size right now. Resizing after you have set all your densities and pulls can introduce new errors.

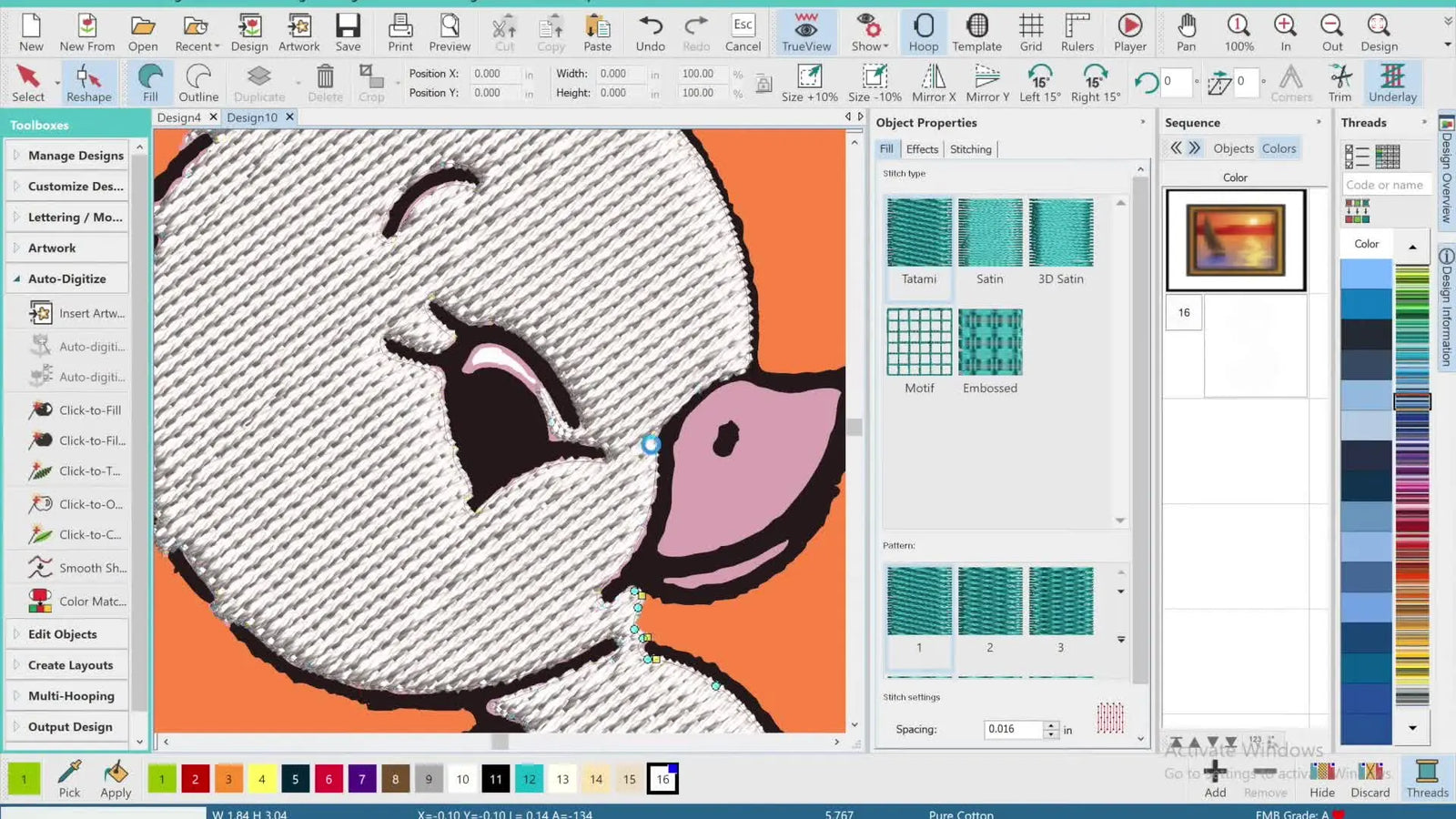

Click-to-Fill in Hatch: Treat Auto-Digitize Like a Rough Draft, Not the Final Pattern

The creator uses Hatch’s Auto Digitize toolbox and selects Click-to-Fill. The method is straightforward: click the areas you want filled (white body, pink accents, orange areas), and Hatch generates fill objects.

Here is the mindset shift that separates hobby results from professional results: Auto-digitize is not “digitizing.” It is object generation.

Your job is now to act as the structural engineer:

• Simplify complex organic shapes into geometric logic.
• Control the edge properties.
• Plan the overlap (Pull Compensation).
• Decide what gets stitched as a Fill vs. a Satin Outline.

If you are new and wondering (like one commenter) whether you can “actually draw it” inside the software: Yes. Many professionals prefer manual digitizing because it offers total control. However, Click-to-Fill is an excellent bridge, provided you commit to the cleanup phase.

The Node Cleanup That Makes or Breaks the File: Smooth Shape First, Then Reshape Like You Mean It

After the first fill appears, the video immediately goes into cleanup:

• Action: Use Smooth Shape to reduce node complexity.
• Action: Use Reshape to manually delete extra nodes and adjust curves.

This is not cosmetic—it is mechanical. Excess nodes create wobbly stitch edges and micro-angle changes that show up as "jitter" on the fabric. Furthermore, every extra node is a calculation point where the machine might slow down or hesitate.

Sensory Check: When your machine is running a long fill, it should sound like a steady hum (zhhhhhh). If it sounds like a machine gun (rat-a-tat-tat), your file likely has too many nodes or tiny stitches packed together.

A practical rule from the field: Fewer nodes usually means fewer surprises. A proper curve only needs three nodes; auto-digitizing might give you thirty. Delete the extra twenty-seven.

The “Overlap on Purpose” Move: Extend the White Fill Under the Black Outline to Prevent Gapping

This is the heart of the tutorial and the most common failure point for beginners: Manual Overlap.

The creator drags the edge of the white fill outward so it sits under where the black satin outline will eventually stitch. This ensures that if the fabric pulls or contracts during the embroidery process, the black outline still lands on top of white stitches—not on bare fabric.

This is essentially manual Pull Compensation.

The Physics of Why:

1. Thread has tension. As it forms a stitch, it pulls the fabric in (like a corset).
2. By the time you stitch the outline, the white object is physically smaller on the fabric than it is on the screen.
3. Without overlap, a gap forms.

If you have ever searched for hooping for embroidery machine tutorials and still ended up with gaps, here is the uncomfortable truth: perfect hooping helps, but it cannot fix a digitizing file that has zero overlap between layers. You need both.

Expected outcome (Visual Check)

After reshaping, looking at your screen, the white fill should slightly “peek” beyond the intended black outline path. That looks wrong on a monitor, but it is correct for the needle. The black outline covers this extension.

Warning: When you are reshaping nodes and testing on the machine, keep your hands clear of the needle bar area. If a needle hits the hoop or breaks due to density issues, shards can fly at high speed. Always wear glasses or use the safety shield.

Delete Tiny Holes Now, Add Tiny Details Later: The Solid-First Strategy That Saves You From Registration Nightmares

The video shows a smart production habit: removing tiny negative spaces (little holes) inside the fill. The creator deletes those hole nodes because small voids are high-risk zones.

Why small holes fail:

• They create thin, unstable stitch borders.
• They distort the fabric locally.
• They rarely align perfectly with the plug meant to fill them.

The Pro Workflow:

1. Make the base fill solid (like a silhouette).
2. Stitch the black details on top of that solid base later.

This keeps your base layer specifically stable. If you are digitizing something like a Greek fleury cross or a complex logo, this principle applies: Build clean, stable base shapes first (Tatami/Fill), then add outlines and interior details as separate objects on top.

When Two Colors Compete (Pink Inside White): Switch to “Click-to-Fill Without Holes” for a Cleaner Base

The tutorial calls out a specific Hatch tactic:

When the software sees nested colors (for example, pink cheeks inside a white face), the creator switches from Click-to-Fill with holes to Click-to-Fill without holes—creating a solid white silhouette instead of a "donut" shape.

The Logic:

• A “donut” base fill leaves an internal edge that must align perfectly with the pink fill. The fabric will shift, and a gap will appear.
• A solid base lets the pink color stitch directly on top of the white, creating a 3D effect and hiding minor shifts.

In the video, the creator clicks the outer thread color area and fills it solid, then adds the pink layer on top. This is one of those invisible moves that saves you from a bin full of "almost perfect" test garments.

The Eye and Beak Reality Check: Give Yourself Time, Then Outline Last to Hide the Mess

The creator admits the eye was the hardest part and required significant node adjustment. That is normal. Small circles are where auto-digitize algorithms struggle most.

The same "Solid-First" logic is applied to the beak:

1. Fill the beak as a solid orange shape.
2. Ignore the tiny black nostril lines for now.
3. Add those black details later during the outline pass.

Speed Tip: For small, detailed areas like eyes or text, reduce your machine speed. If you usually run at 800 SPM (Stitches Per Minute), drop to 600 SPM for these segments. The improved definition is worth the extra 45 seconds.

The Black Satin Outline Pass: Put It at the End So It Covers Edges and Makes the Design Look “Finished”

In the final phase, the creator moves to the black thread. This is typically a Satin stitch (a zigzag that creates a column). This is done last on purpose.

Outlines serve three functions:

1. Cleanup: It hides the raw edges of your fill stitches.
2. Definition: It creates the sharp "cartoon" look.
3. Stability: It locks the edges down.

This is where your previous overlap work pays off. Because the black satin lands on top of the expanded white fill, you see a crisp solid line, not fabric peeking through.

Resize for a 5x7 Hoop Before Export: Don’t Let “Fit” Destroy Your Stitch Plan

Before exporting, the creator selects the whole design and resizes it to fit.

Crucial Check: Resizing changes density.

• Shrinking a design pushes stitches closer together (Risk: Bulletproof stiffness, needle breaks).
• Enlarging a design pulls stitches apart (Risk: Gaps, loose loops).

If you are regularly building files for a 5x7 hoop, do a visual scan after resizing. Look for Satin columns that have become too thin (under 1.5mm) or Fills that look too dense. Most software recalculates stitches, but it cannot fix geometry that becomes too small to sew.

The “Hidden” Prep Pros Do Before Auto-Digitizing

The video covers the software, but professional results require a few physical "consumables" and checks that beginners often miss.

Hidden Consumables Checklist:

• New Needle: Start fresh. Use a 75/11 Ballpoint for knits or 75/11 Sharp for woven fabrics.
• Temporary Spray Adhesive: A light mist (like Odif 505) prevents the fabric from rippling in the hoop.
• Water Soluble Topper: Even on t-shirts, a thin piece of Solvy on top keeps text and outlines crisp.
• Bobbins: Check your bobbin tension. When you pull the bobbin thread, you should feel slight resistance, similar to pulling floss between your front teeth.

Prep Checklist (Software Side)

• Silhouette: Is the background removal clean? (No fuzzy halos).
• Contrast: Is there high contrast between the subject and the background?
• Hoop Size: Have I decided on the final size before I start cleaning nodes?
• Sequence: Am I planning to stitch inside-out, or large fills first?

A Quick Stabilizer Decision Tree (Because Gapping Isn’t Only Digitizing)

You can have a perfect file, but if your stabilization is wrong, you will get "Hoop Burn" or registration errors.

Decision Tree: Fabric Behavior → Stabilizer Choice

1. Is the fabric stretchy (T-shirt, Hoodie, Performance knit)?
   • Yes: CUTAWAY Stabilizer. (Mesh or Medium Weight). Reason: Knits need permanent structure.
   • No: Go to #2.
2. Is the fabric stable but sheer (Woven cotton, Dress shirt)?
   • Yes: TEARAWAY or Poly-mesh. Reason: You do not want heavy backing showing through.
   • No: Go to #3.
3. Is the surface textured (Towel, Fleece, Velvet)?
   • Yes: Add a WATER SOLUBLE TOPPER on top + Cutaway/Tearaway on bottom. Reason: Prevents stitches from sinking.

Setup That Prevents “Perfect File, Bad Stitch-Out”: Hooping and Environment

Digitizing fixes gapping in the file. Hooping fixes gapping in reality.

If you are hooping one item, you can struggle with it. If you are running production, you need efficiency.

If hooping is hurting your hands or quality:

Many shops eventually upgrade to a dedicated embroidery hooping station or standardized table setup.

• Tactile Check: The fabric in the hoop should be taut, like the skin of a drum. Flick it—you want a rhythmic thump, not a loose ripple. However, do not stretch it so tight that you deform the grain of the fabric.

Setup Checklist (Before Pressing Start)

• Top Thread: Is the thread path clear? No tangles at the cone base?
• Design Orientation: Is the duck right-side up relative to the hoop bracket?
• Clearance: Does the hoop have full range of motion? (Nothing sitting on the table behind the machine).
• Test: Run a trace/contour check on the machine to ensure the needle won't hit the hoop frame.

Troubleshooting Gapping in Hatch Designs: Symptom → Fix

Use this table when things go wrong during the test stitch.

The Upgrade Path (When You are Done Fighting the Tools)

The video focuses on software, but often the bottleneck is the hardware workflow—specifically Hooping Speed and Color Changes.

1. The Hooping Bottleneck

If you find yourself constantly re-hooping because the fabric slipped, or if you are getting "hoop burn" (shiny marks) on delicate fabrics, the standard plastic hoops are often the culprit.

• The Logic: Standard hoops require force and friction.
• The Upgrade: An embroidery magnetic hoop removes the friction. You simply place the fabric and snap the magnets down.
• Why Upgrade? If you have a run of 50 left-chest logos, magnetic frames can save you ~45 seconds per shirt. That is nearly an hour of labor saved per order.

Warning: Magnet Safety
Professional magnetic hoops use neodymium magnets. They are incredibly strong.
* Pinch Hazard: Never let the top and bottom frames snap together without fabric in between; they can pinch fingers severely.
* Electronics: Keep them away from pacemakers, credit cards, and machine screens.

2. The Color Change Bottleneck

The duck design has 4 colors. On a single-needle machine, that is 3 manual thread changes per duck.

• The Math: If a thread change takes you 90 seconds (cut, re-thread, tie off), you are spending 4.5 minutes just standing there per design.
• The Upgrade: Multi-needle machines (like SEWTECH or similar entry-level industrial models) hold all colors at once. The machine swaps colors automatically in 2 seconds.
• Trigger: When your daily "threading time" exceeds your "stitching time," it is time to look at multi-needle solutions.

Final Operation Checklist

1. Test Stitch: Always run on a scrap of similar fabric first.
2. Watch the Outline: Keep your eye on the first border pass. If it misses the fill, stop immediately.
3. Check Bobbin: Ensure the white bobbin thread is only visible on the back (1/3 width), not pulling to the top.

If you do nothing else from this guide, remember this: Overlap your fills. That single habit is the difference between "auto-digitized" and "professional embroidery."

FAQ

• Q: How do I prevent Hatch Auto-Digitize Click-to-Fill from creating jagged edges when a white design sits on a white background?
  A: Use a high-contrast background (like solid orange) before importing the PNG so Hatch can detect clean edges.
  • Remove: Delete the original background in Canva (or any editor) using a background remover.
  • Add: Place a solid, high-contrast backdrop behind the subject before export.
  • Export: Save a high-quality PNG and zoom to check the edge.
  • Success check: At 200% zoom, the subject edge looks crisp with no fuzzy “halo.”
  • If it still fails: Re-edit the PNG to remove semi-transparent halos that can turn into razor-thin stitches and thread breaks.
• Q: Why does Hatch “Prepare Bitmap” create too many thread colors and tiny objects when auto-digitizing a PNG?
  A: Lock the “Prepare Bitmap” color count to a small number (like 4) to avoid pixel-artifact colors becoming extra stitch objects.
  • Reduce: Set the number of colors to the minimum needed for the design (example shown: 4 colors).
  • Decide: Commit to the target hoop/design size early so later resizing doesn’t introduce new density problems.
  • Simplify: Favor clean shapes over screen-perfect shading for production stability.
  • Success check: The artwork previews as a few clean regions, not many speckled micro-colors/objects.
  • If it still fails: Re-export a cleaner PNG (less anti-aliasing/shading) so the bitmap has fewer “noise” pixels.
• Q: How do I stop gapping (fabric showing) between a white fill and a black satin outline in a Hatch auto-digitized design?
  A: Manually extend the fill under the outline so the outline lands on stitches even after fabric pull.
  • Reshape: Drag the white fill edge outward slightly past the intended black outline path.
  • Sequence: Stitch the black satin outline last so it covers edges and “finishes” the design.
  • Stabilize: Use an appropriate stabilizer (often stronger cutaway for stretchy knits) so the fabric doesn’t shift as much.
  • Success check: On the sew-out, the black outline sits fully on top of white stitches with no fabric peeking through.
  • If it still fails: Re-check hooping tension and consider simplifying the object boundaries (fewer nodes, cleaner curves).
• Q: How do I fix wobbly edges and “machine-gun” sound during a Hatch fill stitch after auto-digitizing Click-to-Fill?
  A: Reduce node overload first—auto-digitize creates too many nodes, which makes stitches jitter and the machine hesitate.
  • Smooth: Run “Smooth Shape” to reduce node complexity.
  • Reshape: Delete unnecessary nodes and rebuild clean curves with fewer points.
  • Simplify: Remove tiny, fussy details that force micro-stitches in the fill area.
  • Success check: The machine runs long fills with a steady hum instead of rapid hesitations, and the fill edge looks smoother.
  • If it still fails: Slow the machine for detailed segments and re-check for tiny stitch fragments caused by bitmap halos.
• Q: What is the safest Hatch Click-to-Fill strategy when pink details sit inside a white area (nested colors) and alignment gaps keep appearing?
  A: Build a solid white base (no holes), then stitch pink on top to hide small shifts.
  • Switch: Use “Click-to-Fill without holes” for the white silhouette instead of a donut-shaped base.
  • Layer: Add the pink areas as separate objects on top of the solid white.
  • Delay: Add tiny black details later during the outline pass instead of cutting holes early.
  • Success check: The pink stitches sit cleanly on white with no exposed fabric at the boundary.
  • If it still fails: Delete tiny internal holes/voids in the base and re-add details as top-layer stitches.
• Q: How do I diagnose birds nest thread jams (thread gloop under the throat plate) during an embroidery stitch-out?
  A: Fully re-thread the machine with the presser foot lifted so the thread seats correctly in the tension discs.
  • Re-thread: Remove the thread path and thread again from cone to needle (don’t just “pull it back through”).
  • Lift: Keep the presser foot up while threading to open the tension discs.
  • Inspect: Confirm the thread is in the take-up lever path and not caught/tangled at the cone base.
  • Success check: The underside shows controlled bobbin/top thread balance instead of a sudden pile-up of top thread.
  • If it still fails: Stop immediately, clear the jam, then check needle condition and bobbin tension before restarting.
• Q: What safety steps prevent needle break injuries when testing dense Hatch auto-digitized outlines and reshaped overlaps?
  A: Keep hands away from the needle bar area during stitch-out and always run a trace/contour check before stitching.
  • Trace: Use the machine’s trace/contour function to confirm the needle won’t hit the hoop frame.
  • Clear: Ensure the hoop has full movement range and nothing blocks it behind the machine.
  • Protect: Wear glasses or use the machine safety shield when testing dense or risky segments.
  • Success check: The design traces cleanly and stitches without needle strikes or sudden snapping sounds.
  • If it still fails: Reduce density risk by avoiding extreme resizing and fix geometry that becomes too thin to sew (especially narrow satin columns).
