Auto Digitize in Chroma Inspire, Then Stitch a Plush Robe on a Ricoma: The Fast Monogram Workflow That Actually Holds Up

If you have ever stared at your digitizing software thinking, “I just need a clean monogram—why does this feel like engineering?”, you are experiencing the friction that stops most beginners.

Courtney Brickner’s workflow demonstrates a smart, repeatable path: build a simple round monogram as vector art in Leonardo Design Studio, export as SVG, let Chroma Inspire auto-digitize it, then stitch it on a plush robe using a magnetic hooping station and a multi-needle machine.

However, as any veteran embroiderer will tell you, the magic isn't in the "Auto-Digitize" button. The real success comes from the system: controlled artwork + correct stabilization + tension-free hooping + a safety trace so you don’t crash a needle into a thick magnetic frame.

Build a Round Monogram in Leonardo Design Studio (and Fix Spacing Before It Becomes a Stitch Problem)

We start in Leonardo Design Studio to create the monogram as clean vector artwork. In the video, Courtney selects the Round Monogram font and types the letters individually (G, S, E), then manually nudges the spacing so the circle reads as one cohesive mark—not three letters awkwardly orbiting each other.

Here is the veteran takeaway: Auto-digitize is a mirror, not a filter. It reflects exactly what you give it. If your letters overlap strangely, have tiny gaps, or look “almost centered” on screen, the stitch result will exaggerate those flaws—especially on plush fabric where the edges naturally soften.

Action Protocol (from the video):

1. Select the text tool and choose Round Monogram.
2. Type each letter individually: Left, Center, Right.
3. Zoom in to at least 200%.
4. Nudge the spacing until the negative space between letters is consistent.

Visual Check: Look at the white space between the letters. It should look balanced, like slices of a pie. When the monogram looks right, export it as an SVG.

Pro Tip: If you are building a library of quick monograms for gifts or customer robes, naming and saving consistently now prevents “mystery files” later. Use a format like Format_Client_Size (e.g., SVG_Smith_4inch).

Export SVG from Leonardo, Then Let Chroma Inspire Auto Digitize (Fast—But Only If You Respect Its Limits)

In Chroma Inspire, Courtney opens a new file, imports the SVG, selects the whole graphic, and clicks the Auto Digitize icon (the “A” with a circle). The software converts the flat vector into stitch data.

Then she switches to a realistic/3D view to preview how the thread texture will look.

She also assigns the thread color inside Chroma (switching from color 21 to color 11) and saves the design as a DST key.

This is where I need you to be brutally honest with your design choice. Even the best equipment, like magnetic embroidery hoops, cannot save a file that is too complex for auto-digitizing. The video warns that detailed artwork causes trouble, and this is a universal truth in embroidery.

When to use Auto-Digitize:

• Simple, bold shapes (Circles, Squares, Hearts).
• Clean Monograms with consistent thickness.

When to Avoid Auto-Digitize:

• Serif Fonts: Thin lines often disappear or break.
• Distressed Textures: The software tries to stitch every "speck" of dirt.
• Small Text: Anything under 0.25 inches usually requires manual digitizing for legibility.

Warning: Auto-digitize is a speed tool, not a quality guarantee. Always preview the stitch simulation (Slow Redraw) before you put fabric in a hoop. If the simulation looks messy on screen, it will look worse on fabric.

The “Why” behind the warning (so you don’t repeat the same pain)

Auto-digitize creates stitches based on algorithms, not artistry. On simple monograms, it works well. On complex art, the software may create awkward stitch angles (45 degrees vs 90 degrees), excessive density, or jump stitches that invite thread breaks and "birdnesting." In production terms: it’s not the button that costs you money—it’s the rework.

Mark Robe Placement with a T-Ruler: The 8-Inch Method That Keeps Monograms Looking Intentional

Before hooping, Courtney measures placement of the robe using a T-ruler. She measures 8 inches down from the top shoulder seam/edge of the robe’s chest area and places a pin horizontally to mark the center point.

This is a critical "standard operating procedure." If you eyeball placement, your customers (or family members) will notice the logo is too low or too close to the armpit.

Action Protocol:

1. Lay the robe flat on a large table.
2. Smooth the nap of the fabric so it lies naturally.
3. Measure exactly 8 inches down from the highest point of the shoulder seam.
4. Insert a pin horizontally at the center point of where you want the design.

Pro Tip: On plush robes, the pile can visually hide slight misplacement until the stitching is done. Measuring and pin-marking first is cheaper than unpicking thousands of stitches from fuzzy loops.

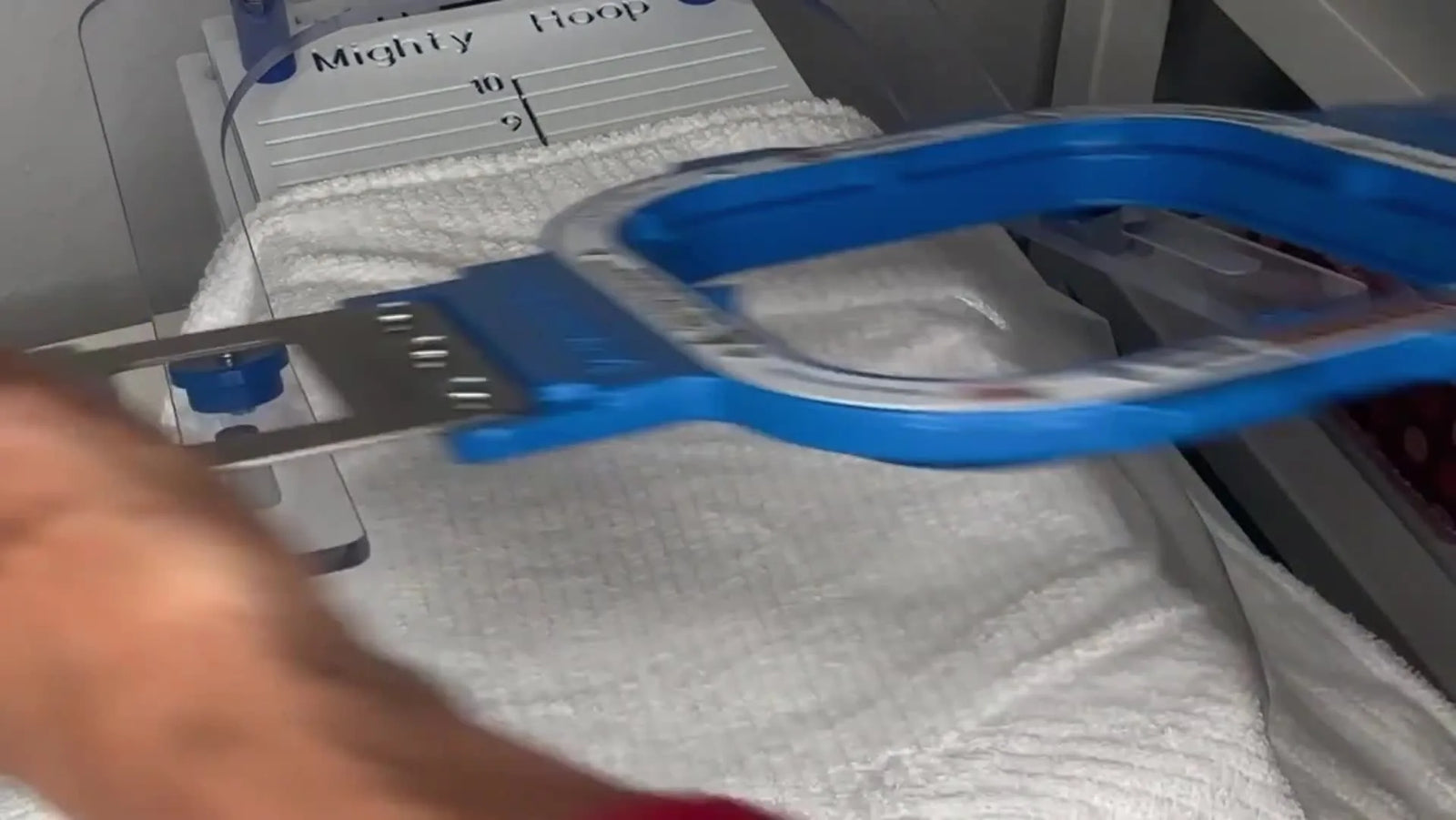

Load the Mighty Hoop Station with Tear-Away Backing (This One Move Prevents “Floating Fabric”)

Courtney brings over the hooping station, seats the bottom magnetic ring in the fixture, and lays tear-away stabilizer over the bottom ring area.

This is the moment many beginners rush—and then wonder why the design shifts. The stabilizer isn’t just “support.” It acts as the friction layer that stops the slippery robe lining from sliding around.

If you are doing this kind of work repeatedly, using a mighty hoop hooping station (or a similar fixture system) converts hooping from a guessing game into a mechanical process. It holds the bottom hoop in a fixed position, acting like a "third hand."

Prep Checklist (Do this BEFORE you touch the machine)

• File Logic: Confirm monogram is "Simple" (Bold, no serifs).
• Format: Export artwork as SVG; Import to Chroma Inspire -> Auto Digitize.
• Simulation: Run "Slow Redraw" to check for weird jumps or gaps.
• Color: Set intended thread color in software (Courtney uses color 11).
• Export: Save as DST and transfer to USB.
• Placement: Robe marked with pin exactly 8 inches down.
• Consumables: Fresh needle (Size 75/11 Ballpoint recommended for knits/robes), Tear-away backing cut to size.

Hoop a Thick Plush Robe Sideways on a Magnetic Hooping Station (and Stop Wrestling Bulk)

Courtney hoops the robe sideways to manage bulk. She aligns the pin mark with the station’s ruler guide at the 8-inch mark, places water-soluble topping over the embroidery area, removes the pin, and then snaps the top magnetic hoop down.

This is the “Ah-ha” moment for anyone who has fought a thick hoodie or towel.

When executing hooping for embroidery machine projects on bulky items, loading the item sideways (so the bulk hangs off the left and right of the machine arm, rather than stuffing into the back) is often the difference between a calm setup and a fabric avalanche.

Sensory Check - The "Snap": When using magnetic hoops, listen for a solid, authoritative CLACK. If the sound is muffled or the magnet feels weak, you likely have a seam or pocket caught between the rings. Abort and re-hoop.

Warning - Magnet Safety: Magnetic hoops contain powerful industrial magnets. Pinch Hazard: Keep fingers clear of the mating surfaces. Medical Safety: Keep away from pacemakers and implanted medical devices.

The Physics: Why Magnets Win on Plush

Plush fabric compresses. If you stretch it in a traditional screw-tightened hoop to get it "drum tight," the fabric will stretch. Once you un-hoop it, the fabric rebounds, shrinking back to its original state and causing the embroidery to pucker.

Magnetic hoops clamp straight down with even vertical pressure. They hold the fabric neutral—secure, but not stretched.

When to Upgrade: If you are a home user struggling with "hoop burn" (permanent ring marks on delicate velvet or plush), this is a triggering event for tool migration. Magnetic hoops eliminate hoop burn because they don't force material into a ring crevice.

Warning: REMOVE THE PIN before stitching. Leaving a marking pin in the hoop path is the fastest way to shatter a needle and scratch your hook assembly.

Use Water-Soluble Topping on Fluffy Robes So Stitches Don’t Sink (This Is the Difference Between “Cute” and “Pro”)

The video highlights the number one enemy of plush fabric: stitches sinking into the pile. Courtney places a clear water-soluble stabilizer topping (often called Solvy) over the embroidery area so the stitches sit on top of the loops.

Without a topper, your satin borders will disappear into the nap, and the monogram will look indistinguishable from the robe texture.

If you are building a supply kit for robes, towels, or fleeces, don't just buy a shiny magnetic hoop; ensure you have a roll of water-soluble topping. It is the cheapest insurance for legibility.

Decision Tree: Stabilizer Strategy for Robes

Scenario: You are stitching a white, plush bathrobe (thick pile, slight stretch).

1. Is the fabric fluffy/looped?
   • YES: You MUST use Water-Soluble Topping on top.
   • NO: Proceed to step 2.
2. Is the design dense (Standard Monogram)?
   • YES: Use Tear-Away backing on the bottom. (Tear-away essentially disappears after washing, leaving the inside of the robe soft against the skin).
   • NO (Running stitch/Redwork): Tear-away is fine, but ensure you don't pull it too hard during removal.
3. Is the fabric highly elastic (Spandex/Jersey Robe)?
   • YES: Switch to Cut-Away backing (Soft Mesh preferred) to prevent distortion. Tear-away will fail on stretchy fabrics.
   • NO (Standard Poly Fleece/Terry): Tear-away is sufficient.

Load the DST on a Ricoma Multi-Needle, Rotate 90°, and Trace Like You Mean It

Courtney moves the DST file to a USB flash drive, loads it on the machine, and rotates the design 90 degrees because the robe was hooped sideways. She then performs a trace to ensure the needle path won’t hit the thick magnetic frame.

This trace step is mandatory. Magnetic hoops are often thicker/taller than standard plastic hoops. If the needle bar clam hits the frame, you risk knocking the machine out of timing.

If you are operating ricoma embroidery machines (or any commercial multi-needle), the trace function is your primary safety protocol.

Action Protocol:

1. Load design from USB.
2. Rotate design 90° (Match the direction of the garment).
3. Mount the hoop onto the machine arm.
4. Check that the fabric is draped freely and not caught under the needle plate.
5. TRACE: Press the Trace button. Watch the presser foot. It should stay clearly inside the magnetic frame boundaries.

Setup Checklist (Right BEFORE pressing Start)

• Orientation: Design rotated 90° to match hooping?
• Hoop Selection: Machine set to proper hoop size (or "Other" for magnetic)?
• Clearance: Trace completed successfully with no frame collision?
• Topper: Is the water-soluble film covering the entire design area?
• Obstruction: Pin removed? Sleeves clear of the sewing field?
• Speed: Beginner Sweet Spot: Set machine speed to 600-700 SPM. Do not run plush robes at 1000 SPM; high speed increases friction and thread breaks on thick synthetic piles.

Stitch-Out Results on a Plush Robe: What “Good” Looks Like (and How to Repeat It)

The stitch-out in the video shows the monogram forming cleanly on the robe. The finished robes are displayed in two colorways, looking retail-ready.

The result looks great because the system was respected: Topper + Magnetic Hoop + Correct Tension.

If you are planning seasonal gifting (robes for bridal parties or team trips), repeatability is key. A station-based hooping workflow reduces setup time per robe from 5 minutes to 45 seconds. This is where hooping stations transition from being a "luxury accessory" to a "profit tool." If you can hoop faster and straighter, you can take on volume orders without physical burnout.

Operation Checklist (During the Stitch)

• Audio Check: Listen for a rhythmic thump-thump. A sharp clack-clack usually means the needle is hitting the needle plate or the casing is too dry (needs oil).
• Visual Check: Watch the first 30 seconds. Does the topper stay flat?
• Support: "Babysit" the bulk. Gently lift the heavy parts of the robe so the machine's pantograph doesn't have to drag 3lbs of fabric. This prevents design shifting.

When Auto Digitize or Plush Fabric Fights Back: Troubleshooting Guide

You don’t need 50 settings to fix a robe project; you need a structured diagnosis.

The Upgrade Path: Moving from Hobby to Production

If you only make one robe a year, patience and a standard plastic hoop will suffice. However, if you are hitting friction points, identify where they are to know which tool to upgrade.

Scenario A: "My hands hurt / I can't hoop thick items."

• The Problem: Physical limitations and fabric thickness.
• The Fix: mighty hoop for ricoma (or your specific machine brand). The magnets do the work for you.

Scenario B: "I have 50 robes to do by Friday."

• The Problem: Throughput and consistency.
• The Fix: You need a magnetic hooping station. This guarantees that the logo is 8 inches down on every single robe without measuring each one individually.

Scenario C: "I'm tired of re-threading for every color change."

• The Problem: Single-needle inefficiency.
• The Fix: This is the sign to look at a multi-needle machine (like the SEWTECH or Ricoma models). The ability to set 10+ colors and walk away is the only way to scale a business.

Also, do not overlook the hidden consumables. High-quality embroidery thread (polyester for sheen/strength on robes) and a dedicated "Robe Kit" (Solvy + Tearaway + Size 75/11 Ballpoint Needles) are low-cost upgrades that drastically improve output quality.

One Last Reality Check: This Is a Simple Project—So Treat It Like One

Courtney’s results look professional because she kept the variables low:

• Simple art.
• Standard placement (8 inches).
• Correct stabilization (Tear-away + Topper).
• Safety trace.

If you follow that chain, you will get a clean monogram. If you try to skip the Topping or "guestimate" the placement, you will get a frustrated experience. Start by standardizing your setup—that is how hobby projects become stress-free, and how stress-free projects become profitable.

mighty hoop 5.5

FAQ

• Q: What is the safest way to use the Trace function on a Ricoma multi-needle embroidery machine when stitching with a thick magnetic embroidery hoop?
  A: Always run a full Trace after mounting the magnetic hoop, because the taller frame can collide with the needle bar/presser area.
  • Load the DST, then rotate the design 90° if the garment was hooped sideways.
  • Mount the hoop and drape the robe so bulk is not trapped under the needle plate.
  • Press TRACE and watch the presser foot path for full clearance inside the frame.
  • Success check: The trace path stays clearly inside the magnetic frame boundaries with zero contact or “tapping” sounds.
  • If it still fails… Re-hoop to remove seams/pockets from the clamp area, or re-position/resize the design to increase clearance.
• Q: How do I prevent hoop burn ring marks on plush robes when using a standard screw-tightened embroidery hoop vs a magnetic embroidery hoop?
  A: Stop stretching plush fabric “drum tight”; switch to a magnetic hoop clamping method when hoop burn keeps happening.
  • Re-hoop with the fabric held neutral (secure but not stretched), especially on velvet/plush surfaces.
  • Hoop sideways when needed so bulk is not forcing tension or twisting at the hoop.
  • Success check: After unhooping, there is no permanent ring impression and the fabric surface recovers evenly.
  • If it still fails… Treat repeat ring marks as a tool-limit trigger: upgrade from a standard hoop to a magnetic hoop for consistent vertical pressure.
• Q: What stabilizer combination should be used for a plush bathrobe monogram to stop stitches from sinking into the pile?
  A: Use water-soluble topping on top of the robe, plus tear-away backing underneath for a standard monogram on plush terry/fleece.
  • Place a full sheet of clear water-soluble topping over the entire design area before stitching.
  • Load tear-away backing under the fabric in the hooping station to add friction and prevent shifting.
  • Success check: Satin borders and edges remain visible on top of the pile instead of disappearing into the loops.
  • If it still fails… Pause and lay a fresh piece of topping over the area, then rewind about 20 stitches and continue.
• Q: What is the fastest way to diagnose “messy” or “scribbled” stitch results after Chroma Inspire Auto-Digitize from an SVG monogram?
  A: Stop the stitch-out and simplify the vector artwork, because auto-digitize reflects the SVG quality and can fail on detailed shapes.
  • Zoom in (about 200%) in the vector stage and correct spacing so the negative space looks balanced.
  • In Chroma Inspire, run stitch simulation (Slow Redraw) before hooping to spot odd jumps/gaps.
  • Avoid auto-digitize for serif fonts, distressed textures, and very small text (under 0.25 inches).
  • Success check: The on-screen simulation looks clean and intentional; no excessive jump stitches or chaotic angles.
  • If it still fails… Clean up nodes in the vector software or use professional/manual digitizing for the design.
• Q: How do I hoop a thick plush robe sideways on a magnetic hooping station without the fabric shifting during embroidery?
  A: Hoop sideways and use tear-away backing as a “friction layer,” then confirm a strong magnetic “snap” before moving to the machine.
  • Seat the bottom ring in the hooping station, then lay tear-away backing over the hoop area.
  • Align the placement mark, add water-soluble topping, remove the pin, then clamp the top magnetic ring straight down.
  • Listen and feel for a solid, authoritative snap to confirm nothing bulky is caught between rings.
  • Success check: The fabric is secure with no creeping when you tug lightly, and the clamp feels even all around.
  • If it still fails… Abort and re-hoop; a muffled snap often means a seam, pocket edge, or excess bulk is trapped.
• Q: What needle size and machine speed should be used as a safe starting point for monogramming plush robes on a multi-needle embroidery machine to reduce needle breaks?
  A: Start with a fresh 75/11 ballpoint needle and run about 600–700 SPM; slow down and/or change needle if thick seams are involved.
  • Install a new needle before the job; plush fabrics and long runs punish dull points quickly.
  • Begin at 600–700 SPM (a safe starting point for beginners on plush) and watch the first 30 seconds closely.
  • If stitching across a thick seam, move up to a 90/14 needle and reduce speed to limit deflection.
  • Success check: Stitching sounds rhythmic and smooth (no sharp clacking), and the needle does not deflect or snap near bulky transitions.
  • If it still fails… Re-run Trace to rule out frame contact, then reassess hooping for trapped seams or excess drag from unsupported garment bulk.
• Q: What are the key safety steps to prevent needle damage and pinch injuries when using magnetic embroidery hoops on thick garments?
  A: Remove all pins before stitching and keep fingers clear when closing the magnetic hoop, because the magnets clamp hard and a pin can shatter a needle.
  • Place the water-soluble topping, then remove the placement pin before the hoop goes anywhere near the machine.
  • Close the magnetic hoop by lowering it straight down; keep fingertips away from the mating surfaces (pinch hazard).
  • Keep magnetic hoops away from pacemakers and implanted medical devices.
  • Success check: No pins remain in the sewing field, and the hoop closes cleanly without hand repositioning near the clamp edge.
  • If it still fails… If a needle breaks, stop immediately, replace the needle, and perform a Trace before restarting to prevent hook/timing damage.
