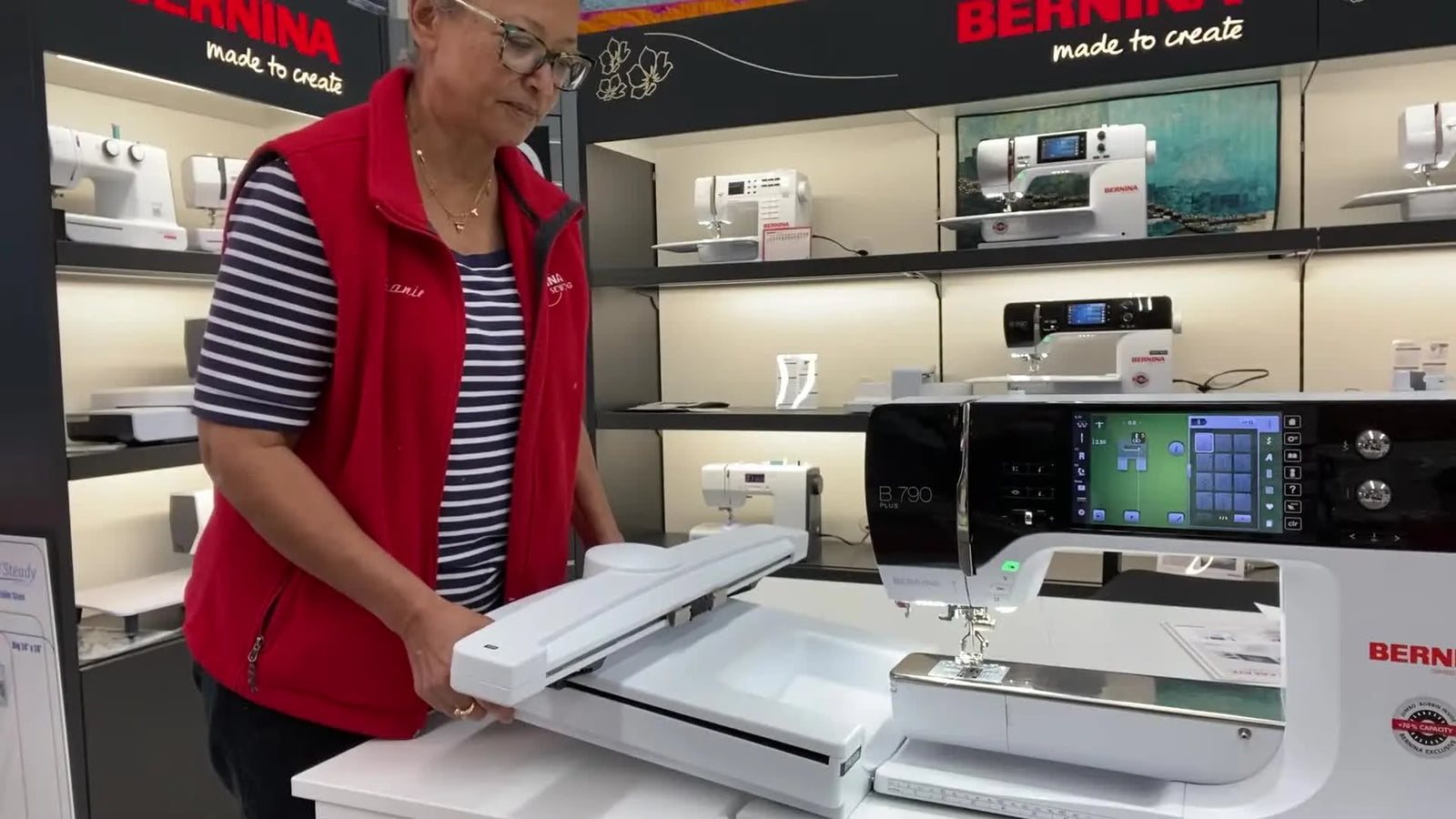

Attach the BERNINA Embroidery Module Without Breaking Anything: The “Lift, Slide, Burp” Setup That Saves Your Alignment

Master Your BERNINA Embroidery Module: A Zero-Friction Setup Guide for Nervous Beginners

If you are staring at your BERNINA embroidery module and thinking, "This feels expensive and fragile," your instincts are correct. It is expensive, and it operates on precision alignment. You aren't being dramatic; you are being smart.

The first five minutes of setup determine whether your afternoon is spent creating art or battling disconnect messages and rippled fabric. As someone who has trained hundreds of operators, I can tell you that 90% of "machine errors" are actually setup errors.

This guide reconstructs the standard classroom workflow for BERNINA Series 5, 7, and 8 machines, but adds the "Field Experience" layer—the sensory checks, the physics of why things fail, and the invisible safety protocols that keep your equipment running for decades.

Rule #1: Don’t Grab the Arm (The $500 Mistake)

The module is L-shaped. Your brain sees the long embroidery arm and thinks "Handle." Stop. In the video, the instructor is explicit: do not lift by the arm.

The arm contains delicate belts and stepper motors calibrated to a fraction of a millimeter. Lifting the module by the arm is like lifting a dog by its tail—it causes internal stress you cannot see until your designs start stitching out oval circles.

The Expert Grip:

• Action: Lift from the left side (solid body) and the back/base underneath.
• Sensory Check: You should feel the solid heft of the motor housing, not the wobbly play of the movable arm.

Warning: Never lift, carry, or nudge the module by the embroidery arm. A single twist can misalign the X/Y axis stepper motors, leading to "drifting" designs and expensive service calls.

Pre-Flight Visual: The "Prong & Slot" Check

Before you attempt to dock the module, you need to understand the connection interface. The video instructs you to visually identify:

1. The Prongs on the module (male connector).
2. The Slots/Holes on the machine base (female connector).

Why this matters: Beginners often try to force the connection at an angle. This bends pins. The Fix: Position the module next to the machine before you try to slide it in. Crouch down if you have to. If you can't see the slots, don't push.

The "Lift & Slide" Technique (Series 7/8 Specifics)

For Series 7 and 8 machines (like the B 790), the connection requires a specific tactile maneuver. It is not a straight shove; it is a guided engagement.

The Micro-Steps:

1. Parallel Alignment: Place the module parallel to the machine.
2. The Tilt: Gently raise the back side (left side) of the module about 1 inch. This aligns the locking pins.
3. The Slide: Slide the module firmly to the left into the machine base.
4. The Audible Confirmation: Listen for "The Bernina Burp."

Sensory Success Metrics:

• Touch: The slide should feel smooth, plastic-on-plastic. If you feel "gritty" resistance, stop. You are misaligned.
• Sound: You are waiting for a distinct mechanical engagement sound—often described as two quick clicks or a "burp." This is the sound of the machine's latch engaging the module.


The Physics of "The Tilt"

Why tilt? Because sliding it perfectly flat often causes the locking mechanism to bind. Lifting the back slightly creates the optimal angle of attack for the prongs to enter the slots without friction. It reduces wear and tear on your contact points.

The Flat-Table Imperative: Preventing "Phantom" Disconnects

The instructor emphasizes that you must be on a flat surface. This sounds obvious, but let's define "flat" in the context of embroidery physics.

Your embroidery machine creates thousands of micro-vibrations per minute. If your table is warped, flimsy (like a card table), or uneven, the machine and the module will vibrate at different frequencies. This micro-movement breaks the electronic contact between the module and machine for milliseconds—enough to trigger a "Module Not Connected" error mid-stitch.

The Stability Test:

• Place a glass of water on the table. Run the machine at 600 SPM (Stitches Per Minute).
• If the water ripples violently, your table is too unstable for high-precision embroidery.

Commercial Insight: If you eventually upgrade your workspace, stabilizing your equipment is key. Many users search for terms like machine embroidery hooping station not just for hooping, but to find dedicated, rock-solid tables that standardize their production environment.

Ergonomics: Chair-Proof Your Work Zone

Here is a scenario I have seen a dozen times: An operator spins their chair to grab scissors, the chair back hits the embroidery arm, and the arm gets knocked out of alignment.

The Safety Protocol:

• Positioning: Place the machine far enough back on the table so the embroidery arm travels behind the desk edge, or flush with it.
• The "No-Fly Zone": Your chair should never be able to physically touch the arm, even if you spin 360 degrees.

Why this matters for your wallet: If you bump the arm while it is engaged, the motor may skip a step. The machine doesn't know this happened. It will continue stitching, but your outline will be offset by 5mm, ruining the garment. For beginners, this frustration is often the reason they quit.

Tip: Proactively managing your workspace prevents errors. This mindset is similar to researching efficient workflows, such as hooping for embroidery machine techniques, where preparation is 80% of the success.

Series 5 Variation: The Straight Push

If you own a Series 5 machine, the "Lift and Tilt" method does not apply. The mechanism is different.

• Action: Align parallel.
• Force: Push firmly and evenly.
• Constraint: Do not lift the module. Keep it flat against the table.
• Success Metric: You will feel a solid "thud" as it seats home.


The Feed Dog Ritual

Once connected, your screen will prompt you to lower the feed dogs. Do not ignore this.

1. Locate the button on the far right side of the machine (it usually has a feed dog icon).
2. Press until it clicks. It is a mechanical spring-loaded button. A soft press won't do it.
3. Visual Check: The screen prompt should disappear or change to a confirmation image.


Why Lower Feed Dogs? (The Logic)

Feed dogs are metal teeth designed to grab and pull fabric forward. In embroidery, the pantograph (arm) moves the hoop in all directions (X and Y axis). If the feed dogs are up, they will fight the hoop movement, causing drag, friction, and eventually, a bird's nest of thread under your throat plate.

3 Core Pre-Flight Checks (The "Hidden" Manual)

The video covers the mechanical connection, but here are the "consumable" checks pros do to avoid failure before sliding the module on.

1. The Needle/Thread/Bobbin Audit

• Needle: Is it new? Start every major project with a fresh Topstitch or Embroidery needle (Size 75/11 or 90/14).
• Bobbin: Clean out the bobbin case. Even a tiny piece of lint can throw off tension sensors.
• Thread: Ensure the thread path is clear and not caught on the spool cap.

2. The Hooping Strategy

Bad hooping causes 50% of quality issues. You want the fabric to be "taut as a drum skin" but not stretched.

• Novice Error: Pulling the fabric after tightening the hoop screw. This distorts the grain.
• Expert Fix: Use the correct stabilizer and hoop on a flat surface.

3. The Supply Check

Do you have your "hidden consumables"?

• Temporary Spray Adhesive (505 Spray).
• Correct Stabilizer (Cutaway vs. Tearaway).
• Machine Oil (if required by your specific manual).


Decision Tree: Fabric & Stabilizer Selection

Ripples aren't always the module's fault; often, it's the wrong stabilizer. Use this logic gate:

Start: Identify Fabric Type

1. Is it Stretchy? (T-shirts, Polos, Knits)
   • Yes: YOU MUST USE CUTAWAY STABILIZER. Tearaway will fail as the stitches pull the fabric.
   • Tip: Don't float it; hoop it.
2. Is it Stable? (Denim, Canvas, Towels)
   • Yes: You can use TEARAWAY Stabilizer.
   • Sub-question: Is it thick/fluffy (Towel)?
     • Yes: Add a Water Soluble Topper (Solvy) so stitches don't sink in.
3. Is it Slippery/Delicate? (Silk, Satin)
   • Yes: Use No-Show Mesh (Cutaway) + Spray Adhesive. Minimize hoop burn.

Speed Limit Suggestion: For your first few runs, manually lower the machine speed to 400-600 SPM (Stitches Per Minute). Speed creates vibration; master quality first, then speed up.

Troubleshooting: The "Oh No" Moments

Keep this diagnostic list near your machine.

The Efficiency Upgrade Path: When to Switch Tools

As you move from "hobbyist" to "semi-pro," you will encounter physical limitations: wrist pain from hooping, hoop burn on velvet, or simply running out of time.

This is the commercial loop where upgrading tools solves physical pain.

Pain Point 1: "Hooping hurts my hands and leaves marks."

Traditional hoops require brute force and a screw. This crushes fabric fibers (hoop burn) and strains your wrists.

• The Solution: magnetic embroidery hoops. They use magnetic force to clamp fabric instantly without the "friction burn" of inner/outer rings.
• The Benefit: Zero hoop burn on velvet/performance wear and 5x faster hooping.
• Compatibility: Check specifically for bernina magnetic hoop sizes that fit your module's arm width.

Warning (Magnets): Magnetic hoops use industrial-strength magnets. They can pinch fingers severely. KEEP AWAY from pacemakers and medical implants. Do not place credit cards or phones directly on the magnets.

Pain Point 2: "I have an order for 50 shirts."

A single-needle Bernina is a masterpiece, but changing threads 12 times per shirt for 50 shirts is a bottleneck.

• The Diagnostic: If you spend more time changing thread than stitching, you have outgrown a single-needle workflow.
• The Solution: This is when shops look at multi-needle platforms (like SEWTECH multi-needle embroidery machines) or invest in a hoop master embroidery hooping station to ensure every logo is placed in the exact same spot on every shirt.


Final Setup Checklist (The "Green Light" Protocol)

Do not press 'Start' until you check these 5 boxes:

• Module Seating: Did I hear the connection click/burp?
• Clearance: Is the space behind the machine clear for the hoop to travel?
• Feed Dogs: Did I physically feel the button click down?
• Needle: Is there a fresh embroidery needle installed?
• Bobbin: Is the bobbin thread tail cut short (1cm) to prevent tangling?


Operation Checklist: The First 60 Seconds

• Watch the Start: Keep your hand near the "Stop" button.
• Listen: A rhythmic "thump-thump-thump" is good. A grinding noise or a loud "BANG" means stop immediately—your hoop likely hit something.
• Check the Tail: Did the machine catch the bobbin thread? If not, pause and trim any long tails.


Summary: Embroidery is a game of variables. By stabilizing your table, mastering the "Lift and Slide" module attachment, and adhering to strict fabric-stabilizer pairings, you eliminate 90% of the variables that cause beginners to fail.

Once you have mastered the basics, looking into efficiency tools like a bernina magnetic hoop will be your natural next step to professional-grade results. Be patient, be precise, and listen to your machine.

FAQ

• Q: How do I attach a BERNINA embroidery module on BERNINA Series 7/8 machines without triggering “Module Not Connected” errors?
  A: Align the module parallel, use the small “tilt,” then slide left until the latch engages—don’t force it.
  • Place the embroidery module next to the BERNINA machine and visually line up the prongs (module) with the slots (machine base).
  • Lift the back/left side of the module about 1 inch, then slide the module firmly to the left into the base.
  • Stop immediately if resistance feels gritty; re-align instead of pushing harder.
  • Success check: Hear and feel the distinct engagement sound (often described as two clicks or a “burp”) and the module seats smoothly.
  • If it still fails: Remove the module, clear lint at the contact area, and re-seat again on a flat, stable table.
• Q: How do I install a BERNINA embroidery module on a BERNINA Series 5 machine if the “lift and tilt” method does not work?
  A: Keep the module flat on the table and use a straight, firm push—do not lift the module on Series 5.
  • Align the embroidery module parallel to the BERNINA machine base.
  • Push firmly and evenly straight into the connection until it seats.
  • Avoid lifting during insertion; lifting can prevent proper seating on this mechanism.
  • Success check: Feel a solid “thud” as the module seats home and the connection feels stable.
  • If it still fails: Re-check prong/slot alignment visually before pushing again.
• Q: Why does a BERNINA embroidery module disconnect mid-stitch with a “Module Not Connected” message even after correct attachment?
  A: Table instability can cause micro-vibration contact loss, so the fix is a truly flat, rigid surface and a re-seat of the module.
  • Move the BERNINA machine and embroidery module to a sturdier, flatter table (avoid flimsy or warped surfaces).
  • Re-seat the module firmly and confirm full engagement before restarting.
  • Run a quick stability test at embroidery speed and watch for excessive table vibration.
  • Success check: The design runs without mid-stitch disconnects and the module connection stays consistent.
  • If it still fails: Remove the module, clear lint near the connection points, and attach again while watching alignment closely.
• Q: How do I prevent BERNINA bird’s nests under the throat plate caused by forgetting to lower BERNINA feed dogs in embroidery mode?
  A: Lower the BERNINA feed dogs until the button physically clicks before starting any embroidery.
  • Locate the feed dog button on the far right side of the BERNINA machine (feed dog icon).
  • Press firmly until it clicks (a soft press may not engage the mechanism).
  • Confirm the on-screen prompt changes/disappears before stitching.
  • Success check: The hoop moves freely in X/Y without drag and the underside shows no sudden thread wad buildup.
  • If it still fails: Pause, remove the hoop, cut away tangles, and re-check threading and bobbin area for lint before restarting.
• Q: What is the fastest pre-flight checklist to reduce BERNINA embroidery thread issues before connecting the BERNINA embroidery module?
  A: Do a quick needle/thread/bobbin audit and a basic supply check—most “machine issues” start here.
  • Replace the needle (a fresh embroidery or topstitch needle in size 75/11 or 90/14 is a common starting point; follow the BERNINA manual for your model).
  • Clean lint from the bobbin area/bobbin case and confirm the thread path is not snagged on the spool cap.
  • Confirm “hidden consumables” are ready: correct stabilizer type, temporary spray adhesive (if used), and any oil required by the specific manual.
  • Success check: The first minute of stitching sounds rhythmic (no grinding) and the underside shows controlled bobbin thread, not looping.
  • If it still fails: Slow the machine to the suggested beginner range (about 400–600 SPM) and re-check hooping and stabilizer choice.
• Q: How do I choose stabilizer for BERNINA embroidery when fabric keeps rippling, outlines show gaps, or stitches sink into towels?
  A: Match stabilizer to fabric type first; most ripples and gaps are stabilization failures, not module failures.
  • Use cutaway stabilizer for stretchy knits (T-shirts, polos); tearaway often fails as stitches pull the fabric.
  • Use tearaway stabilizer for stable wovens (denim, canvas); add a water-soluble topper for thick/fluffy towels so stitches don’t sink.
  • Use no-show mesh (cutaway) plus spray adhesive for slippery/delicate fabrics (silk, satin) to reduce shifting and minimize hoop marks.
  • Success check: The stitched area stays flat after unhooping and outlines remain continuous without gaps or puckers.
  • If it still fails: Re-do hooping on a flat surface aiming for “taut like a drum skin” without stretching the fabric grain.
• Q: How do I reduce BERNINA hoop burn ring marks on delicate fabrics, and when should I consider magnetic embroidery hoops for BERNINA workflow efficiency?
  A: Start by reducing over-tight hooping pressure and use fabric-friendly techniques; consider magnetic hoops when hoop burn or hand strain keeps repeating.
  • Avoid over-tightening on delicate fabrics; hoop for “taut” rather than “cranked,” and steam can often help remove light ring marks afterward.
  • If repetitive hoop burn or wrist pain continues, magnetic embroidery hoops can clamp fabric without the friction of inner/outer rings and speed up hooping.
  • Follow strict magnet safety: industrial magnets can pinch fingers severely and must be kept away from pacemakers/medical implants and away from cards/phones.
  • Success check: Fabric shows little to no visible ring imprint after unhooping and hooping time drops noticeably without extra force.
  • If it still fails: Re-check stabilizer choice and consider slowing stitch speed early on (about 400–600 SPM) to reduce vibration-related distortion.
