Artistic Sewing Suite View Menu: The Visual Controls That Stop “Guesswork Digitizing” (3D Preview, Grid, Guidelines, Backdrop)

When you are staring at your monitor at 2 AM, digitizing a rush order, your computer screen is a liar. It shows you a pristine, flat, perfect design. But out on the production floor, physics takes over: thread twists, fabric pulls, and heavy fills warp your perfect circles into ovals.

The “View” menu in Artistic Sewing Suite is not just about changing colors or zooming in. It is your pre-flight diagnostic instrument. It is the only thing standing between a profitable run and a bin full of ruined garments.

In my 20 years of embroidery production, I have learned that the fastest way to ruin a file isn’t "bad stitches"—it’s bad visual decisions made early because the digitizer blindly trusted the default view.

This guide will teach you how to strip away the "pretty" rendering to see the naked truth of your design, and when to stop looking at the screen and start upgrading your physical workflow.

The Calm-Down Moment: What the Artistic Sewing Suite View Menu Really Controls (and Why It Matters)

New digitizers often feel overwhelming "Cognitive Friction" when opening the View menu. There are too many toggles. Let’s simplify this.

Think of the View menu as your Reality Simulator. It controls two critical streams of data:

1. Simulation (The Lie): 3D Preview, Light Source, Fabric Background. These help you sell the design to a client, but they hide technical flaws.
2. Architecture (The Truth): Grid, Guidelines, Crosshairs. These are the engineering tools that ensure your design fits the hoop and aligns with the garment.

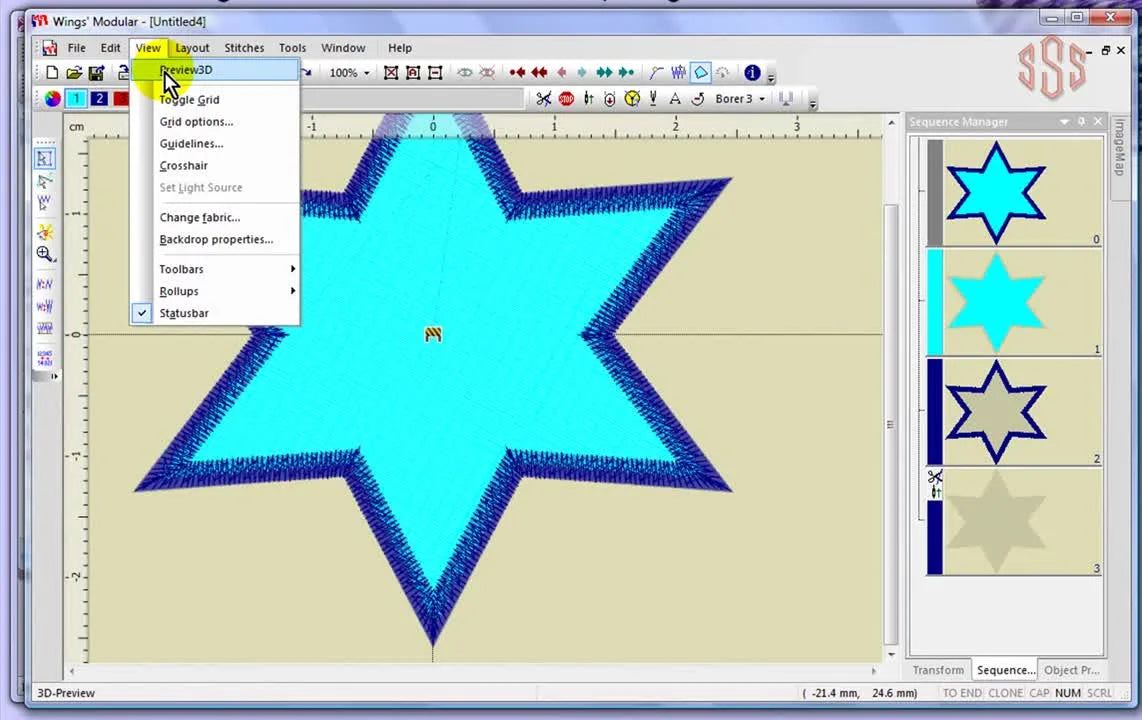

In Artistic Sewing Suite, the View drop-down menu is your control center for:

• 3D Preview: (The "Client View" vs. The "Engineer View")
• Light Source: (Revealing hidden texture direction)
• Grid: (Your absolute measuring stick)
• Guidelines: (Your digital jigs and fixtures)
• Crosshair: (Global alignment)
• Fabric Background: (Contrast checking)
• Backdrop Properties: (Controlling your reference art)


Make 3D Preview in Artistic Sewing Suite Tell the Truth: Lighting, Shadows, and “False Confidence”

By default, modern software tries to make embroidery look like a photograph. It adds shadows, sheen, and texture. This creates "False Confidence." You see a solid block of color and assume it will cover the fabric.

The Reality Check: Real thread creates ridges. If your stitch angles are wrong, light hits the thread and makes it look like a totally different color, or exposes the fabric underneath.

How to use 3D Preview for Diagnostics (Not Aesthetics):

1. Toggle the Truth: Go to View → Preview 3D.
   • Turn it ON to check for "Visual Density"—does the thread look like it covers?
   • Turn it OFF (Flat View) to check "Structural Integrity"—are your underlay stitches dangerously close to the edge? Are your connectors crossing through a negative space?
2. The Flashlight Test: Go to View → Set Light Source.
3. Operation: Move the light source on the globe.
   • Visual Anchor: Watch your satin stitches. If they look "flat" from one angle but "shaggy" from another, your stitch length might be too long (over 7mm), which puts them at risk of snagging.
4. Intensity Slider: Adjust this to verify contrast. If you have to crank the specific brightness to see the difference between two dark threads (e.g., Navy and Black), your machine operator will struggle to distinguish them too.




Expert Insight: I never finalize a file in 3D mode. 3D mode hides "micro-gaps" between segments that will widen when the fabric shifts. Always do your final gap-check in Flat View (2D).

Dial In Grid Options in Artistic Sewing Suite: Stop Guessing Size (10 mm Main Grid, 1 mm Sub Grid)

Humans are terrible at estimating size on a zoomable screen. A logo might look huge zoomed in, but actually be the size of a dime. This leads to the classic beginner mistake: Over-detailing small objects.

The Grid is your anchor to the physical world.

Operational Setup:

1. Go to View → Toggle Grid.
2. Go to View → Grid Options.

The "Golden Ratio" for Embroidery Grids:

• Main Grid: 10mm (1 cm).
  • Why? 10mm is roughly the width of a standard pinky finger nail. It gives you an instant visceral sense of scale. If a letter is smaller than half a grid square (5mm), you need to switch to a thin 60wt thread or simplify the font.
• Sub Grid: 1mm.
  • Why? Standard stitch density is roughly 0.4mm spacing. A 1mm grid helps you confirm that your satin columns are at least 1.5mm wide (safety minimum).

In the demonstration, you can see how changing the X unit to 2 mm vs 5 mm drastically changes your perception of the space.

Warning: Never digitize without the grid visible unless you are presenting to a client. Flying blind without a grid is the #1 cause of designs that are "too big for the hat" or "too small to be legible."

Use Guidelines in Artistic Sewing Suite Like a Jig: Fast Alignment, Exact Coordinates, and Circular Layouts

In a physical woodshop, we use jigs to ensure every hole is drilled in the exact same spot. Guidelines are your digital jigs.

If you are just eyeballing the center of a design, you will fail when doing Left Chest volume orders.

How to Create "Digital Jigs":

1. Engage the Ruler: Mouse over the ruler bar (top or side).
2. The Drag: Click and hold inside the ruler, then drag down into the workspace.
3. The Drop: Release the mouse to create a permanent, non-printing guide line.


Precision Editing: You can right-click or double-click guidelines (depending on version) to type in exact coordinates.

• Scenario: You need a logo exactly 100mm wide.
• Action: Set one vertical guide at 0.0 and another at 100.0. Now force your design to fit between them. No guessing.




The Circular Guide (The Game Changer): Creating text on an arc? Don't guess the curve. Use a Circular Guideline (shown in [FIG-10]) to define the exact radius.

Why Pros Use This: It reduces cognitive load. You don't have to look at the numbers constantly. You just make sure the design touches the line. It transforms "Is this straight?" to "It is touching the line, therefore it is straight."

Turn On the Artistic Sewing Suite Crosshair When Alignment Feels “Off by a Hair”

Sometimes you need to align an object at the top of the hoop with an object at the bottom, but you are zoomed in too close to see both.

The Solution:

1. Go to View → Crosshair.
2. Your mouse cursor becomes a massive "Smart Sight" that spans the entire screen (X and Y axis).


Use Case: Checking vertical alignment of a logo centered above a name drop. You can zoom in 500% on the letter "i" in the name, and use the crosshair to ensure it lines up perfectly with the center point of the logo 150mm above it, without scrolling back and forth.

Change Fabric Background in Artistic Sewing Suite to Preview Contrast (Burlap, Denim, Fleece, Flannel)

White backgrounds are dangerous. They provide infinite contrast. In reality, you might be stitching Navy thread on a Black jacket.

Stop imagining. Start Simulating:

1. Go to View → Change Fabric.
2. Select a texture that mimics your job (e.g., Burlap, Denim, Fleece).




Critical Decision Point: When you switch to a dark background (like Denim), do your dark border stitches disappear?

• If Yes: You need to change the thread color or add a lighter "holding stitch" underneath.
• If No: Proceed.

The "Sink" Factor: Choosing a texture like Fleece or Terry Cloth is a visual reminder. When you see that fluffy texture on screen, let it trigger your muscle memory: "I need water soluble topping (Solvy) and a Knockdown Stitch, or this text will sink and vanish."

Backdrop Properties in Artistic Sewing Suite: Make Imported Artwork Selectable (and Stop Fighting Your Reference Image)

Digitizing is essentially tracing with thread. You import a JPEG of a logo and place stitches over it. But if you accidentally click and drag the background image while trying to move a stitch, you ruin your registration. Everything you digitize after that moment will be misaligned.

The Safety Lock:

1. Go to View → Backdrop Properties.
2. The Checkbox that Saves Sanity: Look for Selectable.




The Workflow:

1. Import Art.
2. Enable "Selectable".
3. Scale and Rotate the art to match your Grid/Guidelines.
4. DISABLE "Selectable" (Lock it down).
5. Digitize.

By locking the backdrop (making it unselectable), you can click wildly on your stitches without ever accidentally shifting the reference map.

Hide Toolbars and Use the Status Bar Like a Pro: More Workspace, Fewer Missed Details

Laptop screens are small. Embroidery designs are complex. You need screen real estate.

The Clean Cockpit:

• Toolbars: Once you know your hotkeys (e.g., 'T' for Text, 'S' for Select), hide the Standard Toolbar (View → Toolbars). Gain that extra inch of vertical space.
• The Status Bar: (View → Status Bar). NEVER HIDE THIS.


Why the Status Bar is Vital: It displays your X/Y Dimensions and Stitch Count in real-time.

• The "Hoop Crash" Check: If your X dimension reads 101mm and your hoop is 100mm wide, the machine will refuse to sew (or worse, hit the frame).
• The "Bulletproof" Check: If a 2-inch logo has 15,000 stitches, your density is way too high. You are sewing a bulletproof vest, not a logo. The status bar warns you before you ruin a garment.

PRE-FLIGHT CHECKLIST (Do this before exporting)

• Grid Check: Is design sized correctly against the 10mm grid?
• Density Check: Did I toggle 3D off to check for super-dense clusters?
• Pathing Check: Did I run the "Slow Redraw" to watch the sewing order?
• Size Check: Does the Status Bar show dimensions that fit within the physical hoop's safety margin (usually -10mm from total hoop size)?
• Hidden Consumables: Do I have temporary spray adhesive, sharp needles (75/11), and the correct stabilizer ready?

The “Screen-to-Stitch” Decision Tree: When to Trust View Tools vs. When to Upgrade Your Workflow

You have mastered the View menu. Your file is technically perfect. But you run the machine, and the fabric still puckers, or the outline is off. Why?

Software manages data. Hardware manages physics.

If your digital file is perfect but your physical result is flawed, you have a stabilization or hooping bottleneck. Use this logic flow to diagnose the issue:

Scenario A: The "Hoop Burn" Nightmare

• Symptom: You un-hoop the garment, and there is a permanent ring mark (hoop burn) pressed into the delicate fabric.
• Cause: Traditional screw-tight hoops crush fibers to hold tension.
• The Fix: This is a hardware limit.
  • Level 1: Try wrapping your plastic hoops with bias tape/Vetrap.
  • Level 2 (Pro Solution): Switch to magnetic embroidery hoops. These use vertical magnetic force rather than friction. They hold thick jackets without crushing zippers, and delicate silks without leaving burns.

Scenario B: The Slanted Logo

• Symptom: File is straight on the Grid/Guidelines, but crooked on the shirt.
• Cause: Human error during manual hooping.
• The Fix:
  • Level 1: Mark every shirt with a water-soluble pen and a T-square.
  • Level 2 (Pro Solution): Use a hoopmaster hooping station or similar fixture. These ensure the hoop lands in the exact same spot on every shirt, every time.

Scenario C: Production Fatigue (The "I hate changing fabric" problem)

• Symptom: Adjusting screws for thick hoodies vs. thin tees is slowing you down and hurting your wrists (Carpal Tunnel risk).
• The Fix: This is where professionals search for how to use magnetic embroidery hoop videos. A magnetic frame self-adjusts to thickness. A hoodie snaps in just as fast as a t-shirt.
  • Note: If you are running high volume (50+ items), consider upgrading to a multi-needle machine (like the SEWTECH commercial series) which pairs perfectly with magnetic frames for continuous production.

Common Pitfalls I See After This View Menu Lesson (and How to Avoid Them)

1. The "Zoom Delusion"

• Mistake: You do all your work zoomed in at 600%.
• Result: You create tiny, jagged details that look smooth on screen but turn into a thread nest on the machine.
• Fix: Press the "1:1" (Actual Size) view button frequently to ground yourself.

2. Treating the Screen Background as Stabilizer

• Mistake: You select "Denim" as a background and assume the software adds suitable underlay.
• Result: It does not. The background is cosmetic. You must manually add a "Tatami" or "Edge Run" underlay to support stitches on unstable fabric.

3. Ignoring the "Crosshair" on Large Layouts

• Mistake: "Eyeballing" the center of a jacket back.
• Result: The design ends up 2 degrees rotated. On a 12-inch design, 2 degrees is a visible slanted disaster.

Safety Warning (Magnets):
If you upgrade to a magnetic embroidery frame, treat it with respect. These are industrial neodymium magnets.
* Pinch Hazard: These magnets snap together with immense force. Keep fingers clear of the meeting point.
* Medical Safety: Keep frames away from pacemakers or insulin pumps.

The Upgrade Conversation: When Magnetic Hoops and Better Machines Actually Pay Off

The View Menu in Artistic Sewing Suite is about precision. It allows you to create a blueprint that is accurate to the millimeter.

However, a perfect blueprint requires a solid foundation.

• The Software is the Architect.
• The Machine is the Builder.
• The Hoop is the Foundation.

If you are fighting with screw-hoops, re-hooping slippery garments 3 times before starting, or seeing outlines shift because the fabric moved, you don't need to change your View settings—you need to stabilize your foundation.

For home hobbyists, standard hoops are fine. But if you are moving into the "Side Hustle" or "Small Business" zone, minimizing hooping time is the easiest way to double your profit. This is why the industry is moving toward magnetic embroidery hoop systems and dedicated hooping stations (like HoopMaster).

Final Tip: Start by mastering the View menu. Trust the Grid. Verify with the 3D toggle. Once your files are perfect, if the struggle continues, look at your hoops. The upgrade path is there when you are ready to scale.

Operation Checklist (The "Do This Every Session" Routine)

• Load Design: Check against Status Bar dimensions.
• View Check: Toggle 3D OFF to check structure, then ON to check aesthetics.
• Scale Check: Confirm size against the 10mm Grid.
• Placement: Drag Guidelines to define the "Safe Zone" limits.
• Environment: If working on dark fabric, set Background to dark to check for visibility issues.
• Physical Prep: Ensure you have the correct needle (Ballpoint for knits, Sharp for wovens) and the right stabilizer (Cutaway for stretch, Tearaway for stable).

FAQ

• Q: In Artistic Sewing Suite, should 3D Preview be ON or OFF when checking gaps and stitch structure before export?
  A: Turn 3D Preview OFF for final structural checks, then turn it ON only for visual coverage checks—this is common and prevents “false confidence.”
  • Toggle: Use View → Preview 3D to switch between Flat View (truth) and 3D (appearance).
  • Check: Inspect edges, connectors, and negative spaces in Flat View to catch micro-gaps and accidental crossovers.
  • Success check: In Flat View, segment edges look clean with no unintended lines crossing empty areas.
  • If it still fails: Run a slow redraw/sewing-order review to find the exact object creating the gap or crossover.
• Q: In Artistic Sewing Suite, how do I use View → Set Light Source to diagnose “shaggy” satin stitches and misleading thread color?
  A: Move the light source around to reveal direction and surface problems, because lighting can hide long stitches and color shifts.
  • Open: Use View → Set Light Source and drag the light position on the globe.
  • Watch: Observe satin columns from multiple angles; “flat at one angle, shaggy at another” is a red flag (often happens when stitch length is too long, e.g., over 7 mm).
  • Success check: Satin stitches look consistently smooth from different light angles, without sudden fuzziness or “ropey” texture.
  • If it still fails: Switch to Flat View and inspect the satin object for risky edge placement or pathing that could be exposing fabric.
• Q: In Artistic Sewing Suite, what Grid Options should be used to stop guessing design size (10 mm main grid, 1 mm sub grid)?
  A: Set the main grid to 10 mm and the sub grid to 1 mm so the design stays anchored to real-world size.
  • Enable: Turn on View → Toggle Grid, then open View → Grid Options.
  • Set: Use Main Grid = 10 mm and Sub Grid = 1 mm to judge letter size and column width realistically.
  • Success check: At “Actual Size” view, small text is not smaller than about half a main grid square (5 mm) unless the design is intentionally simplified.
  • If it still fails: Reduce detail rather than zooming in further; the “zoom delusion” commonly causes tiny jagged details that sew poorly.
• Q: In Artistic Sewing Suite, how do I lock an imported JPEG logo so the Backdrop image does not move while digitizing?
  A: Use View → Backdrop Properties and disable “Selectable” after positioning, so the artwork becomes a fixed reference map.
  • Import: Bring in the reference art, then open View → Backdrop Properties.
  • Align: Scale/rotate the artwork to match Grid/Guidelines while Selectable is enabled.
  • Lock: Disable Selectable before placing stitches.
  • Success check: Clicking and dragging on stitches never shifts the background image.
  • If it still fails: Re-align the artwork to the grid/guidelines first, then lock it again before continuing digitizing.
• Q: When a left-chest logo is straight on Artistic Sewing Suite Guidelines but sews crooked on shirts, how can manual hooping error be reduced?
  A: Treat placement as a physical alignment problem, not a software problem—start with marking, then move to fixtures if needed.
  • Level 1: Mark every shirt with a water-soluble pen and a T-square before hooping.
  • Level 2: Use a hooping station fixture (such as a HoopMaster-style station) to land the hoop in the same place every time.
  • Success check: Repeated shirts from the same order show the logo consistently level without “a few degrees” of rotation.
  • If it still fails: Turn on Artistic Sewing Suite View → Crosshair during layout checks to confirm the design itself is truly centered and aligned before stitching.
• Q: What causes hoop burn ring marks on delicate fabric when using traditional screw-tight embroidery hoops, and when should magnetic embroidery hoops be used?
  A: Hoop burn is usually a hardware limitation from friction and crushing pressure; magnetic embroidery hoops are often the practical upgrade when fabric marking becomes a repeat issue.
  • Level 1: Wrap plastic hoops with bias tape or Vetrap to reduce direct pressure marks.
  • Level 2: Switch to magnetic embroidery hoops that hold with vertical magnetic force instead of aggressive screw friction.
  • Success check: After un-hooping, the fabric shows minimal or no permanent ring impression while the stitch-out remains stable.
  • If it still fails: Re-check stabilization and hooping technique, because a perfect file cannot overcome fabric shifting or poor support.
• Q: What are the safety risks of using magnetic embroidery frames with industrial neodymium magnets, and how should operators handle them?
  A: Magnetic embroidery frames can pinch hard and may affect medical devices—handle slowly and keep magnets away from sensitive equipment.
  • Protect: Keep fingers away from the meeting point when magnets snap together (pinch hazard).
  • Separate: Open and close the frame with controlled movement, not a “let it slam” motion.
  • Medical: Keep magnetic frames away from pacemakers or insulin pumps.
  • Success check: The frame can be opened/closed repeatedly with no finger-pinches and no uncontrolled snapping.
  • If it still fails: Pause the workflow and retrain handling steps before production resumes—speed comes after safe muscle memory.
