Appliqué on a Knit Dress Without the Panic: Magnetic Embroidery Hoop 5.5, SWF Offset Moves, and a Clean Satin Finish

If appliqué on knits has ever made you freeze up—because you’re worried about stretching, puckers, or trimming too close—take a breath. We call this "Knit Panic," and it happens to everyone from hobbyists to 20-year shop veterans. But the solution isn't magic; it's physics.

This workflow is beginner-friendly, but it’s also the same industrial workflow I’d use in a production shop because it’s repeatable, fast, and forgiving.

We’re stitching an appliqué letter and bow onto the hem of a knit dress using a multi-needle machine (SWF KX-T1501) and a 5.5" square magnetic hoop. While the exact machine menus may differ on your model, the sensory sequence—mark, stabilize, hoop, trace, placement stitch, fabric placement, tackdown, trim, topper, satin—stays the constant.

Calm the “Knit Panic”: What This Appliqué Workflow Solves (and What It Doesn’t)

Knit fabric is distinct because it is constructed of loops, not a grid. It is stretchy by nature, so the two big failure modes are (1) the knit distorts while hooping or stitching (creating the dreaded "dishing" effect), and (2) satin stitches sink into the knit texture and look fuzzy or uneven.

The workflow presented here tackles both via a specific "Sandwich Equation":

• Bottom Layer: Fusible poly mesh on the inside to mechanically bond the knit fibers and control stretch.
• Hoop Layer: Tear-away stabilizer to provide rigidity for the frame.
• Top Layer: Water-soluble topper to keep stitches sitting proud on top of the fabric loft.

A quick reality check from 20 years at the machine: you’re not trying to make the knit “drum tight” like a woven canvas. If you pull a knit tight like a drum, it will snap back when unhooped, ruining your design. You are aiming for "Neutral Tension"—flat, smooth, and stable, but not stretched.

The “Hidden Prep” Pros Don’t Skip: Templates, Target Stickers, and a No-Regrets Center Mark

Dawn prints a template with crosshairs so placement is not guesswork. She uses a straight pin through the crosshair center, then lifts the paper while leaving the pin in place and marks a dot with a water-soluble marking pen.

Sensory Check: Push the pin through. You should feel it pierce the paper and the top layer of fabric, but stop before you pin it to your ironing board.

That tiny move—pin first, then mark—prevents the classic beginner mistake: the template shifts while you’re trying to mark, and your design ends up a half-inch off-center.

Pro tip (from the comments): If you’re wondering “How do I obtain templates of my designs?” the practical answer is: use the print function in your embroidery software (like Wilcom or Hatch), or print from the design’s included PDF if your design provider supplies one.

Prep Checklist (Do this before you touch the hoop)

• Blank garment inspected: Check for manufacturing oils or defects before you start.
• Printed template: Crosshairs visible and stitch order understood.
• Marking Tools: Straight pin + air-erase or water-soluble pen.
• Target sticker: Placed exactly on the marked center dot.
• Stabilizer A (Structure): Fusible poly mesh (e.g., No Show Mesh) ready to iron to the inside.
• Stabilizer B (Hooping): Tear-away stabilizer ready for the hoop station.
• Appliqué fabrics: Pre-cut (turquoise for the letter, red for the bow) with iron-on adhesive (Fuse Me/Heat n Bond Lite) applied to the back.
• Tool Upgrade: Appliqué scissors (duckbill) ready for trimming.
• Surface Prep: Water-soluble topper ready for the satin steps.

Stop Knit Stretching at the Source: Fusible Poly Mesh on the Inside (Not Optional)

Dawn turns the dress inside out and irons fusible poly mesh to the inside of the garment behind the target area. This is the stabilizing step that keeps the knit from growing while the needle is punching thousands of times.

Here’s the “why” in plain shop language: knits deform under tension. Hooping tension + stitch tension can pull the loops open. Once they open, the fabric doesn’t always recover. Fusible poly mesh adds a bonded layer that resists that deformation. It changes the physics of the fabric from "fluid" to "stable."

If you’re new to stabilizers, remember this pairing:

• Fusible poly mesh controls stretch bonded to the garment.
• Tear-away supports the stitch formation clamped in the hoop.

Warning: Mini irons and full-size irons can scorch synthetics and melt adhesives if you linger. Poly blends (common in knit dresses) can melt instantly. Always test your iron heat on an inconspicuous hem area first. Press, do not drag.

Magnetic Hooping on a Tubular Knit Dress: Center It Once, Then Trust the Frame

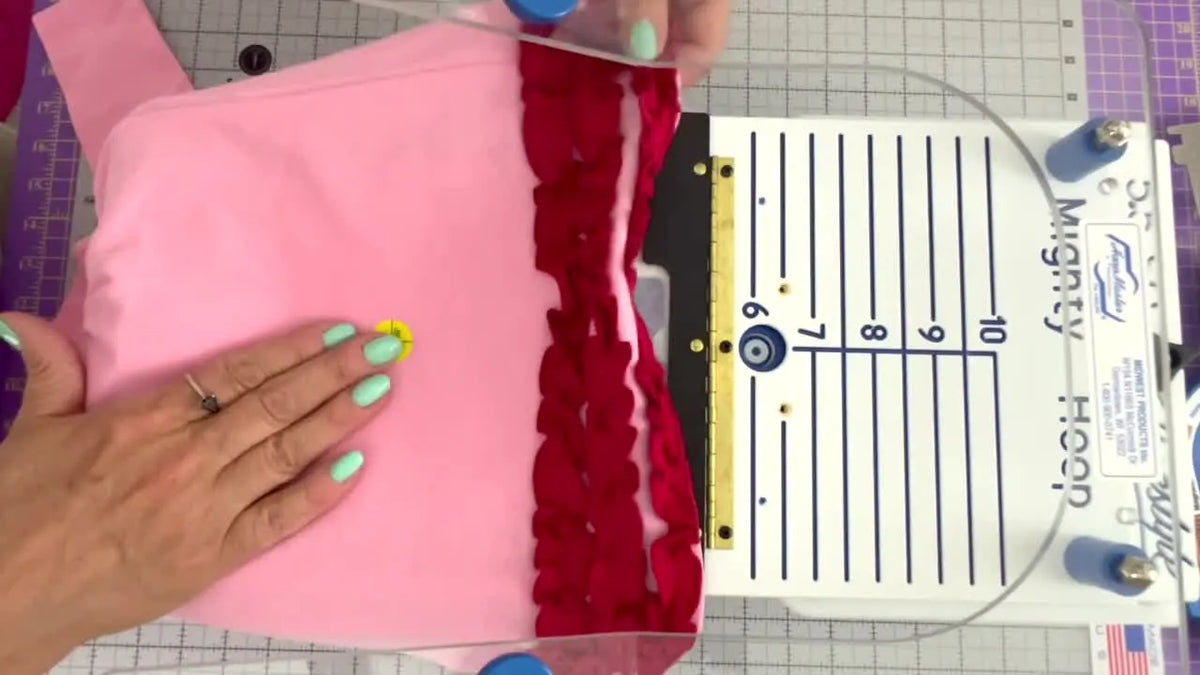

Dawn uses a freestyle hooping station and aligns the target sticker with the station’s zero mark. Tear-away stabilizer is held smooth on the station, then the top magnetic frame is pressed down until it snaps into place.

This is where magnetic systems shine on garments like dresses. In a traditional screw-tighten hoop, you have to push the inner ring into the outer ring, which creates friction that drags and distorts knit fabric ("Hoop Burn"). Magnetic hoops simply "sandwich" the fabric with vertical pressure, eliminating that drag.

Sensory Check: Listen for the sharp CLACK of the magnets engaging. Run your fingers over the hooped area—it should feel smooth and taut, but if you pull gently on the knit outside the hoop, the fabric inside shouldn't ripple violently.

If you’re specifically working with magnetic embroidery hoops, the biggest quality win is consistent clamping pressure without over-stretching the knit during hooping.

Tool upgrade path (When hooping is your bottleneck):

• Pain Point: If you are seeing shiny rings (hoop burn) on dark knits that won't wash out.
• Criteria: Are you ruining 1 in 10 shirts? Or spending 5+ minutes hooping one item?
• Option: A magnetic hoop is no longer a luxury; it's a spoilage-prevention tool.
• Scale: For home single-needle users who struggle with “getting the fabric in straight,” SEWTECH sells magnetic hoops designed for Brother, Babylock, and Janome machines that mimic this industrial efficiency.

Warning: Magnetic hoops contain powerful Neodymium magnets. They can pinch fingers severely (causing blood blisters) and can interfere with pacemakers. Keep credit cards and medical devices at least 12 inches away from the frame.

Setup Checklist (Before you load the design)

• Hooping Station: Tear-away stabilizer smoothed across the station board.
• Alignment: Target sticker crosshair perfectly aligned to the station’s specific grid.
• Garment Flow: Dress positioned so the hem area sits flat; excess fabric (the rest of the dress) is pooled correctly so its weight doesn't drag the hoop.
• The Snap: Magnetic hoop snapped down fully (check all 4 corners for gaps).
• Clearance: Ensure the bulk of the dress is folded away so it won't catch on the needle bar or pantograph arm.

SWF KX-T1501 Control Panel Setup: Needle Assignments, 180° Rotation, and the Offset Move That Saves Your Sanity

Dawn loads the design from USB, adds it to the user area, then loads it to stitch.

1) Assign needles by function (speed comes from fewer thread changes)

She assigns all placement and tackdown steps to Needle 1 (white thread), then assigns satin stitches to needles that match the fabrics:

• Placement/Tackdown: Needle 1 (Standard Bobbin White/Utility)
• Satin for the turquoise letter: Needle 8
• Satin for the red bow: Needle 3

This is a production-minded habit: placement and tackdown stitches are “utility stitches.” They will be hidden. Keeping them on one needle reduces machine stops and thread trims.

If you’re running a swf machine in a small shop, this one habit can shave 45-60 seconds off every garment. Over 100 shirts, that's an hour of labor saved.

2) Rotate the design 180° for garment orientation

Because the dress is loaded onto the machine "upside down" (neck hole towards the operator), she must rotate the design 180 degrees. If she doesn't, the letter will be upside down on the hem.

3) Program offsets after the right steps (So the frame comes to you)

This is the feature that makes appliqué feel “easy” instead of awkward. On home machines, this is often called "Appliqué Position" or "Frame Out." On industrial machines, it's an "Offset."

Dawn inserts Offset commands so the frame moves forward automatically at the moments you need tactile access:

• Offset after Step 2 (to place the first appliqué fabric).
• Offset after Step 4 (to trim before satin stitching).

Watch out: Some people use the word “offset” to mean resizing an outline. In this context, “offset” is a physical frame movement that brings the hoop out of the needle zone into the "Safety Zone" for your hands.

Trace Before You Stitch: Outline Trace to Confirm Fit and Prevent a Hoop Strike

Dawn always traces. She selects “Outline” trace so the needle bar simulates the perimeter of the design box without stitching.

This is not busywork. It is your insurance policy against two expensive disasters:

1. Placement Fail: Stitching off-center or crooked.
2. Machine Damage: A hoop strike (needle hitting the metal/plastic frame), which can shatter the needle, throw off the timing, or damage the reciprocating shaft.

If you’re learning how to use magnetic embroidery hoop, tracing is the moment you confirm your placement is truly centered. Because magnetic hoops have thicker walls than standard hoops, that "Trace" clearance check is vital.

The Appliqué Stitch-Out: Placement Line → Fabric Placement → Tackdown → Trim (Repeat)

Here’s the exact rhythm.

A) Stitch the placement line

The machine stitches a running stitch showing you exactly where the fabric needs to go.

B) Offset brings the hoop forward

The frame moves forward.

C) Place the appliqué fabric (Turn on your tactile senses)

Dawn places the fabric (Fuse Me side down) covering the placement line.

• Tip: Run your finger over the fabric. It should be flat. If you feel bumps, check for thread nests underneath.

D) Start again for tackdown

When she presses start, the frame returns to the exact stitch position and stitches the tackdown (often a double run or zig-zag).

E) Trim close to the stitch line (The "Under-Hand" Technique)

Dawn trims with appliqué scissors. Crucially, she keeps her left hand underneath the hoop to provide gentle upward pressure on the stabilizer.

Why do this? That upward pressure creates a firm surface to cut against, preventing the fabric from bouncing. It gives you a cleaner cut and reduces the risk of cutting the garment below.

Beginner Speed Limit: While pro machines can run 1000 SPM (Stitches Per Minute), for appliqué tackdown, I recommend slowing to 600-700 SPM. This prevents the presser foot from dragging your appliqué fabric out of position before it's fully tacked down.

Then she repeats the same sequence for the bow: placement stitch, offset, place fabric, tackdown, trim.

Press in the Hoop, Then Add Water-Soluble Topper: The Satin Stitch Will Look Sharper

After trimming, Dawn uses a mini iron to press directly inside the hoop. Since she uses "Fuse Me" (a fusible web), this heat bonds the appliqué fabric to the dress, creating a second layer of stability before the heavy satin stitching starts.

Then she places water-soluble topper (like Solvy) over the design area and secures it with magnets (SewTites) on the metal hoop frame.

This topper step is the difference between “homemade” and “clean” on knits. Without topper, the thread sinks into the knit loops. With topper, the thread sits on top of the film, creating a glassy, smooth satin finish.

If you’re building a workflow around hooping station for machine embroidery, keep your pre-cut topper squares within arm's reach.

Operation Checklist (Right before the final satin stitches)

• Trimming: Fabric trimmed to within 1-2mm of the tackdown line (no overhangs).
• Adhesion: Appliqué fabric pressed and bonded (if using fusibles).
• Topper: Water-soluble film placed flat and secured (no wrinkles in the stitch path).
• Clearance: Sleeves and neck of the dress are pushed back and won't fall under the needle.
• Thread Check: Correct colors assigned (Needle 8 and Needle 3).
• Speed: Bump speed back up to 750-850 SPM if you are comfortable.

Clean Removal and a Professional Finish: Tear Away, Topper Cleanup, and Detail Tools

After stitching finishes, Dawn removes the water-soluble topper (tear the big chunks) and tears away the stabilizer from the back (support the stitches as you tear so you don't distort the knit).

For small leftover bits of topper in tight corners (like inside the 'A' or the bow loops), she uses an O-ring tool. You can also use tweezers or a damp Q-tip.

The Final Polish: Use a spray bottle with water or a steam iron (hovering, not pressing) to dissolve the remaining microscopic topper bits. On knits, any leftover topper can dry into a hard, scratchy residue if not fully removed.

Quick Decision Tree: Stabilizer + Topper Choices for Knit Appliqué

Use this logic to avoid wasting garments.

• Scenario 1: Standard T-Shirt or Knit Dress
  • Action: Fusible Poly Mesh on garment + Tear-away in hoop.
  • Topper? Yes, mandatory for satin stitches.
• Scenario 2: High-Stretch Performance Gear (Spandex/Lycra)
  • Action: Consider floating a layer of Cut-away stabilizer instead of Tear-away for permanent support.
  • Topper? Yes.
• Scenario 3: Heavy Sweatshirt/Fleece
  • Action: Fusible Poly Mesh might be optional if the fleece is stable, but standard Mesh is safer. Tear-away in hoop.
  • Topper? Yes, heavy topper needed to prevents stitches sinking into fleece pile.

Troubleshooting the Three Most Common “Why Did This Happen?” Moments

The Upgrade That Pays Back Fast: When Magnetic Hoops and Better Consumables Become “Time Insurance”

If you’re doing this once for fun, you can absolutely succeed with a standard hoop and patience. But if you’re doing appliqué regularly—kids’ names, team initials, boutique drops—your bottleneck is hooping speed and hand fatigue.

That’s where magnetic hooping station workflows and magnetic frames earn their keep. They reduce the "fiddle factor." You don't have to unscrew, adjust, push, fail, retry. You just align and snap.

A practical upgrade path (Choose based on your situation):

1. Level 1 (The Hobbyist): If you struggle with placement, buy a Hooping Station compatible with your current hoops to ensure straight designs.
2. Level 2 (The Side Hustle): If you are fighting hoop burn on knits, upgrade to Magnetic Hoops (SewTech offers consistent options for most machine brands).
3. Level 3 ( The Business): If you can't keep up with orders, a Multi-Needle Machine (like the SWF or similar) allows you to set up the next garment while the current one stitches, doubling your throughput.

And if you’re currently using magnetic embroidery hoop 5.5 for garments like this, the biggest win is treating your setup like a strictly repeatable system: mark the center provided by the template, stabilize the same way every time, and let the magnets do the holding.

One last reassurance: Appliqué feels scary until you do it once with a clean sequence. After that, it becomes one of the fastest ways to create high-impact, high-value garments—especially on knits—without the high stitch counts that bulletproof vests are made of. Trust the stabilizer, trust the magnets, and keep stitching.

FAQ

• Q: How do I prevent puckering and “dishing” when stitching appliqué satin stitches on a knit dress using fusible poly mesh + tear-away stabilizer?
  A: Stop stretching the knit during hooping and lock the stretch with fusible poly mesh on the garment before stitching.
  • Press fusible poly mesh to the inside of the knit behind the target area (press, don’t drag; test heat on an inconspicuous spot first).
  • Hoop tear-away stabilizer with the garment so the knit lies flat under neutral tension (smooth and stable, not “drum tight”).
  • Add water-soluble topper before the final satin steps to keep stitches from sinking and pulling the surface.
  • Success check: The hooped knit feels smooth and stable, and gentle tugging on fabric outside the hoop does not create violent ripples inside the hoop.
  • If it still fails: Re-hoop with less tension and verify fusible poly mesh coverage fully spans the design area.
• Q: What is the correct “neutral tension” feel when hooping a tubular knit dress with a 5.5" square magnetic embroidery hoop to avoid hoop burn and distortion?
  A: Aim for flat and smooth without stretching the knit—magnetic hoops should clamp, not drag.
  • Align the garment using a center mark/target sticker first, then bring the magnetic frame straight down to clamp.
  • Confirm the hoop is fully seated on all corners before stitching.
  • Pool and support the rest of the dress so garment weight does not pull on the hooped area.
  • Success check: Hear a sharp “CLACK” when magnets engage, and the hooped area feels smooth; pulling gently outside the hoop does not make the hooped area ripple.
  • If it still fails: Re-clamp after re-smoothing the knit on the station board; do not “tighten by stretching” the fabric.
• Q: How do I use a printed embroidery template with crosshairs to place an appliqué design accurately on a knit hem without shifting the mark?
  A: Use the “pin-first, then mark” method so the template cannot slide while marking.
  • Pierce the template crosshair center with a straight pin, then lift the paper while leaving the pin in place.
  • Mark the pin point with a water-soluble or air-erase pen, then place a target sticker exactly on that dot.
  • Align the target sticker crosshair to the hooping station grid before clamping the hoop.
  • Success check: The target sticker sits centered on a single, clean dot (not a smeared circle), and the garment aligns consistently to the station’s zero/grid marks.
  • If it still fails: Reprint the template with clear crosshairs and re-mark—do not “eyeball” placement on knits.
• Q: How do I set up SWF KX-T1501 needle assignments and 180° rotation for knit appliqué so placement stitches stay hidden and the hem design stitches right-side up?
  A: Put all placement/tackdown steps on one “utility” needle, assign satin colors to their own needles, and rotate 180° if the garment is loaded upside down.
  • Assign placement and tackdown steps to Needle 1 (white/utility), then assign satin stitches to the needles that match the appliqué fabrics.
  • Rotate the design 180° when the dress is oriented neck-hole toward the operator so the hem stitches right-side up.
  • Use the machine’s trace (outline) before stitching to confirm the rotated design still clears the hoop frame.
  • Success check: The trace path stays inside the hoop clearance and the finished design reads correctly on the hem (not upside down).
  • If it still fails: Stop and re-check garment loading orientation first, then re-check rotation setting.
• Q: How do I program Offset (Frame Out) on an industrial embroidery machine appliqué job so trimming is easy and hands stay out of the needle zone?
  A: Insert Offset movements after the placement and tackdown phases so the hoop moves into a safe trimming/placement position automatically.
  • Add an Offset after the placement step to bring the hoop forward for fabric placement.
  • Add an Offset after the tackdown step to bring the hoop forward again for trimming before satin stitches.
  • If the hoop did not move, stop and manually jog the frame forward, then jog back before restarting.
  • Success check: The hoop reliably moves to a forward “safe zone” right when fabric placement or trimming is needed.
  • If it still fails: Check the machine’s terminology—some models label this function “Frame Out” or “Appliqué Position”—and follow the machine manual for command insertion.
• Q: How do I prevent fuzzy satin stitch edges (“knit poking through”) on knit appliqué letters when using water-soluble topper and close trimming?
  A: Trim closer to the tackdown line and always use water-soluble topper for the satin steps on knits.
  • Trim appliqué fabric to within 1–2 mm of the tackdown stitch using appliqué (duckbill) scissors.
  • Press the appliqué fabric in the hoop if using fusible web so the edge stays stable before satin stitching.
  • Lay water-soluble topper flat (no wrinkles in the stitch path) and secure it so it cannot shift.
  • Success check: Satin stitches look smooth and “sit proud” on the surface instead of sinking into knit loops.
  • If it still fails: Carefully clip remaining “pokies” with curved scissors and confirm topper was present for the entire satin sequence.
• Q: What safety precautions should I follow to avoid needle injury, hoop strikes, and pinch hazards when using magnetic embroidery hoops on a multi-needle machine?
  A: Trace before stitching to prevent hoop strikes, keep hands out of the needle zone, and treat magnetic frames as high-pinch tools.
  • Run an outline trace every time to verify the design perimeter clears the hoop walls (magnetic hoops can be thicker than standard hoops).
  • Use Offset/Frame Out to move the hoop forward before placing fabric or trimming; never reach under the needle area while the machine can start.
  • Keep fingers clear when clamping the magnetic hoop; magnets can pinch hard enough to cause blood blisters.
  • Success check: The trace completes without contacting the frame, and the hoop clamps cleanly with no gaps at corners.
  • If it still fails: Stop immediately if any contact/noise occurs during trace or stitching, then re-center/re-hoop before restarting; keep pacemakers/credit cards at least 12 inches from the magnets.
• Q: If hooping knit garments keeps causing hoop burn, slow hooping, or wasted shirts, what is the practical upgrade path from technique fixes to magnetic hoops to a multi-needle embroidery machine?
  A: Start by standardizing marking/stabilizing, then upgrade hooping tools if hooping is the bottleneck, and only scale to a multi-needle machine when order volume demands it.
  • Level 1 (Technique): Mark with template + target sticker, fuse poly mesh inside, hoop tear-away with neutral tension, and always trace before stitching.
  • Level 2 (Tool): Switch to magnetic hoops when shiny rings/drag marks persist or hooping routinely takes 5+ minutes per item.
  • Level 3 (Capacity): Move to a multi-needle machine when throughput is limited by constant thread changes and you need repeatable production rhythm.
  • Success check: Hooping time drops and spoilage rate improves (fewer hoop-burned or distorted knits).
  • If it still fails: Audit where time is lost—marking accuracy, stabilizer choice, or hooping consistency—and fix that bottleneck before scaling again.
