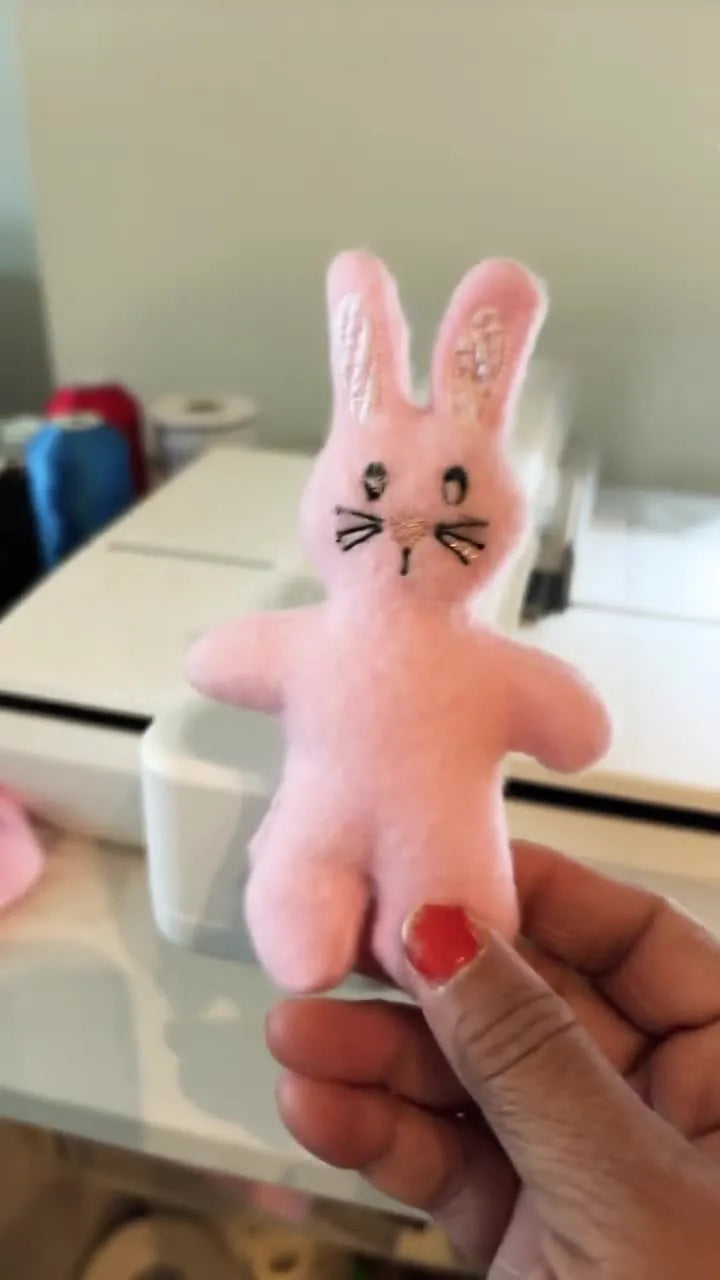

An 8-Minute ITH Stuffed Bunny on the Brother Innov-is NQ1700E: Clean Face Stitches on Fleece (Without the Usual Hooping Headache)

If you have ever attempted an In-The-Hoop (ITH) plushie on a standard flatbed machine, you likely know the specific heartbreak of "Fleece Fatigue." The outline looks perfect, but then the satin stitches vanish into the fabric pile, the layers shift during the final enclosure, and your "cute bunny" comes out looking distorted and tired.

This project is a high-reward, quick win—Kathy stitches a small ITH stuffed bunny on a Brother Innov-is NQ1700E in roughly 8 minutes of machine run time. It involves 7 color changes and a design footprint of approximately 140.4 mm x 99.0 mm.

However, machine embroidery is an empirical science, not magic. Success with high-pile fabrics like fleece relies on specific density management and surface tension. The non-negotiable variable here is a water-soluble topper. That single layer of film is the structural engineering that keeps facial features sitting proudly on the surface rather than sinking into the nap.

Don’t Panic: The Physics of Fleece on a Single-Needle Machine

Fleece feels "soft" to your hand, but to an embroidery machine's sensor and presser foot, it behaves like a moving spring with a deep carpet. Beginners often blame the machine for skipped stitches or registration errors, but the culprit is almost always fabric instability.

On the Brother Innov-is NQ1700E (or any similar single-needle platform), your control comes down to three physical factors:

1. Hooping Tension: Must be neutral—neither loose nor drum-tight (which warps fleece).
2. Surface Engineering: Using a topper to create a temporary "floor" for stitches.
3. Z-Axis Management: Knowing exactly when to add height (the back fabric) without hitting the presser foot.

If you find yourself fighting to get thick fleece into a standard plastic frame without bruising the fabric or your wrists, this is the operational bottleneck where mastering hooping for embroidery machine transitions from a hobby skill to a production necessity.

The “Hidden” Prep That Makes Fleece Behave: Stabilizers, Needles, and Stage Management

Kathy’s setup is deceptively simple: pink fleece in a standard 5x7 frame. However, simplicity requires preparation. In a professional workflow, we don't just "load and go"; we stage the environment to prevent errors during the critical stops.

The "Silent" Consumables (What you usually forget)

• Needle Selection: Use a 75/11 Ballpoint needle. Sharp needles can cut fleece knit fibers, creating holes that expand later.
• Stabilizer choice: For the hoop base, use Medium Weight Cutaway (2.5oz). Tearaway is risky for stuffed toys because the stuffing pressure can pop the stitches; Cutaway provides permanent structural integrity.
• Adhesive: Temporary spray adhesive (like 505) or painter's tape to hold the back fleece.

Materials (Verified)

• Machine: Brother Innov-is NQ1700E.
• Hoop: Standard 5x7 (130x180mm).
• Base Fabric: Pink Fleece (low to medium pile).
• Backing Fabric: Matching Pink Fleece.
• Stabilizer (Base): Medium Weight Cutaway.
• Stabilizer (Topper): Water-soluble film (clear).
• Threads: Polyester 40wt (Pink, White, Black).
• Filling: Polyester fiberfill.

Operational Data (Your Reality Check)

• Stitch Count: ~3,157 stitches.
• Active Run Time: ~8 minutes (excluding stops).
• Speed Limit: Set your machine to 400-600 SPM (Stitches Per Minute). Expert Advice: Do not run fleece at max speed (850+). High speed causes friction and pile distortion.
• Color Changes: 7 (This means 7 manual interactions).


Prep Checklist: The "Pre-Flight" Safety Protocol

• Needle Check: Is the needle straight and burr-free? (Run your fingernail down the tip; if it clicks, replace it).
• Bobbin Check: Is the bobbin at least 50% full? (Running out inside a plushie is a nightmare to fix).
• Topper Prep: Pre-cut a square of water-soluble film slightly larger than the bunny's head.
• Backing Prep: Cut the back fleece piece large enough to cover the entire hoop area, not just the design.
• Workspace: Clear the area behind the machine so the hoop doesn't hit a wall or coffee cup during travel.

Warning: Mechanical Safety. Keep your fingers and loose sleeves/jewelry away from the needle bar and take-up lever. When trimming threads inside the hoop, pkeep your hands flat to avoid the risk of accidental activation if you bump the start button.

Decoding the Brother NQ1700E Screen: Why "Stops" Are Your Quality Control Points

Kathy reviews the LCD screen showing dimensions and the step list.

Expert Interpretation: The machine sees this file as a series of coordinates. You must see it as a construction sequence.

• Stops 1-2: Structural (Outline).
• Stops 3-6: Cosmetic (Face).
• Stop 7: Structural (Final Assembly).

The high frequency of stops (7 changes in 8 minutes) means you cannot walk away. If you are doing this for production, this "baby-sitting" time is a cost. This is the moment to evaluate: is the brother nq1700e perfectly capable? Yes. But if you encounter constant thread-change fatigue, you might later look at multi-needle solutions. For now, treat every stop as a quality control gate.

Step 1: The Placement Outline (The "Anchor" Stitch)

Kathy stitches the first outline on the single layer of hooped fleece.

Action Plan

1. Stitch Speed: Lower to ~600 SPM.
2. Action: Run the first color (Pink). This stitches a running stitch outline.
3. Observation: Watch for fabric "flagging" (bouncing). If it bounces high, your hooping is too loose.

Sensory Check (Tactile & Visual)

• Touch: Press the hooped fleece gently. It should feel stable, like a firm sofa cushion, not tight like a drum (which warps fleece) and not saggy like a hammock.
• Sound: A rhythmic thump-thump is good. A slapping sound means loose fabric.

Expert Note on Physics: Fleece is knitted. If you stretch it in the hoop, you store "potential energy." When you unhoop later, that energy releases, the fabric shrinks back, and your round bunny becomes an oval. Hoop it neutral.

Step 2: The Critical Intervention—Floating the Topper

This is the step that separates amateurs from pros. Kathy places a clear sheet of water-soluble stabilizer directly over the face area. She does not hoop it; she "floats" it.

Action Plan

1. Pause: Machine stops after the outline.
2. Apply: Lay the water-soluble film over the face zone.
3. Secure (Optional): Lightly dampen the corners of the film with a drop of water or use a specific spot of tape on the stabilizer (not the fleece) to hold it, though heavy fleece usually grabs the film enough.

Why It Works

Think of fleece as a forest of trees. Without a topper, the thread falls between the trees (the pile). The topper acts like snow crust—a smooth surface that holds the thread up. If you are looking for tools to make this layering process faster, terms like embroidery hoops magnetic often come up because they allow for quicker adjustments without un-screwing the outer ring, though here we are floating inside the active hoop.

Step 3: Facial Details (The High-Risk Zone)

The machine now stitches high-density satin eyes and nose.

Action Plan

1. Monitor: Watch the presser foot. Ensure the foot doesn't snag the edge of the topper and crinkle it.
2. Verify: Ensure the black thread tension is correct. You want the top thread to roll slightly to the back.

Sensory Check

• Visual: The black satin stitches should look "puffy" and sit on top of the film. If they look flat or split, your top tension is too tight.
• Sound: Listen for a "rat-a-tat-tat"—satin stitches are louder. A grinding noise suggests the needle requires changing.

Step 4: The Sandwich—Adding the Backing

This is the most dangerous step for the machine. Kathy places the backing fleece face down over the front fleece face up (Right Sides Together).

Action Plan

1. Placement: Lay the back fleece piece over the hoop. It must cover the outline completely.
2. Clearance: Ensure the fabric is flat.
3. Speed: Drop speed to 400 SPM. You are now punching through: Stabilizer + Fleece + Topper + Fleece. This is a thick stack.


Setup Checklist (Critical Safety):

• Flatness: Is the back fleece perfectly flat? (A fold here can break a needle or shift the alignment).
• clearance: Does the chunky fleece clear the presser foot lift height?
• Tape it: Highly recommended to tape the corners of the back fleece to the hoop edge (outside the stitch area) so the foot doesn't drag it.

Expert Note: Listen for a "laboring" motor sound. The needle penetration force required here is high. If the machine sounds like it's struggling, slow down further.

Step 5: Unhoop, Trim, and Turn (The Sculpting Phase)

Kathy removes the project. The stitching is done, but the bunny is not defined yet.

Action Plan

1. Unhoop: Release the screw.
2. Trim: Cut around the final stitch line. Leave a 1/4 inch (6mm) seam allowance.
3. Notch the Curves: Crucial Step. V-notch the curves around the ears. Do not cut the thread! This releases tension so the ears turn right-side out without bunching.

Expected Outcome

A clean "blob" shape with an opening. When turned, the curves should pop out smoothly. Bulky seams mean you left too much fabric allowance.

Step 6: Stuffing and Closure

Kathy turns the bunny through the gap, stuffs it, and hand-sews the opening.

Operation Checklist Description

• Turning: Use a chopstick or turning tool to gently push the ears out completely.
• Topper Removal: Tear away the excess film. Any small bits remaining can be dabbed away with a wet Q-tip later.
• Stuffing: Verify density. Stuff the ears first and firmly. Then stuff the body. Avoid "lumpy potato" syndrome by pulling the fiberfill apart into small clouds before inserting.
• Closure: Use a ladder stitch (invisible stitch) for a professional finish.

Structured Troubleshooting: When Good Bunnies Go Bad

If your result doesn't look like Kathy's, diagnose the issue using this logic table. Start with the "Low Cost" checks.

Decision Tree: Do You Need Better Tools or Better Technique?

Use this logic to decide on your next purchase.

1. Is your wrist hurting from forcing the inner ring into the outer ring?
   • Yes → Upgrade Tool: This is a physical health issue. Magnetic hoops are the solution.
   • No → Continue to step 2.
2. Are you experiencing "Hoop Burn" (shiny crushed rings on the fleece)?
   • Yes → Upgrade Tool: Investigate a magnetic hoop for brother nq1700e. The magnetic force holds without friction crushing.
   • No → Your technique is good.
3. Are you making 50+ bunnies for a craft fair?
   • Yes → Upgrade System: Consider a multi-needle machine to eliminate thread change downtime.
   • No → The NQ1700E is perfect for your volume.

Warning: Magnet Safety. Powerful magnetic hoops (industrial grade) can pinch fingers severely. If you have a pacemaker, consult your doctor before using high-gauss magnetic embroidery accessories.

The Professional Upgrade Path: From Hobby to Production

If you enjoyed making one bunny, you might want to make twenty. At that point, the friction points in the process (hooping thick fabric, changing threads) become profit-killers.

• Solve the "Fight": Thick fabrics like fleece are notoriously difficult to hoop in standard plastic rings. This struggle often leads to users searching for magnetic embroidery hoops, not just for ease, but to protect delicate fabric piles from permanent crushing marks ("burn").
• Solve the "Drift": To standardize placement on multiple bunnies, systems like the hoopmaster offer jigs that align hoops identically every time.
• Solve the "Stop/Go": When you are ready to move beyond the single-needle limits (like the thread changes shown here), the industry standard is to move to a multi-needle platform (like SEWTECH production machines).

However, for a single, adorable Sunday afternoon project? The Brother NQ1700E, a sheet of topper, and a careful hand are all you need.

Final Check:

• Did you use a new needle?
• Did you use the topper?
• Did you verify the gap for turning?

If Yes, press start. You’ve got this.

FAQ

• Q: What stabilizers and needle should be used for an ITH fleece plushie on a Brother Innov-is NQ1700E to prevent sunk satin stitches and shifting layers?
  A: Use a 75/11 ballpoint needle, medium-weight cutaway as the base stabilizer, and a water-soluble film topper over the face area.
  • Install: Insert a new 75/11 Ballpoint needle (replace immediately if bent or burred).
  • Hoop: Use Medium Weight Cutaway (2.5oz) under the fleece for permanent support.
  • Add: Float water-soluble film topper over the facial details after the placement outline stitches.
  • Success check: Black/white satin stitches look slightly “puffy” and sit on top of the film instead of disappearing into the fleece pile.
  • If it still fails: Add a second layer of topper or switch to a heavier-gauge water-soluble film.
• Q: How tight should fleece be hooped in a standard 5x7 hoop on a Brother Innov-is NQ1700E to avoid outline gaps and shape distortion on an ITH bunny?
  A: Hoop fleece at neutral tension—stable like a firm cushion, not drum-tight and not saggy.
  • Press: Gently push the hooped fleece; aim for firm support without stretching the knit.
  • Watch: Run the placement outline and look for “flagging” (fabric bouncing up and down).
  • Adjust: If the fleece slaps or bounces, re-hoop slightly tighter; if the fleece looks stretched/warped, re-hoop looser.
  • Success check: The machine makes a steady rhythmic “thump-thump” and the outline stitches look continuous without gaps.
  • If it still fails: Keep the same neutral hooping but confirm Medium Weight Cutaway is used under the fleece.
• Q: How do you apply water-soluble film topper on a Brother Innov-is NQ1700E during an ITH fleece bunny so the presser foot does not snag or crinkle the film?
  A: Float the water-soluble film topper only after the first outline, then secure it lightly so the presser foot never catches an edge.
  • Pause: Stop after the placement outline finishes.
  • Lay: Place the film smoothly over the face area (do not hoop the film).
  • Secure: Lightly dampen the film corners or use a small piece of tape on the stabilizer (not on the fleece pile) if needed.
  • Success check: The presser foot travels without grabbing the film, and the film stays flat (no wrinkles pulled into satin stitches).
  • If it still fails: Reposition the film so no edge sits near the next stitch path, then restart that step.
• Q: What stitch speed should be used on a Brother Innov-is NQ1700E for an ITH fleece plushie, especially when stitching through Stabilizer + Fleece + Topper + Back Fleece?
  A: Run fleece slower—about 400–600 SPM, and drop to 400 SPM for the thick “sandwich” step with the back fleece.
  • Set: Use ~600 SPM for the outline and facial stitching.
  • Drop: Reduce to 400 SPM before stitching the final assembly through the full stack.
  • Listen: If the motor sounds like it is laboring, slow down further.
  • Success check: The machine stitches without harsh vibration and without repeated heavy “straining” sounds during penetration.
  • If it still fails: Stop and re-check that the back fleece is perfectly flat and taped so it cannot drag.
• Q: How do you prevent needle breakage on a Brother Innov-is NQ1700E when adding the back fleece for an ITH bunny (Right Sides Together) in a 5x7 hoop?
  A: Keep the back fleece perfectly flat, cover the entire hoop area, and tape the corners outside the stitch zone so the foot cannot drag folds into the needle.
  • Place: Lay backing fleece face down over the hooped front fleece face up, covering the full outline area.
  • Tape: Secure backing fleece corners to the hoop edge (outside the design).
  • Slow: Stitch the thick stack at 400 SPM.
  • Success check: No folds ride under the presser foot, and the needle penetrates consistently without sudden “snap” impacts.
  • If it still fails: Replace the needle immediately and re-check backing flatness before continuing.
• Q: How can you reduce “hoop burn” marks on fleece when using a standard plastic 5x7 hoop on a Brother Innov-is NQ1700E for ITH plushies?
  A: Reduce friction and crushing by avoiding over-tight hooping, and consider switching to a magnetic hoop if hoop burn is frequent.
  • Hoop: Use neutral hooping tension (over-tightening increases crushing rings).
  • Recover: Steam the fleece to relax shiny rings (do not iron the pile flat).
  • Upgrade: If hoop burn keeps happening, a magnetic hoop can hold fabric without the same friction crush.
  • Success check: The finished fleece shows minimal shiny ring impressions around the hooped area after unhooping.
  • If it still fails: Prioritize a magnetic hoop upgrade if the project volume or fabric sensitivity makes hoop burn a recurring issue.
• Q: What are the key safety rules for trimming threads inside a Brother Innov-is NQ1700E embroidery hoop and for using strong magnetic embroidery hoops?
  A: Keep hands flat and away from moving parts during trimming, and treat magnetic hoops as pinch hazards—both are common injury points.
  • Stop: Pause the machine fully before trimming and keep fingers, sleeves, and jewelry away from the needle bar and take-up lever.
  • Trim: Keep hands flat inside the hoop to reduce the risk if the start button is bumped.
  • Handle: Keep fingers clear of magnetic hoop contact zones; magnets can pinch severely.
  • Success check: Thread trimming is done with the machine stopped and hands never pass under an active needle path; magnetic hoop halves meet without finger contact between them.
  • If it still fails: If any step feels unsafe or awkward, change workflow (reposition the hoop, improve lighting, or use tools) before continuing; always follow the machine manual for safety guidance.
• Q: When making multiple ITH fleece bunnies on a Brother Innov-is NQ1700E, how do you decide between technique fixes, upgrading to a magnetic hoop, or moving to a multi-needle machine?
  A: Use a tiered approach: fix technique first, upgrade to a magnetic hoop for hooping pain/hoop burn, and consider a multi-needle machine if thread-change babysitting time becomes the real cost.
  • Level 1 (Technique): Confirm neutral hooping, water-soluble topper use, and slower speed (400–600 SPM).
  • Level 2 (Tool): If wrists hurt forcing hoops or hoop burn is frequent on fleece, switch to a magnetic hoop to reduce force and fabric crushing.
  • Level 3 (Capacity): If producing large batches and 7 color changes per bunny creates constant stop/go downtime, a multi-needle machine often becomes the practical next step.
  • Success check: Production runs feel repeatable—less re-hooping, fewer fabric marks, and fewer interruptions that break workflow.
  • If it still fails: Track what consumes time (hooping vs. fixes vs. thread changes) and address the biggest bottleneck first rather than changing multiple variables at once.
