Mastering the Baby Lock Altair 2 ITH Coaster: The “Zero-Shift” Method for Perfect Geometry

If you have ever watched an In-The-Hoop (ITH) coaster stitch-out and thought, “This is either going to be gorgeous… or the layers are going to shift and ruin the symmetry,” you are not alone. Machine embroidery is an experience-based science, and ITH projects are notorious for "layer drift"—where the bottom fabric slips just millimeter by millimeter as the needle pounds away.

The good news: this workflow for the Baby Lock Altair 2 is solid because it builds control in layers. We stop fighting the physics of the fabric and instead create a "Foundation Sandwich"—first stabilizing the base, then locking down placement lines, and finally protecting the embroidery motif with a digital "stamp."

Below is the full workflow rebuilt into a clean, repeatable process. I have added the "old hand" sensory checks—what to feel for, listen for, and look for—to keep your corners square, your quilting fill smooth, and your fingers safe.

The Cognitive Frame: Why ITH Coasters Usually Fail (And How We Fix It)

ITH coasters feel risky because you are stacking multiple materials (stabilizer, batting, top fabric, backing) and asking the machine to stitch a perfect geometric perimeter at the very end—right when bulk is highest.

We avoid the drama by changing the physics of the hoop:

1. The Foundation: We only hoop the stabilizer and batting (the "bones").
2. The Float: We "float" the visible fabric on top, letting the machine tack it down. This prevents the "drum skin" distortion that happens when you force fabric into a ring.
3. The Barrier: We use IQ Designer to create a "No-Sew Zone" around the flower, ensuring the background fill doesn't chew up your design.

If you are a hobbyist moving toward production, this is the exact logic used in commercial shops: minimize hoop stress, maximize stitch control.

Phase 1: The "Hidden" Prep (Pro-Flight Checks)

The video’s material list is simple, but as any veteran will tell you, the war is won at the cutting table. If your cuts aren't square, your final coaster won't be square.

The "Hidden" Consumables List

• Spray Adhesive (Temporary): (Optional but recommended) A light mist of KK100 or 505 can help hold your batting if you find it slipping.
• Curved Snips: For trimming jump stitches flush without snipping the fabric.
• New Needle: Use a Topstitch 75/11 or 90/14. A sharp needle penetrates the multiple layers (batting + 4 layers of fabric) without deflecting; an old dull needle will cause the design to drift.

Material Specs (Exact Sizes)

• Hoop: 5x7 Embroidery Frame.
• Stabilizer: Medium-weight Tearaway.
• Batting: Cotton or poly-blend, cut to fit the entire inner area of the 5x7 hoop.
• Fabric (Cotton Woven is best for beginners):
  • Backing: Two pieces, exactly 6" x 6".
  • Top: One piece, exactly 6" x 6".
• Tape: Painter's tape or embroidery-specific tape (yellow/pink).
• Thread: 40wt Polyester (Madeira Poly is shown). Use Poly for coasters—it handles moisture from drinks better than Rayon.

Expert Data Point: Cotton woven fabric is predictable. If you attempt this with stretchy knits or velvet, you must change your stabilizer strategy (switching to Cutaway or fusing the back of the knit). For your first attempt, stick to Quilter's Cotton.

Prep Checklist (Do this BEFORE touching the machine)

• Cut Backing: Two pieces at 6" x 6".
• Cut Top: One piece at 6" x 6".
• Prep Backing: On both backing squares, fold one edge over 1/4", press, fold again, press, and stitch a straight hem (sewing machine). These become your envelope opening.
• Mark Centers: Fold the top fabric in quadrants to crease/mark the absolute center.
• Needle Check: Run your finger over the needle tip. If it scratches your skin, replace it. A burred needle will shred your thread during the dense fill.


Phase 2: Hooping Without Distortion (The "Sandwich" Method)

This is where beginners get "Hoop Burn" (those shiny, crushed rings on fabric). We are going to avoid that by using the Float Method.

The Hooping Sequence

1. Lay down the Tearaway Stabilizer.
2. Lay the Batting directly on top of the stabilizer.
3. Hoop both together.
   • Sensory Check: Tighten the screw. Tap the batting. It should sound like a dull thud, not flabby. It should not be as tight as a drum (too tight distorts designs), but firm enough that pushing on it doesn't cause a hammock effect.

Floating the Top Fabric

1. Find the center of your hooped batting (use the plastic grid template carried with your machine if needed).
2. Align the center mark of your 6" x 6" top fabric with the hoop center.
3. Tape Strategically: Place tape at the very top and very bottom edges only.
   • Why? We want the fabric flat, but not stretched.
   • The "Old Hand" Trick: Smooth the fabric from the center out to the edges before taping to remove trapped air.

The Commercial Perspective: In a professional setting, we often see operators struggling with standard hoops leaving burn marks on velvet or thick cotton. This is why many upgrade to a magnetic embroidery hoop. Magnetic frames clamp downward with vertical force rather than pulling fabric sideways, which eliminates hoop burn and makes "floating" layers significantly faster. If you plan to make 50 of these for a craft fair, the screw-tightening fatigue is real—magnets solve that.

Warning: Keep fingers well away from the needle area when taping near the hoop and when inserting the hoop—needle strikes and sudden starts can cause serious injury. Also be cautious with rotary cutters during trimming; always cut on a mat and retract/cover the blade when not in use.

Phase 3: IQ Designer Architecture (Building the Containment System)

Now we move to IQ Designer (or Design Center). We are building "Reference Rails" to tell the machine exactly where the boundaries are.

Step A: The Placement Line (Outer Box)

1. Open IQ Designer.
2. Select Shapes $\to$ Square. Press OK.
3. Resize: Set Height/Width to 5.04".
   • Glitch Alert: On the Altair screen, tap the size buttons gently. If you hold them, the numbers scroll too fast.
4. Stitch Type: Change from default (often Satin) to Running Stitch.
5. Color: Red (Visual cue: this is a "Look at me" line).
6. Save: Memory $\to$ Set.


Step B: The Tack-Down Line (Inner Box)

1. Repeat the shape creation (Square).
2. Resize: Set to 4.94". (This 0.10" difference creates a margin).
3. Stitch Type: Running Stitch.
4. Color: Green (Visual cue: "Go").
5. Save: Memory $\to$ Set.


Step C: The Stamp & Barrier (The Critical "No-Fill" Zone)

This is the step that confuses most beginners. We need to tell the machine: "Stitch a fancy background, but DO NOT stitch over my flower."

1. Select your motif (The Poinsettia).
2. Resize: Edit $\to$ Size $\to$ 3.21". Center it.
3. Create the Stamp: Press the Stamp key (Icon looks like a shape with an outline).
4. The "Click" Rule:
   • Select the Bucket Fill tool.
   • Choose a generic stippling or quilting fill pattern.
   • CRITICAL ACTION: Tap the screen inside the square but outside the flower.
   • Visual Check: The blue fill lines should appear in the background, but the flower itself should remain white/blank. If the flower turns blue, you missed—undo and tap again.

Why this matters: If you don't use the stamp function correctly, the machine will stitch a dense quilting pattern through your beautiful thread painting, ruining the texture.

Optimization for Bulk Production

If you find yourself constantly creating these shapes, you are doing "on-machine digitizing." It works, but it's slow. High-volume studios use digitizing software to create the file once. Similarly, they use tools like an embroidery hooping station to ensure that every single coaster is hooped in the exact same spot, so the software alignment always matches the physical fabric. Consistency is the key to scaling.

Phase 4: The Build (Layering on the Embroidery Screen)

You have created three separate "digital assets." Now stack them.

1. Load the 4.94" Tack-Down Square.
2. Load the Background Fill.
3. Load the Poinsettia Motif.
4. Load the Final 5.04" Square (This will be the envelope closing stitch).

Sanity Check: Look at your screen. You should see a logical sandwich: Box $\to$ Fill $\to$ Flower $\to$ Box.

Phase 5: The Stitch-Out (Operation & Sensory Monitoring)

Speed Setting: For the quilting fill, lower your speed to 600-700 SPM. High speeds on dense background fills can drag the fabric inward (the "pull effect"), causing the square to become an hourglass shape.

1. Insert Hoop: Slide it in until it clicks. Ensure the fabric isn't bunched under the arm.
2. Stitch 1 (Tack-down): The machine runs the square.
   • Visual Check: Did the square land on the fabric with uniform distance from the edges? If yes, proceed.
3. Stitch 2 (Background Fill):
   • Auditory Check: Listen for a rhythmic, smooth sound. If you hear a "slap-slap" sound, your stabilizer might be loose. Pause and tighten (or use magnets next time).

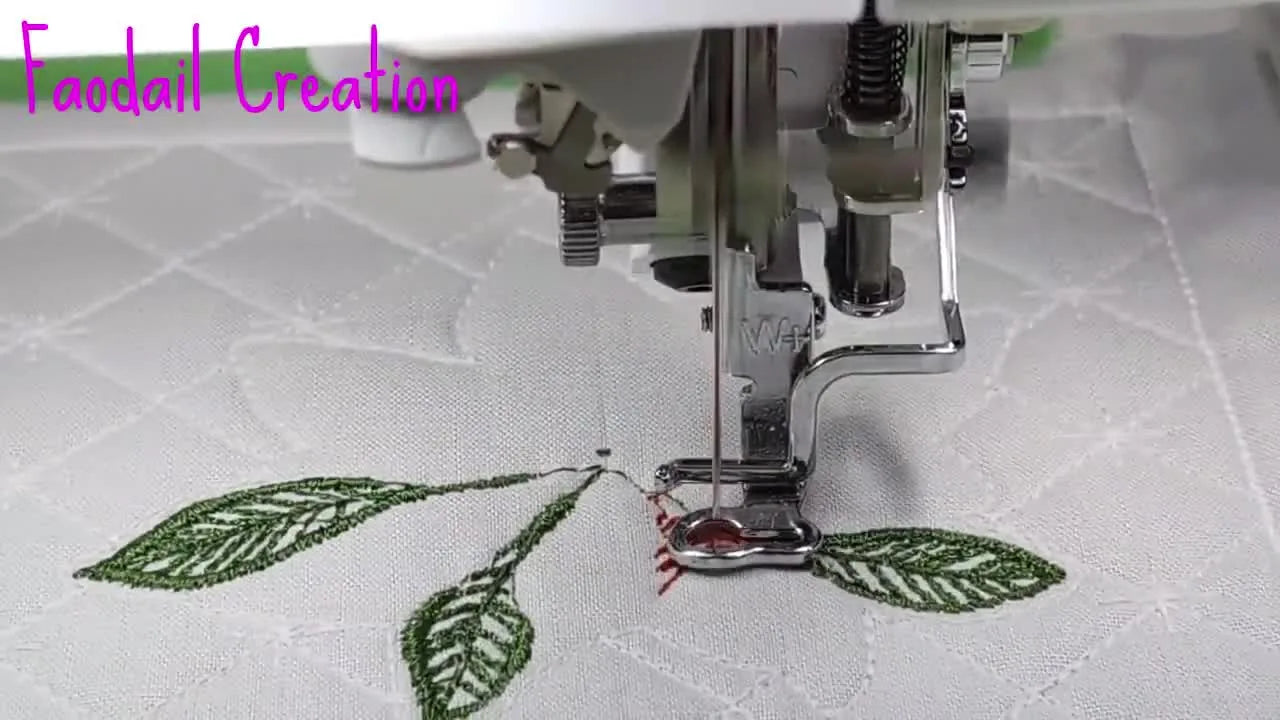

4. Stitch 3 (The Motif):
   • The machine stitches the Green leaves $\to$ Red petals $\to$ Gold center.
   • Color Change Tip: Snip your jump threads between color changes. Don't wait until the end, or they will get buried under the gold center.


Phase 6: The Envelope Back (The "Danger Zone")

This is the only step where you can physically break the machine or ruin the project. We are adding the back while the hoop is still attached (or briefly removed, but never un-hooped).

1. Remove hoop from machine (Keep fabric IN the hoop).
2. Flip the hoop over to the back side.
3. Take your two prepared backing pieces (the ones with the hemmed edges).
4. Placement:
   • Lay Piece 1 matching the top edge.
   • Lay Piece 2 matching the bottom edge.
   • The Overlap: They should overlap in the center by at least 1 inch.
   • Why 1 inch? If it's too small (1/4"), it will gap open when you turn it, showing the stabilizer white inside.
5. Tape EVERYTHING:
   • Tape the outer corners.
   • VITAL STEP: Place a long strip of tape across the entire center overlap seam.

The "Why" of the Center Tape: As the hoop slides back into the machine, the bottom feed dogs or the embroidery arm bed can catch that open lip of fabric. If it catches, it will fold the fabric back, and the needle will stitch it into a mangled mess. The tape creates a "ramp" for the machine to slide over.

Upgrade Path: Users with baby lock magnetic embroidery hoops find this step safer. Because the magnet holds the perimeter firmly but doesn't have the deep "well" of a traditional inner hoop, there is often less friction against the machine bed. Magnetic hoops for Baby Lock machines are specifically treasured for ITH work because access to the back of the hoop is often less obstructed.

Warning: Magnetic Force Safety
Magnetic frames use powerful neodymium magnets. Pinch Hazard: They can snap effective immediately; keep fingers clear of the contact zone. Medical: Keep magnets at least 6 inches away from pacemakers/ICDs. Electronics: Do not place directly on debit cards, phones, or machine screens.

Phase 7: The Finish (Trim, Turn, Press)

1. Run the final square stitch (the 5.04" line). This seals the envelope.
2. Remove from hoop. Tear away the stabilizer.
3. The Trim: Use your rotary cutter to trim the entire square to a 1/4" seam allowance.
   • Corner Tip: Clip the four corners diagonally (dog ears) to reduce bulk, but don't cut the stitch!
4. Turn: Turn right side out through the envelope slot.
5. Poke: Use a chopstick or point turner to push corners out.
6. Press: Iron flat with steam. This "sets" the embroidery threads and melts away needle holes.




Troubleshooting: Why Does Mine Look Wrong?

The Decision Tree: How to Scale This

Are you making one coaster, or fifty? Your toolset should match your volume.

1. The "Sunday Crafter" (Level 1)

• Goal: distinct, personal gifts.
• Method: Follow the guide above exactly. Use masking tape. Take your time.
• Key Friction: Taping and untaping is slow.

2. The "Etsy Batch" (Level 2)

• Goal: 20 sets for a holiday sale.
• Bottleneck: Hooping time and Hoop Burn on nice velvet/linen.
• Solution: Upgrade to magnetic hoops for babylock.
  • Benefit: You can "slap" the hoop onto the stabilizer/batting sandwich in 5 seconds vs 60 seconds. No screw tightening. Zero hoop burn on premium fabrics. This is the highest ROI upgrade for single-needle machines.

3. The "Production Run" (Level 3)

• Goal: Corporate order (100+ units).
• Bottleneck: Changing thread colors (Green $\to$ Red $\to$ Gold) and machine downtime.
• Solution: Move to a Multi-Needle Machine (like SEWTECH or Brother 6-10 needle models).
  • Benefit: You set the colors once. The machine runs the whole coaster without stopping for thread changes. You simply hoop the next one while the machine runs.


Operational Checklist (Print This Out)

Setup:

• Stabilizer + Batting hooped (Drum tight check).
• Top fabric floated and centered.
• Tape applied to top/bottom edges only.
• Bobbin has sufficient thread (don't run out mid-fill!).

During Stitch-Out:

• Step 1: Placement line runs. Check alignment.
• Step 2: Tack-down runs. Check for bubbles/wrinkles.
• Step 3: Quilting Fill runs. LISTEN: If machine labors, slow down.
• Step 4: Flower stitches. Trim jump threads now.
• Step 5 (PAUSE): Remove hoop. Tape backing pieces. Verify center seam is taped.
• Step 6: Final perimeter run.

By following the physics of the "Foundation Sandwich" and respecting the machine's need for a smooth path (via taping), you turn a frustrating project into a factory-perfect result. Happy stitching.

FAQ

• Q: What needle should be used on a Baby Lock Altair 2 for an ITH coaster with batting and multiple fabric layers to prevent drift and thread shredding?
  A: Use a new Topstitch 75/11 or 90/14 needle to penetrate the bulk cleanly without deflecting.
  • Install: Replace the needle before starting; do not “push through” with a dull needle.
  • Check: Run a fingertip lightly past the needle tip; if it feels scratchy/burred, replace it.
  • Match: Use 40wt polyester thread for coasters if moisture resistance matters.
  • Success check: The quilting fill sounds smooth and steady, and stitches lay flat without random thread breaks.
  • If it still fails… Slow the quilting fill to 600–700 SPM and re-check that stabilizer + batting are firmly hooped.
• Q: How tight should stabilizer and batting be hooped in a Baby Lock Altair 2 5x7 embroidery frame for the “Foundation Sandwich” method?
  A: Hoop only tearaway stabilizer plus batting firm—not floppy, not drum-stretched—to avoid distortion and shifting.
  • Hoop: Place tearaway stabilizer down, batting on top, then hoop both together.
  • Tighten: Turn the hoop screw until the batting feels supported without a “hammock” when pressed.
  • Listen: Tap the hooped batting; aim for a dull thud (not a loose flab, not a sharp drum).
  • Success check: Pressing the center does not cause sagging, and the stitch-out stays square instead of hourglassing.
  • If it still fails… Add a light mist of temporary spray adhesive to reduce batting slip and reduce speed on dense fills.
• Q: How should top fabric be floated and taped on a Baby Lock Altair 2 ITH coaster to prevent “hoop burn” and layer drift?
  A: Float the 6" x 6" top fabric on the hooped batting and tape only the top and bottom edges so the fabric stays flat without being stretched.
  • Align: Match the fabric center mark to the hoop center (use the grid template if needed).
  • Smooth: Sweep hands from center outward to remove trapped air before taping.
  • Tape: Secure only the very top and very bottom edges; avoid taping all four sides if it stretches the fabric.
  • Success check: The placement/tack-down square lands evenly from the fabric edges and the surface stays bubble-free during stitching.
  • If it still fails… Re-check that batting is hooped firmly and slow the quilting fill to 600–700 SPM.
• Q: Why does the Baby Lock Altair 2 IQ Designer background fill stitch blue lines across the poinsettia motif, and how do you stop it?
  A: The Stamp/Barrier step was missed—bucket fill was applied over the entire square instead of only the background outside the flower.
  • Select: Use the Stamp function on the centered poinsettia motif before filling.
  • Fill: With the Bucket Fill tool, tap inside the square but clearly outside the flower shape.
  • Verify: Undo immediately if the flower area turns blue, then tap again in the correct region.
  • Success check: Blue fill lines appear only in the background, and the flower remains white/blank before stitching.
  • If it still fails… Re-center the motif and repeat the stamp step before applying the quilting fill.
• Q: How do you prevent the Baby Lock Altair 2 from jamming when adding the envelope back on an ITH coaster while the project stays hooped?
  A: Tape the backing pieces aggressively, especially a long strip across the center overlap seam, to create a smooth “ramp” that won’t catch on the machine bed.
  • Place: On the back side, align two hemmed backing pieces from top and bottom with at least a 1" center overlap.
  • Tape: Secure outer corners, then apply one long strip of tape across the entire center overlap seam.
  • Reinsert: Slide the hoop in carefully and confirm no backing edge is lifted or bunched.
  • Success check: The hoop slides in without snagging, and the final perimeter stitch runs without fabric folding under the needle.
  • If it still fails… Remove the hoop (do not un-hoop), re-tape the overlap seam flatter, and check for any loose “lip” that can catch.
• Q: What is a safe way to tape fabric near the needle area on a Baby Lock Altair 2 during ITH coaster setup to avoid injury?
  A: Keep fingers away from the needle zone and only tape with the hoop out or the machine stopped so there is no chance of a sudden start or needle strike.
  • Stop: Pause/stop the machine before hands go near the needle path.
  • Tape: Apply tape at the hoop edges (top/bottom) rather than reaching under the needle area.
  • Insert: When inserting the hoop, ensure fabric is not bunched under the arm before starting.
  • Success check: Hands never cross the needle’s travel area, and the hoop clicks in smoothly without forcing.
  • If it still fails… Slow down the workflow—rushing near the needle is when most accidents happen.
• Q: When repeated hoop burn or slow hooping happens on a Baby Lock Altair 2 ITH coaster workflow, when should a user switch from technique tweaks to magnetic hoops or a multi-needle machine?
  A: Start with process fixes, move to magnetic hoops when hooping time and hoop burn become the bottleneck, and consider a multi-needle machine when color changes and downtime limit output.
  • Level 1 (Technique): Float fabric, tape top/bottom only, hoop stabilizer+batting correctly, and slow dense fill to 600–700 SPM.
  • Level 2 (Tool): Choose magnetic hoops when screw-tightening fatigue, velvet/linen hoop burn, or faster “slap-on” hooping becomes the daily friction point.
  • Level 3 (Capacity): Move to a multi-needle machine when frequent color changes (green→red→gold) and stops are the main limiter for 100+ units.
  • Success check: The chosen upgrade removes the true bottleneck (time per hooping, fabric marking, or stoppages) rather than masking a setup error.
  • If it still fails… Track where time is actually spent (hooping vs stitching vs thread changes) and address that single constraint first.
