AccuQuilt Dies + Embrilliance Appliqué: The “No-Resize” Rule, a Cleaner E-Stitch Edge, and Fewer Hooping Headaches

There is a specific kind of frustration that comes from spending 20 minutes meticulously trimming appliqué fabric inside a hoop, only to accidentally snip the base garment. It’s a mistake that costs you money and morale. The workflow involving AccuQuilt dies and Embrilliance software isn't just a "hack"; it's an industrial engineering principle applied to your home or shop: Eliminate the variable of human error.

AccuQuilt provides the physical consistency (the cut), and Embrilliance provides the digital consistency (the stitch). Your job is to align them. When you master this, you move from "crafting" to "production."

The following guide breaks down the video’s workflow but adds the crucial "shop floor" parameters—tension, hooping physics, and safety checks—that ensure your result looks professional, not homemade.

Why AccuQuilt GO! dies + Embrilliance appliqué feels like cheating (in the best way)

In traditional appliqué, you stitch a placement line, place fabric, stitch a tack-down, remove the hoop (or contort your hands), trim the excess fabric with duckbill scissors, and pray you don't cut the shirt.

AccuQuilt eliminates the trimming. You use a die cutter to punch out the shape (like a cookie cutter for fabric). Because Embrilliance is licensed to use the exact geometry of that die, the software generates a stitch file that matches the pre-cut fabric perfectly.

The "Why" for production:

1. Speed: You save 5-10 minutes of trimming per item.
2. Safety: Zero risk of cutting the customer's garment.
3. Finish: No "hairy" raw edges poking out from the satin stitch.

However, this system relies on one golden rule: Fidelity. The physical die cannot change size, so the digital file must simpler never change size.

The “Hidden Prep” pros do before they ever open Embrilliance (fabric, adhesive, and sanity checks)

Before clicking a mouse, you must stabilize the physics of your setup. Appliqué fails when fabric shifts. If your base fabric (the sweatshirt) or your appliqué fabric (the pumpkin) moves even 1mm, your border stitch will miss.

1. The Hold-Down Strategy:

• Spray (Temporary Adhesive like 505): Best for large, simple shapes (hearts, circles). Mist the back of the appliqué, not the hoop.
• Fusible Web (e.g., Steam-A-Seam / Heat n Bond Lite): Mandatory for complex shapes with tendrils or sharp corners (like the pumpkin stem or a cat tail). This creates a bond that prevents the feed dogs from dragging the fabric.

2. The Hooping Strategy: This is where beginners struggle. Hooping a thick sweatshirt in a traditional plastic hoop is a wrestling match that often results in "hoop burn" (permanent friction rings) or crooked placement.

If you are doing production runs (50+ shirts), this friction kills efficiency. This is why professional shops transition to an embroidery hooping station. It standardizes placement so every pumpkin lands on the same spot on every chest, and it significantly reduces wrist strain.

Prep Checklist (Physical & Consumables):

• Die Check: Confirm you physically own the AccuQuilt die matching the file you plan to use.
• Stabilizer Selection:
  • Wovens (Quilt blocks): Tearaway (Med-weight, ~50g/1.8oz).
  • Knits (T-shirts/Sweats): Cutaway (No-show mesh or 2.5oz standard). Do not use Tearaway on knits.
• Consumables: Fresh needle (Size 75/11 Sharp for woven, Ballpoint for knits), curved appliqué scissors (just in case), temporary adhesive spray.
• Hoop Check: Ensure your hoop inner dimension is at least 20mm larger than the design on all sides.


Open the Embrilliance AccuQuilt Library the fast way (the Gear icon workflow)

In the video, the demonstration begins by opening the native library.

• Action: Click the Gear Icon ("Merge Design from Library") in the top toolbar.
• Result: A window pops up. This bypasses the typical "File > Open" route because these aren't external files; they are internal generated assets.


Pick the exact AccuQuilt appliqué die shape in Embrilliance (Holiday → Pumpkins → Tall Pumpkin)

Precision is required here.

1. Dropdown menu: Select AccuQuilt.
2. Category: Applique -> Holiday -> pumpkins.
3. Shape: Tall pumpkin.

Expert Tip: Look at the "Catalog" number in the software (e.g., 55323). Look at the physical packaging of your die. They must match. If you use a "Tall Pumpkin" file for a "Wide Pumpkin" die, you will ruin the garment.

The “No-Resize” rule for AccuQuilt appliqué files (and what happens when you ignore it)

This is the most critical concept in this workflow.

• The Trap: Users try to shrink the pumpkin to fit a smaller onesie.
• The Consequence: The software scales the stitch line down. The physical die cutter does not scale down.
• The Result: You will stitch a placement line that is smaller than your fabric piece. Your border stitch will land inside the fabric, leaving a loose, flapping raw edge that will fray in the first wash.

Rule: If the design doesn't fit the hoop, change the hoop. Do not change the design size.

Warning: Mechanical Safety. When placing your pre-cut appliqué fabric during the machine pause, keep your fingers well away from the start button. Modern machines have high torque. Additionally, ensure your appliqué fabric does not drape over the edge of the hoop where it could get caught in the pantograph arm or Y-carriage rail.

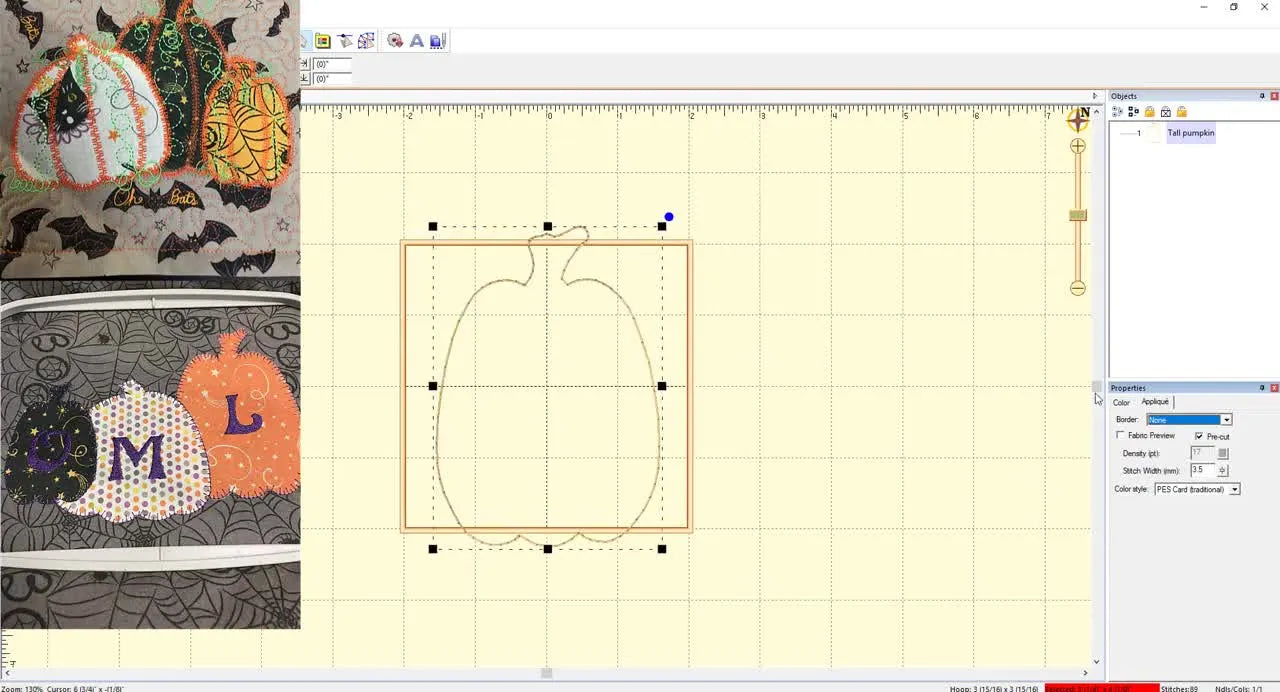

Drop the Tall Pumpkin onto the Embrilliance workspace grid (and verify it’s truly selected)

Once double-clicked, the outline appears on your grid.

• Action: Click the design once to select it. You should see the selection handles (black squares) appear around the perimeter.
• Why: You cannot edit properties (border style, color) unless the object is actively selected.


Don’t touch those sizing handles: the fastest way to ruin die-to-stitch alignment

Sue hovers near the handles in the video to make a point: Hands off. Treat the sizing handles as "nuclear buttons." If you drag a corner handle by accident, even by 5%, your die-cut fabric will no longer fit the stitch line.

• Recovery: If you accidentally drag a handle, immediately hit Ctrl+Z (Undo). Do not try to "drag it back" visually; you won't get it perfect.


Turn a basic placement line into a clean E-Stitch border (Properties panel → Appliqué Border)

Standard appliqué often uses a dense Satin stitch. However, for a rustic or "hand-stitched" look, the E-Stitch (Blanket Stitch) is superior.

How to set it:

1. With the pumpkin selected, go to the Properties panel (bottom right).
2. Select the Applique tab (or Color tab > Applique).
3. Change Border Style to E-Stitch.

The "Sweet Spot" Parameters: The video uses defaults, but here are the industry sweet spots for generic cotton/sweatshirt settings:

• Stitch Length (How far forward to travel): 3.0mm - 3.5mm.
  • Expert Note: If your design has tight curves, lower this to 2.5mm. A long stitch on a tight curve creates a hexagon shape instead of a circle.
• Stitch Width (How deep the "bite" is): 3.0mm.
  • Expert Note: If using thick toweling, bump to 4.0mm so the stitch doesn't get lost in the pile.

If your setup involves magnetic hoops for embroidery, you gain an advantage here: the magnet clamps the fabric continuously around the edges, preventing the "bunching" that sometimes distorts E-stitches in standard hoops.

Setup Checklist (Software Pre-Flight):

• Code Match: Library Shape ID matches Physical Die ID.
• Scale: Design scale is exactly 100% (No resize).
• Stitch Type: Border set to E-Stitch.
• Parameters: Width/Length set to safe range (~3.0mm).
• Position: Design is centered in the hoop interface.


What the E-Stitch preview is really telling you (and how to use it to avoid ugly edges)

Look closely at the preview. The "spine" of the E-stitch sits on the cut line, and the "teeth" bite into the fabric.

• Visual Check: Ensure the teeth point inward.
• Risk Assessment: E-stitch is an "open" border. Unlike Satin stitch, it does not seal the edge completely. If your fabric is prone to fraying (like loose linen), E-stitch requires fusible web (backing) on the fabric to glue the fibers together. Without it, the fabric will disintegrate between the teeth.


Fabric hold-down choices: spray vs fusible web (the cat-tail problem applies to more than cats)

The video discusses the "cat tail" scenario—long, thin strips of fabric.

• The Physics: As the needle creates the "teeth" of the E-stitch, it pulls the fabric. On a thin strip, this tension can lift the fabric off the stabilizer.
• The Fix:
  1. Fusible Web: Ironing the appliqué to the garment before the final stitch is the only 100% secure method for thin shapes.
  2. Magnetic Clamping: If you can't iron (e.g., heat-sensitive vinyl), using a magnetic embroidery hoop helps stabilize the surrounding area more effectively than plastic hoops, reducing the "trampoline effect" that causes shifting.


Use Embrilliance Fabric Preview to “audition” your appliqué fabric color before you stitch

Don't guess at contrast. Use the simulator.

• Action: Click Fabric Preview button -> Click the color swatch.
• Selection: Choose a color closest to your appliqué fabric (e.g., Orange).


The orange swatch trick: previewing contrast so your border stitch doesn’t vanish

Once the pumpkin turns orange on screen, look at your thread color.

• Low Contrast (Orange Thread): Hides mistakes, but looks "muddy."
• High Contrast (Black/Brown Thread): Pops visually, but demands perfect alignment. Any gap between fabric and stitch will be visible from across the room.
• Expert Advice: For your first attempt, use a thread color slightly darker than the fabric (high tolerance). Save the high-contrast black thread for when you have dialed in your hooping technique.


Final on-screen verification: the filled pumpkin + E-Stitch border should look “locked in”

Your screen now simulates the final reality.

• Check: Does the border look proportional?
• Check: Is the specific die shape correct? (Tall vs. Wide).


Decision Tree: choose stabilizer/backing and hooping strategy for quilts vs sweatshirts

Correctly mating your materials is 90% of the battle. Use this logic flow:

Input: What is your Base Material?

A. Stable Woven (Quilt Square / Denim / Canvas)

• Stabilizer: Medium Tearaway (usually sufficient).
• Hooping: Standard hoop is acceptable.
• Note: If denim is thick, ensure the inner hoop ring doesn't pop out.

B. Unstable Knit (T-Shirt / Sweatshirt / Minky)

• Stabilizer: CUTAWAY IS MANDATORY. (Using tearaway here guarantees distortion). Use Iron-on Mesh Cutaway for best comfort.
• Hooping: This is the high-risk zone. Pulling a rounded neck sweatshirt into a square plastic hoop creates uneven tension (hoop burn).
  • Recommendation: A magnetic hooping station is the superior choice here. It allows you to "float" the stabilizer or clamp the garment without forcing it between plastic rings, preserving the fabric grain.

C. High Volume Production (50+ items)

• Stabilizer: Pre-cut sheets of Cutaway.
• Hooping: Invest in a hoopmaster hooping station or similar jig system (compatible with magnetic frames like those from SEWTECH). This ensures the logo/pumpkin is at the exact same height on every single shirt, which is the hallmark of professional work.

Warning: Magnet Safety Assurance. Modern magnetic hoops (like SEWTECH MaggieFrames) use industrial-grade magnets. They are incredibly strong. Pinch Hazard: Keep fingers clear of the mating surfaces when snapping them shut. Interference: Keep magnets at least 6 inches away from pace-makers, insulin pumps, and computerized machine screens/floppy disks.

Operation on the embroidery machine: the clean appliqué sequence Sue is building toward

Now, we run the machine. The sequence changes from standard embroidery.

The Sequence:

1. Placement Line (Run Stitch): The machine stitches the outline of the pumpkin on the bare sweatshirt.
2. STOP: The machine halts (programmed stop).
3. Positioning: You place your pre-cut pumpkin fabric inside the placement line.
   • Quality Check: It should fit exactly inside the line. If it overlaps or falls short >1mm, your fabric or hoop has shifted.
4. Hold Down: Spray or Iron.
5. Finish: Press start. The machine executes the E-Stitch border.

If you find yourself dreading the "Positioning" step because removing/re-attaching the hoop is difficult, consider that hooping station for machine embroidery setups often pair with hoops that snap on/off the machine arm more fluidly than generic friction hoops.

Operation Checklist (Live Fire):

• Bobbin: Is there enough bobbin thread? (Running out mid-border is a disaster).
• Presser Foot Height: If using puffy sweatshirt fleece + appliqué fabric, raise the foot height by 0.5mm - 1.0mm to prevent the foot from "bulldozing" the appliqué edge.
• Speed: SLOW DOWN. Run the border stitch at 500-600 SPM. High speed (1000+) on an E-stitch can cause flag-waving (fabric fluttering) which leads to missed stitches.

The upgrade path that actually makes sense: when to change hoops, when to change machines

As you move from hobbyist to semi-pro, recognize the bottlenecks.

1. The "Hand Pain" Bottleneck:
   • Symptom: Wrists hurt from tightening hoop screws. Hoop burn rings on dark garments.
   • Solution: Magnetic Hoops (Level 2 Upgrade). Use strong magnets to hold fabric instead of friction. Brands like SEWTECH offer these for almost all machine models.
2. The "Color Change" Bottleneck:
   • Symptom: Spending more time re-threading the machine for the stem/vine/leaf than actually stitching.
   • Solution: Multi-Needle Machine (Level 3 Upgrade). A machine like the SEWTECH 15-needle allows you to set up the Application, Border, Stem, and Leaf colors at once. You press start and walk away.

Quick answers to the comment-section questions (so you don’t waste an afternoon)

“So you can’t resize the AccuQuilt appliqués?” Technically you can, but you shouldn't. The moment you resize the file, you break the link to the physical die. You are trading a 10-second die cut for 20 minutes of hand trimming.

“Can I do this with Level 1 software, or do I need Level 2 or 3?” The basic AccuQuilt libraries work in free/entry-level versions (Embrilliance Express/Essentials), but advanced editing of the border properties (switching to E-Stitch with custom densities) generally requires the "Essentials" tier or higher.

“My E-stitch is tunneling (pulling changes the fabric shape).” This is a stabilization failure. Your stabilizer is too light for the thread tension. Switch to a heavier Cutaway stabilizer or loosen your top tension slightly.

The real payoff: consistent appliqué edges, less trimming, and a workflow you can repeat

The beauty of the AccuQuilt + Embrilliance workflow isn't just that it's "easier." It's that it is scalable.

Whether you are making one pumpkin for a grandchild or 50 pumpkins for a school fundraiser, the process is identical. The die cuts are identical. The stitch file is identical. By stabilizing your fabric correctly and perhaps upgrading to magnetic framing systems to handle the volume, you turn a tedious chore into a profitable, rhythmic production line.

FAQ

• Q: In Embrilliance AccuQuilt appliqué projects, what consumables and pre-checks prevent shifting and ruined borders before stitching?
  A: Use a repeatable prep checklist so the fabric cannot move even 1 mm during the border.
  • Confirm the AccuQuilt library Catalog/Shape ID matches the physical AccuQuilt die packaging ID.
  • Select stabilizer by fabric: woven quilt blocks = medium tearaway; knit T-shirts/sweats = cutaway (tearaway on knits commonly distorts).
  • Install a fresh needle (75/11 Sharp for wovens, Ballpoint for knits) and stage temporary adhesive spray and curved appliqué scissors “just in case.”
  • Success check: the pre-cut appliqué piece drops inside the placement line with an even margin and no edge lifting.
  • If it still fails: re-check hoop size clearance (at least 20 mm larger than the design on all sides) and inspect for fabric shifting during hooping.
• Q: In Embrilliance AccuQuilt Library designs, why is resizing the Tall Pumpkin appliqué file a problem, and what is the correct fix if the design does not fit the hoop?
  A: Do not resize AccuQuilt appliqué files because the physical die does not scale, so stitch and fabric will no longer match.
  • Keep the design at exactly 100% scale and avoid touching the sizing handles.
  • Use Ctrl+Z immediately if the design was resized by accident; do not try to “drag it back.”
  • Change to a larger hoop instead of changing design size when the hoop is too small.
  • Success check: after the placement line stitches, the die-cut fabric fits inside the outline without being short or oversized by more than about 1 mm.
  • If it still fails: verify Tall vs Wide shape selection and confirm the Catalog/Die ID match.
• Q: In Embrilliance appliqué borders, what E-Stitch (blanket stitch) settings are a safe starting point for cotton or sweatshirt fabric?
  A: Start with E-Stitch length 3.0–3.5 mm and width about 3.0 mm, then adjust only if the curves or fabric demand it.
  • Set Border Style to E-Stitch in the Properties panel with the appliqué object selected.
  • Reduce stitch length to about 2.5 mm on tight curves to avoid “hexagon” corners.
  • Increase stitch width up to about 4.0 mm on thick toweling so the stitch does not disappear in the pile.
  • Success check: the preview shows the E-stitch “teeth” biting inward toward the appliqué fabric, with the spine riding the cut line.
  • If it still fails: switch from spray to fusible web on fray-prone fabrics because E-stitch is an open border and will not fully seal edges.
• Q: For Embrilliance appliqué on sweatshirts, when should temporary spray adhesive be replaced with fusible web (Steam-A-Seam or Heat n Bond Lite)?
  A: Use fusible web for thin, complex, or high-tension shapes because spray alone may let edges lift during the E-stitch “teeth” pulls.
  • Choose spray for large, simple shapes and mist the back of the appliqué fabric (not the hoop).
  • Choose fusible web for tendrils, sharp corners, and thin strips (the “cat tail” problem) where fabric can peel or shift.
  • Press/iron the appliqué into position before the final border when maximum security is needed.
  • Success check: during the border stitch, the appliqué edge stays flat with no fluttering or exposed raw edge between stitches.
  • If it still fails: slow the machine down (border at about 500–600 SPM) and confirm the knit base uses cutaway stabilizer.
• Q: During the embroidery machine appliqué pause, what mechanical safety steps prevent finger injuries and fabric snags when placing pre-cut AccuQuilt appliqué pieces?
  A: Keep hands clear of the start button and keep the appliqué fabric fully inside the hoop perimeter so nothing can catch the moving arms/rails.
  • Move fingers away before resuming because modern machines have high torque and can start abruptly.
  • Trim/position the pre-cut piece so no fabric drapes over the hoop edge where it can snag the pantograph arm or Y-carriage rail.
  • Verify the hoop area is clear before pressing Start after the STOP/pause.
  • Success check: the machine runs the border stitch without pulling fabric into the carriage path or jerking the hoop.
  • If it still fails: pause immediately and re-seat the appliqué so all edges are contained within the placement line and hoop window.
• Q: What are the key magnet safety rules for SEWTECH-style magnetic embroidery hoops during hooping and production?
  A: Treat magnetic hoops as pinch hazards and keep them away from sensitive medical devices and electronics.
  • Keep fingers out of the mating surfaces when snapping the magnetic ring closed.
  • Keep magnets at least 6 inches away from pacemakers, insulin pumps, and computerized machine screens/floppy disks.
  • Close the hoop in a controlled way rather than letting magnets “slam” together.
  • Success check: the garment clamps evenly with no slipping, and hands never enter the pinch zone during closure.
  • If it still fails: switch to a slower, two-handed closing method and confirm the fabric is not excessively thick for the chosen frame.
• Q: For hoop burn, wrist pain, and slow production on sweatshirt appliqué, when should embroidery workflow move from technique changes to magnetic hoops and then to a multi-needle machine like SEWTECH 15-needle?
  A: Use a tiered upgrade path: optimize technique first, add magnetic hoops when hooping becomes the bottleneck, and move to multi-needle when color changes dominate time.
  • Level 1 (technique): correct stabilizer (cutaway on knits), slow border speed (about 500–600 SPM), and verify die/file fidelity (no resizing).
  • Level 2 (tool): adopt magnetic hoops to reduce hoop burn friction rings, speed hooping, and reduce wrist strain from hoop screws.
  • Level 3 (capacity): move to a multi-needle machine when re-threading for stem/vine/leaf colors takes longer than stitching.
  • Success check: consistent placement and borders across repeated items with less re-hooping struggle and fewer distorted edges.
  • If it still fails: add a hooping station/jig for standardized placement so each appliqué lands in the same position every run.
