A Reversible Denim Bucket Hat with Brother NV180D Embroidery: Clean Hooping, Crisp Seams, and a Finish That Sells

It is a universal truth in the embroidery world: the "simplest" projects often hide the sharpest teeth. You start a reversible bucket hat expecting a quick afternoon win, but you end up with a brim that ripples like a potato chip, a crown seam that twists, or an embroidery design that sits slightly—but noticeably—off-center.

A bucket hat is, mechanically speaking, a stress test. It demands three different skill sets simultaneously: precision paper engineering, rigid fabric control during hooping, and the ability to sew consistent convex-to-concave curves.

This project combines all three. We are building a reversible hat using pattern assembly, fusing interfacing for necessary structure, and executing a clean embroidery placement on heavy denim using a Brother Innov-is NV180D.

My goal here is to take you from "hoping it works" to "knowing it will work." We will move beyond basic instructions into the physics of fabric manipulation, ensuring that your finished hat looks like it came from a boutique, not a struggle.

The Mise-en-place: Gather Tools and Fabrics Before You Stitch

The video demonstrates using two distinct fabrics: a sturdy blue denim for Side A and a playful red polka dot cotton for Side B. The denim provides the structural skeleton, while the cotton provides comfort.

In my 20 years on the production floor, the number one cause of mistakes isn't lack of talent—it's "friction." Friction is stopping to find scissors, hunting for the right hoop, or realizing you don't have the right needle installed. Eliminate friction before you start.

The Essential Manifest:

• Paper Pattern: Printed on A4 (Crown, Side, and Brim pieces).
• Adhesives: Glue stick (essential for joining paper patterns accurately).
• Fabrics: Heavyweight Denim (Fabric A) and Quilting Cotton (Fabric B).
• Structure: Lightweight Woven Fusible Interfacing (Safety Note: Avoid non-woven/papery interfacing for hats; it cracks over time).
• Marking: Heat-erasable or water-soluble pen (Do not use chalk on denim; it rubs off too fast during hooping).
• Stabilizer: Tear-away stabilizer (Medium weight, 50-60g).
• Hoop: Standard 10x10cm (4x4) frame involved with the Brother NV180D.
• Needles (Hidden Consumable): Crucial Upgrade—Switch to a Jeans/Denim Needle (Size 90/14). A standard universal needle will deflect on the thick seams, causing crooked stitches.


Warning: Mechanical Safety
When sewing the steep curves of the crown and brim, your fingers will naturally want to "steer" the fabric very close to the presser foot. Resist this urge. If your finger slips under a needle moving at 850 stitches per minute, the injury is severe. Use a stiletto tool or the eraser end of a pencil to guide fabric near the needle.

Prep Checklist: The "No-Go" Criteria

• Scale Check: Measure the test square on your printed pattern. If it is off by even 2mm, reprint. A tight hat is unwearable.
• Needle Swap: Install a fresh 90/14 Jeans needle. If you hear a "thud-thud" sound while sewing, your needle is too dull.
• Thread Match: Ensure you have enough bobbin thread wound to complete the entire brim topstitch without stopping.
• Join Inspection: Tape/Glue the pattern pieces so the lines flow seamlessly. A jagged paper join = a jagged fabric seam.

Pattern Assembly: Joining the Blueprint Without the "Kink"

The process begins with paper. You must cut and join split pieces (Side A & B, Brim A & B) to form full templates. This seems trivial, but it is the foundation of the hat's geometry.

If your joining technique is sloppy, the side panel will have a subtle "V" shape at the join rather than a smooth arc. This distortion multiplies when you sew the fabric, resulting in a hat that sits lopsided on the head.

The Protocol:

1. Cut the pieces precisely on the black lines.
2. Overlap using the glue stick. Do not butt the edges together; overlap them to the marked match lines.
3. Visual Check: Hold the joined piece up to a light source. The curved edge should look like one continuous, fluid line. If there is a sharp point or a dip at the junction, peel it apart and re-glue.

Interfacing: The Secret to a Professional Silhouette

A viewer asked a critical question: "What interfacing is used?" The answer is lightweight woven fusible interfacing.

Why "Woven" Matters: Non-woven interfacing (the papery kind) creates a stiff, cardboard-like brim that creases permanently if bent. Woven interfacing drapes like fabric but adds tensile strength. It moves with the denim, preventing the embroidery from puckering and the brim from flopping.

The Application Ritual:

• Place the interfacing (rough/glue side down) onto the wrong side of the denim.
• Press, Don't Iron: Lift your iron and set it down firmly for 10-12 seconds per section. If you slide the iron (ironing), you smear the glue and stretch the denim bias, warping your piece before you even sew.

The Hooping Ritual: Anchoring the Denim

We now reach the most anxiety-inducing step for beginners: Hooping heavy denim. The video demonstrates marking the center, placing tear-away stabilizer underneath, and pressing the inner hoop into the outer hoop.

Whenever you are learning hooping for embroidery machine, you must respect the physics of the material. Denim is thick. When you force the inner hoop into the outer ring, the fabric creates tremendous outward pressure. This often pushes the outer ring open slightly, causing "hoop slip."

The Step-by-Step Discipline:

1. Mark: Draw a distinct crosshair on the center of your Side piece using your erasable pen.
2. Sandwich: Place the tear-away stabilizer flat on your table. Place the denim on top.
3. Align: Loosen the outer hoop screw significantly more than you think you need to.
4. Press: Align the inner hoop's notches with your drawn marks. Press down with equal force on all four corners.

Sensory Check (The "Drum" Test): Run your fingers across the hooped denim. It should feel taut, like a drum skin, but not distorted. If you tap it, it should make a dull thumping sound. If the fabric ripples when you run your finger over it, it is too loose—re-hoop immediately.

The "Hoop Burn" Reality: Traditional plastic hoops rely on friction and brute force. On denim, this often leaves a shiny, crushed ring called "hoop burn" that is hard to remove.

Tool Upgrade Path (Level 1): If you find yourself physically struggling to snap the hoop shut, or if your wrists hurt after three hats, this is your trigger to upgrade. Many professionals switch to magnetic embroidery hoops for thick materials. Magnetic hoops use vertical magnetic force rather than horizontal friction, clamping the denim instantly without crushing the fibers or requiring wrist torque.

Warning: Magnetic Field Safety
Magnetic hoops use strong industrial neodymium magnets. They can pinch skin severely. Keep them at least 6 inches away from pacemakers or insulin pumps. Do not let the top frame "snap" onto the bottom frame uncontrolled; guide it down gently.

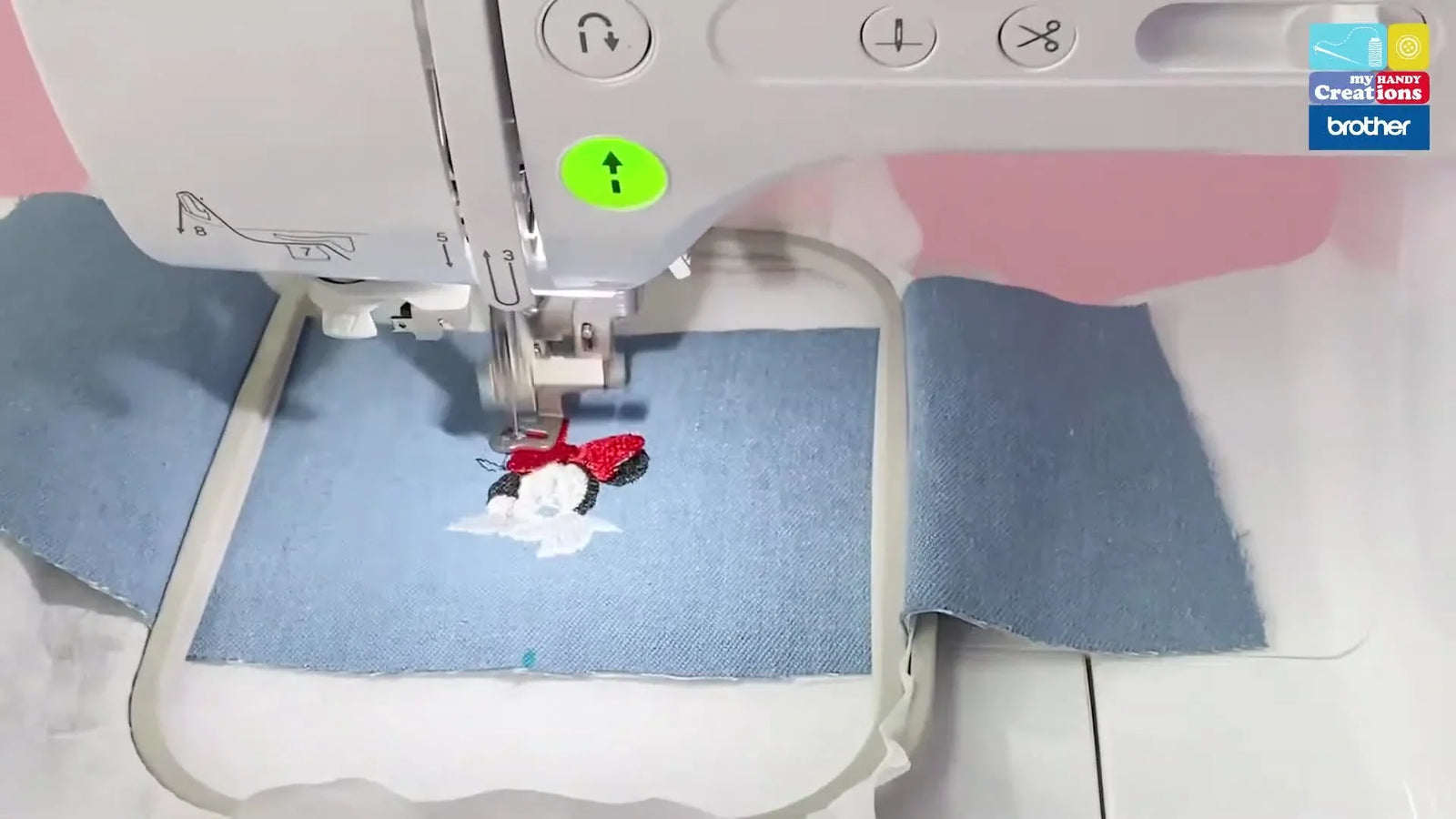

The Stitch Out: Execution on the Brother NV180D

The operator selects a Minnie Mouse design, locks the hoop into the carriage, lowers the foot, and begins stitching.

Digital Setup:

• Design Choice: Ensure the design density is appropriate for denim. The built-in Disney designs are generally well-digitized for medium-weight fabrics.
• Placement: On the LCD screen, double-check that your design is centered.


Speed Control (The Expert Adjustment): The NV180D is a capable machine, but punching through denim + interfacing + stabilizer creates resistance.

• Standard Speed: 850 SPM (Stitches Per Minute).
• Recommended Denim Speed: 600 SPM.
• Why? Slowing down reduces needle deflection, minimizing the risk of breaking a needle or skipping stitches. It adds perhaps 2 minutes to the run time but saves you 20 minutes of troubleshooting.

The "Sound" of Correct Tension: Listen to your machine. A rhythmic, steady "chug-chug-chug" is good. A harsh, metallic "clack-clack" usually means the hoop is bouncing because it wasn't tightened enough, or the needle is dull.

If you are doing production runs where you hoop multiple Side panels in a row, consider a hooping station for brother embroidery machine. These fixtures hold the outer hoop static, allowing you to align perfectly every time without the "slide and guess" method.

Unhooping: Structural Integrity

Once the stitching is done, remove the hoop.

The Safe Removal Method: Don't rip the stabilizer off like a wax strip.

1. Remove the fabric from the hoop.
2. Place the fabric face down on a flat surface.
3. Place one hand flat on the embroidery to support the stitches.
4. Gently tear the stabilizer away against the stitch line.

Supporting the stitches prevents you from distorting the density of the design you just created.

Consumable Note: Denim is linty. After this step, take a brush and clean the bobbin area of your machine. Blue lint builds up fast and can cause sensor errors.

Construction: Precision Seams (1cm Rule)

We now transition from embroidery to sewing. Place Fabric A and Fabric B right sides together. Sew the side seams with a strict 1cm seam allowance.

Why 1cm? In garment construction, precision in allowance is more important than straightness of stitch. If you sew at 1.2cm, the circumference of your hat shrinks by nearly 1.5cm, causing the crown to not fit the side panel later.

Setup Checklist (Sewing Mode):

• Switch Feet: Remove the embroidery foot (usually 'Q') and install the Standard Zigzag foot ('J') or 1/4 inch foot if available.
• Stitch Length: Set straight stitch length to 2.5mm.
• Pressing: Press the side seam open. Do not collapse it to one side. A seam pressed open reduces bulk by 50%, which is critical when we later stitch through multiple layers.

The Crown Seam: Mastering the Curve

This is the hardest sewing step. You are attaching a flat circle (crown) to a cylinder (side).

The Technique:

• Quartering: Fold the crown in four to find the quadrants. Do the same for the side cylinder. Match these four points with pins first.
• Ease: The feed dogs (metal teeth) of your machine naturally pull the bottom fabric faster. Place the side piece against the feed dogs and the crown on top. This helps ease the slight excess fabric of the bias curve.

Clipping the Curve (Physics):

Once sewn, you must clip the seam allowance.

• Why? The raw edge of the seam allowance has a smaller circumference than the stitch line. If you don't cut slits into it, it will act like a tight rubber band, puckering the top of the hat.
• How: Snip strictly into the allowance every 1.5cm, stopping 2mm before the thread. Do not cut the thread!

Brim Construction: The Structure

Assemble the brim pieces. The brim is the visual anchor of the hat.

For those looking to scale this process up (making 10+ hats for sale), this assembly phase is where bottlenecks happen. Using a hooping station for embroidery mindset applied to sewing—batching your tasks—is key. Cut all brims, fuse all interfaces, then sew all curves.

The Reversible Turn: The "Magic" Move

Place the Inner Hat (red polka dot) over the Outer Hat (denim), right sides facing. Stitch around the brim's outer edge.

The 8cm Rule: Leave a gap of at least 8cm (3 inches). Beginners often leave a tiny 4cm gap thinking it looks neater. Radical acceptance: You have to pull a thick denim hat through that hole. A small hole equals ripped stitches and wrinkled fabric. Make the hole big; it's easy to close later.

Topstitching: After turning firmly right side out and pressing (press, don't iron!), topstitch the brim.

Operation Checklist (Finishing):

• Roll the Seam: Before pressing the brim edge, roll the seam between your thumb and forefinger until the stitches are visible on the very edge. This prevents the "lining peek" where the red fabric shows on the blue side.
• Stitch Length: Increase stitch length to 3.0mm or 3.5mm for topstitching. It looks more like professional denim wear and glides over thick layers easier.
• Closing: Hand stitch the 8cm gap using a ladder stitch (invisible stitch) for a truly reversible finish.

Decision Tree: Fabric & Stabilizer Pairing

Embroidery is chemistry; you must mix the right elements.

Scenario A: Heavy Denim (The Video Project)

• Thread: 40wt Rayon or Polyester.
• Needle: 90/14 Jeans.
• Stabilizer: Tear-away (Medium).
• Hoop: Standard plastic is okay, but embroidery magnetic hoops are superior for ease and lack of hoop burn.

Scenario B: Stretchy Cotton/Jersey (T-shirt style)

• Modification: You must use Fusible Mesh (Cut-away) stabilizer. Tear-away will result in gap-toothed embroidery because the knit fabric stretches while the stabilizer tears.
• Ballpoint Needle: 75/11 Ballpoint.

Scenario C: High-Pile Texture (Corduroy/Velvet)

• Modification: Add a layer of Water Soluble Topping (Solvy) on top of the fabric to prevent stitches from sinking into the ribs of the corduroy.

Troubleshooting: The Doctor is In

Here are the symptoms specific to this project and their cures.

The Scaling Ladder: From Hobby to Production

If you successfully make one hat, you will likely be asked to make five. When you move from "making for fun" to "making for profit," your equipment needs to evolve.

Level 1: The Enthusiast You are using the NV180D and standard hoops. You employ patience and hand-basting to get good results.

• Limitation: Wrist pain from hooping denim; slow thread changes.

Level 2: The Semi-Pro (Efficiency) You realize time is money. You need repeatability.

• Solution: You adopt brother 4x4 magnetic hoop solutions compatible with your machine. This cuts your hooping time by 50% and saves your hands. You set up a dedicated cutting station.

Level 3: The Professional (Volume) You have orders for 50 hats. The NV180D's single needle requires you to sit there and change threads 15 times per hat.

• Solution: This is where SEWTECH multi-needle machines enter the conversation. A multi-needle machine holds 10+ colors simultaneously and sews at 1000 SPM on denim without blinking. It is not cheap, but if you are turning away orders because you "don't have time," the machine pays for itself.

The Final Reveal

Turn the hat inside out. Then back again. If you followed the interfacing rules, the 1cm seam allowance discipline, and the precise hooping alignment, you now have a product that looks identical on both sides—substantial, structured, and expertly personalized.

Topstitch that final brim row with confidence. You didn't just sew a hat; you engineered one.

FAQ

• Q: What needle should be used on a Brother Innov-is NV180D when embroidering heavy denim bucket hat panels with interfacing?
  A: Use a fresh 90/14 Jeans/Denim needle to reduce deflection and crooked stitches on thick seams.
  • Install: Replace the needle before starting the project, not after the first break.
  • Slow down: Reduce embroidery speed to around 600 SPM when stitching through denim + interfacing + stabilizer.
  • Listen: Stop if the machine starts sounding harsh or “clack-clack,” which can indicate bouncing or a dull needle.
  • Success check: The machine sound stays rhythmic and steady, and stitches remain straight when crossing bulky areas.
  • If it still fails: Hand-walk over cross-seams with the handwheel and consider moving to a thicker needle size (often 100/16) if breakage continues.
• Q: How can heavy denim be hooped correctly for a Brother Innov-is NV180D 4x4 (10×10 cm) embroidery frame without hoop slip?
  A: Loosen the outer hoop screw more than expected and press the inner hoop in evenly so the denim is taut but not distorted.
  • Mark: Draw a clear center crosshair on the denim panel with a heat-erasable or water-soluble pen.
  • Sandwich: Place medium tear-away stabilizer flat underneath the denim before hooping.
  • Press: Push down on all four corners with equal force instead of forcing one side first.
  • Success check: The hooped denim feels “drum-tight” (taut with no ripples) and gives a dull thump when tapped.
  • If it still fails: Re-hoop immediately; persistent hoop slip on thick denim is a common trigger to upgrade to a magnetic hoop style clamp system.
• Q: How can embroidery “hoop burn” (shiny crushed ring) be prevented on heavy denim when using a standard plastic hoop?
  A: Reduce friction and re-hoop correctly; if hoop burn keeps happening on denim, switching to a magnetic hoop is the most reliable fix.
  • Avoid over-crushing: Tighten only enough to pass the drum test—too much pressure can still mark denim.
  • Recover: Rub the ring with a damp cloth and apply steam to help lift compressed fibers.
  • Upgrade: Use a magnetic hoop for thick materials to clamp vertically instead of crushing with hoop friction.
  • Success check: After unhooping, the denim surface shows minimal shine and the fabric grain is not permanently flattened.
  • If it still fails: Test on a scrap denim piece and adjust hooping pressure/technique before committing to cut panels.
• Q: How can “birdnesting” (thread clump underneath) be fixed on a Brother Innov-is NV180D during denim embroidery?
  A: Rethread the upper thread completely with the presser foot UP, because most birdnesting starts from lost top-tension engagement.
  • Rethread: Remove the top thread and rethread from spool to needle with the presser foot raised.
  • Check: Confirm the bobbin area is clean—denim lint builds up fast and can contribute to tension issues.
  • Restart: Stitch again at a reduced speed (around 600 SPM) to keep the stitch formation stable on dense areas.
  • Success check: The underside shows clean bobbin lines (not a thread pile), and the top stitches stop “looping.”
  • If it still fails: Floss the tension discs to remove lint and re-test on the same denim + interfacing + stabilizer stack.
• Q: What is the safest way to guide fabric when sewing steep crown and brim curves on a Brother Innov-is NV180D at high speed (around 850 SPM)?
  A: Keep fingers away from the needle path and use a stiletto tool (or pencil eraser) to steer fabric near the presser foot.
  • Slow down: Reduce speed before entering tight curves so hands don’t chase the needle.
  • Guide: Use a stiletto/pointer to nudge the seam allowance without placing fingertips close to the needle.
  • Plan: Reposition hands frequently instead of “holding tight” through the whole curve.
  • Success check: Hands remain safely outside the needle zone while stitches stay on the intended seam allowance.
  • If it still fails: Stop with the needle down, lift the presser foot, and re-position—do not force the curve in one continuous push.
• Q: What magnetic hoop safety rules should be followed when using strong neodymium magnetic embroidery hoops for thick denim?
  A: Control the snap and keep medical devices protected—magnetic hoops can pinch skin severely and must be kept at least 6 inches from pacemakers or insulin pumps.
  • Guide down: Lower the top frame gently instead of letting magnets snap together uncontrolled.
  • Protect hands: Keep fingertips out of the clamp zone before the magnets engage.
  • Keep distance: Maintain at least 6 inches from pacemakers/insulin pumps and store magnets responsibly.
  • Success check: The hoop closes without a sudden slam, and no skin is pinched during placement.
  • If it still fails: Pause and reset—rushing magnetic hoop closure is the main cause of injury, not user “mistakes.”
• Q: When should a Brother Innov-is NV180D bucket hat workflow be upgraded from standard hoops to magnetic hoops, or from a single-needle machine to a SEWTECH multi-needle embroidery machine?
  A: Upgrade based on the specific bottleneck: wrist pain and slow hooping point to magnetic hoops; high-volume multi-color orders point to a multi-needle machine.
  • Level 1 (technique): Reduce to ~600 SPM on denim, use a fresh 90/14 Jeans needle, and pass the drum test when hooping.
  • Level 2 (tool): If hooping denim is physically hard, causes hoop burn, or slows batching, move to magnetic hoops for faster, repeatable clamping.
  • Level 3 (capacity): If orders require frequent thread changes (many colors per hat) and volume is growing, a SEWTECH multi-needle machine reduces downtime dramatically.
  • Success check: Hooping time drops and placement repeatability improves (consistent centering without re-hooping), or production stops being limited by thread-change time.
  • If it still fails: Track where time is lost (hooping, thread changes, rework) for one full hat batch—upgrade the step that is repeatedly the constraint.
