A Removable Extension Table for a 2-Head Commercial Embroidery Machine: The Cleanest Way to Support Heavy Garments (Without Drilling)

Gravity is the silent enemy of embroidery registration. If you have ever run a heavy Carhartt jacket, a dense hoodie, or even a large stack of pique polos on a multi-head setup, you know the sensation: the garment fights the pantograph. It wants to drag, twist, and pull the hoop away from center.

That isn't you being "picky"—that is physics. When a 2lb garment hangs off a hoop held only by friction, micro-movements occur. These manifest as white gaps between borders (registration errors) or puckering.

The video you watched outlines a smart, shop-floor solution: a removable, drop-in work surface tailored for a 2-head commercial embroidery machine. It uses a "floating" design secured by custom guide blocks and industrial mounting tape, removing the need for invasive drilling.

As a veteran of the trade, I am going to walk you through this build, but with an added layer of "production safety." We will cover the specific physics of adhesion, the sensory checks to ensure your machine controls remain accessible, and how this physical upgrade bridges the gap between frustration and profitability.

Why a Flat Work Surface Under a 2-Head Commercial Embroidery Machine Saves Real Time (and Real Headaches)

In a professional shop, "drag" is the primary cause of flagging—where the fabric bounces up and down with the needle, causing birdnesting. A flat support surface changes the equation by neutralizing gravity.

The Physics of Support:

1. Weight Dispersion: Instead of the hoop bearing 100% of the garment's weight, the table supports 90% of it. The pantograph motors no longer have to fight the drag coefficient of a hanging sweatshirt.
2. Friction Reduction: By allowing the fabric to glide, you reduce the torque on your X/Y steppers.

In the video, the host creates a unified surface that is removable. This is critical. Permanent tables are a nightmare when you need to change a bobbin case spring or retrieve a dropped screw.

If you are running production, this modularity is mandatory. It pairs naturally with high-volume workflows found on commercial embroidery machines, where downtime for maintenance must be kept to minutes, not hours.

The “Don’t Box Yourself In” Primer: Keep Maintenance and Hanging Items in Mind Before You Build

A common rookie mistake is building a table that looks beautiful but makes the machine impossible to service. I have seen operators unable to reach the oiling points under the hook assembly because they bolted a piece of plywood permanently in place.

The logic here is "Slide-In, Slide-Out."

The Golden Rules of Accessibility:

• The Oil Check: Can you reach the bobbin area without tools?
• The Tote Test: Can you slide a standard storage bin underneath without it hitting the bracing?
• The Drape Factor: Is there room for a duffel bag strap to hang down without catching?

Warning: Mechanical Safety Hazard. Before removing any factory supports or braces, power down the machine completely. Unplug it. Metal edges inside the chassis can be razor-sharp. Furthermore, confirm in your machine’s service manual that the brace you are removing is structural rather than just alignment. Removing a critical torque-brace on a running machine can cause the frame to warp over time.

Clearing the Chassis: Removing Factory Support Plates and Lower Braces Without Regret

What the video does (00:38–01:01): The host creates a "pass-through" channel by removing a non-structural cross-plate and a lower brace. This opens the cavity between the heads and the lower shelf.

The "Shake Test" (Empirical Verification): Before you install anything new, you must verify the stand’s integrity after removing parts.

1. Stand in front of the machine.
2. Place hands on the hips of the stand.
3. Give it a firm, short shove sideways.
4. Sensory Check: You should feel a solid "thud." If you feel a "wobble" or hear a metallic creak/groan, the brace you removed was structural. You must reinforce the stand elsewhere before proceeding.

Shop Tip: If you detect new movement, do not ignore it. Vibration affects stitch quality. You may need to retighten the remaining hex bolts to their specified torque (usually 20-25 Nm for stand bolts) to compensate.

The “Hidden” Prep: Materials, Fit Logic, and Why 1/4-Inch Board Thickness Matters

The host selects a 1/4-inch (6mm) board (01:07). Newcomers often think, "Thicker is stronger, I'll use 3/4 inch plywood." Do not do this.

Why 1/4 inch is the "Sweet Spot":

• Clearance: You have very limited space between the needle plate arm and the stand rails. A thick board will rub against the pantograph arm.
• Weight: You need to be able to lift this out with one hand.
• Flex: A 1/4-inch board has enough flex to slide into tight guides but becomes rigid once supported on the rails.

Hidden Consumables You Will Need:

• Isopropyl Alcohol (90%+): For cleaning the metal before taping.
• Microfiber Cloths: To ensure no lint remains.
• Deburring Tool or Sandpaper: To smooth the wood edges so they don't snag delicate knits.

If you are upgrading your shop to reduce garment damage, this table is Step 1. Step 2 is often upgrading your hooping infrastructure. Many professionals finding success with this table setup also investigate proper hooping stations to ensure the garment is hooped straight before it even hits the table.

Prep Checklist (Do this before applying tape)

• Material Verification: Confirm board is exactly 1/4" (6mm). MDF produces a smoother surface than plywood.
• clearance Check: Slide the bare board over the rails. Ensure there is at least 5mm clearance between the board and the bottom of the embroidery arm.
• Surface Prep: Clean the metal rails with Isopropyl Alcohol until the cloth comes away white/clean. Oil residue is the #1 cause of tape failure.
• Edge Safety: Run your finger along the cut edges of the board. If you feel anything catch your skin, sand it down. It destroys satin shirts.
• Plan the Path: Ensure no cables or zip-ties define the path where the board will slide.


Fabricating the Custom L-Shaped Guide Blocks: The Notch That Makes the Whole System Work

What the video shows (01:42–01:52): The standard solution uses a custom-cut block (polymer or wood) with a notch (rabbet) routing out of it.

The "Goldilocks" Tolerance: You are creating a friction fit.

• Too Tight: The wood expands with humidity (shop steam, rain) and jams.
• Too Loose: The table rattles during high-speed stitching (1000 SPM), creating noise and vibration.
• The Target: You want a gap of board thickness + 1mm (approx 1/32").

Tactile Goal: When you insert the board, it should engage with a soft "slide," similar to a well-fitting drawer. It should not require a hammer tap to seat.

The Dry-Fit Moment: Proving the Board Slides Under the Notch Before You Commit

What the video shows (01:50): Testing the slide action before the tape is exposed.

The "Shim Test": If your custom blocks are slightly too loose during the dry fit, do not panic. You can apply a layer of heavy-duty tape (like electrical tape or duct tape) inside the notch to act as a shim. This also adds a rubberized grip that dampens vibration.

Drill-Free Mounting with Banner Hem Tape: Getting Real Holding Power on a Metal Stand

What the video does (01:53–02:11): The guide blocks are secured using double-sided Banner Hem Tape (often High-Bond Acrylic or VHB style).

Why this works regarding "Shear Strength": Double-sided acrylic tapes have massive shear strength (sliding force) but lower peel strength. Since the board pushes sideways against the block, the tape is working in its strongest direction.

The Curing Rule (Critical for Safety): Most high-bond tapes require pressure to activate and time to cure.

1. Pressure: Press the block against the stand with significant force for 30 seconds.
2. Cure Time: Do not load the table immediately. Achieve 50% strength in 20 minutes, but 100% bond strength usually takes 24 to 72 hours.

Expert Advice: If you rush this, the blocks will pop off mid-job. Let it set overnight.

Sliding in the Bare 1/4-Inch Wood Surface: Checkpoints for “Rigid Enough” Without Overbuilding

What the video does (02:12–02:45): The board is inserted. It spans the gap between the rails.

The "Drum Skin" Check: Once inserted, tap the center of the board.

• Good: It sounds dead and solid.
• Bad: It rattles or bounces.

If it bounces, you need to add a center heavy-duty excessive Velcro strip or a magnetic support block to the crossbar underneath to stop the resonance.

This stability is what makes the difference between "homemade" and "production grade." It provides the foundation required if you decide to upgrade to a hoop master embroidery hooping station, ensuring your precision hooping isn't wasted by a bouncy machine table.

Setup Checklist (Post-Installation)

• Slide Test: Board slides in/out with one hand, but doesn't drift out on its own.
• Vibration Test: Run the machine at 80-90% speed (e.g., 850 SPM). Put your hand on the table. It should not vibrate more than the stand itself.
• Clearance Verification: Check underneath—ensure the rotary hook area is completely clear of the new board.
• Cable Management: Ensure no machine cables are being pinched by the new guide blocks.


Vinyl Wrapping the Removable Table Top: The Finishing Touch That Also Makes Cleanup Easier

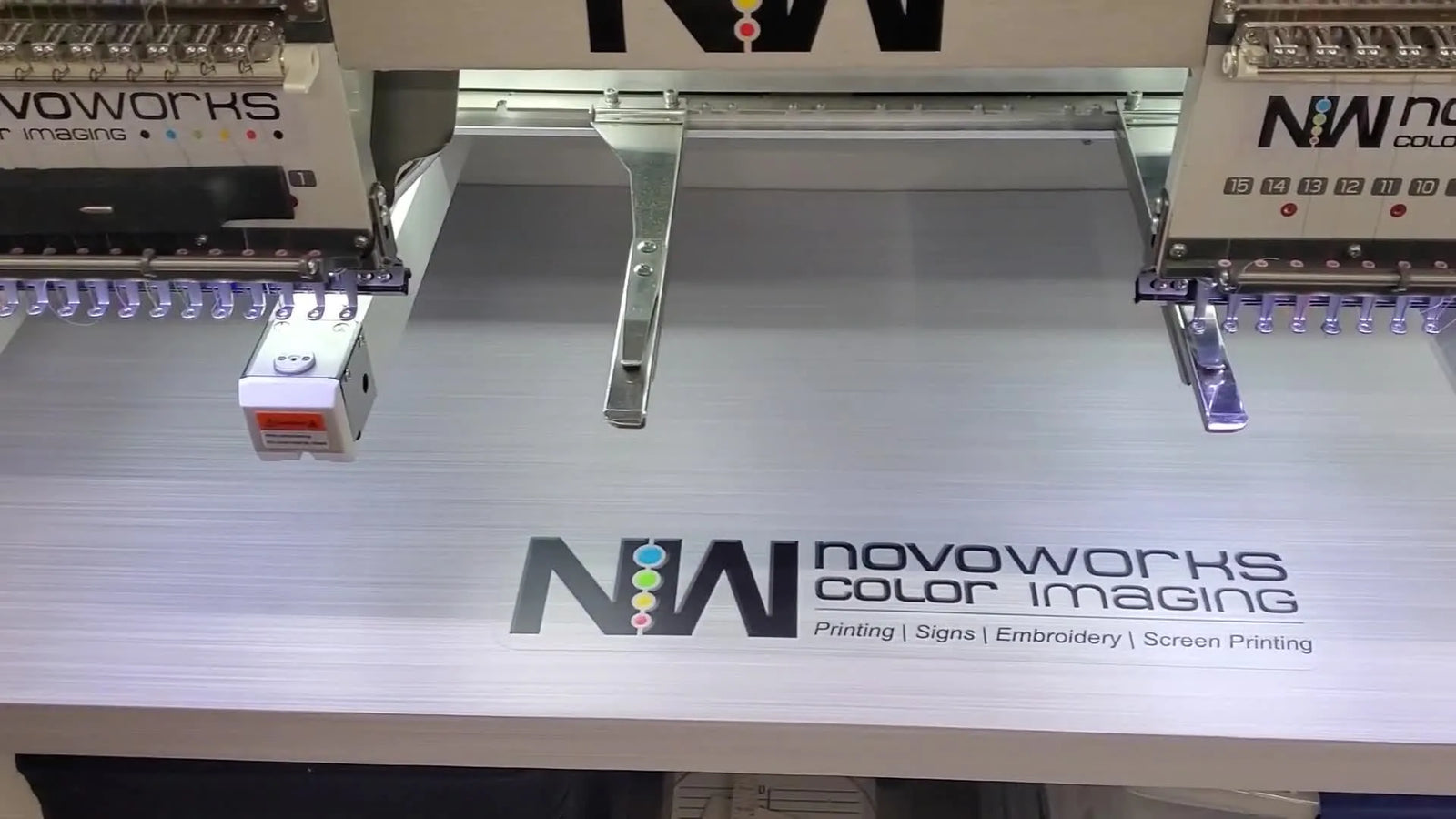

What the video shows (03:02–03:38): The surface is wrapped in printed vinyl.

Why Vinyl is a Functional Upgrade:

1. Friction: Raw wood grabs fabric. Vinyl allows fabric to "pool" and glide effortlessly.
2. Static Control: Wood generates less static, but a vinyl top can be wiped with anti-static spray, vital for polyester jerseys.
3. Visibility: Use a light color (white or light grey) for the wrap. It makes it easier to see where your hoop is positioned relative to the garment. Black tops hide lint and make alignment harder.


Under-Table Storage with Clear Plastic Totes: Dust-Free, Fast Access, and Easy Inventory Control

What the video does (03:05–03:20): Utilizing the negative space for standardized totes (~$10/ea).

The "One-Touch" Inventory System: In efficient shops, you touch the inventory as few times as possible.

• Tote 1: Current Job Blanks (Dust-free, distinct from stock).
• Tote 2: Stabilizers (Cutaway, Tearaway, Solvy).
• Tote 3: Hoops and Frames.

This keeps clean garments away from machine oil and floor dust. When managing huge orders on multi hooping machine embroidery setups, color-coding these totes (Red for Rush, clear for Standard) can prevent costly mix-ups.

The “Why It Works” Insight: Garment Drag, Hooping Tension, and How a Support Table Prevents Subtle Quality Problems

Before this table, the weight of a jacket could physically pull the hoop askew, causing the design to sew out in an oval shape instead of a circle. The table creates a "zero-gravity" zone.

The Next Level of Control: Now that you have solved the vertical drag (gravity), you must solve the horizontal tension (hooping). Traditional hoops often leave "hoop burn" or require massive hand strength to close on thick items.

Commercial Logic: When to Upgrade?

• Scenario: You are doing 50+ left-chest logos on thick hoodies.
• Pain: Wrists hurt, faster operators are waiting on hoops, rings act popping off.
• Solution Level 1: Hand exercises and shelf liner for grip.
• Solution Level 2: Magnetic Hoops.

Because you now have a flat table, the weight of the magnetic hoop is supported. This creates the perfect environment to use magnetic embroidery hoops. They snap closed instantly, reducing wrist strain and virtually eliminating "hoop burn" because they don't crush the fabric fibers like friction rings do.

A Quick Decision Tree: Which Stabilizer Strategy Matches the Garment You’re Supporting on the Table?

A flat table supports the fabric, but stabilizers define the stitch quality. Use this logic flow to make decisions quickly.

Decision Tree (Fabric + Support Strategy)

1. Is the fabric stretchy (Performance knit, Pique, Spandex)?
   • Yes: Cutaway Stabilizer (2.5oz - 3.0oz). The fabric needs permanent structural support. The table helps feed the bulk, the stabilizer stops the stretch.
   • No: Go to step 2.
2. Is the fabric unstable/sheer (Lightweight T-shirt, Rayon)?
   • Yes: No-Show Mesh (Fusible preferred). Prevents the "bulletproof vest" look. Use the table to prevent the shirt weight from distorting the light mesh.
   • No: Go to step 3.
3. Is the fabric heavy/structured (Carhartt, Denim, Canvas)?
   • Yes: Tearaway Stabilizer. The fabric supports itself; the stabilizer just sharpens the needle penetration.
   • Note: Even with heavy jackets, loop the sleeves up onto your new table so they don't catch on the pantograph arm.

For high-speed production, keeping pre-cut squares of these stabilizers in your new under-table totes transforms a hooping station for embroidery into a pit-stop rather than a bottleneck.

Troubles You’ll Actually See in a Real Shop: Symptoms, Likely Causes, and Fixes

Even the best builds have teething issues. Here is how to diagnose them like a chief engineer.

Warning: Pinch Point Hazard. The space between the moving pantograph arm and your new table is a "pinch zone." Keep fingers, scissors, and tweezers away from this gap while the machine is running. A 1000 SPM machine does not stop instantly.

The Upgrade Result: Turning a DIY Table Into a Repeatable Production Workflow (and Where Magnetic Frames Pay Off)

By building this table, you have moved from "hobbyist struggle" to "production control."

1. Prep: Items are staged in totes.
2. Process: Garments glide on the vinyl surface.
3. Output: Registration is tighter, and operators are less fatigued.

The "Toolbox Fallacy": Newcomers think they need a new machine to fix quality. Often, you just need better control. However, once you have the Table (Control) and the Skills (Technique), the bottleneck moves to the Tool (Efficiency).

If you notice your table is perfect but you are still losing 2 minutes per shirt struggling to force a plastic ring onto a thick jacket, that is the clear signal to investigate a magnetic embroidery frame. The flat table supports the heavy magnetic frame perfectly, allowing you to slide the work in, snap it shut, and hit start.

Warning: Magnetic Safety. Powerful magnetic hoops can pinch skin severely and may interfere with pacemakers. Always handle them by the edges and keep them away from sensitive electronics.

Operation Checklist (Daily Habits for Success)

• The "Pre-Flight" Wipe: Wipe the vinyl table with a damp cloth to remove lint/spray before the first shift.
• The Clearance Check: Before running a large bag or jacket, manually move the pantograph to all 4 corners (Trace Mode) to ensure the garment doesn't hit the stand rails.
• The "Parking" Rule: Never leave scissors, nibs, or oils on the table surface comfortably. Vibration travels. Tools travel. Eventually, they travel into the needle path.
• Tape Inspection: Once a month, press firmly on the guide blocks to ensure the tape bond is not degrading from oil exposure.

FAQ

• Q: How can a removable flat work surface under a 2-head commercial embroidery machine reduce registration gaps and puckering on heavy jackets and hoodies?
  A: Support most of the garment weight on a smooth, removable table so the hoop is not fighting gravity and drag.
  • Slide the garment onto the table so sleeves and bulk are not hanging behind the needle area.
  • Keep the surface slick (vinyl wrap helps) so fabric can glide instead of twisting the hoop.
  • Run a short test sew at normal speed before committing to a full run.
  • Success check: borders line up with fewer “white gaps,” and the garment does not visibly tug the hoop off-center during stitching.
  • If it still fails… re-check hooping tension and stabilizer choice, because horizontal tension issues can mimic drag-related registration errors.
• Q: What prep supplies are required before mounting guide blocks with high-bond double-sided tape on a metal embroidery machine stand?
  A: Clean and de-oil the stand properly before taping, or the tape will fail under load.
  • Wipe the metal rails with 90%+ isopropyl alcohol using a microfiber cloth until the cloth comes away clean.
  • Deburr/sand the board edges so knits and satin won’t snag when sliding.
  • Dry-fit the board path first to confirm no cables, zip-ties, or obstructions will be pinched.
  • Success check: the cleaned rail feels “dry” (not oily) to the touch, and the board slides without catching on any edge.
  • If it still fails… remove the tape, re-clean, lightly scuff the metal with a Scotch-Brite-style pad, re-tape, and allow full cure time before loading.
• Q: What board thickness is safe for a slide-in removable table under a 2-head commercial embroidery machine, and how should clearance be checked?
  A: Use a 1/4-inch (6mm) board and verify clearance before installing any mounts.
  • Confirm the material is truly 1/4" (6mm); avoid thick boards that can rub the pantograph/arm area.
  • Slide the bare board over the rails and check for at least ~5mm clearance under the embroidery arm.
  • Ensure the board can be lifted out with one hand (removable access is the goal).
  • Success check: the board slides in/out smoothly and does not contact the underside of the embroidery arm anywhere in the travel area.
  • If it still fails… stop and reduce thickness or adjust the guide-block position; rubbing will cause vibration and stitch-quality problems.
• Q: How can L-shaped guide blocks be fitted so a removable embroidery support table does not rattle at high speed (around 1000 SPM) but also does not jam?
  A: Build a “Goldilocks” friction fit: board thickness plus about 1mm of gap inside the notch.
  • Dry-fit the board under the notch before exposing any tape adhesive.
  • Aim for a soft “drawer slide” feel—no hammering to seat the board.
  • If the notch is slightly loose, shim the notch with a layer of heavy-duty tape to add grip and damp vibration.
  • Success check: the board engages with a smooth slide and stays stable (no audible rattling) during fast stitching.
  • If it still fails… check for humidity-driven wood expansion (too tight) or add damping/support at the center span (too bouncy).
• Q: How long should high-bond acrylic mounting tape cure before loading a removable table on a commercial embroidery machine stand?
  A: Press hard for activation, then wait—full bond strength typically takes 24–72 hours before real production loading.
  • Apply significant pressure to each block for about 30 seconds to activate the adhesive.
  • Avoid loading the table immediately; allow at least overnight when possible.
  • Treat early use as “light duty” only until full cure time has passed.
  • Success check: guide blocks do not shift when the board is inserted and pushed sideways during normal handling.
  • If it still fails… stop production and re-do surface prep; tape that releases mid-job is a safety and quality risk.
• Q: What safety steps are required before removing factory braces or plates to create a pass-through channel under a 2-head commercial embroidery machine?
  A: Power down completely and verify the stand remains structurally solid before running the machine again.
  • Unplug the machine before touching internal braces; metal edges can be sharp.
  • Confirm in the service manual that the part being removed is non-structural (alignment-only) before removal.
  • Perform a firm sideways “shake test” on the stand after removal to detect new wobble or creaks.
  • Success check: the stand feels like a solid “thud” with no wobble and no metallic groan when pushed.
  • If it still fails… reinstall the brace or add reinforcement and retighten remaining bolts; vibration will degrade stitch quality over time.
• Q: What is the safest way to decide between technique fixes, magnetic hoops, and upgrading to a multi-needle commercial embroidery machine when heavy garments keep causing hoop pop-off and operator fatigue?
  A: Start by eliminating drag and setup errors first, then upgrade tools only when the bottleneck is clearly hooping speed/strain.
  • Level 1 (Technique): add a flat support surface and arrange the garment so bulk is not hanging or catching behind the needle area.
  • Level 2 (Tool): switch to magnetic hoops when plastic rings cause wrist strain, hoop burn, or slow hooping on thick items (the table helps support the hoop weight).
  • Level 3 (Capacity): consider a multi-needle commercial machine when changeovers and throughput—not stitch quality—become the limiting factor.
  • Success check: cycle time per garment drops and hooping becomes repeatable without ring pop-offs.
  • If it still fails… re-check stabilizer selection and confirm the table is rigid (no bounce), because drag and resonance can mimic “hoop problems.”
• Q: What magnetic hoop safety precautions are required when using powerful magnetic embroidery hoops on a flat support table?
  A: Handle magnetic hoops by the edges and keep fingers out of pinch zones; magnets can pinch skin severely and may affect pacemakers.
  • Keep hands clear when the magnetic ring snaps closed—close slowly and deliberately.
  • Store magnetic hoops away from sensitive electronics and keep them controlled on the table (don’t let them slam together).
  • Stay aware of pinch-point zones between the moving pantograph arm and the table surface during operation.
  • Success check: the hoop closes without finger pinch incidents, and the hoop remains stable without shifting during stitching.
  • If it still fails… slow down the handling process and reposition the garment so the hoop is supported flat on the table before closing.
