The "No-Panic" Hat Embroidery System: A Production Guide for Flawless Samples & Bulk Orders

If you’ve ever had a client waiting on approval while you’re staring at a cap frame thinking, “Please don’t let this sample be the one that goes sideways,” you’re not alone. The fear of the "bird's nest," the crooked logo, or the dreaded needle break is a constant shadow in every embroidery shop.

But here is the truth experienced operators know: A busy hat shop lives or dies on repeatable systems, not luck.

The difference between a hobbyist and a professional isn't the machine brand; it's the workflow. It’s strictly adhering to oiling schedules, controlling lint, and turning “guessing” into “measuring.” Below, we have rebuilt a chaotic "day in the life" into a Standard Operating Procedure (SOP). This is a battle-tested system you can run whether you’re sampling 2 hats or pushing a 1,200-piece order through a fleet of machines.

1. The Mindset Shift: Sampling as Risk Control

The day begins with one clear goal: run samples for approval.

In a production environment, sampling isn't just about "seeing if it looks pretty." It is a risk-control step. When you are dealing with caps—especially structured snapbacks or 3D puff designs—the physics of the fabric change constantly.

A stitch file that runs perfectly on a flat polo shirt can disastrously warp on a curved cap. By running a sample (minimum 12 hats per design is the bulk threshold mentioned in the source workflow), you are confirming three things:

1. Tension: Is the bobbin pulling correctly?
2. Registration: Do the outlines line up with the fill?
3. Hooping: Is the design actually centered where the human eye expects it?


2. The 4-Hour Habit: Maintenance is Not Optional

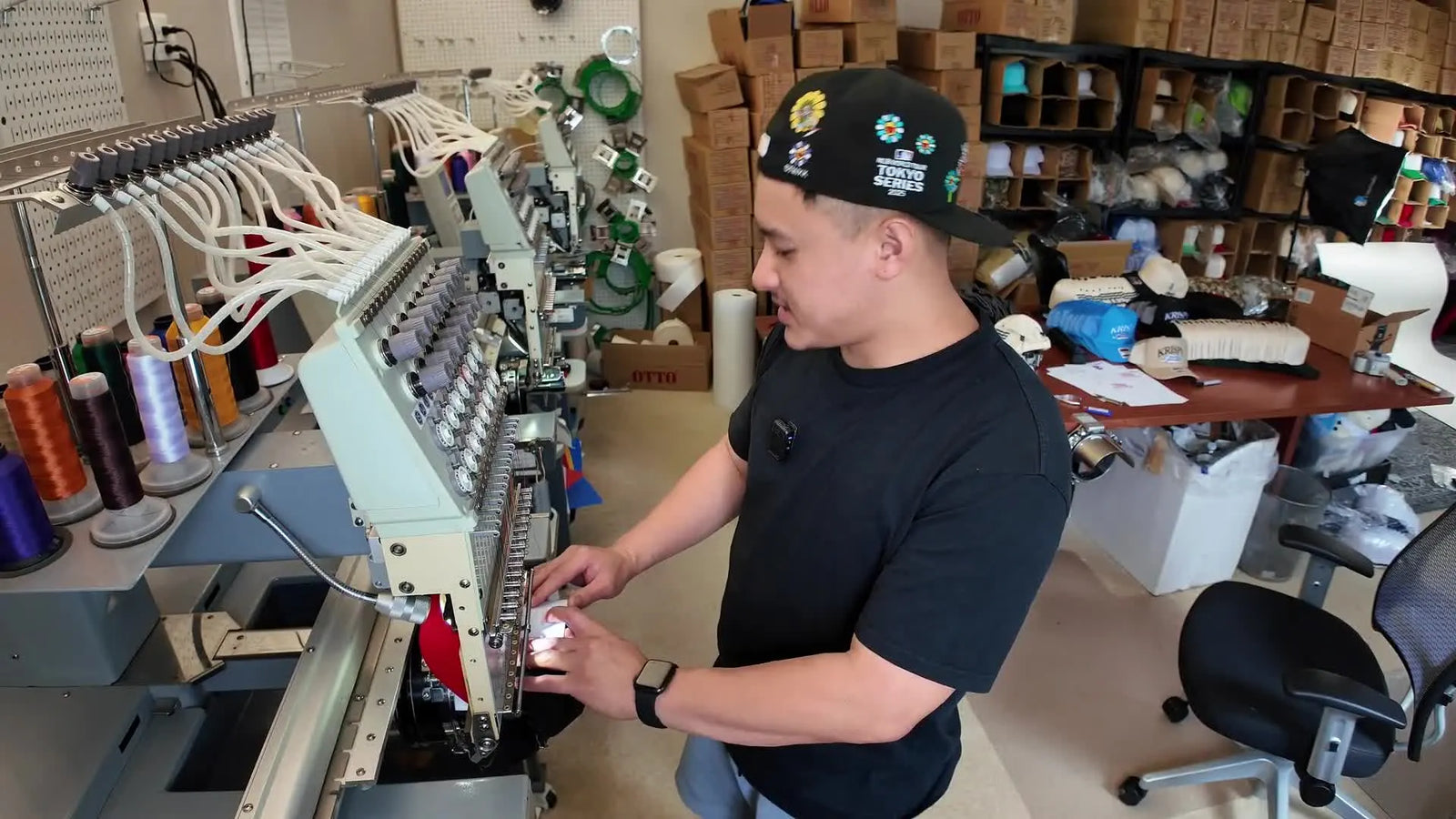

Before a single needle moves, the machine must be prepped. Neglecting this leads to friction, heat, and eventual thread breaks.

The Lubrication & Cleaning Protocol

The video workflow dictates an oiling interval of every 4 hours of run time. Here is the sensory guide to doing it right:

• The Precision Drop: Use a precision oil pen to place a single drop of oil on the rotary hook raceway.
  • Sensory Check: If you see oil pooling or splashing, you've used too much. Ideally, the hook should just look "wet" or glossy.
• The Air Blast: Use a pancake air compressor (or canned air) to blow lint out of the bobbin case and needle plate area.
  • Why: Hats, especially cotton and wool ones, shed microscopic debris. This lint mixes with oil to form "sludge" that jams your trimmers.
• The Vacuum: Keep a shop vac nearby. Blowing lint into the air just moves the problem; suck it out of the chassis.




Warning: Compressed air is powerful. It can launch snapped needle tips or metal burrs into your eyes. Always wear eye protection. Never blow functionality air into the machine while it is running or powered on in a stitch cycle.

The "Hidden" Step: The Sound Check

After oiling, run the machine slowly (400 SPM) for a few seconds without thread (or on a scrap).

• Bad Sound: A sharp, metallic clack-clack. This indicates dryness or a burr.
• Good Sound: A rhythmic, dull thrum or whir. This indicates the hook is gliding on a film of oil.

Phase 1: Prep Checklist (Do Not Skip)

• Power: Machines on, screen boots up with no error codes.
• Oil: One drop applied to the rotary hook raceway (every 4 hours).
• Lint: Bobbin area blown out; debris vacuumed.
• Tools: Oil pen cap replaced (prevent leakage) and stored in a designated spot.
• Bobbin: Check bobbin supply; ensure you have enough full bobbins for the run.

3. The "No Downtime" Workflow: Tech Sheets & Files

Scalability means the shop can run without you personally touching every button. This requires Tech Sheets.

Transfer files using a reliable USB drive (like a dual-head Lexar) and print a physical sheet that travels with the hats.

• File Name: Matches the USB file exactly.
• Stitch Count: e.g., 6,300 stitches. This helps you estimate run time (approx. 10 mins at 650 SPM).
• Dimensions: e.g., 4.4" W x 2.6" H. Critical for checking hoop clearance.
• Color Sequence: e.g., Needle 10 (White) -> Needle 1 (Red).




Pro Tip: If you are building a business, you need to minimize "machine idle time." Tech sheets allow any trained operator to load a machine without asking, "Hey, what color goes first?" ten times a day.

Phase 2: Setup Checklist

• Data: Correct design loaded via USB.
• Visual: Tech sheet printed and attached to the garment batch.
• Sequence: Colors programmed manually on the screen (Needle 10 -> Needle 1).
• Verification: Compare screen dimensions to tech sheet dimensions.

4. The Tie-and-Pull Method: Changing Thread in 30 Seconds

Efficiency demands fast changeovers. Rethreading a 15-needle machine from scratch takes forever. Use the "Tie-and-Pull" method.

1. Cut the old thread at the spool (leave a tail).
2. Mount the new cone.
3. Tie the old tail to the new strand using a square knot or weaver's knot. Trim the tails of the knot short.
4. Pull the thread from the needle side (after unthreading the eye).




The "Dental Floss" Tension Check

As you pull the new thread through the tension discs and guides:

• Sensory Check: It should feel like pulling dental floss between teeth—steady resistance, but smooth.
• Red Flag: If it jerks, snaps, or feels loose/floppy, your tension knobs are either too tight or the thread has jumped out of the check spring. Stop and inspect. Do not force a knot through the needle eye; cut it before the eye and thread manually.

5. Cap Setup: The 1.5-Inch Standard & Hooping Physics

This is where most beginners fail. Caps have a "Red Zone" near the brim where needle bars strike frames.

The Measurement

Use a physical ruler. Measure 1.5 inches up from the cap latch (where the sweatband meets the brim center). This is your center point for standard logos.

• Why 1.5"? It ensures the design clears the metal strap of the cap gauge while sitting low enough to look natural on the forehead.




The Trace (Contour)

Never press start without tracing. Run the "Trace" or "Contour" function. Watch the needle bar (usually needle #1).

• Visual Check: Does the presser foot clear the brim? Does it clear the side clamps?
• Adjustment: If the hat is crooked (common with cheap caps), rely on visual centering relative to the brim, not just the center seam. The brim is what the eye references when worn.

The Hooping Upgrade Path

Hooping caps is physically demanding. To get a tight, "drum-skin" tension on a structured cap requires significant hand strength. If you are doing this all day, fatigue leads to loose hoops, which leads to shifted designs.

• Level 1 (Technique): Use a standard cap gauge and double-check your clips.
• Level 2 (Workflow): Many professionals invest in a hooping station for embroidery machine setup. These stations stabilize the hoop, allowing you to use your body weight to clamp the cap, reducing wrist strain and increasing repeatability.
• Level 3 (Tooling): If you struggle with "hoop burn" (shiny rings left by clamps) or difficult thick-front caps, explore magnetic embroidery hoops. Magnetic systems clamp differently, often reducing material distortion and making the process faster.

6. Real-World Troubleshooting: The "Check Bobbin" Error

The video captures a genuine moment: The machine stops with a "Check Bobbin" or thread sensor error.

• Diagnosis: The black sensor wheel had rattled loose from its spindle.
• Fix: Click it back in.

Troubleshooting Hierarchy (Low Cost to High Cost):

1. Path: Is the thread actually broken? Is the spool snagged?
2. Bobbin: Is it empty? Is the tail too short?
3. Mechanical: Check the sensor wheels (as seen in the video). Check for a bent needle.
4. Digital: Is the file corrupted? (Rare, check this last).


7. 3D Puff Execution: The "Sandwich" Technique

3D Puff (Foam) embroidery is high-value but unforgiving. The goal is to slice the foam cleanly (the "chop") without jamming the machine.

The Recipe

1. Stabilizer: Use 3 oz Tear-Away.
2. Clip: Binder clips hold the stabilizer to the cap frame.
3. Sequence: Stitch the flat elements first (direct to cap).
4. Pause & Place: Machine stops. Place the 3D Puff Foam over the area.
   • Critical: The foam must cover the entire footprint of the satin stitches.
5. Speed: Slow down. The video suggests 670 SPM, but for beginners or dense foam, 550-600 SPM is a safer "sweet spot" to prevent needle deflection.


Decision Tree: Fabric vs. Stabilizer

• Scenario A: Structured Snapback (Standard) -> Use 3 oz Tear-Away. Firm enough to support steps.
• Scenario B: Unstructured "Dad Hat" -> Use 3 oz Tear-Away + Temporary Spray Adhesive to prevent shifting.
• Scenario C: High-Density 3D Puff -> Use 3 oz Tear-Away. Ensure your hoop tension is maximum; if the cap moves under the foam, the letters will look drunk.

Warning: When holding the foam during the initial tack-down stitches, keep your fingers far away from the needle bar. Use a chopstick or a dedicated "foam tool" to press the foam down if you are nervous. Do not risk a puncture injury.

8. Finishing: Fire and Photos

Once the stitch is done, peel away the excess foam. The edges should separate cleanly. If you have to fight the foam, your stitch density was too low/loose.

The Heat Cleanse

Use a lighter or heat gun to singe away fuzzy stray threads and seal the foam edges.

• Technique: Keep the flame moving. Never hold it in one spot.
• Risk: Polyester caps melt instantly. Practice on a ruined cap first to learn the safe distance (usually 1-2 inches away).


Proof of Life: The Photo

Take a photo for the client perpendicular to the cap (straight on).

• Why: Angled photos make circles look like ovals and straight lines look curved. A bad photo can get a perfect sample rejected.


9. Business & Tooling: When to Upgrade?

If you are effectively running this workflow but hitting a ceiling, it is time to look at your hardware.

• Constraint: "My hands hurt and hooping takes too long."
  • Solution: Look into magnetic hooping station systems. By standardizing the mechanics of hooping, you reduce physical stress and alignment errors.
• Constraint: "I'm ruining delicate hats with clamp marks."
  • Solution: This is the classic use case for magnetic embroidery hoops. They hold firmly without the "crushing" action of traditional spring clamps, preserving the material.
• Constraint: "I can't do caps on my flatbed home machine."
  • Solution: You are likely searching for a cap hoop for brother embroidery machine or similar. While adapters exist, recognize that true cap production requires a "free arm" machine. If your volume is high (50+ hats), this is the trigger to consider a multi-needle machine (like SEWTECH) that is purpose-built for cylindrical objects.

Warning: Magnetic hoops are powerful industrial tools. Pinch Hazard: They can snap together with enough force to injure fingers. Medical Safety: Keep strong magnets away from pacemakers and implanted medical devices.

Phase 3: Operation Checklist (The "Client-Ready" Verification)

• Trace: Design traced successfully (no frame hits).
• Puff: Foam covered edges completely; "chop" is clean.
• Cleanup: Fuzz removed with heat; no scorch marks on brim.
• Photo: Taken straight-on, no distortion.
• File: Any adjustments (e.g., density increase) saved back to the Master File.

Summary: The Hidden Consumables

To run this system tomorrow, ensure you have these "hidden" supplies that often get forgotten:

1. Precision Oil Pen (standard bottles are too messy).
2. Canned Air / Compressor.
3. Lighter (for finishing).
4. 75/11 Sharp Needles (standard for caps; ballpoints may deflect on buckram).
5. Orangewood Stick/Chopstick (for holding foam safely).

Embroidery is a game of millimeters. By following this standardized path—maintain, measure, test, stitch—you remove the panic and replace it with profit.

FAQ

• Q: How do I oil and clean an industrial multi-needle embroidery machine rotary hook every 4 hours without over-oiling and causing sludge?
  A: Oil the rotary hook raceway with a single controlled drop and remove lint immediately so oil doesn’t turn into sludge—this is common and very fixable.
  • Place one drop using a precision oil pen on the rotary hook raceway (aim for a “wet/glossy” look, not pooling).
  • Blow lint out of the bobbin case and needle plate area with canned air or a small compressor, then vacuum debris out of the chassis.
  • Run the machine slowly (~400 SPM) for a few seconds to distribute oil before starting production.
  • Success check: The hook area looks glossy (not splashed), and the machine sound becomes a dull rhythmic “whir,” not a sharp metallic “clack-clack.”
  • If it still fails: Stop and inspect for a burr/dry spot in the hook area and re-check that lint isn’t packed around the trimmer zone.
• Q: What is the fastest way to change thread on a 15-needle embroidery machine using the tie-and-pull method without damaging tension discs or snapping the thread?
  A: Tie old thread to new thread with a small knot, trim tails short, and pull from the needle side while feeling steady “dental floss” resistance.
  • Cut the old thread at the spool, mount the new cone, and tie a square knot or weaver’s knot; trim knot tails short.
  • Unthread the needle eye first, then pull from the needle side so the thread feeds through the path cleanly.
  • Stop immediately if the pull feels jerky or floppy; re-seat the thread in the tension discs and check spring path.
  • Success check: Pulling feels smooth with steady resistance (like dental floss), and the knot passes guides but is cut before the needle eye.
  • If it still fails: Do not force the knot through the needle eye—cut before the eye and thread the needle manually.
• Q: How do I measure a cap logo center point using the 1.5-inch rule on an embroidery cap frame to avoid needle bar strikes and crooked placement?
  A: Measure 1.5 inches up from the cap latch and always run Trace/Contour before stitching—never start blind.
  • Use a physical ruler and mark/identify the point 1.5 inches above the cap latch (sweatband-to-brim center area).
  • Load the cap, then run the machine’s Trace/Contour and watch needle #1 path for brim and clamp clearance.
  • Visually center relative to the brim if the cap seam is off (the brim is what the eye references when worn).
  • Success check: During Trace/Contour, the presser foot and needle bar clear the brim and side clamps with no near-hits.
  • If it still fails: Reposition the cap in the frame and re-trace until clearance is guaranteed before pressing start.
• Q: How do I recognize correct hook lubrication using the embroidery machine sound check after oiling a rotary hook?
  A: After oiling, run slow and listen—sound is a reliable indicator of dry metal contact versus a proper oil film.
  • Oil the rotary hook raceway with one drop, then run the machine slowly (~400 SPM) briefly (no thread or on scrap).
  • Listen closely at low speed before committing to a batch run.
  • Success check: A good machine makes a dull rhythmic “thrum/whir”; a bad machine makes a sharp metallic “clack-clack.”
  • If it still fails: Stop the run and inspect for dryness, a burr, or lint contamination around the hook/bobbin area before increasing speed.
• Q: How do I fix a multi-needle embroidery machine “Check Bobbin” thread sensor stop when the black sensor wheel rattles loose?
  A: Check the sensor wheel seating first—if the black sensor wheel has popped loose, clicking it back in can clear the stop quickly.
  • Confirm the thread path first: verify the top thread isn’t broken and the spool isn’t snagging.
  • Check the bobbin: make sure it isn’t empty and the bobbin tail isn’t too short.
  • Inspect the thread sensor hardware: locate the black sensor wheel and ensure it is properly seated on its spindle (re-seat/click it back in if loose).
  • Success check: The machine resumes without immediately re-triggering the “Check Bobbin” stop, and the thread feeds smoothly.
  • If it still fails: Check for a bent needle and then consider the less common digital cause (file corruption) last.
• Q: What is the safest way to blow lint out of an embroidery machine bobbin area using compressed air without injury or causing damage?
  A: Use compressed air only with eye protection and never blow air while the machine is running a stitch cycle.
  • Power down/stop the stitch cycle before using air around the needle plate and bobbin case area.
  • Wear eye protection—needle tips or metal burrs can become projectiles.
  • Vacuum after blowing to remove loosened debris instead of pushing lint deeper into the chassis.
  • Success check: The bobbin/needle plate area looks visibly clear of lint, and no debris is left floating inside the machine bed.
  • If it still fails: Reduce air pressure/angle and rely more on vacuuming to avoid packing lint into tight mechanisms.
• Q: What safety precautions should I follow when using magnetic embroidery hoops to avoid pinch injuries and medical device risks?
  A: Treat magnetic hoops like industrial clamps—keep fingers clear during closure and keep strong magnets away from pacemakers or implanted medical devices.
  • Keep fingertips out of the closing gap; let the magnets seat with controlled placement rather than letting them snap together.
  • Store magnets in a consistent location so they aren’t accidentally grabbed or dropped onto metal parts.
  • Warn anyone with pacemakers/implanted devices to maintain distance from strong magnets and follow medical guidance.
  • Success check: Hooping is secure without finger contact in the pinch zone, and the hoop closes in a controlled manner (no sudden snap onto skin).
  • If it still fails: Switch to a slower, two-hand placement routine and consider a hooping station workflow to reduce accidental snap-closure.
