A Patch That Feels Like Cardstock: Magnetic Hooping, Heat-Seal Backing, and Clean Edges (Without Ruining the Border)

If you have ever poured hours into a patch design—watching the machine stitch perfectly—only to have it disintegrate during the finishing process, you know a specific kind of heartbreak. I call it the "90% Success Paradox." The embroidery looks flawless, but the edge frays, the border ripples, or the backing peels away like a cheap sticker.

Embroidery is an empirical science. It relies on the physics of tension, the chemistry of adhesives, and the geometry of fiber. When a patch fails, it is rarely bad luck; it is usually a breakdown in the workflow.

This whitepaper-style guide reconstructs a professional patch-making process using a multi-needle machine context (specifically a Ricoma, though the physics apply to any professional setup). We will adhere to a strict protocol: uncoated twill, tearaway stabilizer, magnetic hooping, heat-activated adhesive, and thermal edge sealing.

The Patch Panic Is Real: What “Good” Looks Like Before You Touch Scissors or Heat Press

A patch exists in three states: the Stitch State, the Fused State, and the Finished State. Most novices only judge the first one. However, a patch that looks "good" in the hoop can still fail catastrophically if you do not identify structural weaknesses before applying heat or blades.

In the video, the host pauses to inspect the patch immediately after the machine stops. This is not just for show; it is a critical Quality Control (QC) stop point. If you rush this step, you lock in errors that become impossible to fix later.

The Sensory Inspection Protocol:

• Visual Check: Look at the satin border. Are the stitches parallel and tight like a rope, or are there gaps where the fabric shows through?
• Tactile Check: Run your finger over the fill stitches. They should feel solid and unified, like a textured carpet. If they feel spongy or loose, your tension is too low.
• Auditory Check: When you remove the hoop, the stabilizer should make a crisp, paper-like sound. If it sounds dull or soft, your moisture content or stabilizer choice may be incorrect.

Checkpoint (off-machine inspection):

• Border Integrity: The satin column must be continuous with no "looping" threads.
• Registration: Ensure the fill colors meet the border without gaps (white space) or excessive overlap (bulletproof density).
• Debris: Identify jump stitches now. Trimming them after the adhesive backing is applied is significantly harder and risks damaging the seal.

Cutting is the moment of truth. One viewer described "holding their breath" during the cutting phase. This fear is rational—it stems from a lack of control. We will eliminate that fear with specific techniques later in this guide.

The “Hidden” Prep That Makes or Breaks Iron-On Patches: Uncoated Twill, Tearaway, and Adhesive Compatibility

The foundation of a professional patch is material compatibility. The host in our case study highlights a detail that amateurs frequently miss: uncoated twill.

Why does this matter? Fabric science. Many twills come with a pre-applied starch or chemical coating to make them crisp. However, these coatings act as a barrier. When you apply your heat-activated adhesive later, it bonds to the coating, not the fiber. Weeks later, the coating fails, and your patch falls off the jacket.

The "Scratch Test": To confirm your material, scratch the back of the twill with your fingernail.

• Good: It feels fibrous, matte, and soft.
• Bad: It creates a white streak, feels waxy, or looks shiny.

Material Breakdown:

• Substrate: Uncoated black twill (e.g., from Twill USA). This provides the friction needed for the adhesive to unlock and penetrate.
• Stabilizer: Tearaway stabilizer. We use tearaway for patches because we want the backing to be removed completely, leaving only the fabric and thread.
• Adhesive: A separate heat-activated sheet (identified as P600 5-Mil 49.5″ Permanent).
  • Note: Do not confuse this with "Heat n Bond Lite." For patches, you want "Ultra Hold" or industrial equivalent thickness (5-mil is standard).

A common question arises: "Why buy uncoated twill if I'm just going to put adhesive on it?" The answer is chemical bonding. You want the specific adhesive you control (the heat seal sheet) to be the only layer between the garment and the patch.

Warning: Heat Sensitivity Alert. While twill is robust, heat-activated adhesives require temps (300°F+) that can melt Nylon or shrink certain polyesters immediately. If your final application is a nylon windbreaker or a waterproof raincoat, do not use iron-on backing. The heat required to set the glue will destroy the garment. Sew-on is the only safe option for low-temp synthetics.

Prep Checklist (The "Pre-Flight" Protocol)

• Material: Uncoated twill verified (No shiny backing, passed scratch test).
• Stabilizer: Tearaway sheet cut 20% larger than the hoop area.
• Adhesive: 5-mil Heat-activated sheet ready (Paper liner intact—do not peel yet).
• Thermal Protection: Teflon sheet clean and ready.
• Support: Pressing pillow available (Critical for accommodating stitch density).
• Cutting Tools: Micro-tip scissors (e.g., Fiskars) sharpened. Dull scissors crush fibers; sharp scissors slice them.
• Sealing: Soldering tool with a conical tip (clean of old debris).
• Hidden Consumables: Lint roller (for pre-cleaning twill), lighter (for stray thread singing), and adhesive spray (optional for floating technique).


Magnetic Hooping Thick Twill the Fast Way: 5.5" x 5.5" Mighty Hoop Stack That Doesn’t Slip

Hooping is arguably the biggest bottleneck in embroidery production. It is also the source of "Hoop Burn"—that permanent ring mark left on delicate fabrics by standard friction hoops.

The video demonstrates a setup that professional shops rely on to solve this: Magnetic Hooping.

The Physics of the Magnetic Grip: Standard hoops rely on friction and screw tension, which requires you to distort the fabric fibers to get a grip. Magnetic hoops rely on vertical clamping force. This means the fabric is held flat without being stretched or crushed.

The Hooping Sequence:

1. Base: Place the bottom magnetic ring on the hooping station/mat.
2. Stabilizer: Lay the tearaway over the bottom ring.
3. Fabric: Place the twill on top. Smooth it with your hands—no tugging.
4. Clamp: Align the top magnetic ring. Let it snap down. Listen for a solid "Thwack" sound.

If you are looking to replicate this precise industrial setup, the video utilizes a specific sized frame. Industry professionals looking for this often standardize on sizes like the mighty hoop 5.5 to handle chest logos and patches efficiently.

Why this hooping method works (and how to avoid hoop burn or shifting)

In patch production, you are hooping a "thick stack." Twill is heavy. Dense satin borders add pull compensation stress.

• The Problem with Screw Hoops: To hold thick twill tight enough, you have to overtighten the screw. This causes "flagging" (the fabric bounces up and down with the needle), leading to birdnesting.
• The Magnetic Solution: The magnets automatically adjust to the thickness of the stack. Whether it's thin cotton or heavy canvas, the clamping force remains constant.

Tool Upgrade Path (The Business Case for Magnets):

• Trigger (The Pain): You are seeing "hoop burn" rings on dark fabrics that won't iron out, or your wrists ache after hooping 20 patches.
• Criteria (The Diagnosis): If you are doing production runs of more than 10 units a day, or working with stiff materials like buckram/twill, manual hooping is costing you money in labor and damaged goods.
• The Solutions:
  • Level 1 (Technique): Wrap your standard loose hoops in bias binding to increase grip (low cost, high labor).
  • Level 2 (Tool Upgrade): Invest in a system typically researched as magnetic embroidery hoops. This is the core advantage of magnetic embroidery hoops: they eliminate the "screw adjustment" variable entirely. Compatible frames are available for both home single-needle machines (like Brother/Baby Lock) and commercial multi-needle machines.

Warning: High Magnetic Field Hazard. Commercial magnetic hoops contain Neodymium magnets. They snap together with extreme force (often 30+ lbs of pressure).
1. Pinch Hazard: Keep fingers clear of the rim. The snap is faster than your reaction time.
2. Medical Danger: If you have a Pacemaker or ICD, do not handle these hoops. Maintain a safe distance (usually 6-12 inches) or consult your doctor.
3. Electronics: Keep phone credits cards and hard drives away from the magnetic field.

If you decide to build a workflow around magnetic embroidery hoops, ensure you also use a dedicated flat surface so the bottom ring stays stable.

Locking the Hoop on a Ricoma Multi-Needle Machine: Trace First, Then Stitch With Confidence

Once the fabric is hooped, it moves to the machine. The video features a Ricoma multi-needle unit. The process here differs from home machines because the hoop attaches to a pantograph arm, not a flatbed.

The "Trace" is Non-Negotiable: You must run a design trace (Design > Trace on the panel). Watch the presser foot travel the perimeter.

• Why? In patch making, you are often maximizing the hoop area. A trace ensures the needle bar will not strike the plastic/metal of the hoop frame—a collision that breaks needle bars and throws off timing.


Setup Checklist (The "Green Light" Protocol)

• Mechanical lock: Hoop is fully seated on the arms. Pull gently to confirm it is locked (Tactile check).
• Clearance: Trace completed. The foot stayed at least 5mm away from the hoop edge.
• Thread Path: Colors verified (White, Red, Yellow, Black). Check for tangles at the cone base.
• Bobbin: Bobbin is at least 50% full. You do not want to change a bobbin in the middle of a satin border.
• Monitoring: You are ready to watch the first 1,000 stitches. Never walk away at start-up.

For those ensuring their equipment fits, owners often search for mighty hoop ricoma compatibility charts, as arm spacing varies between machine models (e.g., TS vs. MT series).

The “Magic Part”: Heat-Press Adhesive Backing at 330°F for 10 Seconds (and Why the Pressing Pillow Matters)

The stitching is done. Now we move from the embroidery station to the finishing station. The host removes the hoop and tears away the stabilizer.

Note: Tear the stabilizer gently. Support the stitches with your thumb to prevent distorting the border.

The Sandwich Strategy: You cannot simply iron adhesive onto an embroidered patch on a hard table. The stitches are raised (3D), while the fabric is flat. A hard surface will only press the adhesive onto the stitches, leaving the fabric unbonded.

The Solution: The Pressing Pillow. The pillow is a foam core covered in Teflon. When you press down, the embroidery sinks into the foam, allowing the heat plate to make full contact with the flat fabric areas where the adhesive needs to bond.

The Stack (From Bottom to Top):

1. Pressing Pillow (Base)
2. Patch (Face Down - Stitches against the pillow)
3. Adhesive Sheet (Sticky Side Down / Paper Side Up)
4. Teflon Sheet (Protective Cap)




Data Point: Heat Press Settings The video uses 330°F (165°C) for 10 seconds.

• Calibration: This is a solid baseline for commercial adhesive films. However, always refer to your specific film's datasheet. If you see the glue turning yellow or brittle, your temp is too high. If it stays white and powdery, your temp is too low.


Comment-driven “watch out”: backing confusion and the paper liner

Novices often peel the paper liner off immediately after this step. Do not do this. The video creator clarifies that he removed the paper only for demonstration purposes. In a real production environment, keep the paper liner on until the customer is ready to apply the patch. It acts as a shield against dust, lint, and oxidation.

When mastering how to use mighty hoop technology for heavy output, treat your adhesive station as a "Clean Room." Dust trapped under the specific adhesive layer creates ugly bumps.

Cutting a Round Patch Without Nicking the Satin Border: The Four-Cut Method That Keeps You Calm

We have arrived at the high-anxiety phase: Cutting. The goal is a "Store-Bought Look," which means a consistent 1mm to 2mm margin of fabric outside the satin stitch.

The host uses the "Four-Cut Method" to manage this.

The Technique: Instead of trying to cut a perfect circle in one continuous motion (which requires awkward wrist contortions), he makes four rough cuts to turn the square fabric into a crude octagon.

• Why? This removes the bulk weight of the excess fabric. It is easier to maneuver a small octagon than a large flopping square.


How to cut like the video (Tactile Control)

• The Pivot: Hold the scissors steady and rotate the patch with your non-dominant hand.
• The Feel: The patch is now stiff ("like cardstock," as the host notes) because of the fused adhesive. Use this stiffness to your advantage. It acts as a guide against the scissor blades.
• The Zone: Cut just outside the satin border. Do not cut flush against the thread—you need a tiny rim of twill to seal later.

Warning: Sharp Tool Safety. Micro-tip embroidery scissors are razor sharp. When cutting thick patch stacks, use your forearm strength, not just your thumb, to avoid Repetitive Strain Injury (RSI). Keep your non-cutting fingers tucked under the patch, well away from the "V" of the blades.

Operation Checklist (The Finishing Protocol)

• De-masking: Stabilizer removed cleanly; no paper scraps left under stitches.
• Fusion: Adhesive is fused edge-to-edge (check corners).
• Clearance: Border inspected for loose loops before cutting.
• Reduction: Bulk fabric removed using the Four-Cut method.
• Precision: Final trim leaves a consistent 1-1.5mm twill margin.

Sealing Patch Edges With a Soldering Iron: The Clean, Non-Fraying Finish People Kept Asking For

You have cut the patch, but raw twill edges will eventually fray. The final step distinguishes a "homemade" patch from a "pro" patch: Thermal Sealing.

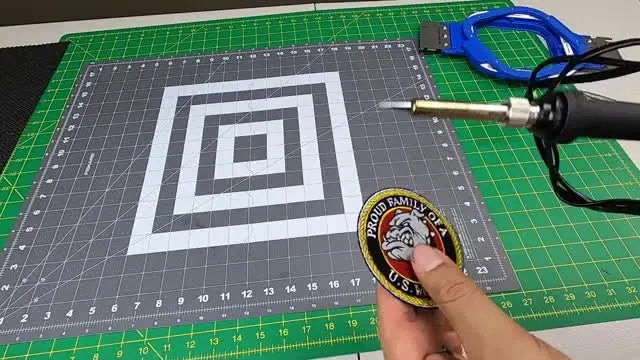

The video shows the host running a hot soldering tool along the cut edge.

What edge sealing is doing (The Physics)

This only works on synthetic fibers or blends. The heat melts the polyester fibers in the twill and the stabilizer residue, fusing them into a solid plastic bead.

• Visual: The fuzzy edge turns into a smooth, slightly darker line.
• Tactile: The edge feels hard and smooth, not fibrous.

Protocol:

1. Heat the tool.
2. Move quickly. Do not linger, or you will brown (scorch) the fabric.
3. Use the side of the conical tip, not the very point.

Warning: Thermal & Fume Hazard. A soldering iron operates at 600°F+.
1. It will burn skin instantly.
2. Melting polyester creates fumes. Work in a ventilated area or use a fan.
3. One slip can melt your satin border. Stabilize your hand on the table.

The Tearaway + Adhesive Question: “Won’t the Backing Tear Off?” (What the Video Actually Shows)

A structural question often arises: "If we use tearaway stabilizer, won't the patch fall apart?" This reveals a misunderstanding of the layers. Let's clarify the architecture:

1. Embroidery Phase: Hoop -> Tearaway -> Twill. (Tearaway provides stiffness for the needle).
2. Cleaning Phase: Tearaway is removed. It has done its job.
3. Backing Phase: Adhesive is applied directly to the back of the twill.

The adhesive does not bond to the tearaway; it bonds to the patch itself.

In the context of hooping for embroidery machine workflows specifically for patches, memorize this mantra: Stabilize for Stitching, Fuse for Finishing. They are separate systems.

A Simple Stabilizer Decision Tree for Patch Twill

Do not guess. Use this logic flow to determine your stabilizer needs.

Decision Tree: Fabric vs. Density

1. Is your base fabric stable (e.g., Uncoated Twill, Canvas, Felt)?
   • Yes: proceed to Step 2.
   • No (Stretchy/Thin): You must use Cutaway or fuse a woven interfacing to the back before hooping. Tearaway will fail.
2. Is the design density High (Solid fill backgrounds)?
   • Yes: Use Heavyweight Tearaway (2.5oz+) or two layers of medium tearaway floated in a crisscross pattern.
   • No (Text only): Single layer Medium Tearaway is sufficient.
3. Are you using a Magnetic Hoop?
   • Yes: You can get away with slightly less stabilizer because the hoop does not distort the fiber.
   • No: You may need extra stabilizer to counteract the "drum skin" distortion of screw hoops.

Pricing and Production Reality: When Patches Stop Being “Fun” and Start Being a Business

The video touches on the economics of patches. Questions about pricing often flood the comments.

• The Cost Reality: It is not just thread and fabric. It is the Process Time. Hooping, trimming, cutting, and sealing take 3x longer than the actual stitching.

This is where magnetic hoop embroidery shifts from luxury to necessity in a business plan. If a magnetic hoop saves you 2 minutes per patch setup, and you do 30 patches, you have saved an hour of labor. That is pure profit.

Tool Upgrade Path (Productivity Scaling):

• Scenario: You have mastered the technique, but you are turning down orders because you keep the machine waiting while you hoop the next garment.
• Standard: You need to decouple "Hooping" from "Stitching."
• Solution Level 3 (Production Upgrade):
  • If comparing standard ricoma embroidery hoops against magnetic options, the magnetic quick-change capability allows you to hoop Station B while the machine stitches Station A.
  • Eventually, single-needle machines hit a speed limit (constant thread changes). The logical step is a Multi-Needle Machine (like the Ricoma shown or SEWTECH ecosystem machines) paired with a magnetic hooping station. Investing in a magnetic hooping station standardizes your placement, ensuring every patch is centered exactly the same way—essential for bulk orders.

If you are scaling, your bottlenecks move. First, it's skill (cutting). Then, it's holding (hooping). Finally, it's needles (color changes). Solve them in that order.

The “Upgrade” Results: What This Workflow Delivers When You Do It Right

When you respect the chemistry of uncoated twill, the physics of magnetic hooping, and the precision of thermal finishing, you stop making "crafts" and start making "products."

The result, as the host describes, is a patch that rivals commercial manufacturing:

• Rigid structure (thanks to the 5-mil adhesive).
• Sealed edges (thanks to the soldering tool).
• Clean embroidery (thanks to the stable magnetic hoop).


Final note on application choices (iron-on vs sewn-on)

Is iron-on better? Not always. It is convenient. But for heavy-duty gear (work uniforms, tactical vests), sewing is superior. The "Pro Move" is to provide the patch with the adhesive backing (for positioning) but recommend the customer sew it on for permanence.

Master the process, control the variables, and the panic disappears—leaving only the profit.

FAQ

• Q: How do I verify uncoated twill is compatible with a 5-mil heat-activated adhesive sheet before making iron-on patches?
  A: Use the scratch test on the back of the twill before stitching—adhesive must bond to fiber, not a factory coating.
  • Scratch: Drag a fingernail across the back of the twill.
  • Reject: Stop if the backing looks shiny/waxy or leaves a white streak (coating barrier).
  • Choose: Pair uncoated twill with tearaway for stitching and a separate 5-mil permanent adhesive film for backing.
  • Success check: The twill back feels matte and fibrous (not slick), and the scratch does not reveal a shiny layer.
  • If it still fails… If adhesive later peels, re-check that the twill was truly uncoated and that the adhesive was applied directly to the twill (not to stabilizer residue).
• Q: What are the quality-control checkpoints for a satin border patch before cutting or heat-pressing the adhesive backing?
  A: Stop for a quick sensory inspection immediately after stitching—fixing errors is easiest before any heat or blades touch the patch.
  • Look: Inspect the satin border for gaps, loops, or exposed fabric showing through.
  • Feel: Rub fill stitches; they should feel unified and firm rather than spongy/loose.
  • Listen: When removing/handling stabilizer, tearaway should sound crisp and paper-like, not dull/soft.
  • Success check: Satin stitches look rope-tight and continuous, fill meets the border with no white space, and there are no obvious jump-stitch debris points.
  • If it still fails… If the border has looping or the fill looks weak, pause and correct stitch quality (especially tension/density) before proceeding to fusing and trimming.
• Q: How do I prevent hoop burn, shifting, and flagging when hooping thick twill stacks using magnetic embroidery hoops?
  A: Hoop with “no tugging” and let the magnets clamp vertically—magnetic clamping holds the stack flat without crushing fibers.
  • Place: Set the bottom ring on a stable hooping surface, then lay tearaway, then twill (smooth by hand).
  • Clamp: Align the top ring and let it snap down—do not stretch the twill to “drum tight.”
  • Avoid: Do not overtighten screw hoops on thick stacks; overtightening often increases flagging and can lead to birdnesting.
  • Success check: The fabric stays flat with no visible ring marks, and the stack does not creep when you lightly push the twill surface.
  • If it still fails… If the stack still shifts, confirm the hoop is on a dedicated flat surface and the stabilizer is cut large enough to fully support the hoop area.
• Q: How do I prevent a hoop strike on a Ricoma multi-needle embroidery machine when running a patch design near the frame edge?
  A: Always run a trace on the Ricoma control panel before stitching—trace is the collision-prevention step for patch layouts.
  • Trace: Use the machine’s Design > Trace function and watch the presser foot travel the design perimeter.
  • Confirm: Ensure the hoop is fully seated and mechanically locked on the arms before starting.
  • Verify: Keep at least about 5 mm of clearance from the hoop edge during the trace.
  • Success check: The trace completes with consistent clearance and no point where the presser foot approaches the hoop rim.
  • If it still fails… If clearance is too tight, reposition the design in the hoop and trace again before starting the first stitches.
• Q: What heat press stack and settings should be used to fuse a 5-mil heat-activated adhesive backing onto an embroidered patch at 330°F for 10 seconds?
  A: Press the patch face-down on a pressing pillow using the correct layer order—this allows the adhesive to bond to the flat fabric, not just the raised stitches.
  • Stack: Pressing pillow (bottom) → patch face down (stitches into pillow) → adhesive sheet sticky side down/paper side up → Teflon sheet (top).
  • Press: Use 330°F (165°C) for 10 seconds as a baseline, then follow the adhesive film datasheet for final dialing-in.
  • Protect: Keep the paper liner on after fusing for storage; peel only when the customer is ready to apply.
  • Success check: The adhesive looks evenly fused edge-to-edge (not powdery/white), and the patch back feels uniformly bonded rather than spotty on high stitch areas.
  • If it still fails… If glue yellows/brittles, reduce heat exposure; if it stays white/powdery, increase heat/pressure carefully and re-check the pressing pillow setup.
• Q: Is it safe to use iron-on patch adhesive on nylon windbreakers or heat-sensitive polyester garments when using a 300°F+ heat-activated film?
  A: Do not use iron-on backing on heat-sensitive synthetics like nylon windbreakers—sew-on is the safe option because adhesive films typically need 300°F+ to set.
  • Identify: Confirm the end garment fiber content and heat tolerance before recommending iron-on.
  • Switch: Choose sew-on application for nylon/waterproof shells to avoid melting or shrink damage.
  • Inform: If providing adhesive-backed patches, position the adhesive as a placement aid and advise sewing for permanence on demanding gear.
  • Success check: The garment shows no warping, glossing, or melt marks after any heat exposure (if any testing is done).
  • If it still fails… If the garment reacts to heat during a test, stop immediately and move to sew-on only.
• Q: What safety rules prevent finger injuries and equipment risk when using commercial magnetic embroidery hoops with strong neodymium magnets?
  A: Treat magnetic hoops like a pinch hazard tool—keep fingers clear and control the snap every time.
  • Clear: Keep fingertips off the rim area before bringing the top and bottom rings together.
  • Separate: Do not handle magnetic hoops if the operator has a pacemaker/ICD; keep magnets away from phones, cards, and sensitive electronics.
  • Control: Lower and align the top ring carefully to avoid an uncontrolled slam.
  • Success check: The ring closes with a controlled snap and no finger contact points near the rim.
  • If it still fails… If the hoop keeps snapping unpredictably, slow down the alignment step and use a stable hooping surface so the bottom ring cannot shift.
