A Crisp, Two-Color FSL Bauble on the Brother Innov-is V5: Hooping Water-Soluble Stabilizer Without the Wrinkles (or Panic)

Free-standing lace (FSL) is widely considered the “final boss” of machine embroidery for beginners. It feels like a high-risk project because you are working without a fabric safety net. You are stitching thousands of needle penetrations into a piece of water-soluble film that wants to shrink, buckle, or tear under pressure. If the stabilizer shifts even a millimeter, the lace structure collapses, and you’re left with a bird’s nest instead of a bauble.

However, on a machine as capable as the Brother Innov-is V5, this project is entirely manageable—if you treat the preparation phase with the respect usually reserved for industrial production. The secret isn’t magic fingers; it’s treating hooping and stabilizer tension as the main event, not an afterthought.

Below is the refined, “field-tested” workflow based on the video, augmented with the specific checkpoints I use in professional shops to ensure dense lace comes out crisp, clean, and repeatable every single time.

Set Up the Brother Innov-is V5 Embroidery Screen So You Don’t Miss the “Small Hoop” Details

The video begins on the Brother Innov-is V5 home screen and transitions immediately into embroidery mode. While it looks simple, your eyes need to be scanning for specific data points that dictate your physical setup.

What you’re doing on the V5 Interface:

1. Navigate into the main Embroidery menu.
2. Locate the folder containing the lace designs (identified by the middle lace folder icon shown in the video).
3. Scroll through the index to find the Christmas bauble lace design and select it.

Once the design loads on the embroidery screen, the V5 presents the "truth" of the project. Before you even look for your thread, analyze these four critical metrics displayed on the screen:

• Presser foot recommendation: (Displayed at the top). using the wrong foot on lace can lead to snagging.
• Stitch count: 10,741 stitches.
• Estimated time: 18 minutes.
• Color changes: 2 steps.

The Expert Insight: That stitch count relative to the size of the object is your warning light. 10,741 stitches is significant density. This confirms that the stabilizer will be subjected to intense "pull compensation" forces. If your hooping is loose, the design will shrink inward, creating gaps between the border and the fill.

Read the Brother Innov-is V5 Stitch Count, Time, and Color Changes Like a Production Checklist

On the pattern screen, the V5 displays the design preview alongside key parameters. In a professional setting, we don't treat these numbers as "FYI"—they are a pre-flight risk assessment.

Here is how to interpret the data for safety:

• 10,741 Stitches (The Stress Test): This means your needle will punch the water-soluble stabilizer over 10,000 times. Every punch creates a perforation. If the stabilizer isn't robust, it limits the structural integrity of the "fabric" you are creating.
• 18 Minutes (The Drift Factor): This is the duration the stabilizer must remain under tension without "creeping." If you use a hoop that barely grips, the stabilizer will slowly slide inward over these 18 minutes, ruining the registration.
• 2 Color Changes (The Human Factor): This indicates you will interact with the machine twice. Every interaction is a risk of bumping the carriage or dislodging the hoop.

If you are a planner, this is also the moment to finalize your thread palette. You can follow the machine’s default suggestions or, as the presenter does, exercise creative license to swap the second color for a softer, lower-contrast aesthetic.

Use Brother V5 Positioning Arrows to Center the Lace Design Without Guesswork

The video demonstrates the positioning controls, which are vital for FSL. Because we aren't stitching onto a large garment, we need the needle to land exactly where the stabilizer tension is most uniform—the dead center.

The Workflow:

• Tap the positioning area on the screen to move the design within the hoop virtually.
• If you manually move the design and lose track of the center, hit the center button (usually a grid icon with a dot) to snap the design back to the true origin (0,0).

Why This Matters: Physics dictates that hoop tension is tightest near the frame edges and slightly looser in the middle. However, for lace, crowding the edge of the hoop is dangerous. The presser foot can hit the frame, or the stabilizer near the edge may distort differently than the center. Always center FSL designs to ensure the pull forces are distributed intimately in 360 degrees.

The “Thread Break Insurance” Menu: Brother Innov-is V5 +/- Stitch Navigation That Saves Lace

The presenter highlights a recovery feature that is essentially "insurance" for your project. Free-standing lace is fragile; if a thread breaks and you miss a section, the ornament may literally fall apart.

The Reality of Machine Lag: When a top thread breaks, the machine doesn't stop instantly. It takes a moment for the sensors to register the lack of tension. By the time the V5 stops, it may have advanced about 10 stitches past the break point, leaving a gap.

The Recovery Protocol:

1. Do not just re-thread and press start.
2. Open the stitch navigation menu (the +/- stitch count function).
3. Backtrack 10 to 15 stitches. You want to see the hoop physically move backward to where the thread is still solid.
4. Restart the machine.

This creates a small overlap, locking the new thread over the old thread. In lace, this overlap is invisible; a gap, however, is a structural failure. If you are learning hooping for embroidery machine basics, combining solid hooping technique with this digital recovery skill is the fastest way to achieve professional results without buying new hardware.

Confirm Brother Small Hoop Compatibility on the V5 Screen Before You Hoop Anything

The V5 intelligence system shows exactly which hoops are compatible with the selected design dimensions. This prevents the "user error" of trying to stitch a large design in a small field, but for lace, it serves a different purpose.

The V5 status check:

• Monogram Hoop: Grayed out (Will not fit).
• Small, Medium, Large Hoops: Available (Will fit).

The Decision: The presenter wisely chooses the small hoop (often 100x100mm or similar).

The Physics of the Choice: Always use the smallest hoop that fits your design. Why?

1. Surface Tension: A smaller surface area of stabilizer is easier to keep "drum tight." Large hoops have more surface area, making the center prone to bouncing (flagging) which causes skipped stitches.
2. Soluble Economy: Water-soluble stabilizer is expensive. Using a giant hoop for a tiny bauble is wasteful.

Stop second-guessing and commit to the small hoop.

The “Hidden” Prep That Makes FSL Work: Heavy-Duty Water-Soluble Stabilizer, Thread Plan, and a Flat Hoop

In the video, the stabilizer acts as the fabric. If the stabilizer fails, the project fails. The presenter uses a heavy-duty clear soluble stabilizer (often referred to as badge film or heavy WSS) hooped directly in the small hoop.

Here is the "Invisible Workflow" that prevents 90% of frustration:

• Stabilizer Selection: Use a heavy micron count (e.g., 60-80 micron) clear soluble film. Do not try to use the thin cling-film-style topping; the needle will shred it instantly.
• Needle Check (Hidden Step): Lace kills needles. Ensure you have a fresh 75/11 Embroidery Needle installed. A dull needle will punch large jagged holes in the film rather than piercing it cleanly.
• The Thread Plan: First color is Mid Royal Blue; Second color is Pale Ice Blue. (Pro Tip: Use the same thread in the bobbin as the top if you want the ornament to look identical on both sides, though standard bobbin thread works fine for hanging ornaments).

Prep Checklist (Complete BEFORE hooping):

• Design: Confirmed 2 color changes and correct compatibility.
• Material: Cut a piece of heavy-duty soluble stabilizer 2 inches wider than the hoop on all sides.
• Tooling: Small hoop is clean, screw is loosened.
• Asset: Bobbin is full (running out of bobbin thread on FSL is a nightmare to fix).


Hooping Heavy Water-Soluble Stabilizer in a Brother Small Hoop Without Buckling (This Is Where Most People Lose It)

This is the make-or-break moment. Dense lace stitching generates massive "pull" forces that try to drag the stabilizer toward the center. Your hooping must counteract this.

The Sensory Goal: You are looking for "Drum Tightness." When you tap the hooped stabilizer, it should sound like a small drum (a distinct thump), not a flappy piece of paper.

The Step-by-Step Technique:

1. Place the outer hoop on a flat, sturdy surface (not your lap).
2. Lay the heavy film over it.
3. Press the inner hoop straight down.
4. Tactile Check: Tighten the screw. As you tighten, gently pull the edges of the film to remove wrinkles—but stop before you stretch/distort the film itself. If the film turns white at the edges, you have over-stretched it.
5. The friction needs to be high.

If you struggle with hand strength or find the stabilizer slipping mid-stitch, this is the specific pain point where pros look for upgrades. Many professionals switch to terms like magnetic embroidery hoops when searching for solutions, because the strong magnetic clamping force eliminates the variable of "how tight did I screw the nut?" and provides consistent tension across the entire frame.

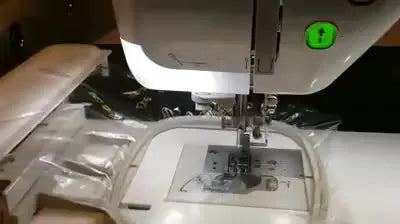

Lock the Brother Innov-is V5 Hoop Lever Flat—Then Treat the First 30 Seconds Like a Stress Test

The video shows the hoop loading procedure, which is deceptively simple.

• Slide the hooped stabilizer onto the embroidery arm carriage.
• Engage the locking lever until it sits nice and flat.

The "Click" check: On the V5, you should feel a distinct mechanical engagement. If the lever feels spongy or doesn't go all the way down, pull the hoop out and reseat it. If the hoop wiggles, your registration will be off.

Once you press the green button, do not walk away. The first 30 seconds are a stress test.

Warning: Keep fingers, scissors, and loose thread tails well away from the moving needle setup. A needle striking a finger at 800 stitches per minute causes serious injury, and needle deflection can shatter the metal mechanism inside the machine.

Setup Checklist (Right before pressing Start):

• Hoop: Fully seated, lever locked flat, no wiggle.
• Path: Stabilizer is flat under the foot; no bunching.
• Needle: Fresh needle installed (Crucial for FSL).
• Top Thread: Correct color threaded, slack removed.
• Speed: Recommendation for beginners: Reduce machine speed to 600 SPM (Stitches Per Minute) for the first run to ensure stability.


Stitch Color 1 on the Brother Innov-is V5: Dense Lace Lattice Needs a Calm, Watchful Eye

The first color lays down the "scaffold" of the lace structure in Royal Blue. The video shows the needle penetrating the clear stabilizer.

Sensory Observation: Watch the bobbin interaction. Because the film is clear, you can see the bobbin hook spinning below. This is beneficial—verify that the bobbin thread is catching cleanly. You should hear a rhythmic purr. If you hear a loud clack-clack-clack, stop immediately—your stabilizer may be flagging (bouncing up and down), and you need to re-hoop tighter.

Ergonomics Note: If you plan to make 50 of these for a craft fair, hooping standard frames repeatedly will strain your wrists. This scenario is where a dedicated machine embroidery hooping station becomes valuable. It holds the outer hoop fixed, allowing you to use both hands to smooth the stabilizer, ensuring consistency and reducing fatigue.

Nail the Brother Innov-is V5 Color Change: Swap Royal Blue to Pale Ice Blue Without Losing Your Place

After the structural lattice is complete, the machine stops for the second color.

The Critical Maneuver: Changing thread on an embroidery machine feels routine, but with lace, you must be surgical.

1. Cut the Royal Blue thread.
2. Remove the spool and switch to Pale Ice Blue.
3. The Risk: Do not lean on the hoop or the carriage while threading. Even a slight pressure can shift the registration by 1mm, which will make the ice blue stitching land outside the royal blue border.

Handle the machine gently. If you are using various embroidery machine hoops across different machines, remember that the attachment mechanisms vary—ensure you don't accidentally unlock the hoop lever while reaching for the thread cutter.

Stitch Color 2 Details Cleanly: Let the V5 Finish the Lace Before You Touch Anything

The second color fills in the inner decorative details. Because the "foundation" is already built, this step stabilizes the ornament further.

What to watch for: Ensure the Pale Ice Blue stitches are landing inside the Royal Blue framework.

• Perfect: There is no gap between the two colors.
• Issue: If there is a gap, your stabilizer loosened during the first color. You cannot fix this now, but for the next one, hoop tighter.

Recovery Reminder: If the thread breaks on this fine detail work, remember the V5 process: Thread the machine -> Navigation Menu -> Back 10 stitches -> Start.

Peel, Rinse, and “Dial In” Stiffness: Warm Water Is the Sweet Spot for FSL Stabilizer Removal

Once the stitching stops, the bauble looks like a patch on plastic.

1. Remove the hoop.
2. Un-hoop the stabilizer.
3. Cut away the excess film with scissors (get close to the stitching, but don't snip the threads!).

The Chemistry of Stiffness: Now for the "magic trick." You dissolve the stabilizer in water. The video offers a brilliant piece of empirical advice: The amount of stabilizer you leave in dictates the stiffness.

• Soft Lace (Drape): Rinse thoroughly until the water runs clear and the lace feels soft.
• Stiff Ornament (Structure): Rinse briefly. Leave a "slimy" feel on the thread. When this dries, the residual stabilizer acts like starch/glue, making the ornament hard and rigid (perfect for hanging on a tree).

Temperature Control:

• Warm Water: The Sweet Spot. Dissolves efficiently but allows control.
• Boiling Water: Too aggressive; removes everything too fast and can shock synthetic threads.
• Ice Cold Water: Too slow; the film turns gummy rather than dissolving.

A Quick Decision Tree: Match Fabric Type to Soluble Stabilizer Strategy (So You Don’t Waste Material)

New users often confuse the "Heavy Film" used here with the "Light Film" used on towels. Use this logic gate to decide what to buy and use:

Decision Tree: Consumable Strategy

1. Is your project Free-Standing Lace (FSL)?
   • Yes: MUST use Heavy-Duty Clear Soluble Stabilizer (60+ micron). Hoop drum-tight.
   • No: Proceed to 2.
2. Are you stitching on Towel, Fleece, or Velvet?
   • Yes: Use Lightweight Soluble Topping (thin film). Place it on top of the fabric to keep stitches from sinking. Use tear-away or cut-away backing underneath.
   • Note: Even if you layer 3 sheets of topping (as mentioned in the video), it is rarely strong enough for FSL. Use the right tool for the job.

If you are working on small 4x4 inch projects repeatedly, many users investigate brother 4x4 embroidery hoop upgrades to streamline the process, but always verify your machine's mount type before purchasing third-party frames.

Troubleshooting the Scary Stuff: What to Do When Lace Buckles, Gaps, or Feels Too Soft

Even with great prep, variables happens. Here is a troubleshooting matrix ordered from "Low Cost" to "High Cost" fixes.

Symptom: Thread breaks frequently on dense sections.

• Likely Cause: Needle is dull or coated in stabilizer residue; Speed is too high.
• Quick Fix: Change to a new Topstitch 75/11 or Embroidery 75/11 needle. Slow machine to 600 SPM.

Symptom: The "Ice Blue" fill doesn't touch the "Royal Blue" border (Gap issues).

• Likely Cause: "Pull Compensation" failure. The stabilizer was too loose and pulled inward during stitching.
• Quick Fix: You cannot fix the current piece. For the next one, use a Magnetic Hoop or hoop the screw-hoop significantly tighter. Ensure the film is "drum tight."

Symptom: The lace is floppy and won't hold its shape on the tree.

• Likely Cause: You over-rinsed it.
• Quick Fix: Dissolve some scraps of water-soluble stabilizer in a bowl of warm water to make a "goo." Dip the ornament in it, lay flat to dry. It will re-harden.

The Upgrade Path That Actually Makes Sense: When Better Hooping Tools Beat “More Practice”

If you are making one unique ornament for your grandmother, the standard hoop included with your V5 is perfectly adequate. Follow the steps above, take your time, and it will work.

However, if you find yourself hitting the "Pain Points" below, your skill isn't the problem—your tooling is.

Commercial Diagnosis:

• Trigger: You need to make 50 ornaments for a holiday market. Your wrists hurt from tightening hoop screws, and you keep getting "hoop burn" (ring marks) on your fabric projects.
• Criteria: If you are producing volume daily, manual hooping is a bottleneck.
• The Solution:
  1. Level 1 (Control): Use spray adhesive or double-sided tape (temporary fix).
  2. Level 2 (Speed & Health): Switch to a magnetic hoop for brother compatible frame. These use high-power magnets to clamp the stabilizer instantly without hand strain, eliminating "hoop burn" and ensuring consistent tension for every single item in the batch.
  3. Level 3 (Scale): If you outgrow the single-needle V5, look at multi-needle platforms (like SEWTECH configurations) that allow you to queue up colors without manual changes.

Warning: Magnetic hoops contain powerful magnets. Do not use if you have a pacemaker. Keep fingers clear of the snapping zone to avoid painful pinches.

Operation Checklist (The “Don’t Ruin It At The Finish Line” List)

Before you declare victory, ensure you stick to the landing:

• Patience: Wait for the machine to act complete before unlocking the hoop.
• Extraction: Tear the heavy stabilizer away gently; don't yank, or you will distort the wet stitches.
• Rinse Control: Use warm water. Stop rinsing while the lace still feels slightly "slick" or rigid.
• Drying: dry flat on a non-stick surface (glass or plastic). Do not dry on a paper towel (it will glue itself to the lace).

By mastering the variables of hooping and stabilizer, you move from "hoping it works" to "knowing it will work."

Note on compatibility: While this guide focuses on the V5, owners of other machines often ask about brother innovis v3 hoops or similar parts. Always check your specific machine manual for part numbers, as hoop attachments can vary between machine generations.*

FAQ

• Q: What Brother Innov-is V5 presser foot, stitch count, time, and color-change numbers should be checked before stitching free-standing lace (FSL)?
  A: Use the Brother Innov-is V5 embroidery screen as a pre-flight checklist before hooping anything.
  • Confirm the presser foot recommendation shown at the top of the screen to avoid snagging on lace.
  • Treat a high stitch count (example shown: 10,741 stitches) as a stabilizer-stress warning and plan heavier stabilizer + tighter hooping.
  • Use the estimated time (example shown: 18 minutes) to predict stabilizer “creep” risk and plan to monitor the first minutes closely.
  • Note the color changes (example shown: 2) so thread swaps are done without bumping the hoop.
  • Success check: All key metrics are reviewed and the chosen hoop size matches what the screen shows as compatible before any stabilizer is cut.
  • If it still fails: Re-check hoop compatibility on-screen and reduce speed for the first run to increase stability.
• Q: How do Brother Innov-is V5 users hoop heavy-duty water-soluble stabilizer for free-standing lace (FSL) without buckling or drifting?
  A: Hoop heavy-duty water-soluble film “drum tight” on a flat surface, not on a lap.
  • Place the outer hoop flat on a sturdy table, lay the heavy clear soluble film over it, then press the inner hoop straight down.
  • Tighten the screw while gently pulling the film edges to remove wrinkles, but stop before stretching/distorting the film (whitening at edges indicates over-stretch).
  • Choose the smallest Brother-compatible hoop that fits the design to keep tension easier to maintain.
  • Success check: Tapping the hooped film gives a distinct drum-like “thump,” not a floppy paper sound.
  • If it still fails: Re-hoop tighter and consider a magnetic clamping hoop if slipping during stitching keeps happening.
• Q: How can Brother Innov-is V5 users tell during stitch-out that water-soluble stabilizer is flagging and causing skipped stitches on dense FSL?
  A: Stop early if the Brother Innov-is V5 sounds or looks wrong—dense lace needs stable, flat film.
  • Watch the film near the needle: excessive bouncing (flagging) is a sign the stabilizer is not held firmly enough.
  • Listen for sound changes: a smooth rhythmic “purr” is normal; loud clacking can indicate flagging or instability.
  • Re-hoop before continuing if flagging is visible; continuing usually makes the lace structure fail.
  • Success check: The film stays flat under the foot with consistent stitch formation and no harsh clacking sounds.
  • If it still fails: Reduce speed (a safe starting point for beginners is slower, such as the 600 SPM suggestion) and confirm a fresh 75/11 embroidery needle is installed.
• Q: How do Brother Innov-is V5 users recover free-standing lace after a top thread break using the +/- stitch navigation menu?
  A: Back up 10–15 stitches on the Brother Innov-is V5 before restarting so the new thread overlaps and locks in.
  • Re-thread the top path fully and remove slack before touching Start.
  • Open the +/- stitch navigation and step backward about 10–15 stitches to reach solid stitching before the break.
  • Restart and let the overlap secure the structure; small overlaps are usually invisible in lace.
  • Success check: The restart area shows continuous stitching with no open gap that would weaken the lace.
  • If it still fails: Stop and check needle condition and stabilizer tension—dense FSL can break thread more when the needle is dull or the film is not tight.
• Q: Why does Brother Innov-is V5 free-standing lace show a gap where Color 2 does not touch Color 1, and what is the fastest fix?
  A: A Color 2 “gap” on Brother Innov-is V5 FSL usually means the stabilizer pulled inward because hooping was too loose.
  • Accept that the current piece generally cannot be corrected once the registration is off.
  • Re-hoop the next piece tighter with heavy-duty soluble film and keep the design centered to distribute pull forces evenly.
  • Use the smallest compatible hoop size to improve surface tension and reduce drift over the stitch time.
  • Success check: Color 2 stitches land inside the Color 1 framework with no visible separation line.
  • If it still fails: Upgrade the holding method (many users move to magnetic clamping hoops for more consistent grip) and re-check that the hoop is fully seated with the lever locked flat.
• Q: What is the safest way to start a Brother Innov-is V5 free-standing lace run to avoid injury and early project failure?
  A: Treat the first 30 seconds on the Brother Innov-is V5 as a controlled stress test with hands and tools fully clear.
  • Lock the hoop lever fully flat and re-seat the hoop if any wiggle is felt before pressing Start.
  • Keep fingers, scissors, and loose thread tails away from the needle area; do not reach near the moving carriage.
  • Start slower for the first run (the guide suggests 600 SPM for beginners) and watch for stable stitching immediately.
  • Success check: Hoop is firmly locked, the stabilizer stays flat under the foot, and the machine runs smoothly without abnormal noise.
  • If it still fails: Stop, power down if needed, then re-check hoop seating, needle freshness, and re-threading before restarting.
• Q: When should Brother Innov-is V5 users upgrade from standard screw hoops to magnetic embroidery hoops or even to multi-needle production machines for FSL batches?
  A: Upgrade when physical strain and repeatability—not skill—become the bottleneck for Brother Innov-is V5 lace production.
  • Level 1 (Technique): Improve hooping discipline (drum-tight film, smallest hoop that fits) and use temporary holding aids like spray adhesive or tape when appropriate.
  • Level 2 (Tooling): Switch to magnetic hoops when screw-tightening consistency, slipping, or wrist fatigue slows output or causes repeat tension problems.
  • Level 3 (Capacity): Consider multi-needle platforms when frequent manual color changes and single-machine throughput limit daily volume.
  • Success check: Batch runs show consistent registration with less re-hooping and less hand strain.
  • If it still fails: Verify magnetic hoop use is safe for the operator—strong magnets can pinch fingers and should not be used by anyone with a pacemaker.
