A Clean Monogram on a Towel with the Brother Innov-is XV: Built-In Fonts, No Floral Flourish, No Fuss

Monogramming a plush towel is the ultimate "high risk, high reward" project for embroidery enthusiasts. It sounds deceptively simple—until the terry loops start swallowing your satin stitches, the heavy fabric shifts mid-design, or you realize the machine’s built-in font includes a floral flourish you didn’t intend to stitch.

If you have ever felt that sinking feeling of watching a needle chew up an expensive bath towel, you are not alone. Towels are dynamic, three-dimensional surfaces that fight back.

In this master-class walkthrough, we will deconstruct the workflow demonstrated on the Brother Innov-is XV. We will replicate the specific task: selecting a built-in font (Category 3 → Style 1 → Small), isolating the letter C, expertly skipping the unwanted floral accents, and achieving a commercial-grade finish with water-soluble topping.

More importantly, we will apply 20 years of shop-floor experience to the invisible steps the machine manual leaves out: the science of "hoop burn," the sensory checks for proper tension, and the commercial upgrades that transform a struggle into a production line.

The Cognitive "Calm-Down": Understanding Machine Logic on Terry Cloth

Before we touch the screen, we must understand what we are asking the Brother Innov-is XV to do. You are asking a precision needle to deposit thousands of thread loops onto a surface that is essentially a pile of tiny loops.

In our case study, the design preview indicates a size of 52.2 mm × 41.1 mm. Later, the screen confirms a stitch count of 2292 stitches with an estimated runtime of 4 minutes.

Why these numbers matter for beginners:

• Safety Zone: A 4-minute runtime is perfect for a first attempt. It minimizes the time the heavy towel hangs off the machine, reducing gravity-induced drag.
• Stitch Density: 2292 stitches in a ~50mm space is moderately dense. This means your stabilization needs to be robust, or the letter will tunnel (pucker).

If you are researching which unit to buy, this capability to preview and edit on-screen is a defining feature of a quality brother embroidery machine for beginners. It provides the visual confirmation needed to proceed with confidence.

The "Sandwich" Science: Stabilizer, Nap Control, and Tension Physics

The video shows the towel hooped with a clear water-soluble topping (film). This is non-negotiable. The topping acts like a snowshoe, keeping your stitches floating above the "snow" (terry loops). Without it, your nice crisp "C" becomes a fuzzy, sunken mess.

However, a pro finish requires a complete "sandwich."

The "Hidden" Consumables Setup

1. Bottom Layer (The Foundation): Use a Medium-Weight Tear-Away stabilizer underneath. For beginners, I recommend "floating" the towel (hooping the stabilizer, spraying it with temporary adhesive, and sticking the towel on top) to avoid hoop burn.
2. Middle Layer (The Fabric): Your towel.
3. Top Layer (The Surface Control): Water-soluble topping (film).

The Hoop Burn Dilemma

Traditional inner/outer ring hoops rely on friction. To hold a thick towel securely, you have to tighten the screw aggressively. This crushes the delicate cotton loops, leaving a permanent ring known as "hoop burn."

The Commercial Solution: This is the exact moment where professionals switch to a magnetic embroidery hoop.

• The Diagnosis: If you are physically struggling to close the hoop or your wrists ache after setting up one towel, you are fighting physics.
• The Fix: Magnetic hoops use vertical force (clamping down) rather than friction (wedging in). They hold thick towels securely without crushing the fibers, drastically reducing prep time.

Warning: Pinch Hazard. Magnetic hoops are industrial tools with powerful magnets. Keep fingers, loose skin, and pacemakers away from the snapping zone. Handle with deliberate control.

Prep Checklist: The "Pre-Flight" Inspection

• Needle Check: Install a fresh 75/11 or 90/14 Embroidery Needle. A Sharp point cuts loops; a Ballpoint can deflect. A 75/11 is the general "sweet spot" for standard terry.
• Bobbin Status: Ensure you have at least 50% bobbin thread remaining. Running out mid-letter on a towel creates a visible seam.
• Topping Coverage: Cut your water-soluble film 1 inch larger than the hoop area on all sides.
• Hoop Tactile Check: If using a standard hoop, tighten the screw until the towel feels taut but not stretched like a drum. If you pull the towel and the loops distort, it's too tight.
• Obstruction Check: Ensure the towel is folded so no extra layers are accidentally tucked under the hoop area.


Navigating the Brother Interface: Category 3 → Style 1 → Small

Precision in menu navigation saves frustration. On the Innov-is XV, the path to the specific font used is:

1. Embroidery Menu
2. Tab/Category 3 (The Floral/Script Category)
3. Style 1
4. Scroll Down to the next page to find the Small version.
5. Select "C".

Expert Note: Many beginners assume the default size is the only size. Always look for the L/M/S (Large/Medium/Small) icons or separate folder tabs. Using the smallest distinct font ensures the text doesn't get lost in the towel's nap while keeping the total stitch count manageable.

Strategic Editing: Orchestrating the "Skip"

In our reference video, the letter "C" comes with a floral garnish. The goal is to stitch only the letter.

The Mental Model: Think of the embroidery file as a playlist of songs. The flower is Track 1 and Track 2; the Letter is Track 3. You don't need to delete the tracks; you just need to skip them or stop the machine before they play.

How to verify:

1. Look at the Color Change Sequence on the screen.
2. If the machine initially shows 5 color changes, but you see the letter itself is one solid block (e.g., Black), identify which steps belong to the flower.
3. Pro Tip: In the editing screen, you can often step through the design. If you cannot delete the flower parts, simply use the "Forward/Back" stitch keys to fast-forward through the flower colors before you start stitching.


Size Validation: The 52.2 mm Reality Check

The screen confirms the design is 52.2 mm × 41.1 mm (approx. 2 x 1.6 inches).

Why this specific size is safer: Standard bath towel borders (the flat Dobby weave part) are often narrow. A 52mm design usually fits perfectly within a standard border or sits tastefully above it.

If you are using a standard attachment, ensure the design fits well within the "safe area" of your specific hoop. For example, if you are rigging this on a widely used brother 5x7 hoop, you have ample room to maneuver the towel without hitting the plastic edges.

The Launch Sequence: Safety First

Claire arms the machine: Embroidery Button → Lower Presser Foot → Green Light.

This is the psychological "point of no return."

The "Green Light" Safety Protocol: Before pressing that green button, perform the "Towel Tuck Test":

1. Run your hand under the hoop. Is the rest of the towel clear of the embroidery arm?
2. Look at the back of the machine. Is the heavy bulk of the towel falling off the table?
3. Action: Fluff the towel up on the table surface. The hoop should not be supporting the weight of the bath towel; the table should. Gravity is the enemy of registration.

Warning: High-Speed Needle. Once the light is green and you press start, keep hands at least 6 inches away from the needle bar. If a loop of the towel catches the foot, do not try to grab it while the machine is moving. Hit the STOP button immediately.

Setup Checklist: Ready to Stitch

• Presser foot is physically lowered (listen for the mechanical thunk).
• Start/Stop light has turned Green.
• Excess towel fabric is pooled on the table/lap, not dragging on the floor.
• Water-soluble topping is smooth and covering the entire stitch area.
• Speed Control is set to Medium (approx. 400-600 SPM). Note: Do not run towels at max speed (1000+ SPM) until you are experienced; the friction can cause thread breakage.


Phase 1: The Running Stitch (The Tacking Phase)

The machine begins with a running stitch contour.

What to watch for:

• Visual: Is the needle piercing the topping cleanly?
• Auditory: You should hear a rhythmic stitch-stitch-stitch. If you hear a loud thump-thump, your needle might be dull or hitting a dense pre-woven border too hard.

This running stitch is crucial—it tacks the soluble film to the towel and creates a "dam" that holds back the terry loops.

Phase 2: The Fill Stitch (The Foundation)

Next, the machine executes an underlay or fill stitch.

The Engineering Reason: You cannot put high-density satin stitches directly onto a towel; they will sink and disappear. The machine automatically lays down a lattice or zigzag foundation. This flattens the loops inside the letter "C" to create a stable, flat platform for the final satin topcoat.

Expert Observation: If you see terry loops poking through this fill layer, your water-soluble topping has shifted or torn. Pause immediately and patch it with a fresh scrap of topping.

The Progress Monitor: Upgrade Kit Features

Claire notes the "ribbon of color" with a red tracking line on the screen—a feature of Upgrade Kit 1 & 2 for the XV.

While not essential for stitching, this visual feedback is vital for Machine Management. It tells you exactly how much time is left in the current color block.

• Why it matters: If you are skipping the floral flourish, watch this bar. As soon as the "C" block finishes, be ready to stop the machine if it attempts to move to the flower colors.


Analyzing the Data: 2292 Stitches / 4 Minutes / 5 Colors

The Real-World Interpretation:

• 2292 Stitches: This is a light-to-medium load. It won't create a "bulletproof vest" stiffness on the towel.
• 5 Colors: Since we are doing a monochrome letter, we are effectively ignoring the machine's request to change thread.
• Action: If the machine stops and asks for "Color 2" (the flower), and you only want the letter, simply hit skip or end the design. Many modern machines allow you to deselect specific color blocks in the edit screen before stitching suitable for a versatile monogram machine, saving you this manual monitoring.


Managing Bulk: The "Table Assist" Technique

The video shows the wide shot: the machine is working, and the towel is draped.

The #1 Cause of Distorted Letters: If the towel hangs off the front of the table, its weight pulls on the hoop every time the Y-axis (front-to-back) arm moves. This causes oval-shaped circles and slanted letters. The Fix: Use books, a specialized embroidery table extension, or simply your hands (safely outside the zone) to support the weight of the towel so the hoop "floats" freely.

For those setting up a dedicated space, a hooping station for embroidery is often the next investment. It ensures that every towel is hooped in the exact same spot with the exact same tension, which is critical for uniformity when doing a set of "Mr. and Mrs." towels.

Phase 3: The Satin Finish (The Beauty Pass)

The machine finishes with a dense Satin Stitch.

Quality Control - Visual Check:

• The satin stitches should lie smoothly on top of the underlay.
• You should not see any towel color showing through the thread.
• The edges should be crisp, not "saw-toothed."

If the thread is shredding or breaking during this dense phase, your top tension may be too tight. Sensory Check: Loosen the top tension slightly. When you pull the thread through the needle (with the foot up), it should feel like pulling dental floss—some resistance, but smooth.

Unhooping Protocol: Protect the Mechanism

Claire removes the hoop from the machine arm before touching the fabric.

Crucial Step: Never try to tear the stabilizer or wrestle the towel while the hoop is still attached to the embroidery arm. The torque can damage the stepper motors or misalign the arm. Always: Unlock → Remove Hoop → Unhoop Fabric.

This is a great time to inspect the fabric ring. If you see deep creases, steam them out later. If you want to avoid them entirely in the future, research hoops for brother embroidery machines that offer magnetic clamping options.

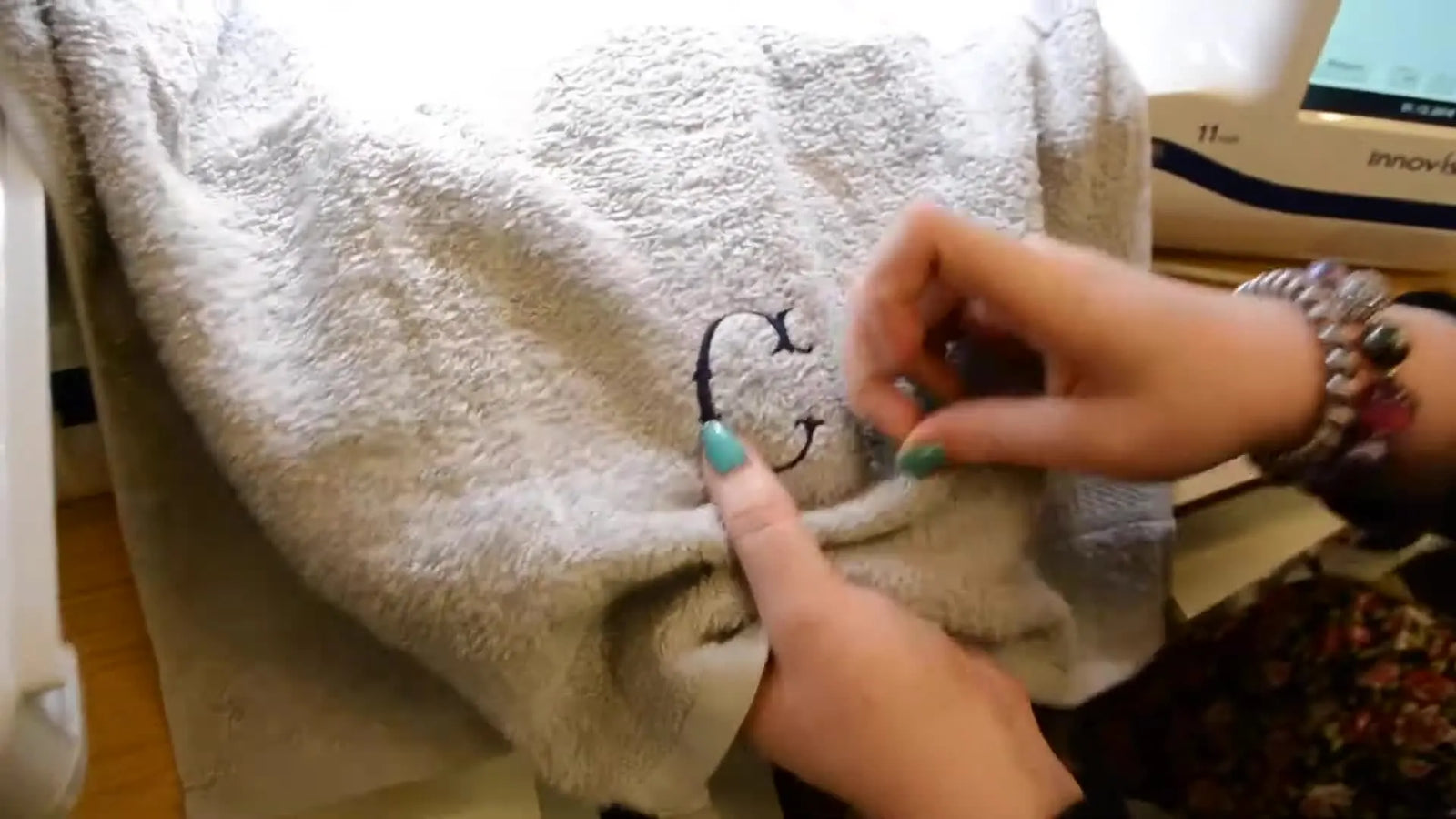

The Reveal: Removing the Soluble Film

Claire tears away the water-soluble film.

Technique:

1. Place your thumb on the stitches to hold them down.
2. Gently tear the film away from the stitching.
3. The Tweezers Trick: For the tiny bits trapped inside the "C," use blunt-nosed tweezers. Do not pick aggressively, or you will pull a terry loop loose and ruin the towel.
4. Final Cleanup: Any remaining film will dissolve in the first wash, or you can dab it with a wet Q-tip to melt it away instantly.

Operation Checklist: The Post-Op

• Hoop removed safely from the carriage.
• All water-soluble topping removed (large pieces torn, small pieces dissolved).
• Backing stabilizer trimmed (if cut-away) or torn away cleanly.
• Jump Threads: Trimmed close to the fabric (be careful not to snip the towel loops!).
• Quality Check: No loops poking through the satin stitch.


Troubleshooting: The "Why Did It Fail?" Guide

Even with a great machine like the Innov-is XV, variables happen.

Decision Tree: Fabric vs. Stabilization Strategy

Use this logic flow to determine your setup for future towel projects.

Start: Assess the Towel Nap (Height of Loops)

• Low Pile (Kitchen/Hand Towel):
  • Top: Water-Soluble Film.
  • Bottom: Tear-Away Stabilizer.
  • Hooping: Standard hoop is usually fine.
• Medium Pile (Standard Bath Towel):
  • Top: Water-Soluble Film (Essential).
  • Bottom: Medium Tear-Away (floating method recommended).
  • Hooping: Watch for hoop burn.
• High Pile (Luxury Plush Towel):
  • Top: Heavy Water-Soluble Film (or double layer).
  • Bottom: Cut-Away Stabilizer (for max support) or Heavy Tear-Away.
  • Hooping: Critical Zone. Standard hoops struggle here. This is the trigger to use a magnetic embroidery hoop to secure the thick sandwich without forcing the specialized screws.


The Commercial Bridge: When to Upgrade

You have successfully monogrammed one towel. But what if you need to do 50 for a corporate order or a wedding party?

The Point of Friction: Using a single-needle machine with a screw-tighten hoop for bulk orders creates two bottlenecks:

1. Wrist Fatigue: Manually hooping 50 thick towels causes physical strain and inconsistent placement.
2. Downtime: Every color change (if you used the flower) requires a manual thread swap.

The Toolkit Level-Up:

• Level 1 (Accessory): Magnetic Hoops. These snap onto your existing machine but remove the "unscrew-rescrew" friction. They are the single best investment for towel efficiency.
• Level 2 (Machine): If you find yourself skipping designs (like the flower) because changing thread is annoying, or if you need to stitch faster than 600 SPM, investigate the SEWTECH line of multi-needle accessories or upgrade to a multi-needle machine. This allows you to set up the Letter and the Flower on different needles and let the machine run the full 4 minutes uninterrupted.

Financing the Finish

The video ends with a clean, draped towel. By following the "hidden steps"—proper topping, gravity management, and selecting the right font size—you transform a simple letter "C" into a permanent, professional personalization.

Remember: The machine provides the precision, but you provide the physics management. Respect the nap, float the film, and let the Innov-is XV do the rest.

FAQ

• Q: What stabilizer and topping sandwich should be used to monogram a plush terry towel on the Brother Innov-is XV?
  A: Use a water-soluble topping on top plus a backing stabilizer underneath; topping alone is not enough on terry.
  • Apply: Place clear water-soluble film on top, cut at least 1 inch larger than the hooped area on all sides.
  • Add: Use a medium-weight tear-away stabilizer under the towel; for less hoop burn risk, hoop only the stabilizer and float the towel with temporary adhesive spray.
  • Stitch: Keep the topping smooth so it doesn’t shift during the running stitch and underlay.
  • Success check: Satin stitches sit on top and look crisp, with minimal terry loops poking through.
  • If it still fails: Double the topping layer or switch to a heavier-gauge film as needed.
• Q: How can Brother Innov-is XV users avoid hoop burn (a crushed ring) when hooping thick bath towels?
  A: Reduce friction-based over-tightening by floating the towel, and consider a magnetic hoop when standard hoops require excessive screw force.
  • Hoop: Tighten a standard hoop until the towel feels taut but not stretched like a drum; avoid distorting the loops.
  • Float: Hoop stabilizer only, spray with temporary adhesive, and stick the towel on top to reduce crushing pressure.
  • Upgrade: Switch to a magnetic hoop when closing the hoop is a struggle or repeated towel hooping causes wrist fatigue.
  • Success check: After unhooping, the towel pile rebounds with minimal visible ring and no deep creases.
  • If it still fails: Steam the ring area to fluff the pile, then re-evaluate hoop tension and stabilization.
• Q: How can Brother Innov-is XV users stitch only the letter and skip unwanted built-in floral accents in a monogram font?
  A: Use the color change sequence as a roadmap and fast-forward past the flower blocks before stitching the letter block.
  • Review: Check the on-screen Color Change Sequence; identify which color steps belong to the flower versus the solid letter.
  • Step: Use forward/back (stitch or block navigation) to move the start point past the floral segments when deletion is not available.
  • Monitor: Watch the progress indicator during stitching so the machine does not continue into the unwanted accent blocks.
  • Success check: Only the letter stitches on the towel, and the machine does not sew the floral garnish.
  • If it still fails: Stop at the end of the letter block and end the design when the machine prompts for the next color.
• Q: What needle size should be used for embroidering a terry towel on the Brother Innov-is XV to reduce thumping, shredding, and breakage?
  A: Start with a fresh 75/11 embroidery needle for standard terry, and move up to a 90/14 if the towel thickness causes deflection or breaks.
  • Replace: Install a new needle before starting; dull needles can cause loud “thump-thump” sounds on dense areas.
  • Select: Use 75/11 as a safe starting point for typical terry; use 90/14 when the fabric is thick or the needle is deflecting.
  • Slow: Run a medium speed range (not maximum speed) to reduce friction and thread stress on towels.
  • Success check: The machine sounds rhythmic and consistent, and the satin phase runs without shredding or repeated breaks.
  • If it still fails: Recheck top tension (it may be too tight during satin) and confirm the towel bulk is not dragging and pulling the hoop.
• Q: How can Brother Innov-is XV users prevent towel drag from distorting letters (oval shapes, slanted monograms) during embroidery?
  A: Support the towel’s weight so the hoop moves freely, because gravity pulling on the towel can shift registration.
  • Arrange: Pool the towel on the table (or support it with books/table extension) so the hoop is not holding the towel’s weight.
  • Clear: Perform a “towel tuck test” to ensure no extra towel layers sit under or snag near the embroidery arm.
  • Stitch: Keep hands safely away while running, but keep the towel bulk supported outside the needle zone.
  • Success check: Curves stay round and letter edges remain even without leaning or stretching as the arm moves.
  • If it still fails: Add temporary adhesive between towel and stabilizer to reduce shifting and re-hoop with better support.
• Q: What safety steps should Brother Innov-is XV users follow before pressing the green start button when embroidering thick towels?
  A: Do a quick clearance and support check before starting; thick towels can snag and the moving needle is hazardous.
  • Check: Confirm the presser foot is lowered and the towel bulk is fully clear of the embroidery arm path.
  • Support: Make sure the towel is resting on the table, not hanging off and pulling on the hoop.
  • Stop: If a towel loop catches or anything snags, hit STOP immediately—do not reach toward the needle while moving.
  • Success check: The towel stays clear, the hoop travels smoothly, and no fabric is being tugged as stitching begins.
  • If it still fails: Reposition and secure the towel bulk again before restarting.
• Q: What magnetic hoop safety precautions should be followed when using a magnetic embroidery hoop for thick towels?
  A: Treat magnetic hoops as industrial clamping tools and keep fingers and medical devices away from the snap zone.
  • Handle: Lower the magnetic frame deliberately; do not let magnets slam together uncontrolled.
  • Protect: Keep fingertips, loose skin, and pinch points clear when closing the hoop.
  • Separate: Keep magnetic hoops away from pacemakers and similar medical devices per standard safety guidance.
  • Success check: The hoop closes without pinching, and the towel is held securely without extreme force.
  • If it still fails: Switch to a slower, two-handed placement technique and re-check that the towel/stabilizer stack is not overly bulky.
