A Clean “MAMA” Patch on a Beanie with the Brother NQ1700E: Merrowly Edge, Metallic Thread, and a Heat-Press Finish That Actually Stays Put

If you’ve ever tried to embroider a knit beanie directly in the hoop, you are likely familiar with the "Embroiderer’s Heartbreak": the design looks perfect on the screen, but once stitched, the stretchy knit distorts, the letters wave like a flag, and the hoop leaves a crushed ring ("hoop burn") that never quite steams out.

The "Patch-First" method is the industry-standard cure for this chaos. By stitching on stable fabric and then applying it to the hat, you separate the engineering of the stitch from the instability of the knit.

Drawing from a detailed workflow using a Brother NQ1700E and Merrowly software, this guide deconstructs the process into a repeatable science. We will move beyond "hoping it works" to "knowing it works."

The “Don’t Panic” Moment: Why a Beanie Patch Beats Hooping a Knit Hat Every Time

A beanie is technically a "hostile environment" for embroidery machinery. It is lofty (thick), stretchy (unstable), and circular (hard to hoop). When you force a beanie into a standard plastic hoop, you stretch the fibers. You stitch the design while stretched, and when you unhoop, the fabric snaps back, crushing your beautiful satin stitches.

Making a patch on a separate, stable fabric (like twill or cotton canvas) eliminates variables. You are stitching on a flat, predictable surface. You get 100% control over edge quality and density.

If you are operating a home machine like the brother nq1700e, this method is also your safety net. You can ruin ten patches on cheap scrap fabric without destroying a single expensive beanie. It is the workflow of the "Quiet Pro"—minimizing risk to maximize profit.

The “Hidden” Prep Pros Do First: Fabric, Thread, and Backing Choices That Prevent Wavy Satin

Amateurs start by opening software; professionals start by touching materials. The success of a patch is determined by the "sandwich"—the combination of fabric, stabilizer, and thread.

Here is the physics behind the choices in this project:

• The Base (Black Woven): You need a "tightly woven" fabric (like twill or broadcloth). Hold it up to the light; if you see pinholes, it’s too loose. It must support high-density satin stitches without buckling.
• The Thread (Metallic Silver): Metallic thread is a flat ribbon, not a twisted rope. It requires a smoother path. Expert Note: It is more abrasive than rayon.
• The Physics of Hooping: Hoop tension is not about "maximum tightness." If you pull the fabric until it screams, it will retract later. You want "Drum Skin" tension—taut and resonant when tapped, but not stretched out of shape.

Hidden Consumables Strategy:

• Needles: Metallic thread requires a Metallic 90/14 or Topstitch 90/14 needle. The eye is larger to prevent the flat thread from twisting and shredding. Standard 75/11 needles are the #1 cause of metallic thread breakage.
• Adhesive: You need a heat-activated permanent bond (like HeatnBond Ultrahold) for the back.

Prep Checklist (Verify before software start):

• Software Check: Ensure Embrilliance Essentials and Merrowly Patch Maker plug-in are active (this automation saves hours of manual digitizing).
• Hardware Check: Install a fresh 90/14 needle. Clean the bobbin case of lint (metallic thread hates friction).
• Hoop Plan: Confirm you have a standard 7 x 5 hoop or larger.
• Material Stage: Pre-cut your black woven fabric and have your iron-on adhesive ready.


Build the “MAMA” Design in Embrilliance Essentials (Bauhaus Font + Exact Sizing)

Sizing in embroidery is not arbitrary; it is mathematical. Satin columns have a "min/max" width range.

1. Text Tool: Select the text tool and type "MAMA".
2. Font Selection: Choose "Bauhaus". This font is excellent for patches because it has thick, consistent column widths that cover fabric well.
3. The "Goldilocks" Size: Resize until the design is approximately 2 15/16" x 1 1/8".
   • Why this size? If you go smaller, the open spaces in the letters (like the triangle in the 'A') will close up. If you go much larger, the satin stitches become too long and may snag (looseness) unless you add a split stitch. This specific dimension is the "sweet spot" for structural integrity.


Dial in Thread Colors the Same Way Kathy Did (Silver Letters + Black Border)

Visualizing the final product on screen reduces cognitive load during stitching.

1. Thread Assignment: changing the text color to Silver helps you verify density. Metallic threads reflect light, often making gaps more visible, so ensure your underlay settings (in software parameters) are sufficient.
2. The Black Border Strategy: Change the patch edge color to Black.
   • The "Factory Limit" Trick: By matching the border thread color to the beanie color (Black on Black), you hide micro-imperfections. If the patch isn't perfectly centered when you heat press it, the black-on-black transition masks the error implies a high-end seamless look.


Use Merrowly Patch Maker “Add Patch Edge” (Rectangle) for a Faux Merrow Finish

A "Merrow" edge is that thick, overlocked pipe you see on commercial patches. Doing this on a standard embroidery machine requires a specific stitch sequence (Run -> Zigzag -> Dense Satin).

1. Utility Menu: Select Add Patch Edge (Merrowly).
2. Shape: Choose Rectangle.
3. Color: Set to Black.

The software automatically calculates the "cut line" and the "cover stitch."

Production Insight: If you plan to make 50 of these for a craft fair, traditional plastic hooping will hurt your wrists and slow you down. This is where efficiency experts look for terms like magnetic embroidery hoop, as these tools allow you to clamp the patch fabric instantly without unscrewing and re-tightening rings, maintaining consistent tension across a production run.

The “Group + Rotate + Center” Move That Prevents Off-Center Patches in a 5x7 Hoop

This sequence is your insurance policy against "Floating Text Syndrome"—where the border moves but the text stays behind.

1. Select All: Use Ctrl+A (Windows) or Cmd+A (Mac).
2. Group: Edit → Group. This locks the "MAMA" text to the Merrow border. They are now one single object.
3. Rotate: Turn the design 90 degrees if necessary to fit the 5x7 hoop constraints.
4. Center: Click the Center in Hoop button.
   • Why Center? If you don't center, you risk the needle hitting the hoop frame (a catastrophic standard error).


Wireless Send to Solaris on the Brother NQ1700E: The “Error Sending File” Pop-Up That Lies

Technology often gives false negatives. When sending the file wirelessly:

1. Transmit: Use Send to Solaris (mapped to the NQ1700E).
2. The Glitch: You may see a pop-up: "Error sending file."
3. The Reality Check: Ignore it. Go to the machine’s LCD screen. 99% of the time, the file is there.

Psychological Tip: Don't let this error spike your cortisol. It is likely a handshake timeout between the PC and the machine, not a data corruption. Verify visually at the machine.

Stitch-Out on Black Fabric: Placement Line First, Then Metallic Satin (13 Minutes / 5,229 Stitches)

The stitch-out is where physics meets art. The machine follows a strict logic:

1. Placement Line (The Map): A simple running stitch showing you where the patch lives.
2. The Design (The Hero): The metallic "MAMA" text.
3. The Border (The Frame): The final heavy satin edge.

Sensory Monitoring:

• Listen: A happy machine makes a rhythmic thump-thump-thump. A struggling machine makes a chunk-chunk or grinding sound. If you hear the pitch change, STOP immediately.
• Touch: The hoop should not vibrate excessively.

Warning: Needle Safety. Never place your fingers near the needle bar while the machine is running to clear a thread. If the machine catches the thread attached to your finger, it can pull your hand into the needle zone. Always press the "Stop/Lock" button before trimming jump stitches.

Metallic Silver Thread on Black Fabric: What to Watch So the Satin Doesn’t Shred or Snag

Metallic thread is notorious for "birdnesting" (bunching up) or snapping. Here is your survival guide for the Gütermann Sulky Metallic Silver (Col. 41) used in the video:

• Speed Kills: Slow your machine down. If your NQ1700E runs at 850 stitches per minute (SPM), drop it to 600 SPM. Metallic thread heats up from friction; speed creates heat.
• Path of Least Resistance: Use a thread stand if possible. The thread should unwind off the side of the spool without twisting.
• Tension Check: Metallic wire is stiffer than cotton. You may need to lower your top tension slightly. Test on a scrap piece. You want to see about 1/3 bobbin thread on the back.

If you are fighting consistent breakage, the issue might be fabric flagging (bouncing). This is a common bottleneck where hooping for embroidery machine technique is critical—the fabric must be stable enough to resist the needle's drag.

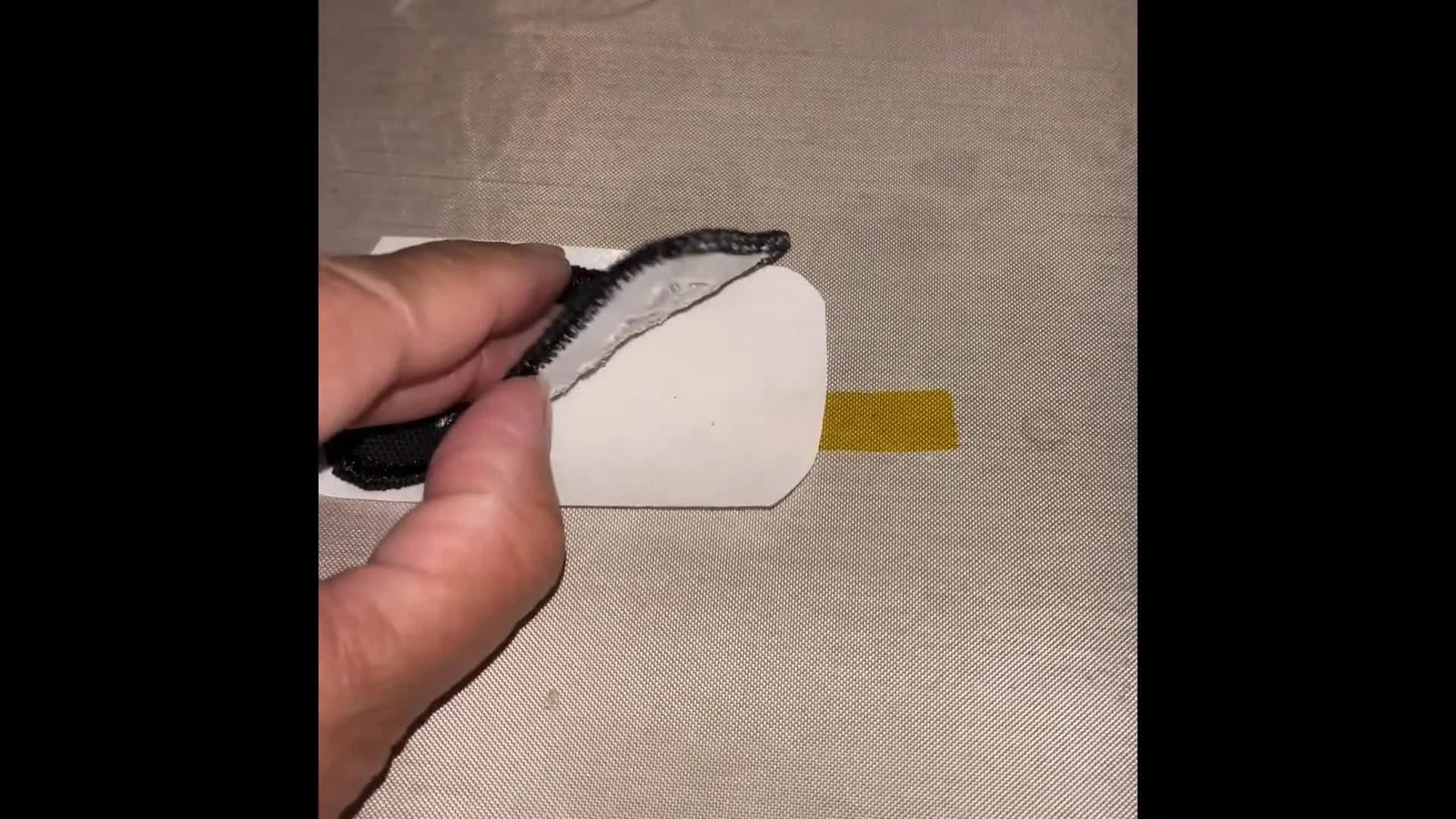

The Cut-Out + Iron-On Backing Routine: Make the Patch a “Component,” Not a Guess

Transitioning from "embroiderer" to "manufacturer" happens here. You are creating a component.

1. Unhoop & Inspect: Check the back. Ensure no loose loops.
2. Rough Cut: Cut the patch out of the fabric, leaving a small margin.
3. Adhesive Application: Apply the iron-on backing to the REAR of the patch. Follow the adhesive manufacturer's heat guide (usually medium heat, no steam).
4. Fine Cut: detailed scissor work is required here. Cut exactly to the edge of the black satin border. Do not cut into the stitches (they will unravel). Do not leave raw fabric visible.


Heat Press at ~320°F with Heat Tape: The Double-Press That Stops Edge Lift

Heat pressing is chemistry. You are melting a polymer to fuse two fabrics.

The Protocol:

1. Temperature: Set press to 320°F (160°C).
2. Placement: Use Heat Tape to secure the patch to the beanie. Crucial: Beanies are knit; they move. If you don't tape it, the press action will shift the patch, resulting in a crooked mount.
3. The Press: Apply firm pressure for 10-15 seconds (check your specific adhesive instructions).
4. The Insurance Press: Flip the beanie inside out (if possible) or press again from the front for a shorter duration to seal the edges.

Setup Checklist (The "Final Bond"):

• Calibration: Press is heated to 320°F.
• Stability: Patch is taped securely.
• Protection: Use a Teflon sheet or parchment paper between the press and the metallic thread (direct heat can sometimes dull or melt cheap metallic threads).
• Inspection: waiting for it to cool before testing adhesion (hot adhesive is weak adhesive).


A Quick Decision Tree: Patch Base + Backing Choices for Beanies (So You Don’t Waste Hats)

Use this logic flow to make decisions before you buy materials.

Start Here:

• Condition A: Patch Base Fabric?
  • Loose Knit/Jersey? STOP. Too unstable. Result: Puckering.
  • Twill/Canvas/Felt? GO. Stable foundation. Result: Clean edges.
• Condition B: Production Volume?
  • 1-5 Hats? Standard plastic hoops are fine.
  • 20+ Hats? Friction burns on your hands and "hoop burn" on fabric become real issues.
    • Solution: Consider a magnetic hoop for brother. The mighty magnetic force clamps instantly without the friction-ring struggle, preserving your wrists and the fabric.


Troubleshooting the Three Scariest Moments: Transfer Errors, Ugly Satin, and Edges That Won’t Stick

When things go wrong, do not guess. Follow this diagnostic path.

Symptom 1: "Birdnesting" (Thread ball under the plate)

• Likely Cause: Upper threading error (thread missed the tension discs) or the needle is too small for metallic thread.
• The Fix: Re-thread the machine with the presser foot UP (this opens the tension discs). Change to a #90/14 Needle.

Symptom 2: Patch Edges Peeling Up

• Likely Cause: Insufficient heat or pressure. The beanie knit texture is preventing full contact.
• The Fix: Re-press from the inside of the beanie (pushing the adhesive into the patch). Use more pressure.

Symptom 3: Metallic Thread Shredding

• Likely Cause: Burred needle or high speed.
• The Fix: Change needle implies immediately. Lower speed to 600 SPM.

If you find yourself constantly re-aligning patches or struggling with placement on bulky items, professionals often invest in a hooping station for embroidery. This ensures every patch lands in the exact same spot on every beanie, essential for batch uniformity.

The Upgrade Path That Actually Matters: Faster Hooping, Fewer Marks, and More Repeatable Output

As you move from hobbyist to side-hustle, your bottleneck shifts from "how do I digitize?" to "how fast can I hoop?"

If you find yourself spending more time fighting the hoop than stitching:

1. Level 1 (Technique): Use patch-first methods (as described) to avoid hooping the beanie directly.
2. Level 2 (Tooling): For single-needle machines (like the NQ1700E), learning how to use magnetic embroidery hoop systems can drastically reduce setup time. They eliminate hoop burn and handle thick fabrics that plastic hoops reject.
3. Level 3 (Scaling): When you need to produce 50+ patches a day, a static jig like a hoopmaster hooping station becomes vital for repeatability.

Eventually, volume dictates equipment. High-volume shops migrate to SEWTECH multi-needle solutions not just for speed, but for the ability to keep multiple colors threaded and to stabilize large runs without constant re-rigging.

Warning: Magnetic Hazard. Magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely (blood blister risk) and can interfere with pacemakers. Keep them at least 6 inches away from sensitive electronics and medical devices. Handle with respect.

Operation Checklist (Quality Control):

• Visual: Letters are crisp; no silver thread loops ("shredding").
• Tactile: Patch edges are flush with the beanie; no lifting when fingernail-tested.
• Structural: No glue seepage visible around the edges.
• Placement: Patch is horizontally centered on the beanie cuff.


FAQ

• Q: What needle should a Brother NQ1700E use for metallic embroidery thread on a beanie patch to prevent shredding and breaks?
  A: Use a fresh Metallic 90/14 or Topstitch 90/14 needle; a standard 75/11 is a common cause of metallic thread breakage.
  • Install: Replace the needle before the stitch-out, and avoid reusing a needle that touched dense satin.
  • Clean: Remove lint from the bobbin case to reduce friction (metallic thread is sensitive to drag).
  • Slow down: Reduce speed to about 600 SPM to limit heat buildup from friction.
  • Success check: Metallic satin runs smoothly without fuzzing, snapping, or “shredded” edges on the letters.
  • If it still fails: Re-check the thread path for snag points and test slightly lower top tension on scrap fabric.
• Q: How tight should fabric be hooped for a Brother NQ1700E beanie patch to avoid puckering and hoop burn?
  A: Aim for “drum-skin” tension—taut and resonant when tapped, but not stretched out of shape.
  • Hoop: Tighten only until the fabric is flat and stable; do not pull the woven base fabric aggressively.
  • Verify: Use a tightly woven base (twill/broadcloth); if light shows through as pinholes, it’s too loose for dense satin.
  • Stabilize workflow: Make the patch on stable fabric first instead of hooping the knit beanie directly.
  • Success check: The patch fabric stays flat during stitching and the satin columns look smooth (not wavy) after unhooping.
  • If it still fails: Reassess base fabric stability and confirm the design is grouped/centered so the border and text stitch as one unit.
• Q: Why does Brother NQ1700E wireless transfer show “Error sending file” when using Send to Solaris, and is the design actually missing?
  A: Don’t panic—this pop-up often lies; the file is usually already on the Brother NQ1700E screen.
  • Check: Walk to the machine and look for the design on the LCD before resending.
  • Avoid duplicates: If the file is present, do not repeatedly resend the same design.
  • Proceed: Load the design from the machine screen and continue normally.
  • Success check: The design appears in the machine’s file list even though the computer showed an error.
  • If it still fails: Retry the transfer once and verify the machine is ready to receive (handshake timeouts can happen).
• Q: How do I fix birdnesting (thread ball under the needle plate) on a Brother NQ1700E when stitching a metallic beanie patch?
  A: Rethread the Brother NQ1700E with the presser foot UP and switch to a 90/14 needle; these two fixes solve most birdnesting.
  • Rethread: Raise the presser foot to open the tension discs, then rethread the upper path carefully.
  • Change: Install a Metallic 90/14 or Topstitch 90/14 needle for metallic thread.
  • Restart: Stitch a small test run on scrap woven fabric before committing to the patch run.
  • Success check: The underside shows controlled tension (about 1/3 bobbin thread visible), with no thread “ball” forming under the plate.
  • If it still fails: Stop immediately and re-check for missed threading points and excessive friction (lint in the bobbin area).
• Q: How do I stop beanie patch edges from peeling up after heat pressing at 320°F (160°C) with iron-on adhesive?
  A: Re-press with adequate pressure and better contact—knit texture often prevents the adhesive from fully bonding on the first press.
  • Tape: Secure the patch with heat tape before pressing so it cannot shift on the knit cuff.
  • Press: Apply firm pressure at about 320°F (160°C) for 10–15 seconds (follow the adhesive’s instructions).
  • Insurance press: Press again from the inside of the beanie (or a shorter second press from the front) to seal edges.
  • Success check: After cooling, the patch edge stays flush and does not lift when lightly tested with a fingernail.
  • If it still fails: Increase effective contact (more pressure) and confirm the adhesive was applied to the rear of the patch and fully activated.
• Q: What needle safety rule should beginners follow on a Brother NQ1700E when trimming jump stitches during a patch stitch-out?
  A: Never put fingers near the needle bar while the Brother NQ1700E is running—always press Stop/Lock before clearing or trimming threads.
  • Stop: Hit the machine’s Stop/Lock before reaching into the needle area.
  • Clear: Trim jump stitches only when the needle has fully stopped and the machine is locked.
  • Resume: Restart only after hands are completely away from the needle zone.
  • Success check: Thread trimming is done with zero hand contact near moving parts and no sudden thread tug toward the needle.
  • If it still fails: If access feels cramped, pause the job more often and reposition the hoop for safer clearance.
• Q: When should a beanie patch workflow upgrade from standard hoops to magnetic embroidery hoops or a multi-needle machine for production efficiency?
  A: Upgrade when hooping time and hoop marks become the bottleneck—use technique first, then tools, then machine capacity as volume increases.
  • Level 1 (Technique): Switch to patch-first so the knit beanie is not hooped directly, reducing distortion and hoop burn risk.
  • Level 2 (Tooling): If making around 20+ items, consider magnetic hoops to clamp faster and maintain consistent tension with less effort.
  • Level 3 (Scaling): If producing roughly 50+ patches/day, consider production-focused equipment (multi-needle workflow) to reduce re-threading and increase repeatability.
  • Success check: Setup time drops, patches stitch consistently, and there are fewer placement re-dos across a batch.
  • If it still fails: Add a positioning/hooping station for repeatable placement before changing machines again.
