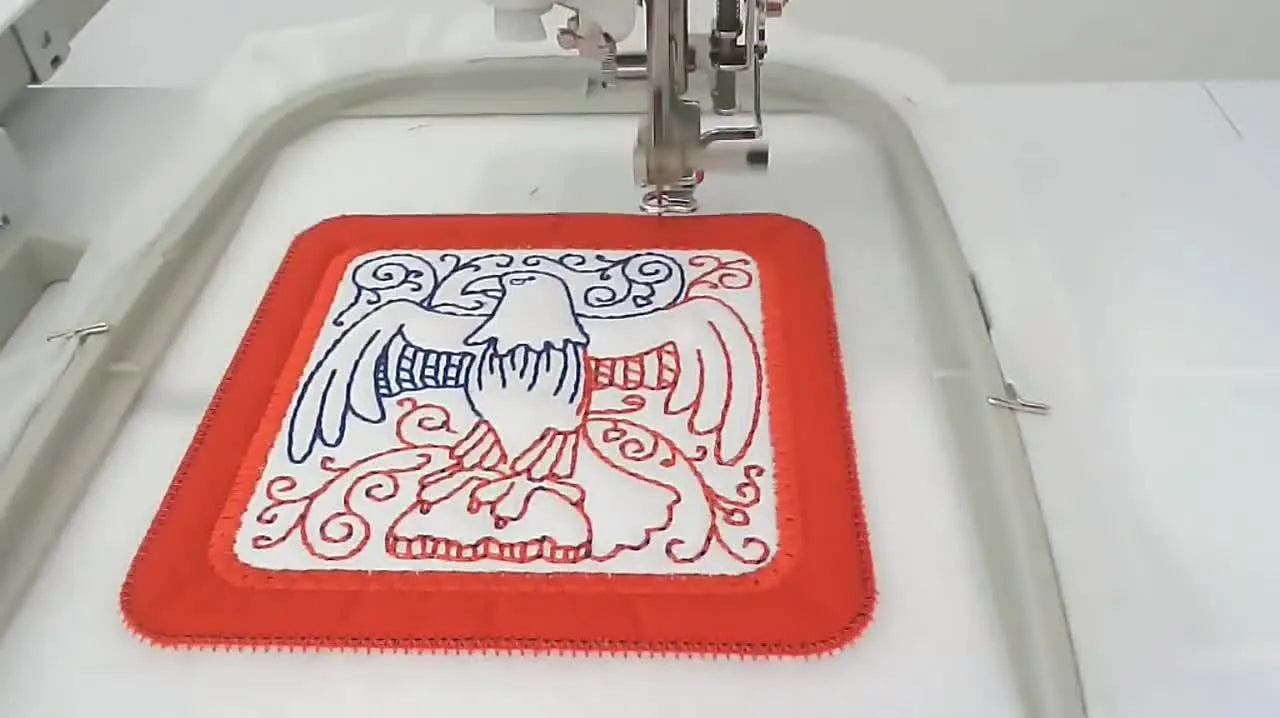

A Clean ITH Eagle Coaster in a 5x7 Hoop: The Reverse Appliqué Trick That Stops Red Show-Through

If you have ever unhooped an In-The-Hoop (ITH) coaster only to stare at fuzzy edges, creeping fabric, or a “shadow” of dark fabric showing through your white center, you are not alone. That sinking feeling—the gap between the crisp digital preview and the slightly distorted physical reality—is the most common frustration in machine embroidery.

This Kreative Kiwi 4th of July eagle coaster is a beautiful project, but functionally, it is a discipline test. It involves multiple rounds of stitching, specific trimming angles, and critical moments where “good enough” hooping leads to visible failure in the final satin stitch.

The good news: The source video’s method is solid. My job, drawing on two years of production floor experience and training hundreds of beginners, is to rebuild that workflow into a robust, repeatable system. Below is the same 10-round sequence, but upgraded with the specific sensory checks, data parameters, and pro habits that turn a homemade craft into a batch-production-ready product.

Gather the Exact Materials (and the "Hidden" Consumables)

You will be working in a 5x7 hoop. The ITH process relies on physics: we build a sandwich of layers that must remain absolutely static while the needle pounds through them at high speed.

The Standard Kit (From Video)

• 5x7 Embroidery Hoop: Standard frame.
• Stabilizer: Water Soluble (Wash-Away). Quantity: 2 layers (Essential for stability).
• Batting: Poly fleece batting (provides loft without excessive density).
• Fabric A (Red): Woven cotton (Main frame).
• Fabric B (White): Woven cotton (Center reverse appliqué).
• Backing Fabric: Woven cotton (to hide the back stitches).
• Tape: Masking tape or Painter’s tape (Low residue).
• Tools: Curved embroidery scissors (Double-curved are best), Seam Ripper.

The "Hidden" Consumables (What Pros Add)

• Needle: 75/11 Sharp (Not Ballpoint). Why? We are piercing woven cotton and stabilizer. A sharp point penetrates cleanly; a ballpoint can push the fabric, causing micro-shifts that ruin satin edges.
• Fresh Bobbin: Pre-wound 60wt or 90wt bobbin thread creates less bulk than self-wound threads.
• Cotton Buds + Warm Water: For precise edge finishing.


Warning: Respect the Blade Zone. Seam rippers and curved scissors are your best friends for ITH trimming, but they are also the fastest way to destroy a project or injure yourself. When trimming fabric inside the hoop:
1. Never trim while the machine is running or ready to run.
2. Always keep your non-cutting hand flat on the table, away from the blade path.
3. Angle your blade slightly up to avoid slicing the stabilizer foundation.

The “Pre-Flight” Prep

ITH coasters fail before the machine starts because of "drift." Before stitching Round 1, perform these checks.

Prep Checklist (The "Zero-Drift" Standard):

1. Check Needle Condition: Run your fingernail down the needle tip. If you feel a "catch" or click, change it. A burred needle will shred your wash-away stabilizer.
2. Layer Count: Verify you have two layers of wash-away stabilizer. One layer often tears under the density of the final satin border.
3. Tape Prep: Tear 6-8 strips of tape and stick them to the edge of your table. You do not want to be fumbling with a tape dispenser while holding fabric in place.
4. Bobbin Match Plan: Wind a red bobbin to match your top thread if you want the back of the coaster to look professional.

Lock Down Two Layers of Wash-Away Stabilizer (The "Drum Skin" Rule)

The video begins by hooping two layers of wash-away stabilizer. It then demonstrates a specific trick: pinning the stabilizer to the inner edge of the hoop.

Why This Matters

Wash-away stabilizer is fibrous but soft. Under the tension of thousands of stitches, it wants to "draw in" toward the center. If it moves even 1mm, your final outline won't match your initial placement line. The pins act as a mechanical anchor—a "brake" for the stabilizer.

The Sensory Check

What to do:

1. Hoop your two layers. Tighten the screw.
2. Touch Check: Tap the stabilizer. It should sound like a drum—a rhythmic thump-thump. If it sounds flabby or dull, it is too loose.
3. Visual Check: The grid/texture of the stabilizer should be straight, not distorted.
4. Add the pins along the top inner edge as shown in the source method (carefully avoiding the stitch field).

Beginner Sweet Spot (Speed): For Round 1 (Placement), you can run your machine at 600-700 SPM (Stitches Per Minute). Avoid max speed (800-1000+) on wash-away stabilizer; high speeds create vibration that loosens the hoop grip.

Upgrade Path: The Stability Equation

If you find yourself constantly wrestling with the hoop screw to get that "drum tight" feel, or if your wrists hurt after hooping ten of these, this is a hardware bottleneck. This is where researching a hooping station for embroidery becomes relevant. A station holds the outer ring static, allowing you to use your body weight rather than wrist strength to lock the inner ring in place, ensuring consistent tension every single time.

Tape Batting + Red Fabric: The "Shear" Prevention (Round #2)

After stitching the placement line (Round 1), you place the batting and the red fabric.

The Physics of Taping: Tape isn't just to keep the fabric from falling off; it is to prevent shear force. As the presser foot moves, it drags slightly on the fabric surface. If the tape is loose, the fabric ripples.

Action Steps:

1. Place poly fleece batting.
2. Place red fabric.
3. Tape Discipline: Tape all four corners/sides. Rub the tape down firmly with your fingernail. The bond needs to be strong.
4. Stitch Round #2 (Tack-down).

Checkpoint: After stitching, run your hand over the fabric. It should feel flat and tensioned. If you see a "wave" of fabric moving ahead of the foot, your taping was too loose.

Workflow Friction: The Hooping Struggle

If you are doing this on a single-needle home machine, you know the pain: undo screw, remove hoop, tape, slide hoop back in, tighten screw (but not too much!). This friction causes users to get lazy with taping.

Professional shops use magnetic frames to bypass this. Learning how to use magnetic embroidery hoop systems changes the rhythm: you simply lift the top magnet, adjust usually, and snap it back. There is no screw to tighten, and the clamp force is uniform around the entire perimeter.

The Reverse Appliqué Cut: Preventing the "Red Shadow"

This is the technical highlight of the project. We are placing white fabric over red fabric. Without this step, the red would darken the white, making your patriotic coaster look pink and muddy.

The "Surgical" Procedure:

1. Remove the hoop from the machine (Safety First!). Place it on a flat table.
2. Use a seam ripper to gently pick a hole in the center of the stitched square. Sensory Anchor: You will feel the "pop" of the fabric. Do not push deep—you must not puncture the stabilizer below.
3. Switch to curved scissors. Insert the blade and trim away the red fabric inside the square. Leave about a 2-3mm margin from the stitches.

Target Outcome: A clean "window" where you can see the batting, surrounded by the red fabric frame.

Pro Tip: The "Stabilizer Safe Zone"

If you accidentally nip the wash-away stabilizer, tape it immediately on the back with a small piece of packing tape. It’s not perfect, but it may save the coaster. If the cut is large, abandon the hoop and start over—the satin stitches later will distort the hole further.

Place and Tape the White Center (Round #3)

Now, patch the hole with the white fabric.

Steps:

1. Center the white fabric over the window.
2. Tape generously.
3. Stitch Round #3 (Secure white fabric).


Decision Tree: Fabric & Stabilizer Logic

Not all coasters are cotton. Use this logic tree to adjust your method if you change materials.

Decision Tree: Stabilizer & Batting Choice

• IF Fabric is Woven Cotton (Standard):
  • Use: 2 Layers Wash-Away + Poly Fleece Batting.
  • Needle: 75/11 Sharp.
• IF Fabric is Knit/Stretchy (T-shirt material):
  • Use: 1 Layer No-Show Mesh (left in) + 1 Layer Wash-Away.
  • Why: Knits need permanent support.
  • Needle: 75/11 Ballpoint.
• IF Batting is Thick (Insul-Bright/Thermal):
  • Adjustment: Raise your machine’s "Presser Foot Height" by 1-2mm to prevent dragging layers.

The Eagle Design (Rounds #4 and #5): Managing Density

Here we stitch the decorative eagle. Blue first (Round 4), then Red (Round 5).

Data Point: Density vs. Speed The eagle is a dense fill stitch.

• Recommended Speed: Drop to 600 SPM.
• Why: Slower speeds allow the thread to lay flatter and reduce the "push-pull" distortion that creates gaps between the colors.




Trim the White Center (The "Crisp Line" moment)

Round #5 is done. Now trim the excess white fabric so the red frame is revealed again.

Technique: Hold your curved scissors flat against the fabric. Trim close to the stitch line, but do not cut the stitches. Visual Check: You should see a clean red border framing the white center.

The "Flip": Adding the Backing (Round #6)

This is the most physically awkward step for single-needle users. You must flip the hoop to attach the backing fabric, which hides all the ugly bobbin threads.

Steps:

1. Remove hoop.
2. Place backing fabric on the underside of the hoop.
3. Secure well with tape. Crucial: Tape the corners firmly so they don’t fold over when the hoop slides back onto the machine arm.
4. Stitch Round #6.


Warning: Magnetic Hoop Safety.
If you upgrade to magnetic hoops to speed up this flipping process, be aware: These magnets are industrial strength (often N52 neodymium).
* Pinch Hazard: They can snap together with enough force to bruise skin or break plastic.
* Device Safety: Keep them 6+ inches away from pacemaker devices, credit cards, and computerized machine screens.

The "Double Trim" & Edge Control (Rounds #7 & #8)

Rule of Thumb: Trim the back first, then the front.

1. Trim the excess backing fabric (underside).
2. Trim the excess red fabric (topside).

If you forget the back and stitch Round 7, the excess fabric is trapped forever.

Stitching Round #7 (Zig Zag) & Round #8 (Quilting): These rounds compress the specialized "sandwich" of layers.

• Sensory Check: Listen to the machine. It should sound solid. If you hear a "crunching" sound, the needle might be struggling to penetrate the taped areas. Pause and check if you stitched through tape residue (clean the needle with alcohol if sticky).






The Grand Finale: Satin Borders (Rounds #9 & #10)

This is pass/fail. The satin stitch will cover the raw edges.

Setup for Success:

1. Bobbin Swap: Switch to a RED bobbin. If you use white, you risk white "pokies" showing on the top, or white thread visible on the back edge.
2. Tension Check: Satin stitches require looser top tension to wrap nicely.
   • Standard: ~100-110g.
   • Satin: ~90g (if your machine allows digital adjustment).
   • Visual Test: Look at the back. You should see 1/3 top thread (red), 1/3 bobbin (red), 1/3 top thread (red). If it’s all top thread, tension is too loose. If it’s all bobbin, top is too tight.


Production Insight: The "Hoop Burn" Factor

Traditional hoop rings often leave "hoop burn" (permanent creases) on delicate fabrics like velvet or thick cotton. While wash-away stabilizer alleviates this for coasters, on other projects, this is a major defect. Many professionals turn to magnetic embroidery hoops precisely to eliminate hoop burn, as the magnets hold without crushing the fabric fibers against a plastic ridge.

Finishing: Unhooping and Dissolving

1. Remove from hoop.
2. Trim the stabilizer close to the edge (don't cut the satin!).
3. The Water Trick: Dip a cotton bud (Q-tip) in warm water and run it along the edge. Do not soak the whole coaster yet. This dissolves the "whiskers" of stabilizer instantly without making the coaster soggy.
4. Lay flat to dry.




Troubleshooting: The "Why Did This Happen?" Guide

When things go wrong, do not blame yourself. Blame the physics. Use this table to diagnose the issue.

The Compass to Scale: From Hobby to Production

If you are making one coaster as a gift, the standard method above is perfect. But the moment you decide to make 50 of these for a craft fair or corporate order, your needs change. The bottleneck shifts from stitching to setup.

Level 1: Consumables Upgrade Get bulk pre-wound bobbins and high-quality 40wt polyester thread. Stop winding bobbins mid-project.

Level 2: Tool Upgrade (Speed & Health) The physical act of screwing and unscrewing hoops 50 times causes repetitive strain. This is why many studios switch to magnetic frames. When you research magnetic hoops for embroidery machines, look for models compatible with your specific machine arm width. The ability to "snap and go" reduces hooping time by 30-40%.

Level 3: Capacity Upgrade (Profitability) If you are constantly stopping to change thread colors (Blue → Red → Blue), you are losing money. A multi-needle machine (like the SEWTECH series) holds all your colors at once. You press "Start," walk away, and come back to a finished coaster.

Operation Checklist (Batch Mode):

• Clean out the bobbin case area (lint buildup ruins tension).
• Verify you have enough precut stabilizer squares for the whole batch.
• Check needle life (Change every 4-6 hours of continuous stitching).
• Hydrate yourself (Stitching is focus-intensive work!).

Follow the physics, trust your hands, and listen to your machine. Stitching a perfect coaster is a skill; stitching 50 perfect coasters is a system.

FAQ

• Q: Which needle should I use for a 5x7 ITH coaster on woven cotton with wash-away stabilizer (75/11 Sharp vs. ballpoint)?
  A: Use a fresh 75/11 Sharp needle for woven cotton + wash-away stabilizer to prevent fabric push and fuzzy satin edges.
  • Change the needle if a fingernail test catches on the tip (a burr can shred wash-away stabilizer).
  • Avoid ballpoint on woven cotton for this project because it can nudge fibers and cause micro-shifts.
  • Success check: placement and satin edges stitch cleanly without “fuzz” and the stabilizer does not look chewed up.
  • If it still fails, slow the machine speed (around 600–700 SPM on placement and 600 SPM on dense areas) and re-check taping and hoop tightness.
• Q: How do I hoop two layers of wash-away stabilizer for an ITH coaster so the stabilizer does not “draw in” and shift?
  A: Hoop two layers tight enough to pass the “drum skin” test, then mechanically anchor the stabilizer so it cannot creep under stitch load.
  • Hoop both layers, tighten the screw, and tap the surface to confirm a firm “thump-thump” sound.
  • Visually confirm the stabilizer grid/texture looks straight (not warped).
  • Add pins along the top inner edge (kept out of the stitch field) to act as a brake against draw-in.
  • Success check: later outlines match earlier placement lines with no 1 mm-style drift.
  • If it still fails, avoid running wash-away at maximum speed and consider reducing vibration by staying around 600–700 SPM for the early rounds.
• Q: What is the correct machine speed for the dense eagle fill on an ITH coaster to reduce push-pull and color gaps?
  A: Drop speed to about 600 SPM for the dense eagle fill to help stitches lay flatter and reduce push-pull distortion.
  • Slow down specifically for the decorative dense rounds (the eagle sections).
  • Keep fabric/batting taped firmly on all sides to prevent shear while the foot moves.
  • Success check: blue and red areas meet cleanly with minimal gaps at the color boundaries.
  • If it still fails, re-check that the fabric felt flat after tack-down and that the hoop is seated firmly in the carriage.
• Q: How do I prevent the white center of a reverse appliqué ITH coaster from turning pink or muddy from red fabric showing through?
  A: Do the reverse appliqué “window” cut cleanly and close enough to remove the red layer behind the white center.
  • Remove the hoop from the machine and work on a flat table (do not trim while mounted).
  • Start the opening with a seam ripper in the center, then trim the red fabric inside the stitched square with curved scissors.
  • Leave roughly a 2–3 mm margin from the stitches so the window is clean without cutting the stitch line.
  • Success check: the center window shows batting (not red fabric) before the white fabric is taped and stitched down.
  • If it still fails, confirm the cut removed enough red fabric and that the white patch was taped generously before Round #3.
• Q: How do I set bobbin thread and tension for the final satin border on an ITH coaster to prevent pokies and messy edge coverage?
  A: Use a red bobbin for the border and loosen top tension for satin so the stitch wraps the edge instead of pulling bobbin to the top.
  • Swap to a red bobbin before the satin border rounds to reduce visible contrast on the back and edge.
  • If the machine supports it, use a looser satin-style top tension (the example target drops from ~100–110g to ~90g).
  • Inspect the back: aim for a balanced look rather than all top thread or all bobbin showing.
  • Success check: the satin border covers raw edges smoothly without white bobbin “pokies” peeking on the top.
  • If it still fails, re-check stabilizer tightness (two layers) because border waviness often starts with stabilizer shift, not tension.
• Q: What should I do if the satin border on an ITH coaster is wavy or misses the edge even though the design preview looks perfect?
  A: Treat a wavy/missed satin border as a stabilizer shift problem first: lock down two wash-away layers, pin/anchor the stabilizer, and confirm drum-tight hooping.
  • Use two layers of wash-away stabilizer (one layer often tears or draws in under border density).
  • Pin/anchor the stabilizer to the hoop inner edge (kept clear of the stitch field).
  • Re-check hoop tension with the drum-skin tap test before restarting.
  • Success check: the final satin line tracks the earlier outline evenly all the way around.
  • If it still fails, reduce speed on critical rounds and verify the hoop is fully seated in the carriage arm to prevent bouncing.
• Q: What magnetic embroidery hoop safety steps should I follow when using industrial-strength magnetic frames for ITH projects?
  A: Treat magnetic frames as pinch and device hazards: control the snap, protect fingers, and keep magnets away from sensitive electronics/medical devices.
  • Keep fingers out of the closing path and lower the top magnet down in a controlled way (do not let it slam).
  • Keep magnets at least 6 inches away from pacemakers, credit cards, and computerized machine screens.
  • Handle flipping steps slowly because magnets can shift suddenly when alignment changes.
  • Success check: the frame closes without bruising/pinching and the fabric remains flat without sudden jumps when magnets meet.
  • If it still fails, revert to a standard hoop for that step until handling feels controlled, then reintroduce magnetic frames with a slower, two-handed routine.
• Q: When ITH coaster production feels slow because of repeated hoop screwing, trimming, and flipping, what is a practical upgrade path from technique to tools to capacity?
  A: Use a tiered approach: optimize consumables and checks first, then reduce setup friction with magnetic frames, then increase throughput with a multi-needle machine if color changes are the bottleneck.
  • Level 1 (Technique/consumables): use fresh sharp needles, bulk pre-wound bobbins, and consistent taping discipline to stop rework.
  • Level 2 (Tool): switch from screw hoops to magnetic frames to reduce repetitive tightening and speed up layer adjustments and flipping.
  • Level 3 (Capacity): move to a multi-needle setup when frequent color changes (Blue → Red → Blue) are the time sink.
  • Success check: setup time drops noticeably and results stay consistent across multiple coasters, not just one.
  • If it still fails, identify whether the bottleneck is hooping time, thread changes, or quality rework, then upgrade only the step causing the delay.
