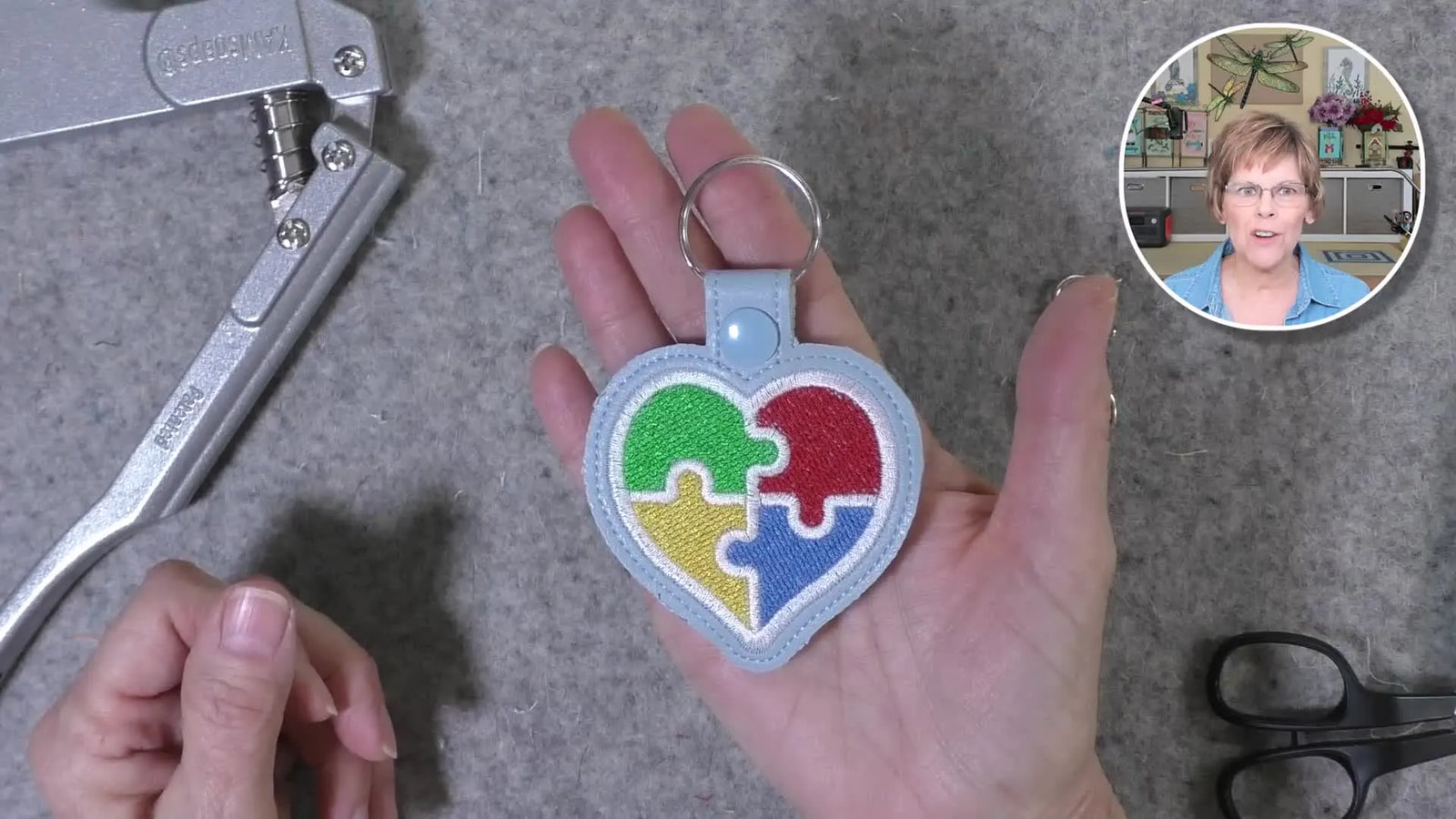

A Clean, Fast ITH Autism Heart Key Fob on a Brother 5x7 Hoop: Vinyl, Felt Backing, and Snaps Without the Usual Headaches

If you’ve ever pulled an ITH (In-The-Hoop) key fob out of the machine and thought, “Why does mine look homemade while the ones on Etsy look manufactured?”—you’re not alone. I see this frustration daily: vinyl shifts, satin edges look wavy, snaps land crooked, and suddenly a “quick project” turns into a waste of expensive marine vinyl.

Here is the reality of machine embroidery: It is a game of physics, not just art. Marine vinyl is heavy, dense, and unforgiving. It does not "heal" if you make a stray needle hole.

This Autism Awareness heart puzzle key fob is an excellent beginner project, but to get a professional result, you must adopt a Production Mindset. This means stable hooping, strictly controlled speeds, and managing the "push-pull" forces of the machine.

I will walk you through the exact stitch order from the tutorial, but I will overlay it with the "shop-floor secrets"—the sensory checks, the safety margins, and the specific parameters—that guarantee consistency, whether you make one for a gift or fifty for a fundraiser.

Don’t Panic: A Brother Embroidery Machine Can Stitch Marine Vinyl Cleanly (If You Control Speed and Movement)

Marine vinyl intimidates beginners because it doesn't behave like cotton. Fabric has a weave that "relaxes"; vinyl is a solid sheet that builds up heat and friction. If your needle gets too hot, the vinyl can actually grip the thread, causing shredding.

The good news is that the method shown in the tutorial—floating—is the industry-standard way to handle this. You stitch a placement line on the stabilizer first, then float the vinyl on top. This eliminates the need to force thick vinyl into the hoop rings, which is the #1 cause of "hoop burn" (permanent ring marks).

However, the "secret sauce" here is speed control.

The "Sweet Spot" Speed Rule:

• Beginner/Safety Zone: 350 - 400 SPM (Stitches Per Minute).
• Production Standard: 600 SPM.
• Danger Zone: 800+ SPM on a single-needle machine with vinyl.

Sensory Check (Auditory): Listen to your machine. At 600 SPM on vinyl, it should sound like a rhythmic, dull thumping. If you hear a high-pitched whine or a harsh "slap-slap-slap" sound, the vinyl is flagging (bouncing) too much. Slow down.

If you’re running a Brother machine with a standard plastic brother 5x7 hoop, this project is your perfect "confidence builder." It teaches you to trust the stabilizer, not just the hoop tension.

The “Hidden” Prep That Makes ITH Key Fobs Look Store-Bought: Needle, Stabilizer, Tape, and Hardware

Before you even turn on the machine, we need to perform "Mise-en-place." Vinyl projects punish improvisation. If you have to pause to find scissors, your vinyl might lift.

Materials Breakdown (The "Why" behind the "What")

• Machine: Brother embroidery machine (Disney Edition shown).
• Stabilizer: Medium Weight Cutaway (2.5 oz).
  • Expert Note: Never use Tearaway for key fobs. Keychains take physical abuse (pulling, twisting). Tearaway will disintegrate inside the vinyl over time, making the fob flimsy. Cutaway provides permanent structural integrity.
• Needle: Size 75/11 Sharp or Universal.
  • Expert Note: A 90/14 needle is too big; it leaves visible "craters" in the vinyl. A 75/11 penetrates cleanly. If you have them, Titanium or Non-Stick needles are excellent here as they resist the adhesive from the tape and the friction of the vinyl.
• Tape: 3M Transpore (Medical Tape).
  • Expert Note: Do not use Scotch tape or Duct tape. The adhesive gums up the needle eye, leading to skipped stitches. Transpore tears easily and leaves minimal residue.
• Thread: Polyester embroidery thread (Red, Green, Blue, Yellow, White).
• Hardware: Size 20 KAM Snaps + Hand Press; Lobster Clasp or Split Ring.
• Awl: For punching clean hardware holes.

Warning: Mechanical Safety
Keep your fingers at least 2 inches away from the foot when holding vinyl down or trimming jump stitches during a pause. Vinyl can unexpectedly "grab" or friction-lock against your skin, pulling your hand toward the moving needle. If you need to hold vinyl near the needle, use a pencil eraser or a stylus, never your bare finger.

Prep Checklist (Do this OR Fail)

1. Fresh Needle: Install a brand new 75/11 needle. A burred needle from a previous project will ruin vinyl instantly.
2. Bobbin Check: Ensure you have a full bobbin. Running out of bobbin thread on a floating vinyl project is a nightmare to fix without losing alignment.
3. Pre-Cut Materials: Cut your vinyl slightly larger than the design (give yourself a 1-inch margin of error).
4. Tape Staged: Tear off 4 strips of Transpore tape and stick them to the edge of your table before you start.
5. Clean the Hook: Quickly check under your needle plate. Lint buildup + Vinyl friction = Thread nests.


Hooping Medium Cutaway Stabilizer in a 5x7 Hoop: Taut, Flat, and Not Over-Stretched

The tutorial begins by hooping one layer of 2.5 oz medium cutaway stabilizer. This stabilizer is the foundation of your entire house. If the foundation is weak, the satin stitches will gap.

Sensory Check (Tactile):

• The Drum Test: Run your finger across the hooped stabilizer. It should feel taut, like a drum skin, and make a slight humming sound if you flick it.
• The Distortion Check: Look at the weave of the stabilizer. If the fibers look warped or pulled into curves near the edges, you have over-tightened the screw after hooping. This effectively "loads a spring" that will pull back later, distorting your rectangle into an hourglass shape.

Workflow Upgrade: If you find yourself wrestling with the hoop screw or getting "hoop burn" on your thumbs, this is a common physical bottleneck. In production environments, professionals often use a hooping station for embroidery to ensure the stabilizer is perfectly flat every time without the physical strain. Consistency in hooping creates consistency in stitching.

The Placement Stitch Trick: Let the Design Tell You Exactly Where the Vinyl Goes

Load your design and run Step 1: The Placement Line. This stitches directly onto the naked stabilizer.

Purpose: This is your blueprint. It shows you exactly where the vinyl needs to live and ensures the design fits within your hoop limits.

Visual Inspection:

• Check the placement line tension. If the bobbin thread is pulling up to the top (showing white dots on the line), your top tension might be too tight, or the bobbin path is dirty.
• Fix this now before expensive vinyl is involved. The placement line should be smooth and flat.


Floating Marine Vinyl with 3M Transpore Tape: Secure the Edges Without Creating Needle Problems

Place your pre-cut marine vinyl over the placement stitches. It must cover the lines completely with at least 0.5 inches of overlap on all sides.

The Taping Strategy: Secure the vinyl using the Transpore tape.

1. Tape the Corners: Tape diagonally across the corners of the vinyl.
2. Avoid the Path: Try to place tape where the needle won't stitch. If you must stitch through tape, Transpore is safe, but it increases friction.

Why Float? This utilizes the floating embroidery hoop technique. By not clamping the vinyl in the ring, you avoid creating permanent creases (hoop burn) on the material. The stabilizer holds the tension; the vinyl just goes along for the ride.

Common Pitfall:

• Symptom: The vinyl bubbles up in the middle during stitching.
• Cause: You pulled the tape too tight, creating a "trampoline" effect, or you didn't smooth the vinyl flat before taping.
• Fix: Lay the vinyl flat, smooth it with your hand, and simply secure the tape without pulling.


Stitching the Puzzle Design on Marine Vinyl at 600 SPM: Quiet Machines, Fewer Breaks, Better Edges

Now, we stitch the design. The machine will stitch:

1. Red Area
2. Green Area
3. Blue Area
4. Yellow Area
5. White Satin Border

The Physics of Slower Stitching: The tutorial recommends 600 SPM. Stick to this. Vinyl creates heat as the needle passes through it. High speed = High heat = Melted synthetic coating = Gummy needle = Thread shredding.

Sensory Check (Visual): Watch the "flagging." Flagging is when the fabric lifts up with the needle on the upstroke.

• Good: The vinyl stays relatively flat against the needle plate.
• Bad: The vinyl is bouncing up and down 2-3mm.
• Fix: If it's bouncing, you need to slow down or add more tape to the perimeter to stabilize the material.

Hidden Consumable Tip: If you hear the dreaded "shredding sound" (like velcro tearing), pause immediately. Change your needle. A burred needle tip is the enemy of vinyl.

The Satin Border That Makes It Look Professional: Edge Run + Zigzag Underlay and Clean Coverage

The final step for the front is the White Satin Border. This makes or breaks the "professional" look.

A professional digitizer puts "Underlay" stitches underneath that satin bar.

1. Edge Run: Traces the rails (edges) to hold the vinyl down.
2. Zigzag: Adds "loft" (3D height) to the satin.

The "Push-Pull" Factor: Satin stitches naturally pull the sides in and push the ends out. Because we are using cutaway stabilizer and floating effectively, the distortion should be minimal.

Troubleshooting Gaps: If you see gap between the colored puzzle pieces and the white border:

• Diagnosis: The stabilizer was too loose in the hoop.
• The Patch: You can try to carefully color in the gap with a matching permanent marker, but the real fix is tighter hooping next time.


The Backing Move That Saves the Whole Project: Remove the Hoop, Don’t Unhoop It

CRITICAL STEP: Remove the hoop from the machine arm, but DO NOT loosen the screw or pop the inner ring out. If you unhoop now, the project is over.

Flip the hoop over to the back side. You will see the underside of your stabilizer and the bobbin thread.

Placement: Place your backing material (felt or matching vinyl) over the stitch area on the back of the hoop. Tape it securely on all four sides.

Warning: Magnetic Hoop Safety
If you have upgraded your workflow and are using magnetic embroidery hoops, be extremely careful when flipping the hoop or placing it near metal scissors. The magnets are industrial-strength.
* Pinch Hazard: Do not let your fingers get caught between the magnets and a metal table leg.
* Medical Safety: Keep strong magnets away from pacemakers.
* Electronics: Keep your phone away from the magnetic clamping points.

Stitching the Final Outline and Snap Placement Circles: Your “Assembly Seam” and Your Hardware Map

Reattach the hoop to the machine. Ensure the backing fabric isn't folded under the hoop connection mechanism.

The Final Run:

1. Seal Stitch: The machine runs a straight stitch (Bean Stitch) that locks the front vinyl, stabilizer, and back felt together.
2. Hardware Marks: It stitches two small circles. These are your targets for the snap placement.

Sensory Check (Auditory): The sound will change here because the needle is now punching through three layers (Vinyl + Stabilizer + Felt). It will sound more "muffled." This is normal.

The 3 mm Cutting Line Offset: The Built-In Trick for Even Edges (Especially If You Hate Trimming)

The file includes a "cutting line" stitch about 3mm away from the main border.

Why this matters: Hand-trimming is where human error ruins machine perfection. Without a guide, you will cut too close in some spots and too far in others. The stitched cutting line acts as a physical barrier and a visual guide.

Production Tip: When making these in batches, this cutting line ensures that every single keychain has the exact same dimensions, regardless of how tired your eyes are.

Trimming the Key Fob Cleanly: Cut On (or Just Inside) the Bean Stitch Without Chewing the Edge

Unhoop the project. You now have a "sandwich."

The Tool: Use Long-Blade Sharp Scissors for the straight parts and Small Curved Scissors for the turns.

• Avoid: Standard kitchen shears (too dull, will crush the vinyl layers).

Technique:

• Cut exactly on the outer guideline stitch. The goal is to trim away the guideline thread itself, leaving a clean edge.
• Sensory Check (Tactile & Visual): Use long, confident cutting strokes. "Nibbling" with the tips of the scissors creates a jagged, "hacked" edge. The edge should feel smooth to your thumb.
• Finishing: If there are tiny fuzzies of stabilizer sticking out, carefully singe them with a lighter (move fast!) or rub the edge with a piece of denim to burnish it.


Setup Checklist (before you install snaps)

• Hole Integrity: Check that your awl has punched cleanly through all layers.
• Thread Tails: Trim any thread tails near the snap circles flush before installing snaps. You don't want a stray thread caught under the plastic cap.
• Orientation Check: Lay out your snap parts:
  • 2x Caps (Smooth button shape).
  • 1x Socket (Female/Indented).
  • 1x Stud (Male/Protruding).
• Hardware Test: Check that your lobster clasp spring opens and closes smoothly.


Installing Size 20 KAM Snaps with an Awl and Hand Press: Get the Male/Female Orientation Right the First Time

The Mechanics:

1. Pierce: Use the awl to punch through the center of the stitched circles.
2. Sandwich:
   • Push a Cap through from the Right Side (Front) to the back.
   • Place the Socket (Female) over the spike on the back.
3. Press: Use the pliers. Center the cap in the tray. Squeeze properly.
   • Sensory Check (Tactile): You will feel the plastic stem "crush" and flatten. It requires moderate force. If it feels "mushy," squeeze harder.
4. Repeat: For the darker snap connection, repeat firmly.

Common Mistake: Putting two "Female" or two "Male" ends on the strap. Visualizing the fold before pressing is mandatory—plastic snaps are nearly impossible to remove without destroying the vinyl.

Clasp vs Split Ring: Pick the Hardware That Matches How People Actually Use Keychains

Lobster Clasp:

• Pros: Clips onto belt loops, purse straps, and backpacks easily.
• Cons: Can break under heavy torque.
• Best for: Decorative use, "Swag," Kids' backpacks.

Split Ring:

• Pros: Nearly indestructible.
• Cons: Hard to get thick car keys onto.
• Best for: Actual house/car keys.


Material Decision Tree for ITH Key Fobs: Marine Vinyl vs Felt Backing (and What to Hoop)

Use this logic flow to make the right choice every time:

Q1: What is the intended use?

• Heavy Duty (Car Keys/Pocket Use): Use Marine Vinyl Front + Marine Vinyl Back. (Most durable, but thickest).
• Decorative (Bag Tag/Gift): Use Marine Vinyl Front + Felt Back. (Softer, cheaper, easier to trim).

Q2: Are you struggling with efficiency?

• Making 1-5 units: Standard hoop + Cutaway stabilizer is fine.
• Making 50+ units: Your wrists will fatigue from screw-tightening, and "hooping straight" becomes a bottleneck.
  • Solution: Many production embroiderers switch to embroidery hoops magnetic. They eliminate the "unscrew-hoop-screw" cycle, automatically adjust for the thickness of the stabilizer, and hold tighter without "burn" marks.

Troubleshooting the Two Most Common ITH Vinyl Key Fob Problems (and the Fixes That Actually Work)

Problem 1: The "Gummy Needle" / Thread Shredding

• Symptom: Thread breaks repeatedly; black gunk appears on the needle shaft.
• Likely Cause: The needle has become hot and melted the tape adhesive or the vinyl coating.
• Quick Fix: Wipe the needle with rubbing alcohol.
• Prevention: Switch to Titanium Needles (heat resistant) or Non-Stick needles. Use minimal tape. Slow machine speed to 400 SPM.

Problem 2: Wavy or Jagged Edges

• Symptom: The final product looks like it was cut by a child.
• Likely Cause: "Nibbling" with scissors or using dull scissors.
• Quick Fix: Use the "Cutting Line" map in the file.
• Tool Upgrade: Use specialized Appliqué Scissors (duckbill) or curved embroidery scissors for tight radii.

The Upgrade Path: Faster Hooping, Less Fatigue, More Consistency

This project takes 20-30 minutes per unit. If you plan to sell these at craft fairs, time is your currency.

The typical scaling bottleneck: Stitching is fast. Hooping is slow.

If you find yourself dreading the hoop-up process, or if you are ruining 1 in 5 pieces due to slippage or hoop burn, consider the professional solution. A magnetic hoop for brother machine allows you to simply "slap and stick" your stabilizer. It dramatically reduces wrist strain and holds floated materials with superior grip, making the "production run" feel less like a workout and more like a factory flow.

The goal isn't just to make one key fob; it's to have the skills and tools to make hundreds with perfect consistency.

Operation Checklist (Final Quality Control)

• Satin Check: Is the white border solid? No loops or gaps?
• Backing Check: Is the felt/vinyl backing caught in the seam 100% around the perimeter?
• Snap Function: Snap it closed and pull. Does it hold? (If it pops open easily, the stem wasn't flattened enough—re-press).
• Cleanliness: Are all jump stitches trimmed? Is the edge burnished smooth?
• Safety: Are there any sharp points on the hardware?

FAQ

• Q: What machine speed should a Brother single-needle embroidery machine use to stitch marine vinyl for an ITH key fob without thread shredding?
  A: Use 350–400 SPM as a safe starting point, and treat 800+ SPM as high-risk on marine vinyl.
  • Set speed to 350–400 SPM for first attempts; only move toward 600 SPM after results are stable.
  • Listen for a dull, rhythmic thump; slow down if the sound turns into a high-pitched whine or harsh “slap-slap-slap.”
  • Pause immediately if thread starts “shredding” and change the needle before continuing.
  • Success check: The vinyl stays relatively flat (minimal bounce) and the machine sound stays steady without a tearing/shredding noise.
  • If it still fails… reduce speed again and check for flagging or adhesive buildup on the needle.
• Q: What stabilizer should a Brother 5x7 hoop use for ITH marine vinyl key fobs to avoid a flimsy keychain over time?
  A: Use one layer of medium weight 2.5 oz cutaway stabilizer, not tearaway, for long-term strength.
  • Hoop one layer of 2.5 oz cutaway as the foundation for the entire stitchout.
  • Avoid tearaway for key fobs because keychains get pulled and twisted and may break down internally.
  • Keep the stabilizer taut and flat to prevent satin gaps later.
  • Success check: The hooped stabilizer passes a “drum test” (taut feel, slight hum when flicked) without visible warping near the hoop edges.
  • If it still fails… rehoop and avoid over-tightening the hoop screw after hooping, which can preload distortion.
• Q: How can a Brother embroidery machine user confirm correct tension on the placement line before floating marine vinyl on stabilizer?
  A: Stitch the placement line on bare stabilizer first and fix tension issues before any vinyl is added.
  • Run the placement line directly on the hooped stabilizer with no vinyl on top.
  • Inspect the line and correct issues immediately if bobbin thread is pulling to the top (white dots showing).
  • Clean the bobbin path/area under the needle plate if tension looks inconsistent.
  • Success check: The placement line looks smooth and flat with no bobbin “peek-through” on top.
  • If it still fails… stop and clean under the needle plate/hook area again, then restitch the placement line test.
• Q: How do you float marine vinyl with 3M Transpore tape on a Brother embroidery machine without the vinyl bubbling or “trampoline” bouncing?
  A: Tape the vinyl securely but without pulling tension, focusing on corners and a smooth laydown.
  • Cover the placement line completely and leave at least 0.5 inch overlap on all sides.
  • Tape diagonally across the corners first, then add perimeter tape only as needed for stability.
  • Smooth the vinyl flat by hand before taping; do not stretch the tape tight.
  • Success check: During stitching, the vinyl does not bubble in the center and does not bounce up/down by 2–3 mm.
  • If it still fails… slow the machine down and add a bit more tape around the perimeter (avoiding stitch paths when possible).
• Q: What needle type and size should a Brother embroidery machine use for marine vinyl ITH key fobs to prevent “craters,” skipped stitches, and gummy buildup?
  A: Start with a brand-new size 75/11 sharp or universal needle; avoid 90/14 because it can leave visible holes in vinyl.
  • Install a fresh 75/11 needle right before the project; do not reuse a questionable needle on vinyl.
  • Consider titanium or non-stick needles if adhesive residue and friction are recurring (this often helps).
  • Use only minimal tape and avoid heavy-adhesive tapes that gum up the needle eye.
  • Success check: Needle penetrations look clean (no oversized holes) and stitching runs without repeated breaks or residue forming on the needle shaft.
  • If it still fails… pause and wipe the needle with rubbing alcohol, then replace the needle again before restarting.
• Q: What is the safest way to handle trimming jump stitches and holding marine vinyl near the needle on a Brother embroidery machine during an ITH key fob run?
  A: Keep fingers at least 2 inches from the presser foot and use a tool—not a fingertip—if something must be held down.
  • Pause the machine before trimming or repositioning anything close to the needle.
  • Use a pencil eraser or stylus to hold vinyl instead of your finger if you must control a corner.
  • Stage scissors and tape ahead of time so there is less mid-run reaching and fumbling.
  • Success check: Hands never enter the needle zone during motion, and adjustments are done with the machine stopped.
  • If it still fails… stop the job and reset the workspace so tools are within reach before continuing.
• Q: What safety precautions should embroidery users follow when flipping a magnetic embroidery hoop during ITH key fob backing placement?
  A: Treat magnetic hoops as industrial-strength magnets and control pinch points when flipping or working near metal tools.
  • Keep fingers out of magnet clamp zones to avoid pinch injuries when the hoop halves snap together.
  • Keep magnetic hoops away from pacemakers and avoid placing phones/electronics near the clamping points.
  • Clear metal scissors and other steel tools from the flipping area before turning the hoop over.
  • Success check: The hoop can be flipped and taped without any sudden snap-closing events or tool attraction toward the magnets.
  • If it still fails… switch to a clear, non-metal work surface and slow down the handling steps to maintain control.
