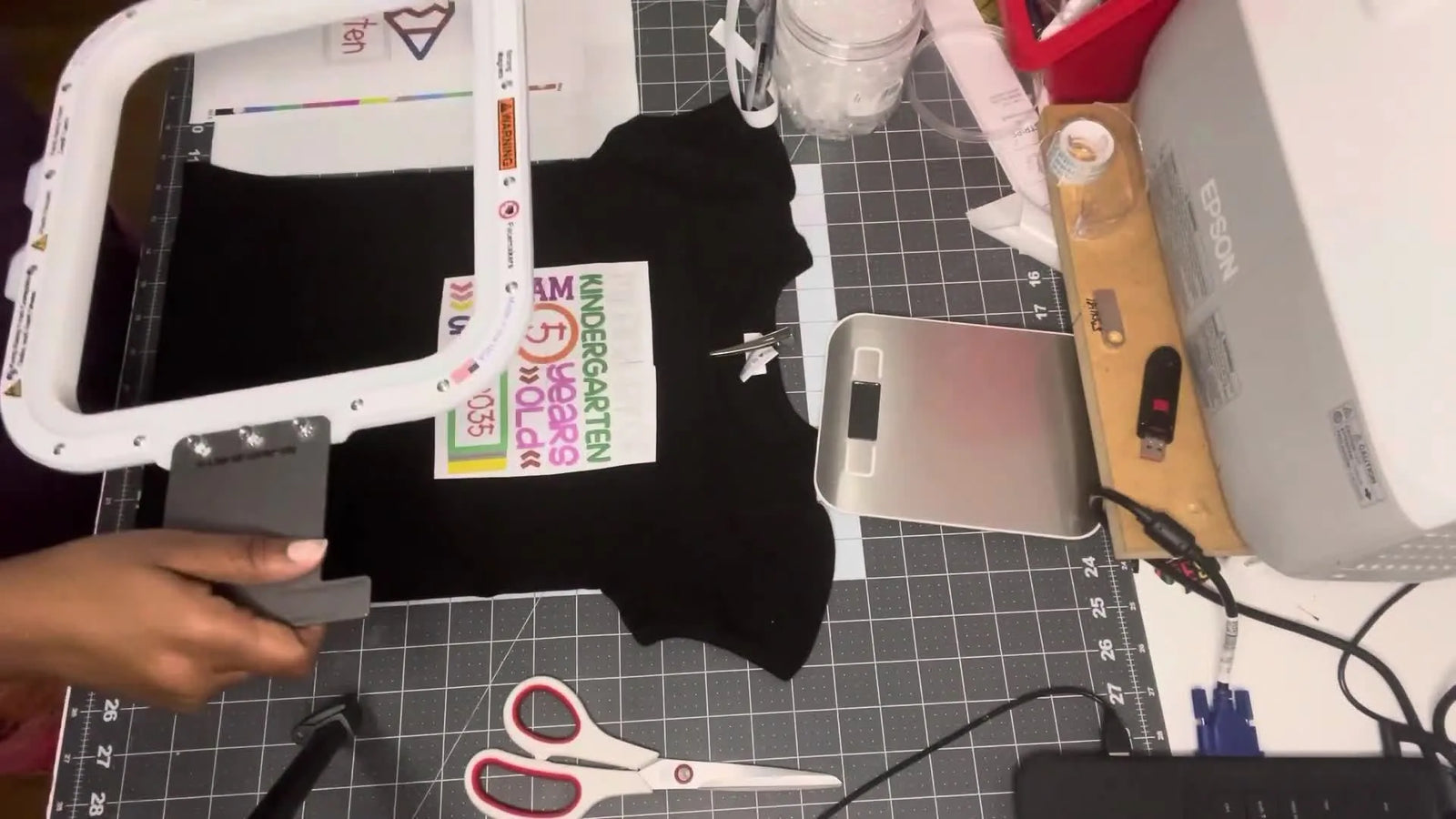

A Clean, Fast 5T Appliqué on the Janome MB-7e: Magnetic Hooping, Perfect Placement, and the “Float” Stabilizer Move

The "Zero-Fail" Protocol for Toddler Appliqué: A Masterclass in Repeatable Precision

If you have ever stared at a Size 5T t-shirt and felt a knot in your stomach, you are not being dramatic—you are being technically astute.

Small garments offer zero margin for error. A size 5T neckline leaves you with a working area smaller than a dinner plate. One crooked hooping moment, one slip of the stabilizer, or one instance of "hoop burn" (those shiny rings left by traditional plastic hoops) can turn an adorable keepsake into a rag.

In this white paper, we are decoding the workflow of a veteran embroiderer. We will break down a "First Day of Kindergarten" appliqué project stitched on a Janome MB-7e using a magnetic hooping system. But we aren’t just copying steps; we are extracting the universal physics of precision that you can apply to any machine—from a home single-needle to a SEWTECH industrial multi-needle setup.

Phase 1: The "Calm-Down" Primer

The Goal: Shift from "Hope" to "Habit."

Small garments induce a sense of urgency because they look easy. This is a trap. Rushing leads to the "Three Horsemen of Embroidery Failure":

1. Crooked Placement: The design tilts left while the shirt hangs straight.
2. Neckline Creep: The design rides too high, choking the collar.
3. Hoop Burn: Permanent distortion of the delicate cotton fibers.

The Expert Mindset: You are not trying to "eyeball it better." You are building a mechanical routine. Whether you are stitching one shirt for your child or fifty shirts for a local preschool, the setup must be identical every time. Alignment comes first; speed is a luxury that comes later.

Phase 2: The "Hidden" Prep (Template, Size, and Physics)

Professional embroidery is 80% preparation and 20% stitching. The video tutorial highlights two critical "pre-flight" decisions that separate amateurs from pros.

1. The Scale Factor (Don't Force It)

The host begins with a larger design file but deliberately switches to a 5x7 version.

• The Lesson: Just because a design can fit in a hoop doesn't means it fits the shirt. A 5T shirt cannot support the stitch density of a heavy 8x8 back-piece design. Overloading a small shirt causes "bulletproof vest syndrome"—where the embroidery is stiffer than the child wearing it.

2. The 1:1 Template Rule

Print your design on paper at 100% scale (True Size). Cut it out.

• Why: A paper template is a low-tech simulation. It allows you to physically fold, tape, and check the look without stressing the fabric.

Pro Tip: If you run a small business, keep a "Clean Zone" (computer, printer, scissors, tape) separate from your "Stitch Zone." This prevents fabric dust from clogging your printer and keeps your scissors from getting buried under stabilizer.

PREP CHECKLIST: The "No-Go" Criteria

• Template: Design printed at 1:1 scale and roughly cut out?
• Sizing: Validated that the design (5x7) fits the visual center of the 5T shirt?
• Appliqué Fabric: Pre-cut slightly oversized (approx. 0.5" margin)?
• Tools: Curved appliqué scissors placed on the right side of the machine?
• Consumables: Fresh needle installed (Ballpoint 75/11 for knits)?
• Environment: Iron pre-heated (if using Fuse-n-Tear) or adhesive spray shaken?

Phase 3: Mechanical Alignment & The Centerline Fold

The host identifies the center of the shirt not by measuring, but by folding the shirt perfectly in half vertically.

This creates a mechanical crease. Unlike chalk marks which can be rubbed off, or air-erase pens which vanish too soon, a crease is a physical ridge in the fabric geometry.

The Sensory Check: When folding, align the shoulder seams and the side seams. If the seams don't stack perfectly, your fold is lying to you. Adjust until the fabric hangs dead straight.

Position Geometry: The "Two-Finger" Rule

For a standard 5T crew neck, the host places the top of the design approximately two fingers (roughly 1.5 inches) down from the collar seam.

• Beginner Sweet Spot: 1.5 to 2 inches down.
• The Trap: Do not measure from the stretchy part of the collar ribbing. Measure from the stabilized seam where the collar meets the shirt body.


Phase 4: The Physics of Magnetic Hooping (HoopMaster & SEWTECH Logic)

Here we move into the realm of professional consistency. The video utilizes a HoopMaster station and an 8x9 magnetic hoop. This is a game-changer for knit fabrics.

Why Traditional Hoops fail Knits

To secure a t-shirt in a traditional plastic inner/outer ring hoop, you often have to tighten the screw and pull the fabric to get it "drum tight" (a common bad habit). This over-stretches the knit fibers. When you un-hoop later, the fabric relaxes, but the stitches don't. Result: Puckering.

The Magnetic Solution

Magnetic hoops (like the hoopmaster station setup shown, or SEWTECH's MaggieFrame series) clamp the fabric vertically between two magnets. There is no friction-drag or "pulling." The fabric stays at its resting state.

The sequence shown is "production-grade":

1. Station Setup: Place the bottom hoop fixture on the base.
2. Drafting: Thread the shirt over the station (like dressing a mannequin).
3. Alignment: Match the shirt's center crease to the station's laser-cut grid lines.
4. The Snap: Drop the top magnetic frame. Listen for the authoritative "CLACK" sound.

If you are looking for this level of repeatability, terms like hoopmaster station generally refer to this specific ecosystem of fixtures.

Warning: Magnetic Force Hazard
Industrial-strength magnetic hoops carry significant pinch-force.
Physical: Keep fingertips strictly on the outside handles*, never between the rings.
* Medical: High-gauss magnets must be kept at least 6 inches away from pacemakers and insulin pumps.
* Digital: Do not place the hoop on top of your phone, tablet, or credit cards.

The Upgrade Path: When to Switch?

• Level 1 (Hobbyist): You hoop 3 shirts a month. Stick to standard hoops, but use sticky stabilizer to minimize pulling.
• Level 2 (Side Hustle): You hoop 5 shirts a week. Consider SEWTECH Magnetic Hoops (compatible with Brother/Janome/Baby Lock). They eliminate "hoop burn" and save your wrists.
• Level 3 (Volume Production): You hoop 50 shirts a day. You need a dedicated station and potentially a multi-head machine.

Phase 5: The "Floating" Stabilizer Technique

The video demonstrates "Floating"—a technique where the stabilizer is not hooped with the garment. Instead, it slides under the hoop after the shirt is mounted on the machine.

Why Float?

1. Reduction of Bulk: Hooping a thick stabilizer + a thick shirt hem can pop the hoop open.
2. Economy: You use less stabilizer.

In the clip, you see the operator slide a pre-cut sheet of backing between the machine arm and the garment.

Decision Tree: Which Stabilizer Principle?

Use this logic flow to determine your stabilizer strategy for Size 5T Knits.

1. Is the shirt fabric highly elastic (Spandex/Lycra blend)?

• YES: Do NOT float. Hoop the stabilizer (Cutaway) with the garment to lock the stretch. Use a magnetic hoop to avoid burn.
• NO (Standard Cotton): Floating is acceptable if using a sticky spray or basting box.

2. Is the design a dense fill pattern (stepped tatami)?

• YES: Use 2 layers of Polymesh Cutaway.
• NO (Open appliqué): 1 layer of Medium Weight Cutaway (2.5oz).

3. Are you using a Magnetic Hoop?

• YES: You can float easily because the magnet holds the shirt flat.
• NO: Using spray adhesive (like 505) is mandatory to keep the floated stabilizer from shifting.

SETUP CHECKLIST: The "Pre-Stitch" Verification

• Hoop Lock: Audible click when attaching hoop to the pantograph arm?
• Clearance: Reach inside the shirt—is the fabric bunching underneath? Smooth it out.
• Stabilizer Position: Is the floating sheet fully covering the 5x7 stitch field?
• Trace: Run the trace function. Does the laser/needle walk exactly along your center crease?

Phase 6: The Janome Screen & Trace Verification

The video captures a moment of truth: The host runs a trace, realizes placement is off, and fixes it.

This is not a mistake. This is Standard Operating Procedure. On a machine like the janome mb-7 embroidery machine, the digital trace is your cheapest insurance policy. Never hit "Start" without watching the needle verify the four corners of your design.

Phase 7: Appliqué Execution (The Tactile guide)

Appliqué is a sandwich: Fabric + Stabilizer + Appliqué Material + Thread.

Step A: The Placement Stitch

• Speed: High (800 SPM).
• Action: The machine sews a running stitch outline (yellow in the video). This is your map.


Step B: The Covering

• Action: Place your appliqué fabric over the outline.
• Crucial Tip: Use a shot of temporal spray adhesive or a dab of glue stick on the back of the appliqué fabric. If it shifts during stitching, the shirt is ruined.


Step C: The Tack-Down (The Danger Zone)

• Speed: Reduce to 400-600 SPM.
• Why: High speed here pushes a "wave" of fabric in front of the needle, creating a permanent pucker. Slower speed allows the needle to penetrate cleanly.
• Sensory Monitor: Place your fingers gently on the hoop edges (keep away from the needle). You should feel smooth vibration. If you feel a "thud," the needle is struggling—check for multiple layers of fabric bunched under the throat plate.


If you use tools like mighty hoop 8x9 systems, the even pressure across the straight edges helps prevents the fabric from rippling during this critical tack-down phase.

Step D: The Trim

• Tool: Double-curved Appliqué Scissors (Duckbill scissors are also an option).
• Technique: Pull the fabric gently up and away from the stitches. Rest the curve of the scissors on the fabric. Glide; don't hack.


Warning: The "One Snip" Disaster
Do not cut the tack-down thread. If you snip a tack-down stitch, the satin finish stitch (the final step) will have nothing to grab onto, and the raw edge will explode after the first laundry cycle.
Rule: It is better to leave 1mm of extra fabric than to cut 1mm of thread.

Step E: The Satin Finish

• Speed: Ramp back up to 600-800 SPM.
• Action: The machine covers the raw edges with a dense column of thread.

OPERATION CHECKLIST: The Finish Line

• Coverage: Did the appliqué fabric fully cover the placement line?
• Smoothness: During Tack-Down, did you pause to smooth any bubbles?
• Trim: Are raw edges trimmed close enough (1-2mm) to be covered by the satin stitch?
• Bobbin: Check bobbin supply before starting the final satin stitch. Running out midway creates a visible seam.

Troubleshooting: When It Goes Wrong

Even experts face issues. Here is your structured recovery guide.

The Solution Matrix: Scaling Your Toolset

If you are doing one shirt, the video technique is perfect. But if you are hitting the "Pain Points" listed below, it is time to look at the commercial solutions from the SEWTECH ecosystem.

• Pain Point: "My wrists hurt from tightening screws."
  • Solution: SEWTECH Magnetic Hoops. The magnetic clamping requires zero wrist torque.
• Pain Point: "I have to change threads 7 times for one design."
  • Solution: The video features a multi-needle machine. Moving from a single-needle to a SEWTECH 15-Needle Machine allows you to set the colors once and walk away.
• Pain Point: "I can't get the placement identical on 10 shirts."
  • Solution: Integration of a Hooping Station with standardized magnetic frames.

For those researching specific commercial setups, searching for magnetic embroidery hoop or compatibility charts for "Janome MB-7 frames" is your gateway to professional consistency.

Final Thoughts: The Art of "Boring" Consistency

The finished shirt in the video looks flawless not because of magic, but because of discipline. The host right-sized the design, used a mechanical fold for centering, leveraged the physics of magnetic hooping, and slowed down during critical phases.

Embroidery is a game of variables. Your job is to lock down as many variables as possible. Use 1:1 templates. Use reliable stabilizer. And if your budget allows, use the tools (like magnetic hoops and multi-needle machines) that remove human error from the equation.

Now, go print that template.

FAQ

• Q: On a Janome MB-7e stitching toddler appliqué on a 5T knit shirt, how do I prevent crooked placement and “neckline creep” near the collar?
  A: Use a mechanical center crease and a consistent “two-finger” neckline offset instead of eyeballing.
  • Fold the shirt perfectly in half vertically and align shoulder seams + side seams before creasing.
  • Place the top of the design about two fingers (~1.5") down from the collar seam (not from the stretchy ribbing).
  • Run the Janome MB-7e trace function and adjust placement before pressing Start.
  • Success check: the trace/needle walk matches the center crease and stays evenly spaced from the collar seam on both sides.
  • If it still fails: switch to a 1:1 paper template cutout to re-validate the visual center on the actual garment.
• Q: When stitching a dense 5x7 design on a toddler cotton knit shirt, how do I choose between floating stabilizer and hooping stabilizer to avoid puckering?
  A: Float stabilizer on standard cotton knits, but do not float on highly elastic Spandex/Lycra blends.
  • Identify fabric: if the shirt has high stretch (Spandex/Lycra), hoop Cutaway stabilizer with the garment to lock stretch.
  • Match design type: dense fill designs use 2 layers of Polymesh Cutaway; open appliqué often uses 1 layer of medium-weight Cutaway (2.5oz).
  • If floating on standard cotton, secure the floated sheet with spray adhesive or a basting box so it cannot drift.
  • Success check: the stabilizer fully covers the stitch field and does not shift during trace and the first stitches.
  • If it still fails: add another stabilizer layer and reduce pull/stretch during hooping (or move to a magnetic hoop to clamp without dragging).
• Q: With a magnetic embroidery hoop used on knit toddler shirts, what are the correct safety rules for preventing pinch injuries and device interference?
  A: Treat magnetic hoops as industrial pinch-force tools and keep hands and medical/digital devices at safe distance.
  • Grip only the outside handles when closing the magnetic frame; never place fingertips between the rings.
  • Keep high-gauss magnets at least 6 inches away from pacemakers and insulin pumps.
  • Keep the hoop off phones, tablets, and credit cards to avoid magnetic damage.
  • Success check: the hoop closes with a firm, controlled snap while fingers stay completely outside the clamp zone.
  • If it still fails: slow down the closing motion and reposition the garment so the frame seats flat without fighting fabric bulk.
• Q: On a Janome MB-7e appliqué project, what needle and speed changes reduce needle breaks during the tack-down step?
  A: Slow down for tack-down and address thickness/glue buildup before continuing.
  • Install a fresh Ballpoint 75/11 needle for knits as a safe starting point (confirm with the machine manual if unsure).
  • Reduce tack-down speed to about 400–600 SPM instead of running full speed.
  • Clean adhesive/glue from the needle with alcohol, or switch to a Titanium needle if breakage persists.
  • Success check: the machine runs tack-down with smooth vibration (no “thud” feeling) and no repeated needle deflection.
  • If it still fails: check for fabric bunching under the throat plate and re-smooth the shirt inside the hoop area before restarting.
• Q: When using a traditional plastic screw hoop on toddler knit shirts, how do I remove hoop burn (white shiny rings) and prevent it next time?
  A: Remove hoop burn with hover-steam and avoid over-tightening by changing the hooping method.
  • Hover a steam iron above the hoop mark (do not press) and gently brush the fabric texture back up.
  • Stop tightening the screw to “drum tight” on knits; avoid pulling/stretching during hooping.
  • Use sticky stabilizer to reduce the urge to over-pull fabric in the hoop.
  • Success check: the ring sheen fades and the knit surface looks uniform again under normal light.
  • If it still fails: upgrade to a magnetic hoop to clamp vertically without friction-drag that causes burn.
• Q: During appliqué trimming on a toddler shirt, how do I avoid the “one snip” disaster of cutting the tack-down stitches?
  A: Trim fabric—never trim tack-down thread—and leave a tiny margin if needed.
  • Use double-curved appliqué scissors (or duckbill scissors) and keep the blade riding on the fabric, not the stitches.
  • Pull the appliqué fabric gently up and away from the stitch line, then glide-cut around the edge.
  • Leave about 1–2 mm of fabric rather than chasing a perfectly flush cut near the thread.
  • Success check: the tack-down stitch line remains continuous all the way around, and the satin stitch later fully covers the trimmed edge.
  • If it still fails: stop and re-check the scissors angle; a small extra fabric margin is safer than risking thread cuts.
• Q: If a small embroidery business keeps getting inconsistent placement, wrist pain from hoop screws, or too many thread changes, when should the workflow upgrade from technique tweaks to magnetic hoops or a multi-needle machine?
  A: Start with setup discipline, then upgrade tools based on frequency and repeatability needs.
  • Level 1 (low volume): improve technique—use a 1:1 template, centerline fold, trace verification, and sticky stabilizer to reduce pulling.
  • Level 2 (steady weekly output): switch to magnetic hoops to eliminate hoop burn and reduce wrist torque while improving repeatable alignment.
  • Level 3 (high daily volume): add a hooping station for standardized positioning and consider a multi-needle machine to avoid repeated thread changes.
  • Success check: placement matches the crease/template across multiple shirts and hooping time/strain drops noticeably.
  • If it still fails: document a single “standard setup” checklist (needle, stabilizer choice, trace step, speed for tack-down) and do not deviate between garments.
