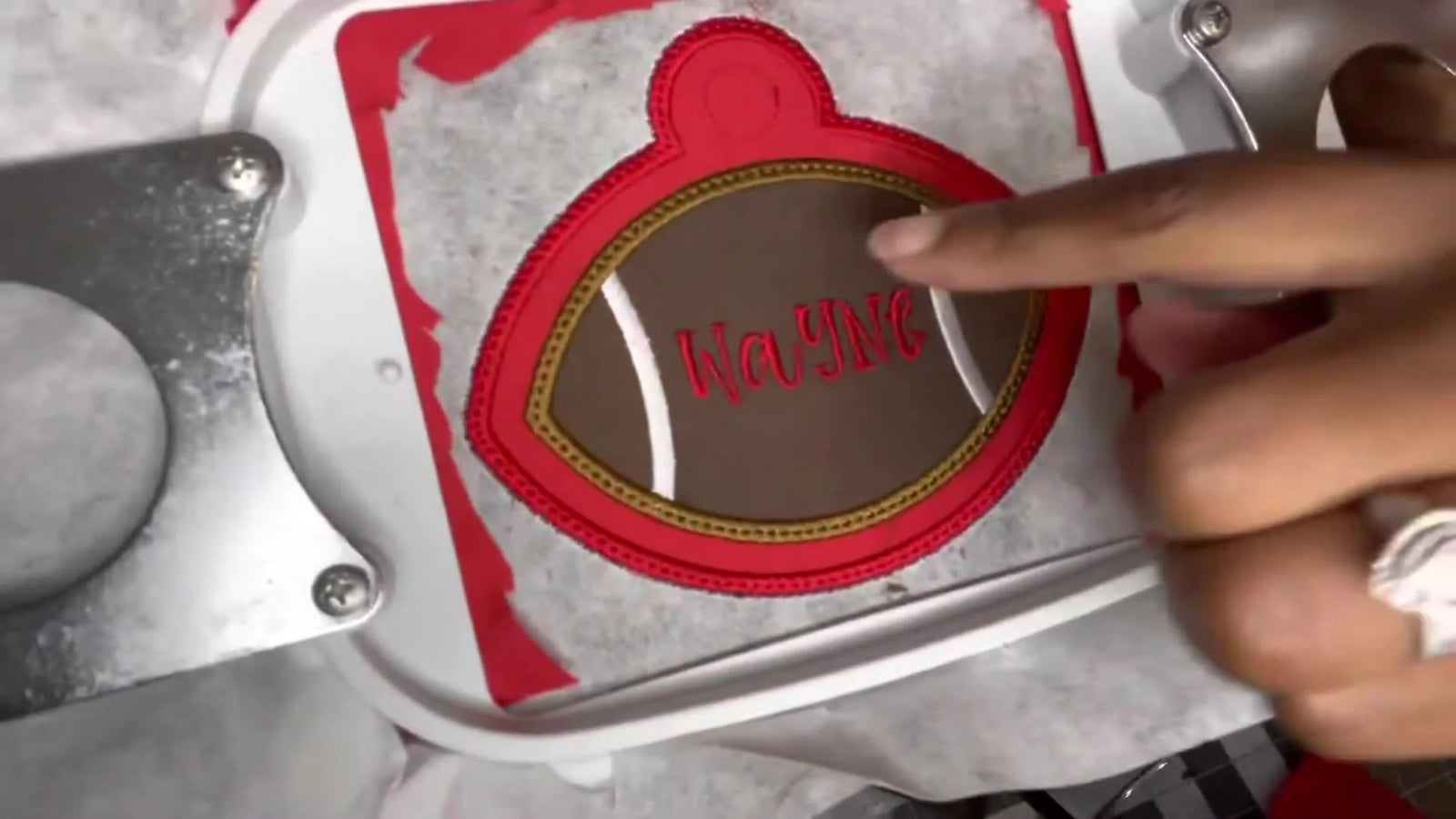

A Clean, Double-Sided ITH Football Luggage Tag on the Janome MB-7e—Without Hoop Burn, Backside Mess, or Eyelet Drama

The "No-Fear" Guide to ITH Luggage Tags: From Messy Craft to Store-Quality Protocol

If you’ve ever finished an In-The-Hoop (ITH) tag, flipped it over, and thought, "Why does the back look like a science project gone wrong?"—you are not alone. That "bird's nest" anxiety is the number one reason beginners hesitate to gift or sell their work.

But here is the industry truth: The difference between a "craft project" and a "product" isn't magic. It is a specific sequence of operations.

This guide reconstructs the popular football luggage tag project (originally demonstrated on a Janome MB-7e) into a standardized protocol. We will solve three specific pain points: (1) The "Clean Back" finish, (2) Applique trimming anxiety, and (3) Creating hardware holes without expensive punch tools.

Whether you are running a commercial multi-needle or a single-needle home machine, the physics are the same. Let’s calibrate your process.

Phase 1: The "Mise-en-place" – Gathering Supplies & Hidden Consumables

In professional embroidery, downtime kills profit. You don't want to be hunting for scissors when the machine stops. We prepare for the friction points before they happen.

The Hardware & Consumables

• Machine: Janome MB-7e multi-needle (or any embroidery machine with a 4x4 or 5x7 field).
• Hooping System: magnetic embroidery hoop. (Crucial for this project to avoid "hoop burn" on the vinyl/fabric).
• Stabilizer: Tearaway (Medium weight, approx. 1.8 - 2.0 oz).
• Base Fabric (Red): Woven cotton or marine vinyl. Note: If using vinyl, do not iron.
• Applique Fabric (Brown): Cotton scrap or textured applique fabric.
• Adhesive: 505 Temporary Spray Adhesive (The "invisible hand" of embroidery).
• Threads: Polyester 40wt (Red, Brown, White, Gold/Yellow).
• Scissors A: Curved Applique Scissors (Double-curved or "Duckbill").
• Scissors B: Small sharp embroidery scissors (for the eyelet).
• Finishing Tools: Lighter (for fuzz), Key ring hardware.
• Software: Embrilliance (for re-sequencing).

Warning: Mechanical Safety
When trimming applique or cutting eyelets inside the hoop, keep your fingers clear of the needle bar area. Accidental engagement of the start button while your hand is in the needle zone is a common injury. Always keep your hands on the outside of the frame when the machine is powered on.

Phase 2: The "Hidden" Prep – Stabilizer, Grain, and Tension Physics

The video uses tearaway stabilizer and hoops it together with the red fabric. This is a "Floating Hybrid" technique—fast, but risky if you don't respect the physics.

1. Stabilizer Logic

For a stiff, tag-like object, Tearaway is the industry standard. It provides rigidity during stitching but leaves clean edges.

• Validation: If your fabric is stretchy (knits), standard tearaway will fail, leading to outline misalignment. For stretchy fabrics, you must fuse a woven interfacing to the back of the fabric first to stabilize the grain.

2. The Micro-Layer of Adhesive

The video creator admits using "a little too much" 505 spray.

• Master Class Tip: Spray the fabric, not the hoop/stabilizer. Hold the can 10-12 inches away. You want a "mist," not a "puddle." If your needle gets sticky, you used too much.

Prep Checklist: The "Go/No-Go" Gauge

• Grain Check: Is the weave of your red fabric straight? (Pull it; if it warps diagonally, press it again with starch).
• Bobbin Check: Do you have at least 50% bobbin remaining? (Running out mid-satin border creates a weak point).
• Tool Station: Are curved scissors within 12 inches of your right hand?
• Thread Path: Floss the thread through the tension discs. You should feel a slight resistance—like pulling dental floss between teeth.


Phase 3: Hooping Without the Burn – The Magnetic Advantage

In the tutorial, the stabilizer and red fabric are clamped simultaneously into a magnetic frame. This highlights exactly why professionals switch to a magnetic embroidery hoop.

The Friction Point: Traditional inner/outer rings require force. They crush the fabric fibers (hoop burn) and can distort the red fabric's grain. When you release it later, the fabric shrinks back, and your beautiful circle stitch becomes an oval.

The Magnetic Solution:

1. Lay Down: Place the bottom magnetic frame.
2. Float: Lay stabilizer, then red fabric. Smooth them out from the center like applying a phone screen protector.
3. Snap (The Sound of Safety): Place the top magnet. You should hear a firm snap.
4. The Drum Test: Tap the fabric. It should sound like a dull thud. It needs to be taut, not stretched. If you pull it tight after clamping, you are creating tension that will ruin the shape later.

If you are struggling with thick fabrics or recurring hoop marks, learning how to use magnetic embroidery hoop systems effectively is your bridge from "struggling hobbyist" to "production efficiency."

Phase 4: Software Intervention – Reordering in Embrilliance

The creator performs a critical "quality intervention" in the software before stitching.

The Problem: The default file might stitch the Name after the back fabric is put on. This would leave ugly white bobbin thread writing visible on the back of the tag. The Fix:

1. Open design in Embrilliance.
2. Identify the "Text/Name" object.
3. Drag and Drop: Move the text object so it stitches after the football applique but before the final "Backing Placement" step.

Result: The messy back of the letters will be sealed inside the tag sandwich forever.

Phase 5: The Trace – Your Insurance Policy

Especially on the Janome MB-7e or any machine with larger clamp heads, you must verify clearance.

1. Load the design.
2. Run Trace: Watch the needle bar. It must stay at least 5mm away from the metal frame edges.
3. Observation: If the needle bar gets too close to the magnet, the magnetic field can occasionally interfere with the presser foot height or cause a collision.


Setup Checklist: Pre-Flight Verification

• Needle Clearance: Trace completed with no frame collisions?
• Z-Axis Check: Is the presser foot height set correctly for the fabric thickness? (Too high = skipped stitches; Too low = dragging fabric).
• Speed Limit: For beginners, set the machine to 600 SPM (Stitches Per Minute). High speed (800+) on satin borders can cause "whipping" if tensions aren't perfect.

Phase 6: Placement and Tack-Down – The Foundation

The machine stitches the outline (Gold/Yellow). This is your map.

The Applique Maneuver:

1. Lightly mist the back of your brown football scrap.
2. Place it over the outline. Don't push hard. Just lay it flat.
3. Run the Tack-Down stitch.


Phase 7: The "Surgical" Trim – Avoiding Disaster

This is where 80% of beginners fail. You need to trim the excess brown fabric without cutting the anchor stitches.

The Technique:

1. Remove the hoop from the machine (keep fabric clamped!).
2. Lift the excess brown fabric with your non-dominant hand.
3. Rest the curve of your applique scissors on the fabric.
4. Glide, Don't Hack: Cut smoothly, leaving about 1mm to 2mm of fabric from the stitch line.
   • Too close: You cut the stitches, and the football falls off.
   • Too far: The final satin stitch won't cover the raw edge, leaving "whiskers."


Phase 8: Satin Stitch & Modification on the Fly

The machine now runs the heavy satin stitch to seal the football edge.

The "Manual Skip" Trick: The video creator didn't want the "laces" stitch because the name goes there.

• Action: Watch the stitch count or color block on the screen. When the machine finishes the football outline and prepares to do the laces, hits STOP.
• Navigation: Press the "Forward/Next Color" button to skip the laces entirely and move straight to the text (Name).


Phase 9: The "Floating Back" – Sealing the Deal

This is the magic trick for a professional finish. We are going to hide everything—the knots, the bobbin text, the stabilizer mess—inside the tag.

[FIG-10] [FIG-11]

1. Take the hoop off the machine (fabric still clamped!).
2. Spray adhesive on the wrong side (back) of your red backing fabric.
3. Flip the hoop over.
4. Adhere the backing fabric directly to the underside of the stabilizer.
   • Critical Check: Ensure it covers the entire design area. Hold it up to a light; if you see light edges, move it.

Note: Proper hooping for embroidery machine technique implies understanding that the hoop handles the tension, but "floating" handles the finish.

Phase 10: Final Assembly & The Eyelet Hack

Return the hoop to the machine. Run the final Satin Border and the Circle Stitch for the eyelet.

Creating the Hole (No Eyelet Tool Needed):

1. Take your small, sharp scissors.
2. Carefully puncture the center of the stitched eyelet circle.
3. Snip outward to the edge of the circle stitching, removing the fabric core.
4. Pro Update: If you have a soldering iron or hot knife (and used synthetic fabric/stabilizer), you can melt this hole for a perfectly sealed edge. If using cotton, sticking to the scissors + satin stitch cover method in the video is safer.


Phase 11: Finishing – The Fire & Tear

Remove the project from the hoop.

1. Tearaway: Grip the stabilizer near the stitches and tear sharply. It should pull away cleanly (like a perforated stamp).
2. The Flame Polish: If using vinyl or synthetic thread, quickly pass a lighter flame near the edges.
   • Sensory Cue: You aren't trying to see smoke. You just want to see the tiny fuzz fibers shrink and disappear. It takes less than a second.

[FIG-14] [FIG-15] [FIG-16]

Warning: Magnetic Field Safety
If you upgrade to professional magnetic hoops for janome embroidery machines, remember they use industrial Neodymium magnets.
1. Pinch Hazard: They snap with 10lbs+ of force. Keep fingers away from the contact zone.
2. Electronics: Keep them at least 6 inches away from computerized screens and pacemaker devices.

Operation Checklist: Post-Production Quality Control (QC)

• The Edge Test: Rub your finger along the satin border. Is it smooth? (Roughness = tension too loose).
• The Flex Test: Bend the tag. Does the border pop or gap? (Gapping = fabric was stretched too tight in hoop).
• The Eyelet: Is the hole clear of frayed threads?
• The Backside: Is the bobbin thread hidden? (If white bobbin shows on the side, use a permanent marker to color it to match the fabric—a classic industry cheat).

Decision Tree: Stabilizer & Hooping Strategy

If you plan to make these tags with different materials, use this logic flow:

START: What is your primary material?

• A. Stiff Marine Vinyl / Heavy Canvas
  • Stabilizer: Medium Tearaway.
  • Adhesive: Minimal Spray.
  • Priority: Avoid Hoop Burn. Use a magnetic frame or "float" the vinyl on top of hooped stabilizer.
• B. Quilting Cotton / Woven Poly (Like the video)
  • Stabilizer: Medium Tearaway (2 layers if fabric is thin).
  • Adhesive: Standard Spray.
  • Priority: Grain Alignment. Ensure fabric is ironed flat.
• C. Cork / Leather
  • Stabilizer: Cutaway (Mesh). Tearaway can sometimes cause perforation issues on leather.
  • Adhesive: Tape around the edges (Spray can stain leather).
  • Priority: No Perforations. Increase stitch length in your software to prevent cutting the leather.

From Hobby to "Side Hustle": The Tool Upgrade Path

When you make one tag for your nephew, the standard process is fine. When a local football team orders 50 tags, the friction points (hooping time, trimming fatigue) will destroy your hourly rate.

Here is the upgrade path for growing your capacity:

1. Level 1: The Precision Upgrade.
   Invest in specialized Curved Applique Scissors and a focused light source. This reduces errors and saves the "oops, I cut the stitch" money.
2. Level 2: The Speed Upgrade (Magnetic).
   If you are doing production runs, magnetic embroidery hoops cut hooping time by 40-50%. There is no screw tightening, no tugging. You just Place, Snap, and Stitch. It saves your wrists and your fabric.
3. Level 3: The Scale Upgrade.
   If you find yourself constantly changing thread colors or declining large orders, consider looking at a multi-needle machine like the janome mb-7 embroidery machine or the high-value SEWTECH multi-needle systems. Coupled with a dedicated hooping station for embroidery, you can hoop the next garment while the machine is stitching the current one—doubling your output.

Troubleshooting: The "Why is this happening?" Guide

Stitching a clean ITH tag is a rite of passage. It teaches you layering, tension, and precision. Master this, and you are ready for patches, keyfobs, and complex applique. Happy stitching!

FAQ

• Q: How do I use a magnetic embroidery hoop for ITH luggage tags to prevent hoop burn on marine vinyl or woven cotton?
  A: Use a “float-and-snap” method so the magnets hold fabric taut without crushing fibers.
  • Lay down the bottom frame, then place tearaway stabilizer, then place the base fabric on top and smooth from the center outward.
  • Snap the top magnetic piece straight down—do not pull the fabric tighter after clamping.
  • Tap-test the hooping before stitching and re-smooth if you see ripples.
  • Success check: The fabric feels taut (not stretched) and makes a dull “thud” when tapped, with no visible ring marks on vinyl after unhooping.
  • If it still fails, reduce handling, use less spray adhesive, and consider floating vinyl on hooped stabilizer instead of clamping vinyl directly.
• Q: How much 505 temporary spray adhesive should be used for ITH luggage tags to avoid sticky needles and shifting layers?
  A: Use a light mist on the fabric only—too much 505 is the main cause of sticky needles.
  • Spray the fabric (not the hoop or stabilizer) from about 10–12 inches away.
  • Aim for “tack” rather than wet coverage; avoid puddling or shiny patches.
  • Pause and clean off residue if the needle starts feeling gummy during stitching.
  • Success check: The fabric holds position with light finger pressure, and the needle does not pick up adhesive or squeak/drag through stitches.
  • If it still fails, reduce spray further and rely more on careful smoothing and correct hoop tension rather than extra adhesive.
• Q: How do I trim applique fabric inside the hoop for an ITH football luggage tag without cutting the tack-down stitches?
  A: Remove the hoop from the machine (keep it clamped) and trim smoothly, leaving 1–2 mm outside the tack-down line.
  • Lift the excess applique fabric with the non-dominant hand to see the stitch line clearly.
  • Glide curved applique scissors around the shape instead of “hacking” with short cuts.
  • Leave a consistent 1–2 mm margin so the satin stitch can fully cover the edge.
  • Success check: After the satin stitch runs, no raw edge “whiskers” show, and the applique edge looks sealed with no loose sections.
  • If it still fails, slow down and practice on scraps; generally, fusing a light bonding layer to the applique fabric may help produce crisper cuts (follow material instructions).
• Q: How do I reorder text in Embrilliance for an ITH luggage tag so the back side looks clean and the bobbin lettering is hidden?
  A: Move the “Name/Text” object to stitch before the backing placement step so the messy underside gets sealed inside the tag.
  • Open the design in Embrilliance and locate the text/name object in the stitch list.
  • Drag-and-drop the text so it stitches after the applique work but before the backing placement step.
  • Stitch the project so the final backing covers the lettering stitches from the underside.
  • Success check: The finished back shows no visible bobbin “writing” because the lettering is trapped inside the tag sandwich.
  • If it still fails, confirm the text did not accidentally move after the final backing step and re-save the file before restitching.
• Q: How do I use the Janome MB-7e Trace function with a magnetic hoop to prevent needle-bar collisions during ITH luggage tag stitching?
  A: Always run Trace and confirm at least ~5 mm clearance from frame edges before pressing start.
  • Load the design on the Janome MB-7e and run Trace to watch the full stitch boundary.
  • Stop immediately if the needle path approaches the frame hardware and re-hoop or reposition the design.
  • Check presser foot height (Z-axis) for thickness before stitching at speed.
  • Success check: Trace completes with no contact risk and the needle path stays visibly clear of the hoop hardware by a small safety gap.
  • If it still fails, switch to a smaller design boundary or re-center the hooping so the design stays away from the clamp/magnet zones.
• Q: How do I troubleshoot wavy “bacon edges” on an ITH luggage tag satin border when using tearaway stabilizer?
  A: The tag usually went wavy because the fabric was stretched during hooping—re-hoop to “taut, not stretched.”
  • Hoop on a flat surface and smooth from center outward before stitching.
  • Avoid pulling the fabric tighter after it is clamped (especially in magnetic hoops).
  • Keep speed conservative for satin borders if tension is not dialed in yet (the blog suggests 600 SPM for beginners).
  • Success check: The finished border lies flat with no ripples, and bending the tag does not make the border gap or pop.
  • If it still fails, reassess stabilizer support (thin fabrics may need an extra layer of tearaway) and verify thread path is correctly seated in the tension discs.
• Q: What are the safety rules for cutting applique and opening the eyelet hole on an ITH luggage tag while the embroidery hoop is still clamped?
  A: Keep hands out of the needle zone and only trim/cut with the hoop off the machine to prevent accidental start injuries.
  • Remove the hoop from the machine before trimming applique or puncturing the eyelet hole, and keep the fabric clamped in the frame.
  • Keep fingers on the outside of the frame whenever the machine is powered on near the needle bar area.
  • Use small sharp scissors for the eyelet and cut from the center outward to the stitched circle edge.
  • Success check: Fingers never enter the needle bar area, and the eyelet hole opens cleanly without cut threads crossing the satin circle.
  • If it still fails, slow down and make smaller cuts; if needle breaks occur at the eyelet, reduce speed for the final border (the blog suggests 400 SPM) and re-check density buildup.
• Q: What is the upgrade path for producing 50+ ITH luggage tags efficiently without hoop marks and slow hooping time?
  A: Start with technique fixes, then upgrade to magnetic hoops for speed, and only then consider a multi-needle machine for scale.
  • Level 1 (Technique): Improve trimming control with curved applique scissors and keep a ready tool station to avoid stops.
  • Level 2 (Tooling): Switch to magnetic hoops to reduce hooping time and even out pressure to reduce hoop marks.
  • Level 3 (Production): If constant color changes and order volume limit output, consider a multi-needle setup and a hooping station so hooping happens while stitching runs.
  • Success check: Hooping time drops noticeably, rejects from hoop burn/wavy edges decrease, and repeat runs look consistent front and back.
  • If it still fails, track which step causes rework (hooping, trimming, or border tension) and fix that bottleneck before investing further.
