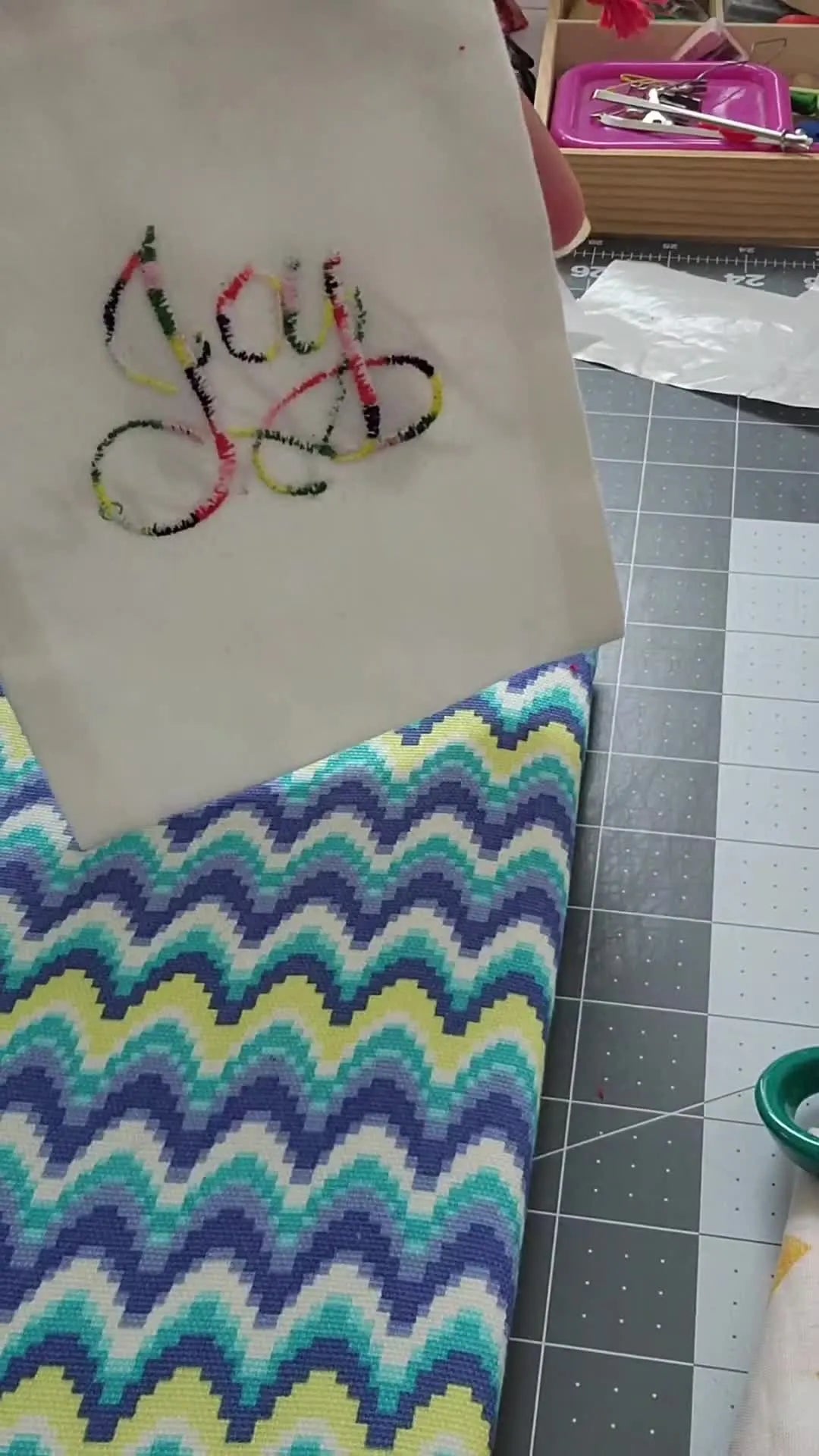

A Clean, Crisp Name Patch on the Brother SE1900: The “Joy” Iron-On Method That Won’t Warp, Fray, or Peel

To master the art of the perfect name patch, we must first understand that machine embroidery is not just about pressing a button—it is an interaction between tension, physics, and material science.

If you are new to this text-to-textile translation, making a patch can feel daunting because it combines three distinct disciplines: stabilizing (structure), stitching (precision), and heat-setting (adhesion). The video you watched simplifies this process for the Brother SE1900, using a 4x4 hoop and a recursive script font.

I will guide you through this process not just as a tutorial, but as a professional workflow. We will add the safety buffers, sensory checks, and shop-floor protocols that turn a "lucky attempt" into a repeatable skill.

The “Don’t Panic” Primer for Brother SE1900 Name Patches (Yes, Your First One Can Look Pro)

A name patch is forgiving only if you respect the physics of "push and pull." The two moments that define your success are:

1. Hooping/Stabilizing: This controls distortion. If this is loose, your letters will warp.
2. Heat Activation: This controls longevity. If this is weak, your patch will peel.

For beginners, the specific design choice in the video—keeping script letters connected—is brilliant. It allows the word to behave as a single cohesive unit when you tear away the stabilizer, preventing the heartbreaking "exploding letters" effect where characters drift apart.

The “Hidden” Prep Pros Do First: Stabilizer, Adhesive, and a Clean Work Surface

Before you touch the hoop, we must secure the foundation. In embroidery, stabilization is 80% of the battle.

What the video uses (and why it works)

• Tear-away stabilizer (2 layers) bonded together with adhesive. This provides the stiffness of cardstock with the removability of paper.
• Spray adhesive (e.g., 505 Spray) to laminate the layers.
• Variegated thread for visual impact without manual color changes.
• HeatnBond Lite for the iron-on backing.

Pro Tip: The "Sticky Machine" Hazard

Spray adhesive is a "silent killer" of embroidery machines. Overspray settles on your hoop workspace, attracts lint, and eventually gums up the embroidery arm gears.

• The Rule: Always spray inside a cardboard box or at least 6 feet away from your machine.
• The Clean: Wipe your table before laying out your stabilizer.

When you begin to scale this process, consistency becomes difficult. Many professionals invest in a basic hooping station for embroidery to ensure every layer of stabilizer is perfectly square and tension is uniform, reducing the variables that cause failure.

Prep Checklist (Do this before you hoop)

• Cut Stabilizer: Cut two pieces of tear-away stabilizer, ensuring they extend at least 1 inch past the hoop edge on all sides.
• Bond Layers: Spray one sheet lightly (hold can 8-10 inches away), then press the second sheet on top.
• Tactile Check: Rub your hand over the bonded layers. Are there bubbles? Smooth them out. It should feel like one thick sheet.
• Environment Check: Confirm no sticky residue is on your hands or the table.
• Size Check: Verify your design file is under 3.90" x 3.90" for the 4x4 hoop.

Hooping the Brother 4x4 Embroidery Hoop Without Ripples (Taut, Not Stretched)

The video demonstrates hooping stabilizer only. This is known as "floating" the design (though here we are stitching directly on the stabilizer).

For the brother 4x4 embroidery hoop, the tension must be precise.

The Sensory Anchor:

• Sound: Tap the hooped stabilizer with your fingernail. It should make a distinct thump sound, like a taut drum skin.
• Touch: Press your finger in the center and slide it to the edge. It should not ripple or bowl.

Action Steps:

1. Loosen the outer hoop screw significantly.
2. Lay the bonded stabilizer over the outer hoop.
3. Press the inner hoop straight down.
4. Tighten the screw while pulling the stabilizer edges gently to remove slack.


Watch Out: The "Wavy" Letter Trap

If your stabilizer is loose (spongey), the needle penetration will push the paper down before piercing it. This causes "flagging," resulting in distorted, wavy satin stitches.

Upgrade Path: Eliminating "Hoop Burn" and Wrist Strain

The standard screw-hoop requires significant hand strength to get right. If you find yourself re-hooping three times to eliminate wrinkles, or if you are doing production runs of 20+ patches, this is a friction point.

• The Solution: magnetic embroidery hoops allow you to clamp the stabilizer instantly without the "screw and tug" battle.
• The Benefit: For Brother users, a magnetic hoop for brother se1900 ensures consistent tension every single time, drastically reducing setup time and preventing the wrist fatigue associated with manual tightening.


Threading the Brother SE1900 the Calm Way (So Variegated Thread Behaves)

Threading appears simple, but with variegated thread, the texture can be slightly inconsistent. Follow the numbered path on the machine strictly.

The "Floss" Check: When the thread is in the tension discs (usually step 3), pull it gently. You should feel resistance similar to pulling dental floss between teeth. If it pulls freely with zero drag, you have missed the tension disc, and you will get a bird's nest.

Pro Tip: Variegated Thread Expectations

Variegated thread changes color every few inches. On small lettering, this can make stitches look "uneven" to the eye because the color shifts mid-column. This is an optical illusion. Do not adjust your tension based solely on color appearance.

If you own multiple hoops for brother embroidery machines, ensure the hoop connection mechanism is clean. A hoop that doesn't snap in firmly can vibrate, causing the very stitch irregularities you might blame on the thread.

Warning: Project Safety. Keep fingers, hair, jewelry, and loose clothing well away from the needle bar and take-up lever while the machine is operating. The needle moves at 400+ punctures per minute—faster than human reaction time.

Stitching the “Joy” Patch on the Brother SE1900: The Two Checkpoints That Prevent Letter Gaps

The stitching phase is where preparation pays off. Do not hit start and walk away.

Action Steps:

1. Slide the hoop onto the embroidery arm until you hear a solid click.
2. Lower the presser foot (the light will turn green).
3. Stop! Check the screen.




Checkpoint 1: Placement Preview

Look at the SE1900 screen. Is the design centered? Ensure no part of the word is touching the grey "no-sew" boundary box.

Checkpoint 2: The First 10 Seconds (The "Test Flight")

Press Start. Watch the first 50 stitches.

• Visual: Is the stabilizer lifting up with the needle? (Bad tension).
• Auditory: Is the machine sound a rhythmic hum? A grinding or loud clack indicates a jam or a hit needle.
• Action: If you see the stabilizer bowing, Stop immediately. Re-hoop. It is cheaper to waste 10 cents of stabilizer than to untangle a bird's nest.


Setup Checklist (Right before you press Start)

• Mechanical Lock: Hoop is clicked firmly into the carriage.
• Foot Down: Presser foot lever is lowered.
• Space Check: The area behind the machine is clear (the hoop creates a swing radius).
• Thread Path: Thread is not caught on the spool pin.
• Bobbin Check: You have enough bobbin thread for the design.

Tearing Away Stabilizer Without Shredding Satin Stitch (Support the Letters Like a Surgeon)

Once the machine sings its finish song, remove the hoop. Now comes the delicate part.

The Physics of the Tear: Satin stitches are simply thread wrapped around paper. If you pull the stabilizer aggressively away from the word, you can pull the stitches out of alignment, creating gaps.

Technique: Place your thumb directly on top of the stitched letters to hold them flat against the table. Pull the stabilizer away gently, tearing against the stitch line, not pulling the stitches with you.

Watch Out: Grain Direction

Tear-away stabilizer has a "grain." It will tear easily in one direction and resist in the other. If you feel resistance, stop. Rotate the text 90 degrees and try tearing from that angle.

HeatnBond Lite Backing: The No-Mess Pressing Method That Keeps Glue Off Your Mat

To turn embroidery into a patch, we use HeatnBond Lite. The "Lite" version is crucial—the "Ultra" version is meant for no-sew projects and can be too stiff/gummy for this application.

Action Steps:

1. Place the embroidery Face Down on a protective sheet (silicone mat or parchment paper).
2. Place HeatnBond Paper Side Up (rough side onto the back of the embroidery).
3. Press with a mini iron set to medium heat (no steam).






Pro Tip: Press, Don't Slide

Do not iron back and forth like you are pressing a shirt. Sliding shifts the adhesive web.

• The Move: Lift iron -> Place down -> Hold 2 seconds -> Lift.

If you are researching hooping for embroidery machine technique, this post-hoop finishing step is often where beginners drag glue onto the front of their beautiful patch. Always use a cover sheet!

Warning: Heat Safety. Mini irons can reach temperatures of 400°F (200°C). The adhesive becomes molten liquid. Do not touch the back of the patch until it has cooled for at least 30 seconds.

Peeling and Placing the Patch on a Canvas Bag: Get One Shot at Alignment

Once cooled, trim the stabilizer and HeatnBond close to the letters. Peel the paper backing. You should see a shiny, smooth film on the back of the letters.

Application Protocol: Canvas is an excellent substrate for patches because it is heat-tolerant and stable.

1. Dry Fit: Place the patch on the bag. Measure with a ruler to ensure it is centered.
2. Cover: Place a protective sheet over the patch (never touch the hot iron directly to polyester thread—it will melt).
3. Fuse: Press firmly for 10-15 seconds.






Operation Checklist (Before the final press)

• Peel: Paper backing removed completely.
• Position: Patch aligned (visually check distance from seams).
• Protection: Teflon sheet or parchment paper placed over the patch.
• Heat: Iron is at appropriate heat for the specific fabric of the bag.
• Cool Down: Do not test the bond while hot. Let it cool completely.

The “Why It Works” Behind Layered Tear-Away Stabilizer (And When Two Layers Isn’t Enough)

The video uses two layers. But the creator notes: if the design is denser, use three or four.

Why? Satin stitches (the tube-like stitches used for text) exert a massive "pull force." They contract the material as they sew.

• Low Density (Spaced out running stitch): 1 layer is fine.
• Medium Density (This "Joy" patch): 2 layers bonded provides resistance.
• High Density (Thick block letters/logos): 3-4 layers are required to prevent the stabilizer from perforating and collapsing, which ruins the letter edges.

Troubleshooting the Scary Stuff: Distorted Letters, Weak Stick, and “Why Is My Patch Wavy?”

Here is a diagnostic table for the most common failures in patch making.

The Upgrade Moment: When Magnetic Hoops and Multi-Needle Speed Actually Make Sense

If you are making one patch for a gift, the standard SE1900 screw hoop is perfectly adequate.

However, if you catch the "embroidery bug" and start taking orders for 20 team bags, you will hit a wall. That wall is physical fatigue and lack of speed.

The Professional Pivot Points:

1. The Wrist Saver: If hooping feels like a wrestling match, a brother magnetic hoop 4x4 transforms the process. You simply lay the material and snap the magnet frame down. It holds thick canvas or delicate stabilizer with equal security and zero "hoop burn."
2. The Speed Demon: If you are tired of stopping every 2 minutes to change thread colors on a single-needle machine, this is the trigger to look at multi-needle machines (like SEWTECH models). These allow you to set up 6-15 colors at once and let the machine run uninterrupted, turning a 2-hour job into a 20-minute job.

Warning: Magnet Safety. Magnetic hoops use powerful Neodymium magnets. They snap together with enough force to pinch skin severely.
* Keep away from pacemakers and sensitive electronics.
* Do not let children play with them.
* Slide magnets apart; do not try to pry them.

Decision Tree: Stabilizer Layers and Hooping Choices for Name Patches (Beginner to Small-Batch)

Use this logic flow to determine your setup:

1. Is the text fine script or block?
   • Fine Script: Go to Step 2.
   • Heavy Block: Use Cut-Away stabilizer (better structure) instead of Tear-Away.
2. Is your satin stitch wider than 3mm?
   • No: 2 Layers Tear-Away is the sweet spot.
   • Yes: 3 Layers Tear-Away bonded with spray.
3. What is your production volume?
   • < 5 items: Standard hoop is fine. Take your time.
   • 10+ items: Upgrade to Magnetic Hoops to ensure every patch is identical and to save your hands.
4. Are you doing multicolor patches?
   • No: Single needle machine is great.
   • Yes: If color changes exceed 5 per design, evaluate a Multi-Needle Machine for profitability.


The Result: A Clean “Joy” Patch You Can Put on Bags, Pouches, Backpacks—and Sell Confidently

The "Joy" patch is a rite of passage. It teaches you that structure (stabilizer) dictates success.

If you are just starting, give yourself permission to fail on the first try. Embroidery is an empirical science—you learn by touching the tension, hearing the machine, and seeing the results.

Start with quality consumables. Master your hooping tension (consider magnetic frames if you struggle). And remember: every professional patch maker started exactly where you are—staring at a screen, hoping the letters don’t pull apart. Now, stitch confidently.

FAQ

• Q: How can Brother SE1900 users stop wavy satin-stitch letters when stitching name patches on layered tear-away stabilizer in a 4x4 hoop?
  A: Re-hoop the bonded stabilizer until it is taut like a drum, because loose stabilizer causes flagging and wavy satin stitches.
  • Loosen the outer hoop screw a lot, then press the inner hoop straight down (avoid “tilting in”).
  • Tighten the screw while gently pulling stabilizer edges to remove slack (do not stretch hard).
  • Watch the first 50 stitches and stop immediately if the stabilizer lifts or bowls.
  • Success check: Tap the hooped stabilizer—listen for a crisp “thump,” and feel no ripples when sliding a finger from center to edge.
  • If it still fails: Re-hoop again before continuing, or consider switching to a magnetic hoop style for more consistent clamping.
• Q: How can Brother SE1900 users avoid spray adhesive overspray that causes a sticky embroidery machine and lint buildup during patch prep?
  A: Spray adhesive only away from the Brother SE1900 and keep the work surface clean to prevent residue from reaching the machine.
  • Spray inside a cardboard box or at least 6 feet away from the Brother SE1900.
  • Wipe the table before placing stabilizer down, and keep hands free of sticky residue.
  • Bond two tear-away layers with a light, even spray, then press flat to remove bubbles.
  • Success check: Rub the laminated stabilizer— it should feel like one thick sheet with no tacky spots on the table or fingers.
  • If it still fails: Reduce spray amount and improve shielding (box/cover) so adhesive mist cannot drift toward the machine.
• Q: How can Brother SE1900 users confirm the top thread is seated in the tension discs to prevent a bird’s nest when using variegated thread?
  A: Use the Brother SE1900 “floss check” at the tension-disc step—no drag usually means the thread missed the discs and nesting is likely.
  • Rethread the machine following the numbered path exactly.
  • At the tension-disc step, pull the thread gently to feel consistent resistance.
  • Recheck that the thread is not caught on the spool pin before pressing Start.
  • Success check: The pull should feel like dental floss sliding—clear, steady resistance rather than free-sliding thread.
  • If it still fails: Stop stitching as soon as nesting starts and rethread again before continuing to avoid a larger jam.
• Q: What are the two Brother SE1900 pre-stitch checkpoints that prevent letter gaps and prevent stitching into the 4x4 hoop no-sew boundary?
  A: Always verify placement on the Brother SE1900 screen and monitor the first 10 seconds to catch lifting, bowing, or abnormal noise early.
  • Click the hoop firmly into the carriage, then lower the presser foot (confirm the ready status).
  • Use the placement preview to confirm the design is centered and not touching the grey no-sew boundary box.
  • Watch the first 50 stitches and stop if the stabilizer lifts, bows, or the sound turns into grinding/clacking.
  • Success check: The machine should sound like a steady rhythmic hum, and the stabilizer should stay flat (no lifting with the needle).
  • If it still fails: Stop, re-hoop tighter, and restart—wasting a small piece of stabilizer is cheaper than untangling a bird’s nest.
• Q: How can Brother SE1900 users tear away stabilizer from satin-stitch script letters without shredding stitches or creating gaps in a name patch?
  A: Support the stitched letters with your thumb and tear the stabilizer away against the stitch line, not by pulling on the letters.
  • Place your thumb directly on top of the stitched word to hold it flat.
  • Tear gently along the edge of the satin stitching instead of yanking outward.
  • If the stabilizer resists, rotate the patch 90 degrees and tear with the stabilizer grain.
  • Success check: The satin columns stay full and aligned with no opening gaps between stitches.
  • If it still fails: Slow down and tear smaller sections while continuously holding the stitching down.
• Q: What is the safest way to heat-press HeatnBond Lite onto Brother SE1900 embroidered name patches without getting glue on the mat or melting the thread?
  A: Press (do not slide) with a protective sheet, keeping HeatnBond Lite paper-side up and the embroidery face down.
  • Place embroidery face down on parchment paper or a silicone sheet.
  • Place HeatnBond Lite with paper side up (rough side against the back of embroidery).
  • Lift-and-press with a mini iron at medium heat with no steam; avoid back-and-forth ironing.
  • Success check: After cooling, the paper backing peels cleanly and a smooth shiny film remains on the back of the patch.
  • If it still fails: Re-press using the same press-only motion and keep a cover sheet in place to prevent adhesive transfer.
• Q: What safety steps should Brother SE1900 users follow for needle-motion hazards and magnetic hoop pinch hazards when making multiple patches?
  A: Keep body and loose items away from the moving needle area during stitching, and handle magnetic hoops by sliding magnets apart to prevent severe pinches.
  • Keep fingers, hair, jewelry, and loose clothing away from the needle bar and take-up lever while the Brother SE1900 is running.
  • Stop the machine before reaching near the hoop or needle area for any adjustment.
  • If using a magnetic hoop, keep magnets away from pacemakers and sensitive electronics, and never let children handle them.
  • Success check: Hands stay outside the needle movement zone during operation, and magnets separate by sliding (no sudden snap-on pinch).
  • If it still fails: Pause the project, reset the workspace for clear access, and resume only when safe spacing and handling are controlled.
• Q: When should Brother SE1900 users upgrade from a standard screw hoop to a magnetic hoop, or consider a multi-needle machine like SEWTECH, for name patch production?
  A: Upgrade when repeatability, wrist strain, or frequent color-change downtime becomes the bottleneck, not just because a single patch is hard.
  • Level 1 (technique): Re-hoop to drum-tight tension, use bonded tear-away layers, and watch the first 50 stitches every run.
  • Level 2 (tool): Switch to a magnetic hoop when hooping takes multiple attempts, causes wrist fatigue, or you need identical tension across 10+ patches.
  • Level 3 (capacity): Consider a multi-needle machine like SEWTECH when designs require many color changes and stopping every few minutes kills throughput.
  • Success check: Setup time and re-hooping events drop noticeably, and stitch quality stays consistent from patch #1 to patch #20.
  • If it still fails: Standardize a checklist (hoop lock, foot down, boundary preview, first-10-seconds watch) before investing further.
