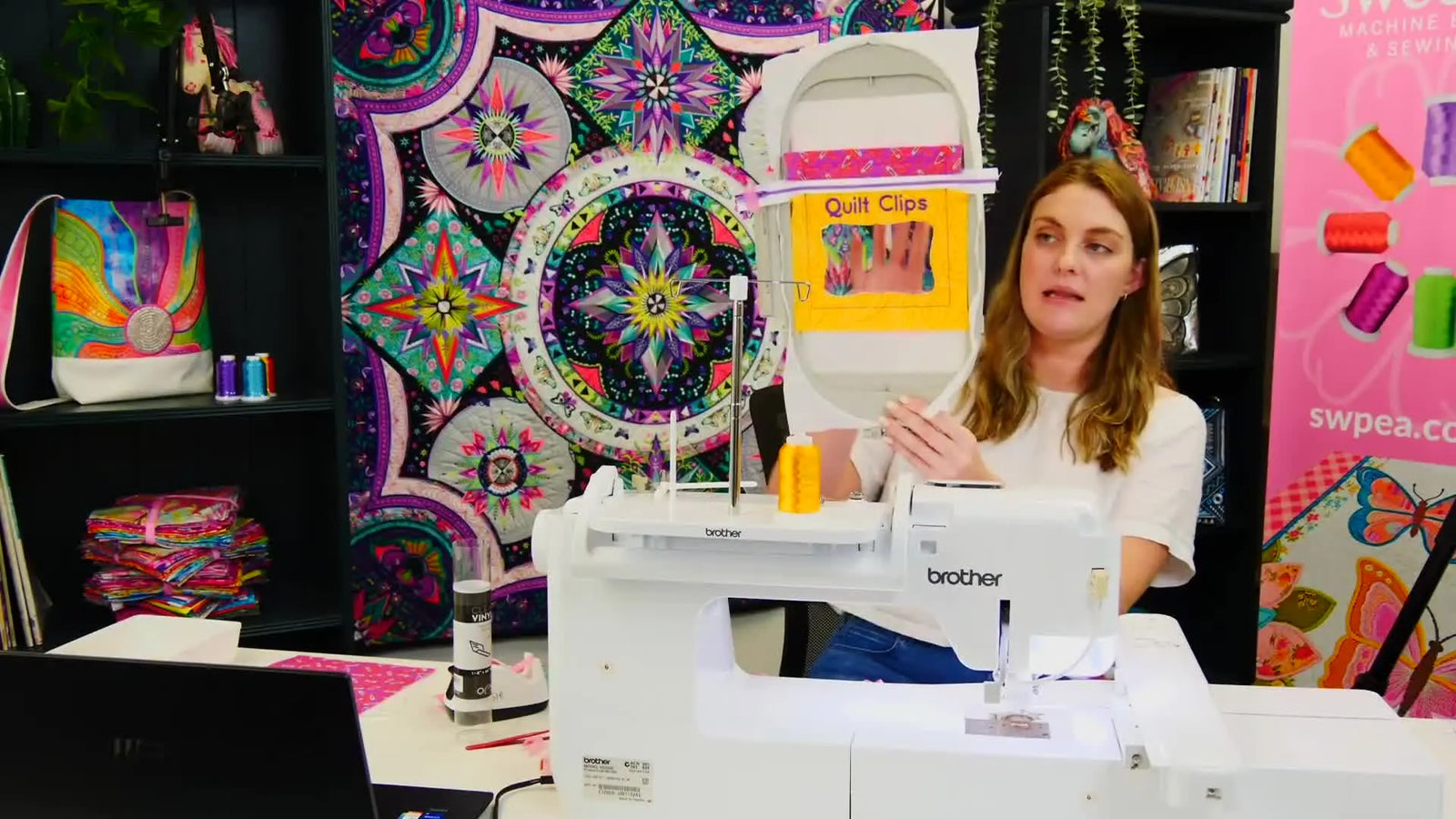

A Clean, Clear ITH Window Zipper Pocket on a Brother Machine—Without Milky Vinyl, Crooked Zippers, or Bulky Seams

If you’ve ever pulled an In-The-Hoop (ITH) zipper project out of the machine and thought, "Why is my window cloudy, my zipper wavy, and my seams so thick I can’t turn it?"—you are not alone. These are not failures of talent; they are failures of variable control.

This Sweet Pea "new and improved" ITH window zipper pocket is a smart redesign. It changes the order of operations so the PVC has structural support within the seam, and it adds a critical safety move to prevent the hoop from centering at the end—saving your needle from smashing into the zipper pull.

I am going to walk you through the exact workflow shown (using a standard Brother single-needle setup with a 5x7 or 6x10 hoop), but I will add the "shop-floor" physics and sensory checks that tutorials often skip. These are the details that prevent the most common frustrations: shifting layers, perforated vinyl, and corners so bulky they refuse to turn.

The Calm-Down Moment: Your Brother Embroidery Machine Isn’t “Being Fussy”—ITH Zippers Really Are a Layer-Management Test

ITH zipper pockets feel harder than they "should" because you are asking a plastic hoop to hold a moving sandwich of stabilizer, zipper tape, multiple cotton layers, batting, and PVC—all while flipping it repeatedly.

The friction point here is the physics of the hoop. Standard hoop rings rely on friction to hold fabric. When you add slick PVC and zipper tape, that friction drops. This is why the project relies heavily on painter's tape and finger-pressing.

If you plan to make more than two of these, this is where magnetic embroidery hoops drastically change the experience. The rhythm of this project involves "remove hoop / flip / tape / re-secure." Traditional inner rings can leave "hoop burn" (crushed fibers) on delicate cottons during these flips. A magnetic system simply snaps layers in place without the friction-drag, keeping your stabilizer taut without distorting the zipper teeth.

The good news: Once you build a repeatable routine, this design stitches very predictably.

The “Hidden” Prep That Makes the Pocket Look Expensive: PVC Gauge, Thread Color, and a No-Slip Layer Plan

Before you stitch, we must eliminate the variables that fight you mid-run.

PVC Choice: The Fold Test

The recommendation is 20 gauge (approx. 0.5 mm) clear PVC.

• Too thin (12-16 gauge): It ripples under the heat of the needle and creates a "wavy" window.
• Too thick (30+ gauge): It creates massive bulk in the seams, making the pouch impossible to turn.

The Sensory Check: Take your vinyl and fold it hard in half.

• Fail: If the crease turns bright white ("milky") or cracks, it is too brittle. It will look cloudy in the finished pocket.
• Pass: If it folds but remains relatively clear and springs back, it is safe to stitch.


Thread Logic: The "Bleed-Through" Effect

The satin stitch framing the window is wide. If you use white bobbin thread with black fabric, you will see "ticks" of white on the edge.

• Rule: Match your top thread and bobbin thread to the fabric surrounding the window. This makes the edge look intentional and solid, rather than outlined and messy.

Hidden Consumables Checklist

Do not start without these specific tools nearby:

1. Washi Tape or Medical Paper Tape: Scotch tape leaves residue; masking tape can be too aggressive on vinyl.
2. Appliqué Scissors (Duckbill) or Curved Snips: You need to cut inside a hoop without stabbing the stabilizer.
3. A "Stiletto" or Chopstick: For holding fabric down near the needle without risking your fingers.

Prep Checklist (Do this BEFORE hooping)

• Stabilizer is drum-tight (listen for a deep "thump" when tapped, not a paper rattle).
• Zipper pull is verified to move freely and is currently parked to the far left.
• Tape strips are pre-cut and stuck to the table edge (trying to tear tape with one hand while holding vinyl is a recipe for shifting).
• PVC passed the fold test (20 gauge / 0.5 mm).
• Bobbin is at least 50% full (running out of bobbin thread during the window satin stitch is unfixable).

Zipper Placement on Tear-Away Stabilizer: Center It Once, or You’ll Chase It for 20 Minutes

The first stitches are simple run stitches, but they dictate the geometry of the entire pouch.

1. Run the Placement Line: Stitch the rectangle directly onto the stabilizer.
2. Park the Pull: Slide the zipper pull all the way to the far left, outside the stitch zone.
3. Anchor the Tape: Center the zipper teeth exactly over the placement line. Tape the top and bottom edges of the zipper tape to the stabilizer.

Critical Nuance: Do not tape over the zipper teeth where the needle will travel. If the needle has to penetrate tape and zipper teeth, gum accumulates on the needle shaft, leading to skipped stitches or shredded thread.

Warning: Needle Breakage Hazard
Keep your fingers well away from the needle path when holding the zipper. Never use the "Test/Trace" function with a zipper loaded unless you are visually confirming clearance. A needle striking a metal zipper pull or hard plastic teeth at 600 SPM can shatter, sending shrapnel toward your eyes. Always wear glasses when stitching zippers.

Sensory Outcome

Lift the hoop slightly and give it a shake. The zipper should not rattle or shift. It should feel fused to the stabilizer.

Fabric A + Lining 1: The 1/4" Overlap Rule That Prevents a Skinny Seam

Now we build the top section. This is where physical layering prevents the "gap of death" where the lining pulls away from the zipper.

1. Placement: Place Fabric A (Front) right-side down. Align the raw edge so it overlaps the zipper placement line by 1/4 inch (6mm).
2. Stitch: Run the tack-down stitch.
3. Flip: Remove hoop. Turn it over.
4. Lining: Tape Lining 1 to the back of the stabilizer, right-side down, matching the alignment of Fabric A.
5. Stitch: Run the second tack-down to catch the back.


Why this matters (Physics, not superstition)

Cotton fabric "creeps" under the pressure of the presser foot. If you align the fabric exactly on the line, the foot will push it 1mm forward, and when you fold it back, you will see the stabilizer underneath. The 1/4" overlap provides the necessary "bite" for the seam allowance to hold tight during the fold.

The Flip-and-Fold Method: Finger-Press Like You Mean It, Then Tape the Seam Open

This is the beat of the project: Stitch, flip, press.

1. Flip the hoop back to the front.
2. Fold Fabric A upward so it is right-side up.
3. Press: Use your fingernail or a seam roller to flatten the fold against the zipper teeth. Do not skip this. If the fabric "balloons" here, it will get caught in the zipper later.
4. Tape: Secure the fabric at the top of the hoop.
5. Repeat for the lining on the back.


Pro Tip: Preventing "Hooping Fatigue"

If you are making a batch of 20 pouches, this constant flipping is where ergonomic injuries happen. Your wrist is effectively a lever holding a weight (the hoop) at a bad angle. Using a hooping station for embroidery or a dedicated flat surface to rest the hoop during taping ensures alignment consistency. If you are struggling to keep the back lining precise while taping the front, this is a sign your workspace needs better support, not that you are bad at embroidery.

The Clear PVC Window Step: Leave 1/4" Vinyl in the Seam So It Can’t Escape Later

Sweet Pea’s updated workflow captures the PVC before the satin stitch. This is structurally superior to floating it.

1. Place: Lay the clear PVC over the window placement shape.
2. Stitch: Run the tack-down square.
3. Trim: Cut the excess PVC from the outside of the square, but leave about 1/4 inch (6mm) of vinyl beyond the stitch line.


The Mistake: Do not trim right next to the stitches. If you trim too close, the vinyl will slip out from under the satin stitch later, and the window will pop open.

Why does the satin stitch look "Gappy"?

A common user question: "Why isn't the satin stitch tight like a patch?" The Answer: It is intentional engineering. If you hammer 20-gauge vinyl with high-density driven satin stitches, you create a "perforation line" (like a stamp). The vinyl will tear right off the fabric. The "gappy" design distributes the needle penetrations to hold the vinyl without cutting it. Do not increase the density in your software.

Fabric B + Optional Label: Keep the Excess Pointing Up, Then Press It Down Clean

Now we add the lower front panel (Fabric B).

1. Position: Place Fabric B face down, with the bulk of the fabric pointing toward the TOP of the hoop.
2. Align: Cross the seizure line by that golden 1/4 inch.
3. Stitch & Flip: Stitch perfectly, then fold the fabric down and finger press deeply.
4. Embroidery: This is where the machine adds the "Quilt Clips" label or your custom text.


Setup Checklist (Before running the Window Border)

• Fabric B is folded down and taped flat (no bubbling near the seam).
• Back lining is taped securely (check the back of the hoop!).
• Thread color is changed to match the fabric for the window satin stitch.
• Bobbin color is checked (matches top thread).

Cutting Out the Window (Front + Back + Stabilizer): The “True Clarity” Move Most People Skip

To get that glass-like window finish, we must remove the obstruction layers.

1. Front: Pinch the fabric inside the window box to separate it from the vinyl underneath. Make a small snip.
2. Cut: Use curved scissors to trim the fabric away, getting close to the stitch line but not cutting it.


3. Back: Flip the hoop. Repeat for the lining fabric.
4. Stabilizer: This is the step newbies miss. You must also cut the tear-away stabilizer out of the window.


If you leave the stabilizer, the window will look fuzzy and trap lint. Removing it reveals the crystal-clear PVC.

Sensory Outcome

Hold the hoop up to a light source. You should see through the window clearly, with no paper fibers fuzzing the edges.

The Satin Stitch Border + Detail Stitch: Make the Window Edge Look Intentional, Not “Accidental”

The machine will now run the heavy satin stitch to seal the raw edges of the fabric and vinyl.

Speed Limit Recommendation:

• Slow your machine down to 400-600 SPM.
• Vinyl adds drag to the needle. If you run at 1000 SPM, the needle deflection can cause it to hit the metal throat plate or break. Slow and steady creates a smoother satin finish.

Watch the corners. If the vinyl starts to lift or bubble, pause the machine and smooth it down.

Final Assembly Sandwich: Center the Zipper Pull Now—This Is Your Only Chance

This step determines if your pouch functions or ends up in the trash.

1. MOVE THE PULL: Slide the zipper pull to the exact center of the pocket.
2. Tape the Pull: Place a strip of tape over the pull tab so it doesn’t flop around and get caught by the foot.


3. Backing: Place the Backing Fabric face down over the entire project.
4. Batting (Optional): Place batting on top.
5. Stitch: Run the final perimeter stitch.

Bulk Control (The Secret to Sharp Corners)

After the perimeter stitch is done, take your scissors and trim the batting only as close to the stitching as possible. Do not trim the fabric yet. Removing the batting from the seam allowance reduces the bulk in the corners by 50%, making them significantly sharper when turned.

The Tool Upgrade Path

If you are producing these for a craft fair, the cumulative time spent taping layers and fighting standard hoop clamps adds up. This is the scenario where embroidery hoops magnetic pay for themselves. The ability to clamp thick sandwiches (Fabric + Batting + Zipper + Stabilizer) without unscrewing a metal ring saves massive amounts of manual effort and reduces the rejection rate caused by hoop slips.

Lining 3 + The 3" Turning Gap: Why the Opening Is at the Top

The final lining goes on the back of the hoop, right side down. The machine will stitch the perimeter but leave a 3-inch gap at the top edge.

Why at the top? Gravity. Items fall to the bottom of the pouch. A seam at the bottom bears weight and stress. A seam at the top (the turning gap you will hand-stitch closed) bears almost no stress, keeping the pouch durable.

The Safety Step (Step 19): The Little Move That Prevents a Zipper-Pull Collision

The file includes a final, deliberate movement that shifts the hoop away from center.

• The Risk: Most machines auto-center the hoop when a design finishes. If your bulky zipper pull is in the center, the needle bar can slam into it during this centering move.
• The Fix: This file ends off-center, protecting your mechanics.

Trimming, Turning, and Pressing: Clean Corners Without Poking Through

Un-hoop the project and peel away the tear-away stabilizer.

1. Trim: Cut the fabric 1/4 inch from the stitch line around the perimeter.
2. The Tab: At the turning opening, leave a 1-inch tab of fabric. This acts as a flap that naturally tucks in, making the final closure invisible.
3. Clip Corners: Snip the corners at a 45-degree angle. Get close to the stitch, but if you cut the knot, the corner will explode.


4. Turn: Turn the pouch through the back gap, then push the main pocket through the zipper.


Warning: Physical Damage Hazard
When pushing out the corners near the zipper tabs, use a blunt turning tool or a chopstick. Do not use scissors. Applying force to wet vinyl (warm from handling) with a sharp object will puncture the corner instantly.

Operation Checklist (Before bagging/selling)

• Zipper slides smoothly without catching on the internal lining.
• No stabilizer fuzz is trapped inside the window layers.
• Bulky batting was trimmed from seams (corners feel mostly flat).
• Window is clear (no iron burns/cloudiness).

A Quick Stabilizer Decision Tree for ITH Window Zipper Pockets

Use this logical flow to prevent shifting layers.

Scenario A: Standard Quilting Cotton (Project is fully lined)

• Decision: Use Medium Weight Tear-Away.
• Why: It provides rigidity for the zipper but removes easily to clear the window.

Scenario B: Stretchy Fabrics or Loose Weaves (Linen/Knits)

• Decision: Use Polymesh (No-Show Mesh) Cutaway.
• Why: Tear-away will distort under the pull of the zipper on stretchy fabric. You will have to carefully trim the mesh out of the window with scissors.

Scenario C: High Volume Production (10+ units)

• Decision: Use a magnetic hooping station workflow + Pre-cut Stabilizer sheets.
• Why: Eliminates variable tension. Every hoop is identical, reducing zipper alignment errors.

Troubleshooting the Scary Stuff (Symptom → Cause → Fix)

1. PVC looks cloudy or has a white fracture line

• Likely Cause: Vinyl is too thick (30ga) or old/UV damaged.
• Quick Fix: Use 20ga vinyl. Warm it slightly with a hair dryer (low heat) before turning to make it pliable.

2. Satin stitch around the window is lifting or loose

• Likely Cause: Thread tension is too low, or stabilizer was hooped too loosely.
• Quick Fix: Tighten top tension slightly (increase by 1.0). Ensure hoop makes the "drum sound" before stitching.

3. "Hoop Burn" (Shiny ring marks) on the fabric

• Likely Cause: Traditional hoop ring was tightened too much on delicate cotton.
• Prevention: Use a scrap piece of muslin between the hoop ring and your good fabric, or switch to a brother 5x7 magnetic hoop which uses flat force rather than friction pinch.

4. Machine jammed/Birds nest during zipper pass

• Likely Cause: Needle hit the zipper tape glue or teeth.
• Quick Fix: Change the needle immediately (it is likely burred). Clean the bobbin case.
• Prevention: Slow machine to 400 SPM when crossing zipper teeth.

Warning: Magnetic Field Safety
If you upgrade to magnetic hoops, be aware they use high-power N52 magnets. Keep fingers away from the clamping zone (severe pinch hazard) and keep hoops at least 6 inches away from pacemakers, credit cards, and computerized machine screens.

The Upgrade Conversation: When Better Tools Actually Change Your ROI

If you are making one pouch for a gift, patience and tape are sufficient tools.

Однако, if you are making ten pouches for an Etsy update or a craft fair, the "hidden cost" is your body and your time. The repetitive motion of hooping thick sandwiches forces many hobbyists to stop after three units due to wrist fatigue.

• Level 1 Upgrade: Better scissors (curved) and specific vinyl (20ga).
• Level 2 Upgrade: magnetic hoop for brother. This removes the physical wrestling match from hooping. You lay the fabric down, snap the magnets on, and stick it on the machine. No screws, no burns, no pain.
• Level 3 Upgrade: Production Scaling. If you find yourself limited by the single-needle color changes (stopping to swap thread 6 times per pouch), this is the natural trigger to look at SEWTECH multi-needle solutions. A multi-needle machine handles the color swaps automatically, letting you prep the next hoop while the first one runs.

For now, master the flip-and-fold technique. Once your hands understand the rhythm, the tool upgrades will be there to help you speed it up.

FAQ

• Q: How do I choose the correct clear PVC for a Sweet Pea ITH window zipper pocket to avoid a cloudy window or cracked crease?
  A: Use clear 20-gauge (about 0.5 mm) PVC and pass the hard fold test before stitching.
  • Fold the PVC sharply in half: reject vinyl that turns milky-white at the crease or shows cracking.
  • Avoid very thin vinyl that ripples and very thick vinyl that creates bulky seams that won’t turn.
  • Handle gently during turning; warm vinyl can puncture more easily with sharp tools.
  • Success check: after folding, the PVC stays mostly clear and springs back without a white fracture line.
  • If it still fails: replace the vinyl (old/UV-damaged PVC often turns cloudy no matter what you do).
• Q: How can a Brother single-needle embroidery machine user tell if tear-away stabilizer is hooped tight enough for an ITH zipper pocket to prevent shifting layers?
  A: Hoop the stabilizer drum-tight before the first placement line, because every later step depends on that foundation.
  • Tap the hooped stabilizer and listen for a deep “thump,” not a light paper rattle.
  • Re-hoop if the stabilizer can be pushed sideways easily or looks wavy in the hoop.
  • Keep tape strips pre-cut so stabilizer tension doesn’t relax while you fumble with tape mid-step.
  • Success check: the hoop feels rigid and the stabilizer surface stays flat when lightly rubbed with a fingertip.
  • If it still fails: switch stabilizer type for the fabric (for example, use polymesh cutaway on stretchy or loose weaves).
• Q: Why does the satin stitch border look slightly “gappy” on a Sweet Pea ITH PVC window zipper pocket, and should embroidery software density be increased?
  A: Do not increase satin density—the “gappy” border is intentional to prevent perforating and tearing the vinyl.
  • Stitch the file as drafted so needle penetrations are distributed instead of forming a tear line.
  • Keep the machine speed in a controlled range (about 400–600 SPM) for cleaner satin on vinyl.
  • Watch corners and pause to smooth vinyl if lifting starts.
  • Success check: the window edge looks even and secure, and the vinyl does not show a tear line along the stitch path.
  • If it still fails: check stabilizer tightness and top tension (slightly low tension can make satin look loose).
• Q: How do I prevent needle breakage on a Brother embroidery machine when stitching an ITH zipper pocket near the zipper pull?
  A: Keep the zipper pull out of the stitch zone during early steps, then move it to the exact center only right before the final perimeter stitch.
  • Park the zipper pull all the way to the far left before the zipper is first anchored.
  • Move the zipper pull to the exact center at final assembly, then tape over the pull tab so it cannot flop into the needle path.
  • Avoid running any trace/test movement unless clearance is visually confirmed with the zipper loaded.
  • Success check: the needle path clears zipper teeth and the pull by sight, and the machine finishes without a sudden “clack” or needle deflection.
  • If it still fails: stop immediately and re-check pull position; do not continue stitching if the pull can reach the needle area.
• Q: What causes a Brother embroidery machine to jam or create bird’s nests when stitching across zipper tape on an ITH zipper pocket, and what is the fastest fix?
  A: Assume the needle is burred from hitting zipper tape glue/teeth, then reset the stitch environment.
  • Change the needle immediately (a damaged needle often causes instant nesting and shredding).
  • Clean the bobbin case area before restarting.
  • Slow down when crossing zipper teeth (a safe working range here is about 400 SPM).
  • Success check: stitches form cleanly with no looping underneath and no thread shredding as the needle crosses the zipper area.
  • If it still fails: re-check that tape is not placed over the zipper teeth in the needle travel zone.
• Q: How do I stop “hoop burn” (shiny ring marks) on quilting cotton when making ITH zipper pockets on a Brother 5x7 or 6x10 hoop?
  A: Reduce clamp pressure and protect the fabric surface instead of cranking the outer ring tighter.
  • Insert a scrap layer (like muslin) between the hoop ring and the project fabric to reduce shine marks.
  • Avoid over-tightening during the repeated remove/flip/tape cycle typical of ITH zippers.
  • Consider a magnetic hoop system for flatter clamping force that reduces friction-drag on delicate cotton.
  • Success check: after un-hooping, the fabric shows minimal or no shiny ring imprint in the hooped area.
  • If it still fails: change workflow to reduce re-hooping stress (use a flat support surface/hooping station so you don’t distort fabric while taping).
• Q: What is the safe upgrade path when an ITH window zipper pocket workflow on a Brother single-needle machine is too slow or causes frequent alignment errors?
  A: Start by controlling variables (Level 1), then reduce hooping friction (Level 2), then scale color-change throughput (Level 3) if volume demands it.
  • Level 1: Standardize consumables—20-gauge PVC, correct stabilizer choice, pre-cut tape, curved/duckbill scissors, and a bobbin that is at least 50% full before the satin border.
  • Level 2: Use magnetic hoops and/or a hooping station if repeated flipping/taping causes hoop slips, hoop burn, or wrist fatigue.
  • Level 3: Move to a multi-needle setup when frequent thread color changes per pouch become the main time bottleneck.
  • Success check: the zipper stays aligned after multiple flips, the window stitches consistently, and you can complete units without restarting for shifting or fatigue.
  • If it still fails: audit the earliest geometry step (zipper placement line and centering) because small errors there compound through the whole pocket.
• Q: What magnetic hoop safety rules should be followed when using high-power N52 magnetic embroidery hoops for ITH zipper pockets?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from sensitive medical devices and magnetic media.
  • Keep fingers out of the clamping zone when snapping magnets onto the frame (pinch injuries can be severe).
  • Keep magnetic hoops at least 6 inches away from pacemakers, credit cards, and computerized machine screens.
  • Set the hoop down on a stable flat surface before engaging magnets to prevent sudden snapping.
  • Success check: the hoop closes without trapping skin and can be handled without magnets “jumping” unpredictably.
  • If it still fails: switch to a slower, two-handed closing method and reposition fabric first, then bring magnets in from above with control.
