A Cat ITH Coaster That Pops Right Out: Madeira Super Film + a No-Fray Appliqué Workflow (and How to Stop Your Hoop From Exploding)

If you have ever watched a “simple” In-The-Hoop (ITH) coaster project turn into a wrestling match involving thick film, shifting fabric, and a hoop that literally pops open mid-stitch—take a deep breath. You are not clumsy; you are just battling physics.

Creating a professional ITH coaster is 20% stitching and 80% engineering. It requires understanding what is doing the work (stabilization + controlled hoop tension) and identifying what is merely a temporary survival tactic (binder clips).

Today, we are deconstructing a specific workflow to recreate a cat-themed ITH coaster. We will transform a struggle into a repeatable system, achieving a clean satin edge, a crisp appliqué, and that satisfying snap when the finished coaster pops right out of the base film.

The “My Hoop Is Popping Open” Moment: Why This ITH Coaster Still Works (and How to Stay Safe)

The video tutorial’s biggest pain point is visceral: hooping 100-micron Madeira Super Film in a standard tubular hoop causes immediate tactile feedback. The hoop feels like it is fighting you. It feels slippery, thick, and eager to spring apart with a loud plastic snap.

The good news: You do not need to abandon the project. You do need to treat hoop security and machine clearance like a pilot’s pre-flight safety check, not an afterthought.

Two physical forces are working against you here:

1. Thickness reduces friction grip: Standard hoops rely on compression between the inner and outer rings. 100-micron film changes the “bite,” causing the inner ring to creep upward.
2. Slippery texture amplifies drift: Even if you muscle the hoop closed, the vibration of the machine (especially at speeds over 800 SPM) encourages the hoop to loosen.

This is why the host resorts to using large binder clips to force the hoop to stay closed—and why they repeatedly emphasize testing clearance.

Warning: Mechanical Safety Hazard
Binder clips, metal arms, and moving needles are a catastrophic combination if you rush. Before you press Start, you must hand-trace the design. Lower the needle manually to its lowest point and rotate the hoop through the design’s extreme corners. Verify at least 1 inch of clearance between your clips and the machine head. A clip collision can shatter a needle, throw off your machine's timing, or damage the pantograph driver.

Materials for a Stiff, Clean ITH Coaster on a Ricoma Multi-Needle Machine (No Guesswork)

To achieve a result that feels like a finished product rather than a craft project, we need specific materials. Here is the verified list and the sensory “why” behind each:

• Appliqué Fabric: Woven cotton (Quilting Cotton).
  • Why: It presses flat and has a predictable grain.
• RipStitch #20 Soft Tear-Away:
  • Why: Used strictly for the template. It tears cleanly without leaving fuzz.
• Thermoseal Film (Heat-Activated Sealant):
  • Why: Fused to the back of the cotton. It turns fabric into a paper-like material that will not fray under the satin stitch.
• AllStitch CO30 Cut-Away Backing (3.0 oz):
  • Why: The “skeleton” of the coaster. We use two layers for stiffness.
• Odif 505 Temporary Spray Adhesive:
  • Why: Keeps the sandwich from shifting effectively.
• Madeira Super Film (100 micron / ~4mil):
  • Why: The base carrier. It is strong enough to hold stitches but perforated enough to release the coaster later.
• Needles: 75/11 Sharp (Titanium or Chrome recommended).
  • Why: Ballpoint needles may struggle to pierce the thick film cleanly.
• Standard Tubular Hoop + Heavy Duty Binder Clips:
  • Why: The workaround for the film's thickness.


The Professional's Perspective: One sentence that saves a lot of frustration: If you plan to make fifty of these for a craft fair, the bottleneck is not stitching—it is the physical pain of hooping. This is where magnetic embroidery hoops become a practical upgrade, not a luxury. Unlike standard hoops that rely on friction (which fails on thick film), magnetic hoops use vertical clamping force to hold the stack instantly without "popping," eliminating the need for dangerous binder clips entirely.

The “Hidden” Prep Pros Do First: Templates, Clean Cuts, and a Film Stack That Won’t Bulge

This coaster looks clean because the prep is disciplined. The video quietly demonstrates three pro habits that prevent 80% of ITH coaster failures:

1. Use the machine to generate the template (do not trust a ruler).
2. Fuse before you cut (seal the fibers first).
3. Create a "Safety Margin" for density (keep the inner bulk away from the satin edge).


Prep Checklist: The "Zero-Friction" Setup

• Needle Check: Install a fresh 75/11 Sharp needle. Burred needles will shred Super Film.
• Fabric Plan: Cut two squares of appliqué fabric (Top and Bottom) at least 1 inch larger than the design.
• Iron Setup: Preheat iron to Medium (Wool setting) without steam.
• Stabilizer "Sandwich": Cut two circles of CO30 Cut-Away, making them ~3mm smaller than your final coaster size.
• Tool Check: Locate Curved Appliqué Scissors and a sharp craft knife.
• Safety Check: If using binder clips, place them on the hoop now and move the arm manually to verify they don't hit the machine body.

Stitch a Placement Template on RipStitch Tear-Away Stabilizer (So Your Circles Actually Match the File)

The host hoops RipStitch tear-away and runs only the placement stitch (usually the first color stop, often shown as an orange circle). Then, they remove it and cut directly on the stitched line to create a paper-like template.

Action Step (Exactly as shown):

1. Hoop one layer of RipStitch tear-away in a standard hoop.
2. Run the Placement Line color stop only.
3. Remove from the hoop.
4. The Sensory Cut: Use your scissors to cut directly on top of the thread. You should feel the scissors slicing the thread. When executed correctly, the excess thread "pops" off, leaving a perfectly smooth paper edge.

Expert Reality: Why not just trace a mug? Because digital designs distort slightly based on pull compensation. The placement stitch is the design’s "truth." By using the machine to make the template, you guarantee your cut fabric will match the programmed tack-down line perfectly.

Fuse Thermoseal Film to Cotton Appliqué Fabric (The No-Fray Trick That Makes Satin Edges Look Expensive)

This is the quality-maker. If you skip this, your satin edges will look "hairy" with loose threads poking through. We use Thermoseal film with the rubber/adhesive side down.

Action Step (The Fusing Sequence):

1. Place your cotton fabric face down on the ironing board.
2. Lay the Thermoseal film (glittery/rough side is usually the adhesive side) face down onto the fabric.
3. Crucial: Use a Teflon press sheet or parchment paper.
4. The Press: Apply firm downward pressure (do not slide the iron) for 15 to 20 seconds. You want to melt the adhesive into the cotton fibers.


Once cooled, use your paper template to trace the circle onto the backing side and cut it out.

Pro Tip: Cut just inside your pencil line. If you leave the pencil line, you might see it on the finished product, or worse, your fabric will be slightly too large and stick out from under the satin stitch.

If you are building a repeatable workflow for hooping for embroidery machine projects like coasters or patches, fusing is non-negotiable. It transforms floppy cotton into a stable material that behaves like cardstock.

Build the CO30 Cutaway “Sandwich” for Firmness (Without Making the Satin Border Bulky)

To give the coaster a premium feel, the host adds firmness by stacking two circles of CO30 cutaway backing in the center.

The Expert Nuance: Cut these backing circles slightly smaller than your template—about 3mm to 5mm smaller.

The "Why" (Physics of Stitching): Satin stitches hate climbing over cliffs. If your heavy cutaway extends all the way to the edge, your satin stitch has to penetrate four layers of stabilizer plus fabric. This causes thread breaks and lumpy edges. By cutting the inner core smaller, the satin stitch only has to wrap around the fabric and the base film, creating a smooth, tapered edge.

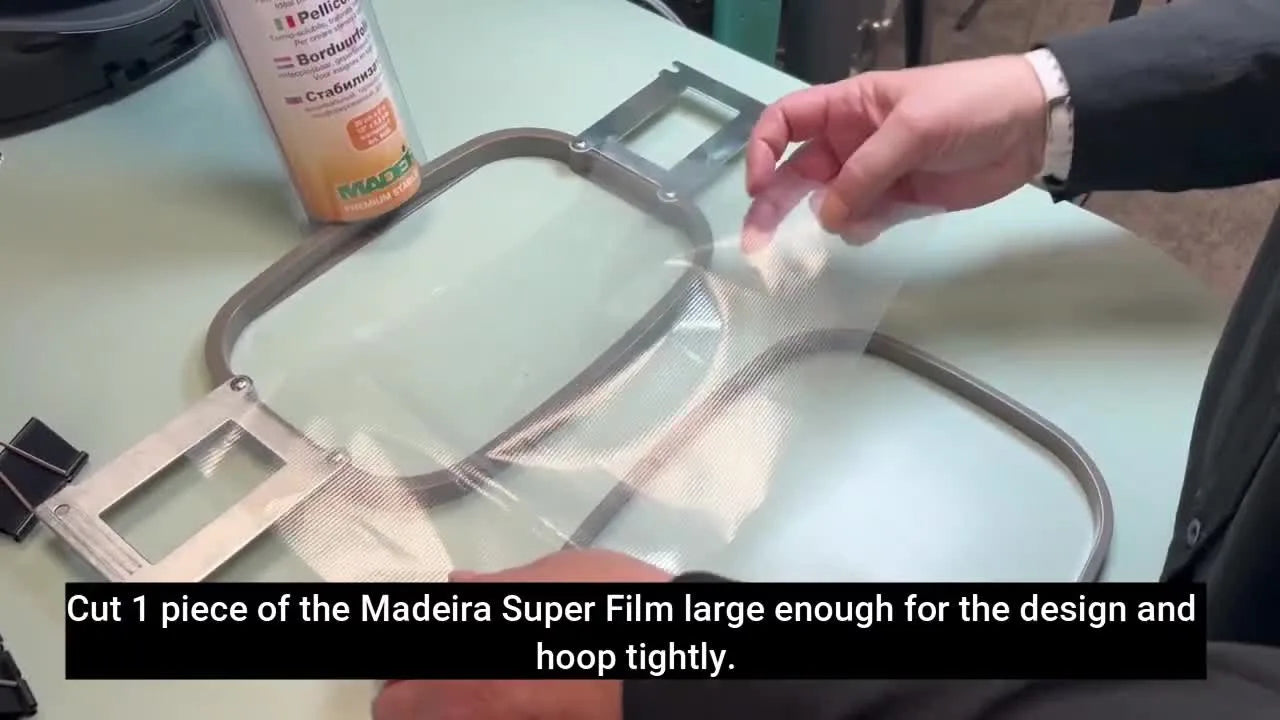

Hoop 100-Micron Madeira Super Film Without Losing Your Mind (Binder Clips, Clearance, and a Better Long-Term Option)

The video uses Madeira Super Film (100 micron) as the base. It is essentially a heavy-duty plastic sheet.

The Workaround Method (Standard Hoop):

1. Lay the Super Film over the outer ring.
2. Press the inner ring in. You will likely feel it slip.
3. Tighten the screw as much as your fingers allow.
4. The Hack: Immediately clamp the perimeter with large binder clips.
5. Sensory Check: Tap the film. It should sound like a loose drum. It won't be tight like fabric, but it shouldn't ripple when you touch it.


Clearance Test: Mount the hoop. Before selecting the design, move the pantograph (the arm) to the far left, right, top, and bottom. Ensure the metal clips do not scrape against the machine head or the needle plate.

Warning: Magnet Safety & Medical Devices
If you choose to upgrade to a magnetic embroidery hoop to solve this slippage issue, be aware: these magnets are industrial strength (often holding 10-20lbs of force). Pinch Hazard: Keep fingers clear when snapping them shut. Medical Warning: Keep strong magnets at least 6 inches away from pacemakers, ICDs, and insulin pumps, as the magnetic field can interfere with medical electronics.

The Commercial Upgrade Path: Binder clips are a "garage phase" solution. They are risky and slow. If you are running a Ricoma or Tajima style machine, magnetic hoops for embroidery machines serve as the standard engineering fix for standardizing pressure on thick materials. They clamp the entire perimeter instantly, saving you roughly 2 minutes per hoop-up.

Run the Placement Stitch, Stick the Top Fabric, and Stitch the Cat Design (Keep the Hoop Closed the Whole Time)

Now we enter the production phase.

Action Steps:

1. Reset: Ensure your machine is at Color Stop 1 (Placement).
2. Stitch: Run the placement circle on the naked Super Film.
3. Spray & Stick: Lightly mist the back of your Top fabric circle with Odif 505.
4. Align: Place the fabric inside the stitched circle. Press firmly.
5. Tack Down: Run the next color stop (Tack Down). Watch your fingers!
6. Stitch Design: Let the machine embroider the cat face.


Speed Recommendation: For ITH coasters with dense satin edges, slow down.

• Expert Speed: 900+ SPM.
• Beginner Sweet Spot: 600 - 700 SPM. Slowing down reduces the vibration that causes the hoop to pop open.

Setup Checklist (Pre-Flight)

• Design reset to Start.
• Bobbin check: Is there enough bobbin thread for a satin border? Changing bobbins mid-border leaves a visible scar.
• Clips verified for clearance one last time.
• Adhesive spray is tacky, not wet.

If you struggle with alignment, using a hoopmaster hooping station logic—marking crosshairs on your stabilizer—can help, though for this specific "floating" technique, visual alignment inside the stitched ring is usually sufficient.

Flip, Stack the Backing Sandwich, Align the Bottom Fabric, Then Let the Satin Stitch Do Its Job

This is the most critical manual step. The host pauses the machine and flips the hoop over.

The "Floating" Stack Sequence:

1. Remove the hoop from the machine, but NEVER un-hoop the film.
2. Place the hoop face down on a clean table. Use a prop (like a bobbin box) to support the rim so you aren't pushing on the film.
3. Insert the Core: Place your two smaller CO30 Cut-Away circles in the center of the design on the back side.
4. Spray & Cap: Spray the back of your Bottom fabric circle. Place it over the Cut-Away stack, aligning it with the placement stitching you can see through the film.


Sensory Check: Run your finger around the edge. You should feel the "bump" where the inner stabilizer ends, leaving a flat margin for the satin stitch.

Action: Carefully flip the hoop back over and re-attach to the machine. Run the final Tack Down and Satin Border.

Finish the Outer Satin Stitch, Pop the Coaster Out, and Press It Like a Pro (No Melted Thread)

The machine will run the final tack down, confirming the sandwich is secure, and then execute the dense satin border.

The Release: Once finished, remove the binder clips and loosen the screw. Because the Super Film is perforated by the needle thousands of times, the coaster should separate easily.

• Sound: You will hear a zipper-like tearing sound.
• Action: Gently pop the coaster out. Use tweezers to pick off any stray bits of plastic film from the satin edge.


The Final Press: The host mentions a lighter technique for fuzz, but we recommend the iron.

1. Set iron to Medium.
2. Use a Press Cloth: Polyester thread melts. Never touch the iron directly to the thread.
3. Press firmly to flatten the satin stitches and melt away any remaining Thermoseal capability.

Operation Checklist (Quality Control)

• Edge Check: Is the satin border smooth, or is raw fabric poking out ( whiskers)?
• Centering: Are the front and back circles aligned?
• Tactile Check: Does the coaster feel stiff (good) or floppy (needs more stabilizer)?
• Thread Check: Are there loops on the back? (Indicates tension issues).

Quick Decision Tree: Which Stabilizer Stack Should You Use for an ITH Coaster?

Use this logic flow to customize your coaster based on desired "hand feel."

START: What is your priority?

1. "I want the cleanest possible release."
   • Base: Madeira Super Film (100 micron).
   • Tool: If the hoop slips, upgrade to magnetic embroidery hoops.
2. "I want a rigid, heavy coaster."
   • Core: Add 3 layers of CO30 Cut-Away in the center sandwich.
   • Fabric: Use canvas/duck cloth instead of cotton.
3. "My satin edges look messy/hairy."
   • Prep: You likely skipped the Thermoseal fuse. Go back and fuse the fabric.
   • Fix: Ensure your inner stabilizer core is 3mm smaller than the outer edge.
4. "My hoop keeps popping open."
   • Immediate Fix: More binder clips + Slow machine to 500 SPM.
   • Real Fix: Switch to a magnetic frame system.

Troubleshooting the Three Failures That Ruin ITH Coasters (Symptoms → Cause → Quick Fix)

1. Symptom: "Hoop Burn" or Deformation of the Film

• Likely Cause: Friction hooping stretched the film unevenly.
• Quick Fix: Use a heat gun (gently) to relax the film before stitching.
• Prevention: Use a clamping system designed for thick stacks, like magnetic hoops for ricoma em 1010, which eliminates the shear force of standard hooping.

2. Symptom: The "White Line" (Bobbin Thread Showing on Top)

• Likely Cause: The coaster is too thick, causing top tension to drag.
• Quick Fix: Lower your Top Tension slightly (loosen the knob).
• Prevention: Use a thinner bobbin thread (60wt) and ensure your machine is in "Thick Fabric" mode if available.

3. Symptom: Needle Breakage on Borders

• Likely Cause: Needle deflection caused by hitting high-density areas or glue buildup.
• Quick Fix: Change to a fresh #14/90 Titanium needle for the border.
• Prevention: Avoid spraying adhesive near the satin edge zone.

The Real Productivity Upgrade: When to Stop “DIY Hooping” and Build a Repeatable Workflow

If you are making one coaster for your coffee table, the binder clip method is a clever hack that works.

However, if you are making 20 sets of coasters for a client order, the math changes:

• Every minute spent fighting a plastic hoop is lost revenue.
• Every time a binder clip hits the machine arm, you risk a $200 repair.
• Every "pop" of the hoop results in a ruined garment or coaster.

This is where you must upgrade your thinking from "Possible" to "Profitable." Tooling is a workflow decision. By adopting magnetic hooping station alignments—where you use a jig to pre-align your fabrics—and pairing them with Magnetic Hoops, you convert a high-stress struggle into a rhythmic manufacturing process.

For those scaling up, a multi-needle machine like a SEWTECH platform, combined with correct magnetic hooping, creates the perfect environment for ITH projects: high torque for thick layers, consistent tension, and zero hoop-slippage anxiety.

Final Note

Follow the sequence: Fuse -> Cut -> Sandwich -> Clamp. If you keep your cuts clean, your core centered, and your hoop mechanically secure, this coaster project will transform from a wrestling match into one of the most satisfying items in your portfolio. Happy stitching.

FAQ

• Q: How do I hoop 100-micron Madeira Super Film in a standard tubular hoop without the hoop popping open on a Ricoma multi-needle embroidery machine?
  A: Use maximum screw tension plus perimeter binder clips, then do a full clearance test before stitching—this is common with thick, slippery film.
  • Tighten: Press the inner ring in, then tighten the hoop screw as much as fingers allow.
  • Clamp: Add large binder clips evenly around the hoop immediately after tightening.
  • Test: Hand-trace the design path by lowering the needle manually and moving the hoop to extreme corners.
  • Success check: Tap the film— it should sound like a loose drum and show no ripples when touched.
  • If it still fails: Slow the machine to 600–700 SPM (or even 500 SPM for stability) and consider switching to a magnetic clamping hoop to eliminate slip and clip risk.
• Q: How do I safely use binder clips on a tubular hoop for ITH coaster embroidery without hitting the needle or machine head?
  A: Treat binder clips like a mechanical hazard and verify at least 1 inch of clearance before pressing Start.
  • Place: Install all binder clips on the hoop before mounting the hoop to the machine.
  • Hand-check: Lower the needle to the lowest point manually and rotate/move the hoop through the design’s far-left, far-right, top, and bottom positions.
  • Confirm: Ensure the clip arms never approach the head/needle area and do not scrape the machine body.
  • Success check: The hoop travels the full design area with no contact sounds, no scraping, and no “near-miss” moments.
  • If it still fails: Reposition clips farther from travel zones or stop using clips and move to a clamping-style hooping method.
• Q: How do I fuse Thermoseal film to quilting cotton for ITH coaster appliqué so satin stitch edges do not look hairy?
  A: Fuse before cutting, using firm pressing (not sliding) so the cotton behaves like stable cardstock under satin stitch.
  • Set: Preheat the iron to Medium (Wool setting) with no steam.
  • Press: Place fabric face down, Thermoseal adhesive side down onto the fabric, and cover with a Teflon sheet or parchment.
  • Hold: Press firmly for 15–20 seconds without moving the iron; let it cool before tracing and cutting.
  • Success check: The fused fabric feels paper-like and the cut edge looks sealed rather than fuzzy.
  • If it still fails: Re-check film orientation (adhesive side down) and avoid leaving visible pencil lines by cutting just inside the trace.
• Q: What is the correct CO30 cutaway “sandwich” size for a stiff ITH coaster without making the satin border bulky or lumpy?
  A: Stack two CO30 cutaway circles as the core, but cut them about 3–5 mm smaller than the final coaster edge to keep the satin border smooth.
  • Cut: Make two CO30 circles slightly smaller than the template/final coaster size.
  • Place: Insert the cutaway stack centered on the back side after flipping the hooped film—never un-hoop the film.
  • Keep margin: Leave a flat outer margin so the satin stitch wraps cleanly without climbing a “cliff.”
  • Success check: Run a finger around the edge—feel a central “bump” ending before the border, with a flat ring where the satin stitch will land.
  • If it still fails: Reduce core size a little more (still centered) and avoid adding heavy stabilizer all the way to the edge.
• Q: How can I tell if Odif 505 temporary spray adhesive is applied correctly for floating fabric in an ITH coaster so the fabric does not shift?
  A: Use a light mist and apply fabric when the adhesive is tacky (not wet) so it grabs without soaking or sliding.
  • Mist: Spray lightly on the back of the fabric circle (top or bottom piece), not heavily.
  • Wait: Let it turn tacky before placing it inside the stitched placement ring.
  • Press: Press firmly to seat the fabric flat before the tack-down stitch runs.
  • Success check: The fabric stays put when you lightly rub it; it does not skate or bubble inside the placement circle.
  • If it still fails: Use less spray near the border zone (glue buildup can cause needle issues) and press more firmly before stitching.
• Q: What needle and speed settings are a safe starting point for stitching dense satin borders on a Ricoma multi-needle ITH coaster using 100-micron film?
  A: Start with a fresh 75/11 Sharp needle and slow the machine to 600–700 SPM to reduce vibration and border failures.
  • Install: Replace the needle with a new 75/11 Sharp (titanium or chrome is a safe starting point); dull/burred needles can shred film.
  • Slow: Run 600–700 SPM if you are new; higher speed increases vibration that can loosen thick-film hooping.
  • Prepare: Confirm there is enough bobbin thread before starting the satin border to avoid a visible restart line.
  • Success check: The border sews without film shredding, without repeated “snap” hoop loosening, and without skipped/broken stitches.
  • If it still fails: For border needle breaks, switch to a fresh #14/90 titanium needle specifically for the border and keep adhesive away from the satin edge area.
• Q: What causes bobbin thread showing on top (“white line”) on a thick ITH coaster satin border, and how do I fix the top tension?
  A: The coaster stack can be too thick and pull bobbin thread upward—slightly lower the top tension as the quick fix.
  • Adjust: Loosen the top tension slightly and test again (small changes).
  • Confirm: Use enough stabilizer for stiffness, but keep the core smaller than the border so the satin stitch is not stitching over a thick wall.
  • Consider: Use thinner bobbin thread (60wt) and use “Thick Fabric” mode if the machine provides it.
  • Success check: The top satin column looks solid with no bobbin “white line” peeking through on the surface.
  • If it still fails: Re-check stack thickness at the border (core too large) and verify basic tension with a simple satin test before rerunning the coaster.
• Q: When should I upgrade from binder clips to a magnetic embroidery hoop for repeatable ITH coaster production on a Ricoma or Tajima-style multi-needle machine?
  A: Upgrade when hooping time, slip risk, or clip collisions start costing rework—magnetic clamping is the workflow fix, not a luxury.
  • Level 1 (Technique): Slow to 600–700 SPM, maximize hoop screw tension, and perform the clearance test every run.
  • Level 2 (Tool): Move to a magnetic clamping hoop to hold thick film stacks without “popping” and to eliminate binder clip hazards.
  • Level 3 (Capacity): If you are producing batches (for orders/fairs), consider a production-focused multi-needle setup for consistent tension and less downtime.
  • Success check: Hoop-up becomes fast and repeatable, with no hoop slip and no clip-related near-misses.
  • If it still fails: Review magnet pinch safety and keep strong magnets away from pacemakers/ICDs/insulin pumps; if alignment remains inconsistent, adopt a jig-style alignment routine before stitching.
