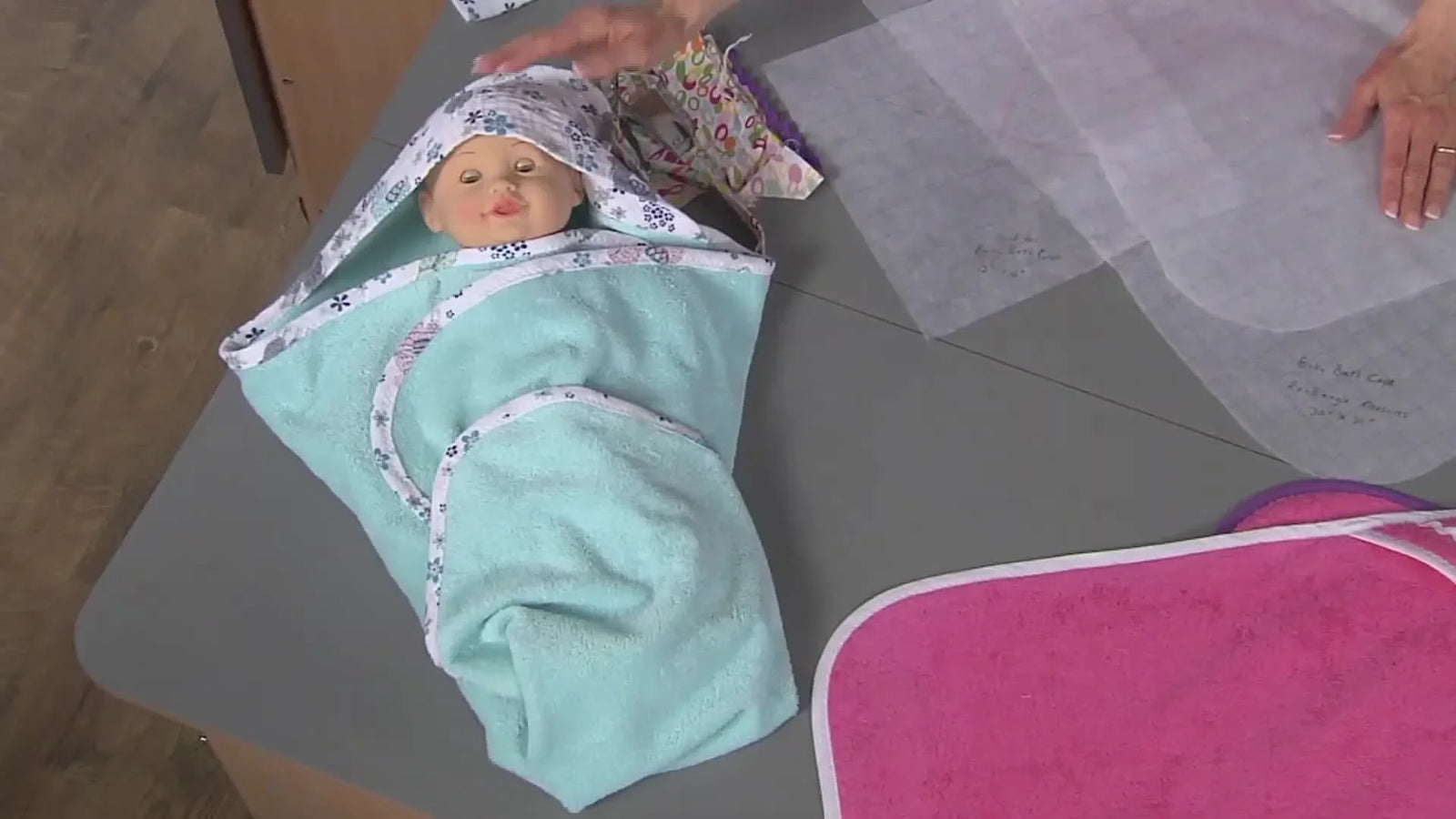

A Baby Bath Cape That Looks Boutique (Not Homemade): Bias Binding, Walking Foot Control, and Terry-Cloth Embroidery That Won’t Sink

If you’ve ever tried to sew terry cloth and thought, “Why is everything shifting, stretching, and getting bulky at the worst possible moment?”—you’re not alone. Terry is plush, grabby, and thick; double gauze is soft, airy, and essentially behaves like a fluid. Combining them creates a texture conflict that defeats many beginners.

The good news: this baby bath cape is one of those projects that looks high-end when you respect the fabric physics. Use the right “forgiveness” techniques, and you move from "homemade" to "boutique."

Joanne Banko’s method is smart because it’s built around three pillars of manufacturing engineering: repeatability (a stored pattern), low bulk (diagonal bias joins), and mechanical control (walking foot + zigzag). Then she finishes with the embroidery trick that matters most on towels: a structure that flattens the loops before the aesthetic stitches go down.

Start with the right materials for terry cloth + double gauze (so the cape doesn’t fight you)

In my twenty years of teaching embroidery and sewing, I have seen more projects fail at the cutting table than at the machine. Terry cloth creates a specific problem known as "bulk stacking"—where seams become so thick the presser foot cannot climb them.

Fabrics and Consumables (The "Must-Haves")

• Terry cloth: Choose 100% cotton with a medium loop height.
• Double gauze: Pre-wash this! It shrinks differently than terry.
• Pattern tracing cloth: Essential for creating a reusable template.
• Spray starch: Crucial. Gauze ripples like water; starch freezes it temporarily so you can cut straight lines.
• Water-soluble topper: Not optional. This acts as a suspension bridge for your thread.
• Embroidery thread: 40wt Polyester is standard (resists bleaching/washing better than Rayon).
• Hidden Consumable: Size 90/14 Topstitch Needle. Standard 75/11 needles often deflect on thick terry loops, causing skipped stitches.

Tools shown in the video

• Scissors and clear ruler
• Fabric Marker (Air-erase or Chalk)
• Luncheon plate (8.5" diameter is the "Sweet Spot" for gentler curves)
• Clips (Pins get lost in terry loops—clips are safer)
• Brother sewing/embroidery machine with a Walking Foot (Closed-toe)
• Embroidery Hooping Solution: Standard plastic vs. Magnetic (see below).
• Embroidery software with a “Nap Control” or “Knockdown Stitch” feature.

The "Hoop Burn" Reality Check: Terry cloth is thick. Standard plastic hoops rely on friction and "wedging" an inner ring into an outer ring. To hold a towel securely, you often have to tighten the screw aggressively. This causes "Hoop Burn"—a permanent crushing of the loops that leaves a white ring around your design, ruining the item.

This is the specific scenario where professionals switch to an embroidery magnetic hoop. Because magnetic hoops use vertical clamping force rather than horizontal friction, they hold the thickness without crushing the fibers. If you intend to sell these capes, preventing hoop burn is a quality control requirement, not just a luxury.

Warning: Needle Safety. Terry cloth is thick and springy. When guiding fabric around curves, keep your fingers at least 2 inches away from the needle bar. Never “pull” fabric from behind the presser foot to help it along—this bends the needle, which can strike the throat plate and shatter, sending metal shrapnel towards your eyes.

Draft the 30" x 30" baby cape pattern with a luncheon plate (clean curves make binding easy)

Joanne starts by making a pattern she can store and reuse. In a production environment, we never measure the final fabric; we trace a template. It reduces cognitive load and error.

Analysis of the Micro-Steps:

1. Cut the Template: Cut or mark a 30" x 30" square on pattern tracing cloth.
2. The "Plate Trick": Place an 8.5" luncheon plate at the corner.
3. The Trace: Trace the curve.

Why the “Gentle Curve” is critical physics: Binding strips are bias-cut, meaning they stretch. However, double gauze is fragile. If you use a tight radius (like a coffee mug), you force the binding to compress too aggressively on the inner edge, creating wrinkles. A "gentle curve" (luncheon plate radius) keeps the binding flat and reduces the skill required to sew it cleanly.

Build the 12" hood pattern without wasting time (and understand the “shorter fabric” confusion)

For the hood, efficiency is key. While custom cutting is fine for one-offs, batching is better.

The Process:

1. Draw a 12" x 12" square on tracing paper.
2. Cut diagonally to create two identical right-angled triangles.
3. Store the second triangle; that is your profit margin for the next cape (zero waste).

Expert Clarification (The "Visual Glitch"): A viewer noted that during the binding demo, the cotton fabric looked “shorter” than the terry. Joanne clarified this was a process sample. In teaching (and production), we often use "step-outs"—small mock-ups of a specific technique. Do not intentionally cut your hood shorter than the body; they should align perfectly before binding.

Make continuous bias binding from double gauze (diagonal joins prevent the “lump”)

This is the differentiator. Store-bought binding is stiff; homemade double gauze binding is soft against a baby's skin. However, gauze is bulky when folded.

The Step-by-Step for Low-Bulk Binding:

1. Starch and Press: Iron the double gauze with spray starch. Sensory Check: It should feel slightly crisp, like paper, not floppy like a tissue.
2. The Cut: Cut 3" wide strips on the 45-degree angle (bias).
3. The Join: Square the ends. Place two strips right-sides together at a 90-degree angle (forming an 'L').
4. The Stitch: Sew a diagonal line from corner to corner.
5. The Finish: Trim excess to 1/4" and press the seam open.

The Logic of Diagonal Joins: Imagine a straight seam: you have 4 layers of fabric stacked in one 3-inch vertical line. That is a "speed bump" for your sewing machine. A diagonal seam distributes that bulk across 4 inches of length. The machine never hits a "wall" of fabric, resulting in smooth feeding and no skipped stitches.

Prep Checklist (Do this *before* you touch the machine)

• Plan: Pattern traced (30" sq body; 12" tri hood).
• Stabilize Fabric: Double gauze starched and pressed flat.
• Cutting: Bias strips cut exactly 3" wide (precision matters here).
• Join Inspection: All bias seams are diagonal and pressed open (run your finger over them; they should feel flat).
• Hardware: Install a fresh 90/14 Needle (Terry dulls needles fast).
• Safety: Verify the workspace is clear of loose blades or pins.

Install the walking foot and choose zigzag on a Brother sewing machine (this is your “control system”)

Joanne moves to the machine with two crucial choices: a Walking Foot and a Zigzag Stitch.

If you are sewing on a generic or a specific brother sewing machine, you must understand why the walking foot is non-negotiable here. A standard presser foot slides along the top fabric while the feed dogs push the bottom fabric. With plush terry cloth, the top layer (binding) will drag, and by the end of a 30-inch seam, your binding will be stretched and misaligned by over an inch.

Mechanical Action: A walking foot has its own set of "teeth" on the top. It grabs the binding and moves it in perfect synchronization with the terry cloth below.

• Sensory Anchor: Listen to the machine. A walking foot makes a rhythmic mechanical "clack-thump" sound. This is the sound of traction control working.

Joanne stitches the first pass of binding (right sides together) at a 3/8" seam allowance.

Sew the binding with the “forgiveness stitch” (zigzag catches the back when your wrap isn’t perfect)

Binding is usually finished by "stitching in the ditch" or hand sewing. Neither works well on thick towels. "Stitching in the ditch" often misses the back layer because the terry bulk pushes the binding away.

The "Forgiveness" Method:

1. Wrap: Fold the binding over the raw edge to the back.
2. Clip: Use Wonder Clips every 2-3 inches. Do not pull tight; just wrap snugly.
3. Select Stitch: Zigzag.
   • Beginner Sweet Spot Values: Width 3.5mm / Length 2.5mm.
   • Expert Value: Width 4.0mm / Length 3.0mm (for faster coverage).
4. Stitch: Align the center of the presser foot with the raw edge of the binding.

Why Zigzag? It casts a wide net. Even if the binding on the back wanders slightly due to the thickness of the towel, the left swing or the right swing of the zigzag is statistically guaranteed to catch it. It turns a high-precision task into a low-stress one.

Setup Checklist (Pre-Flight for Binding)

• Foot: Walking foot (Closed-toe preferred so toes don’t snag loops) installed securely.
• Stitch: Zigzag selected (Width ~3.5mm, Length ~2.5mm).
• Tension: Standard (usually 4.0). Test on a scrap first.
• Tactile Check: binding is wrapped snugly but not stretching the gauze.
• Visual Check: Bobbin thread is matching the terry cloth color (white?), Top thread matches binding.

Keep terry cloth from “eating” your embroidery: water-soluble topper + Nap Control base layer

Terry cloth is a hostile environment for flat stitches. The pile (loops) will poke through satin stitches, making text look ragged or "eaten."

The Solution Layer by Layer:

1. Physical Barrier (The Topper): Place a layer of water-soluble film (like Solvy) on TOP of the terry.
   • Purpose: Holds the loops down during the stitching process.
2. Digital Barrier (The Knockdown/Nap Control):
   • Select your design in the software.
   • Apply Nap Control (or Knockdown Stitch).
   • The Data: Set Offset to 2.0 mm.
   • Why 2.0 mm? You need the flattening stitches to extend 2mm beyond your design. If you make it flush (0mm), loops on the edge will lean in and obscure the outline.

This base layer stitches first—usually a lightweight grid or spiral. It physically mats down the loops, creating a flat "foundation" for your text or cute imagery to sit on effectively. If you are using a brother embroidery machine, this combination is the industry gold standard for readable text on towels.

Comment-based Pro Tip (Mac users + Brother software)

A viewer asked about Mac compatibility. Joanne uses Brother BES4 Dream Edition (Windows native) on her Mac via Parallels.

• Tech Note: Many embroidery software suites are Windows-centric. If you run a Mac, you don't necessarily need a new computer, but you do need a virtualization environment like Parallels or Bootcamp.




Hooping terry cloth without distortion: what “good tension” actually feels like

Hooping is where the battle is won or lost.

The "Drum Tight" Myth: On standard cotton, we teach "tight as a drum." On terry cloth, this is dangerous. If you stretch terry tight, you open the loops. When you un-hoop later, the fabric shrinks back, and your embroidery buckles (puckers).

The Sensory Goal:

• Touch: The fabric should feel firm, like a trampoline, not rigid like a drumskin.
• Sight: The grid lines of the terry weave must remain straight, not bowed.

The Magnetic Evolution: If you find yourself constantly wrestling with the screw, or if you see "white rings" (hoop burn) where the hoop crushed the nap, this is a hardware limitation. Upgrading to magnetic embroidery hoops solves this physics problem.

• Mechanism: Magnets clamp straight down. They don't drag fabric sideways.
• Benefit: You can hoop a thick towel in 5 seconds with zero hoop burn and perfect tension. For anyone doing more than three towels a year, the reduction in frustration is worth the investment.

Warning: Magnetic Safety. Powerful embroidery magnets (Neodymium) are not fridge magnets. They can snap together with over 30lbs of force. Pinch Hazard: Keep fingers clear of the mating surfaces. Medical Safety: Keep magnets at least 6 inches away from pacemakers or insulin pumps.

Operation Checklist (The Embroidery Phase)

• Hooping: Fabric is neutral (not stretched), secure, and topper is floating on top.
• Position: Checked needle clearance (foot won't hit the hoop edges).
• Sequence: Ensure the machine is set to stitch the Nap Control (Base) layer FIRST.
• Observation: Watch the first 100 stitches.
  • Pass: Base layer lays flat.
  • Fail: Feet are catching on topper or fabric is shifting. Stop immediately.
• Finish: Tear away excess topper; use a damp Q-tip or water spray to dissolve the tiny remnants in the text crevices.

A stabilizer decision tree for terry cloth embroidery (so you don’t guess and waste towels)

Don't guess. Use this logic flow to guarantee results.

Decision Tree: Terry Cloth Stabilizer Strategy

1. Is the design dense (Heavy fill/Satin)?
   • YES: Use Cutaway (or heavy Tearaway) on the bottom + Topper on top.
   • NO: Go to #2.
2. Is the design light/open (Redwork/Running stitch)?
   • YES: Use Tearaway on bottom + Topper on top. (Topper prevents loops from poking through lines).
   • NO: Go to #3.
3. Is the towel stretchy (Knitted Terry) or Stable (Woven Terry)?
   • STRETCHY: MUST use Cutaway mesh on bottom to prevent distortion.
   • STABLE: Tearaway is acceptable.
4. Are you experiencing Hoop Burn?
   • YES: Switch to hooping for embroidery machine methods involving floating or magnetic frames.

Troubleshooting the exact problems Joanne calls out (and what I’d check first)

When it’s time to upgrade: from one baby gift to a repeatable production workflow

This cape is a perfect "repertoire" project. Once you have the pattern stored and the bias technique mastered, you can produce these in batches.

However, if you start getting orders for 10, 20, or 50 capes, your tools will become the bottleneck, not your skill.

1. Level 1: The "Burn" Fix.
   If hooping terry leaves marks or hurts your wrists, upgrade to embroidery hoops for brother machines that rely on magnets. This is an ergonomic and quality-control upgrade.
2. Level 2: The Alignment Fix.
   If you are spending 5 minutes measuring each towel to get the name straight, you need a machine embroidery hooping station. This ensures every name is in the exact same spot on every cape, reducing setup time to under 60 seconds.
3. Level 3: The Volume Fix.
   If you are waiting 30 minutes for a single needle machine to change colors on a complex design, you are losing money. Moving to a multi-needle platform, like the brother pr680w or a high-efficiency SEWTECH multi-needle system, allows you to set up the next cape while the current one is stitching. The text rules stay the same (Topper + Nap Control), but your throughput triples.

By respecting the "heavy pile" physics of terry cloth and using the right overlays, you turn a frustrating struggle into a consistently profitable, soft, and durable product. Happy stitching!

FAQ

• Q: Why does a standard plastic embroidery hoop cause hoop burn on terry cloth towels, and how do magnetic embroidery hoops prevent the white ring?
  A: Hoop burn happens when a plastic hoop must be over-tightened to grip thick terry, crushing the loops; magnetic hoops clamp straight down to hold thickness without grinding fibers sideways.
  • Loosen the “drum-tight” habit and hoop terry with neutral tension (firm like a trampoline, not rigid).
  • Watch for the warning sign: a white or crushed ring after unhooping, especially near the hoop edge.
  • Switch to a magnetic embroidery hoop when thick towels require aggressive screw pressure to stop shifting.
  • Success check: After unhooping, terry loops spring back evenly with no pale ring and the design area stays flat.
  • If it still fails: Float the towel with proper stabilizer + topper and reduce hoop pressure; confirm the hoop size is not forcing the design too close to the clamp area.
• Q: What needle should be used to sew terry cloth with double gauze binding on a Brother sewing machine to reduce skipped stitches?
  A: Use a fresh Size 90/14 Topstitch needle because terry loops can deflect smaller needles and cause skipped stitches.
  • Install a new 90/14 Topstitch needle before sewing the binding (terry dulls needles fast).
  • Test-stitch on a terry + gauze scrap before committing to the cape edge.
  • Replace the needle immediately if the stitch line starts sounding punchy or uneven on thick seams.
  • Success check: Zigzag and straight seams form consistently with no intermittent gaps or “missing” penetrations.
  • If it still fails: Re-check bulk points at binding joins (pressed open diagonal joins feed better) and slow down over seam transitions.
• Q: How do you sew double gauze bias binding onto terry cloth without the layers shifting when using a Brother sewing machine?
  A: Install a walking foot and sew the first pass at a 3/8" seam allowance so the top binding and bottom terry feed in sync.
  • Attach a closed-toe walking foot to increase traction control on plush terry.
  • Sew binding right-sides together to the terry at 3/8", letting the walking foot do the feeding (do not tug from behind).
  • Clip instead of pinning so clips don’t disappear into terry loops.
  • Success check: At the end of a long edge, the binding length matches the terry edge with no growing mismatch or stretched gauze.
  • If it still fails: Starch and press the double gauze first so it stops behaving “fluid,” then re-test on a scrap.
• Q: What zigzag settings help catch the back side when finishing binding on thick terry cloth towels on a Brother sewing machine?
  A: Use zigzag as a “forgiveness stitch,” starting at Width 3.5 mm / Length 2.5 mm so the swings reliably catch the wrapped binding on the back.
  • Wrap binding to the back snugly (do not stretch gauze) and clip every 2–3 inches.
  • Align the center of the presser foot with the raw edge of the binding while stitching.
  • Match bobbin thread color to the terry so any zigzag swing that shows blends in.
  • Success check: Flip to the back and confirm the zigzag consistently bites into the folded binding with no long “missed” sections.
  • If it still fails: Re-wrap tighter (still not stretched) and increase clip density on curves and thick seam areas.
• Q: How do you stop terry cloth from “eating” satin stitch embroidery text on a Brother embroidery machine?
  A: Use water-soluble topper on top plus a Nap Control/knockdown base layer so loops are held down before the visible stitches run.
  • Place water-soluble film directly on TOP of the terry before stitching.
  • Add Nap Control (knockdown) in software and set the offset to 2.0 mm so it extends beyond the design edge.
  • Stitch the knockdown layer FIRST, then the lettering/design.
  • Success check: Satin stitches look clean and readable with minimal loop “pokethrough,” especially along the outline edges.
  • If it still fails: Stop and re-check that the machine is actually running the base layer first and that topper is not being dragged or caught by the foot.
• Q: What does correct hooping tension feel like for terry cloth embroidery to prevent design puckering after unhooping?
  A: Do not hoop terry “drum tight”; hoop with firm, neutral tension so the loops and weave are not stretched open.
  • Hoop so the surface feels firm like a trampoline, not rigid like a drumskin.
  • Visually check the terry weave/grid: keep lines straight, not bowed from stretching.
  • Watch the first 100 stitches and stop immediately if fabric shifts or the topper/fabric gets snagged.
  • Success check: After unhooping, the embroidery stays flat without ripples and the towel fabric does not rebound into puckers.
  • If it still fails: Reduce hoop tension further and pair the correct bottom stabilizer with topper; consider switching to magnetic hooping if you are fighting the screw for grip.
• Q: What are the key safety rules for sewing curves on thick terry cloth and for handling strong embroidery magnetic hoops?
  A: Treat thick terry and magnets as pinch-and-needle hazards: keep hands well clear of the needle path and keep fingers out of magnet mating surfaces.
  • Keep fingers at least 2 inches away from the needle bar when guiding curves; guide—never pull fabric from behind the presser foot.
  • Stop the machine to reposition clips or fabric near bulky seam areas.
  • Keep fingers clear when closing magnetic hoops; magnets can snap together with high force and pinch hard.
  • Success check: Hands never cross in front of the needle during motion, and magnets are lowered in a controlled way without sudden snapping.
  • If it still fails: Slow the machine, reposition the project so hands can stay farther from the needle, and separate/store magnets safely away from medical devices per standard magnetic safety practices.
