A 30-Minute Fully Lined ITH Zipper Pouch on the Viking Topaz 40—Clean Zipper Runs, Flat Layers, and Zero “Why Did It Shift?” Moments

If you have ever watched an In-The-Hoop (ITH) project stitch out and thought, “This is either going to look store-bought… or it’s going to turn into a wrinkled, shifted mess,” you are not alone. That fear comes from a lack of control over how the layers interact.

This fully lined zipper pouch is one of those rare beginner-friendly ITH projects that can genuinely look professional fast—if you respect the physics of embroidery: (1) how the stabilizer grips the fabric (friction), and (2) how the bulk is managed so the needle determines the path, not the fabric.

The video you are following uses a Viking (Husqvarna) Topaz 40 with a 120x120 mm hoop and a Designs by JuJu “Easy Zipper Pouch” design. While the creator estimates 30 minutes, as a beginner, give yourself 45 minutes to account for the "thinking time" between color changes.

The “Don’t Panic” Primer: Why ITH Zipper Pouches Feel Scarier Than They Are (Designs by JuJu Easy Zipper Pouch)

ITH zipper pouches intimidate people for one mechanical reason: blind faith. You are stacking layers of fabric and zipper tape, then asking the machine to sew through them without you holding them. When something shifts inside the machine, you feel helpless.

Here is the cognitive shift that calms the nerves: This design is a controlled assembly line.

The machine is not guessing. The placement outline acts as a blueprint. It tells you exactly where the zipper and fabric boundaries belong. The stitch sequence is engineered to "tack down" (lock) layers in stages so they cannot move. If you keep the stabilizer tight (drum-tight) and keep the zipper pull out of the danger zone, you are 90% guaranteed a clean result.

Stop treating this like a craft experiment. Treat it like engineering. Secure your foundation first, and the machine will do the work.

The “Hidden” Prep Pros Do First: Stabilizer Choice, Interfacing, and a No-Surprises Layout (120x120 Hoop)

The video highlights a classic "oops" moment: the creator ran out of sticky-back stabilizer and used standard tearaway. While this works, it introduces friction variables.

For ITH pouches, Sticky-Back Tearaway Stabilizer is the "Cheat Code." It acts like a second set of hands, gripping the zipper tape and fabric so they cannot slide under the vibration of the needle.

If you don't have sticky-back, you must use Temporary Spray Adhesive (like Odif 505) on your standard tearaway. Never float a zipper on dry stabilizer without adhesive or tape; the presser foot will push it out of alignment.

The "Structure" Secret: The video creator uses fusible interfacing (like Pellon Shape-Flex SF101) on the front fabric. Do not skip this.

• Why? Without interfacing, the fabric is soft and fluid. When the needle penetrates near the zipper teeth, the fabric can ripple. Interfacing turns your fabric into a stable "cardstock-like" material that sits flat and stitches crisply.

The Hooping Bottleneck: If you find yourself fighting to get the stabilizer flat, or if you see "hoop burn" (shiny rings) on your fabric/zipper tape, this is a hardware signal. Traditional screw-tightened hoops rely on friction and can distort zippers. This is why many production embroiderers upgrade to magnetic embroidery hoops. They clamp straight down with vertical force, securing zippers without the "tug of war" distortion. magnetic embroidery hoops

Prep Checklist (Do NOT skip this)

• Machine State: Viking Topaz 40 on, 120x120 mm hoop calibrated.
• Stabilizer: Sticky-back loaded (or Tearaway + Spray Adhesive ready).
• Tension Check: Sensory Check: Pull the top thread near the needle. It should feel like flossing tight teeth—resistance, but smooth. If it snaps or feels loose, re-thread.
• Consumables:
  • Painter's Tape or Embroidery Tape (standard scotch tape leaves residue on needles).
  • Temporary Spray Adhesive (if not using sticky stabilizer).
  • New Needle: Size 75/11 Sharp or Universal (Ballpoint can struggle with zipper tape density).
• Fabrics:
  • Front piece (fused with interfacing).
  • Back piece.
  • Lining pieces.
• Zipper: Plastic coil zipper (avoid metal teeth for ITH safety).

Load the Design Like a Production Stitch-Out: Smallest Size, White Thread, and a Quick Screen Check (Viking Topaz 40)

In the video, the creator loads the smallest pouch size. Use 60wt Bobbin Thread in the bobbin and 40wt Embroidery Thread (White) on top.

Speed Limit Setting: Embroidery machines can run fast (800+ SPM), but for ITH projects involving thick zippers and multiple layers, speed is the enemy of precision.

• Recommendation: Lower your machine speed to 400-600 SPM. This gives the thread time to form a loop through the thick zipper tape without shredding.

The Compatibility Check: If you are modifying your setup or borrowing frames, you must ensure the embroidery arm recognizes the hoop boundaries. Users often search for husqvarna embroidery hoops specifically to find extra sizes (like the 120x120 or larger 200x260) that fit the Topaz ecosystem perfectly. husqvarna embroidery hoops

Stitch the Placement Outline First—Then Treat That Rectangle Like a Contract (Placement Stitching)

The first stitch is a "run stitch" (single line) directly onto the stabilizer. This is not part of the final look; it is your Blueprint.

• Action: Stitch the placement line.
• Sensory Check: Listen to the machine. It should sound rhythmic. If you hear a "thud-thud," your needle might be dull.
• Visual Check: Look at the rectangle. Is it square? If the stabilizer is puckering inside the line, your hoop tension is too loose. Tighten it now (drum skin feel) before adding fabric.


Nail the Zipper Placement: Tape the Ends, Keep It Straight, and Move the Pull Out of the Danger Zone

This is the Critical Failure Point. 90% of broken needles happen here.

The Protocol:

1. Place the zipper right-side up between the placement lines.
2. Tape aggressively: Tape the top and bottom ends of the zipper tape to the stabilizer. Do not tape where the needle will stitch (the sides).
3. The Pull Logic: The machine does not know where your zipper pull (the metal/plastic slider) is. You must manage it.

Warning: Physical Safety Hazard
Can you see the zipper pull? Before pressing "Start" on the tack-down stitch, ensure the zipper pull is physically completely outside the stitching area. If the needle strikes the metal pull at 600 SPM, the needle can shatter, sending shrapnel toward your eyes. Always wear glasses or safety specs when stitching zippers.

Float the Front Fabric with Interfacing for a Crisp Edge (Front Panel Stitch Near Zipper Teeth)

"Floating" means placing the fabric on top without hooping it. The creator places the Disney print fabric (fused with interfacing) face down, aligned with the raw edge of the zipper tape.

The "Fold and Press" Trick: After the machine stitches the fabric down, you have to flip it right-side up so it covers the bottom of the pouch.

• Finger Pressing is not enough: Use a tool (like a seam roller or the back of your fingernail) to crease the fabric sharply near the zipper.
• Why? If that fold is puffy, the fabric will "creep" up toward the zipper teeth. This causes the dreaded "zipper jam" later when you try to open the pouch.




Save Fabric Without Regret: Back Fabric Orientation and Pattern Alignment Choices

The video mentions skipping pattern matching to save fabric. This is a valid economic decision.

However, be aware of Directional Prints.

• Scenario: You are using a fabric with hearts that have a definite "up."
• The Trap: In ITH pouches, you usually place the back fabric face down. It is easy to place it upside down.
• The Check: Before taping it down, peek under the fabric. Ask yourself: "When this is flipped right side out, will the hearts be upright?"




Decide Your Lining Finish Up Front: “Pretty Inside” vs. “Personal Use Fast” (Lining Placement)

The creator creates a discrepancy here: the "proper" way (clean finish) vs. the "fast" way (exposed interfacing).

The "Clean Finish" Technique: To hide all raw edges and interfacing:

1. Tape lining piece #1 to the back of the hoop (underneath), right side facing out.
2. Tape lining piece #2 to the back of the hoop, right side facing the first piece.
3. The Challenge: Gravity works against you. The tape must be strong enough to hold the fabric against the bottom of the hoop while the machine moves.

• Pro Tip: Use Painter’s Tape (Blue or Green). It holds better than clear tape and is visible so you don't forget to remove it.


The Final Perimeter Stitch Is the Point of No Return—Flatten Layers, Tape Smart, and Let the Machine Work

The machine is about to stitch through: Stabilizer + Zipper + Front Fabric + Back Fabric + Lining (+ maybe Batting). That is 5-6 layers.

The Physics of "Shift": As the foot presses down on this thick sandwich, the top layers try to slide forward (like the top slice of bread on a sandwich).

• The Fix: Tape the corners of the fabric stack to the stabilizer. You need to create tension so the fabric cannot slide.

This is where equipment matters. If your hoop cannot maintain tension on the stabilizer because of the bulk, the outline will distort (the rectangle becomes a trapezoid). This is a common trigger for professionals to switch to a hooping station for embroidery machine setups, which ensures that the stabilizer is pre-tensioned perfectly before the heavy fabric is added. hooping station for embroidery machine

Setup Checklist (The "Pre-Flight" Check)

• Zipper Pull: OPEN the zipper halfway (to the center). If you leave it closed, you cannot turn the pouch right side out later.
• Zipper Pull Clearance: Is the pull safe from the needle path?
• Tape Check: heavy taping on the corners, but ensure no tape is directly under the needle path (adhesive gums up needles instantly).
• Hoop Seating: Push the hoop firmly into the arm. Listen for the "Click."
• Underneath Check: Reach under the hoop. Is the lining still stuck? Or did it curl up?

Trim and Turn Like a Pro: Clean Corners, Controlled Fray, and a Better-Looking Edge

The stitching is done. Remove the hoop. Now you are a tailor.

The Anatomy of a Cut:

1. Remove Stabilizer: Tear away the bulk. If using sticky, peel gently.
2. Trim Margin: Cut 1/4 inch away from the stitch line.
3. The Corner Hack: Cut across the corners diagonally (without cutting the stitches). This removes bulk so the corners can be poked out sharply.
4. Pinking Shears: The video uses pinking shears (zig-zag scissors).
   • Why? It prevents woven cotton from unravelling inside the pouch over time. If you don't have pinking shears, use a second row of straight stitching on your sewing machine 1/8" outside the embroidery line for security.




Operation Checklist (Post-Stitch)

• turn the pouch right side out through the open zipper.
• The "Chopstick" Move: Use a chopstick or turning tool to gently push the corners out. Do not use scissors tips—you will poke through.
• Ironing: Press the pouch flat, avoiding the plastic zipper teeth (they will melt).
• Thread Snip: Trim any jump stitches near the zipper teeth so they don't get caught in the slider.

Quick Decision Tree: Stabilizer + Hooping Choices That Prevent Shifting on ITH Zipper Pouches

Use this logic flow to determine your setup based on available materials.

Question 1: Do you have Sticky-Back Stabilizer?

• YES: Use it. Hoop the sticky stabilizer paper-side up, score it, peel it. Stick the zipper directly to it. (Success Rate: High).
• NO: Go to Question 2.

Question 2: Are you using Spray Adhesive on standard Tearaway?

• YES: Hoop standard tearaway -> Spray lightly -> Place zipper. Tape edges for insurance. (Success Rate: Medium-High).
• NO (Floating with tape only): You are relying solely on tape.
  • Risk: Fabric creeping.
  • Mitigation: Use lighter embroidery speed (400 SPM) and double the amount of tape.
  • Consideration: If you plan to make 10+ pouches, finding terms like hoopmaster hooping station or researching the hoop master embroidery hooping station reveals how commercial shops solve this friction problem permanently.

Fix the Two Most Common “Beginner Panic” Problems: Stabilizer Shifting and Zipper Pull Strikes

Symptom 1: The Zipper is Crooked or "Waved"

• The Cause: The zipper tape moved while the machine was stitching the tack-down line.
• Sensory Clue: You might see the fabric "pushing" a localized wave in front of the presser foot.
• The Fix: You need vertical clamping pressure, not just hoop rim friction. Vertical pressure prevents the "trampoline effect."
• The Tool: A magnetic hooping station combined with magnetic frames eliminates the "hoop burn" and uneven tension that causes waves. The magnets hold the stabilizer aggressively flat. magnetic hooping station

Symptom 2: The Needle Broke / Hit Metal

• The Cause: You forgot to move the zipper pull, or the pull vibrated back into the zone.
• The Fix: Stop immediately.
  1. Check the bobbin case for needle shards (essential!).
  2. Replace the needle.
  3. Move the pull.
  4. Back up 10-20 stitches and resume slowly.

The Upgrade Path That Actually Makes Sense: When to Change Stabilizer, When to Change Hoops, When to Change Machines

You have successfully made one pouch. Now, how do you make 50 for a craft fair without losing your mind?

Level 1: The Consumable Upgrade (Cost: Low) If your pouches are "okay" but setup takes forever, switch to Pre-Cut Sticky Stabilizer sheets and buy a bulk pack of 75/11 Needles. Sharp needles penetrate zipper tape cleaner than dull ones.

Level 2: The Tooling Upgrade (Cost: Medium) If you struggle with hoop burn (rings on the fabric) or sore wrists from screwing hoops tight, this is the trigger point for Magnetic Hoops.

• Why: They clamp instantly. No screws. No burns. Just snap and sew.
• Intent: Searches for terms like brother 4x4 embroidery hoop often lead users to compatible magnetic versions that fit standard arms but offer superior holding power for bulky ITH items.

Warning: Magnetic Field Safety
Magnetic Hoops contain strong Neodymium magnets.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Safety: Keep magnets away from pacemakers and implanted cardioverter-defibrillators (ICD).
* Electronics: Store away from credit cards and mechanical hard drives.

Level 3: The Productivity Upgrade (Cost: High) If you are selling these and cannot keep up with demand because of thread changes (white for tack-down, color for topstitch), you have outgrown the single-needle machine.

• Solution: A Multi-Needle Machine. You can set Needle 1 to White (construction) and Needle 2-15 to colors (decoration). The machine builds the pouch without stopping for you to thread it. This is how you turn a hobby into a business.

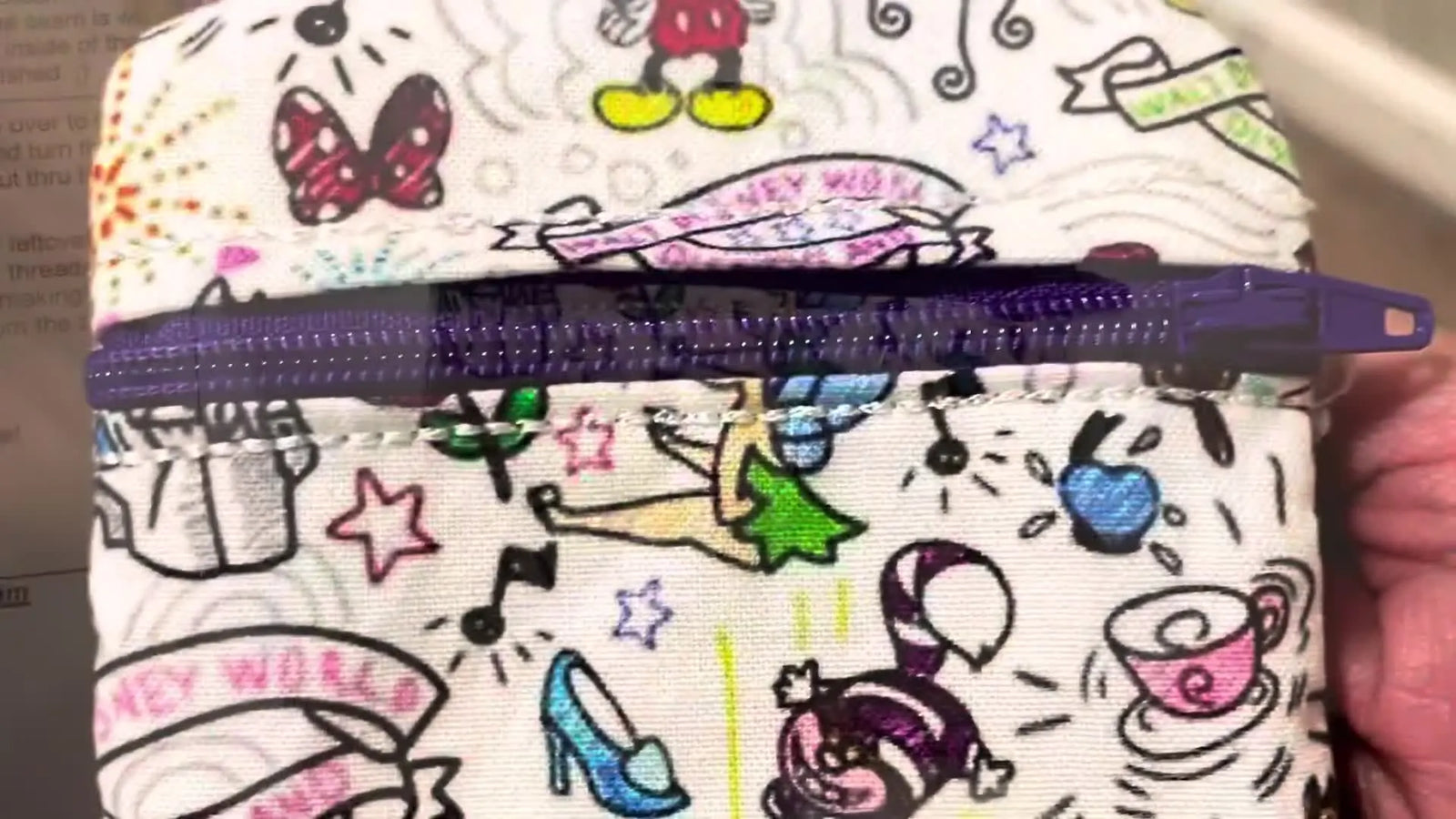

What You Should See When It’s Done: A Professional-Looking Mini Pouch in About 30 Minutes

If you adhered to the "Placement -> Tape -> Float -> Monitor" discipline, you should now hold a 3.9-inch pouch that feels sturdy. The zipper should run smooth, the corners should be crisp, and—most importantly—it shouldn't look "homemade."

Don't let the first one be your last. ITH embroidery is muscle memory. The first one teaches you the physics; the second one is where you find your flow.

FAQ

• Q: How do I choose stabilizer for a Designs by JuJu “Easy Zipper Pouch” ITH stitch-out on a Viking (Husqvarna) Topaz 40 with a 120x120 mm hoop to prevent shifting?
  A: Use sticky-back tearaway whenever possible; if not, use tearaway plus temporary spray adhesive so the zipper and fabric cannot slide.
  • Action: Hoop sticky-back paper-side up, score the paper, peel, then stick the zipper tape and fabric pieces in place before stitching.
  • Action: If using standard tearaway, spray lightly with temporary spray adhesive (for example Odif 505), then tape zipper ends for insurance.
  • Success check: After the tack-down line, the zipper tape stays straight with no “wave” ahead of the presser foot.
  • If it still fails: Slow the machine to 400–600 SPM and increase corner/edge taping so the stack cannot creep.
• Q: What is the correct hoop tension standard for a Viking (Husqvarna) Topaz 40 120x120 mm hoop during ITH zipper pouch placement stitching to avoid puckering and trapezoid outlines?
  A: Hoop the stabilizer drum-tight before any fabric is added, then keep the stabilizer flat and square through every step.
  • Action: Tighten the hoop until the stabilizer feels like a drum skin (firm and flat, not slack).
  • Action: Stitch the first placement run stitch, then stop and inspect the rectangle before adding the zipper or fabric.
  • Success check: The placement rectangle looks square, and the stabilizer is not puckering inside the stitched line.
  • If it still fails: Re-hoop from scratch; if hoop burn or distortion keeps happening with bulky zipper layers, consider switching to a magnetic hoop for straighter vertical clamping.
• Q: How can I do a quick top-thread tension check on a Viking (Husqvarna) Topaz 40 before stitching an ITH zipper pouch so the stitch-out doesn’t go unstable?
  A: Re-thread and do a simple “pull test” at the needle—top thread should feel smooth with firm resistance, not snapping or limp.
  • Action: Pull the top thread near the needle and feel for “flossing tight teeth” resistance (firm but smooth).
  • Action: If the thread feels loose or snaps, re-thread the top path and restart before the placement stitch.
  • Success check: The machine runs with a steady, rhythmic sound during the placement line (no erratic thuds).
  • If it still fails: Replace the needle (75/11 Sharp or Universal is a common choice for zipper tape density) and test again.
• Q: What Viking (Husqvarna) Topaz 40 speed setting is a safe starting point for an ITH zipper pouch with thick zipper tape and multiple layers to reduce thread shredding and shifting?
  A: Slow down—400–600 SPM is a safe starting point for thick ITH zipper pouch stacks where precision matters more than speed.
  • Action: Set machine speed lower before the zipper tack-down and final perimeter steps.
  • Action: Treat speed as a control tool: slower gives the thread more time to form clean stitches through bulky tape.
  • Success check: Stitches form cleanly without frequent breaks, and the layers do not creep forward under the presser foot.
  • If it still fails: Add adhesive (sticky-back or spray) and increase taping at the ends/corners to control layer movement.
• Q: How do I prevent a broken needle from hitting a zipper pull during a Designs by JuJu ITH zipper pouch stitch-out on a Viking (Husqvarna) Topaz 40?
  A: Always move the zipper pull completely out of the stitch path before starting any tack-down or perimeter seam, and stitch only after visually confirming clearance.
  • Action: Before pressing Start, look directly at the hoop area and confirm the zipper pull is outside the stitching zone.
  • Action: Open the zipper halfway before the final perimeter stitch so the pouch can be turned right-side-out later.
  • Success check: The needle never approaches the zipper pull, and the zipper slider moves freely after the pouch is finished.
  • If it still fails: Stop immediately, check the bobbin case for needle shards, replace the needle, move the pull, then back up 10–20 stitches and resume slowly.
• Q: How do I stop an ITH zipper from turning out crooked or “waved” after the tack-down stitch on a Viking (Husqvarna) Topaz 40 120x120 mm hoop?
  A: Lock the zipper tape down like a fixture: stick it (adhesive) and secure it (tape the ends) so vibration cannot walk it out of alignment.
  • Action: Place the zipper right-side up between the placement lines, then tape the top and bottom ends aggressively (not along the stitch sides).
  • Action: Use sticky-back stabilizer, or add temporary spray adhesive to standard tearaway so the zipper is not floating on dry stabilizer.
  • Success check: The zipper tape remains straight after tack-down with no ripples near the teeth line.
  • If it still fails: Upgrade clamping—magnetic hoops often reduce uneven rim friction and help prevent waves on bulky zipper tape.
• Q: What are the safety rules for using magnetic embroidery hoops (strong neodymium magnets) when doing ITH zipper pouches and other bulky projects?
  A: Treat magnetic hoops as a pinch and medical-device hazard: snap carefully, keep fingers clear, and keep magnets away from pacemakers/ICDs and sensitive items.
  • Action: Keep fingertips out of the closing zone when the magnets clamp down (pinch risk).
  • Action: Keep magnetic hoops away from pacemakers and implanted cardioverter-defibrillators (ICD), and store away from credit cards and mechanical hard drives.
  • Success check: The hoop closes without finger contact, and the work area stays organized so magnets are not placed near prohibited items.
  • If it still fails: Use a slower, deliberate hooping routine and clear a dedicated “magnet-safe” spot on the table before opening/closing the hoop.
• Q: When does an ITH zipper pouch workflow justify upgrading from consumables to magnetic hoops or a multi-needle embroidery machine instead of fighting setup time on a Viking (Husqvarna) Topaz 40?
  A: Upgrade in levels based on the bottleneck: first stabilizer/needles, then magnetic hoops for hooping pain and distortion, then a multi-needle machine when thread changes limit output.
  • Action: Level 1 (low cost): Switch to pre-cut sticky stabilizer and keep fresh 75/11 needles on hand to reduce setup friction.
  • Action: Level 2 (medium cost): If hoop burn, sore wrists from screw hoops, or zipper distortion keeps happening, move to magnetic hoops for faster, straighter clamping.
  • Action: Level 3 (high cost): If selling and losing time to repeated thread changes (white construction vs. color decoration), consider a multi-needle machine to reduce stops.
  • Success check: The pouch quality stays consistent while total time per pouch drops because fewer resets and re-hoops are needed.
  • If it still fails: Track exactly where time is lost (hooping vs. thread changes vs. fixing shifts) and address that single bottleneck first.
