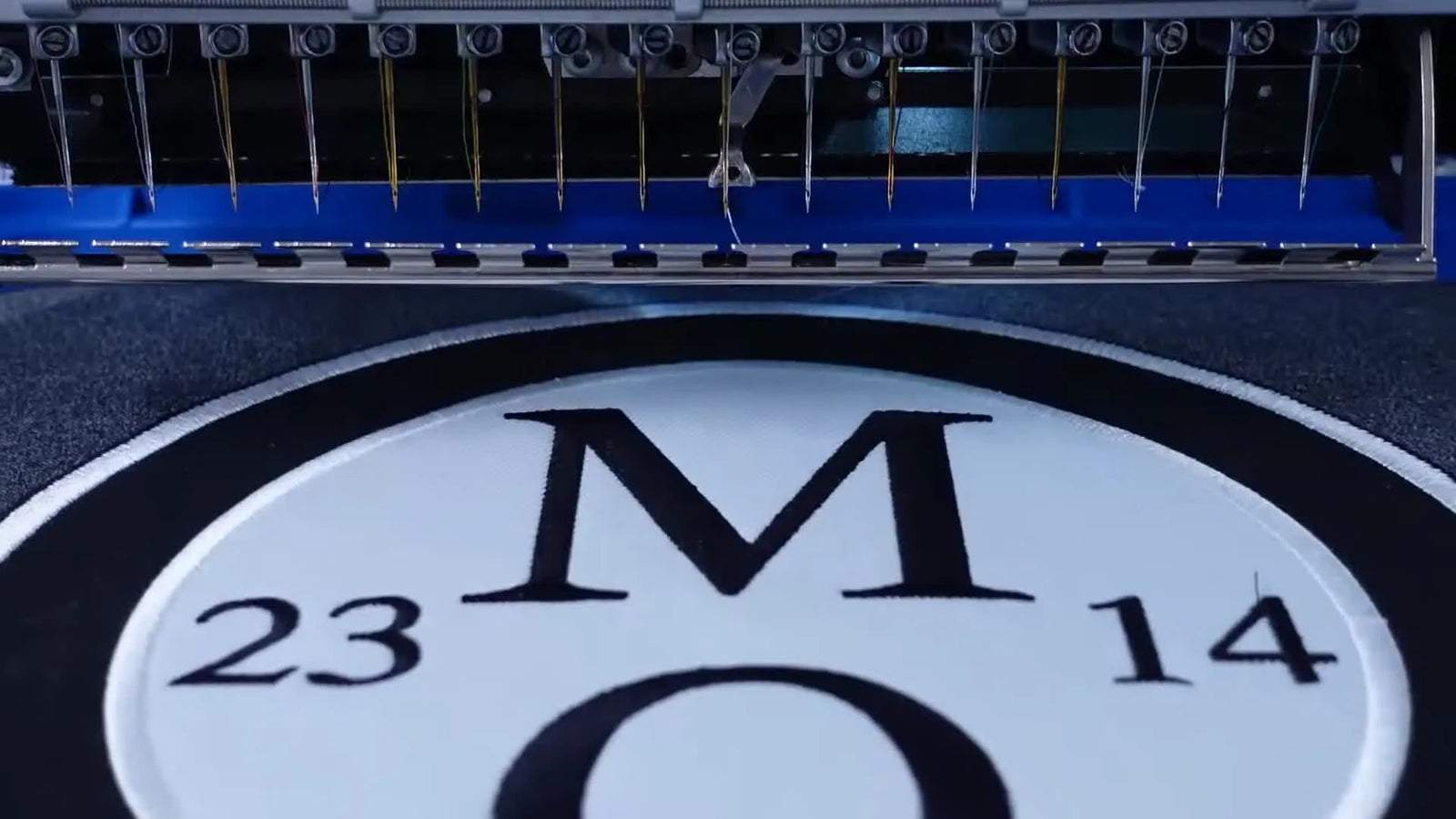

A 10×10 Double Appliqué on a Polyester Track Jacket Back—Centered Fast, Trimmed Clean, and Priced Right

Big back designs are where embroidery shops either look like pros—or lose money quietly.

A 10×10 inch back piece on a finished garment (like a track jacket) is heavy, slippery, and unforgiving: if it shifts, you’ll see it from across the room; if you over-stitch it, you’ll pay for it in time and thread; if you hoop it wrong, you’ll fight puckers and the dreaded "hoop burn."

This post rebuilds the exact workflow from the video: a large double appliqué on the back of a 100% polyester track jacket, hooped with an 11×13 magnetic hoop on a hooping station, then stitched on a Melco BRAVO 16-needle.

But I am going to go deeper than the video. I will share the "old shop" sensory details—what it should feel like, sound like, and look like—so you can replicate this success without the panic attack, whether you are running a single-needle home machine or looking to upgrade to a production powerhouse like a SEWTECH multi-needle.

Don’t Panic: A Huge Back Appliqué on a Polyester Track Jacket Is Totally Doable (If You Control the Fabric)

If you’ve ever stared at a finished jacket and thought, “One slip and I ruin an $80 garment,” you’re not being dramatic—you’re being realistic.

Polyester track jackets are notorious "troublemakers" in the embroidery world. They love to:

• Slide inside the hoop like oil on glass.
• Ripple under heavy satin stitches (the "bacon effect").
• Show pressure marks (hoop burn) if you clamp them with standard plastic grid hoops.
• Amplify mistakes, because on a 10-inch circle, a 2mm alignment error looks like a mile.

The good news: the video’s method is solid because it uses three distinct layers of control: Chemical (HeatnBond), Structural (Stabilizer Sandwich), and Mechanical (Magnetic Hooping).

The “Hidden” Prep That Makes or Breaks This Job: Stabilizer Sandwich + HeatnBond on Twill

The video starts with materials laid out and a very specific, somewhat heavy stabilizer stack. Beginners often ask, "Is that too much?" The answer for a 10-inch design on stretchy poly is: No. It is your safety net.

The Recommended "Sandwich":

• Two sheets of 1.5 oz No-Show Polymesh Cut Away stabilizer.
• One sheet of 2.0 oz Tear Away stabilizer.
• Twill fabric (black and white) for a double appliqué.
• HeatnBond Soft Stretch applied to the back of the twill before stitching.
• Polyester embroidery thread.

Why this combination? (The Physics):

1. The Cutaway (Polymesh): This is the permanent foundation. Polyester stretches; cutaway does not. It locks the stitches in place for the life of the jacket.
2. The Tearaway: This is your temporary scaffolding. It adds crisp rigidity during the stitching process to prevent the jacket from bouncing (or "flagging") with the needle.
3. The HeatnBond: This is the secret weapon. By fusing the appliqué fabric to the HeatnBond, you prevent the raw edges of the twill from fraying while the machine is tacking it down.

Hidden Consumables Alert: Do not start this project without:

• New Needles: A fresh 75/11 Ballpoint is standard for polyester knits to avoid cutting fibers.
• Curved Appliqué Scissors: Essential for trimming close without snipping the jacket.
• Temporary Spray Adhesive: (Optional but helpful) A light mist between stabilizer layers prevents them from shifting during hooping.

If you’re building this workflow around a station like the hoop master embroidery hooping station, prep is where you win time: cut your stabilizer sheets and appliqué pieces before you ever touch the jacket.

Prep Checklist (do this before the jacket goes anywhere near the hoop)

• Cut 2 sheets of No-Show Polymesh Cut Away large enough to fully cover the hoop window (plus 1 inch margin).
• Cut 1 sheet of heavier Tear Away large enough to cover the hoop window.
• Verify Consumables: Ensure you have sharp curved scissors and a fabric-safe marking tool.
• Pre-apply HeatnBond Soft Stretch to the back of both twill colors (black and white).
• Measure: Confirm your hoop size vs design size. The video uses an 11×13 hoop for a 10×10 circular design. This leaves 1.5 inches of clearance on limits—a healthy safety margin.


Centering a Finished Jacket Without Guesswork: Hooping a Track Jacket on a HoopMaster Station + 11×13 Magnetic Hoop

This is the part that saves you from the “crooked back logo” nightmare. In the video, the stabilizer goes on the bottom fixture, the zipped jacket is slid over the station board, aligned, and clamped.

The Sensory Check: When you drop that top magnetic frame, listen for a solid, authoritative "THWACK" or "CLICK".

• A muffled thud means fabric is bunched up or the magnet isn't seated.
• A sharp click means you have secure engagement.


A key efficiency detail: the station lets you align the jacket body without wrestling it under a traditional screw hoop. If you’re doing repeat orders (team jackets, brand drops, staff uniforms), this is where your throughput comes from.

When you use a hoopmaster station, treat it like a measuring tool, not just a stand. Take the extra 20 seconds to smooth the fabric with your palms, feeling for zippers or pockets underneath that could obstruct the hoop.

Warning: Magnetic Safety. Industrial magnetic hoops are incredibly powerful. They can pinch fingers severely and can interfere with pacemakers. Keep standard credit cards and phones away from the magnets. Never place your fingers between the top and bottom ring when snapping them together.

Why magnetic hooping helps on jackets (the physics in plain English)

Standard hoops work by friction—jamming an inner ring into an outer ring. This naturally distorts the fabric grain and leaves "hoop burn" (crushed fibers) on polyester.

magnetic embroidery hoops work by vertical clamping pressure. They hold the fabric flat like a sandwich rather than stretching it like a drum skin. This eliminates hoop burn and allows you to hoop over zippers and seams without breaking the hoop or the machine.

Loading an 11×13 Hoop on a Melco BRAVO: The One Adjustment People Forget (Widen the Arms)

The video shows a simple but critical setup step: the operator widens the machine arms to accept the larger hoop, then slides the hoop arms into the pantograph bracket.

If you skip this and force it, you risk poor engagement (hoop not seated correctly), extra vibration, or a hoop strike.

Beginner Sweet Spot (Speed Settings): The video machine might be running fast, but for your first large back piece:

• Cap your speed at 600-700 SPM (Stitches Per Minute).
• High speed increases friction and the chance of thread breaks on large polyester runs. Quality > Speed for the first run.


This is also where you confirm the on-screen design info. In the video, the machine display shows:

• Stitch count: 36,640 stitches
• Design scale: X 9.835, Y 9.795


If you’re running a melco embroidery machine or transitioning to a SEWTECH unit, get in the habit of checking stitch count before you press start. 36k stitches means about 45 minutes of run time. Plan your schedule accordingly.

Setup Checklist (before the first stitch)

• Check that the hoop arms are widened and locked securely into the pantograph.
• Feel underneath the hoop: Is the rest of the jacket flowing freely? Ensure sleeves aren't caught underneath.
• Verify the design orientation: Is the "Top" of the design actually at the top of the hoop?
• Trace the design (Layout Check): Run the trace function. Watch the needle position relative to the plastic edge of the hoop. You want at least a finger-width of clearance.
• Confirm bobbin supply: Start with a full bobbin. You do not want to change a bobbin in the middle of a precision appliqué tackdown.


The Appliqué Sequence That Keeps You Safe and Accurate: Placement Line → Lay Fabric → Tackdown

The video runs a circular placement stitch first (a running stitch outline). While the machine is close to the fabric, the operator places the black twill over the outline.

The Critical Safety Move: Instead of holding the fabric with fingers near the needle, the video operator uses a blue magnetic safety tool (often called a "wand" or "stick").

Do not use your fingers. When you are doing appliqué, your brain focuses on the fabric edge, and you lose track of the needle descent.

• The Rule: If your hand is within 6 inches of the needle bar while it is moving, you are too close. Use a chopstick, a specialized stylus, or a long pair of tweezers to hold the fabric flat.

A practical technique note: lay the twill so it covers the placement line with margin all around. If you cut the fabric too small, you will be fighting gaps later.

Clean Edges Without Cutting Stitches: Remove the Hoop and Trim Layer 1 on the Table

After the black fabric is tacked down, the video performs the most important step for quality: removing the hoop from the machine to trim.

Trimming while the hoop is still attached to the machine is a "Rookie Gamble." It causes:

• Hoop deflection: Leaning on the hoop ruins the registration (alignment) for the next color.
• Garment damage: You are more likely to poke a hole in the jacket with the scissors.
• Back strain: Leaning over a machine is bad ergonomics.


Technique: Place the hoop on a flat table. Use your curved appliqué scissors. Angle the blades slightly away from the stitches. You want to trim 1-2mm from the stitch line.

• Too close: You might cut the stitches.
• Too far: You will see raw fabric poking out of the satin border later.

If you’re doing this often, a magnetic hoop 11x13 is a perfect pairing with this workflow because it pops off and on the machine pantograph very smoothly compared to friction hoops.

Double Appliqué Layering: Place the White Circle, Tack It Down, Then Let Satin Stitches Seal Everything

The second layer in the video is the white twill circle placed in the center. The machine tacks it down, then runs final satin stitches around borders and letters to seal the edges.

Look and Listen: During the satin stitch phase (the thick zigzag border), watch the fabric.

• Visual: Does the fabric look like it is "pulsing" or "breathing"? If so, your hoop tension might be too loose, or the jacket weight is dragging.
• Auditory: A rhythmic "thump-thump-thump" is good. A harsh "clack-clack" suggests the needle is struggling to penetrate the multiple layers of stabilizer and twill. If you hear this, slow the machine down.

A shop-tested tip: if you see the jacket moving, hold the weight of the jacket in your hands (far away from the needle) to relieve the drag on the hoop. Do not let the jacket hang off the table.

The Real Reason Appliqué Wins on Big Back Pieces: Stitch Count, Runtime, and Customer Price

The video calls out the business reality clearly:

• The double appliqué version runs about 36–37k stitches.
• The same look done as a filled background could be 80–90k stitches.

Why this matters for your wallet:

1. Time: 36k stitches = ~40 mins. 90k stitches = ~1.5 to 2 hours. You can do double the volume with appliqué.
2. Wear: Less wear on your machine.
3. Client Comfort: A solid block of 90,000 stitches creates a "bulletproof vest" feel on the back. It is stiff, heavy, and sweaty. Appliqué remains flexible and comfortable.

When you’re selling this to a customer, don’t pitch it as “cheaper.” Pitch it as “Premium Lightweight Comfort.”

The “Why It Worked” Breakdown: Hooping Physics, Material Pairing, and Scalable Workflow

This project succeeds because three systems are working together.

1) Hooping & tension control (preventing distortion)

A finished jacket is not a flat quilt sandwich. It’s a 3D object with seams. Magnetic hoops maintain even pressure without over-stretching the molecular structure of the polyester. If you’re evaluating magnetic hooping station options, ensure you choose one compatible with your specific machine model (whether Melco, Tajima, or SEWTECH).

2) Material science pairing (why the stabilizer sandwich matters)

The video’s stack—two polymesh cutaways plus one heavier tearaway—creates a "composite material."

• The tearaway absorbs the initial shock of needle penetration.
• The polymesh allows the jacket to drape naturally after the tearaway is removed.

3) Commercial scalability (how to make this repeatable)

If you do one jacket, you can muscle through almost anything. If you do 25, you need a system. A repeatable system looks like:

• Pre-cut stabilizer kits.
• A consistent hooping station alignment routine.
• A machine that doesn't require manual thread changes for every color.

If you are currently doing this on a single-needle home setup and struggling with the 45-minute runtime and constant thread swaps, this is the classic "scaling wall." A multi-needle upgrade (like the SEWTECH series) effectively buys you back your time.

Decision Tree: Which Stabilizer Stack Should You Use for a Polyester Track Jacket Back Appliqué?

Use this logic flow to make safe decisions for your specific garment.

1. Is the jacket thin, slippery, or single-layer polyester?
   • YES: Use the video method (2x Polymesh Cutaway + 1x Heavy Tearaway). Maximum stability required.
   • NO: Go to step 2.
2. Is the jacket thick, fleece-lined, or heavyweight cotton/poly blend?
   • YES: You can likely reduce to 1x Polymesh Cutaway + 1x Tearaway. The fabric supports itself better.
   • NO: Go to step 3.
3. Are you seeing ripples/puckering during the test sew?
   • YES: Add layers. "When in doubt, stabilize more." Also, check your hoop tension—it might be too loose.
   • NO: Your stack is correct. proceed.

Troubleshooting the Problems That Ruin Big Appliqué (Symptoms → Causes → Fixes)

Finishing Like a Pro: Clean the Backing Without Damaging the Jacket

At the end, the video describes the finishing routine:

• Trim excess threads (Jump stitches).
• Tear away the tearaway stabilizer—it should rip cleanly along the perforation of the embroidery.
• Cut the cutaway stabilizer. Leave about 0.5 inches of stabilizer around the design. Do not cut flush to the stitches on the back, or the stabilizer might fall out over time.


Warning: Be extremely careful when cutting the stabilizer on the back. It is very easy to snag the jacket fabric underneath. Keep your hand between the stabilizer and the jacket fabric if possible to separate layers.

This is where patience pays. Rushing the back cleanup is how you accidentally snip the jacket fabric or leave a messy halo that customers notice when they put it on.

The Upgrade Path (When You’re Ready): Faster Hooping, Safer Handling, and Higher Throughput

If you’re doing occasional jackets, the video’s setup is educational. However, if you are finding yourself frustrated by pain points, here is how to upgrade your workflow based on the "Pain-Diagnosis" model:

• Pain Point 1: "Hoop Burn" and sore wrists.
  • Diagnosis: Traditional screw hoops require excessive force and distort fabric.
  • Prescription: Upgrade to Magnetic Hoops. They snap on instantly, save your wrists, and hold thick jackets without bruising the fabric.
• Pain Point 2: "I'm scared to trim / It takes too long."
  • Diagnosis: Lack of proper tools.
  • Prescription: Get dedicated Appliqué Scissors (Duckbill or Curved) and consider a "Hooping Station" to standardize your placement.
• Pain Point 3: "I turn down orders because I only have one needle."
  • Diagnosis: You have hit the production limit of single-needle machines. Changing threads manually for a 5-color logo kills efficiency.
  • Prescription: It is time to consider a Multi-Needle Machine (like SEWTECH). The ability to set 12-15 colors and walk away allows you to do other tasks (like hooping the next jacket) while the machine works for you.

Operation Checklist (The "Don't Ruin It At Minute 30" List)

• Check that the jacket weight is supported and not dragging on the hoop.
• Check your hands: Are you using the safety wand for appliqué placement?
• Check the trim: Did you remove the hoop to trim safely on a table?
• Check the bobbin: Did you start with a full one?
• Final Check: Breathe. You have the stabilizer, the magnet, and the settings right. Hit start.

If you take one lesson from this project, make it this: big back designs aren’t hard because they’re “big”—they’re hard because they punish sloppy control. Get the control right with the proper tools (stabilizer, magnets, and machine), and a 10×10 double appliqué becomes one of the most profitable, impressive items in your portfolio.

FAQ

• Q: What stabilizer stack should be used for a 10×10 back appliqué on a 100% polyester track jacket using HeatnBond Soft Stretch and twill?
  A: Use a stabilizer “sandwich” of 2 sheets of 1.5 oz No-Show Polymesh Cut Away plus 1 sheet of 2.0 oz Tear Away for maximum control on slippery polyester.
  • Cut: Cover the full hoop window plus about 1 inch margin on all stabilizer layers.
  • Fuse: Apply HeatnBond Soft Stretch to the back of both twill colors before stitching.
  • Add: Lightly mist temporary spray adhesive between stabilizer layers (optional) to prevent shifting during hooping.
  • Success check: During satin stitches, the jacket should not “breathe/pulse” and the fabric should stay flat without ripples.
  • If it still fails: Add stability (another tearaway layer) and re-check hooping technique (do not stretch the jacket in the hoop).
• Q: How can an 11×13 magnetic embroidery hoop be checked for correct engagement on a hooping station when hooping a finished track jacket back?
  A: Listen and feel for a clean, authoritative “CLICK/THWACK”—that sound usually means the magnetic frame is seated correctly.
  • Smooth: Palm-smooth the jacket on the station and remove any hidden bulk (zippers, pockets, seams) from the hoop area.
  • Align: Take the extra time to square the garment before clamping to avoid a crooked back design.
  • Re-seat: If the sound is muffled, lift and re-seat the top frame rather than forcing it.
  • Success check: The clamp closes with a sharp click and the fabric lies flat (no bunching or trapped hardware).
  • If it still fails: Reduce thickness in the hooping zone (reposition away from seams/zipper stacks) and re-check station alignment.
• Q: What is the correct way to load an 11×13 hoop on a Melco BRAVO 16-needle to avoid poor engagement, vibration, or a hoop strike?
  A: Widen the Melco BRAVO arms first, then mount the hoop arms into the pantograph bracket—do not force a large hoop into a narrow setting.
  • Adjust: Widen and lock the machine arms before sliding the hoop arms into place.
  • Trace: Run the trace/layout check and confirm finger-width clearance from the hoop edge.
  • Support: Ensure the rest of the jacket is flowing freely and not caught under the hoop (drag causes shifting).
  • Success check: The trace path clears the hoop edge smoothly and the hoop sits solidly with no wobble.
  • If it still fails: Stop and re-mount the hoop; forcing the setup risks mis-seating and a strike.
• Q: What machine speed is a safe starting point for a large back appliqué run on a Melco BRAVO 16-needle to reduce thread breaks on polyester?
  A: A safe starting point is 600–700 SPM for a first run on a large polyester back piece, then increase only after it sews cleanly.
  • Cap: Set speed to 600–700 SPM for the initial full sew-out.
  • Check: Start with a full bobbin to avoid mid-appliqué bobbin changes.
  • Inspect: Watch for HeatnBond residue on the needle; clean/wipe if buildup is suspected.
  • Success check: Stitching sounds steady (“thump-thump”) without frequent thread breaks or harsh “clack” sounds.
  • If it still fails: Slow down further and inspect needle condition; a fresh 75/11 ballpoint is commonly used for polyester knits (confirm with the machine manual).
• Q: How can hands be kept safe during appliqué fabric placement when the placement line is stitching on a multi-needle embroidery machine?
  A: Do not place fingers near the moving needle—use a wand/stick (or long tweezers) to position twill during the placement/tackdown steps.
  • Use: Hold fabric with a magnetic wand/stylus instead of fingertips.
  • Follow: Keep hands at least 6 inches away from the moving needle bar area.
  • Cover: Place twill with extra margin beyond the placement line to avoid gaps later.
  • Success check: Fabric is positioned flat without hands entering the needle zone while the machine is running.
  • If it still fails: Stop the machine to reposition rather than “chasing” the edge while stitching.
• Q: Why should an embroidery hoop be removed from the machine to trim appliqué twill, and what trimming distance prevents cutting stitches?
  A: Remove the hoop and trim on a flat table, aiming to leave about 1–2 mm from the stitch line to avoid cutting stitches or damaging the jacket.
  • Remove: Pop the hoop off the machine before trimming (avoid hoop deflection and registration loss).
  • Trim: Use curved appliqué scissors and angle blades slightly away from the stitches.
  • Control: Work slowly around the tackdown line instead of trying to “save time” on-machine.
  • Success check: Edges are clean with no cut satin stitches and no raw twill peeking past the border later.
  • If it still fails: Re-check that the fabric was not cut too small before tackdown; increase fabric margin at placement.
• Q: How can “bacon edges” (wavy satin stitch borders) be fixed on a polyester track jacket appliqué, and when should a magnetic hoop upgrade be considered?
  A: Start by increasing stability and correcting hooping technique; if hoop burn, slipping, or repeat puckering keeps happening, a magnetic embroidery hoop is a practical next step.
  • Add: Increase stabilization (add a tearaway layer) and avoid stretching the jacket tight in the hoop.
  • Re-hoop: Hoop the fabric flat (not drum-tight) and support the jacket weight during sewing to prevent drag.
  • Upgrade: Consider magnetic hooping if standard hoops are leaving pressure marks (hoop burn) or causing consistent shifting on slippery polyester.
  • Success check: Satin borders stitch smooth and flat without rippling, and the jacket shows minimal to no pressure marks.
  • If it still fails: Re-evaluate alignment method (use a hooping station routine) and slow the machine speed during dense satin areas.
