7-Panel Cap Embroidery That Actually Centers: Clamp the Mesh, Trust the Seam, and Run 700 RPM Without Regret

The 7-Panel Cap Strategy: Turning the "Hardest" Item into Your Most Profitable Run

If you have ever heard the sickening “crunch” of a needle striking a cap frame, you know the specific anxiety that comes with hat embroidery. Caps are unforgiving. They combine a curved surface, slippery mesh, stiff buckram, and a restrictive embroidery window into one high-stakes puzzle, where a single millimeter of error ruins a $15 blank.

However, in my 20 years on the shop floor, I’ve learned that fear usually stems from a lack of physical reference points. When you are guessing, you are stressing.

This guide breaks down a high-precision workflow using a 7-panel cap from Outdoor Cap Company. We won’t just tell you what to do; we will explain the feel and sound of a correct setup, ensuring you can replicate this success on your SEWTECH or other commercial machines.

1. Anatomy of an Advantage: Why the 7-Panel Center Seam Matters

To a beginner, a seam looks like a hurdle. To a pro, it’s a railroad track.

Standard 6-panel caps often force you to “eyeball” the center because there is a gap between the front panels. In the video, the host lays out the 7-panel cap options, highlighting the massive advantage of the vertical center seam.

The Cognitive Shift

Instead of visualizing a center line on a blank canvas, you have a physical ridge. This seam is your "Zero Point."

• Visual Anchor: You can see if the needle is aligned.
• Tactile Anchor: You can physically feel the ridge to ensure your design is centered before you even look at the laser or needle.

Pro Reality Check: The seam helps you find center, but it doesn't hold center. Stability comes from your hooping technique, not the fabric itself.

2. The "MacGyver" Move: Anchoring Slippery Mesh

The Problem: "Flagging"

The video demonstrates a critical, often skipped step: using silver binder clips on the back of the cap driver. Why?

Mesh behaves like a loose net. When the needle penetrates nicely stiff buckram in the front, the shockwave travels to the back. If the back is loose, the whole cap vibrates or "flags" (bounces up and down). This causes:

1. Registration Loss: Outlines don’t line up with the fill.
2. Birds Nesting: The bobbin thread tangles because the fabric is lifting off the needle plate.


The Protocol

Clamp the backside mesh to the cap driver struts using binder clips.

• The Test: After clipping, tap the mesh with your finger. It shouldn't ripple; it should feel taut using the "Drum Skin" principle.
• The Context: If you are setting up general hooping for embroidery machine protocols for unstructured caps, treat this backside tension as mandatory, not optional.

Warning: Pinch Point Hazard
Cap drivers are powerful mechanical rotational devices. When rotating the cap to install clips, keep your fingers clear of the needle bar and presser foot. Always keep your hands on the outer rim of the frame.

📋 Phase 1: Prep Checklist (The "Mise-en-place")

Don't touch the machine until these are on your table.

• The Blank: 7-panel structured cap (Mesh back preferred for this tutorial).
• The Anchor: Multiple plain binder clips (silver/black).
• The Needle: Titanium Sharp 75/11 (Crucial for penetrating buckram).
• The Hidden Consumables:
  • Tear-away Cap Stabilizer (pre-cut to size).
  • Design Template (printed paper version for a sanity check).
  • Spare Bobbin (check that it is full; running out mid-cap is a nightmare).

3. Loading & Alignment: The "Needle #6" Technique

Once the cap is mounted, the host uses the center seam as the alignment target. He specifically references Needle #6 (loaded with white thread) to visually confirm the start point.

The Procedure

1. Mount: Snap the cap frame into the driver. Listen for the distinct double-click to ensure both sides are locked.
2. Rotate: Bringing the needle bar down (manually or via key), align the tip of the needle directly over the seam ridge.
3. Verify: Don't just look from the front. Look from the side to ensure the cap isn't "floating" above the needle plate.

Safe Zone: If the designated design area is too close to the visor (brim) or the sweatband, you risk hitting the frame. A good rule of thumb for beginners is to keep the design 15mm (approx 0.6 inches) away from the bill.

4. The Run: Speed, Sound, and Settings

The demo stitches a two-color logo (White "Jo" / Silver "Embroidery To You").

• Stitch Count: ~6,000 stitches.
• Target Speed: 700 RPM.






Speed Calibration (Beginner vs. Pro)

The video suggests 700 RPM.

• For Commercial Machines (SEWTECH/Brother/Tajima): 700-850 RPM is standard.
• For Beginners: I recommend starting at 500-600 RPM.
  • Why? Slower speeds reduce the impact force on the buckram, reducing the chance of needle deflection while you are learning to hoop correctly. Speed comes later; accuracy comes first.


📋 Phase 2: Setup Checklist (The "Pre-Flight" Check)

Execute immediately before pressing Start.

• Seating: Cap is pushed fully back; no air gap between sweatband and frame.
• Restraints: Binder clips are installed and clear of the sew field.
• Clearance: Manually trace the design (Trace button) to ensure the needle foot doesn't hit the clips or the bill.
• Bobbin: Check that the bobbin thread tail is trimmed to 1 inch.
• Needle: Verify Titanium #75/11 is installed.

5. Needle Physics: Why "Titanium Sharp" is Non-Negotiable

The host explicitly warns against using ballpoint needles for this application.

The "Why" (Material Science)

Structured front panels contain Buckram—a stiff, glue-impregnated canvas.

• Ballpoint: Designed to slide between knit fibers. On buckram, it struggles to penetrate, potentially bending (deflecting) and hitting the throat plate.
• Sharp Point: Cuts a clean hole through the hard starch.
• Titanium Coating: Reduces friction and heat. Friction causes thread breaks; heat causes glue to melt and gum up your needle.

Diagnosis: If you hear a "popping" sound as the needle enters the cap using a standard needle, you are stressing the fabric. Switch to a sharp point, and the sound should become a quiet "thud."

6. Understanding Digitizing: "Center-Out, Bottom-Up"

The video reinforces two golden rules for cap pathing:

1. Bottom-Up: Stitching from the sweatband moving upward pushes the fabric up into the open air, preventing the fabric from bunching near the rigid brim.
2. Center-Out: This acts like smoothing a sticker on a window. It pushes excess fabric toward the edges, keeping the center flat.

If your circle logo looks like an oval (egg-shaped) on a cap, it’s usually because the digitizer didn't compensate for the curve.

7. Troubleshooting: The "Doctor's Chart" for Caps

Caps fail in two specific ways. Use this logic flow to fix them cheaply.

8. Decision Tree: Choosing Your Holding Method

When do you use binder clips, and when do you upgrade?

Start: What is the back of the cap?

• Scenario A: Mesh Back
  • Action: Jalapeno Clamp / Binder Clips REQUIRED. The mesh cannot support itself.
• Scenario B: Solid Fabric (Twill/Wool)
  • Action: Standard cap frame tension is usually sufficient. Binder clips are optional but recommended for security.

Next: What is your volume?

• Hobbyist (1-10 caps): Binder clips are perfect. They are slow but free.
• Production (50+ caps/day): Clips are a bottleneck. This is where upgrading your tools pays for itself.

9. The Commercial Upgrade Path (Scaling Your Business)

The technique in this video is solid, but manual clipping is slow. As your volume grows, your "pain points" will shift from technique to efficiency.

Level 1: Flat Goods Bottleneck?

If you struggle with hooping jackets or bags, traditional screw-tension hoops can cause "hoop burn" (permanent rings on fabric) and wrist strain.

• Solution: A magnetic embroidery hoop system. These use magnets to automatically adjust to fabric thickness, eliminating the need to adjust screws and reducing hoop burn.
• Search Intent: Many shops look for machine embroidery hoops that enable "floated" embroidery to speed up production.

Level 2: Fatigue & Consistency?

If you are doing hundreds of left-chest logos, manual measuring is killing your profit margin.

• Solution: A docking station workflow. While the hoopmaster hooping station is a classic industry standard for consistent placement, modern magnetic options often provide faster release times for high-turnover shops.

Level 3: Production Volume?

If binder clips and color changes are slowing you down on a single-needle machine:

• Solution: Multi-Needle Machines (like SEWTECH). A 10-15 needle machine doesn't just hold more colors; it offers a cylindrical arm specifically designed to go inside caps deeper and smoother than a converted flatbed machine.

Warning: Magnetic Field Safety
magnetic embroidery hoop systems use industrial-strength neodymium magnets. They can pinch skin severely.
* Do not place near pacemakers (maintain 6-inch distance).
* Do not place near smartphones or credit cards.
* Slide the magnets apart; do not try to pull them directly apart.

10. The Final Result: Consistency is Key

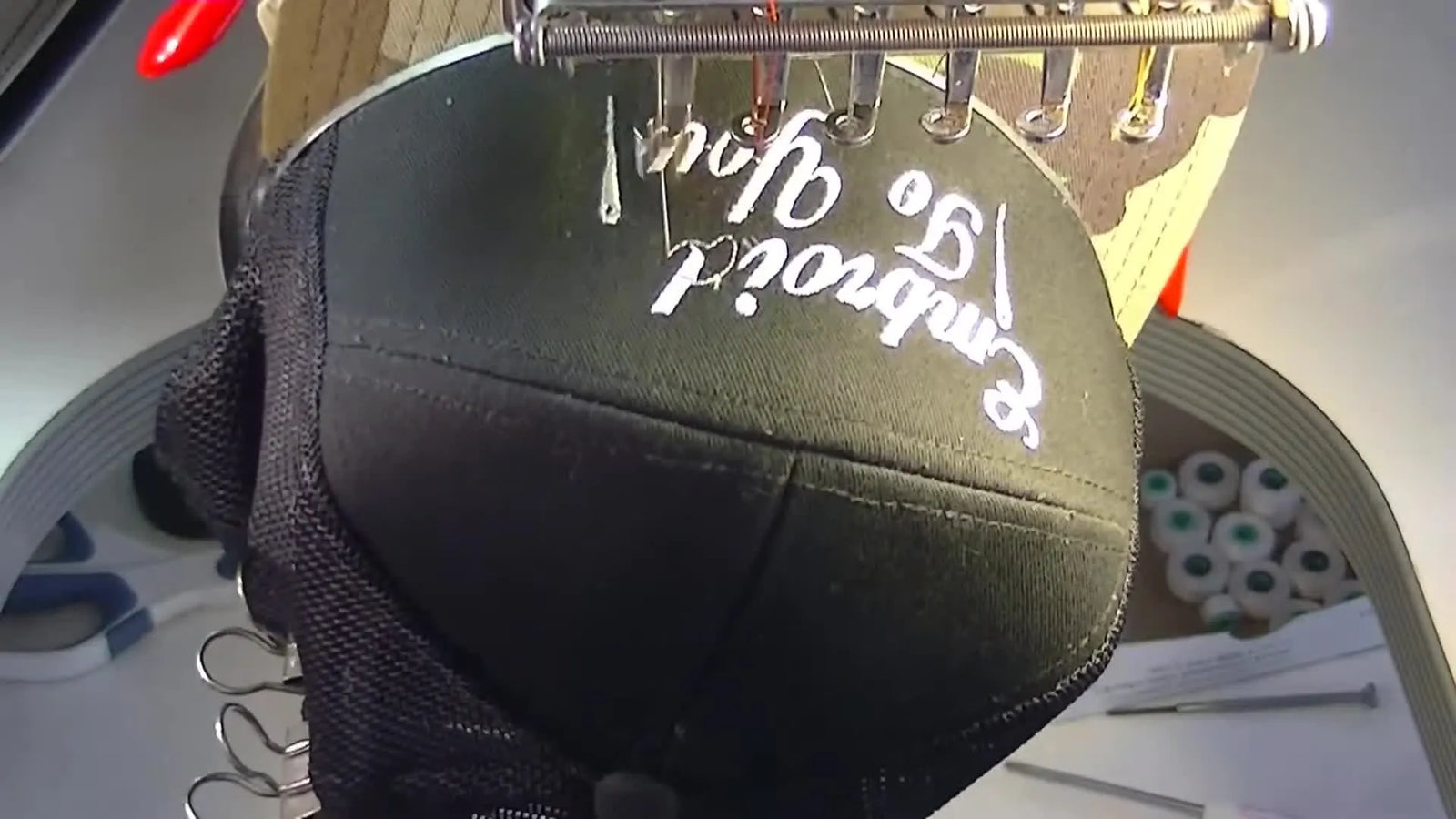

The host zooms in on the finished cap. The result is clean, readable text centered exactly on that seam.

This quality wasn't an accident. It was the result of a chain of correct decisions:

1. Selecting a 7-panel cap for easy centering.
2. Clipping the mesh to stop movement.
3. Using a Titanium Sharp needle to pierce the buckram.

📋 Phase 3: Operation Checklist (Mid-Run Monitoring)

• The Sound Check: Listen to the first 100 stitches. A rhythmic thump-thump is good. A slap-slap means the cap is hitting the needle plate.
• The Watch: Keep eyes on the cap for the first color change. Ensure the bill clears the machine head.
• The Finish: Do not pull the cap off the machine immediately. Trim any long jump stitches before removing the hoop to avoid pulling the design.

Conclusion: Stop Guessing, Start Producing

Embroidery on caps is not a dark art; it is physics. By stabilizing the mesh and using the correct needle, you remove the variables that cause failure.

If you are just starting, use the binder clips and the slow speeds. As you gain confidence—and customers—look toward embroidery hoops magnetic solutions and multi-needle machines to turn that confidence into a scalable business.

Happy stitching!

FAQ

• Q: On a SEWTECH commercial multi-needle embroidery machine, how do I stop mesh-back caps from “flagging” and causing registration loss during cap embroidery?
  A: Clamp the backside mesh to the cap driver struts with binder clips so the cap cannot bounce.
  • Add binder clips to pull the mesh taut before stitching.
  • Tap-test the mesh after clipping; tighten until it behaves like a “drum skin,” not a loose net.
  • Keep clips completely outside the sewing field and run a manual trace to confirm clearance.
  • Success check: Outlines line up with fills and the cap back does not visibly bounce during the first stitches.
  • If it still fails: Re-hoop tighter and confirm the cap stabilizer is correctly placed and supporting the stitch area.
• Q: On a SEWTECH cap frame, what is the correct way to seat and lock the cap frame into the driver to avoid the cap “floating” and shifting?
  A: Snap the cap frame in until a distinct double-click is heard and confirm there is no air gap at the sweatband.
  • Mount the frame and listen/feel for the double-click on both sides.
  • Push the cap fully back so the sweatband sits firmly with no gap against the frame.
  • Look from the side (not only the front) to confirm the cap is not floating above the needle plate.
  • Success check: The cap feels solid with no lift, and the design traces without rubbing or contact.
  • If it still fails: Re-seat the frame and re-check that the design is not placed too close to the bill or sweatband.
• Q: On a SEWTECH (or similar commercial) multi-needle embroidery machine, what needle should be used for structured buckram cap fronts to prevent needle deflection and the “crunch” sound?
  A: Use a Titanium Sharp 75/11 for structured buckram fronts; avoid ballpoint needles for this job.
  • Install a Titanium Sharp 75/11 before running structured caps.
  • Slow the machine down while learning (a safe starting point is 500–600 RPM) to reduce impact and deflection.
  • Monitor the first penetrations closely and stop immediately if impact sounds increase.
  • Success check: The entry sound becomes a quieter “thud” instead of a loud “pop/crunch,” and needle breaks stop.
  • If it still fails: Check whether the design density is too heavy for the cap and reduce speed further per the machine manual.
• Q: On a SEWTECH cap embroidery setup, how far should a beginner keep the cap design from the bill (brim) to reduce the risk of hitting the cap frame?
  A: Keep the design about 15 mm (0.6 in) away from the bill as a beginner-safe placement rule.
  • Place the design so the lowest stitches are not crowding the brim or sweatband.
  • Use the machine’s Trace function to verify the presser foot and needle path clear the bill and any clips.
  • Adjust the design position before stitching, not after the first strike.
  • Success check: A full trace completes with no contact and no “frame hit” sounds when the run starts.
  • If it still fails: Move the design farther from the bill and re-trace before pressing Start.
• Q: On a SEWTECH multi-needle embroidery machine running caps, what is the best beginner speed to reduce needle deflection while still maintaining control?
  A: Start caps at 500–600 RPM as a learning speed, then work up toward 700 RPM when hooping stability is consistent.
  • Set speed to 500–600 RPM for early runs to reduce impact force on buckram.
  • Listen to the first 100 stitches before increasing speed.
  • Increase speed only after registration stays clean and the cap stays stable through color changes.
  • Success check: The machine produces a steady rhythmic “thump-thump” with no slapping or bouncing.
  • If it still fails: Treat the problem as stabilization first (clipping/re-hooping) rather than trying to “speed through” it.
• Q: On cap embroidery jobs, how do I prevent birds nesting by managing the bobbin thread tail before starting a SEWTECH (or similar) commercial embroidery run?
  A: Trim the bobbin thread tail to about 1 inch before pressing Start to reduce early-run tangles.
  • Pull up and trim the bobbin thread tail to roughly 1 inch during the pre-flight check.
  • Start the run and watch the first stitches to ensure the tail is not getting pulled into the stitch formation.
  • Keep the cap stable (especially mesh backs) because fabric lift can also trigger nesting.
  • Success check: The first stitches form cleanly with no thread wad building under the needle plate.
  • If it still fails: Stop immediately, remove the nest, and re-check cap stability (mesh clipping) and basic tension per the machine manual.
• Q: When should a shop upgrade from binder clips to magnetic embroidery hoops or a SEWTECH multi-needle machine for higher cap and apparel embroidery volume?
  A: Upgrade when the main problem shifts from “can it stitch correctly?” to “can it stitch fast and consistently without bottlenecks?”
  • Level 1 (Technique): Use binder clips for mesh-back caps and slow speeds until registration is stable.
  • Level 2 (Tooling): Consider magnetic embroidery hoops when screw hoops cause hoop burn, slow hooping, or inconsistent holding on flat goods.
  • Level 3 (Capacity): Consider a SEWTECH multi-needle machine when single-needle color changes and cap handling limit daily output.
  • Success check: The upgrade choice reduces a measurable bottleneck (setup time, rehoops, rejected pieces) rather than only “feeling nicer.”
  • If it still fails: Re-audit the workflow—most lost profit is from repeat setup and placement inconsistency, not from stitch speed alone.
• Q: What safety precautions should be followed when installing binder clips on a rotating cap driver during SEWTECH cap embroidery setup?
  A: Keep fingers away from pinch points and only handle the outer rim when rotating the cap frame to install clips.
  • Rotate the cap driver carefully and keep hands clear of the needle bar and presser foot area.
  • Install clips with the frame positioned so fingers never enter the driver’s moving linkage zone.
  • Confirm clips are secure and outside the sew field before tracing the design.
  • Success check: Clips are installed without any contact risk, and the trace path clears clips, bill, and frame.
  • If it still fails: Stop and reposition the frame to a safer angle before attempting to add or adjust clips.
