50 Hats on a Single-Head Tajima: The Magnetic Hooping Workflow That Saves Your Sanity (and Where It Still Bites You)

When you’re staring at a table piled high with 50 blank hats, the anxiety knotting your stomach isn’t about the needle going up and down—it’s about the workflow. In the world of commercial embroidery, one finicky USB port, one mis-rotated design, or one sloppy hooping action doesn't just ruin a hat; it turns a profitable afternoon into a three-day grind.

Ryan’s recent production run (50 navy snapbacks plus matching shirts) serves as a perfect, high-stakes case study. It proves that while a single-head machine can deliver factory-grade results, it punishes every weak link in your process.

Below, we have rebuilt his experience into a "White Paper" style standard operating procedure (SOP). We will strip away the guesswork, explain the "why" behind the physics of hat embroidery, and show you exactly where tool upgrades—like magnetic frames or multi-needle capacity—transition from "nice-to-have" to "business survival gear."

Calm the Panic: What a Single-Head Tajima Production Run Really Feels Like at 50 Hats

A single-head machine is a beast, but it is a lonely beast. As soon as you scale from "a few gifts" to "an order of 50," the production bottleneck shifts entirely from the sewing speed to handling time: loading designs, hooping, tracing, unloading, and trimming.

In the video, Ryan estimates 10–15 minutes per hat. Do the math: that creates roughly 17 hours of labor. For experienced shop owners, this number isn’t shocking—it’s the "single-head tax."

If you are running a business on a tajima single head embroidery machine, your goal isn't to work harder; that leads to burnout. Your goal is to remove friction. Every second you spend fighting a hoop or a menu is a second the machine isn't making money.

The “Old Tajima USB Emulator” Ritual: Getting the Design to Actually Show Up on the Control Panel

Ryan loads the design through an older Tajima USB emulator slot. He calls it “finicky,” resorting to the classic “Nintendo cartridge” fix—removing the USB, blowing on the contacts, and reinserting it until the machine complies.

While newer machines transfer files via Wi-Fi, many workhorse machines still rely on this handshake.

Sensory Check (The "Did it work?" indicator): Don't just plug it in and press start. Watch the LCD screen intently. You are looking for a visual refresh where the file list flickers and the specific filename (e.g., “2 ACADEMY”) appears.

Protocol before you panic:

1. Insert: Push the drive in firmly.
2. Wait: Give the emulator 5–10 seconds to mount the drive.
3. Verify: Does the file list populate?
   • No? Remove, check for lint in the port, blow gently (or use compressed air), and retry.
   • Yes? Proceed immediately.

Warning: Mechanical Safety. Keep fingers, loose sleeves, jewelry, and magnetic tools away from the needle bar area during any file loading or tracing. Even if the machine seems idle, a "Start" command or an accidental button press can cause the frame to move violently to the start position (origin).

The Non-Negotiable Setup: Tajima Rotation 180° + Needle 13 for Gold (So Your Hat Isn’t Upside Down)

This is the most common "rookie mistake" that even pros make when tired. Cap drivers rotate the hat cylinders, meaning your design must be flipped relative to a flat hoop.

Ryan sets two vital parameters:

• Rotation: 180°. Hats are hooped "bill out" (visor facing away from the machine connection). If you don't rotate, the logo stitches upside down.
• Needle Selection: Needle 13 (Gold thread).

Step-by-Step Action Plan:

1. Navigate: Use the arrow keys and jog dial to enter the setting menu.
2. Assign Color: Link the design color 1 to Needle 13.
3. Input Geometry: Select Rotation and dial within R 180.
4. Verify Coordinates: Ensure scale shows X: 100, Y: 100 (unless you are intentionally sizing down).

The "Safety Check" Output: Look at the screen. Does it explicitly display an icon or text indicating a 180-degree flip? If the screen shows the design right-side up relative to the floor, it might actually stitch upside down on the cap driver. Trust the numerical value (180), not just the thumbnail.

The “Hidden” Prep Pros Do Before Hat Hooping: Backing, Sweatband Control, and Tension Physics

Experienced operators win or lose the battle before the hoop ever touches the cap. Ryan performs a specific ritual: applying backing and pulling the sweatband out. This isn't just a habit; it's essential physics.

Why Sweatband Control Matters

The sweatband is a thick layer of fabric. If you trap it under the hoop or fold it weirdly, you create uneven clamp pressure.

• The Physics: Embroidering on a curve requires the fabric to be drum-tight. If the sweatband creates a bump, the fabric next to it will be loose. Loose fabric = flagging (bouncing) = birdnesting or broken needles.

Prep Checklist (Pre-Flight)

• Design Load: File is visible on screen.
• Rotation Check: Confirmed 180°.
• Needle Check: Active needle (e.g., #13) has the correct thread color knot-tied and pulled through.
• Bobbin Check: Open the bobbin case. Is it at least 50% full? (Don't start a 50-hat run on a low bobbin).
• Consumables:
  • Backing: Pre-cut 50 sheets of stabilizer (Cap heavy-weight tear-away or cut-away). Do not cut as you go.
  • Spray Adhesive: Have a can of temporary spray adhesive ready if your backing slips.
• Cap Prep: Unfold the sweatband on all 50 hats before starting the hooping phase.

Strategic Upgrade Path: If you find yourself struggling with consistent tension or "hoop burn" (marks left by traditional clamps), this is where many shops upgrade to Magnetic Hoops. They self-adjust to different thicknesses, eliminating the need to constantly tweak mechanical screws for sweatbands.

Magnetic Hooping on a Hoop Master Station: The Fastest Way to Load Snapbacks Without Hoop Burn

Ryan utilizes a Hoop Master station and a magnetic hoop (Mighty Hoop) for the Yupoong snapbacks. The manual friction of traditional ring hoops is the #1 cause of operator fatigue (Carpal Tunnel) and production slowdowns.

The Workflow (Reconstructed for Efficiency):

1. Set the Jig: Adjust the station width to fit the specific hat profile (Yupoong snapback). Lock it down.
2. Load Bottom: Slide the bottom magnetic ring into the station fixture.
3. Insert Hat: Pull the sweatband out. Slide the cap over the pedestal.
4. The "T" Smoothing: Smooth the crown down the center seam, then smooth outward to the sides.
5. Snap: Place the top magnetic frame over the guides and let it snap down.

If you utilize a specialized hoop master embroidery hooping station, treat it like a machinist's jig. Once dialed in for the first hat, do not move it. Trust the jig.

Warning: Magnetic Pinch & Health Hazard. Industrial magnetic hoops snap shut with extreme force (often 10+ lbs of pull).
* Fingers: Keep fingertips clear of the "snap zone" between rings. A pinch here causes blood blisters instantly.
* Medical Devices: Keep these high-powered magnets at least 6 inches away from pacemakers, insulin pumps, or sensitive electronics.

The Snap You Heard? That’s Clamp Force—How to Use Magnetic Hoops Without Distorting the Cap Crown

Magnetic hoops are fast, but they are not magic wands. A common novice error is letting the magnet "grab" the fabric before it is centered, locking in a crooked angle.

Success Metric: The "Drum Skin" Test Once the magnet snaps shut, run your finger across the front panel of the cap.

• Tactile: It should feel taut and smooth within the hoop area.
• Visual: The center seam of the cap should align perfectly with the center marks on the hoop.
• Negative Check: If you see "ripples" near the brim, pop it off and redo it.

When configuring magnetic hoops for tajima machines, consistency is the product. Every cap should look identical in the frame.

Pro Tip: Do not hoop one, stitch one. Hoop 5 to 10 caps ahead (if you have extra hoops) or establish a rhythm: Hoop -> Load -> Stitch -> Unhoop -> Repeat.

Mounting the Hooped Cap in the Tajima Driver Arms: Centering Without Guesswork

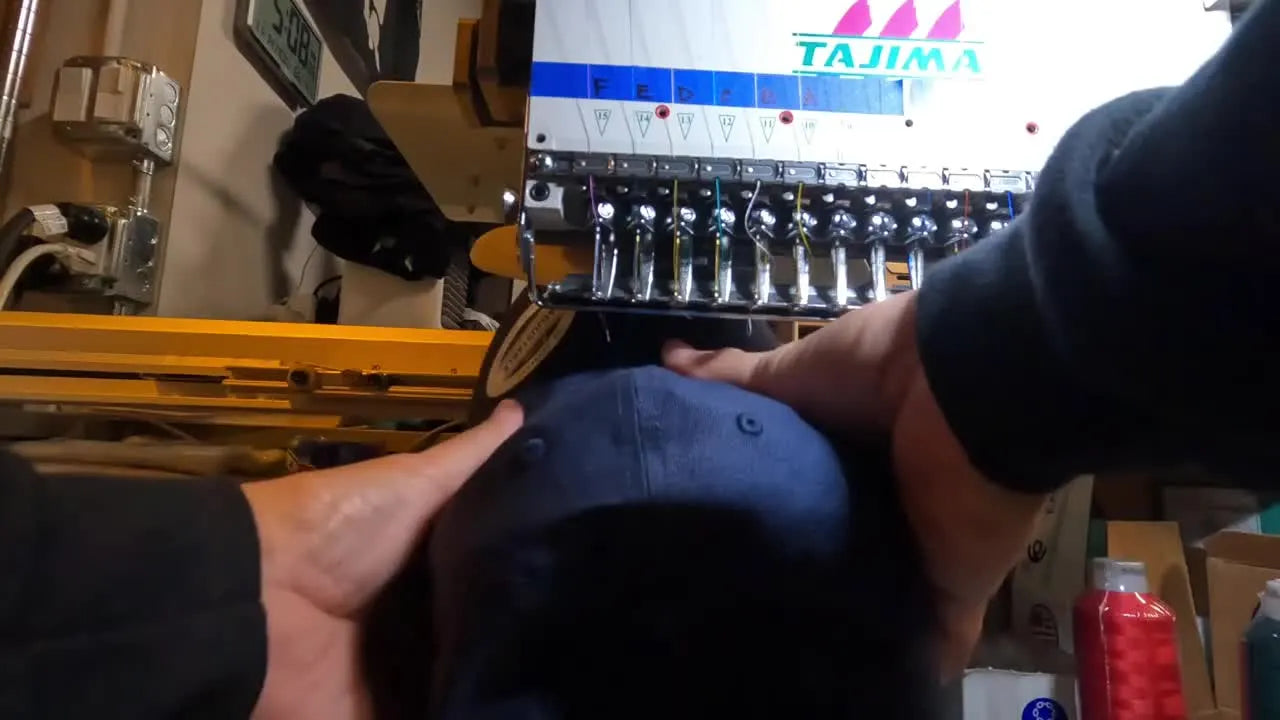

Ryan snaps the hooped cap into the machine’s driver arms and uses the control panel to jog to center. This moment is critical.

The "Click" Confirmation: When you slide the hoop into the driver, you must feel/hear a distinct engagement. Ideally, tighten the thumb screws (if applicable to your driver variation) to ensure no vibration loosens that grip.

Checkpoint: Before hitting "Trace" or "Start," gently wiggle the hoop frame.

• Pass: The entire cap driver moves with your hand (solid).
• Fail: The hoop wiggles inside the driver. (Stop! tighten the connection).

If you are frequently switching between tajima hat hoops (standard) and magnetic fixtures, verify the clearance between the hoop back and the machine arm every time you swap hardware.

The Trace Test That Saves Needles: Proving Clearance Before You Stitch (Especially on Caps)

Ryan runs a Trace function. The machine outlines the design area without stitching. On flat shirts, this checks for placement. On caps, this is a survival check for your machine.

Why is this non-negotiable? Caps are 3D objects moving in a tight space. If the needle bar hits the steel hoop ring or the magnetic frame, you risk shattering the needle, throwing the machine timing off, or damaging the reciprocating mechanism.

The "Gap of Anxiety" Check:

1. Initiate Trace: Press the button.
2. Eyes on the Gap: Watch the distance between the presser foot/needle and the edge of the hoop frame.
3. The Rule of Thumb: You need at least 1-2mm of visual clearance at the tightest corner. If the needle gets too close to the hoop wall, stop. Resize the design or move it. Do not risk it.


Small Text on Hats: Why Removing an Outline Can Make “Social” Readable Again

Ryan encounters a classic quality issue: the word “Social” is small, and the original design has an outline. On the hat, it looks crowded and messy. His solution? Delete the outline for the hat version.

The Expert "Why": Embroidery adds physical mass to the fabric.

• The Problem: Small letters (under 3-4mm) are already dense. Adding a running stitch outline adds more thread into that tiny space. The threads push against each other, causing the letters to close up and look like blobs.
• The Solution: Less is more. Removing the outline recovers the "negative space" inside the letters, making them legible.

If you are mastering magnetic hoop embroidery, remember that excellent hooping cannot fix a bad file. You must adapt the file to the substrate.

The “Snapback Hooping” Setup Checklist: Lock in Consistency Before You Run 50 Units

Before you stitch the first production hat, print this list and check every item.

Setup Checklist (Do Once, Run 50)

• Station Calibration: Hoop Master width is set tight; cap does not wobble on the pedestal.
• Backing Prep: 50 pieces of heavy cap stabilizer cut and stacked within reach.
• Sweatband Strategy: All sweatbands flipped out.
• Machine Rotation: Verified 180° on screen.
• Needle/Color: Needle 13 verified as Gold; no tangles in the thread tree.
• Trace Success: First cap traced with >2mm clearance from hoop edges.
• Bobbin: Fresh bobbin installed.

Users of the mighty hoop 5.5 (a popular size for hats) often find they can stitch closer to the brim than with standard plastic hoops, but the safety trace remains essential.

Can You Load a Hat and Walk Away? Yes—But Only If You Define “Walk Away” Like a Pro

Can you leave the machine? Ryan says yes. But let's clarify the professional definition of "leaving."

The "Earshot" Rule: Commercial machines have a rhythmic, hypnotic sound: thump-thump-thump.

• You use your ears more than your eyes.
• A change in pitch, a slapping sound (loose thread), or silence (thread break) requires instant reaction.
• Safe Distance: You can turn your back to fold shirts or hoop the next hat, but staying in the same room is best practice.

Hidden Consumable: Keep a seam ripper and tweezers worn on a lanyard or magnetically attached to the machine stand. You will need them eventually.

Stabilizer Decision Tree for Caps vs Bella Canvas Shirts: Stop Guessing, Start Matching the Substrate

Ryan switches between structured caps (Navy Twill) and soft T-shirts (Mustard Bella Canvas). Mixing these up causes disaster.

Use this logic flow to determine your backing strategy:

Decision Tree: Fabric → Stabilizer Choice

1. Substrate: Structured Cap (Snapback/Trucker)
   • Goal: Maintain crown curve, prevent needle deflection.
   • Solution: Heavy Tear-away (often 2.5oz or 3oz).
   • Expert Note: If the cap is unstructured (dad hat), add a layer of Cut-away to prevent distortion.
2. Substrate: Knit T-Shirt (Bella Canvas 3001 level)
   • Goal: Prevent stretch and puckering.
   • Solution: No-Show Mesh (Cut-away) or Medium Cut-away.
   • Expert Note: Never use only tear-away on a T-shirt. As you tear it, you will distort the stitches and ruin the shirt after one wash.
3. Is the design dense? (>10k stitches)
   • Yes: Add a second layer of backing or use a spray adhesive to bond the backing to the fabric (floating method) for extra stability.


Production Math That Hurts (But Saves Your Business): 10–15 Minutes per Hat Becomes Days Fast

Ryan calculates roughly 17 hours for this order. This is the "scale ceiling."

• Math: 50 hats x 15 mins (running + hooping + breaks) = 12.5 hours minimum. Add interruptions, and it spans 3 days.

The Profit Trap: If you priced these hats thinking only about the 5-minute stitch time, you are losing money on the 10 minutes of handling time per hat.

Learning how to use mighty hoop systems can shave 30-60 seconds off the hooping process per hat. Over 50 hats, that saves you nearly an hour of labor. That is pure profit recovery.

When a Second Head Pays for Itself: The Upgrade Path from “Watching Paint Dry” to Real Throughput

Ryan concludes that one head isn't enough forever. He suggests moving to a multi-head machine.

The "Commercial Tool Escalation" Ladder: How do you know when to spend money?

1. Level 1: Friction Reduction (Cost: $50 - $200)
   • Symptom: Hooping hurts hands, leaves marks.
   • Solution: SEWTECH / Magnetic Hoops. Faster, safer, cleaner.
2. Level 2: Reliability (Cost: Variable)
   • Symptom: Thread breaks, inconsistent tension.
   • Solution: High-quality Thread & Stabilizer.
3. Level 3: Capacity Scaling (Cost: $$$$)
   • Symptom: You are turning down orders because you can't stitch them fast enough (like Ryan's 3-day grind).
   • Solution: SEWTECH Multi-Needle / Multi-Head Machines.
   • ROI Logic: If a 2-head machine cuts a 17-hour job to 8.5 hours, you effectively double your revenue potential per day.


The “Run It Like a Shop” Operation Checklist: Keep Quality High While You Move Fast

Once the first hat is approved, your job is robot-like consistency.

Operation Checklist (Per Hat Loop)

• Unload: Remove finished hat. visually check for "looping" or missed trims.
• Hoop Next: Place backing -> Place Hat -> Align Seam -> Snap.
• Load Driver: Insert hoop. Feel the click.
• Center: Jog to starting point (if not auto-returning).
• Stitch: Press Start.
• Sound Check: Listen for the smooth stitching rhythm.

When switching between a standard plastic tajima embroidery hoop and magnetic frames, always re-validate your trace area, as the outer dimensions differ significantly.

Quick Troubleshooting Map: Symptoms → Likely Cause → Fix

Don't guess. Use this matrix when things go wrong during the run.

Finishing and Packing: The Part Everyone Forgets to Price In

Production isn't over when the machine stops.

• Trimming: Use curved Snips to cut jump stitches flush.
• Heat: A quick wave of a heat gun (carefully!) or steam can remove hoop marks if you used traditional hoops.
• Lint Roll: Caps attract dust. A quick roll makes them retail-ready.
• Shape: Stuff the crown with tissue paper if shipping to prevent crushing.


The Real Takeaway: Magnetic Hooping Buys Speed—But Design Choices and Capacity Decide Profit

Ryan’s run proves that commercial embroidery is an ecosystem.

1. Technique: 180° rotation and simplifying text saves the quality.
2. Tools: Magnetic hooping stations save the operator's hands and time.
3. Scale: Eventually, volume demands more needles.

If you are stuck in the "Single Head Grind," analyze your pain points. If it's hooping time, upgrade your hoops. If it's pure run time, look at SEWTECH's multi-needle solutions. Invest in the bottleneck, and the profit follows.

FAQ

• Q: How do I make an older Tajima USB emulator reliably show the embroidery design filename on the Tajima control panel during production?
  A: Reseat the USB and wait for the LCD file list to visually refresh before doing anything else—this is common on legacy Tajima setups.
  • Insert: Push the USB in firmly and straight.
  • Wait: Give the emulator 5–10 seconds to mount.
  • Verify: Watch for the file list to flicker/refresh and for the exact filename to appear.
  • Success check: The LCD updates and the specific design name is visible (not just a blank/unchanged list).
  • If it still fails: Remove the drive, check for lint/dust in the port, gently blow out the port (or use compressed air), and retry reinserting several times.
• Q: What Tajima cap driver rotation setting prevents a Tajima hat embroidery design from stitching upside down on hats?
  A: Set the Tajima rotation to 180° for cap driver work before stitching, even if the thumbnail looks “right.”
  • Navigate: Enter the Tajima settings menu using the arrow keys/jog dial.
  • Set: Dial Rotation to R 180.
  • Verify: Confirm X:100 and Y:100 scale unless intentional resizing is needed.
  • Success check: The screen explicitly shows 180° (trust the numeric value more than the preview thumbnail).
  • If it still fails: Stop and re-check the hat is hooped “bill out” (visor facing away from the machine connection) and confirm the correct design version was loaded.
• Q: What prep steps prevent Tajima cap embroidery birdnesting caused by trapped sweatbands and unstable backing during hooping?
  A: Control the sweatband and pre-prep backing before hooping—uneven clamp pressure is a common cause of flagging and birdnesting on caps.
  • Flip: Pull the sweatband fully out of the hooping area before clamping.
  • Prep: Pre-cut the full batch of cap backing sheets so hooping stays consistent.
  • Secure: Use temporary spray adhesive if the backing tends to slip during hooping.
  • Success check: The cap front panel feels drum-tight and smooth with no “bump” where the sweatband would be.
  • If it still fails: Re-hoop and focus on eliminating ripples near the brim; loose fabric movement (flagging) must be corrected before stitching.
• Q: How do I verify a magnetic hoop is correctly tensioned on a snapback hat without distorting the cap crown before stitching on a Tajima cap driver?
  A: Center the cap first, then let the magnetic hoop snap shut—do not let the magnet grab the fabric while it is off-angle.
  • Align: Match the cap center seam to the hoop center marks before the magnets engage.
  • Smooth: Press the crown down the center seam first, then smooth outward (“T” smoothing).
  • Re-do: Pop the hoop off and re-hoop if the magnet locks in a crooked angle.
  • Success check: The hooped area feels taut like a drum skin and the center seam is perfectly centered with no ripples near the brim.
  • If it still fails: Slow down the snap moment and re-check the station/jig is not shifting after the first hat is dialed in.
• Q: What safety rules prevent needle strikes and timing damage when using the Tajima Trace function on hats with standard or magnetic cap frames?
  A: Always run Tajima Trace and confirm clearance before Start—caps are tight 3D spaces and hoop strikes can break needles and cause mechanical issues.
  • Trace: Run the Trace function to outline the design path without stitching.
  • Watch: Keep eyes on the gap between presser foot/needle area and the hoop/frame edge at the tightest corners.
  • Stop: Abort immediately if clearance looks tight; resize or reposition the design instead of risking contact.
  • Success check: There is a visible 1–2 mm minimum clearance at the closest point during Trace.
  • If it still fails: Verify the correct hoop/frame is installed, then re-check design placement and cap stability (no flagging lifting the cap into the needle path).
• Q: How do I prevent thread birdnesting on a Tajima commercial embroidery machine when the top thread wads up under the design during a hat run?
  A: Rethread the Tajima top path and floss the thread deep into the tension plates—birdnesting is commonly a tension-path seating issue.
  • Rethread: Completely rethread from spool to needle (do not “patch” a missed guide).
  • Seat: Floss the thread firmly into the tension discs/plates so it is fully captured.
  • Check: Confirm the active needle/thread color is correctly routed before restarting.
  • Success check: Stitching resumes with a steady rhythm and no new thread wad forms under the work.
  • If it still fails: Stop and inspect for missed trims/loops, then re-check hooping tightness and cap stability (flagging can trigger repeat nesting).
• Q: When does upgrading from traditional Tajima hat hoops to magnetic hoops or upgrading from a Tajima single-head workflow to a multi-needle/multi-head machine make sense for 50-hat orders?
  A: Diagnose the bottleneck first: upgrade to magnetic hoops when handling/hooping time and hoop marks are the pain, and upgrade machine capacity when total run time is the limiter.
  • Level 1 (Technique): Standardize rotation (180°), backing prep, sweatband control, and always Trace to avoid resets and rework.
  • Level 2 (Tooling): Use magnetic hoops/hooping stations when hooping is slow, inconsistent, or causing operator fatigue and hoop burn.
  • Level 3 (Capacity): Consider multi-needle/multi-head capacity when single-head handling + stitching turns a 50-hat job into multiple days.
  • Success check: The production plan becomes predictable (repeatable hooping, fewer restarts, and consistent placement from hat #1 to hat #50).
  • If it still fails: Time a full per-hat cycle (hoop + load + trace + stitch + unload); the largest time block is the correct upgrade target.
