5 Embroidery Machine Problems That Ruin a Stitch-Out (and the Calm Fixes Pam Hayes Actually Uses)

If your embroidery machine suddenly starts acting like it has a mind of its own—bobbin thread popping to the top, puckering that ruins a gift, a USB design that “vanishes,” or thread that snaps every few minutes—you’re not alone.

Machine embroidery is an "experience science." It relies on the perfect physical harmony of thread, fabric, needle, and speed. When one variable slips, the machine usually fails in a way that looks catastrophic.

Pam Hayes of Hayes Sewing Machine Company teaches these fixes the way a master technician does: start with the simplest, most repeatable checks, and never “tune” ten things at once. I have rebuilt her top five troubleshooting protocols into a shop-ready workflow (Standard Operating Procedure). This is your safety net when you are tired, on a deadline, or trying to keep embroidery profitable.

Don’t Panic When the Stitch-Out Looks Wrong: A Quick Reality Check for Baby Lock Accord & Bernina Embroidery Machines

When an embroidery machine fails, it is loud and violent. The needle crunches, the screen flashes, and the fabric tears. However, the root cause is rarely the computer brain. Based on twenty years of diagnostic data, 90% of failures stem from three physical basics:

1. Thread Path Physics: Thread is not seated deep enough in the tension discs (top) or the tension spring (bobbin).
2. Stabilization Mechanics: The fabric is moving because the "sandwich" (fabric + stabilizer) is too loose or the wrong type.
3. Digital Mismatch: The file commands exceed the machine's physical limits (speed, density, or field size).

Pam’s guidance is demonstrated on a Baby Lock Accord but applies to almost all domestic machines (Brother, Bernina, Janome). Treat the "Sweet Spot" numbers below as your safety buffer—if your manual says you can go faster, don't do it until you fix the current problem.

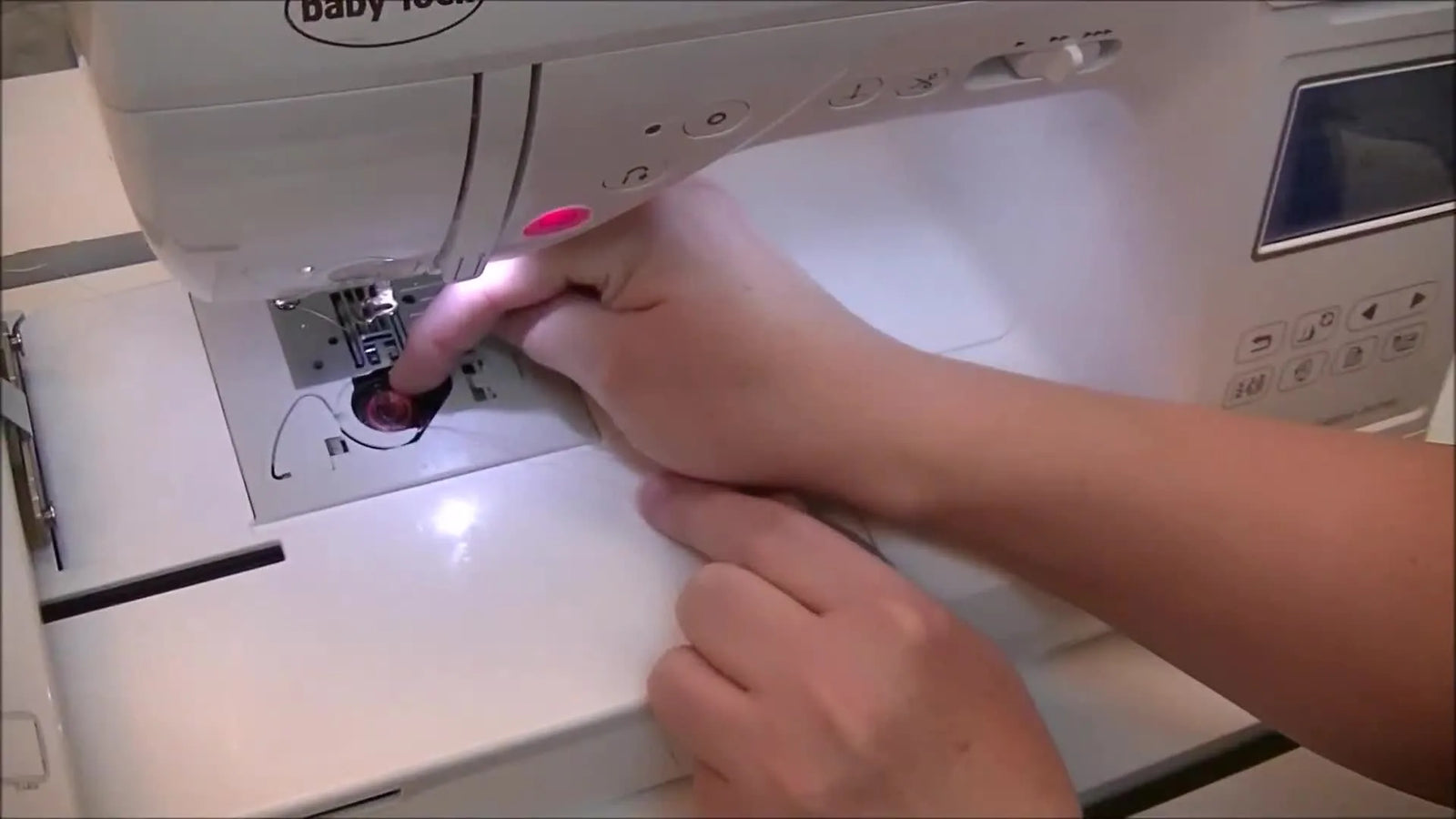

The “Clock-Hand” Bobbin Seating Trick: Stop Bobbin Thread Showing on Top (Drop-In Bobbin Case)

The most common frustration for beginners is seeing the white bobbin thread poking through the top of the design, creating a "salt and pepper" look. Pam’s first move is not to touch the tension dials. Nine times out of ten, the bobbin simply isn't engaged.

The Physics of the "Click"

A drop-in bobbin case relies on a tiny metal leaf spring to apply drag to the thread. If the thread misses this spring, there is zero tension. The machine pulls the bobbin thread up effortlessly, ruining the design.

The "Clock-Hand" Workflow

Follow this sensory check to ensure engagement:

1. Remove: Take the bobbin out completely. Check for lint in the case.
2. Replace: Drop the bobbin back in.
3. The Anchor (Crucial Step): Press and hold the bobbin down firmly with your index finger. It must not spin yet.
4. The Path: While holding the bobbin still, pull the thread tail through the slit and under the metal leaf spring.
5. Sensory Check (Tactile & Visual):
   • Feel: You should feel a slight resistance, like pulling dental floss.
   • Look: The thread should travel across the bobbin face like a clock hand moving from 7 o’clock to 12 noon.

Expected Outcome: The bobbin thread stays captured in the tension spring path. When you pull the tail, the bobbin should rotate counter-clockwise (anti-clockwise) smoothly.

When "Standard" Isn't Enough: The Specialty Case

Pam notes that some machines offer a specific High-Tension Embroidery Bobbin Case (often marked with a dot or color). If you are switching from sewing to embroidery, verify you are using the correct case. The embroidery case has tighter factory tension to pull the top thread down, creating that perfect satin stitch finish.

Pro-Tip on Upgrade Paths: Sometimes, you do everything right, and the tension still fluctuates. This is common when the fabric shifts inside a traditional plastic hoop. Many users verify their bobbin is perfect, yet the outlines still don't line up. This is the moment many transition to magnetic hoops for babylock embroidery machines. These tools don't change the bobbin tension directly, but by clamping the fabric with zero microscopic movement, they eliminate the "false tension" errors caused by fabric shifting.

The “Hidden” Prep Before You Touch Settings: Thread, Needle, and a Clean Re-Thread Ritual

Before you blame software or mechanics, you must clear the "consumable" variables. Establish this pre-flight ritual to prevent 80% of failures.

The "Hidden Consumables" Kit

Keep these within arm's reach:

• Fresh Needles: 75/11 and 90/14 (Titanium coated lasts longer).
• Compressed Air / Brush: For bobbin lint.
• Tweezers: For fishing out thread tails.
• Adhesive Spray: For floating stabilizers.

Pre-Flight Checklist (Run Before Every Project)

• Bobbin Check: Is it 7-to-12 o'clock? Is it embroidery weight (usually 60wt or 90wt), not sewing thread?
• Needle Check: Run your fingernail down the needle tip. If you feel a "click" or catch, the needle is burred. Replace it immediately. A burred needle shreds thread.
• Thread Path: Raise the presser foot (to open tension discs), re-thread completely, then lower the foot.
• Clearance: Ensure the embroidery arm has space to move without hitting a wall or coffee cup.

Warning: Physical Safety Hazard. Always keep fingers clear of the needle bar area when testing. Never reach under the needle while the machine is powered. If a needle hits the hoop or plate, it can shatter, sending metal shards towards your eyes. Safety glasses are recommended in industrial settings and wise for home use.

Puckering That Won’t Quit: Stabilizer Must Fill the Hoop Frame (Not Just a Strip)

Pam’s advice on puckering is blunt: "Most puckering is under-stabilization." The fabric ripples because the thousands of stitches are pulling the fabric inward, and you didn't give it enough rigidity to fight back.

The Physics of the "Drum Skin"

Embroidery requires the fabric to be as taut as a drum skin—but without stretching the fibers. If you use a "floating" strip of stabilizer that doesn't reach the edges of the hoop, the hoop is only gripping the fabric. The fabric will slide.

The Fix: Full-Hoop Stabilization

1. Cut Generously: The stabilizer must be large enough to be gripped by the hoop on all four sides.
2. The Tap Test: Once hooped, tap the fabric. It should sound distinct and firm. If it sounds loose or floppy, re-hoop.
3. Density Matching: If the design has 15,000+ stitches, one layer of tear-away is insufficient. Use cut-away or two layers.




Decision Tree: Stabilizer & Hoop Strategy

Use this logic flow to determine your setup:

• Scenario A: High Stitch Count / Dense Design
  • Action: Use Heavy Cut-Away stabilizer. Ensure it covers the full hoop frame.
  • Troubleshoot: If puckering persists, add a second layer of stabilizer (floated underneath).
• Scenario B: Stretchy Knits (T-Shirts/Polos)
  • Action: Must use Cut-Away stabilizer (fusible is best). Never rely on Tear-Away alone.
• Scenario C: Thick Seams / Hard-to-Hoop Items (Bags, Jackets)
  • Pain Point: You cannot get the inner ring inside the outer ring without hurting your wrists or leaving "hoop burn" marks.
  • Solution: This is the Trigger Point for effective tooling. Professionals switch to embroidery magnetic hoops specifically for these items. The magnets snap over seams instantly, providing firm tension without the physical force that damages items (or your hands).

Warning: Magnetic Safety. If you upgrade to magnetic hoops, be aware they use powerful Neodymium magnets. Keep them away from pacemakers and cardiac devices. Watch your fingers—the "snap" force can pinch skin painfully.

The Cotton Pre-Treat That Saves Stitch-Outs: Mary Ellen’s Best Press (Front, Back, Iron)

Cotton is deceptive. It looks stable, but it is soft and pliable. To machine embroider it perfectly, you need to temporarily turn it into cardstock.

The "Starching" Procedure

Pam swears by Mary Ellen’s Best Press (a clear starch alternative). Do not skip a step:

1. Front: Spray the fabric face. Iron until dry.
2. Flip: Turn the fabric over.
3. Back: Spray the back. Iron until dry.
4. Cool: Let it cool before hooping.

Why this works: The starch bonds the fibers, minimizing the "draw-in" effect where stitches pull the fabric together.

The Consistency Bottleneck: If you process 50 shirts a week, ironing every single one twice is a production killer. This is where shops evolve. While the spray is great for one-offs, high-volume consistency usually requires a mechanical aid. A dedicated hooping station for embroidery machine ensures that every shirt is placed in the exact same spot with the exact same tension, reducing the need for excessive chemical stiffeners by relying on superior mechanical alignment.

When the Design “Isn’t on the USB”: File Format, Hoop Field Size, and the Zip Folder Trap

"I put the file on the stick, but the machine is empty." This is usually a logic error, not a glitch.

The Digital Diagnostic Tree

1. Format Check:
   • Brother/Baby Lock: .PES
   • Bernina: .EXP (typically)
   • Janome: .JEF
   • Result: If the file is .DST or .XXX, your home machine might ignore it completely.
2. Field Size Limit (The Hard Stop):
   • Pam uses the Baby Lock Accord (5x7 inch max field).
   • The Trap: If you buy a design sized 5.01" x 7.01", the machine will not display it. It ignores files it cannot physically stitch.
   • Fix: Check the design measurements on your computer. Scale it down by 5% to fit safely within the limit.
3. The Zip File:
   • Machines cannot read .zip folders. You must right-click "Extract All" on your PC before copying the .pes/.exp file to the USB drive.




The Commercial Reality Check

If you constantly find yourself resizing designs or turning down jobs because your hoop is too small (e.g., trying to do jacket backs on a 5x7 machine), no amount of troubleshooting will help. This is a capacity issue.

• Hobbyist Level: Resize software.
• Business Level: This is your signal to upgrade to a Multi-Needle machine (like SEWTECH models) which typically offer larger fields and higher speeds, removing the physical constraints of domestic entry-level units.

Thread Breaking and Shredding: Needle Choice First, Then Slow the Max Embroidery Speed

When thread shreds, users instinctively lower tension. Stop. Low tension creates loops. Shredding is caused by friction and heat.

The "Needle Eye" Variable

Thread needs space to pass through the needle eye at 800 stitches per minute.

• 75/11 Needle: Standard use.
• 90/14 Needle: Use for thicker thread or metallic thread. The larger eye reduces friction.
• Topstitch Needle: Has an elongated eye. The secret weapon for shredding threads.

Speed as a Control Valve

Pam demonstrates a critical fix on the Baby Lock Accord: Slowing Down. High speed = High heat = High friction.

1. Locate Settings: Go to the "Paper" icon settings menu.
2. Find Max Speed: Default is often 650-800 spm.
3. The Sweet Spot: Reduce this to 350-400 spm for difficult threads (metallic, slippery rayon, or old cotton).

The "Gotcha": The machine remembers this setting! After you finish the tricky project, you must manually set it back to normal speed, or your next easy project will take forever.

Operation Checklist (The "Anti-Shred" Protocol)

• Inspect: Check thread path for snags on the spool cap.
• Replace: Swap to a fresh 90/14 Topstitch needle.
• Slow Down: Reduce machine speed by 50%.
• Check Stability: Is the hoop bouncing? If the hoop vibrates excessively, the needle creates a moving target.
  • Note: If you are using a standard plastic hoop that feels loose, the vibration causes needle deflection. A rigid system like a brother se600 hoop replacement (specifically a magnetic variant) can stabilize the fabric bed, reducing needle deflection and thread breaks.

Comment-Section Problems That Deserve a Straight Answer (Top Thread Bunching, Loud Squeaks, and Mystery Pop-Ups)

Symptom: "Bird's Nest" (Thread bunching underneath)

The Cause: It looks like a bobbin problem, but it is a Top Tension problem. The Fix:

1. Raise Presser Foot: crucial to open tension discs.
2. Rethread Top: Ensure thread snaps into the take-up lever.
3. Lower Foot: Pull thread to feel resistance.

Rationale: If the top thread has no tension, the bobbin hook pulls miles of it underneath, creating a nest.

Symptom: Loud Squeaking/Grinding

The Cause: Metal-on-metal friction. The Fix: Stop immediately. Do not oil belts or computer chips. This requires a dealer service. Continuing to run a squeaking machine can burn out the stepper motors.

Symptom: Screen Freeze / "Push" Prompt

The Fix: This is often a sensor error (needle up/down sensor). Turn off, wait 60 seconds, turn on. If it persists, it requires shop service.

The Upgrade Path That Actually Pays Off: When Hooping Speed and Consistency Become the Real Problem

Troubleshooting fixes the machine, but workflow upgrades fix the business. Once you master the basics above, your bottleneck will shift from "broken thread" to "wasted time."

Use this diagnostic to determine if you need to upgrade your tools:

Level 1: The "Production Speed" Bottleneck

If you are confident in your skills but hooping takes longer than stitching, consider how to use magnetic embroidery hoop videos as your next training step. Magnetic hoops remove the "unscrew -> adjust -> screw -> pull" cycle, replacing it with a "place -> snap" action.

Level 2: The "Bernina/Prosumer" Consistency Need

Bernina machines are precision instruments. If you run one, you need accessories that match that precision. Many independent studios switch to magnetic embroidery hoops for bernina to ensure that their $5,000+ machine isn't being held back by a slippery $20 plastic hoop.

Level 3: The "Volume" Crisis

If you are doing team jerseys or corporate orders (50+ items), manual alignment is physically exhausting and prone to error. A hoop master embroidery hooping station is standard in this tier. It ensures every logo is exactly 3 inches down from the collar, every single time, without measuring.

Final Thought: Troubleshooting is about patience and isolation. Fix the physical first (needle/thread/hooping), then check the digital (speed/file). If you treat your machine with this methodical respect, it will reward you with perfect satin stitches for years to come.

FAQ

• Q: How do I stop bobbin thread showing on top on a Baby Lock Accord drop-in bobbin case using the “clock-hand” bobbin seating trick?
  A: Reseat the bobbin so the thread is captured under the bobbin tension leaf spring before changing any tension settings.
  • Remove the bobbin completely and brush out lint in the bobbin case area.
  • Drop the bobbin back in, then press and hold the bobbin down firmly with an index finger (do not let it spin yet).
  • Pull the thread tail through the slit and under the metal leaf spring while still holding the bobbin.
  • Success check: Feel slight “dental-floss” resistance, and see the thread travel across the bobbin face from about 7 o’clock to 12 o’clock.
  • If it still fails: Verify the machine is using the correct embroidery bobbin case (some models have a dedicated high-tension embroidery case).
• Q: What pre-flight checklist prevents thread breaks and tension issues on Brother, Bernina, and Janome domestic embroidery machines before touching any settings?
  A: Run a quick “consumables + re-thread” ritual to remove the most common variables before adjusting tension or blaming software.
  • Replace the needle if the tip feels burred when a fingernail slides down it (a burr can shred thread fast).
  • Raise the presser foot, re-thread the top path completely, then lower the presser foot to re-engage the tension discs.
  • Clean bobbin lint with a brush/compressed air and confirm the bobbin is embroidery weight (commonly 60wt or 90wt).
  • Success check: With the presser foot lowered, pulling the top thread by hand should feel consistent resistance (not “free-spooling”).
  • If it still fails: Slow the max embroidery speed and re-check hoop stability so the needle is not chasing a moving target.
• Q: How do I know if fabric is hooped correctly to prevent puckering on a Baby Lock Accord or similar home embroidery machine?
  A: Hoop the fabric and stabilizer as a full “frame-filling sandwich,” not a small strip, so the hoop grips the stabilizer on all four sides.
  • Cut stabilizer large enough to be captured by the hoop on all four sides (not just under the stitch area).
  • Re-hoop until the surface is taut like a drum skin without stretching the fabric fibers.
  • Match stabilizer strength to design density (dense designs may need cut-away or an added layer).
  • Success check: Tap the hooped fabric—sound and feel should be distinct and firm, not loose or floppy.
  • If it still fails: Upgrade the hooping method for hard-to-hoop items (thick seams, bags, jackets) because fabric shift can mimic tension problems.
• Q: How do I fix “bird’s nest” thread bunching underneath on a Brother/Baby Lock/Bernina embroidery machine when it looks like a bobbin problem?
  A: Treat bird’s nesting as a top-thread seating problem first—re-thread with the presser foot up so the thread enters the tension system correctly.
  • Stop the machine and cut away the jammed thread safely; do not keep stitching through the nest.
  • Raise the presser foot to open the tension discs, then re-thread the top path completely (make sure the take-up lever is captured).
  • Lower the presser foot and pull the thread to confirm resistance returns.
  • Success check: A restart stitch-out should not pull “miles” of top thread to the underside in the first few stitches.
  • If it still fails: Re-check bobbin seating using the 7-to-12 o’clock path and inspect for lint in the bobbin area.
• Q: Why does a .PES or .EXP embroidery design “not show up” on a Baby Lock Accord or Bernina USB screen, even though the file is on the USB drive?
  A: The most common causes are wrong format, design size exceeding the hoop field limit, or the file still being inside a .zip folder.
  • Confirm the machine’s format: Brother/Baby Lock typically reads .PES; Bernina commonly uses .EXP (a mismatched format may be ignored).
  • Check design dimensions on a computer; if the design exceeds the machine’s maximum field (example shown: 5x7 max), the machine may not display it—scale down slightly to fit within the limit.
  • Extract the design from any .zip folder before copying to the USB (machines cannot read .zip).
  • Success check: The design appears in the machine’s file list and matches the expected hoop size category.
  • If it still fails: Re-copy the single extracted design file to the USB root directory and confirm the USB contains only readable embroidery files.
• Q: How do I reduce thread shredding on a Baby Lock Accord when embroidery thread keeps breaking—should I lower tension or change needle and speed first?
  A: Change needle choice and slow the max embroidery speed first—shredding is usually friction/heat, and lowering tension often creates loops instead of solving the cause.
  • Swap to a fresh needle; use a 90/14 for thicker or metallic thread, or a Topstitch needle for more eye clearance.
  • Reduce max embroidery speed to a safer range for difficult threads (example shown: 350–400 spm) and remember to set it back afterward.
  • Inspect the thread path for snags (spool cap or guides) and confirm the hoop is not bouncing excessively.
  • Success check: Thread runs smoothly without fuzzing at the needle and completes several minutes of stitching without repeated breaks.
  • If it still fails: Re-check hoop rigidity and fabric movement, because vibration and fabric shift can cause needle deflection and repeated breaks.
• Q: What needle and machine safety steps should I follow when troubleshooting a needle strike or testing stitches on a domestic embroidery machine needle bar area?
  A: Keep hands away from the needle zone during testing and power down before reaching near the needle—needle strikes can shatter needles and throw sharp fragments.
  • Stop immediately if the needle hits the hoop or plate; turn the machine off before clearing thread or repositioning fabric.
  • Keep fingers clear of the needle bar area whenever the machine is powered, even during “quick tests.”
  • Wear eye protection as a safe practice when diagnosing repeated strikes or jams.
  • Success check: The machine runs without needle contact, crunching sounds, or visible deflection near the hoop.
  • If it still fails: Do not force the machine to continue—persistent strikes often indicate a setup or alignment problem that needs systematic re-checking (needle, hooping, file fit).
