4 Cap Embroidery Fixes for Ricoma Multi-Needle Machines: Stop Needle Breaks, Nail Registration, and Finish Hats Faster

Cap Embroidery Masterclass: From "Risky Business" to Predictable Profit

Cap embroidery is the "Great Filter" of the apparel customization industry. It separates the lucky hobbyists from the professional shops.

If you have ever watched a cap run on your machine and felt a knot in your stomach—fearing that one wrong stitch will shatter a needle, ruin a brand-new hat, or throw the registration off by three millimeters—you are not alone. This is the Fear of the Unknown Variable.

Caps are mechanically hostile. They force you to stitch on a curved, 3D surface that is actively fighting to return to its original shape. They combine thick seams, stiff buckram, and a dangerous lack of clearance near the bill.

But here is the truth: Cap embroidery is not magic; it is physics. Once you control the variables—friction, tension, and stability—the fear disappears.

What follows is a white-paper-level reconstruction of essential cap embroidery techniques. We have stripped away the guesswork and replaced it with sensory checkpoints, safe operating ranges, and a commercial upgrade path utilized by high-volume production houses.

1. The "5-Minute Hook Habit": The Foundation of Stitch Physics

Before we even touch a hat, we must address the machine's engine room: the Rotary Hook.

Cap embroidery is inherently slower and puts more stress on the thread than flat embroidery. Any friction in the thread path does not just cause a thread break; it causes deflection. Deflection is when the needle bends slightly due to drag, missing the timing window with the hook.

The Symptom: You hear a dry, metallic "hissing" sound during rotation, or you see "birds nesting" (loops) on the inside of the cap.

The Fix: You must adopt the "5-Minute Hook Habit." This is not a suggestion; it is a requirement for cap production.

The Maintenance Protocol

1. Isolate the Bobbin: Stop the machine and remove the bobbin case entirely.
2. The Visual Audit: Shine a light into the hook assembly. You are looking for a "fuzz carpet"—compressed lint and thread dust mixed with old oil. This acts like sandpaper on your thread.
3. The Sweep: Use a small, stiff brush to sweep outward. Do not blow into it (which pushes lint deeper into the sensors).
4. The Lubrication: Apply oil directly to the rotary hook raceway (the metal track where the hook spins).


Sensory Check (The "Ear" Test)

• Bad Sound: A dry, scraping noise or a high-pitched whine.
• Good Sound: A smooth, rhythmic hum. The machine should sound "wet" and frictionless.

Warning: Mechanical Hazard
Never clean or oil the machine while it is powered on or in motion. Needles are brittle; if your hand slips while the machine is jogging, a needle can puncture bone. Always power down or engage the emergency stop before placing fingers near the hook assembly.

The Hidden Consumable: Thread & Needles

If you perform this maintenance and still experience breaks, look at your consumables. Cheap thread has high friction. A bent needle (even slightly) will hit the cap frame.

• Pro Tip: Start every large cap order with a fresh Titanium needle (size 75/11 sharp). The titanium coating reduces heat buildup in the thick cap buckram.

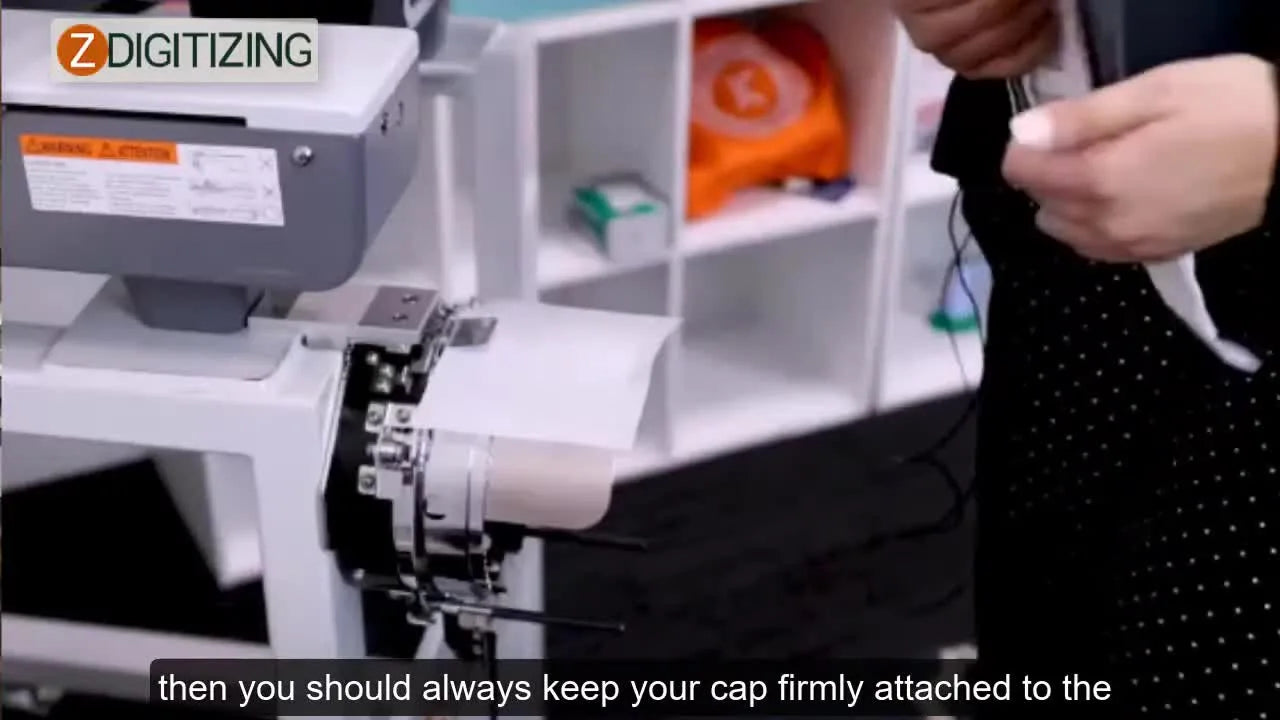

2. The Physics of Hooping: Eliminating the "Air Gap"

This is where 80% of cap errors occur. The video source highlights the importance of using a standard cap ring correctly, but let's dive into the why.

The enemy is Flagging. Flagging happens when there is an "air gap" between the cap fabric and the metal cylinder arm (or cap driver). When the needle penetrates, it has to push the fabric down to meet the plate before it can form a stitch. This up-and-down trampoline motion ruins registration and causes thread breaks.

The "Drum Skin" Technique

1. Inspect the Hardware: Ensure your cap ring is perfectly circular and the strap teeth are not bent.
2. Anchor the Front: Fasten the metal strap tightly against the brim junction. This is your primary anchor.
3. The "Pull-Down" Maneuver: From the back of the cap workstation, grip the sweatband and fabric. Pull down and back firmly. You are trying to stretch the cap over the curve of the drum.


Sensory Check (The "Tap" Test)

Once hooped, tap the front center of the cap with your finger.

• Fail: It feels soft, spongy, or you can push the fabric down 2-3mm.
• Pass: It feels tight and solid, like the skin of a drum. There is zero movement between the fabric and the metal gauge below it.

The Tool Upgrade Path: Solving "Hoop Burn"

If you are strictly using standard mechanical rings, you may encounter two commercial pain points:

1. Hooping Fatigue: Wrist strain from manually leveraging clamps all day.
2. Hoop Burn: The mechanical clamps leave permanent pressure marks on delicate performance fabrics.

If you face these issues, the industry solution is often a magnetic embroidery hoop. Unlike mechanical clamps that pinch specific points, magnetic systems distribute force evenly around the frame. This reduces hoop burn and allows for faster mounting, which is critical if you are scaling up production.

Warning: Magnetic Safety
Industrial magnetic hoops use high-powered Neodymium magnets. They snap together with enough force to crush fingers or shatter bone.
* Do not place near pacemakers (maintain 12-inch distance).
* Do not allow children near these tools.
* Always slide the magnets apart; never try to pry them straight off.

Prep Checklist (Pre-Flight)

• Rotary hook area cleaned and oiled (silence the friction).
• Fresh Needle installed (Titanium 75/11 recommended).
• Cap Driver is secured to the machine (check for wobble).
• Correct Stabilizer cut to size (Tearaway for structured; Cutaway for unstructured).
• Hidden Consumable: Have a "Temporary Adhesive Spray" or water-soluble pen ready for positioning fixes.


3. Stabilization Hack: The Binder Clip Method

The video offers a low-tech but brilliant tip: using binder clips. Why? Because caps rotate.

As the machine rotates the hat 270 degrees, the loose material at the back (size strap, excess backing, sweatband) is subjected to centrifugal force. It wants to fly outward. If it catches on the machine arm or pulls the cap, your design will shift.

The Protocol

1. Gather: Smooth the excess backing and sweatband flat against the cap driver.
2. Clip: Use standard office binder clips to lock the material to the posts or frame of the driver.
3. Verify: Spin the hat by hand (if on a station) or visually confirm that nothing is dangling.

Expected Outcome: The cap moves as a single, solid unit. There is no "drag" from the back of the hat influencing the front of the hat.

Decision Tree: Matching Stabilizer to Cap Type

One size does not fit all. Use this logic flow to select your backing.

4. The 0.5-Inch Safety Zone: Avoiding Catastrophe

The area where the cap bill meets the cap crown is the "Red Zone." It is thick, hard, and often contains plastic stiffeners. If your needle strikes this, it will shatter.

The video suggests a 0.5-inch (approx. 12-13mm) clearance.

The Visualization Technique

1. Measure: Use a physical ruler. Measure 0.5 inches up from the seam where the bill connects.
2. Mark: Use a water-soluble pen or chalk to mark this "Do Not Cross" line on your first setup.
3. Digitizing Check: Ensure your digitized file has its origin set correctly (usually "Bottom Center" or "Center") and strictly adheres to this height limit.




Setup Checklist (Before Pressing Start)

• Cap is "Drum Skin" tight on the frame.
• Excess material is binder-clipped and secure.
• Design Bottom is >0.5" above the bill seam.
• Presser foot height is adjusted (cam check) for the thickness of the cap + backing (approx 1.5mm - 2mm clearance).
• Trace Function run successfully to verify needle path clear of the bill.

5. Speed Physics: The "Sweet Spot" Strategy

New operators often think, "My machine is rated for 1000 stitches per minute (SPM), so I will run at 1000." This is a mistake. A cap is a heavy object swinging on a pendulum. High speeds create vibration, and vibration kills sharp lettering.

The source video recommends a range of 600–800 SPM. We will narrow this down based on experience levels.

Recommended Speed Zones (SPM)

• The "Safety" Zone (550 - 600 SPM): Use this for Unstructured Hats, delicate small lettering (under 5mm tall), or metallic thread. At this speed, deflection is minimal.
• The "Production" Zone (650 - 750 SPM): Use this for standard Structured Caps with simple logos. This is the balance between profit and quality.
• The "Danger" Zone (850+ SPM): Only for highly tuned machines and extremely stable designs. Risk of needle deflection increases exponentially here.






Scaling Your Business: The Hardware Reality

Speed limits exist because of physics. If you are running a single-needle machine, your throughput is capped not just by SPM, but by thread changes.

The Upgrade Calculation: If you find yourself running orders of 24, 50, or 100 hats, the time spent changing thread and re-hooping on a single-needle machine destroys your profit margin. This is the "Trigger Point" where professionals upgrade to multi-needle systems.

Experienced shops often search for ricoma embroidery machines or similar industrial-grade equipment (like the SEWTECH multi-needle series) specifically to access higher torque motors and more stable cap driver systems that can sustain those 750+ SPM speeds reliably all day long.

6. Troubleshooting: The Logic of Repair

Constructive troubleshooting requires a logical order of operations. Do not change your software settings until you have verified the physical machine.

7. The Workflow Upgrade: How to Stop Losing Money

Finally, look at your workflow. The physical act of hooping a cap takes time. If your machine is stopped while you struggle to hoop the next hat, you are losing money.

The "Staging" Strategy

Professional shops separate the hooping from the sewing.

1. Prep Station: All backing is pre-cut. All binder clips are in a bowl.
2. hooping stations: A dedicated station allows you to use gravity and leverage to get that "Drum Skin" tightness every time, saving your wrists.
3. Run: While the machine runs Hat A, you are hooping Hat B.

Operations Checklist (During the Run)

• Watch the first 100 stitches (the tie-in is critical).
• Listen for the "Rhythmic Hum" (stop immediately if you hear a clicking sound).
• Check the bobbin supply every 10 hats (don't run out mid-logo).

Conclusion: Patience Pays

Cap embroidery rewards preparation, not haste. By mastering the 5-Minute Hook Habit, ensuring Drum Skin Hooping, and respecting the 0.5-Inch Safety Zone, you eliminate the random variables that cause crashes.

When manual hooping becomes the bottleneck, look to machine embroidery hoops with magnetic locking to speed up the process. When production volume outpaces your day, look to multi-needle machines to scale. But today, start with the physics. Clean your hook, tighten your hoop, and slow down your machine. Perfection will follow.

FAQ

• Q: How do I stop bird nesting (loops) inside a cap caused by rotary hook friction on a multi-needle embroidery machine?
  A: Clean and oil the rotary hook before cap runs—most cap bird nesting starts with friction, not digitizing.
  • Remove: Stop the machine, power down or hit emergency stop, and remove the bobbin case completely.
  • Brush: Sweep lint outward with a stiff brush (do not blow lint deeper into sensors).
  • Oil: Apply oil directly to the rotary hook raceway (the metal track where the hook spins).
  • Success check: Listen for a smooth, “wet” rhythmic hum instead of dry scraping/whine during rotation.
  • If it still fails: Replace the needle and switch to lower-friction, premium thread; a slightly bent needle or high-friction thread can keep causing loops.
• Q: How do I know a cap is hooped correctly on a standard cap ring to prevent flagging and off-registration?
  A: Hoop the cap until the front panel feels like a drum skin—any “air gap” will cause flagging and shifting.
  • Inspect: Confirm the cap ring is truly circular and strap teeth are not bent.
  • Anchor: Fasten the metal strap tightly at the brim junction (primary anchor point).
  • Pull: From the back, pull the sweatband and fabric down and back firmly to remove the air gap.
  • Success check: Do the tap test—front center should feel tight/solid with near-zero movement (not spongy or 2–3 mm push-down).
  • If it still fails: Add stabilizer strength and/or slow the machine speed; weak backing plus flagging often shows up as outline gaps.
• Q: What stabilizer should I use for structured caps vs unstructured “dad hats” to avoid distortion during cap embroidery?
  A: Match stabilizer to cap structure—tearaway works for structured, but unstructured hats often need cutaway to prevent distortion.
  • Use: Structured cotton/wool caps typically run well on 1–2 layers of 2.5 oz tearaway.
  • Use: Mesh-back caps commonly need 2 layers of tearaway, with extra focus on hooping tightness.
  • Use: Unstructured cotton twill caps are performance-critical—use 1 layer of cutaway (2.5 oz or 3.0 oz) to lock fibers.
  • Success check: After hooping, the cap stays drum-skin tight and the design does not “walk” during the first part of the sew-out.
  • If it still fails: Clip and secure loose backing/sweatband so rotation cannot tug the cap and shift registration.
• Q: How do I prevent needle breakage from hitting the cap bill seam using the 0.5-inch (12–13 mm) safety zone?
  A: Keep the design bottom at least 0.5 inch (12–13 mm) above the bill seam and verify the needle path before stitching.
  • Measure: Use a physical ruler to measure 0.5 inch up from the bill-to-crown seam.
  • Mark: Mark a “Do Not Cross” line on the first setup using a water-soluble pen or chalk.
  • Verify: Run the machine trace function to confirm the needle path clears the bill area.
  • Success check: No needle contact with the thick bill junction during trace or sew-out; the run starts without loud snapping.
  • If it still fails: Re-check hooping tightness (flagging can drop fabric into the red zone) and install a fresh titanium 75/11 sharp needle.
• Q: What machine speed (SPM) is safest for cap embroidery to reduce vibration and keep small lettering sharp?
  A: Run caps in the 600–800 SPM range, and slow down further for unstructured hats or tiny text.
  • Set: 550–600 SPM for unstructured hats, metallic thread, or lettering under 5 mm tall.
  • Set: 650–750 SPM for structured caps with standard logos (balanced quality and output).
  • Avoid: 850+ SPM unless the setup is highly stable and the machine is well tuned.
  • Success check: Lettering edges stay crisp and registration holds without visible vibration-related wobble.
  • If it still fails: Re-check “drum skin” hooping and stabilizer strength; speed cannot compensate for an air gap or weak backing.
• Q: What is the safest way to clean and oil the rotary hook to avoid hand injury from needles and moving parts?
  A: Never clean or oil the rotary hook while the machine is powered on or in motion—power down first every time.
  • Stop: Turn the machine off or engage the emergency stop before placing fingers near the hook area.
  • Remove: Take out the bobbin case to fully expose the hook assembly for cleaning.
  • Service: Brush lint outward, then apply oil to the hook raceway only.
  • Success check: The machine runs with a smooth hum (no dry scraping), and thread breaks reduce on caps.
  • If it still fails: Treat needle and thread as consumables—start cap orders with a fresh titanium 75/11 sharp needle and verify thread quality.
• Q: What safety precautions are required when using industrial magnetic embroidery hoops to prevent finger injury and pacemaker risk?
  A: Treat industrial magnetic hoops like a pinch/crush hazard—slide magnets apart and keep them away from pacemakers.
  • Keep clear: Maintain at least a 12-inch distance from pacemakers and similar medical devices.
  • Control: Keep children away and handle magnets with full attention—high-powered magnets can snap together violently.
  • Separate: Slide magnets apart; do not pry straight off.
  • Success check: Magnets seat evenly without “jumping,” and hands stay out of the pinch zone during mounting.
  • If it still fails: Stop and reset the setup—never force alignment; reposition the hoop components and re-approach with a controlled slide motion.
• Q: When does cap embroidery production justify upgrading from technique fixes to magnetic hoops or a multi-needle cap machine?
  A: Upgrade in layers: fix process first, then remove hooping bottlenecks with magnetic hoops, then scale output with a multi-needle system when order volume makes thread changes the profit killer.
  • Level 1 (Technique): Standardize the 5-minute hook cleaning/oiling, drum-skin hooping, binder-clip stabilization, and 600–800 SPM speed control.
  • Level 2 (Tool): Move to magnetic hoops if mechanical clamping causes hoop burn or hooping fatigue, or if mounting time is limiting throughput.
  • Level 3 (Capacity): Consider a multi-needle cap-capable system when frequent thread changes and re-hooping on a single-needle machine make 24/50/100-hat orders unprofitable.
  • Success check: The machine spends more time stitching and less time stopped for hooping/thread changes, while quality stays consistent.
  • If it still fails: Track where time is lost (hooping vs thread changes vs rework); the bottleneck tells you which upgrade step pays back first.
