3D Puff Embroidery on Backpacks: The Definitive "Fear-Free" Guide for Professionals

Backpacks are the kind of job that looks "easy" until you are standing at the machine with a heavy zipper pull smacking the machine arm, a thick flap that refuses to sit flat, and a customer who expects their initials to land perfectly parallel to a decorative seam line.

The panic is real. A single mistake on a $60 laptop bag isn't just a wasted backing sheet; it's a refund and a lost client.

But here is the truth experienced operators know: This project—3D puff initials on a thick laptop backpack—is actually a game of physics, not stitching. If you treat hooping, tracing, and drag control as the real job, the actual stitching becomes the easy part.

This guide upgrades a standard tutorial into an industry-grade Standard Operating Procedure (SOP). We will move you from "hoping it works" to "knowing it will."

Don’t Panic: The "Go/No-Go" Assessment Before You Commit

The backpack in this case study is a structured laptop bag (fits a 16-inch MacBook Pro). It presents the classic "Triad of Trouble": multiple zippers, hidden pockets, and thick canvas material.

Before you even touch a hoop, you must make a Consumer-Grade vs. Commercial-Grade decision.

In 20 years of shop experience, I have learned that placement is a business decision. Sometimes, the only clean location is the front flap. This might mean stitching a pocket shut implies "losing" that pocket's function.

The Professional's Rule:

• Analyze: Squeeze the flap. Is it foam-padded? If it's too thick (over 5mm), your machine's presser foot height might effectively crush the puff foam, ruining the 3D effect.
• Negotiate: Verify with the client. "To center this perfectly, the interior organizer pocket may be partially stitched closed. Is that acceptable?"
• Profit Protection: If you are building a bag-customization service, decide the placement before you quote the price. Re-hooping a backpack is where your profit margin dies.


The Equipment Check: Why Standard Hoops Fail on Bags (and How to Upgrade)

The expert host in our reference is clear: he would only commit to this job with a magnetic hoop—specifically the 10x10 size. He states it "always comes into play."

Why? The Physics of Hoop Burn. Backpacks are often made of coated nylon or polyester. Standard plastic "screw-tight" hoops work by friction and crushing the fabric between two rings.

• The Risk: To hold a heavy bag, you have to tighten the screw so much that you leave permanent "hoop burn" (crushed fibers) that acts like a scar on the bag.
• The Solution: magnetic embroidery hoops use vertical clamping force, not friction. They hold the bag firmly without grinding the fibers.

The Commercial Logic: When to Upgrade?

You are likely reading this because you are struggling with a difficult bag. Here is the diagnostic path to upgrade your toolkit:

1. Trigger (The Pain): You are fighting to hoop a thick bag, your wrists hurt from tightening screws, or you see "burn marks" on the fabric.
2. Criteria (The Judgment):
   • Are you doing 1 bag? Muscle through it with a standard hoop (carefully).
   • Are you doing 50 bags? You cannot physically sustain screw-hooping.
3. Options (The Prescription):
   • Level 1 (Technique): Use "floating" techniques (adhesive stabilizer) to avoid hooping the thickest parts.
   • Level 2 (Tool Upgrade): Switch to Magnetic Hoops (compatible with your machine) to eliminate hoop burn and hoop 3x faster.
   • Level 3 (Capacity Upgrade): If bag orders are your main revenue, a single-needle home machine will bottleneck you. Industrial SEWTECH Multi-needle Machines provide the clearance and suspension needed for heavy goods.


The "Hidden" Prep: Needles, Chemistry, and Tactile Checks

Preparation prevents the "Bird's Nest"—that horrific knot of thread that happens under the needle plate.

1. The Needle: 75/11 Sharp (Titans Preferred)

• The Rule: Ignore the "ballpoint for knits" advice. Backpacks are woven canvas. You need a Sharp point to pierce the coating cleanly.
• The Why: A ballpoint needle will struggle to penetrate the canvas + tearaway + 3D foam. This resistance causes the needle to deflect (bend), leading to skipped stitches or broken needles.

2. The Stabilizer: Heavy Weight Tearaway

The host uses Tearaway.

• Expert Calibration: While "Cutaway" is usually king, for thick, stable bags, Tearaway is acceptable because the bag itself doesn't stretch.
• The Science: The stabilizer here isn't supporting the fabric; it's providing a smooth "glide layer" for the bobbin thread. Textured backpack interiors cause friction; the smooth tearaway ensures the thread slides effortlessly.

3. The Foam: 3mm High-Density Puff

• Sensory Check: Squeeze the foam. It should feel firm, not like a kitchen sponge. If it squishes too easily, your thread will slice right through it, and you won't get the "puff."

Prep Checklist (Go / No-Go):

• Needle: Brand new 75/11 Sharp installed (Inspect tip for burrs).
• Bobbin: Full bobbin. (Do not start a bag with a half-empty bobbin).
• Interior: Check the pocket behind the hoop area. Remove dessicant packets, spare straps, or loose lining that could get stitched into the design.
• Consumables: 3mm Puff Foam cut to size, lighter for thread tails, and masking tape.


The "100% Sure" Marking Ritual

A backpack flap is not a T-shirt. It has structural lines—zippers, piping, and seams—that guide the human eye. If your embroidery is mathematically centered but visually crooked against the piping, the customer will say it is crooked.

The Action:

1. Measure: Find the true center using a ruler.
2. Mark: Use white chalk or a tailor's wax pencil (avoid air-erase pens on black nylon; they disappear too fast or stain).
3. Reference: Mark the horizontal axis parallel to the nearest visual line (e.g., the zipper or piping).

Sensory Anchor: When you place your ruler, look for symmetry. Does the distance from the left piping equal the distance from the right piping? Trust your eye over the math if the bag itself is sewn slightly imperfectly.

Hooping Strategy: Flatness Beats Tightness

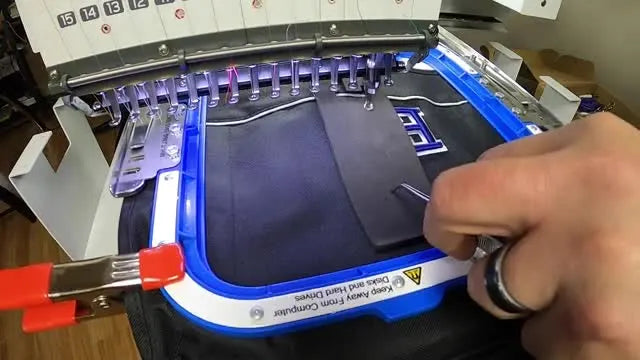

The video host is precise: slide the bottom magnetic frame inside the flap.

• Tab Orientation: The pull-tab of the hoop must face away from the machine body (outward). This prevents the embroidery arm from hitting the tab during movement.

The "Drum Skin" Myth: On a T-shirt, we teach "hoop tight like a drum." On a backpack, do not do this.

• Goal: You want the surface FLAT.
• Risk: If you force a curved bag to be "drum tight," you are creating massive tension. As soon as you un-hoop, the fabric will snap back, and your letters will pucker.
• Search Intent: Many users searching for hooping for embroidery machine tutorials on bags fail because they over-tighten. Let the magnet do the work.


Drag Control: The Silent Killer of Registration

This is the most critical step for bags. "Drag" is the weight of the backpack hanging off the machine arm.

• The Symptom: Your design starts perfect, but by the last letter, the registration is off by 2mm.
• The Physics: As the pantograph moves, the heavy bag swings. This momentum drags the hoop slightly, fighting the motor.

The Fix: Aggressive Clamping The host uses spring clamps (like those from a hardware store) to clip the bag material to the outside of the magnetic frame.

• Why: This anchors the loose fabric so it moves as one unit with the hoop.
• Tool Tip: If you run an industrial machine, ensure your table supports the bag's weight. Gravity is your enemy here.

Warning: Magnetic Safety. Powerful magnetic hoops can pinch fingers severely. Never let your fingers rest between the rings. Also, keep these magnets away from pacemakers and computerized machine screens.

Setup Checklist (Go / No-Go):

• Clearance: Move the hoop by hand (trace mode). Does the bag hit the machine body?
• Drag Check: Lift the bag straps. Are they clamped or taped so they won't catch on the needle bar?
• Tab Check: Is the hoop tab facing outward?
• Screen Check: Is the design oriented correctly? (Don't stitch upside down!)


The "Silhouette Trace": Your Collision Insurance

Standard "Box Tracing" is insufficient for backpacks. A box tells you the outer limits, but it doesn't tell you if the letter "A" will hit that metal zipper pull, while the letter "b" misses it.

Method: Use the Silhouette Trace (or Contour Trace) on your machine.

• Visual: Watch the needle bar (or laser pointer) travel the exact outline of the letters.
• Auditory: Listen for the machine moving. It should run smoothly. If you hear the bag fabric "squeaking" against the machine arm, you have too much friction/drag.

Decision: If the trace comes within 5mm of a zipper or thick seam, STOP. Re-hoop or resize the design. Do not risk a needle strike on a metal zipper.

The 3D Puff Execution: Holding the Line

The host places the black foam strip. Tape often fails on coated canvas because the bag is slick.

The "Chopstick" Technique: You must hold the foam in place for the first few stitches.

• Safety: Do NOT use your fingers near the needle. Use a chopstick, a stylus, or long tweezers.
• Action: Press the foam down gently.
• Sensory: Feel the "thump-thump-thump" as the needle perforates the foam.
• The Lock: Once the machine completes the "tacking stitches" (the underlay), the foam is locked. You can step back.

Machine Speed Strategy:

• Standard: 1000 stitches per minute (SPM).
• 3D Puff Experience Value: Slow down to 500 - 600 SPM.
• Why: Foam adds friction. High speed causes the needle to get hot, which can melt the foam or shred the thread. Friction = Heat. Slow down to keep it cool.

If you are using high-end embroidery magnetic hoops, the hold is secure, but the foam itself is light and can jump. Holding it manually for 3 seconds saves 30 minutes of picking out stitches.

Troubleshooting and "the Why" from the Comments

The video comments confirm two critical data points:

1. Thread: Madeira Navy Blue (Standard 40wt polyester).
2. Needle: 75/11 Sharp.

The "Bird Nest" on Puff: A user asked about nesting (thread looping underneath). The creator correctly identified Tension and Needle Orientation.

• Expert Insight: 3D Puff requires a slightly looser top tension than flat embroidery. The thread needs to travel around the foam. If tension is too tight, it will slice the foam in half.
• Check: Pull your top thread. It should flow with steady resistance, like flossing teeth—not tight like a guitar string.


Finishing: The Heat Gun Ritual

Tearing the foam leaves "hairy" edges.

• Tool: Heat Gun (or a powerful hair dryer in a pinch).
• Setting: LOW heat.
• Technique: Rapid passes. Keep the gun moving.
• Visual: Watch the tiny foam whiskers "shrink" and disappear back into the thread.
• Warning: Do not hover! Nylon bags melt. If you smell plastic, you have already damaged the bag.


The "Why It Worked" Breakdown

Success leaves clues. This project worked because:

1. Magnetic Hooping: Solved the "grip" issue without hoop burn.
2. Clamping: Solved the "drag" issue caused by the bag's weight.
3. Silhouette Trace: Guaranteed the alignment was safe.
4. Sharp Needle: Penetrated the canvas without deflection.

If you are looking to scale this process—turning a hobby into a production line—thinking in terms of "stations" is key. A hooping station for embroidery allows you to hoop the next bag while the machine is stitching the first one.

Quick Decision Tree: Materials & Settings

Use this logic flow to avoid wasted bags.

Troubleshooting Scary Backpack Problems (Structured Guide)

The Commercial Upgrade Path: From One to Fifty

Once you nail the technique, the bottleneck shifts from "skill" to "equipment."

• Scenario A (Hobbyist): You do 1-2 bags a month.
  • Solution: Stick to the 10x10 Magnetic Hoop. It is the single best investment for your mental health and wrist safety. Even generic magnetic hoops that fit your machine will solve 90% of your problems.
• Scenario B (Small Biz): You have an order for 20 team backpacks.
  • Solution: You need throughput. Standard single-needle machines require 5 minutes of setup for 10 minutes of stitching.
  • The Upgrade: This is where magnetic hoops for embroidery machines paired with an industrial platform (like SEWTECH) shine.
  • Pro Tip: Industrial machines like SEWTECH have a "tubular" arm that sticks out, allowing the bag to hang freely without bunching up against the machine body. This "deep clearance" is what allows for high-volume bag production without the struggle.

Warning: Machine Safety. When stitching thick backpacks, stay near the machine. Listening is your best diagnostic tool. A change in the rhythmic "thump-thump" sound usually precedes a needle break.

Operation Checklist (Final Clear for Takeoff):

• Silhouette trace completed (Zero collisions).
• Bag weight supported/clamped (Zero drag).
• Foam held securely for first 10 stitches.
• Speed reduced to 600 SPM or lower.
• Heat gun ready for finishing.

Success in embroidery isn't about luck; it's about eliminating variables. Control the hoop, control the drag, and the machine will do the rest. Happy stitching.

FAQ

• Q: Which embroidery needle should be used for 3D puff embroidery on thick canvas or nylon backpacks to prevent skipped stitches and needle breakage?
  A: Use a brand-new 75/11 Sharp needle to pierce coated canvas cleanly and reduce needle deflection.
  • Install: Put in a fresh 75/11 Sharp and double-check it is seated correctly.
  • Inspect: Look closely for a bent needle or a burr on the tip before starting.
  • Trace: Run a silhouette/contour trace to confirm the needle path will not hit zippers or thick seams.
  • Success check: Stitching sounds steady and rhythmic, with no “popping” needle strikes and no skipped stitches in the first letter.
  • If it still fails… Stop and re-check clearance near metal hardware; do not keep stitching if a zipper strike is possible.
• Q: How can heavy weight tearaway stabilizer be used on a structured laptop backpack to reduce bobbin friction and prevent bird nests under the needle plate?
  A: Use heavy weight tearaway as a smooth glide layer inside the hoop area to help the bobbin thread feed cleanly on thick bags.
  • Place: Position tearaway so it covers the entire stitch field behind the flap area.
  • Check: Remove anything inside the pocket/lining behind the hoop zone (straps, packets, loose lining) that could snag thread.
  • Start: Begin with a full bobbin; do not start a backpack with a half-empty bobbin.
  • Success check: The first stitches form cleanly with no looping/“nesting” building underneath.
  • If it still fails… Pause and check top tension and needle orientation/installation before re-running the design.
• Q: How can hoop burn marks be prevented on coated nylon or polyester backpacks when hooping for machine embroidery?
  A: Avoid over-tightening screw hoops on slick coated fabrics; a magnetic hoop is the fastest way to hold firmly without grinding fibers.
  • Reduce: Do not chase “drum tight” on backpacks—aim for FLAT surface contact.
  • Decide: If the job is high volume or repeated hooping is causing marks and wrist strain, switch to a magnetic hoop for vertical clamping force.
  • Protect: If using a standard hoop for a one-off job, tighten only to the minimum that prevents shifting.
  • Success check: After unhooping, there is no permanent ring “scar” and the surface rebounds without crushed fibers.
  • If it still fails… Treat marks immediately and adjust hooping method next time; prevention is more reliable than cleanup on coated materials.
• Q: What is the correct hooping strategy for a backpack flap using a magnetic embroidery hoop to avoid puckering and machine collisions?
  A: Hoop for flatness (not maximum tension) and orient the magnetic hoop pull-tab away from the machine body to prevent arm strikes.
  • Insert: Slide the bottom frame inside the flap area so the embroidery field sits flat.
  • Orient: Point the hoop tab outward (away from the machine) before starting any trace.
  • Test: Move the hoop by hand or in trace mode to confirm the bag does not hit the machine body.
  • Success check: The hoop travels freely during trace with zero rubbing/squeaking and the flap stays flat without forced stretching.
  • If it still fails… Re-hoop with a flatter area or reduce bulk near seams/zippers; do not stitch if clearance is tight.
• Q: How can registration drift and “leaning letters” be prevented during 3D puff embroidery on a heavy backpack caused by bag drag?
  A: Clamp and support the backpack so the bag moves as one unit with the hoop and cannot swing off the machine arm.
  • Clamp: Use spring clamps to secure loose bag material to the outside edges of the magnetic frame.
  • Secure: Tape or clamp straps so nothing can catch the needle bar or swing during stitching.
  • Support: Ensure the machine table supports the backpack weight so gravity is not pulling on the hoop.
  • Success check: The design finishes with the last letter aligned like the first, with no visible 1–2 mm “walk-off.”
  • If it still fails… Slow the machine down and re-check drag during tracing; any swing seen in trace will worsen during stitching.
• Q: How should silhouette (contour) trace be used on an embroidery machine to avoid needle strikes on backpack zippers and hardware?
  A: Use silhouette/contour trace to follow the true outline of the letters and stop immediately if clearance is tight near metal.
  • Run: Activate silhouette/contour trace and watch the needle bar (or pointer) follow the letter outlines, not just a box.
  • Measure: Treat anything within about 5 mm of a zipper, pull, or thick seam as a stop-and-fix situation.
  • Listen: Pay attention to rubbing or squeaking sounds during trace—friction signals drag or collision risk.
  • Success check: The full outline traces smoothly with comfortable clearance and no contact anywhere in the travel path.
  • If it still fails… Re-hoop or resize/reposition the design; do not “chance it” near metal hardware.
• Q: What machine speed and top tension adjustments reduce thread shredding and bird nesting during 3D puff embroidery on backpacks?
  A: Slow down to about 500–600 SPM and keep top tension slightly looser than flat embroidery so thread can wrap the foam instead of cutting it.
  • Set: Reduce speed before starting the first stitches on foam.
  • Adjust: Loosen top tension slightly and test by pulling top thread—aim for steady resistance, not overly tight.
  • Hold: Use a chopstick/stylus/tweezers (not fingers) to hold foam for the first few stitches until underlay locks it.
  • Success check: Foam stays covered, thread does not shred, and there is no looping underneath as the design builds.
  • If it still fails… Stop and re-check needle type (75/11 Sharp) and threading path; continuing will usually worsen nesting and breaks.
