3D Puff Hat on the Ricoma EM-1010: The Cap Hooping “Clicks,” the Foam Pause, and the One Arrow-Key Mistake That Ruins Everything

If you’ve ever stared at a cap station and thought, “One wrong move and I’m about to ruin a perfectly good hat,” you’re not being dramatic—you’re being realistic. Cap embroidery is unforgiving because the crown is curved, the hooping is mechanical, and the design sits dangerously close to metal. Unlike a flat shirt, a hat fights back.

In this walkthrough, we follow Patrice running a full 3D puff hat on a Ricoma EM-1010—from hooping a mesh-back trucker hat and installing the cap driver, to the critical trace, the foam pause, and the cleanup. She also demonstrates the kind of mistake that haunts even good embroiderers: during thread-break recovery, pressing the wrong arrow keys and physically shifting the cap driver so the layers no longer line up.

I’m going to rebuild this process into a shop-ready workflow: clear checkpoints, sensory anchors (what you should hear and feel), and the “why” behind each move—so you can repeat it, not just watch it.

The Ricoma EM-1010 Cap Station Reality Check: You’re Not “Bad at Hats,” Hats Are Just Tight-Tolerance Work

Cap embroidery feels complicated because of the physics involved. The cap hoop locks into a station, then locks into a driver, and every lock point is a chance for a tiny mis-seat (tolerance error) that becomes a big alignment problem later.

Here’s the calming truth: if you can consistently get the same three-click lock-in on the station and on the driver, you’re already doing the hardest part correctly. On many multi-needle machines, including the Ricoma EM-1010, those clicks are your mechanical “receipt” that the hoop is seated.

One more mindset shift that saves money: don’t judge your first puff hat by visual perfection—judge it by whether your process is repeatable. A repeatable process is what turns hats into profit.

The “Hidden” Prep for a Ricoma EM-1010 Cap Hoop: What I Check Before the Hat Ever Touches the Station

Patrice uses a Make Market hat (Michaels brand), tearaway stabilizer, and black puff foam. That’s enough to succeed—but only if you prep like someone who’s done this a hundred times.

What you’re trying to prevent: "Flagging" (fabric bouncing), crown distortion, needle-to-metal contact, and foam shifting.

Materials shown in the video

• Hat: Mesh-back trucker hat with a cotton front panel (Make Market).
• Stabilizer: Tearaway stabilizer (Standard 2.5oz - 3.0oz is typical for caps).
• Foam: Black puff foam (2mm or 3mm).
• Thread: Teal/blue for the flat layer, pink for the satin puff layer.
• Holding tools: Binder clips (standard issue), plus a sewing pin for the foam.

The "Hidden Consumables" You Need on Deck

• Fresh Needle: A slightly larger needle (e.g., 80/12 sharps) often helps cut foam cleanly compared to standard 75/11s.
• Lighter or Heat Gun: Essential for shrinking away tiny tufts of foam after peeling.
• Tweezers: For picking foam bits out of tight corners.

A quick note from the comments that’s worth taking seriously: if you’re stitching light thread (like pink) over puff, black foam can peek through at the edges. Many embroiderers prefer matching foam color to thread color for a cleaner finish.

Use this sentence as your rule of thumb: if you’re running a ricoma em 1010 embroidery machine, foam color choice matters more than you think because high-crown satin edges are where the customer's eye goes first.

Prep Checklist (do this before you hoop)

• File Check: Confirm your design file is in .DST format on the USB. (DST files hold coordinate data better for industrial-style machines).
• Debris Check: Inspect the cap hoop ring and station clamps for lint or thread bits. Even a 1mm fluff ball can prevent a full lock.
• Stabilizer Cut: Pre-cut tearaway stabilizer wide enough to sit under the top silver tab without bunching.
• Foam Strategy: Decide your foam color before you start. (Switching foam mid-run is a prime cause of "rushing mistakes").
• Clip Readiness: Keep binder clips within arm's reach. Once the hat is tensioned on the station, you cannot let go to search for clips.
• Needle Clearance: Ensure your needle bar area is clear of magnets or loose tools.


Hooping a Mesh Trucker Hat on a Cap Station: The Three-Click Lock and the Sweatband Tuck That Saves You

Patrice’s hooping sequence is solid and very specific. Follow it in order to maintain tension.

What the video does (and why it works)

1. Orient the cap hoop correctly. She identifies which side faces down and which edge is the “top” so the cap aligns correctly.
2. Seat the cap hoop onto the cap station. Align the top of the hoop with the top of the station and push until you hear the distinct three clicks. Sensory Check: If it feels mushy, pull it off and clean the track.
3. Unfold the hat fully. Any folded fabric trapped between the hoop and ring creates a lump that distorts the stitch field.
4. Slide tearaway stabilizer under the top silver tab. This anchors the stabilizer so it doesn’t drift down while you struggle with the hat.
5. Slide the hat over the stabilizer. Then—this is the detail many people miss—tuck the sweatband underneath the rear silver tab to secure the hat. This prevents the hat from sliding forward during stitching.
6. Lock the right-side clamp and confirm the notches are shut. Patrice emphasizes the notches near the brim must be clamped tight.
7. Use binder clips to tension the mesh sides. She clips the loose mesh to the hoop posts/bottom bars. Tactile Check: The front panel should feel taut like a drum skin, but not so tight that the brim warps.

This is classic hooping station for embroidery technique: you’re not stretching the hat to death; you’re removing the "slack" so the crown doesn't walk or flag during high-speed stitching.

Setup Checklist (end of hooping setup)

• Auditory: You heard three distinct clicks when locking the hoop onto the cap station.
• Visual: The hat is fully unfolded—no hidden folds under the ring.
• Mechanical: Tearaway stabilizer is under the top silver tab and lying flat.
• Structural: The sweatband is tucked under the rear tab so it can’t pop out.
• Security: The right-side clamp is locked, and the three notches near the brim are clamped shut.
• Stability: Binder clips are holding the mesh sides; the cap doesn't sag or twist when you lightly poke the front panel.

Warning (Mechanical Safety): Keep fingers clear of pinch points on the cap station clamps and hoop ring. The spring-loaded tabs can snap shut with significant force. A pinched fingertip hurts, but the flinch reaction can damage the hoop alignment.

Installing the Ricoma EM-1010 Cap Driver: The Wheel Direction That Prevents Rough Tracking

To run caps, Patrice removes the flat bracket and installs the cap driver. This is a heavy metal component that translates the X/Y movement to rotational movement.

What the video shows

• Unscrew and slide out the flat bracket.
• Slide the cap driver onto the machine arm.
• Make sure the wheels underneath face down so they roll on the sewing arm track. Visual Check: If the silver wheels are facing you, it is upside down.
• Lift the back part slightly to fit over the bar.
• Screw it on tightly to secure (Hand tight plus a quarter turn with a driver).

This is where many “mystery” cap problems start: if the driver isn’t seated correctly, it tracks unevenly, causing the design to drift or the machine to sound strained (a rhythmic grinding noise).

If you’re comparing accessories later to speed up this process, this is the moment people start looking at a magnetic hooping station setup—because anything that reduces fiddly mechanical seating reduces the chance of expensive rework.

Loading a .DST and Choosing “Cap Hoop” on the Ricoma Panel: Don’t Skip the Trace (It’s Your Insurance Policy)

Patrice imports the design via USB and selects the cap hoop icon on the touchscreen.

What the video does on the panel

• Import the file from USB.
• Confirm the file type is .DST.
• Select the hoop type: Cap (This changes the software limits to prevent frame hits).
• Choose colors (she selects based on preference rather than strictly matching the digital design).

Then she does the step that saves needles and hoops: a trace.

A trace is not busywork. On caps, it is your only confirmation that the needle bar won’t slam into the metal hoop or the brim. Watch the needle #1 position relative to the metal clamp. You generally want at least a 10mm "safety zone" from the brim.

This is especially important when you’re using specific cap hoop for embroidery machine setups, because the stitch field is constrained (usually 55mm - 65mm height max for high speed) and the metal is unforgiving.

Snapping the Cap Hoop onto the Driver: Listen for the Same Three Clicks (Then Verify the Notches)

Patrice turns the cap to the side to slide it underneath and snap it onto the driver. Again, she listens for the same three clicks.

Then she does a physical check: the three notches must be fully clamped shut and not loose. If they’re loose, she applies a bit of pressure to seat them.

This is the practical definition of ricoma embroidery hoops being “right”: not just attached, but fully seated. Tactile Check: Try to gently wiggle the cap hoop. It should move as one solid unit with the driver. If there is play/wobble, it is not locked.

Running 3D Puff on the Ricoma EM-1010: The “Automatic Manual” Pause That Makes Foam Possible

Patrice stitches the flat layers first, then pauses to place foam, then runs satin stitches over the foam. To do this, you must tell the machine to stop.

The exact sequence shown

1. Stitch Flat Data: Start the machine for the initial flat layer(s).
2. Program the Stop: Set the machine so it triggers a pause for foam placement. On the panel, this is often setting Color Change Mode = Automatic Manual or inserting a "Frame Out" command.

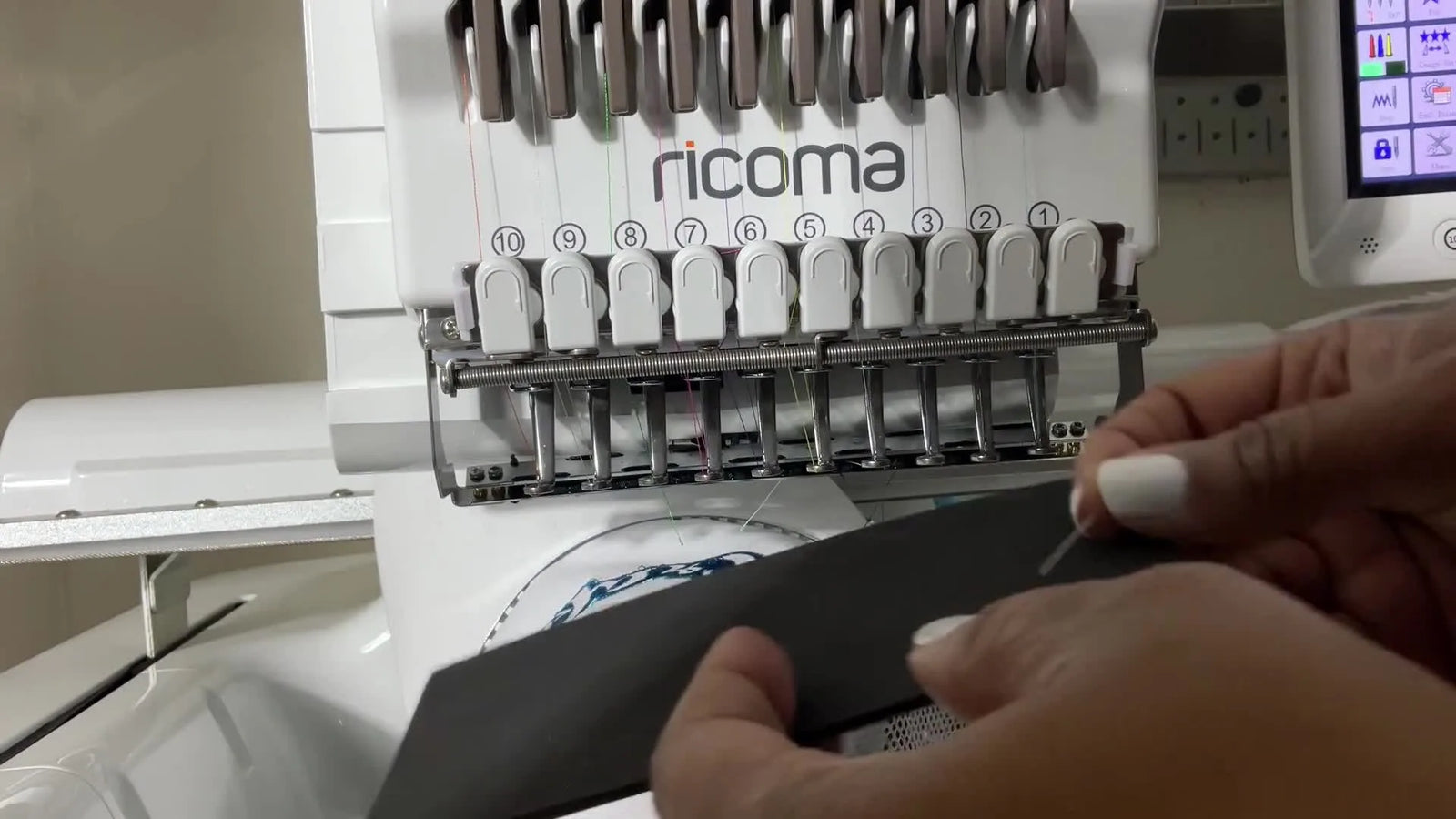

3. Place Foam: When the machine stops, place black puff foam over the design area.
4. Secure Foam: Secure the foam with a sewing pin placed far on the edge, away from the needle path.
5. Resume: Press start and let the satin stitches penetrate the foam to create the raised effect.

Expert Tip on Speed: For the puff layer, slow the machine down. While the machine can do 1000 stitches per minute (SPM), running puff at 450-600 SPM yields cleaner column edges and fewer thread breaks.

A comment added two excellent holding alternatives that often work well on caps:

• A larger rubber band wrapped around the foam and hat to hold the foam down.
• Painter’s tape to keep foam from shifting (Easy to remove and safe).

Those are valid shop tricks, but whichever method you use, the principle is the same: foam must stay flat and stable until the satin locks it down.

The Arrow-Key Trap on the Ricoma EM-1010: How One Wrong Recovery Move Causes Layer Misalignment

Patrice’s troubleshooting moment is the most valuable part of the whole video for learning.

The Incident

• She had a few thread breaks.
• She tried to back up the design to cover missed stitches.
• The Error: Instead of pressing the buttons to reverse the stitch count/needle position, she pressed the Frame Move arrows (that physically rotate the hoop/driver left and right).
• The Result: The design coordinates stayed the same, but the physical hat moved. The machine stitched the next layer off-position, ruining the hat.
• The Fix: She had to scrap the hat, hoop a new one, and restart.

This is the cap version of “measure twice, cut once.” When you’re recovering from a break, freeze. Look at the icons. Ensure you are moving the needle pointer through the design, not moving the hoop under the needle.

If you’re doing hats for customers, this is where production-minded shops start considering magnetic embroidery hoops for certain jobs. While magnets don't fix software errors, the faster, more consistent hooping reduces the fatigue and stress that lead to these "rushed recovery" mistakes.

Finishing a 3D Puff Hat: Tear Away Stabilizer, Peel Foam on the Perforation, and Don’t Overpick

Patrice finishes cleanly:

• Unlatch the cap from the driver by clicking the three levers and turning the hat to the side.
• Remove binder clips.
• Slide the hat off the hoop.
• Tear away the stabilizer from inside the hat.
• Peel away excess foam from the front.

Her key observation is correct: dense satin stitches perforate the foam, making it easy to tear away like a stamp.

Pro tip (from years of shop finishing): Peel foam outward and away from the satin edge rather than straight up. Straight-up peeling can lift tiny satin loops on some thread/fabric combinations. Use a heat gun (low setting) or a lighter (expert only, keep moving!) to melt away the tiny foam hairs that remain.

Decision Tree: Stabilizer + Foam Choices for Trucker Hats (So You Don’t Guess Mid-Run)

Use this quick decision tree to reduce trial-and-error. It stays within what the video demonstrates while adding practical selection logic for different hat qualities.

Start: What is the quality of the cap front panel?

• Firm/Stiff Cotton Front (like the Make Market hat shown)
  • Goal: Clean inside & easy removal. -> Use Tearaway Stabilizer (2.5oz - 3oz).
  • Symptom: Seeing slight shifting or "white gaps"? -> Re-check sweatband tuck and binder clips. Increase hoop tension.
• Soft/Unstructured Front (common on "Dad hats" or budget truckers)
  • Goal: Prevent fabric puckering. -> Use Cutaway Stabilizer (floated or hooped if possible) OR Fusible Buckram to add stiffness.
  • Symptom: Panel collapsing? -> Use ample spray adhesive to bond the hat to the stabilizer.

Now choose Foam Color (based on Top Thread):

• Light Thread (Pink, White, Yellow) -> White Foam (Hides better if coverage isn't 100%).
• Dark Thread (Black, Navy, Forest Green) -> Black Foam (Blends into shadows).
• Contrast (Pink Thread on Black Foam) -> Legacy Look. Be prepared for a distinct outline if density is low; increase satin density by 10-15% to compensate.

Holding Method for Foam:

• High Confidence: Pin far from stitch field (Risk: Pin collision).
• High Safety: Tape or Rubber Band (Risk: None, just slower).

The “Why” Behind Patrice’s Hooping Method: Physics That Prevents Wrinkles, Shifts, and Hoop Burn

Caps are curved structures. When you clamp them, you’re forcing a 3D shape into a controlled stitch plane. Two things happen physically:

1. The Crown Spring-Back: If the sweatband isn’t tucked and anchored, the stiff crown pushes against the needle plate, causing the cap to creep backward as the machine vibrates.
2. The Hinge Effect: The mesh sides act like elastic hinges. Even if the front panel is stable, loose mesh allows the cap to rotate microscopically left/right—enough to ruin text alignment.

That’s why Patrice’s binder clip trick is more than a hack—it’s tension management. You’re anchoring the sides so the cap cannot pivot around the hoop ring.

In a production environment, this is also why many shops upgrade their workflow. If you are struggling with "hoop burn" (the permanent ring mark left by clamping tight enough to stop movement), the issue is usually the mechanical clamping force. This is where tools like mighty hoops for ricoma em 1010 style solutions (magnetic frames) come into play, as they distribute force more evenly than mechanical rings.

Comment-Driven Pro Tips (Answered Like a Shop Owner, Not a Comment Section)

A few recurring questions in the comments are exactly what I hear from customers upgrading their toolkits:

“Who do you recommend to make your designs?”

Patrice digitized this herself and mentions that puff designs require special digitizing (capping ends to cut foam, higher density). If you buy a design, you must verify it is "Puff Ready." You cannot just sew a standard satin file over foam; the foam will poke through.

“What needle size are you using?”

The video doesn’t specify, but for puff on 6-panel caps, the industry standard is 75/11 Sharp or 80/12 Sharp. Ballpoint needles (often used for knits) can struggle to cut the foam cleanly, leaving ragged edges. If you’re getting thread breaks, check your needle orientation first.

“Black foam with pink thread?”

One commenter gave a solid critique: black foam can peek through. If you stick with black foam anyway, increase your satin density to 0.35mm spacing (or 3-4 points depending on software) to ensure coverage.

“Twist knob for the tray/cap station screws?”

Patrice suggests upgrading to a knob-style fastener. This is a brilliant ergonomic upgrade. If you swap between flat and cap modes daily, screw knobs save your fingertips and reduce the chance of dropping a screw into the machine chassis.

The Upgrade Path After Your First Successful Puff Hat: Faster Hooping, Less Rework, More Orders

Once you can reliably produce a clean puff hat, the next pain point is almost always time. Hooping often takes longer than stitching, and mechanical fatigue sets in.

Here’s a structured way to think about upgrades based on your volume:

1. The "Quality" Upgrade (Level 1): If thread breaks or puckering are your bottleneck, stop blaming the machine. Upgrade your consumables. Switch to high-quality polyester thread (like Isacord or Madeira), use premium backing, and use fresh needles every 8 production hours.
2. The "Efficiency" Upgrade (Level 2): If hooping hurts your wrists or leaves marks ("hoop burn"), look into Magnetic Hoops. For flat items, magnetic frames are faster and safer. For caps, generic or branded magnetic systems can speed up loading.

Warning (Magnetic Safety): Magnetic hoops use powerful magnets. They can pinch skin severely and may interfere with pacemakers. Always slide them apart; never pry them open, and keep them away from sensitive electronics.

1. The "Capacity" Upgrade (Level 3): If you are turning away orders because you can't stitch fast enough, it’s time to look at Multi-Head or Faster Single-Head Machines. A robust platform like the SEWTECH multi-needle series offers the stability needed for high-volume cap runs, minimizing vibration at higher speeds.

The goal isn’t buying more gear for the sake of it. The goal is fewer restarts, fewer ruined hats, and a workflow you can repeat when you’re tired—because that’s what real production demands.

Operation Checklist (Pre-Flight for Final Run)

• Lock Check: Cap hoop is fully seated on the driver (Three Clicks verified).
• Clearance: You traced the design and visually confirmed needle clearance from the metal bar/brim.
• Stop Command: Color Change Mode is set to Automatic Manual (or Stop commands inserted).
• Foam Prep: Foam is cut large enough to cover the puff area and is secured safely.
• Emergency Plan: You know exactly which buttons move the needle vs the frame in case of a thread break.
• Inventory: You have a backup hat ready (Pros always plan for one "sacrificial" hat per new design).

FAQ

• Q: How do I confirm a Ricoma EM-1010 cap hoop is fully seated on the cap station before hooping a trucker hat?
  A: The fastest reliable standard is the same one used in the walkthrough: lock the hoop in and confirm the “three-click” seat—if it feels mushy, re-seat it.
  • Push the cap hoop onto the cap station track until three distinct clicks are heard.
  • Inspect the hoop ring and station clamps for lint/thread bits before re-trying the lock.
  • Re-seat immediately if the lock feels soft or uneven instead of crisp.
  • Success check: Three distinct clicks + the hoop feels firmly seated (no “mushy” engagement).
  • If it still fails: Clean the track/clamps again and check for a small debris ball preventing full lock.
• Q: How do I hoop a mesh-back trucker hat on a Ricoma EM-1010 cap station to prevent crown shifting during stitching?
  A: Follow the specific sequence that anchors stabilizer and sweatband first, then manage side tension with clips so the hat cannot creep.
  • Slide tearaway stabilizer under the top silver tab so it cannot drift while positioning the cap.
  • Tuck the sweatband underneath the rear silver tab to stop the cap from sliding forward.
  • Lock the right-side clamp and make sure the notches near the brim are clamped shut.
  • Add binder clips to secure the mesh sides to the hoop posts/bottom bars to prevent pivoting.
  • Success check: The front panel feels taut like a drum skin, and the cap does not sag/twist when lightly poked.
  • If it still fails: Re-check that no fabric is folded under the ring and that the sweatband tuck has not popped out.
• Q: How do I install a Ricoma EM-1010 cap driver correctly to avoid uneven tracking or rhythmic grinding noise?
  A: Confirm the cap driver is oriented correctly before tightening—on this setup, the wheels underneath must face down so they roll on the arm track.
  • Remove the flat bracket, then slide the cap driver onto the machine arm as shown.
  • Verify orientation: the silver wheels must face down (if wheels face the operator, the driver is upside down).
  • Lift the back slightly to fit over the bar, then tighten the screws securely (hand tight plus a small additional turn).
  • Success check: The driver rolls/tracks smoothly without a strained, rhythmic grinding sound.
  • If it still fails: Stop and re-seat the driver from scratch—do not run caps while the driver feels misaligned.
• Q: Why is a trace mandatory on a Ricoma EM-1010 when selecting “Cap Hoop,” and what clearance should be checked to avoid metal or brim strikes?
  A: A trace is the insurance step that confirms the needle path will not hit the metal hoop or brim, which is a common way to break needles on caps.
  • Import the design from USB and confirm the file is .DST before running.
  • Select the “Cap” hoop type on the Ricoma panel so the machine uses cap-safe limits.
  • Run a trace and watch needle #1 position relative to the metal clamp and brim.
  • Success check: The traced path maintains a visible safety zone—generally about 10 mm—from the brim/metal hardware.
  • If it still fails: Reposition the design or re-hoop before stitching; do not “send it” on caps without a safe trace.
• Q: How do I set up a Ricoma EM-1010 to pause for 3D puff foam placement during cap embroidery?
  A: Use the same workflow shown: stitch the flat layers first, then program a machine stop for foam placement, then resume the satin layer over foam.
  • Run the flat layer(s) first so the base is stitched before foam is added.
  • Set a stop using the panel method shown (often “Color Change Mode = Automatic Manual”) or insert a stop-style command so the machine pauses.
  • Place puff foam when the machine stops, then secure foam safely (pin on the far edge, or use tape/rubber band as alternatives).
  • Success check: The machine stops exactly when needed, and the foam stays flat until the satin stitches lock it down.
  • If it still fails: Slow the puff layer down (a safe starting point is 450–600 SPM) and verify the stop point is assigned to the correct section.
• Q: How do I avoid layer misalignment on a Ricoma EM-1010 after a thread break when running caps, especially during stitch-back recovery?
  A: Do not use the Frame Move arrows during stitch recovery—use the controls that move stitch count/needle position so the physical cap driver does not shift.
  • Pause after the break and identify which icon set is active before pressing any arrows.
  • Back up using the stitch/needle-position recovery controls (not the frame/hoop movement arrows).
  • Treat any accidental frame movement as a red flag and re-check alignment before resuming.
  • Success check: The next stitches land directly on the previous path with no visible offset between layers.
  • If it still fails: Scrap-risk is high on caps—re-hoop a new hat and restart rather than stitching further off-position.
• Q: What safety precautions should be followed around a Ricoma EM-1010 cap station clamp and hoop ring to prevent injury and prevent accidental hoop misalignment?
  A: Keep fingers out of pinch points and avoid flinch-causing snaps—cap station tabs are spring-loaded and can close with force.
  • Keep fingertips clear when closing clamps and when seating/unseating the hoop ring.
  • Control the clamp/tabs with a steady hand instead of letting them snap shut.
  • Prepare clips and stabilizer ahead of time so hands are not scrambling near moving parts.
  • Success check: Clamps close without pinching, and the hoop alignment does not shift due to a startle/flinch reaction.
  • If it still fails: Stop and reset the hoop seating—running after a pinch/slip is a common way to create tolerance errors and cap strikes.
