Mastering Micro-Text on Caps: The Definitive Guide to the Richardson 112

If you have ever attempted to stitch tiny lettering (under 4mm) on a structured cap, you likely have a collection of "trophies" hidden in a box somewhere: hats with black thread blobs, broken needles, or a brim that looks "scarred" by the presser foot.

Micro-text on caps is the ultimate stress test for any embroiderer. It combines the three hardest challenges in our industry: Curvature, Thickness, and Detail.

Many beginners believe 2mm text is impossible. It is not. But it requires shifting from a "hope and pray" mindset to a controlled engineering process. You must align three factors perfect: Physics (Needle/Thread), Software (Digitizing), and Mechanics (Hooping).

This guide rebuilds the workflow from the Ricoma TV Embroidery Hub into a Shop-Ready Standard Operating Procedure (SOP). We will prove that you can get legible text down to 2mm and place the design 0.5 inches from the brim on a structured Richardson 112—without destroying the hat or your machine.

The Physics of Failure: Why Standard Setups Ruin Micro-Text

When small letters fail, most operators blame the machine. In reality, the machine is usually executing your commands perfectly—it is simply using the wrong tools.

Imagine trying to park a city bus in a compact car spot. That is what happens when you use standard 40wt thread and a 75/11 needle for 2mm text. The physical volume of the thread is greater than the space inside the letter "e" or "a." The needle punches a hole so large that the thread sinks into the abyss, leaving you with a messy bar instead of a crisp letter.

To succeed, we must reduce the volume. This leads us to the "Golden Ratio" of micro-embroidery: 60wt Thread + Groz-Beckert 65/9 Needle.

Phase 1: The "Hidden" Prep (Do This Before You Touch the Machine)

Professional shops do not fix problems; they prevent them. Before you even look at the hat, you need to assemble a "Micro-Text Kit."

The video demonstration uses a minimal toolset, but we will expand this for safety and repeatability.

Prep Checklist: The "Zero-Failure" Kit

• The Cap: Confirm it is a Structured Cap (e.g., Richardson 112). Check the front panel—if the buckram is dented, steam it first.
• The Micro-Needle: Groz-Beckert 65/9 (Sharp point). Do not use ballpoint; it struggles to penetrate thick buckram cleanly.
• The Micro-Thread: 60wt Polyester. Make sure this is loaded on the needle bar you intend to use for the text.
• The Puff Hardware: 80/12 Needle + 40wt Thread (for the 3D puff section).
• The Foam: One sheet of 2mm or 3mm high-density 3D Puff Foam (match color to thread if possible).
• The Finishers: Sharp snips and a Heat Gun (essential for melting fuzz).

Warning: Physical Hazard
Changing needles on a multi-needle machine puts your hands near the needle bar. Always power off or engage the E-Stop before swapping needles. If a needle breaks during a high-speed cap run, shards can fly. Protective eyewear is recommended for beginners.

Phase 2: The Hardware Logic (Physics in Plain English)

Why is the 60wt + 65/9 combo non-negotiable?

1. The Needle Hole: A 65/9 needle creates a significantly smaller puncture in the buckram. This prevents the "sinkhole effect" where stitches collapse into the fabric.
2. The Thread Displacement: 60wt thread is 25-30% thinner than standard 40wt. This allows you to stack stitches in a tiny area without them crowding each other out.

The Hybrid Approach: Willie’s workflow uses a "Tag Team" strategy:

• Slot A: 60wt Thread / 65/9 Needle -> Used only for the 2mm text.
• Slot B: 40wt Thread / 80/12 Needle -> Used for the thick 3D Puff satin.


Sensory Check: The Tension "Floss Test"

When you switch to a thinner 60wt thread, your tension discs may barely grip it if they are set for 40wt.

• The Action: Pull the thread through the needle eye manually.
• The Feeling: It should feel like pulling dental floss through teeth—smooth, consistent resistance, not loose and flying, but not snapping tight.
• The Visual: Run an "H" test on a scrap piece of heavy stabilizer. The white bobbin thread should show about 1/3 in the center of the column.


Phase 3: Digitizing for "The Impossible" (Chroma Workflow)

Most bad embroidery is just bad digitizing wearing a costume. For 2mm text, standard rules do not apply. If you digitize this like a flat T-shirt logo, it will fail.

In the video, Willie makes three critical moves in Chroma software:

1. Delete Underlay: Remove it completely.
2. Structure Change: Convert text to Run Stitch (bean stitch is often too heavy; single or triple run is safer).
3. Sequence: Bottom-Up approach.


1) The "No Underlay" Rule

Underlay acts as a foundation. But for a 2mm shed, you don't need a concrete foundation—it just takes up space. Underlay in micro-text creates "thread traffic jams," causing bird-nesting and illegibility. Delete it.

2) Run Stitch vs. Satin

Standard fonts default to Satin columns. At 2mm, a satin column is basically a knot. A Run Stitch draws the letter like a pen. This is how Willie creates the tiny registered trademark symbol—it is a manual run stitch, not a font.

3) Sequencing: Fighting the Curve

Caps result in "Flagging"—the fabric bounces up and down. To combat this, stitch from the bottom (near the brim) moving upward. This pushes the fabric slack away from the registration line rather than trapping it.

If you are exploring hooping for embroidery machine technique and digitizing simultaneously, remember that no amount of hooping skill can fix a design that is sequenced backwards.

Phase 4: Hooping the Richardson 112 (The Commercial Pivot)

In the demonstration, Willie uses a traditional cap ring (cap driver system). He notes that because the Richardson 112 is "really structured," he skips stabilizer.

Expert Note: While true for a demo, in a production shop, skipping stabilizer is risky.

• Risky: No Stabilizer.
• Safe: Tearaway (adds friction).
• Safest: Cutaway 2.0oz (locks the fibers).

The Pain of Traditional Hoops: Traditional cap rings rely on a metal strap and aggressive clips. If you hoop tight enough to secure the cap, you often leave "hoop burn" (white marks) on the bill or forehead. If you hoop too loose, the design shifts.

This is where the industry is shifting toward Magnetic Hoops. If you are doing production runs of 50+ hats, the wrist fatigue from manual clipping is real. Magnetic Hoops for caps allow you to float the stabilizer and clamp the cap instantly without the "crushing" force of a metal strap, drastically reducing hoop burn and loading time.

Decision Tree: To Stabilize or Not?

• Scenario A: Rock-hard Front Panel + Run Stitch only. -> No Stabilizer (Acceptable).
• Scenario B: Softer/Older Cap + 3D Puff. -> Add Tearaway/Cutaway (Mandatory to prevent perforation).
• Scenario C: You are a beginner. -> ALWAYS use stabilizer. It adds a safety buffer.


Phase 5: The "Danger Zone" – Clearance and Placement

Willie places the design 0.5 inches from the brim seam. This is aggressive. The closer you get to the brim, the higher the risk of the presser foot striking the bill or the metal sweatband guard.

The "Trace" is your Insurance Policy. Never hit "Start" without tracing.

The "Brim Rub" Panic

A common comment is: “When I trace, the brim rubs the guard.” This creates friction, which knocks the cap out of registration.

Troubleshooting Brim Rub:

1. Check Angle: The brim should not point straight out; it should tilt slightly down relative to the driver.
2. Check Height: If you are using a cap hoop for embroidery machine, ensure the driver is locked into the machine correctly. A loose driver implies a wobbly Y-axis.
3. The "2-3 Clicks" Rule: Ricoma suggests lowering the presser foot 2-3 clicks. Why? A lower foot clamps the fabric sooner, reducing "flagging" (bouncing). However, ensure the foot still clears the transition over the heavy center seam.

Warning: The "Crash" Check
Before stitching, slide a piece of paper between the presser foot and the brim seam during a trace. If the foot tears the paper, you are too close. Move the design up 2mm. A ruined cap is cheap; a smashed reciprocating bar is expensive.

Phase 6: The Stitching Run (Speed Control)

Speed kills quality on micro-text. Willie runs the text at 800 SPM. My Advice for Beginners: Start at 600 SPM. The difference in run time is only seconds, but the gain in clarity is massive.

Once the micro-text finishes, he applies the foam and ramps up to 1000 SPM for the puff. If you are running a ricoma embroidery machine mt 1501 or similar industrial equipment, these machines thrive at 1000 SPM, but physics still applies to the tiny needle movements required for text.

Phase 7: The 3D Puff Execution

1. Pause: The machine stops after the text.
2. Switch: Change to the needle bar with the 80/12 Needle and 40wt thread.

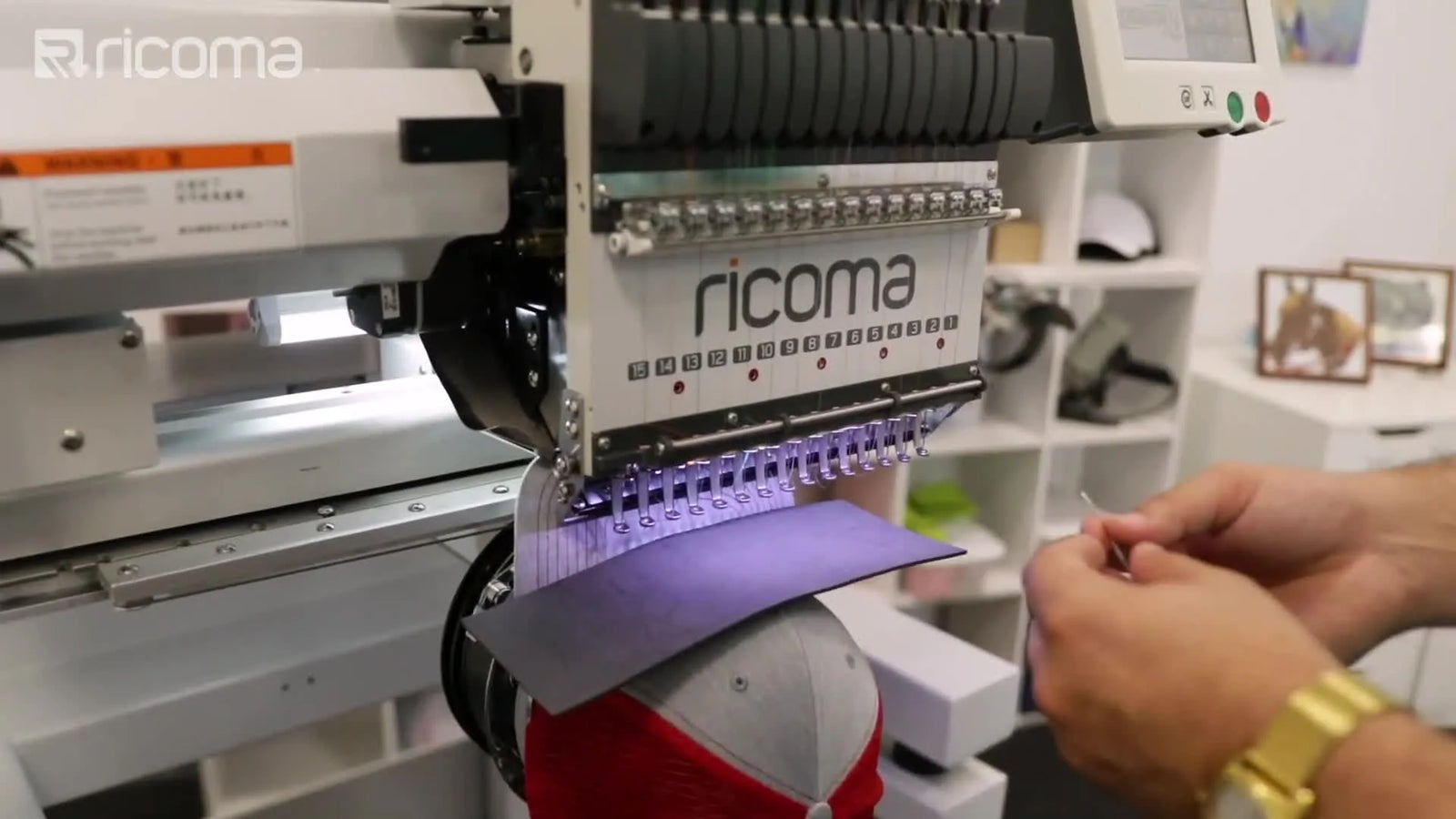

3. Place: Lay the foam over the target area.
4. Action: The machine runs a tack-down stitch, then cuts the foam with high-density satin stitches.


Warning: Magnet Safety
If you upgrade to magnetic hoops for your embroidery machine to speed up this process, be aware: these magnets are industrial strength. They can pinch fingers severely and damage pacemakers or phone screens. Handle with extreme care.

Phase 8: The "Retail Finish"

The difference between "Homemade" and "Pro" happens after the stitching stops.

1. Tear: Pull the foam away. It should perforate cleanly (like a stamp). if it fights you, your density was too low.
2. Snip: Trim jump threads flush.
3. Melt: Use a Heat Gun (not a hair dryer, not a lighter). Keep it moving. The heat shrinks the tiny "hairy" bits of foam that poke through the satin, making them disappear.




Finally, verify your precision. The design should sit exactly 0.5 inches from the brim seam, centered and level.

Troubleshooting Matrix: Real-World Solutions

Use this table when things go wrong. Do not guess; diagnose.

The Commercial Reality: Why Tooling Matters

Willie’s math is sound: A $6 investment (Cap + Consumables) sells for $30-$35. However, that profit margin vanishes if you ruin 1 out of every 5 hats due to bad clamping or hoop burn.

If you find yourself constantly fighting alignment issues or wrist pain, this is the trigger point to upgrade your tools:

1. Level 1: Switch to Magnetic Hoops. They self-align and hold thick Richardson caps without the crude mechanical force of standard rings.
2. Level 2: Terms like how to use magnetic embroidery hoop are worth researching because they solve the "hoop burn" issue instantly, saving you refunds.
3. Level 3: If your single-needle machine takes 45 minutes to change threads and needles for this workflow, consider a SEWTECH multi-needle machine or similar used ricoma embroidery machines. The ability to have a 60wt needle and a 40wt needle ready simultaneously is a massive efficiency boost.

Operation Checklist: The "Perfect Cap" Protocol

• Prep: 65/9 Needle installed on Needle Bar 1? 60wt Thread loaded?
• Hoop: Cap centered? Driver locked? Trace complete with clearance?
• Run 1: Micro-text at 600-800 SPM. (Listen for smooth rhythm).
• Transition: Machine pause. Place Foam. Verify Needle Bar switch (to 80/12).
• Run 2: Puff Satin at 1000 SPM.
• Finish: Tear foam. Heat gun treatment. Inspect inside for no birdnests.

By following this rigid protocol, you remove the "luck" from the equation. Micro-text isn't magic; it's just physics managed correctly.

FAQ

• Q: For 2mm cap micro-text on a structured Richardson 112, what needle and thread combination prevents unreadable “blob” lettering?
  A: Switch the text needle position to a Groz-Beckert 65/9 sharp needle with 60wt polyester thread.
  • Install: Power off/E-Stop, then install the 65/9 sharp needle on the needle bar dedicated to micro-text.
  • Load: Thread only that needle bar with 60wt polyester (keep 40wt on a different bar for 3D puff work).
  • Slow down: Run the micro-text at 600–800 SPM to reduce needle deflection and thread crowding.
  • Success check: Letters look like clean “pen lines” (not filled-in bars), with no heavy thread build-up inside tiny counters (e.g., “e”, “a”).
  • If it still fails: Re-open the design and remove underlay + convert the text to run stitch instead of satin.
• Q: How do I set and confirm embroidery tension when switching a multi-needle embroidery machine from 40wt to 60wt thread for cap micro-text?
  A: Use the “floss test” feel first, then confirm with an H test until bobbin shows about 1/3 in the column center.
  • Pull: Manually pull 60wt thread through the needle eye; aim for smooth, consistent “dental floss” resistance (not loose, not snapping tight).
  • Test: Stitch an “H” test on a scrap piece of heavy stabilizer before running the cap.
  • Adjust: If the thread feels too loose, increase grip/engagement so the tension system actually controls the thinner thread.
  • Success check: On the H test, white bobbin thread shows roughly 1/3 in the center of the stitch column (not floating on top, not fully buried).
  • If it still fails: Inspect for design causes (underlay or density overload) before chasing tension further.
• Q: In Chroma digitizing for 2mm cap lettering, which settings prevent birdnesting and overcrowded stitches on micro-text?
  A: Delete underlay and convert the micro-text to run stitch, then sequence bottom-up.
  • Delete: Remove underlay entirely for text under 5mm to prevent “thread traffic jams.”
  • Convert: Change small lettering from satin to run stitch (single or triple run; bean stitch is often too heavy at 2mm).
  • Sequence: Stitch from bottom (near brim) moving upward to reduce cap flagging effects.
  • Success check: The machine stitches the text cleanly without bobbin birdnesting and the characters remain individually readable.
  • If it still fails: Reduce the text run at a slower speed (start around 600 SPM) and confirm the correct 65/9 + 60wt hardware is actually installed on that needle bar.
• Q: When embroidering 0.5 inches from the brim on a structured Richardson 112 cap, how do I stop presser foot “brim scarring” and near-crashes during tracing?
  A: Do not stitch until a full trace clears; if the presser foot touches, move the design up a few millimeters immediately.
  • Trace: Always run a trace before pressing Start when placing designs close to the brim seam.
  • Reposition: If rubbing occurs, move the design up about 2–3mm rather than forcing the run.
  • Verify: Set the brim angle so it tilts slightly down relative to the driver, and confirm the cap driver is locked correctly.
  • Success check: During trace, the presser foot clears the brim/seam without friction and the cap does not shift.
  • If it still fails: Do the paper “crash check” during trace—if the foot tears the paper at the brim seam area, increase clearance by moving the design upward again.
• Q: What stabilizer choice is safest for a structured Richardson 112 cap when combining 2mm run-stitch text with 3D puff satin?
  A: Use stabilizer for production safety—tearaway is safer than none, and 2.0oz cutaway is the safest option when the cap is softer or when adding 3D puff.
  • Decide: For rock-hard panels with run stitch only, no stabilizer can be acceptable; for softer/older caps or any 3D puff, add tearaway or cutaway.
  • Prioritize: If beginner or aiming for repeatability, always use stabilizer as a safety buffer.
  • Support: Use cutaway (2.0oz) when you want maximum fiber lock and reduced perforation risk.
  • Success check: The cap front stays stable with no shifting or perforation around the stitched area, especially near dense puff satin.
  • If it still fails: Re-check sequencing (bottom-up) and confirm presser foot clearance/trace—stabilizer cannot compensate for a near-crash or backward stitch order.
• Q: What needle-change safety steps should beginners follow on a multi-needle embroidery machine when swapping between 65/9 micro-text needles and 80/12 3D puff needles?
  A: Power off or engage the E-Stop before hands go near the needle bar, and treat needle break risk as real.
  • Stop: Power off or hit E-Stop before changing any needle on a multi-needle head.
  • Protect: Wear protective eyewear if new to cap runs or higher speeds where needle shards can fly.
  • Separate: Keep the micro-text setup (65/9 + 60wt) on one needle bar and the puff setup (80/12 + 40wt) on another to avoid rushed swaps.
  • Success check: Needle changes are done with the machine fully stopped, and the first stitches after restart run without abnormal ticking or needle strike sounds.
  • If it still fails: Slow down the first few seconds of stitching after a swap and re-check needle seating/orientation before continuing.
• Q: What magnetic hoop safety rules apply when using industrial-strength magnetic embroidery hoops for caps to reduce hoop burn and speed loading?
  A: Treat magnetic hoops as pinch-and-electronics hazards: keep fingers clear during clamping and keep magnets away from pacemakers and phone screens.
  • Clamp: Position the cap and stabilizer first, then bring magnets together slowly to avoid finger pinches.
  • Separate: Store and handle magnets away from phones, cards, and sensitive electronics; keep distance from pacemakers.
  • Control: Use a deliberate two-hand technique so the hoop does not snap shut unexpectedly.
  • Success check: The cap is held securely with fast loading and reduced hoop burn, and clamping is repeatable without sudden snapping.
  • If it still fails: If alignment still shifts, fall back to re-checking trace clearance and cap driver lock—holding power cannot fix a rubbing brim or unstable mounting.
