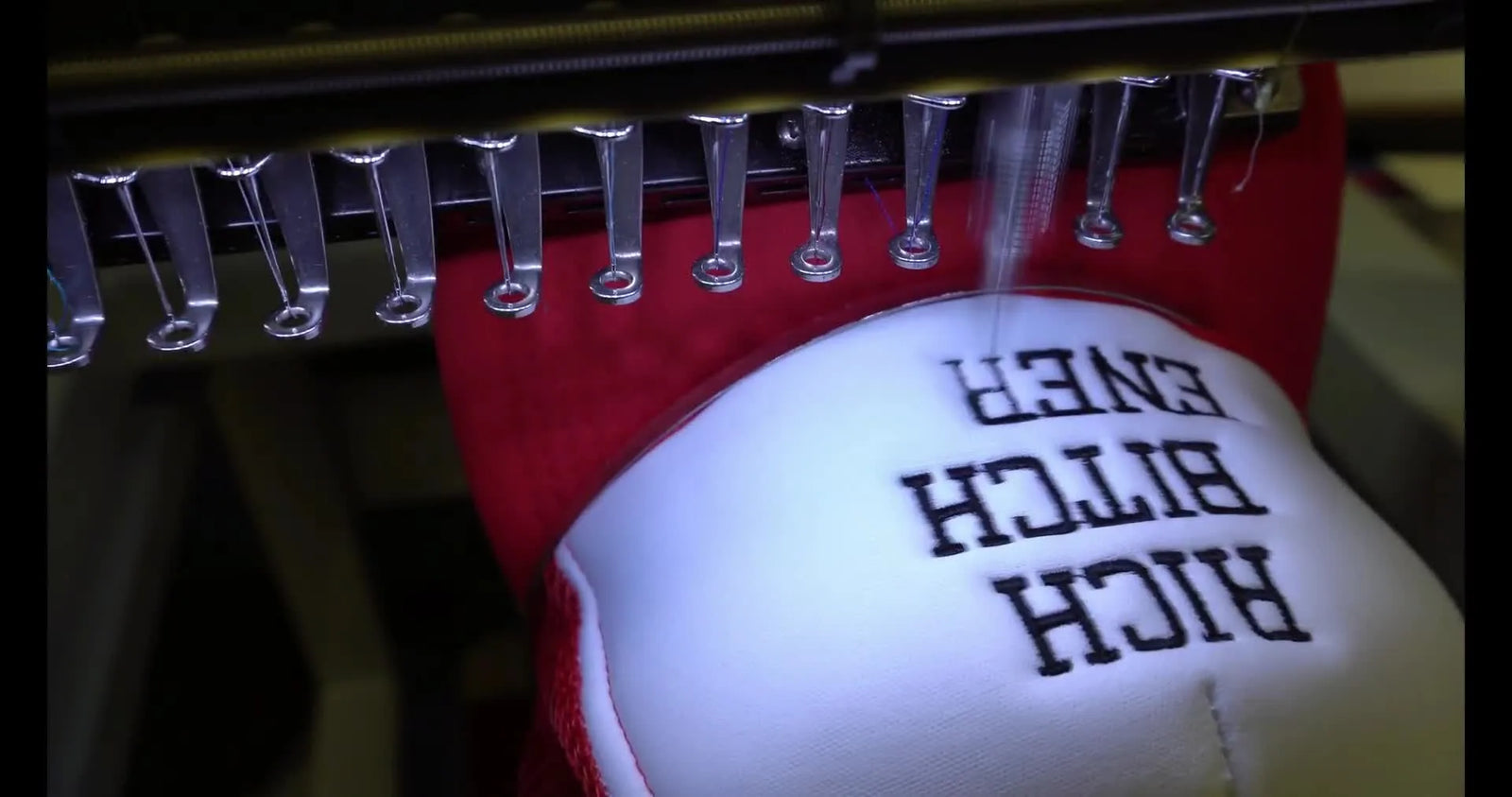

101 Foam Trucker Hats on a Ricoma MT-1501: The Cap Driver “Click” Test, Strap-Crash Fixes, and a Faster Production Rhythm

If you’ve ever stared at a pile of caps and thought, “There’s no way I’m hooping all of these without losing my mind,” you’re not alone. In this run, the shop is pushing through 101 foam trucker hats (plus a few bucket/boonie-style hats) on a Ricoma MT-1501—fast, repetitive, and exactly the kind of job where tiny setup mistakes turn into big time losses.

The good news: the workflow is simple. The bad news: caps punish sloppy habits. A cap ring that isn’t seated perfectly will wobble, shift, or crash into hardware. And if your design keeps kissing that metal strap, it’s not “bad luck”—it’s a geometry problem you can solve.

Calm the Panic: What “Normal” Looks Like on a Ricoma MT-1501 Cap Run

A cap run feels chaotic because you’re doing the same motions over and over—hoop, mount, trace, stitch, unmount—while trying not to clip the strap, the ring, or the bill. Mastering this requires shifting your mindset from "hobbyist speed" to "commercial rhythm."

On this job, the operator is running a one-color design and keeping the rhythm tight by using the two cap rings that come with the machine: while one hat stitches, the next hat gets hooped. That’s the difference between “single-head hobby pace” and “single-head production pace.”

One detail that matters: the machine is shown running at 900 stitches per minute (SPM). That’s a real production speed, but it comes with a caveat.

• Expert Range: 850–1000 SPM (Requires perfect hooping).
• Beginner Sweet Spot: 600–750 SPM (Prioritizes registration safety over raw speed).

If you are new to caps, do not sprint immediately. Start at the sweet spot. You will save more time by avoiding thread breaks than you will gain by increasing the motor speed.

The “Hidden” Prep Before You Hoop: Cap Ring, Sweatband, and a No-Drama Work Surface

Before you touch the hat, set yourself up so every hoop is identical. Caps reward consistency. If you skip the prep, you will fight every single hat in the batch.

1. Inspect the Station: Mount the metal cap ring onto the hooping station cylinder until it locks. It should be rock solid. If your station wobbles on the table, tighten the bolts or shim the legs immediately. You cannot hoop accurately on a moving target.

2. Manage the Sweatband: On foam truckers, take a second to open and flatten the sweatband area so it doesn’t bunch under the ring. This is a tactile check: run your finger along the inside band. If you feel a lump, the machine will hit it, causing deflection.

3. The Backing Decision: This is where you decide whether you’re running backing (stabilizer) or not. In the video, the operator runs these foam trucker hats with no backing and notes that when they tested one with backing on a live run, the stitch result looked the same.

• The Physics of Foam: Foam fronts often behave like their own “built-in stabilizer.” The material is thick and spongy, absorbing the needle penetration without puckering.
• When to Use Cutaway: If the hat is unstructured (floppy cotton) or the design has high density (lots of heavy fill stitches), you must use cap backing (usually 2.5oz cutaway).
• Hidden Consumables: Always keep new 75/11 sharp needles and a fresh bobbin ready. Don't start a 100-hat run on an old needle.

One more prep note: if you’re sourcing blanks for repeat orders, the comments mention S&S as a supplier option. Knowing your supplier’s consistency helps you dial in these settings once and keep them forever.

Prep Checklist (Do this once per batch, not once per hat)

• Hardware: Confirm you have two cap rings ready so you can hoop while stitching (continuous workflow).
• Maintenance: Inspect the cap ring edge and driver area for burrs or thread buildup (a tiny snag becomes a repeat problem).
• Sorting: Pre-sort hats by style (foam trucker vs. bucket/boonie) so you don’t mix workflows mid-run.
• Needle/Thread: Confirm needle and thread match the job. The video uses a 75/11 needle and 40 wt thread.
• Strategy: Decide your “default” approach for this batch: backing or no backing, bill clips or no bill clips.
• Supplies: Verify you have temporary spray adhesive (optional but helpful), spare bobbins wound, and snips within reach.

Hooping Foam Trucker Hats on a Cap Station: Get It Forward, Get It Centered, Get It Smooth

This is where most cap problems are born. The video’s hooping method is straightforward, but the nuance matters. You are looking for a specific tactile feedback: tight, smooth, straight.

1. Fold out the sweatband: Ensure it folds completely out of the way. If it creeps back in, use a piece of tape or clips to hold it.
2. Slide and Seat: Slide the hat under the metal tab as far forward as possible for these specific foam hats. You want the bill to sit flush against the guide.
3. Align the Center: Locate the center seam line. It must align perfectly with the red line or center groove on your station.
4. Clamp and Smooth: Clamp the strap tight. Run your hands over the lower sides of the cap. It should feel taut—like a drum skin. If you can pinch loose fabric near the sewing field, you need to re-hoop.

If you’re using hooping stations, treat the station like a precision measuring tool. Your goal is to reproduce the same tension geometry every single time. A loose hoop leads to "flagging" (fabric bouncing), which breaks needles and ruins registration.

Pro tip from the comment section (turned into a shop rule)

If your design is “less than 2 inches tall” and you’re still hitting the metal strap, shrinking the design usually won’t fix it. The strap crash is typically caused by where the design sits relative to the cap ring hardware, not the design height alone.

Mounting the Cap Ring on the Ricoma Driver: The Groove-Notch “Click” That Saves Your Day

This is the most important mechanical moment in the whole workflow. It is the "make or break" step for alignment.

The video shows a groove on the cap ring and a matching notch on the machine driver. The correct method:

1. Identify: See the groove on the cap ring and the matching notch on the driver.
2. Angle: Rotate the hat sideways (bill at 3 o'clock or 9 o'clock) to clear the needle bar.
3. Spin and Listen: Spin the ring until it physically drops into the groove. You are listening for a sharp metallic "CLICK" or feeling a distinct "THUNK."
4. Avoid Force: Do not shove it straight in. Shoving is how you misalign the ring, bend the driver bar, and create recurrent crashes.

If you’re running ricoma hoops, this “spin until it falls into place” habit is what keeps your trace consistent and your design centered across dozens (or hundreds) of caps.

Warning: Pinch Hazard. Keep fingers, loose sleeves, and snips away from the needle area during trace and start-up. A cap driver holds the work rigidly—if you reach in at the wrong moment, you can get pinched between the driver and the machine arm, or punctured by the needle.

Lock the Three Back Clips Like You Mean It: The Tap Test for Wobble

After seating the ring, the operator squeezes the three locking clips at the back of the driver (two sides, one center).

• Engage: Squeeze the clips firmly until they snap over the ring bar.
• The Tap Test: Gently tap the bill of the hat.
  • Result A: The hat stays rigid. (Pass)
  • Result B: The hat wiggles or tilts. (Fail)
• Correction: If it wobbles, release and squeeze the clips again until it is snug.

This is not optional. A tiny wobble at the driver becomes a 2mm shift at the needle plate, leading to ruined text and broken needles.

Trace Mode on the Ricoma Panel: Avoid the Grinding Sound and Confirm Clearance

The video’s trace sequence includes a detail that saves machines (and nerves). Use the trace feature as your final "flight check."

1. Select Color: Select the needle/color first (the operator selects Needle 3 / Black).
2. Initiate Trace: Press the Trace button (usually the icon with the border box).
3. Auditory Check: Do not hold the needle bar down when you first hit trace—the operator warns it causes an ugly grinding sound. This sound is the stepper motors fighting the manual pressure.
4. Visual Check: Let the machine move into position and trace the design perimeter. Watch the presser foot relative to the metal strap.
5. Manual Check: If needed, lower the needle manually (using the knob or bar, after movement stops) to check exactly where the center and bottom limits land.

During trace, you’re checking three things:

1. Clearance: You are not hitting the metal ring or the strap.
2. Height: You are not going too far up onto the bill curve.
3. Centering: The center of the design matches the center seam of the hat.

If you’re learning ricoma mt 1501 embroidery machine workflows, the trace button is your “cheap insurance.” It costs 10 seconds and saves $15 blanks.

Setup Checklist (End of setup, before you hit Start)

• Seating: Cap ring seated; you felt the drop/click into the groove.
• Security: All three back clips are fully engaged and passed the "Tap Test."
• Clearance: Trace completed with clearance confirmed (no ring/strap contact).
• Needle: Correct needle selected on the panel (video example: Needle 3 / Black).
• Speed: Speed confirmed for the job (video example: 900 SPM). Note: If this is your first batch, lower to 700 SPM.

Running 900 SPM on Foam Caps: What Makes It Safe (and What Makes It a Mess)

The operator runs at 900 stitches per minute and notes they’ve run up to 1000 SPM on a live session without issues. That’s believable on foam fronts because the material is likely laminated with buckram and foam, making it very stable—provided hooping and mounting are correct.

Here’s the reality after two decades in shops: speed doesn’t break hats—inconsistency breaks hats. If one cap is hooped 3mm farther back than the last, your trace might pass, but your stitch path can still flirt with hardware during the run.

A practical production rhythm for a single head:

1. Stitch: Hat A is running.
2. Prep: Hat B is getting hooped on the station.
3. Swap: Stop machine, swap A out, put B in immediately.
4. Repeat: This keeps the machine running 80-90% of the time.

That’s how you keep a single head embroidery machine from feeling “slow.” The downtime is in the operator's hands, not the needle speed.

Why No Backing and No Bill Clips Can Work on Foam Trucker Hats (and When It Won’t)

This video triggers two common comment reactions: “No backing??” and “You didn’t use the clamps.”

The Operator's Evidence:

• No backing was used on these foam trucker hats.
• No bill clips were used. The operator notes they personally use bill clips only on very light, non-structured hats.
• Result: The foam holds the front tight enough for simple registration.

Expert Calibration (When to Ignore This Advice):

• Foam Fronts: Often resist distortion well. Backing may not change the stitch-out much on small, simple, one-color designs.
• Structureless Hats: If you are sewing a "dad hat" (unstructured cotton), you MUST use bill clips and backing (Cutaway). Without them, the fabric will push, pull, and distort.
• Soluble Topping: In the comments, the creator replies: no water soluble is needed for the strap-hitting issue. Generally, topping is strictly for preventing stitches from sinking into pile fabrics (towels, velvet), not for structure.

If you’re tempted to “solve everything” with stabilizer, pause. Stabilizer supports fabric; it doesn’t change where your design sits relative to the cap ring strap.

Stop Hitting the Metal Strap: A Practical Decision Tree That Actually Diagnoses the Cause

When someone says, “I made the design smaller and it still hits the strap,” I immediately think: cap driver geometry + design placement + machine parameters.

Here’s a diagnostic decision tree you can run in under five minutes to stop the crashes.

Decision Tree: Strap/Metal Contact on Cap Embroidery

Step 1: The Mechanical Check Does the cap ring seat with a clear drop/click into the driver groove?

• No: Stop. Reseat it. Insert sideways, spin until it falls into place. Re-trace.
• Yes: Proceed to Step 2.

Step 2: The Stability Check Do you have any wobble when you tap the hooped cap?

• Yes: Stop. Re-squeeze all three back clips until snug. Re-trace.
• No: Proceed to Step 3.

Step 3: The Path Check During trace, does the needle path approach the strap area even before stitching?

• Yes: Your placement is too close to the strap zone for this cap ring setup. Move the design position up (Y-axis) on the panel (not just scale) and re-trace.
• No: Proceed to Step 4.

Step 4: The Zone Check Are you trying to stitch unusually low on the cap face?

• Yes: In the comments, the creator confirms you must change parameters to stitch lower. If you haven’t adjusted the machine's software limits (Cap Frame angle settings), you may be forcing the design into a hardware conflict zone.
• No: Proceed to Step 5.

Step 5: The Style Check Is this a different hat style (bucket/boonie) using a workaround hoop/clamp setup?

• Yes: Don’t assume the same safe area applies. Different fixtures change clearance entirely.
• No: At this point, suspect the design file’s digitizing boundary versus the actual stitch path. Re-check with a slow trace and careful manual clearance check.

If you’re using cap hoop for embroidery machine setups across multiple hat brands (Richardson, Yupoong, Otto), document your “safe zone” per hat style. The same design can behave differently on different cap profiles.

“How Are You Getting That Much Embroidery Area?”—What’s Really Going On

One commenter asks how the operator gets such a large embroidery area on truckers compared to their own machine.

From the video and replies, we can only say this with confidence:

• The operator is using a standard cap driver/ring workflow.
• They mention that to stitch lower, you have to change your parameters.

In practice, “bigger area” on caps usually comes down to three factors:

1. Setup: How consistently you hoop forward and centered. The tighter the hoop, the closer you can get to the bill.
2. Digitizing: Bottom-up sequencing helps push the material away from the clamps.
3. Machine Limits: Adjusting the "Cap Soft Limit" in the machine settings allows the pantograph to travel further down, but this increases the risk of hitting the driver. Proceed with caution.

If you’re running ricoma embroidery machines in production, keep a written cap setup sheet per hat model: forward position, safe lower limit, and any parameter changes you use—because memory fails at hat #73.

Production Reality: Two Designs, 101 Hats, and the Repetition That Makes (or Breaks) Profit

The operator runs two designs across the batch and repeats the same process for every hat. That repetition is exactly why small efficiency upgrades matter.

Here’s the math mindset: saving even 20–30 seconds per hat becomes real money at 101 hats—and life-changing money at 1,000 hats.

Where time disappears on cap jobs:

• Fighting the sweatband and re-hooping.
• Reseating the ring because it wasn’t aligned.
• Re-tracing because the first trace was rushed.
• Fixing wobble after you already started stitching (the most expensive error).

The Tool Upgrade Path

When physical pain or production bottlenecks hit, it's time to troubleshoot your toolkit, not just your technique.

1. Pain Point: Wrist Strain & Hooping Speed on Flats If your hands hurt from screwing and unscrewing hoops all day on shirts and jackets, this fatigue bleeds into your cap runs.

• Solution Level 1: Optimize your hooping station height.
• Solution Level 2: Switch to Magnetic Hoops for your flat items (polos, bags, jackets). Magnets self-align and reduce hand strain significantly. This saves your energy for the cap driver work.

2. Pain Point: "The Single Head Bottleneck" If you are turning down orders because you simply can't stitch fast enough, no amount of hooping speed will save you.

• Solution Level 3: This is the trigger to invest in a SEWTECH Multi-Needle Machine. Moving from one head to multiple heads multiplies your output without multiplying your labor time.

And don’t ignore consumables: consistent thread and the right stabilizer/backing options reduce rework. Even when you run foam caps without backing, you’ll want rolls of cutaway and tearaway on hand for the jobs that truly need it.

The Upgrade Moment: When Your Workflow Is Solid, Scale the Tools (Not the Stress)

Once you can hoop, mount, trace, and run without strap crashes, you’ve earned the right to think about scaling. A smart upgrade path isn't about buying new toys; it's about solving the problem that is currently costing you money.

Scenario: You’re doing repeat cap orders and your bottleneck is “hands-on time per piece.” Judgment Standard: Track how long hooping + mounting + tracing takes per hat for 20 hats. If the average is creeping up because of fatigue or rework, you have a process/tool problem. Options:

1. Refine: Improve consistency first (written setup sheet, tap test, trace discipline).
2. Equip: Add productivity tools where they fit: stabilizer/backing options for tricky fabrics, better thread management, and magnetic frames for non-cap items.
3. Scale: If orders keep growing, consider moving from single-head pacing to higher-output equipment.

Warning: Magnetic Safety. If you use magnetic hoops/frames in your shop, keep magnets away from pacemakers, implanted medical devices, and precision electronics. Stick fingers can be severely pinched by high-strength industrial magnets. Store them with spacers and keep them away from children.

What “Done Right” Looks Like: Clean Stitching, Fast Swaps, and a Table Full of Finished Hats

At the end of the run, the operator shows the completed batch lined up—proof that the boring, repeatable steps are what create a professional result. It wasn't magic; it was physics, verified by sensory checks.

Operation Checklist (End of each hat, before you swap the next one)

• Quality: Hat finished cleanly; inspect the stitch-out while it’s still mounted. Look for valid density and clean edges.
• Unmount: Release clamps and remove the ring without forcing the driver hardware; keep it aligned.
• Reset: Reset your hands to the same hooping routine (sweatband out, forward position, center seam aligned).
• Trace: Trace every time—especially when you’re tired.
• Pace: Keep your pace steady; speed is only “fast” when it’s repeatable.

FAQ

• Q: How do I correctly seat a Ricoma MT-1501 cap ring on the cap driver so the cap ring does not wobble or crash?
  A: Insert the cap ring sideways and spin it until the groove drops into the driver notch with a clear “click/thunk”—do not shove it straight in.
  • Identify the cap ring groove and the matching driver notch before mounting.
  • Rotate the hat sideways (bill at 3 o’clock or 9 o’clock), then spin the ring until it falls into place.
  • Lock the ring using all three back clips (two sides + center) before tracing.
  • Success check: Feel/hear a distinct drop/click and the ring sits flush without needing force.
  • If it still fails: Remove the ring and re-seat again—forcing it can create repeated misalignment and hardware contact.
• Q: How do I use the Ricoma MT-1501 three back clips “tap test” to confirm the cap ring is locked securely?
  A: Squeeze all three driver clips until they snap, then lightly tap the bill to confirm there is zero wiggle.
  • Engage the left, right, and center back clips firmly until they fully snap over the ring bar.
  • Tap the bill gently to test for any tilt or movement.
  • Re-open and re-squeeze the clips if the cap moves even slightly.
  • Success check: The hooped cap stays rigid during the tap test (no wobble/tilt).
  • If it still fails: Re-seat the cap ring into the driver groove/notch (a partially seated ring can never lock tight).
• Q: Why does pressing Trace on a Ricoma MT-1501 sometimes make a grinding sound, and what is the safe Trace sequence for caps?
  A: Do not hold the needle bar down when starting Trace—let the machine move first, then check clearance after motion stops.
  • Select the correct needle/color first on the control panel.
  • Press Trace and keep hands off the needle bar during initial movement.
  • Watch the traced perimeter for presser-foot clearance near the strap and ring hardware.
  • Lower the needle manually only after the machine stops moving if a precise clearance check is needed.
  • Success check: Trace completes smoothly with no grinding sound and no contact near the strap/ring zone.
  • If it still fails: Stop and re-check cap ring seating + back clip lock before adjusting design position.
• Q: How do I stop a Ricoma MT-1501 cap design from hitting the metal strap even after I make the design smaller?
  A: Treat metal-strap contact as a placement/geometry problem—re-seat and stabilize the cap ring, then move the design position (Y-axis) and re-trace.
  • Re-seat the cap ring by spinning until it drops into the driver groove/notch, then lock all three clips.
  • Run Trace and watch whether the perimeter approaches the strap area before stitching.
  • Move the design up/down by position (not just scaling) on the panel, then trace again.
  • If stitching unusually low, change the machine parameters required to stitch lower (follow the machine’s manual for cap limits).
  • Success check: Trace shows clear separation from the strap area across the entire perimeter.
  • If it still fails: Slow down and do a careful manual needle clearance check—suspect hardware zone limits or file boundary vs. actual stitch path.
• Q: What is a safe starting speed (SPM) for running caps on a Ricoma MT-1501, and when is 900 SPM reasonable?
  A: Start caps at 600–750 SPM until hooping and mounting are perfectly consistent; 900 SPM is reasonable only when seating, locking, and tracing are repeatable.
  • Start at 600–750 SPM for first batches to reduce breaks and registration drift.
  • Increase toward 850–1000 SPM only after every cap passes seating “click,” clip lock, and trace clearance checks.
  • Keep a two-ring rhythm (one stitching while one is being hooped) to gain time without forcing speed.
  • Success check: No repeated thread breaks or placement drift across multiple caps at the chosen speed.
  • If it still fails: Lower SPM first—then re-check wobble/tap test and trace clearance before changing anything else.
• Q: Can foam trucker hats be embroidered on a Ricoma MT-1501 without backing and without bill clips, and how do I decide?
  A: Foam fronts often stitch cleanly without backing or bill clips on simple designs, but unstructured hats generally require cutaway backing and bill clips.
  • Run foam trucker hats without backing only if test results match your quality standard on that exact hat + design.
  • Use cutaway backing when the hat is unstructured (floppy) or the design is high-density/heavy fill.
  • Use bill clips when the hat is very light/non-structured to control distortion.
  • Success check: The stitch-out stays registered with clean edges and no visible distortion around the design.
  • If it still fails: Add cutaway backing first (structure support), then reassess hooping tension and trace clearance.
• Q: What consumables and quick self-checks should be prepared before a 100+ cap run on a Ricoma MT-1501 to prevent downtime?
  A: Treat a big cap batch like a repeatable system: start with fresh needles, a fresh bobbin, and a clean cap ring/driver so small issues don’t repeat 100 times.
  • Install a new 75/11 sharp needle and stage a fresh bobbin before starting the batch.
  • Inspect the cap ring edge and driver area for burrs or thread buildup that can snag repeatedly.
  • Pre-sort hats by style (foam trucker vs. bucket/boonie) so you don’t mix clearance rules mid-run.
  • Keep optional temporary spray adhesive, spare wound bobbins, and snips within reach to avoid stopping the machine.
  • Success check: The first 5–10 hats run without recurring thread breaks, snags, or re-seating the ring.
  • If it still fails: Stop and standardize the setup (write down forward position, centering method, speed, and whether backing/clips are used) before continuing.
